USER MANUAL CMPT-CLR60S Infiniton

Line drawing of a double-bay air conditioner tower with base plate (no text or symbols)

Manual del usuario

modelo: CMPT-CLR92S

CMPT-CLR71S

CMPT-CLR60S

Simple line drawing of a laboratory setup with a funnel, control panel, and steaming base (no text or symbols)

Simple line drawing of a rectangular block with a vertical centerline and two horizontal bars below, no text or symbols present.

Simple line drawing of a rectangular block with a vertical centerline and a horizontal base, no text or symbols present.

Correcto Incorrecto

CONEXIONES

Simple line drawing of two cylindrical objects with protrusions, placed on a dashed base (no text or symbols)

MONTAJE DE LA CHIMENEA

Technical diagram showing a door opening and a coiled spring assembly inside a housing (no text or symbols)

Ajuste de velocidad

Illustration of a hand holding a tablet with a finger pointing at it, showing a download arrow (no text or symbols)

LUCES

REEMPLAZO DE LAS LUCES

Reemplace los módulos de las luces

Three-step diagram showing a door panel being adjusted, then using a tool to clean the interior (no text or symbols)

The instructions for Use apply to several versions of this appliance. Accordingly, you may find descriptions of individual features that do not apply to your specific appliance.

INSTALLATION

● The manufacturer will not be held liable for any damages resulting from incorrect or improper installation.
- The minimum distance between the supporting surface for the cooking vessels on the hob and the lowest part of the range hood. (When the range hood is located above a gas appliance, this distance shall be at least 65 cm. If the instructions for installation for the gas hob specify a greater distance, this has to be taken into account. The distance of 65 cm can be reduced for:non-combustible parts of range hoods, and parts operating at safety extra low voltage,Provided these parts do not give access to live parts if deformed;)
- Check that the mains voltage corresponds to that indicated on the rating plate fixed to the hood.
- For Class I appliances, check that the domestic power supply guarantees adequate earthing.
- Connect the extractor to the exhaust flue through a pipe of minimum diameter 120mm. The route of the flue must be as short as possible.
● The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels.
- If the extractor is used in conjunction with non-electrical appliances (e.g. gas burning appliances), a sufficient degree of aeration must be guaranteed in the room in order to prevent the backflow of exhaust gas. The kitchen must have an opening communicating directly with the open air in order to guarantee the entry of clean air.
- When the cooker hood is used in conjunction with appliances supplied with energy other than electric, the negative pressure in the room must not exceed 0.04 mbar to prevent fumes being drawn back into the room by the cooker hood.
- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
● Regulations concerning the discharge of air have to be fulfilled.

Illustration of a kitchen lamp emitting smoke from a stove (no text or symbols)

USE

● The cooker hood is only for home use, not suitable for barbecue, roast shop and other commercial purposes.

● Never use the hood for purposes other than for which it has been designed.

● Never leave high naked flames under the hood when it is in operation.

- Adjust the flame intensity to direct it onto the bottom of the pan only, making sure that it does not engulf the sides.

● Deep fat fryers must be continuously monitored during use: overheated oil can burst into flames.

● Do not flame under the range hood; risk of fire.

● This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

● Children should be supervised to ensure that they do not play with the appliance.

● Cleaning and user maintenance shall not be made by children without supervision.

● "CAUTION: Accessible parts may become hot when used with cooking appliances".

MAINTENANCE

● The cooker hood and its filter should be cleaned regularly according to the instruction.
- Switch off or unplug the appliance from the mains supply before carrying out any maintenance work.
● Clean and/or replace the Filters after the specified period(Fire hazard).
● Clean the hood using a damp cloth and a neutral liquid detergent.
● The appliance uses 4 hob elements at most.

Simple line drawing of a house with a chimney and fire extinguisher, no text or symbols present

The symbol is packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

Ref.	Qty.	Product Components
1	1	Hood Body,complete with: Controls, Light, Blower,Filter.
2.1	1	Lower Decorative Chimney
2.2	1	Upper Decorative Chimney
3	1	Flange (optional)
4	1	Exhaust Pipe
5	2	The Activated Charcoal filter (optional)

Qty. Documentation

1 Instruction Manual

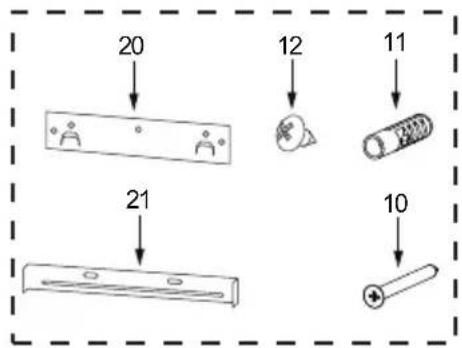

Ref. Qty. Optional Installation Components
10	7	Screws 5 x 50
11	7	Wall Plugs
12	6 Screws 4,2 x 9,5
20 1		Hood fixing bracket
21	2	Chimney fixing bracket

Option	A'hBmney
1	400+390	390	425-760
2	500+490	490	525-960

WALL DRILLING AND BRACKET FIXING

Option	Chimney	X
1	400X390	1 60-500
2	500X490	2 60-700

As a first step, proceed with the following drawings:

• A vertical line up to the ceiling or up to the upper limit, at the center of the area in which the hood is to be fitted.
  ● A horizontal line A at 970 – 1070 mm above the cooker top.
  ● A horizontal line B at a X mm above the horizontal line A.
  ● A horizontal line C at a 243 mm below the horizontal line A.

Mark Points:

● Mark a point (1) on the horizontal line A, 80 mm to the vertical reference line.
- Repeat this operation on the other side and on the vertical reference line, checking that the three marks are leveled.
● Mark a point (2) on the horizontal line B, 60 mm to the vertical reference line.
- Repeat this operation on the other side, checking that the two marks are on the same horizontal line.
- Mark a point (3) on the horizontal line C, 100 mm to the vertical reference line. Repeat this operation on the other side, checking that the two marks are leveled.

Fix the brackets :

● Drill holes at the marked points with a φ 10 mm drill bit.
- Insert the Wall Plugs 11 into the holes.
● Fix the hood fixing bracket 20 with 3 screws 10 (5 x 50) at the horizontal line A.
● Fix a Chimney fixing bracket 21 with 2 screws 10 (5 x 50) at the horizontal line C.

Hook the hood body

● Hook the hood body to the bracket 20.
● Level the hood body itself.
- Remove the filter from the inside of the hood body, fix the screws 10 to Wall Plugs 11 at the points (3).

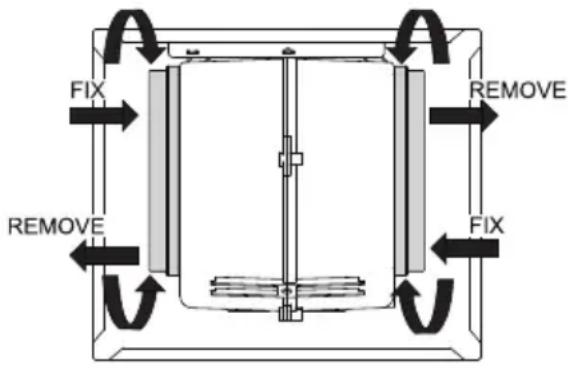

Simple line drawing of a rectangular block with a vertical centerline and two horizontal bars below, no text or symbols present.

Simple line drawing of a rectangular block with a horizontal bar and a vertical centerline, no text or symbols present.

Right Wrong

CONNECTIONS

DUCTED VERSION AIR EXHAUST SYSTEM

When installing the ducted version, connect the hood to the chimney using either a flexible or rigid pipe φ 150 or φ 120 mm, the choice of which is left to the installer.

• If to install a φ 120 mm air exhaust connection, insert the reducer flange 3 on the hood body outlet.
  ● Fix the pipe 4 in position using sufficient pipe clamps (not supplied).
• Remove possible charcoal filters.

Simple line drawing of two cylindrical objects with protrusions, placed on a dashed base (no text or symbols)

CHIMNEY ASSEMBLY

The chimney can only be installed with exhausting hood.

Lower Decorative Chimney

● Fix a Chimney fixing bracket 21 onto the Lower Decorative Chimney with 2 screws 12 (4.2x 9.5) supplied with the hood.

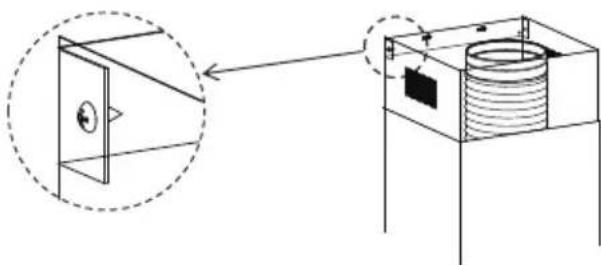

Upper Decorative Chimney

• Insert the upper decorative chimney 2.2 into the lower decorative chimney 2.1 and drag it up to the bracket 21.
  ● Fix the upper chimney onto the bracket 21 with 2 screws 12 (4.2 x 9.5) supplied with the hood.

Technical diagram showing a door opening and a cylindrical component with a hanging part, connected by an arrow (no text or symbols present)

Speed adjustment.

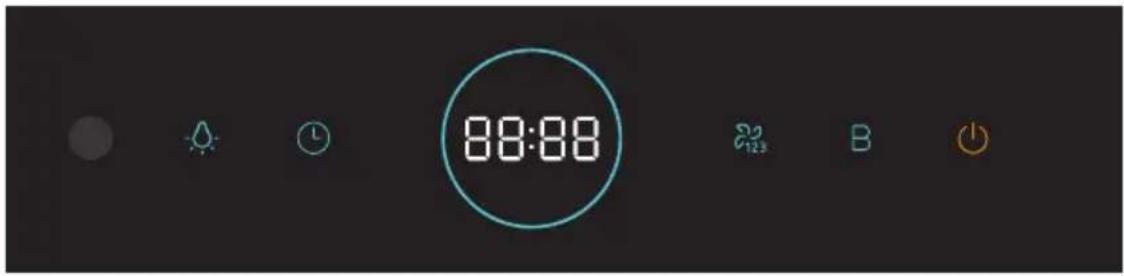

The keys from left to right are light, clock/timing, speed, booster and power.

1.power up

1.1 once power up, the buzzing starts, the screen elements are all displayed, the key lights are all lit up and continue for 1S. During the period, the key operation does not respond. After 1S, the key operation enters the shutdown state. The screen display is 12:00, and the key lights are off. At this time, the remote control operation can be responded.

2."power" function

2.1 Under on standby condition:

Press the "power" key to enter the constant speed operation, and the speed is "memory speed" (that is, the last adjustment of the user's constant speed).

1-3 speed is valid, the first power on default 2 speed, booster and delay shutdown of 1 speed do not participate in "memory".

2.2 Under working condition:

Short press the "power" button, the whole machine is adjusted to the delayed shutdown state, the speed is adjusted to 1 speed, the screen shows

3MIN countdown, the aperture is all bright.

2.3 Under delayed shutdown condition:

Short press "power" button to shut down;

3. Light function

When the fan is closed, the light is synchronously closed. In other times, the "light" function can be operated independently. The "light" key is pressed short to switch the light function, and the light is closed in any form of shutdown or error reporting.

4. Adjustment of "Speed"

4.1 In the shutdown state, press the "power" button to enter the constant speed operation state, and the "power" and "speed" lights are all on.
4.2 In the startup state, the screen shows the speed in the middle, 1-3 in the constant speed, and B in the booster:

A. Shortly press the "B" key, which will switch between B speed and the 3 speed.
B. Shortly press the "speed" key, it will switch between 1-3 speed in cycles.
C. There is no operation under B speed. After 3 minutes, it will automatically run in 3 speed.
D. Press the "power" key and enter the state of delayed shutdown. The "speed" and "B" lights go out. The "power" lights flicker.

4.3 In the state of delayed shutdown:

A. Press the "B" key and enter the B speed. The "B" key is always on, the "speed" lamp is off, and the "power" lamp is always on.
B. Press the "speed" key and enter the start-up mode of constant speed (adjusting to the last constant speed). The "speed" and "power" lights are always on and the "B" lights are off.

5. Clock function

On standby :

5.1 Press the clock/timing button, the clock/timing button light is always on, the hour flashes, the minute is always on, then press the "wind speed" button to adjust the hour and the long press to adjust quickly; press the "clock/timing" button again, the hour is always on, the minute flickers, press the "wind speed" button to adjust the minute, and the long press to adjust quickly; press the "clock/timing" button again, then the knot will knot. Bundle time setting.

5.2 In the process of setting up, the 5S keyless will end setting, restore standby state and save the adjusted time.

6."Timing" function (error (+10%)

In "B" speed or "Constant" speed

6.1 If the current timing function is not enabled, the timing function is enabled by pressing the "clock/timing key" for a long time. The timing key lights up and the screen displays the timing time in the format of "hour: minutes" without leading zeros.

6.2 If the current timing function has been enabled, the setting time can be switched by pressing the "clock/timing key" (7 options can be choiced: 15 min, 30 min, 45 min, 1 h, 1.5 h, 2 h, 3 h). When switching to a new timing time, the screen displays flickering for 3 seconds (including colons). If there is no operation in the flickering process, the current timing time will be applied to start countdown and the screen display stops flickering (colon remains scintillating), refresh display remaining time (step value is 1 min);

1. Infrared remote control function

Press the corresponding button on the remote controller, which can control the switch and speed adjustment of the hood and the opening and closing of the lighting.

Button Function		Remarks
	Turns the Motor ON.	When is off.
	Enable shutdown the Motor with a 3 minutes delay meanwhile flashes.	When is on.
	Turns the Motor OFF.	When is flashing.
	Turns the Motor on at speed Low.	Buttons + are on.
	Turns the Motor on at speed Medium.	Buttons + are on.
	Turns the Motor on at speed High.	Buttons + are on.
	Turns the Lighting System on and off at maximum intensity.	Button on.
	Turns the Motor on at speed BOOST.	Buttons + are on.

GREASE FILTERS

CLEANING METAL SELF-SUPPORTING GREASE FILTERS

• The filters must be cleaned every 2 months of operation, or more frequently for particularly heavy usage, and can be washed in a dishwasher.

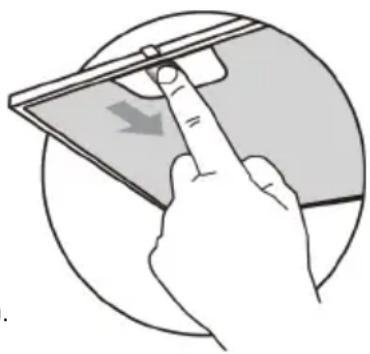

• Remove the filters one by one pushing them towards the back side of the hood unit and simultaneously pulling downwards.
• Any kind of bending of the filters has to be avoided when washing them. Before fitting them again into the hood make sure that they are completely dry. (The color of the filter surface may change throughout the time but this has no influence to the filter efficiency).
• When fitting the filters into the hood pay attention that they are mounted in correct position the handle facing outwards.

Illustration of a hand interacting with a device, showing a finger pointing at a screen (no text or symbols present)

ACTIVATED CHARCOAL FILTER (RECIRCULATION VERSION)

These filters are not washable and cannot be regenerated, and must be replaced approximately every 4 months of operation, or more frequently with heavy usage.

REPLACING THE ACTIVATED CHARCOAL FILTER

• Remove the metal grease filters.
• Remove the saturated activated charcoal filter.
  ● Fit the new filters.
• Replace the metal grease filters.

LIGHTING

LIGHT REPLACEMENT

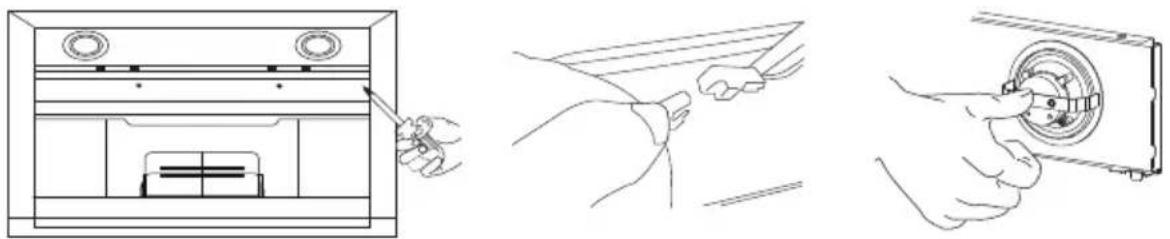

Replacing the light modules

• You cannot replaced the light bulbs, the entire light module has to be replaced.
• When changing the light modules, the contacts are live.

• Before changing the light module(s), unplug the appliance from the mains or switch off the circuit breaker in the fuse box.

• Remove the grease filter and carefully remove the 2 screws from the front plate (a cross headed screwdriver will be needed to remove the screws).

• Disconnect the terminal of LED light.
• Press LED light on the back of the front plate, take the LED light out.
• Replace the lamp(commercially available LED lamp (max.1.5w).

Three-step diagram showing a door panel being adjusted, then holding a circular device with a tool (no text or symbols)

	Max Power	Voltage	Picture Lamp Cap ILCOS D code
Square / Diameter:33.2mm x 120mm	1.5W DC	12 V		— —	DSS-1.5-S-33.2/120

• Press LED light on the front of front plate, install the LED light on the front plate.
• Connect the terminal of LED light and light leads.
• Carefully fasten the 2 screws on the front plate, reinstall the grease filter.

DISPOSAL OF OLD ELECTRICAL APPLIANCES

The European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment.

The crossed out "wheeled bin" symbol on the product reminds you of your obligation, that when you dispose of the appliance, it must be separately collected.

Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

Fault Cause	Solution
Light on, but motor does not work	The blades are blocked.	Check the blades.
	The capacitor is damaged. Replace capacitor.
	The motor is damaged. Replace motor.
	The internal wiring of motor is cut off/disconnected. An unpleasant smell may be produced.	Replace motor.
Both light and motor do not work	Apart from the above mentioned, check the following:
	Light damaged. Replace lights.
	Power cord loose.	Connect the wires as the electric diagram.
Oil leakage	Outlet and the air ventilation entrance are not tightly sealed.	Take down the outlet and seal with glue.
Vibration	The blade, if damaged, can cause vibrating.	Replace the blade.
	The motor is not tightly fastened. Fasten the motor tightly.
	The cooker hood is not tightly fixed. Fixed the cooker hood tightly.
Insufficient suction	The distance between the cooker hood and the cooker top is too large.	Readjust the distance.
	Too much ventilation from open doors or windows.	Choose a new place to install the appliance or close some doors / windows.
The machine inclines	The fixing screws are not tight enough.	Tighten the fixing screw and make it horizontal.
	The hanging screws are not tight enough	Tighten the hanging screw and make it horizontal.

Simple line drawing of a laboratory setup with a lamp, control panel, and heating element (no text or symbols)

MANUTENÇÃO

Simple line drawing of a house with a stove and fire, no text or symbols present

Simple line drawing of a rectangular block with a vertical centerline and two horizontal bars below, no text or symbols present.

Simple line drawing of a rectangular block with a horizontal bar and center cross (no text or symbols)

Correto Incorrect

CONEXÕES

VERSÃO DO DISPOSITIVO DE ESCAPE A SAÍDA DO AR.

Simple line drawing of two cylindrical objects with protrusions, placed on a dashed base (no text or symbols)

MONTAGEM DA CHAMINÉ

Technical diagram showing a door opening and a coiled spring assembly inside a housing (no text or symbols)

Illustration of a hand interacting with a tablet device, showing a finger pointing at the screen (no text or symbols present)

FILTRO DE CARBONO ACTIVO (OPCIONAL - NÃO INCLUIDO)

LUZES

SUBSTITUIÇÃO DAS LUZES

Substitua os módulos de luzes

Three-step diagram showing a door panel being inserted, then holding a circular component, and finally adjusting the lid (no text or symbols present)
