OPV3860ds - Kitchen hood Concept - Free user manual and instructions

Product Type	Telescopic Kitchen Hood
Installation Type	Built-in cabinet
Dimensions (H x W x D)	280 x 595 x (285+36) mm
Weight	7.4 kg
Power Supply	220-240 V, 50/60 Hz
Total Power Input	104 W
Motor Power	100 W
Ventilation Speeds	3
Maximum Airflow (Exhaust)	517 m³/h
Noise Level (Ventilation)	65 dB
Lighting	2 x 2 W LED bulbs
Outlet Duct Diameter	150 mm
Grease Filters	2 metal filters, dishwasher safe
Carbon Filter (optional)	2 required for recirculation (not included)
Modes	Exhaust or recirculation
Installation Height Above Electric Hob	≥650 mm
Installation Height Above Gas Hob	≥750 mm
Control Panel	Touch buttons with display
Slide-Out Front	Yes, mechanism with safety cut-off when retracted
Cleaning	Metal filters every month; exterior with damp cloth
Carbon Filter Replacement Interval	Every 2-3 months (normal use)
Warranty	Subject to proper installation; defects from improper installation not covered
Safety Features	Thermal overload protection, automatic shut-off when slide-in is closed

Frequently Asked Questions - OPV3860ds Concept

What is the minimum installation height above an electric hob?

The minimum height is 650 mm above electric cookers or cooking plates.

How often should the metal grease filters be cleaned?

In normal use, clean the metal filters every month. More frequent frying may require shorter intervals. They can be washed in a dishwasher at temperatures below 60°C.

Do I need to purchase carbon filters separately?

Yes, carbon filters are not included. You need to buy 2 carbon filters if you want to use the recirculation mode.

How do I replace the carbon filter?

First remove the metal grease filters (see Fig. 1). The carbon filters are located on both sides of the motor. Turn them to release, replace with new ones, and reinstall the metal filters. Replace every 2-3 months.

Why is the motor not working even though the lights are on?

Possible cause: motor blades blocked or damaged. Contact service centre. Also check plug connection and wall outlet voltage.

The lights do not turn on and the motor is idle.

Check if the plug is properly inserted and the socket is live. If both are fine, the control panel may be inactive because the slide-out front is not deployed. The hood only works when pulled out.

Can I use the hood without pulling out the slide-out front?

No, the control panel and ventilation only operate when the slide-out front is deployed. When inserted, all functions are turned off.

Why does the hood vibrate when running?

Vibration may be due to motor blade damage, loose motor mounting, or the hood not being fastened securely. Tighten fasteners or contact service.

What does the warranty cover?

The warranty covers manufacturing defects but not defects caused by improper installation. Only qualified service technicians should repair the appliance.

Is it safe to use the hood with a gas cooker?

Yes, but maintain a minimum distance of 750 mm above the gas hob. Ensure the flame does not get too close and always monitor deep frying to prevent fire.

USER MANUAL OPV3860ds Concept

PODĚKOVÁNÍ

Illustration of a hand pointing at a device with a downward arrow, enclosed in a circular frame (no text or symbols)

Obr. 1

Obr. 3

Technical line drawing of a mechanical housing assembly with mounting brackets and internal components (no text or symbols)

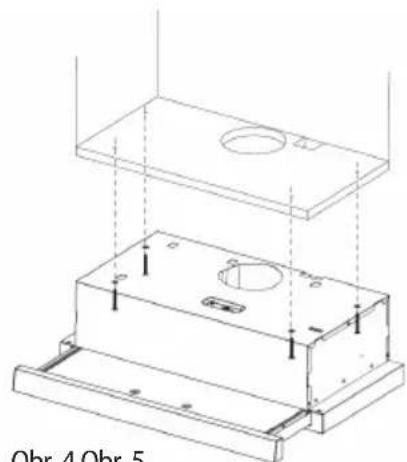

Obr. 4 Obr. 5

Technical line drawing of a mechanical housing or enclosure with mounting base and internal components (no text or symbols)

Pure technical line drawing of a mechanical assembly with no text or symbols

správně

Simple line drawing of a mechanical component with a central axis and two rectangular blocks (no text or symbols)

špatně
Obr. 6

Demontáž

POPIS OVLÁDACIEHO PANELU

1 Tlačidlo zapnutia/vypnutia prístroja
2 Tlačidlo plus (+)
3 Displej
4 Tlačidlo mínus (-)
5 Tlačidlo zapnutia/vypnutia osvetlenia

POPIS JEDNOTLIVÝCH TLAČIDIEL OVLÁDACIEHO PANELU

Illustration of a hand holding a tablet device with a finger pointing at it, showing a download arrow (no text or symbols present)

obr. 1

obr. 3

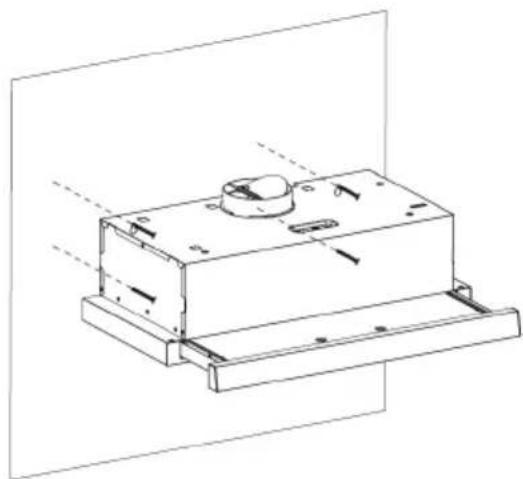

Technical line drawing of a mechanical housing or enclosure with mounting base and internal components (no text or symbols)

Pure mechanical assembly diagram showing two stacked plates with a central bracket and alignment lines (no text or symbols)

Simple line drawing of a rectangular block with a vertical line and a small rectangular object on top (no text or symbols)

správne nesprávne

obr. 6

obr. 7

Demontáž

Illustration of a hand holding a tablet device with a finger pointing at it, showing a download arrow (no text or symbols present)

Pamiętaj:

Rys. 3

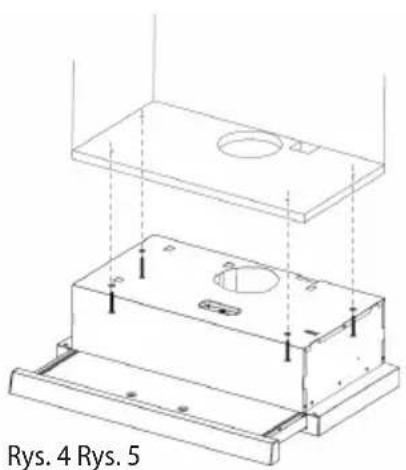

Technical line drawing of a mechanical housing assembly with mounting base and internal components (no text or symbols)

Technical line drawing of a mechanical housing or enclosure with mounting base and internal components (no text or symbols)

Pure technical line drawing of a mechanical assembly with no text or symbols

Simple line drawing of a rectangular block with a vertical dashed line and a small rectangular object on top (no text or symbols)

Demontaż

Illustration of a hand holding a tablet device with a finger pointing at it, showing a download arrow (no text or symbols present)

1. att.

1. att

Technical line drawing of a mechanical housing or enclosure with mounting base and internal components (no text or symbols)

Pure technical line drawing of a mechanical assembly (no text or symbols)

Simple line drawing of a mechanical component with no text or symbols

pareizi
nepareizi
6. att

Demontāža

Thank you for purchasing the Concept product. We want you to be satisfied with everything we make every day you use it.

Please read the instructions carefully before initial use. You should retain them for future reference. Ensure that anyone using this product is familiar with the instructions.

TABLE OF CONTENTS

Technical specifications

Important safety information

Product description

Control panel description

User manual

Cleaning and maintenance

Installation of the appliance

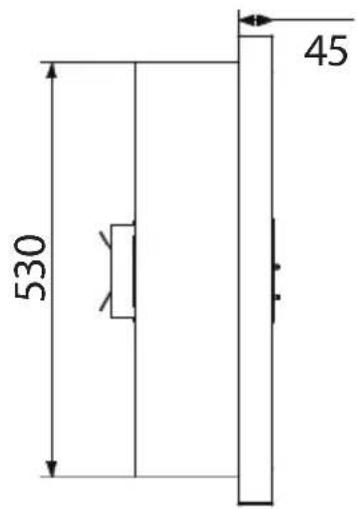

Dimensions

Troubleshooting

Service centre

Environmental protection

TECHNICAL SPECIFICATIONS
Voltage 220-240 V, 50/60 Hz
Total power input 104 W
Motor power input 100 W
Type Telescopic
Assembly into cabinet
Height 280 mm
Width 595 mm
Depth - body + moulding 285 + 36 mm
Diameter of flexible outlet duct 150 mm
Extracted air output stages 3
Capacity of extracted air 517 m	^3/h
Fat filters 2
Required number of carbon filters for recirculation 2
Mode	Ventilation/recirculation
Lightning	2 x 2 W
Weight 7.4 kg
Noise level of ventilation/recirculation	65 dB

The manufacturer reserves the right to make potential technical changes, typographical errors and any differences in the representation without prior notice.

IMPORTANT SAFETY INFORMATION

Upon delivery of fume hood

• Immediately after delivery, check the package for any damage during shipping.
• Caution! Caution! Some edges of this appliance that are hidden after installation are sharp! Be careful not to get cut when handling an uninstalled unit.
• Do not install the appliance if it has been damaged. Contact the store where you purchased it immediately.
• Remove all the packaging and marketing materials before first use.
• Keep the packaging materials away from children or dispose of them properly.

During installation

• Do not use the appliance in any other way than as described in this manual.
• Only use it as a household appliance and for removal of fumes arising from cooking of food or for recirculation and absorption of smells arising from cooking of food.
  • This appliance can be used in households and similar places like:

- Kitchen cabinets in shops, offices and other workplaces.

- Appliances used in agriculture.

- Appliances used by guests in hotels and other areas in a hotel environment.

- Appliances used in a Bed and Breakfast environment.

• Do not touch the appliance with wet hands.
• Do not allow children or unauthorized people to handle the appliance, use it out of their reach.
  • Children should not play with the appliance.
• Pay extra attention if the appliance is used near children.
• Do not allow the appliance to be used as a toy.
• This appliance can be used by children aged 8 years and over. Persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, should be supervised or familiarized with the instructions for use of the appliance in a safe way and have been made aware of the risks involved.
• If a malfunction occurs, turn off the appliance and unplug it from the wall outlet.
• When disconnecting the unit from the wall outlet, never pull the power cord, grasp the plug end and disconnect it by removing it from the receptacle.
• Do not immerse the power cord or the plug in water or any other liquid.
• Check the appliance and the power cord for damage regularly.

• Do not switch on the appliance if it has been damaged.

• Unless the appliance is in operation, ensure that all its controls are switched off.

• Do not manipulate with an open flame (e.g. singeing) under the appliance. If you remove a cooking vessel from a gas burner, reduce its flame to minimum or turn it off!
• Caution! Risk of fire! Care must be taken to ensure that the diameter of the gas burners on the gas cooker or the cooking plate corresponds to that of cooking utensils used. If cooking vessels with a diameter lower than recommended are used, the flame could start to burn around the cooking vessel resulting in a risk of melting plastic handles.
• While deep frying or frying of food, observe this food all the time. In the case of oil overheating, there is a risk of fire!
• Ensure that the flames do not get too close to the appliance.
• Observe intervals for replacement and cleaning of filters (at least every 2-3 months). Failure to observe these requirements results in a risk of fire due to fat accumulating in the filters!
• All the respective current standards and official regulations must be observed relating to the removal of the extracted air.
• A ventilation duct diameter for the removal of the extracted air should be approximately the same or larger than that of the hood's flexible outlet duct.
• Extracted air should not be led to a chimney intended for discharge of flue gases and combustion products or a shaft serving for ventilation of rooms where fireplaces are situated.
• When the appliance and fireplaces are in operation simultaneously, vacuum in the room should not be higher than 4 Pa (0.04 mbar).
• Do not use any accessories other than those recommended by the manufacturer.
• Do not use accessories with damaged surface treatment or if it has been worn out or has other defects.
• Do not use any corrosive cleaning agent for cleaning. Maintenance and cleaning on a regular basis extend the lifetime of the appliance.
• Cleaning and user maintenance shall not be made by children unless they are older than 8 years and supervised.

Possible defects

• Only qualified service technicians should repair or perform maintenance to this appliance.
• During the repairs the appliance must be disconnected from the power. Switch off the circuit breaker or remove the plug from the wall outlet.
• When disconnecting the unit from the wall outlet, never pull the power cord, grasp the plug end and disconnect it by removing it from the receptacle.
• If the power cord is damaged, contact the authorised service centre.

If you fail to follow these instructions, any possible repair cannot be recognized as a warranty repair.

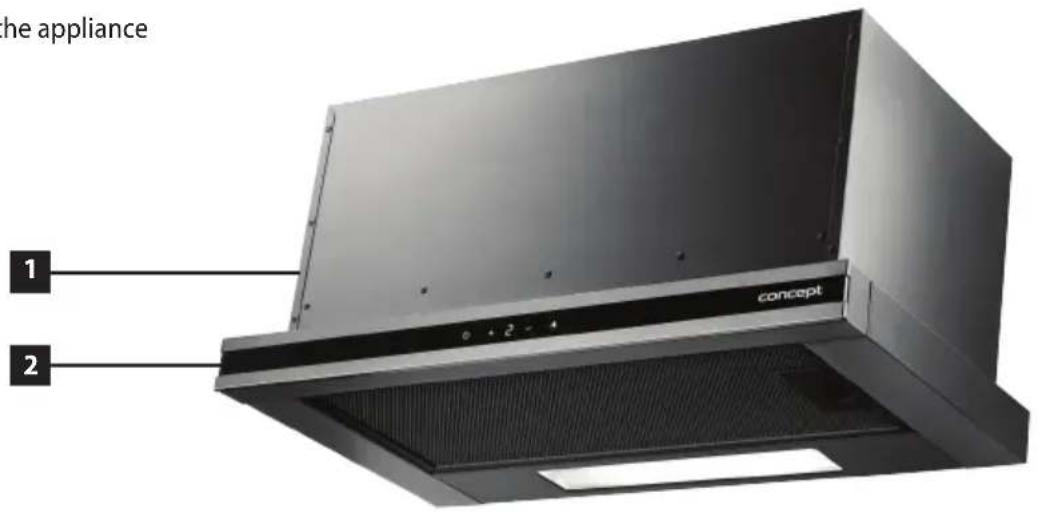

PRODUCT DESCRIPTION

1 Appliance body
2 Slide-out front of the appliance

CONTROL PANEL DESCRIPTION

1 Appliance On/Off button
2 Plus (+) button
3 Display
4 Minus (-) button
5 Lighting On/Off button

DESCRIPTION OF CONTROL PANEL BUTTONS

Appliance On/Off button

• Press and hold the button to turn the appliance on, press the button again to turn the appliance off.
• When pushed, the button illuminates.
• When the appliance is turned on again, the extracted air output will be set to the last set output value. This value is shown on the display.
• However, when the appliance is switched on again with the slide-out front inserted, the exhaust air output will always be set to the lowest output value (1).

Plus (+) button

• Push the button to increase extracted air exhaust output.
• When pushed, the button illuminates and the display shows the output value (1-3).
• If the output value is 3 and the plus (+) button is pushed, only an audible signal will sound and the display will show the highest output value (3).
• You can increase the extracted air output only when the appliance is switched on.

Display

• The display shows the extracted air exhaust output.

Minus (-) button

• Push the button to decrease extracted air exhaust output.
• When pushed, the button illuminates and the display shows the output value (1-3).
• If the output value is 1 and the minus (-) button is pushed, only an audible signal will sound and the display will show the lowest output value (1).
• You can decrease the extracted air output only when the appliance is switched on.

Lighting On/Off button

- Press and hold the button to turn the lights on, press the button again to turn the lights off.

USER'S MANUAL

Before first use

Before first use you should wipe the outside and inside of the appliance with a damp cloth for hygiene reasons.

Ventilation mode

The extracted air is discharged through the flexible outlet duct to the ventilation shaft out of the room. If the appliance is equipped with a carbon filter, remove it (see chapter Cleaning and maintenance).

1. Deploy the slide-out front to the desired distance.
2. When the slide-out front is deployed, all the buttons and the screen will be lit for a moment. Simultaneously, a beep sound will occur to signalise the control panel buttons are active.
3. Press and hold the button (1) to turn the appliance on.
4. Using buttons (2) and (4) select the required value of the extracted air exhaust output.
5. The display shows the output value (1-3).
6. Push button (1) to switch the appliance off.

Recirculation mode

If it isn't possible to extract exhaust air from the room, recirculation mode can be used. In this case, the exhaust air is filtered through a metal grease filter and a carbon filter. The activated carbon in this filter helps reduce unpleasant odors. The air then enters the room through openings in the top cover of the chimney. For hoods built into the cabinet, it is important that the filtered air is directed back into the room, otherwise the hood will not work properly.

When using the recirculation mode, a suitable carbon filter must be purchased and installed (see chapter Cleaning and maintenance).

Attention:

When using the recirculation mode (mounting a carbon filter), the extract air output may decrease.

Turning the lights on/off

1. Deploy the slide-out front to the desired distance.
2. When the slide-out front is deployed, all the buttons and the screen will be lit for a moment. Simultaneously, a beep sound will occur to signalise the control panel buttons are active.
3. Press and hold the button (5) to turn the lights on.
4. Press the button (5) again to turn the lights off.

Note:

• Lightning cannot be turned on if the slide-out front of the appliance is inserted.

Notes

1. If the slide-out front of the appliance is inserted, the control panel is inactive and either the ventilation or the lightning cannot be turned on.
2. The appliance or the lightning can be turned on only when the slide-out front is deployed.
3. When the slide-out front gets inserted, all the active functions are turned off and the control panel buttons are deactivated.

CLEANING AND MAINTENANCE

• Disconnect the power cord from the wall outlet or switch off the circuit breaker of the appliance before cleaning and maintenance.
  • To clean the appliance outside, use a damp cloth, a soft brush or a fine sponge, and then wipe it dry.
• Do not use coarse abrasive cleaning agents or sharp metal scrapers for cleaning of the appliance as this could result in surface scoring.
• Do not use steam jets to clean the appliance!
  • Never leave aggressive or acidic substances (lemon juice, vinegar) on enamelled or stainless parts of the appliance.

Cleaning and replacement of filters

Metal fat filters

When the appliance is in common use, the metal fat filters should be checked or cleaned every month. In case of more frequent frying or deep frying, shorten this interval.

Do not use the appliance without the metal fat filters properly installed!

1. Remove the metal filters as shown in Fig. 1.

2. We recommend to soak the metal filters in warm water with a detergent, then to clean with a soft brush, rinse with clean water and allow to dry. The filters are also dishwasher safe using a program below 60 °C. In this case, it is necessary to avoid the use of aggressive detergents –the aluminum filters can blacken under the influence of the chemical reaction.

3. Attach the dried filters back.

Illustration of a hand interacting with a tablet device, showing a finger pointing at the screen (no text or symbols present)

Fig. 1

Carbon filter (to be purchased)

This filter is only used for the recirculation mode.

The filter contains an active carbon absorbing the smell being discharged. The active carbon will be saturated after some time, hence the absorption capacity will be shortened. This filter cannot be washed or cleaned in any other way.

When the appliance is in common use, the carbon filter should be replaced every 2-3 months. In case of more frequent frying or deep frying, shorten this interval.

1. Remove the metal filters as shown in Fig. 1.

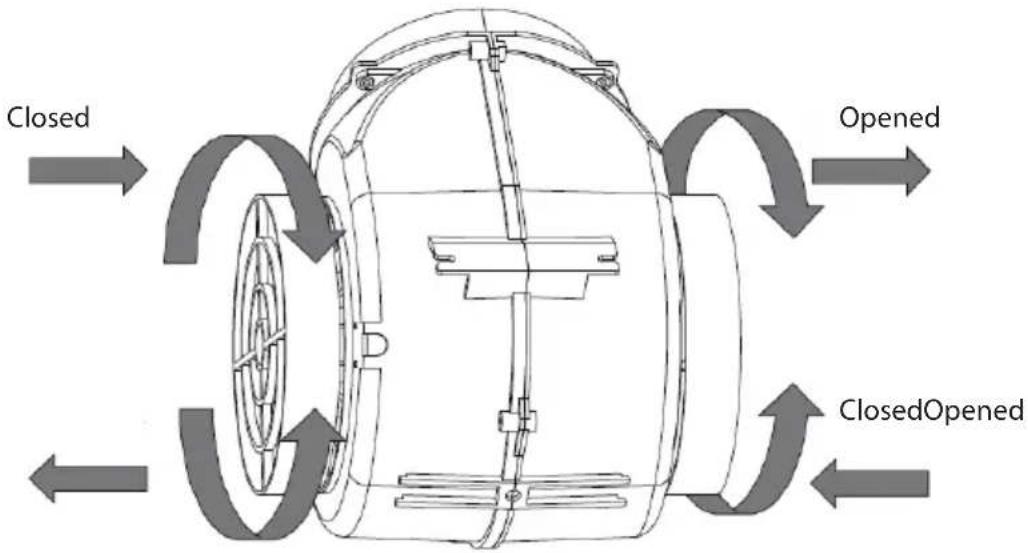

2. The carbon filters are situated on both sides of the motor. Turn the filters, until they are secured (see Fig. 2).
3. To replace the carbon filter, proceed in reverse order.

Fig. 2

INSTALLATION OF THE APPLIANCE

Caution!

Risk of electric shock! Before installation, disconnect the power cord from the wall outlet. Otherwise there is a risk of death or electric shock.

• Defects caused by improper installation are not covered by the warranty.
  • Installation is the responsibility of the customer not the manufacturer.
• The manufacturer bears no responsibility for damage caused to people, animals or property due to incorrect installation.
• All guards must be placed firmly in their appropriate place in a way they cannot be removed without using special tools.
  • Install the appliance at least 650 mm over electric cookers or electric cooking plates and at least 750 mm over gas cookers or gas cooking plates.
• Extracted air should not be led to a chimney intended for discharge of flue gases and combustion products or a shaft serving for ventilation of rooms where fireplaces are situated.
• A bend of the ventilation pipe should be ≥ 120^ .
  • The room must be well ventilated during cooking.Connection to the mains
  • Make sure the mains voltage and current protection correspond to the values on the rating plate of the appliance.
• Only use grounded sockets.
• Do not use multiple sockets, plugs and extension cords.
• The plug of the power cord on the appliance must be freely accessible even after the installation.
  • Changes in a connection may only be performed by a qualified professional.
• Electrical safety of the appliance can be guaranteed only if the protective terminal of the appliance is connected to the protective conductor of the mains.
• The manufacturer bears no responsibility for damage to persons or property as a result of missing or bad protective connection.

DIMENSIONS

When installing the appliance, follow these steps:

1. Remove all the packaging and marketing materials before first use.
2. Mark the required installation height (650 mm for electric and 750 mm for gas cooking plates) on the wall behind the cooker or the cooking plate (Fig. 3).
3. Draw a vertical line to mark the centre of the cooking plate (of the cooker).
4. Drill the holes and attach the hood to the top cabinet according to Fig. 4, or to the wall according to Fig. 5.
5. Make sure that the hood is in the horizontal position in order to prevent grease (fat) from accumulating on one side of the appliance (Fig. 6).
6. After the hood has been hung, install the flexible outlet duct to the outlet opening (Fig. 7). Use a reducer fitting 150/120 mm in diameter, if required. Insert the second part of the flexible duct in the opening prepared in the wall.
7. Plug the power cord into the wall outlet.

Fig. 3

Technical line drawing of a mechanical housing assembly (no text or symbols)

Fig. 4 Fig. 5

Technical line drawing of a mechanical housing or enclosure with mounting base and internal components (no text or symbols)

Pure technical line drawing of a mechanical assembly with no text or symbols

correct

Simple line drawing of a mechanical component with a central axis (no text or symbols)

incorrect
Fig. 6

Fig. 7

Disassembling

If you disassemble the appliance, it is important to follow the steps in the correct order:

1. First, unplug the power cord from the mains (pull the plug out or switch off the circuit breaker).
2. Subsequently disassemble individual parts of the hood in reverse order of the appliance installation.

TROUBLESHOOTING

Defect description Possible cause Solution
Lamps illuminate but the motor stands idle	The motor blades are blocked. Contact the service centre.
	The motor or its essential parts are damaged.	Contact the service centre.
	The plug inserted incorrectly or insufficiently in the wall outlet.	Check connection of the plug.
	The wall outlet is not energized.	Check that the wall outlet is energized, e.g. by connecting another appliance.
Lamps do not illuminate and the motor stands idle	The plug inserted incorrectly or insufficiently in the wall outlet.	Check connection of the plug.
	The wall outlet is not energized.	Check that the wall outlet is energized, e.g. by connecting another appliance.
Fat drops from the metal fat filters	Heavily fouled filters. Risk of fire!	Immediately clean or replace the metal fat filters.
The appliance vibrates when it is on	The motor blades are damaged. Contact the service centre.
	The motor is not fixed fast.	Contact the service centre or fix the motor fast.
	The hood is not fixed fast. Fix the hood fast.
Insufficient exhaust of the extracted air	Distance between the hood and the cooking plate is too long.	Reduce distance between the hood and the cooking plate.
	Strong draught, too many doors or windows opened.	Close some doors or windows.
The motor stopped working	The thermal overload protection against the motor overheating triggered.	Improve the room ventilation, open doors or windows or check distance between the hood and the cooking plate. If required, increase distance between the hood and the cooking plate.
The hood is not levelled	The hood is not levelled or the bracket screws are not tightened properly.	Check the hood for being levelled or tighten holding screws and level the hood.

Changing the bulb

Lightning inside the appliance is provided by 2 x 2W LED bulb.

To replace the bulb, proceed as follows:

1. Disconnect the appliance from the mains or switch off the circuit breaker.
2. Remove the metal filters (see Cleaning and Replacing Filters) and replace the bulb of the same type and values.
3. When installing a new light bulb, use a cloth or paper towel to hold the bulb.
4. Install the metal filter back in place.

SERVICE CENTRE

Extensive maintenance or repair, which requires access to internal parts of the product, has to be performed by a qualified specialist or the service centre.

ENVIRONMENTAL PROTECTION

• Prefer recycling of packaging materials and old appliances.
• Packaging materials may be disposed of as sorted waste.
• Dispose the plastic bags made of polyethylene (PE) of as sorted waste.

Recycling of the appliance at the end of its lifespan:

This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE). The symbol on the product or its packaging indicates that this product may not be treated as household waste. It is necessary to take it to a container park for the recycling of electrical and electronic equipment. By ensuring the correct disposal of this appliance you will help prevent potential negative consequences to the environment and human health, which could otherwise result from inappropriate disposal of this product. Disposal must be performed in accordance to the regulations for waste disposal. For more detailed information about recycling of this appliance see the authorized local office or service for household waste disposal or the shop, where you purchased the appliance.

POLSKA sp. z o.o. 30

53-238 Wrocław [phone]

CONCEPT POLSKA sp. z o.o.
