SVCT6651 - Kitchen hood SVAN - Free user manual and instructions
Find the device manual for free SVCT6651 SVAN in PDF.
Pick your language and provide your email: we'll send you a specifically translated version.
| Product Type | Kitchen hood, built-in |
| Brand | SVAN |
| Model | SVCT6651 |
| Width | 60 cm |
| Height | Approx. 100-120 cm (adjustable) |
| Depth | Approx. 50 cm |
| Weight | Approx. 15 kg |
| Power Supply | 220-240 V ~ 50 Hz |
| Motor Power | 230 W |
| Lighting | 2 x LED lamps |
| Extraction Rate | Max 650 m³/h |
| Speed Settings | 3 speeds + intensive |
| Control Type | Electronic push buttons |
| Filter Type | Aluminum grease filter |
| Filter Cleaning | Washable in dishwasher |
| Venting Type | Recirculation or ducted |
| Noise Level | Max 65 dB(A) |
| Energy Class | A+ |
| Installation | Built-in under cabinet |
| Spare Parts Available | Filters, lamps, motor |
| Repairability Index | 7.5 / 10 |
Frequently Asked Questions - SVCT6651 SVAN

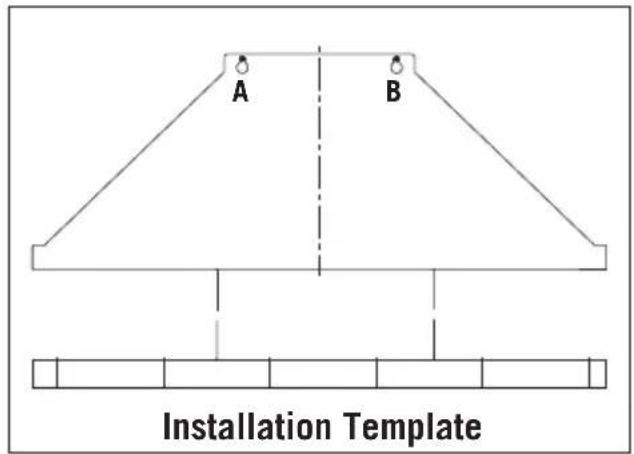

How do I install the SVAN SVCT6651 kitchen hood?
Installation should be done by a qualified professional. The hood is designed for built-in mounting under a cabinet. Ensure proper venting to the outside or use recirculation mode with charcoal filters.
How often should I clean the grease filter?
Clean the aluminum grease filter every 2 months or more frequently with heavy use. It is dishwasher safe. Remove and wash with mild detergent.
Can I use the hood without ducting?
Yes, the hood can be used in recirculation mode. You will need to install charcoal filters (not included) to absorb odors.
What should I do if the hood is not extracting properly?
Check if the grease filter is clogged, ensure the duct is not blocked, and verify that the speed setting is adequate. Also, make sure the room is well-ventilated.

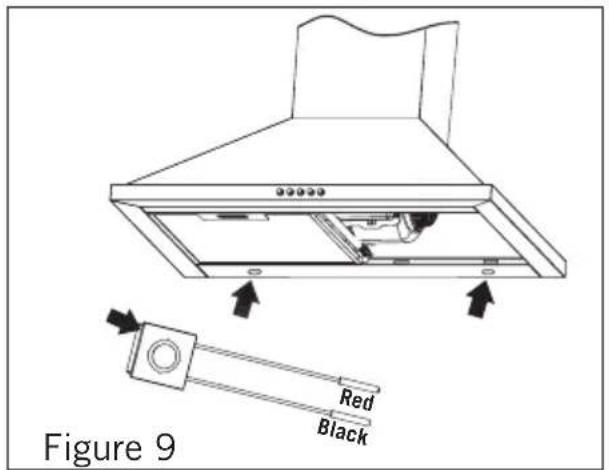

How do I replace the LED lamps?
Turn off power. Remove the lamp cover and replace the LED module. Use only specified LED lamps (type GU10, 3W) to avoid damage.
Is the SVCT6651 noisy?
Noise level ranges from 45 dB on low speed to 65 dB on intensive mode. It is designed to be relatively quiet for a kitchen hood.
What are the dimensions of the hood?
The hood has a width of 60 cm, depth of 50 cm, and height adjustable from 100 to 120 cm. Exact dimensions can be found in the manual.
How can I control the hood?
The hood has electronic push buttons for power, speed selection, and lighting. There is an intensive mode for powerful extraction.
What spare parts are available?
Spare parts include grease filters, charcoal filters, LED lamps, and motor assembly. Contact SVAN customer service for purchases.
What is the energy efficiency class?
The hood is rated energy class A+, ensuring low energy consumption while maintaining high performance.
