SVCP6652RN - Kitchen hood SVAN - Free user manual and instructions
Find the device manual for free SVCP6652RN SVAN in PDF.
Pick your language and provide your email: we'll send you a specifically translated version.
| Product Type | Wall-Mounted Chimney Hood |
| Brand | SVAN |
| Model | SVCP6652RN |
| Color | Stainless Steel |
| Width | 60 cm |
| Depth | 50 cm |
| Height | 70 cm (adjustable chimney) |
| Net Weight | 15 kg |
| Power Supply | 220-240 V ~ 50 Hz |
| Motor Power | 200 W |
| Maximum Extraction Rate | 600 m³/h |
| Noise Level (max speed) | 55 dB |
| Number of Speeds | 3 |
| Lighting | LED (2 x 1.5 W) |
| Controls | Push buttons |
| Filter Type | Aluminum grease filter (washable) |
| Installation Type | Ducted or recirculation (charcoal filter optional) |
| Energy Class | A |
| Warranty | 2 years |
Frequently Asked Questions - SVCP6652RN SVAN
How do I install the SVCP6652RN hood?

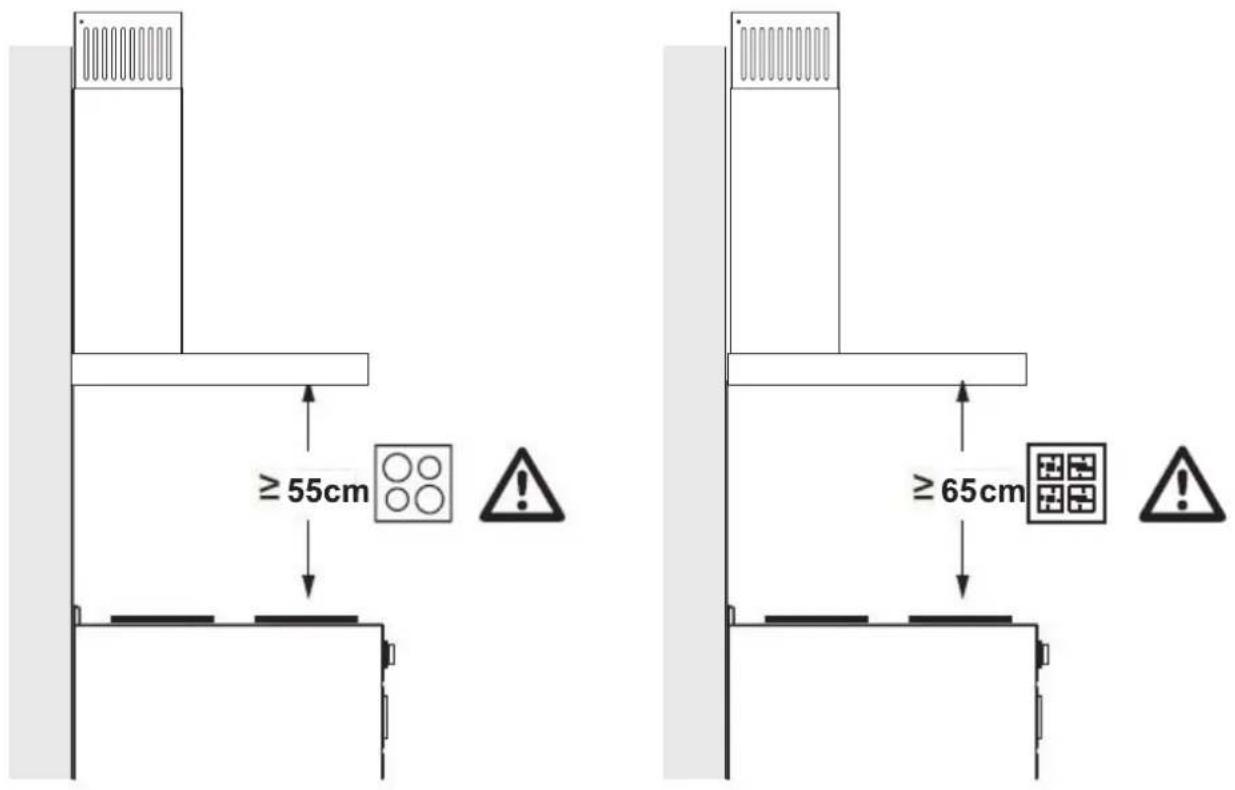

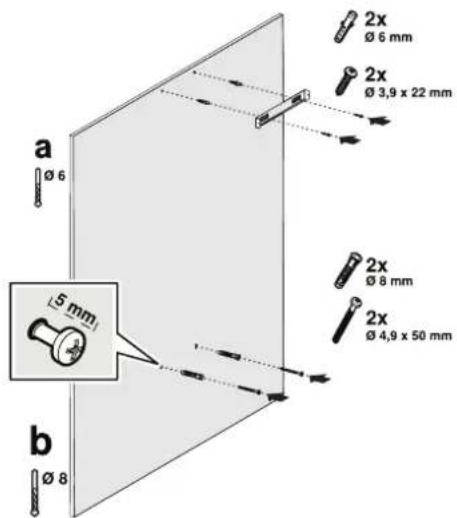

Installation should be carried out by a qualified professional. Ensure the hood is mounted at a safe distance (65-75 cm above gas hobs, 50-65 cm above electric hobs). Follow the provided manual for wall fixing and ducting.
How often should I clean the grease filter?
Clean the aluminum grease filter every month or more frequently with heavy use. Remove it and wash with warm soapy water or in the dishwasher at low temperature. Dry thoroughly before reinserting.
How do I replace the charcoal filter for recirculation mode?
If using recirculation, replace the charcoal filter every 3-6 months. Locate it on the motor unit, remove the old filter, and snap the new one into place. Ensure the hood is unplugged before maintenance.
Why is my hood making excessive noise?
Excessive noise may be due to loose parts, dirty filters, or improper installation. Check that the filters are clean and securely fitted. Tighten any screws and ensure the ducting is not obstructed.
Can I use the hood without ducting?
Yes, the SVCP6652RN can be used in recirculation mode with an optional charcoal filter. The air is filtered and returned to the kitchen. You must purchase a charcoal filter separately.

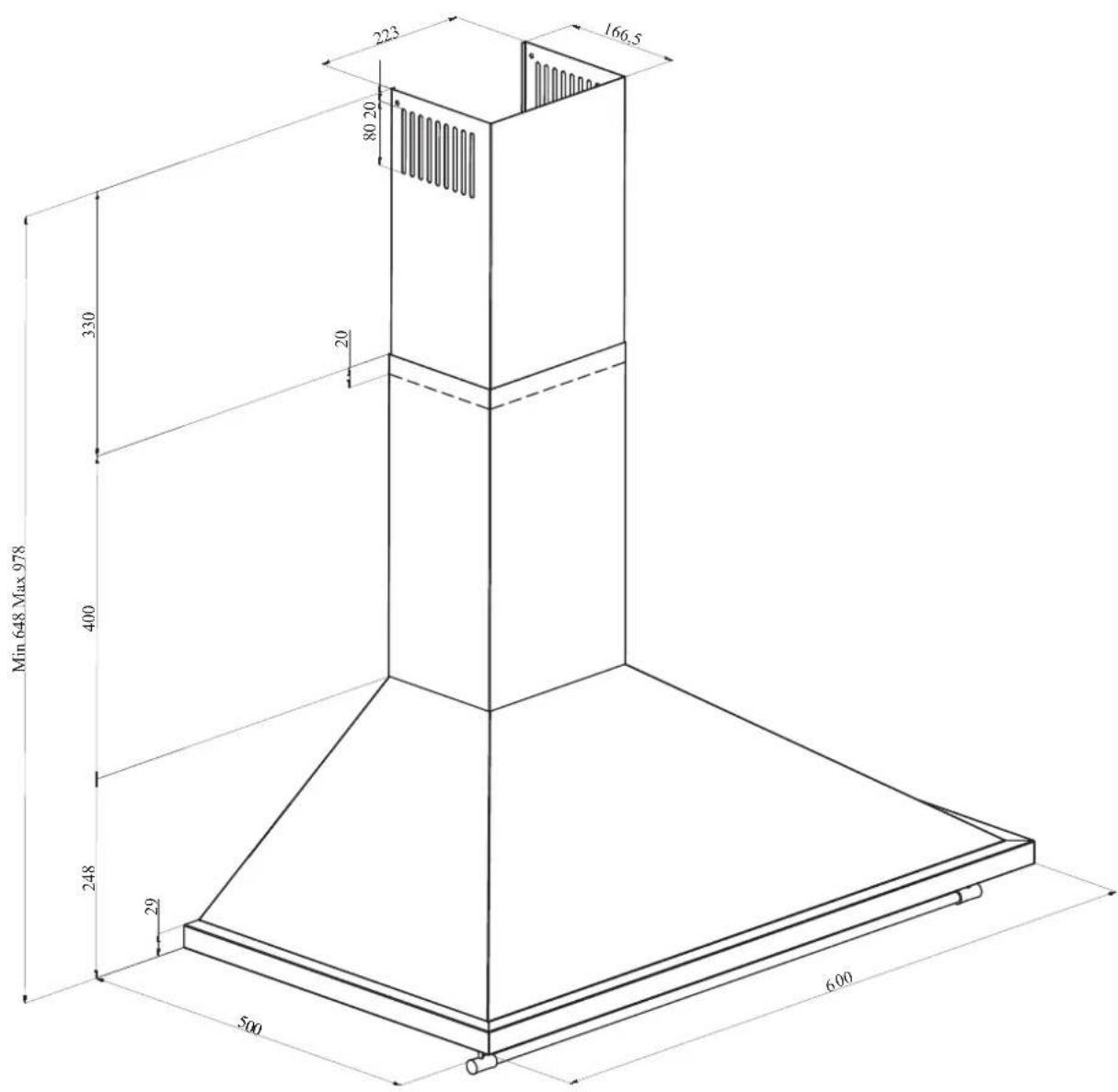

What are the dimensions of the hood?
The hood is 60 cm wide, 50 cm deep, and the chimney adjusts to a maximum height of 70 cm. Always measure your space before installation.
How do I change the LED light bulbs?
The LED lights are built-in and not user-serviceable. If they fail, contact SVAN customer service for replacement. Do not attempt to open the light unit.
What does the 'RN' in the model number mean?
The 'RN' likely indicates a specific design or color variant (e.g., stainless steel and black). Check your product label for exact specifications.
Is the hood remote controlled?
No, the SVCP6652RN is controlled via push buttons on the front panel. No remote is included.
How do I clean the stainless steel surface?
Use a soft cloth with mild detergent or stainless steel cleaner. Wipe in the direction of the grain to avoid scratches. Do not use abrasive cleaners or scouring pads.
