miTab Freedom 3G - Tablet Wolder - Free user manual and instructions

Product Type	Tablet
Brand	Wolder
Model	miTab Freedom 3G
Display	7-inch, 1024x600, Multitouch
Dimensions	189 x 110 x 11.7 mm
Weight	290 g
RAM	1 GB
Internal Storage	8 GB
Expandable Storage	Micro SD card slot
Rear Camera	5 MP
Front Camera	2 MP
Battery	2800 mAh, up to 14 h talk time (3G)
Audio	AAC, FLAC, M4A, MP3, WAV, OGG; FM Radio
Connectivity	Wi-Fi, 3G, Micro USB, 3.5mm headphone jack
SIM Card	Yes (3G)
Operating System	Android
Included Accessories	Charger, Headphones, Micro USB cable, Manual, Warranty card, Suede cloth
Safety	Do not expose to high temperatures, humidity, dust; avoid drops; use moderate volume; do not disassemble; clean with dry cloth
Battery Care	Fully charge before first use (6 h first two charges, then 4 h); fully discharge before recharging for longer life

Frequently Asked Questions - miTab Freedom 3G Wolder

How do I turn on the Wolder miTab Freedom 3G?

Press and hold the Power button for a few seconds until the screen lights up. To turn it off, press and hold the same button until the device options appear, then select 'Power off'.

How do I install a SIM card?

Remove the back cover, then insert your SIM card into the slot with the metal contacts facing down. Slide it until it is seated in the correct position. Ensure the SIM is properly inserted before first use.

How do I connect to Wi-Fi?

Go to Settings > Wi-Fi and slide the toggle to the right. The tablet will scan for available networks. Tap the network you want to join, enter the password if required, and confirm.

How do I charge the tablet?

Connect the Micro USB cable to the tablet and plug the adapter into a wall outlet. For the first two charges, allow at least 6 hours. Subsequent charges take about 4 hours.

What is the battery life?

The battery has a capacity of 2800 mAh and provides up to 14 hours of talk time on 3G. Actual usage may vary.

Can I expand the storage?

Yes, the tablet has a Micro SD card slot that allows you to expand the internal storage. Insert a Micro SD card with the contacts facing down.

How do I reset the tablet if it freezes?

Use a paperclip to press the Reset hole located on the device. This will force a restart.

How do I take a screenshot?

Press and hold the Power button and the Volume down button simultaneously until the screen flashes. The screenshot will be saved to the gallery.

How should I clean the tablet?

Use a soft, dry cloth. Do not use alcohol, thinner, or benzene as they may damage the device.

What to do if the tablet won't turn on?

First, ensure the battery is charged. Connect the charger and wait a few minutes. If still unresponsive, press the Reset hole with a paperclip. If problems persist, contact Wolder support.

USER MANUAL miTab Freedom 3G Wolder

Collection of electronic devices including tablets, laptops, and a magazine cover (no readable text or symbols)

Hasta luego :)

Welcome

Discover you new Wolder device. Welcome to our family :)

Thank you for choosing us. To turn on your tablet and start enjoying an intuitive and enriching experience hold and press for a few seconds the power button. To turn it off hold and press the same button until the device options appear on the screen. Before first using miTab FREEDOM, especially if you want to take advantage of its 3G functions, make sure the SIM card is installed. To do this, remove the back cover> insert your SIM card into the slot with the metal contacts facing down and slide until it is seated in the correct position.

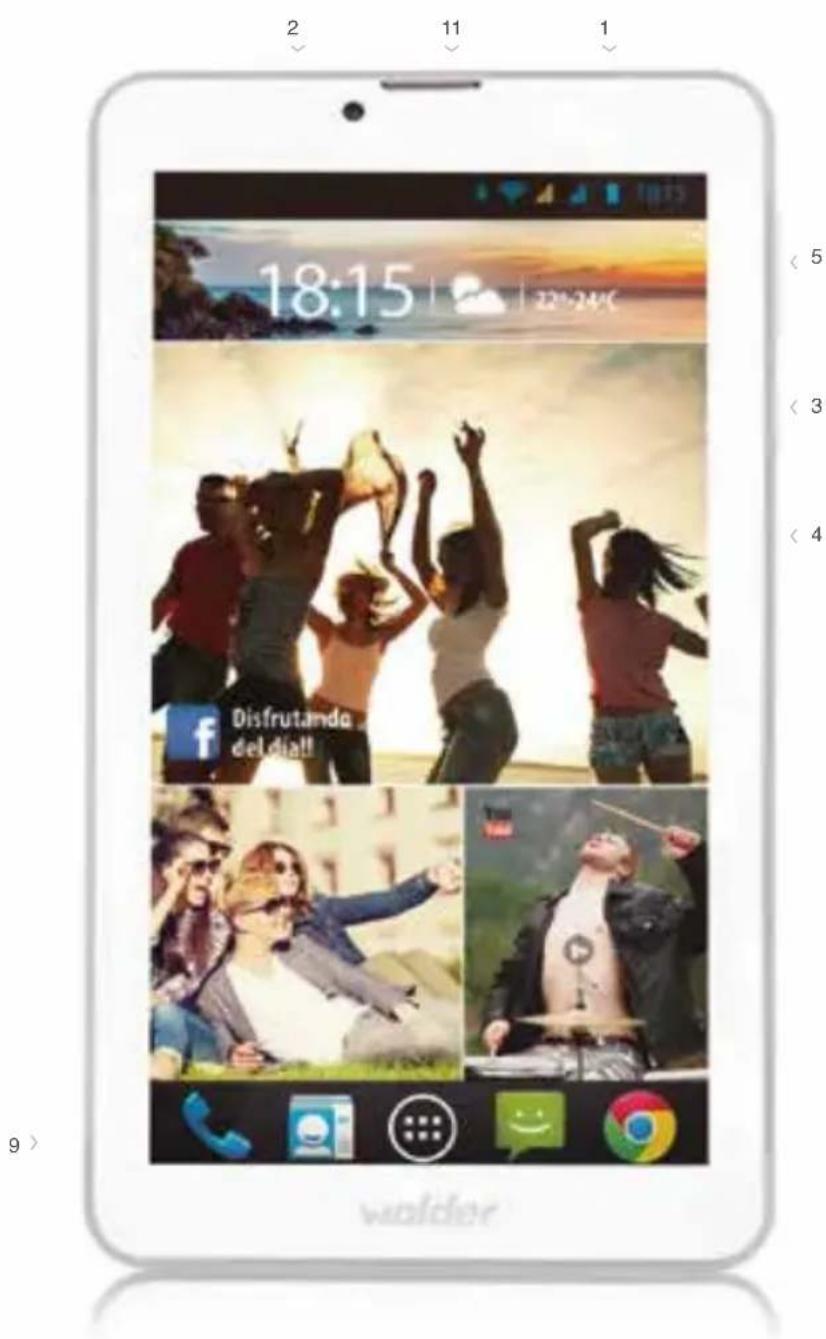

Introducing miTab FREEDOM

1. Earphone jack
2. Micro USB/charger
3. Power button (press and hold to turn on, turn off or turn on airplane mode / press to stand by)
4. Reset hole
5. Volume control
6. Screen
7. Front camera
8. Back camera
9. Speaker
10. SIM card slot
11. Micro SD card slot
12. Back Key (press to return to the previous screen)
13. Home Key (press to return to desktop)
14. Applications in Progress Key (tap to see which applications are in use)
15. Menu Key (press to see the applications installed)

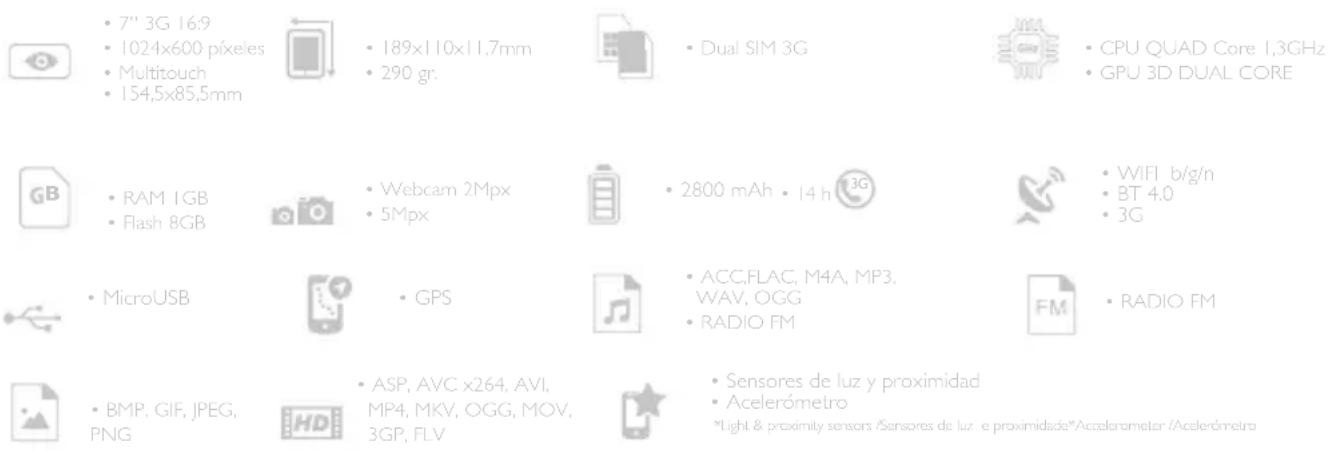

How is miTab FREEDOM? Technical features

Incluye: Cargador · Auriculares · Cable MicroUSB- USB · Manual · Garantía · Gamuza · Includes: Charger · Headphones · Micro USB- USB Cable · Manual · Warranty · Suede · Inclui: Carregador · Auriculares stereo · Cabo MicroUSB- USB · Manual · Garantía · Flanela

For your safety

• Do not expose your miTab to high temperatures, humidity or dust. Keep it away from direct sunlight.
• Do not drop the tablet. Any hit on the device may cause damage or malfunction.
• Use miTab at an appropriate volume to never use the headphones at high volume.

• As long as your tablet is in file transfer mode, do not disconnect the unit suddenly. You can cause system errors.

• Do not disassemble the tablet for yourself. This device must be manipulated by qualified personnel.

• Do not use alcohol, thinner or benzene to clean miTab.
• Do not use the tablet in place in which the use of electronic devices is restricted.
• Do not use miTab while driving or walk down the street.

Charge and use of the battery

Remember that it is recommended to fully charge the battery of your tablet before first use. To do this, simply plug the adapter or the USB cable to your tablet and plug it into the wall outlet. For the first two loads, you will need at least 6 hours. Then, with just 4 hours will be enough.

【NOTE】: During charging, the battery icon appears on the screen moving. When the battery is fully charged, the icon will remain static.

【NOTE】: To ensure a longer life to your battery, it is advisable to consume it completely before recharging. What's more, in the event that you will not use the tablet for a long period of time, charge and use the tablet once a month. This way you will avoid damage to the battery. 2. When the battery is fully consumed, connect the adapter and wait a few moments before it has enough charge to access the main menu. 3. While charging the battery, the unit goes into standby mode until it has sufficient charge. The screen consumes a considerable amount of energy, so the charging time will be greater if it stays on during charging. When the tablet is on, you can turn off to save battery. Just press the power button once to turn off the screen. Press again the power button to turn on the screen.

Status and notification icons

Your tablet will tell you what's going on by showing you simple icons. Here's what they mean:

Setting up miTab LIVE for the first time

As you have seen, one of the advantages of this tablet with 3G is that it can perform the same functions as a smartphone: make calls, add contacts to your address book or synchronize other supported accounts; send SMS (text messages) and MMS (multimedia messages), etc.

- Unlock your screen

The screen of your tablet Wolder will lock every time the screen is suspended. To unlock just drag the closed padlock icon.

- Modify Settings

Pressing Menu Key, you will have access to all applications installed on your tablet. Among them you can find the button from which you can configure the main settings of your device: keyboard, language, sound, brightness and contrast of the screen, data usage, Internet, storage options, rotating screen (to make your screen rotate according to the position of your tablet-vertically or horizontally), etc.

Connecting miTab to a PC

miTab FREEDOM offers multiple connectivity options. Through the mini USB plug you can connect your tablet to a computer (for battery charging or to use it as a storage unit). USB connection notification will be automatically displayed on the screen of your device.

In order to use your tablet as an external disk select the Enable USB storage option you'll find at the bottom of your screen. This way you can share files between the PC and the tablet.

Getting connected to the Internet

Another one of the connectivity options that miTab FREEDOM gives you is the ability to connect to the Internet via Wi-Fi. To do so, you just have to go to the button and slide the tab to the right to enable connection through Wi-Fi. When wireless connection is on, the tablet will look for and display a list of available wireless networks.

Choose which one you want to connect to. If the network is open, the tablet will display a message to confirm if you want to connect to that network. Click "Connect" to confirm.

Once the connection to the wireless network has been established, and icon of wireless network signal will be displayed in the notification bar.

NOTE: If the access point has security settings, you will need to provide a password.

Remember that being a 3G tablet, you can also connect to the Internet through your data rate.

Surf on the Internet

Once you have connected to the Internet, you can use the browser the websites you want to.

, to surf on

Install Apps

Your tablet has a number of preloaded apps to improve your user experience. But you can download all you want and need. You will have to use the marketplace you'll find on your device or download them directly from the Internet, on the official website of each App.

To manage the applications you have installed (in case, for instance, that you want to delete) you have to go to the button ⚙️, select the Apps option and, once there, the app you want to manage.

More info and support

For more information about our products, practical advices, frequent questions, users manuals, updates, etc. visit http://www.wolderelectronics.com.

To contact our technical support visit:

http://www.wolderelectronics.com/soporte/servicio-tecnico

Declaration of conformity

GLOBAL WOLDER GROUP S.L, Polígono Industrial de Barros n°29, 39408 Barros, Cantabria, Spain, declares that this product, model miTab FREEDOM, complies with the provisions of Directive 99/05/CE on Radio Equipments and Telecommunications (R&TTE), and Directive 2004/108/CEE on Electromagnetic Compatibility, according to harmonized standards.

CE

See you :)

Bem - vindo

Apresentamos-Ihe miTab FREEDOM

Até breve! :)
