Product Type	Hair Straightener
Brand	Conair
Model	BC173
Plate Material	Ceramic
Plate Width	1 inch
Temperature Range	140°C - 230°C (adjustable)
Heat Settings	5 levels with LED indicator
Auto Shut-Off	Yes, after 60 minutes
Power Source	AC 100-240V, 50/60Hz (dual voltage)
Power Consumption	~30W
Cord Length	2.7 m (9 ft) with swivel
Weight	~0.5 kg (1.1 lbs)
Dimensions	25 x 3 x 3 cm (10 x 1.2 x 1.2 in)
Heat-Up Time	~30 seconds
Maintenance	Wipe plates with damp cloth after use; avoid pulling cord.
Safety Features	Auto shut-off, heat-resistant mat included
Spare Parts Availability	Replacement plates and cords available from Conair.
Repairability	User-replaceable parts limited to plates; otherwise service center.
Warranty	2 years limited

Frequently Asked Questions - BC173 Conair

How do I adjust the temperature on the Conair BC173 straightener?

Use the temperature control slider on the handle. The LED indicators show 5 heat levels from low (140°C) to high (230°C). Select the setting suitable for your hair type.

Does the Conair BC173 have auto shut-off?

Yes, the auto shut-off feature turns off the straightener after 60 minutes of inactivity for safety.

Can I use this straightener on wet hair?

No, always dry hair completely before using to avoid damage. The ceramic plates heat evenly but may cause harm if used on damp hair.

How do I clean the Conair BC173?

Unplug and let it cool. Wipe the ceramic plates with a damp cloth. Do not use abrasive cleaners. Avoid getting water into the device.

Is the Conair BC173 dual voltage?

Yes, it works with AC 100-240V and 50/60Hz, suitable for worldwide use. Only a plug adapter may be needed.

What is the warranty period for this straightener?

The Conair BC173 comes with a 2-year limited warranty. Keep your receipt for service requests.

Can I replace the heating plates myself?

Replacement plates are available from Conair, but professional installation is recommended to avoid damage. Contact Conair service.

How long does it take to heat up?

It reaches the selected temperature in about 30 seconds. The LED stops blinking when ready.

What is the plate width and material?

It has 1-inch ceramic plates for smooth gliding and even heat distribution, suitable for all hair types.

Does it come with a heat-resistant mat?

Yes, a heat-resistant mat is included for safe placement during use or cooling.

USER MANUAL BC173 Conair

Instruction & Styling Guide

Model BC173

Black-and-white portrait of a woman holding a hairdryer, no visible text or symbols

Know everything about the infiniti

TM hair designer by conair

[NO TEXT]

iMPortant safety instructions

When using electrical appliances, especially when children are present, basic safety precautions should always be followed, including the following:

read aLL instructions before using KEEP AWAY FROM WATER

danger – Any hot air styler is electrically live even when the switch is off. To reduce the risk of death or injury by electric shock:

1. Always unplug appliance immediately after using.
2. Do not use while bathing or in a shower.
3. Do not place or store appliance where it can fall or be pulled into a tub or sink.
4. Do not place in, or drop into, water or other liquid.
5. If an appliance falls into water, unplug it immediately. Do not reach into the water.

KNOW EVERYTHING ABOUT THE INFINITHAIR DESIGNER BY CONAIR

WARNING – To reduce the risk of burns, electrocution, fire, or injury to persons:

1. This appliance should never be left unattended when plugged in.
2. This appliance should not be used by, on, or near children or by individuals with certain disabilities.
3. Use this appliance only for its intended use as described in this manual. Do not use attachments not recommended by the manufacturer.
4. Never operate this appliance if it has a damaged cord or plug, if it is not working properly, if it has been dropped, damaged, or dropped into water. Return the appliance to a Conair service center for examination and repair.
5. Keep the cord away from heated surfaces. Do not pull, twist, or wrap line cord around appliance, even during storage.
6. Never block the air openings of the appliance or place it on a soft surface, such as a bed or couch, where the air openings may be blocked. Keep the air openings free of lint, hair, and the like.
7. Never use while sleeping.

KNOW EVERYTHING ABOUT THE INFINITHAIR DESIGNER BY CONAIR

1. Never drop or insert any object into any opening.
2. Do not use outdoors or operate where aerosol (spray) products are being used or where oxygen is being administered.
3. Do not use an extension cord to operate hot air styler.
4. Do not direct hot air toward eyes or other heat-sensitive areas.
5. Hot air styler will be hot during use. Allow to cool before handling.
6. Do not place appliance on any surface while it is operating.
7. While using the appliance, keep your hair out of it. Keep your hair away from the air inlets.
8. Do not use with voltage converter.

SAVE THESE INSTRUCTIONS

KNOW EVERYTHING ABOUT THE INFINITHAIR DESIGNER BY CONAIR

OPERATING INSTRUCTIONS

This appliance is intended for household use only. Use on Alternating Current (60 hertz) only. Standard hot air stylers are designed to operate at 110 to 125 volts A.C.

This appliance has a polarized plug (one blade is wider than the other). As a safety feature, this plug will fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to defeat this safety feature.

IMPORTANT - 700 WATT OPERATING GUIDE

Use of this hot air styler on the same circuit or fuse with other electrical products or appliances may trip the circuit. NEVER replace the fuse with one rated higher than the capacity of the circuit. Doing so could result in an electrical fire.

KNOW EVERYTHING ABOUT THE INFINITHAIR DESIGNER BY CONAIR

CHECK ALCI SAFETY FEATURE EVERY TIME YOU USE APPLIANCE.

This appliance is equipped with an Appliance Leakage Circuit Interrupter (ALCI), a safety feature that renders it inoperable under some abnormal conditions, such as immersion in water. To make sure the ALCI is functioning properly, perform the following test. The purpose of this test is to allow you to make sure the water sensing system (ALCI) is working.

1. Plug in the appliance and press test button on plug (see appropriate diagram).
2. The appliance will stop working. There will be an audible click and reset button will pop out.
3. To reset ALCI with a reset button, unit should be unplugged. Then push reset button in, and reinsert plug into outlet.
4. If ALCI is not functioning properly, return appliance to nearest service center.
5. It is important that if immersion occurs, this unit be brought to a service center. Do not try to reset.

Know everything about the infiniti

^TM hair designer by conair

R

1. Be sure to repeat test every time you use the unit to confirm ALCI is operational. Should the appliance go off and the reset button pop up during use, this could indicate a malfunction in the unit. Remove plug from outlet and allow the appliance to cool. Reinsert plug into outlet. The appliance should then function normally. If not, return to an authorized Conair Service Center for evaluation and repair.

suPer styLing guide

Your best looks begin with a good haircut that's well maintained. Always treat hair right with superior quality shampoos, conditioners, and finishing products.

The Infiniti™ Hair Designer by Conair® is an innovative, revolutionary hot air styler that has effectively eliminated the need for a hair brush and brought salon quality results to your home.

drying/straightening basics

1. Shampoo and condition hair with products of your choice. Rinse thoroughly. Towel-dry hair to remove excess moisture. Select a small section of hair and pass the hot air styler through it to smooth out curls and help control frizz. Start at a lower setting and direct hot air through a section of hair at a time. Direct air flow at hair, not scalp. Clouds of negatively charged ions will help to reduce static electricity, control frizzy flyaways and contribute to your hair's shine.

KNOW EVERYTHING ABOUT THE INFINITHAIR DESIGNER BY CONAIR

1. Keep hot air styler's air intake vents unobstructed and free from hair while drying.
2. To avoid overdrying, do not concentrate heat on any one section for any extended length of time. Keep hot air styler moving as you style.
3. For quick touchups, dampen hair with a mist of water before styling with the hot air styler.
4. When using your hot air styler to create flips at ends, dry and straighten hair almost completely on the high temperature setting, then finish styling on cool setting to close hair shaft and lock in style.

The professional Infiniti™ Hair Designer by Conair® is very effective, even at lower temperatures, and helps to give healthier-looking, shiny, more manageable hair with maximum styling control.

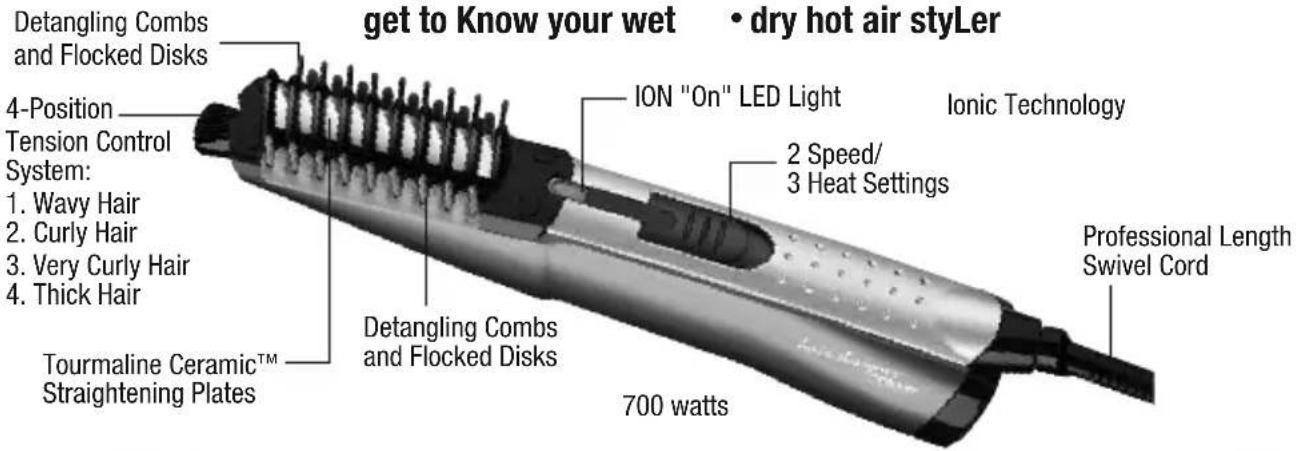

HOT AIR STYLER FEATURES:

1. Exceptional Power

Equipped with a powerful motor (700 watts) this hot air styler gives penetrating and quick styling results.

1. Tourmaline Ceramic ™ Technology

lon output helps smooth the cuticle layer creating silky, shiny hair.

KNOW EVERYTHING ABOUT THE INFINITHAIR DESIGNER BY CONAIR

3. Ionic Technology

Controls static electricity and also enhances the effectiveness of leave-in hair care. It facilitates your styling and optimizes your hair's shine and softness. It will be easier to style and shape your hair.

4. Unique Built-in Tourmaline Ceramic ^TM straightening head with tension control

One-easy-step straightening process. Dry, detangle, straighten and shine hair for professional results.

5. 2 Speed/3 Heat Settings

Low Setting: this position combines ideal air flow and temperature setting for shaping finer, damaged or treated hair.

High Setting: combines ideal airflow with higher temperature, especially recommended for pre-drying and also for styling and straightening thick hair.

6. The Cool Setting

Using the cool setting at the end of straightening sets the style for a long-lasting effect.

Know everything about the infiniti

TM hair designer by conair

B

dry, detangLe, straighten and shine in one steP

KNOW EVERYTHING ABOUT THE INFINITHAIR DESIGNER BY CONAIR

STRAIGHTENER FEATURES

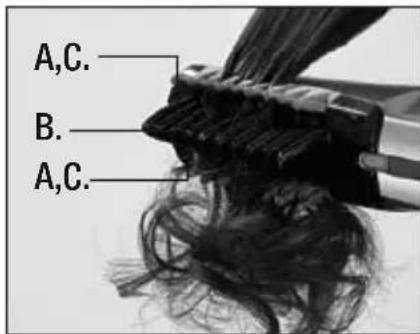

1. Patent pending triple-action straightener:

A. The detangling combs guide your hair for straightening.
B. Center Tourmaline Ceramic ^TM straightening plates gently straighten and condition the hair.
C. Flocked disks add shine.

1. Tension Control System

There are 4 fundamental kinds of hair: wavy, curly, very curly, and thick.

The unique Tension Control System on the tip of the straightener has been developed to feature 4 settings for every hair type. Its expertise lets it give the Infiniti™ Hair Designer by Conair® unrivalled performance. This patent-pending technology allows you to adjust the tension setting to suit each hair type for perfect salon quality straightening results.

Know everything about the infiniti

^TM hair designer by conair

R

getting the hot air styLer ready

1. Select the tension setting recommended for your hair type using the Tension Control Dial located on the side of the straightener head. Experts' advice: The first time you use the styler, set it at tension 4 (strongest tension) to familiarize yourself with the Infiniff™ Hair Designer. Gradually decrease the tension setting until you find the best setting for your hair.
2. For best results, use the appliance set at high setting (speed/temperature). Use CAUTION when changing settings while in use. Straightening tension control dial may be hot.

infiniti ™ hair designer straightening triPLe-action styLing PrinciPLe

The patent-pending hot air styler dries, straightens and shines your hair in just one step. The unique triple-action styling principle integrates the 3 essential steps for perfect straightening results:

1. The two rows of detangling combs distribute your hair among the center Tourmaline Ceramic straightening plates.
2. Each Tourmaline Ceramic™ center plate is then able to straighten efficiently, using tension to smooth out curls, eliminate static and control frizz.
3. The flocked disks give hair a shiny, polished finish as it passes through the flocked disks.

KNOW EVERYTHING ABOUT THE INFINITHAIR DESIGNER BY CONAIR

STYLING TIPS

Experts' Advice: Smoothing or volume straightening? To reduce the volume of thick or voluminous hair, position the Infiniti™ Hair Designer on top of the section of hair. If you want more volume, place the Infinity® Hair Designer underneath the section of hair to straighten while lifting the roots for added volume.

Work in stages:

1. Section hair and clip up the upper layers of hair on top of your head to begin with the hair underneath and at the nape of the neck.

2. Move on to the hair at the back of your head and then on the sides.

3. Finish with the upper layers of hair. For best results, hold ends of selected strand to keep hair taut while straightening. For straighter, sleeker strands slowly pass hot air styler through each strand. This concentrates heat and tourmaline, ceramic, ionic technology on selected hair strand, smoothing away curls and controlling frizz. For more volume, glide dryer with straightener attachment more quickly through each strand.

KNOW EVERYTHING ABOUT THE INFINITHAIR DESIGNER BY CONAIR

CURLING THE ENDS OF YOUR HAIR

Curl Under Flip

1. Place hot air styler in a horizontal position.
2. Separate a section of hair about 1½" wide. Place the hot air styler under the section of hair.

3. With a slight twisting motion of the wrist, turn the appliance under and slide it slowly toward the ends, using your free hand if necessary to turn the hair up.

4. Hold it for 5 to 10 seconds; this will give the action of the Tourmaline Ceramic® and flocked disks maximum effect.

5. Repeat if necessary and finish with cool setting on the section of hair for perfect hold.

Flip Outward

1. Place hot air styler in a vertical position.
2. Separate a section of hair about 1½" wide. Hold the hot air styler over the section of hair.
3. With a slight twisting motion of the wrist, turn the appliance over and slide it slowly toward the ends, using your free hand if necessary to turn the hair up. Then follow instructions 4 and 5 as described above.

Know everything about the infiniti ™ hair designer by conair

roots

1. Place the hot air styler in a horizontal position.
2. Separate a section of hair about 1½" wide. Hold the hot air styler under the section of hair and place it at the roots, ensuring that the teeth penetrate the hair fully.
3. Gently pull the dryer to about 1" from the roots and turn under, this will give the action of the Tourmaline Ceramic™ and flocked disks maximum effect.
4. Hold the hot air styler parallel to your scalp for 5 seconds.
5. Then slide the appliance slowly toward the ends.
6. Repeat if necessary and finish with cool setting on the section of hair for perfect hold.

straightening around the contours of the face

Place the hot air styler in a vertical position, then follow instructions under 2 through 6 as described above.

KNOW EVERYTHING ABOUT THE INFINITHAIR DESIGNER BY CONAIR

BANGS

Curved bangs

1. Place the hot air styler in a horizontal position.
2. Separate a section of hair about 1½" wide. Place the hot air styler under the section of hair.
3. With a slight twisting motion of the wrist, turn the appliance upward to lift the roots and slide it slowly over the ends.
4. Hold for 5 to 10 seconds; the Tourmaline Ceramic™ and flocked disks work best this way.
5. Repeat if necessary and finish with a cool setting on the section of hair for perfect hold.

Straight bangs

1. Use the hot air styler in a horizontal position.
2. Separate a section of hair about 1½" wide. Place styler over the section of hair.
3. With a slight twist of the wrist, turn the appliance down and slowly slide it over the ends.
4. Repeat if necessary and finish with cool setting on the section of hair for perfect hold.

Black-and-white portrait of a woman with long hair, no visible text or symbols

Close-up of a person applying hair to their ear with a brush (no visible text or symbols)

Know everything about the infiniti

^TM hair designer by conair

R

This message about...

...can save a life!

KNOW EVERYTHING ABOUT THE INFINITHAIR DESIGNER BY CONAIR

IF YOU MUST USE YOUR HOT AIR STYLER IN THE BATHROOM, INSTALL A GFCI\* NOW!

Your local electrician can help you decide which type is best for you—a portable unit that plugs into the electrical outlet or a permanent unit installed by your electrician. The National Electrical Code now requires GFCIs in the bathrooms, garages, and outdoor outlets of all new homes.

WHY DO YOU NEED A GFCI?Electricity and water don't mix. If your hot air styler falls in water while it's plugged in, the electric shock can kill you...even if the switch is off. A regular fuse or circuit breaker won't protect you under these circumstances. A GFCI offers you far greater protection.

A GFCI can save your life! Compared to that, the price is small! Don't wait...install one now!

*GFCI is a sensitive device which reacts immediately to a small electric current leak by stopping the electricity flow.

KNOW EVERYTHING ABOUT THE INFINITHAIR DESIGNER BY CONAIR

USER MAINTENANCE

Your hot air styler is virtually maintenance free. No lubrication is needed. For proper operating performance, the hot air styler must be kept clean.

When cleaning is needed, unplug the cord, allow to cool and clean dust and lint from air intake openings with a small brush or the brush attachment of a vacuum cleaner. The outer surface of the hot air styler should be wiped clean with a cloth only.

Blocked or clogged air intake vents will cause the hot air styler to overheat. If overheating occurs, an automatic safety device will shut the hot air styler or the heat off to prevent damage or personal injury. If the unit or the heat turns off, unplug the cord and allow the hot air styler to cool for 10 to 15 minutes before restarting.

Make sure the air vents are clean.

KNOW EVERYTHING ABOUT THE INFINITHAIR DESIGNER BY CONAIR

CAUTION

NEVER allow the power supply cord to be pulled, twisted, or severely bent. Never wrap the cord tightly around the hot air styler. Damage will occur at the high flex point of entry into the hot air styler, causing it to rupture and short. Inspect the cord frequently for damage. Stop use immediately if damage is visible or unit stops or operates intermittently.

If the cord or hot air styler is damaged or does not operate properly, return it for repair to an authorized Conair service representative only. No repairs should be attempted by the consumer.

STORAGE - IMPORTANT

When not in use, your hot air styler should be disconnected, allowed to cool and stored in a safe, dry location, out of reach of children. Do not wrap line cord around hot air styler. Allow the cord to hang or lie loose and straight at the point of entry into the hot air styler.

Know everything about the infiniti

^TM hair designer by conair

R

LiMited three-year warranty

Conair will repair or replace (at our option) your unit free of charge for 36 months from the date of purchase if the appliance is defective in workmanship or materials.

To obtain service under this warranty, return the defective product to the service center listed below, together with your purchase receipt and \$7.00 for postage and handling. California residents need only provide proof of purchase and should call 1-800-528-9384 for shipping instructions. In the absence of a purchase receipt, the warranty period shall be 36 months from the date of manufacture.

any iMPLied warranties, obLigations, or LiabiLities, including but not LiMited to the iMPLied warranty of MerchantabiLity and fitness for a ParticuLar PurPose, shall be LiMited in duration to the 36-Month duration of this written, LiMited warranty. Some states do not allow limitations on how long an implied warranty lasts, so the above limitations may not apply to you.

in no event shall conair be LiabLe for any sPeciaL, incidentaL, or conseQuential daMages for breach of this or any other warranty, eXPress or iIMPLied, whatsoever. Some states do not allow the exclusion or limitation of special, incidental, or consequential damages, so the above limitation may not apply to you.

This warranty gives you specific legal rights, and you may also have other rights, which vary from state to state.

KNOW EVERYTHING ABOUT THE INFINITIHAIR DESIGNER BY CONAIR

TRY OUR OTHER NEW INFINITI™ BY CONAIR® PRODUCTS

Dryer Models 207, 208, 213 and 217

Straightener Models CS31 and CS32

Curling Iron Models CD106, CD107, CD108, CD109 and CD110

www.conair.com/infiniti

Know everything about the infiniti

^TM hair designer by conair

service center

CONAIR CORPORATION

Service Department

7475 N. Glen Harbor Blvd

Glendale, AZ 85307

©2007 CONAIR CORPORATION

07PC2120

Patent pending

For info on any Conair or Infiniti™ by

Conair product call: 1-800-3-CONAIR or

visit us on the web at: www.conair.com/infiniti

IB-7233A

Black-and-white portrait of a woman holding a handgun, no visible text or symbols

Black-and-white portrait of a woman with long hair, no visible text or symbols

Close-up of a person using a hairdryer (no visible text or symbols)

www.conair.com/infiniti

Tenacillas Modelos CD106, CD107, CD108, CD109 y CD110

7475 N. Glen Harbor Blvd

Glendale, AZ 85307

©2007 CONAIR CORPORATION

07PC2120

Patente en trámite
