Product Type	Range Hood
Brand	Corbero
Model	NEMRUT975X
Color	Stainless Steel
Width	90 cm
Voltage / Frequency	220-240 V ~ 50 Hz
Total Power	248 W
Lighting	2 x 1.5 W LED
Max Airflow	754 m³/h
Energy Class	A
Protection Class	I
Net Weight	11.5 kg
Fan Speeds	3 (Low, Medium, High)
Controls	Push Buttons
Installation Modes	Ducted (Extractor) and Recirculation
Grease Filter	Aluminum (removable, washable)
Carbon Filter	Included (replace every 6 months)
Minimum Distance to Hob	60-75 cm (65 cm for gas)
Exhaust Diameter	150 mm
Warranty	36 months from invoice date (Jan 1, 2022)

Frequently Asked Questions - NEMRUT975X CORBERO

How do I install the Corbero NEMRUT975X range hood?

Ensure the hob is off and the hood is unplugged. Mark holes using the drilling template, maintaining a distance of 60-75 cm from the hob (65 cm for gas). Install the suspension rail and mounting rails, then hang the hood. For ducted mode, connect the flexible extraction tube (Ø150 mm) to the outside. For recirculation, install the included activated carbon filter.

How do I clean the aluminum grease filter?

Remove the filter by sliding the latch and pulling it forward. Wash it in hot water with mild detergent, or in a dishwasher up to 60°C. Rinse and dry thoroughly before reinstalling. Clean monthly to prevent fire risk.

How do I replace the activated carbon filter?

Turn off the hood and disconnect power. Remove the grease filter. Rotate the old carbon filter counterclockwise to remove. Insert the new filter and turn clockwise until it clicks. Replace the grease filter. Replace every 6 months.

How do I replace the LED lights?

Disconnect power and let the lights cool. Remove the grease filter. Gently pull out the faulty LED bulb and insert a new 1.5W LED (2 bulbs total). Reinstall the grease filter.

Why is my hood not working?

Check that the power cord is plugged in and the fuse is not blown. Ensure the fan speed is selected. If still not working, inspect the grease filter for clogging. For ducted mode, verify the exhaust outlet is clear.

Can I use the hood in recirculation mode?

Yes, if you don't have an external exhaust. Install the included activated carbon filter to absorb odors. The filtered air is returned to the room. Replace the carbon filter every 6 months.

What is the minimum distance from the hob?

The recommended distance is 60-75 cm. For gas hobs, a minimum of 65 cm is required, or follow the hob manufacturer's instructions if a greater distance is specified.

How do I change the fan speed?

Use the push buttons on the control panel: 0 to turn off, then Low (low speed), Medium (medium speed), and High (high speed) for heavy smoke or steam.

What is the warranty period for this hood?

Corbero offers a 36-month warranty from the invoice date (starting January 1, 2022). It covers manufacturing defects but excludes damage from improper use, unauthorized repairs, wear parts (e.g., lamps, filters), and aesthetic issues.

Why is oil dripping from my hood?

This is usually due to a dirty grease filter. Clean the aluminum grease filter monthly. If oil continues to drip, ensure the filter is correctly installed and not damaged.

USER MANUAL NEMRUT975X CORBERO

Modern kitchen interior with stainless steel HVAC unit, white cabinetry, and floral arrangements (no visible text or symbols)

Corberō

TEIDE KURAMATHI NEMRUT

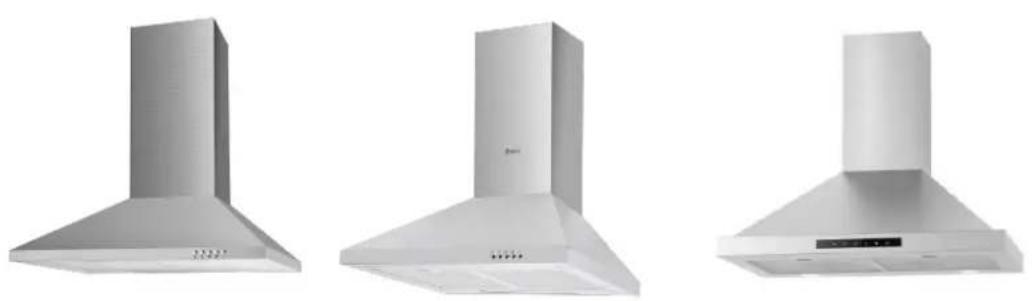

Three stainless steel kitchen furn�ers shown in front and side views (no text or symbols visible)

ES Page 1

POR Page 14

ENG......Page 28

Corberō

CAMPANA EXTRACTORA

TEIDE KURAMATHI NEMRUT

Exterior view of a stainless steel kitchen range hood (no text or symbols visible)

Pic2

Technical line drawing of a brick wall and a chimney (no text or symbols)

Pic4

Pic3

Exterior view of a stainless steel kitchen range hood (no text or symbols visible)

Exterior view of a stainless steel kitchen range hood (no text or symbols visible)

Exterior view of a stainless steel kitchen range hood (no text or symbols visible)

Exterior view of a stainless steel kitchen range hood (no text or symbols visible)

Exterior view of a stainless steel kitchen range hood (no text or symbols visible)

Exterior view of a stainless steel kitchen range hood (no text or symbols visible)

Exterior view of a stainless steel kitchen range hood (no text or symbols visible)

KURBIN LANE S.L.

Po FERROCARRIL, 335

08860 CASTELLDEFELS

(ESPANHA)

TELF: 902 107 122

NIF: B-65050288

Instruction manual

Thank you for choosing our product. We hope you enjoy using the device.

Symbols used in this instruction manual

Important information for your safety is clearly marked. It is essential that you follow these instructions avoid accidents and damage to the device:

WARNING:

Warns of health hazards and indicates possible injury hazards

CAREFUL:

Refers to possible dangers in the device or other objects.

NOTE: Highlights tips and information.

General information

Carefully read the instruction manual before using the appliance and keep the instructions and receipt. If you pass the device on to another person, you must also pass on the instruction manual.

• This appliance has been designed exclusively for private use and for the intended purpose. Not intended for commercial use.
• It should only be used as described in the user manual. Do not use it for any other purpose. Any other use will be considered contrary to the intended use and may cause property damage or personal injury
• The device can only be used when it is correctly installed.
• Do not use outdoors. Keep away from heat sources, direct sunlight and moisture. Do not touch with wet hands.
• Do not use the device unsupervised.
• When not in use, for example for cleaning, user maintenance or when there is a fault, switch off the appliance and, if possible, disconnect the plug (pull the plug itself and not the cable) or switch off the fuse.
• The appliance and, if possible, the electrical cable must be regularly inspected for damage. If any damage is found, the device must not be used.
• For safety reasons, modifying or tampering with the device is prohibited.
• To ensure the safety of children, all packaging elements must be kept out of their reach (plastic bags, boxes, polystyrene parts, etc.).

WARNING:

Do not allow little children to play with the plastic bag. There is a danger of suffocation!

Unpack the device

1. Remove the device from its packaging
2. Remove all packing material such as plastic bags, padding material, zip ties and cartons.
3. To avoid danger, inspect the device in case of any shipping damage.
4. If there is any damage, do not operate the device. Contact your distributor.

i USE:

Production residues or dust may have accumulated in the device. We recommend cleaning the device according to the "Cleaning and maintenance" chapter.

Appliance overview

NOTE: Original devices may differ from those illustrated here.

Exterior view of a stainless steel kitchen range hood (no text or symbols visible)

1	Telescopic duct, 2 pieces
2	Control panel
3	aluminum grease filter
4	Light

Parts provided

1. outer (bottom) duct without ventilation slots
2. connecting piece with non-return valves
3. inner (top) conductor with ventilation slots
4. flexible extraction tuve
5. Carbon filter

Installation

A safety distance must be left between the hob and the lower part of the hood:

The distance should be between 60 - 75 cm. In the case of gas appliances, the distance must be a 65. If the gas stove installation instructions specify a greater distance, this distance must be taken into account.

Select the smoke outlet

You can use the hood in two modes:

Extractor mode

.WARNING:

Exhausted air cannot be evacuated through an exhaust pipe used for gas waste from appliances fueled by gas or other appliances fueled by other fuels.
When exhaust air is vented, relevant local authority regulations must be fulfilled.

Hood has an air vent at the top to extract cooking odors to the outside.

Normally, extracted air is evacuated vertically. If there is a suitable recess above your kitchen, the exhaust air is evacuated through the wall modules and through the base of this recess to the outside.
If your kitchen has a duct under the wall modules, the exhaust duct can be installed so that the exhaust air can be discharged horizontally through the wall.

Recirculation mode

If it does not have a direct exhaust opening to the outside, the hood can also be operated in re-circ mode (i.e. without an exhaust opening to the outside, the filtered air is returned to the room). In this an activated carbon filter must be used as described in "Installing the activated carbon filter for circular mode".

Activated carbon filter is included.

Assembly

WARNING:

- When assembling or inserting the extractor filter and the charcoal filter, the appliance must not be connected to the power supply.

If mounting accessories are not used, there is a risk of electrocution.

CAREFUL:

Before installation, check that the wall or wall module has sufficient load capacity to support the hood. When drilling holes in the wall, you should always make sure that there are no electrical wires or other objects that can be damaged.

Make sure the ventilation openings are unobstructed.

NOTE: Recommendations for installation

• During installation, ask someone else to help you.
• Wear protective gloves to avoid injury from sharp edges.

1		2		3
4	5		6		7

• Determine the position of the hood centered on the hob, respecting the specified safety distances.
• Mark the holes required for wall mounting using the included drilling template and check them with a spirit level.

• wall mounting holes for the respective brackets (1+2+3). Insert the bushings (4) and tighten the clamps with screws (5/6).
  • Install the suspension rail (1) onto the hood body, as well as the mounting rail with the clamp (2) the upper edge, parallel to the rail (1). Determine the length of the duct cover extension in advar
• Before hanging, insert the connecting piece with the non-return valves into the exhaust pipe from above. Check that the connector's mounting hooks snap into place. ^a

For extraction mode:

- You must connect the supplied flexible extraction tube with an inside diameter of ∅ 150 mm (Fig. and connected to the outside through the extraction outlet.

- Fix the hood to the suspension rail (1). Make sure it is secure and level horizontally.

- Remove the protective plastic from the telescopic conduit.

- Fix the outer (lower) duct with the mounting rail, without the clamp (3). The gutter is attached to the holes provided from the inside of the duct. Screw in two screws (7) from the back.

- Place the outer duct with the fixed rail (3) over the hood. Fasten the rail (3) to the wall, parallel to the other rails (1 + 2) .

- Slide the inner (top) duct along the slide fitting, into the outer duct (bottom). Check that the inner duct lines up with the top ventilation holes. Determine the length of the duct cover extension by pulling the inner duct up or sliding it back into the outer duct.

- For extraction mode, position the extraction hose correctly.

- Pull up the inner duct cover and fix the duct unit on the side of the previously mounted rail (2) by tightening the screws (6+7).

Activated carbon filter installation for recirculation mode

- Remove the aluminum grease filter.

- Place the charcoal filter over the air inlet of the extraction duct. Check that the extraction duct must studs fit into the charcoal filter mounting slots. Rotate the corresponding filter clockwise until it clicks in place.

- Reinstall the aluminum grease filter.

NOTE:

The activated carbon filter absorbs odors and must be replaced at least every six months, regardless of use. p

Electrical connection

a

WARNING:

Connection to the mains must comply with local rules and regulations. Incorrect connection can cause electrocution!
Do not modify the appliance plug. If the plug does not fit properly into the outlet, have the correct outlet installed by an authorized service technician.

Accessibility to the socket must be ensured so that the device can be disconnected from the power supply in an emergency.

• Make sure your power supply matches the device's specifications. Specifications are indicated on the rating plate.
• Plug the power cord into a properly wired and grounded wall outlet.

operation/ functioning

extractor hood

The bottom diameter of pots and pans must be adjusted to the size of the cooking zone. Use pots pans with flat bottoms, as uneven bottoms increase energy consumption.

√ Check that there is a sufficient air source for the hood to work.
√ Adjust the fan power to the evolution of steam generation during the cooking process. For optimal hood performance, install it in accordance with the installation instructions.
√ Keep the distance between the upper edge of the kitchen and the lower edge of the hood.
√ Clean the filter regularly.
√ Regularly check the activated carbon filter and replace it if necessary.
√ Turn off the hood after use.
√ If your hood has an off timer, activate this function.
√ Turn off the light after cooking.

√

We recommend using biological cleaning products.

The hood is operated using buttons. The light and fan must be turned on and off with the respective switches.

Fan

0 ON/OFF Low power Medium Power High Power

Light

品Low power:

The engine starts running at low speed. This setting is suitable for low-heat cooking or for dishes to produce little or no steam to circulate the air around the stove.

Medium power

The engine runs at moderate speed. This setting is suitable for normal cooking..

High Power:

The engine runs at high speed. The setting is suitable if large amounts of smoke and steam need to extracted or filtered (e.g when frying).

NOTE:

If there is a lot of steam, the fan should be turned on a few minutes after cooking is finished. Or fan if necessary, otherwise it will consume too much energy.

Cleaning and maintenance:

The appliance and its functioning will be kept in perfect condition if the hood and the filter are clean regularly. The hood and accessories must also be cleaned regularly for hygienic reasons.

WARNING:

■ Before cleaning or maintenance work, the appliance must always be switched off and the must be pulled out or the fuse must be disconnected.

- Let the appliance cool down before cleaning it. Do not use steam cleaners to clean the appliance, as moisture can enter electrical comp of electrocution! Hot steam can damage plastic parts. The device must be dry before us

CAREFUL:

Do not use a wire brush or other sharp, abrasive items. Do not use acidic or abrasive cleaners.

• To clean the lid surface, use a mild detergent and a soft cloth to avoid scratching the lid.
• The device can be used again after everything has dried properly.
- If you use the hood in recirculation mode, you must regularly replace the activated charcoal filter (s lacing the activated charcoal filter"

Cleaning the aluminum grease filter

WARNING: Risk of fire!

-- Grease residues on the aluminum filter can ignite if exposed to high temperatures. It is therefore important that the grease filter is cleaned/replaced regularly. Cleaning the aluminum grease filter
-- Grease and fumes are deposited in the filter and can build up if not cleaned regularly. We recommend that you clean the grease filter monthly:
- Remove the aluminum grease filter by sliding the latch back into the slot, gently push the filter and pull it forward.
- Wash the grease filter in a solution of hot water and neutral detergent. Immerse the filter in the solution.
- Then clean with a soft brush, rinse well with warm water and let dry.
- Alternatively, the grease filter can also be washed in a dishwasher (up to 60 °C). Slight discoloration may occur in the dishwasher. This does not affect the function of the grease filter.

Activated carbon filter replacement

The activated carbon filter absorbs odors and must be replaced at least every six months, depending on usage. Order the charcoal filter from your dealer or accessory store. To order, use the reference number indicated in the "Technical data".

• See "Installation of activated carbon filter for recirculation mode".
• Remove the old charcoal filter by turning it counterclockwise.

lamp replacement

WARNING:

Let the lamp cool down before replacing it. There is a risk of burns!

• Use the correct bulb: 1*1.5 LED or 2*1.5W LED
• Remove the aluminum grease filter
• Remove the burnt out bulb and insert the new one.
• Reinstall the aluminum grease filter

Repairs

◇ Incorrect or poorly performed repairs can endanger the user.
❖ Repairs to household appliances should only be carried out by a specialist authorized.
A damaged power cord must only be replaced by a qualified electrician.

Problem solving

Before contacting an authorized specialist

The following problems can be solved by you by checking the possible cause.

Problem	Possible Cause	Solution
The device does not work or does not work properly	- The device is connected to the network electric?- Have you adjusted the power level yet	-- Connect the plug correctly to the sockCheck the fuse.- Check fit.
The device does not work well	- Has the power level been set correctly?- Is the grease filter dirty?- Is the carbon filter necessary for the (correct) re-circulation installed?- Is the air outlet free for extractor mode?	- Check fit. The kitchen is not properly ventilated.- Clean the grease filter (see "Cleaning t aluminum grease filter").- Check the charcoal filter (see "Replacing activated charcoal filter").- Check the air outlet.
the light does n it works	The lamp is faulty, installed incorrectly, n positioned correctly in its holder.	Check the lamp (see "Replacing the lamp").
Oil drips on the device	O The grease filter is dirty.	Clean the grease filter.

NOTE: If a problem persists after following the above steps, contact your dealer or an authorized technician.

Technical data

Model	TEIDE635X	KURAMATHI960X/B/W	KURAMATHI760X/B/W	KURAMATHI660X/B/W	NEMRUT975X	NEMRUT675X
Voltage and Frequency	220-240 V~, 50 Hz	220-240 V~, 50 Hz	220-240 V~, 50 Hz	220-240 V~, 50 Hz	220-240 V~, 50 Hz	220-240 V~, 50 Hz
Lighting	1*1.5W LED	2*1.5W LED	2*1.5W LED	2*1.5W LED	2*1.5W LED	2*1.5W LED
Total Power	66.5W	168W	168W	168W	248W	248W
Protection Class	I	I	I	I	I	I
Net weight	aprox. 7 kg	aprox. 11.5 kg	aprox. 10.5 kg	aprox. 10kg	aprox. 11.5 kg	aprox. 10 kg
Energy Class	B	A	A	A	A	A
Max Aspiration	361.9M3/H	621.71M3/H	621.71M3/H	621.71M3/H	754M3/H	754M3/H

We reserve the right to make technical and design changes to incorporate continued product development.

Elimination

"Waste Bin" symbol

Protect our environment; do not throw away electrical equipment in the household waste. Return electrical equipment that is no longer in use to designated collection points for disposal.

This helps to avoid the potential environmental and health effects of improper disposal.

This will contribute to recycling and other forms of reuse of electrical and electronic equipment. Please contact the appropriate local authorities for information on how to dispose of your equipment.equipment.

CERTIFICADO DE GARANTÍA

The presentation of the purchase invoice accompanied by this guarantee certificate is essential.

Covered Risks.

This appliance is guaranteed against any malfunction, provided that it is intended for domestic use, proceeding to its repair within the warranty period and only by the authorized SAT network.

Our Corberó appliances have the manufacturer's legal warranty that covers any breakdown or defect for 36 months, from the invoice date of January 1, 2022. If necessary, we take care of any possible incident whenever it is due to a defective component or manufacturing fault. Warranty Exceptions

Warranty Exceptions

• That the date of the certificate does not coincide with the date of sale of the original invoice.
  • Faults produced by blow, by fall or any other cause of force majeure.
  • If the device has been manipulated by unauthorized personnel.
• Faults produced or derived as a consequence of improper use, installation defects, or modifications to the device that alter its operation.
• Start-up, maintenance, cleaning, components subject to wear, lamps, aesthetic parts, oxidation, plastics, rubbers, housings and crystals.
• Microwave ovens (with the exception of built-in ones) and tabletop ovens in the event of any incident of operation, they must be taken to the nearest technical service by the customer. They are not collected or repaired at home.
• Electric thermos guarantee. 3-year warranty including travel and labor costs that correspond to the repair of the product, having to have maintenance once every 12 months. Especially if you have installed a gas appliance, keep in mind as the owner of the installation, the obligation to carry out a complete review of the equipment, (according to Royal Decree 238 / 2013, of April 5. RITE. IT3, M. Lo thermos electrical and boilers that include hot water storage tanks, for the benefit of the Guarantee to apply, it is mandatory that the magnesium anode is operational and that it performs the protection function adequately. For this, it is recommended that the anode be checked biannually by the Official Service and is renewed when necessary Periodicity that must be annual in those areas with critical waters (CaCO3 content greater than 200mg / L , that is, from 20^ircfH of hardness) Deposits without the correct state of the protection anode are not covered by the warranty Regardless of the type of tank or product, all heating or DHW overpressure valves must be channeled to avoid damage and n the house due to water discharges. The product warranty does not cover damages caused by not channeling the water spilled by this valve.
• Guarantee of pellet stoves, Gas Stoves, it is necessary to have the start-up accreditation from Corberó SAT, to benefit from the 3-year guarantee service.

"THESE EXCEPTIONS VOID THE WARRANTY, THE REPAIR BEING CHARGED TO THE CUSTOMER"

Period covered in devices according to the law of guarantees in the sale of consumer goods Current law is "RD 7/2021"

Official Technical Service: 911 08 08 08

Hours of operation Monday to Friday from9h00 a 19h00. Telephone contact_ 911 08 08 08 Contact [e-mail] web_ www.corbero.es

Official Technical Service Address_Vidal i Ribes 8-10 08950 Esplugues de Llobregat Barcelona

CERTIFICADO DE GARANTIA
