| Type | Tripod |
| Brand | Camgear |
| Model | Elite 20 |
| Material | Aluminum alloy |
| Maximum Height | 170 cm (67 in) |
| Minimum Height | 22 cm (8.7 in) |
| Folded Length | 85 cm (33.5 in) |
| Load Capacity | 6 kg (13.2 lbs) |
| Weight | 2.8 kg (6.2 lbs) |
| Leg Sections | 3 |
| Leg Lock Type | Twist lock |
| Head Type | Fluid head with counterbalance |
| Quick Release Plate | Included (standard Arca-Swiss compatible) |
| Leveling Bubble | Yes, on head and base |
| Spreader | Mid-level spreader |
| Feet | Rubber with retractable spikes |
| Power Source | None (manual operation) |
| Functions | Pan, tilt, and drag control for smooth video movement |
| Maintenance | Clean with a soft damp cloth; avoid solvents; lubricate moving parts occasionally with silicone grease |
| Cleaning | Wipe dry after use in wet conditions; store in a dry place |
| Safety | Do not exceed load capacity; always tighten locks; use spreader on uneven ground |
| Spare Parts & Repairability | Replacement leg sections, feet, and head parts available via Camgear service centers |
| General Information | Professional video tripod suitable for broadcast and cinema cameras |
Frequently Asked Questions - Elite 20 Camgear
What is the load capacity of the Camgear Elite 20 tripod?
The Elite 20 has a maximum load capacity of 6 kg (13.2 lbs), suitable for most professional video cameras and accessories.
How do I clean and maintain my tripod?
Wipe the tripod with a soft damp cloth to remove dirt. Avoid harsh chemicals. Apply silicone grease to leg locks and moving parts periodically. Store in a dry place.
Can I use the tripod with a DSLR camera?
Yes, the Elite 20 is compatible with DSLRs and mirrorless cameras via the included quick release plate. Ensure total weight does not exceed 6 kg.
What is the maximum height of the tripod?
The maximum height is 170 cm (67 inches) without extending the center column, and the minimum height is 22 cm (8.7 inches).
Does the tripod have a fluid head?

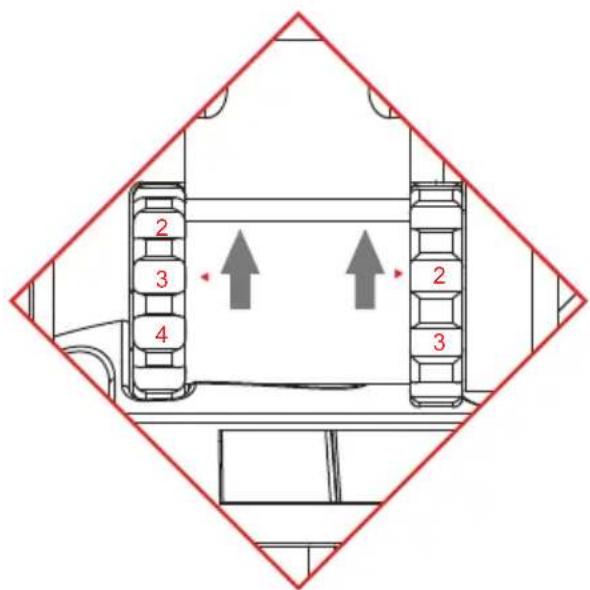

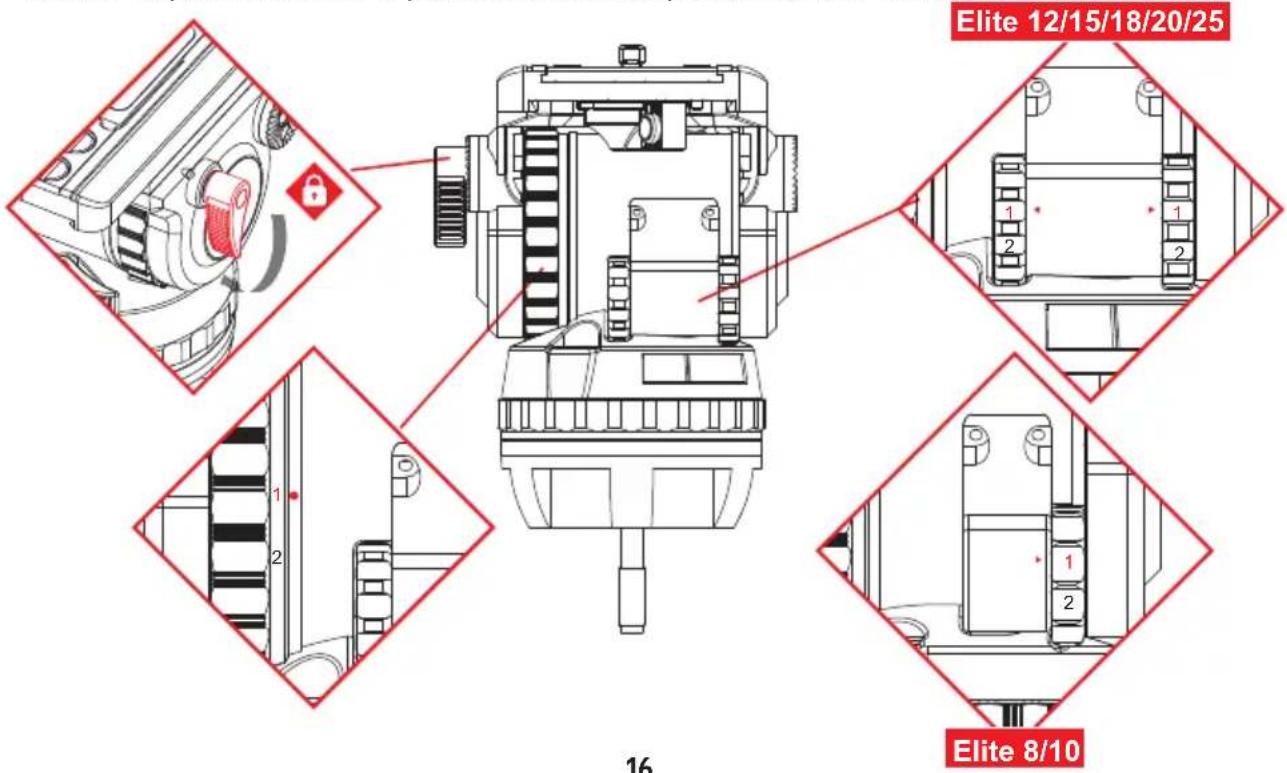

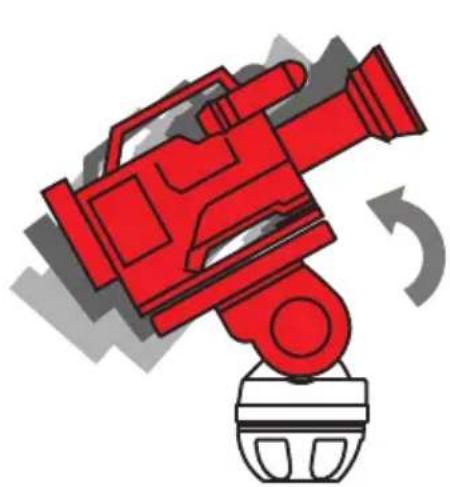

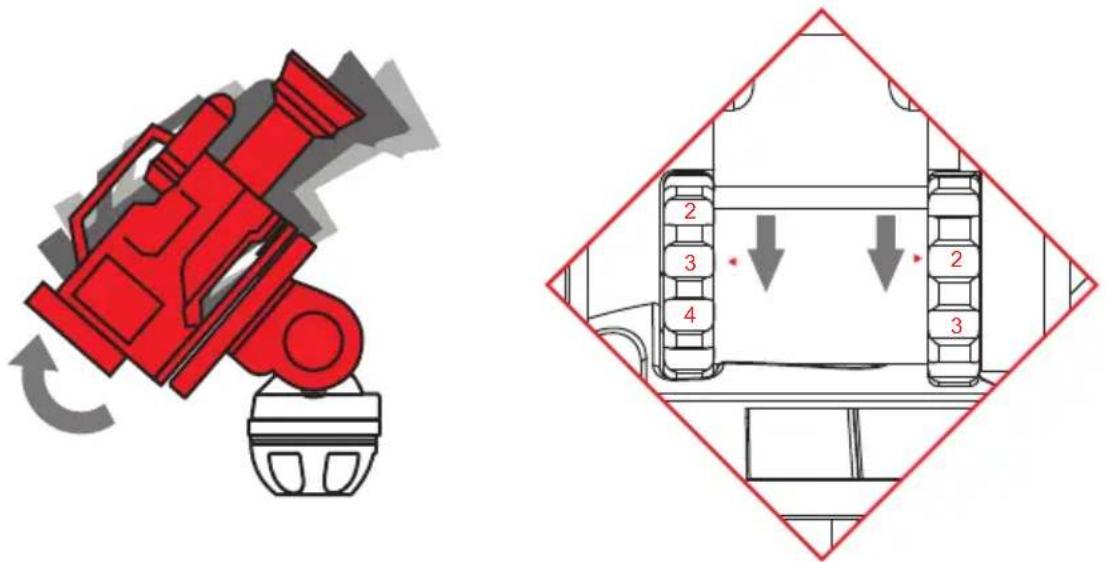

Yes, the Elite 20 features a fluid head with adjustable counterbalance and drag control for smooth pan and tilt movements.
What type of leg locks does the tripod use?
It uses twist locks for each leg section, providing quick and secure adjustments.
Is the tripod stable on uneven ground?
Yes, the legs have retractable spikes for soft surfaces and rubber feet for hard floors. The mid-level spreader adds stability.
Can I replace broken parts?
Yes, spare parts such as leg sections, feet, and head components are available through Camgear authorized service centers.

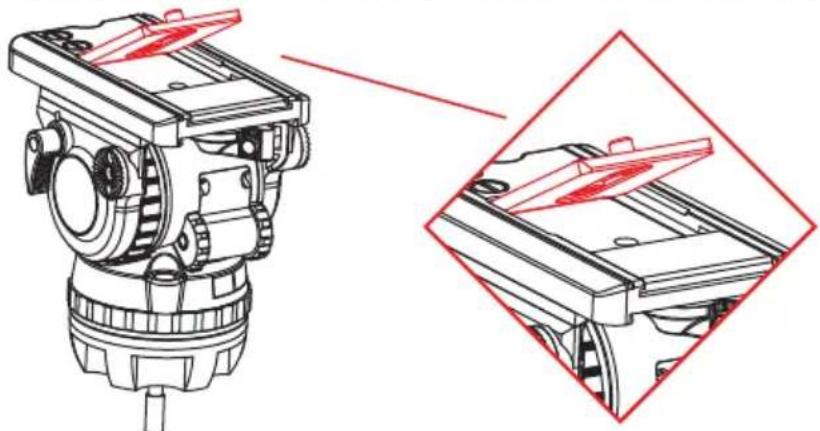

How do I attach the quick release plate?
Slide the plate into the head's receiver until it clicks. Ensure the safety pin is engaged. The plate is Arca-Swiss compatible.
What safety precautions should I take?
Always do not exceed 6 kg load. Tighten all locks before use. Use the spreader on sloped terrain. Avoid operating in extreme weather without protection.
