Product Type	Hot Water Pressure Washer
Brand	IPC
Model	ST 1611 T
Power Source	Electric (mains)
Fuel Type	Diesel
Max Water Pressure	160 bar (approx.)
Max Water Flow	600 L/h (approx.)
Water Supply	Garden hose connection
Hot Water Temperature	Up to 80°C (adjustable)
Detergent Injection	Integrated chemical system
Spray Gun	Included with adjustable nozzle
Burner Ignition	Manual or automatic
Water Filter	Removable for cleaning
Hose Length	10 m (approx.)
Dimensions (L x W x H)	800 x 600 x 900 mm (approx.)
Weight	65 kg (approx.)
Safety Features	Pressure relief valve, thermal overload protection
Compatible Models	ST 1110 M, ST 1613 T, PLUS DS 138 M, DS 1210 M, DS 1310 M, DS 1310 T, DS 1613 T

Frequently Asked Questions - ST 1611 T IPC

What type of fuel does the IPC ST 1611 T use?

The IPC ST 1611 T uses diesel as fuel for the burner to heat water.

How do I start the burner?

Ensure water supply is on, turn on the machine, and press the burner ignition button. Follow the manual for specific steps.

Can I use cold water only?

Yes, you can use the pressure washer without activating the burner for cold water cleaning.

What is the maximum water temperature?

The maximum water temperature is approximately 80°C, adjustable via the thermostat.

How do I connect the water supply?

Connect a standard garden hose to the water inlet. Ensure the water filter is clean.

Can I use detergents?

Yes, the machine has a chemical injection system. Fill the detergent tank and adjust the dosage.

How often should I clean the water filter?

Clean the water filter regularly, at least every month, to prevent clogging.

What safety precautions should I take?

Never point the spray at people, animals, electrical outlets, or the machine itself. Wear protective gear.

How do I replace the nozzle?

Turn off the machine, release pressure, then unscrew the nozzle from the spray gun. Screw on a new one.

What does the error indicator mean?

Refer to the manual for specific error codes. Common issues include low water pressure or fuel shortage.

USER MANUAL ST 1611 T IPC

1. () = 12 .

IPC

Line drawing of a compact electric vacuum cleaner (no text or symbols)

Challenge - Match Point - Vincent

Mod. ST 1110 M - ST 1611 T - ST 1613 T

PLUS DS 138 M - DS 1210 M - DS 1310 M - DS 1310 T - DS 1613 T

WARMWATER SCHOONMAAK APPARAAT/VARMTVANDSRENSER/HETVATTENTVÄTTAR/VARMTVANNSSPYLER KUUMAVESIPESURI/MHXANHMA KAΘΑΡΙΣΜΟΥ ΜΕ ΖΕΣΤΟ ΝΕΡΟ

INSTRUKTIE-BOEK/BRUGSANVISNING/BRUKSANVISNING/BRUKSANVISNING/OHJEKIRJA/OΔΗΓΙΕΣ ΧΡΗΣΕΩΣ

Suomi

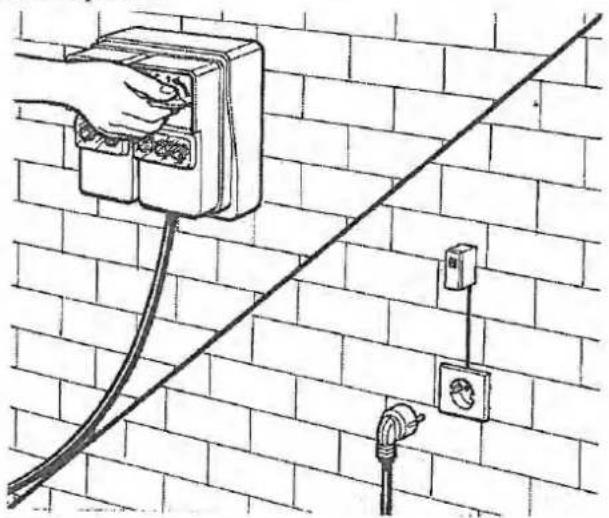

Sähkökytkentä.

Diagram of electrical connections on a brick wall, showing a hand holding an electrical outlet connected to a power strip and a separate electrical outlet (no text or symbols present)

Suomi

PESURISSA OLEVIEN MERKKIEN KUVAUS

ÄLÄ KOHDISTA VESI- SUIHKUA IHMISIIN, ELÄI- MIIN, SEINÄPISTOIKKEISIIN TAI PÄÄLLE ITSE LAITTEE- SEEN.

Simple circular arrow symbol inside a rectangular frame, no text or labels present

PUMPUN MOOTTORIN KYTKEMINEN.

Simple line drawing of a megaphone emitting flames (no text or symbols)

POLTTIMEN SYTYTTÄMI- NEN.

Simple line drawing of a thermometer partially submerged in water, no text or symbols present

VEDEN LÄMPÖTILAN SÄÄTÄMINEN.

MAA.

Simple black-and-white icon of a handheld device with a screen and cord (no text or symbols)

POLTTOAINE (DIESEL).

Simple line drawing of a faucet spraying water (no text or symbols)

VEDEN SYÖTTÖ.

Simple line drawing of a laboratory flask with a handle (no text or symbols)

KEMIKAALIT (PESUAINE).

Simple line drawing of a spray gun with motion lines (no text or symbols)

VEDEN TULO.

Simple line drawing of a beaker with liquid and a drop, no text or symbols present

KUONANESTOAINE.

Suomi

Illustration of hands using a spray gun to handle a tool, no text or symbols present

SÄHKÖKYTKENTÄ

Illustration of a car with a plug and cable, no visible text or symbols

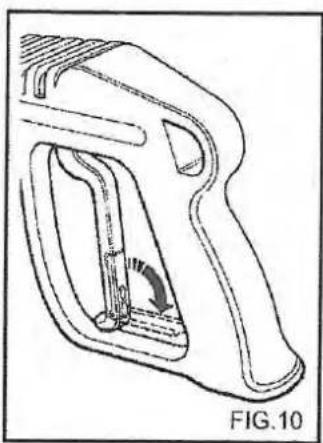

PESURIN PYSÄYTTÄMI- NEN

Four diagrams showing a mechanical component with arrows indicating motion, labeled FIG.9 (no text or symbols on components)

Technical line drawing of a mechanical device with internal components and a curved arrow indicating motion (no text or symbols)

Suomi

KAKSINKERTAISEN KÄRKIOSAN TAI SÄÄDET- TÄVÄN PÄÄN (Fig. 11).

Line drawing of a hand operating a mechanical component, no text or symbols present

Illustration of a car being tested with a tool, showing liquid level and scale (no text or symbols)

Illustration of hands using a tool to tie or connect wires (no text or symbols visible)

Diagram of a mechanical component with a central shaft and base, labeled FIG.17 (no text or symbols on the diagram itself)

VEDENSUODATTIMEN PUHDISTAMINEN

Illustration of a hand holding a tool and a small object, no text or symbols present

SUUTTIMEN VAIHTAMINEN
