Product Type	Hot Water Pressure Washer
Brand	IPC
Model	ST 1613 T
Power Source	Electric (motor) + Diesel (burner)
Max Pressure	160 bar (2320 psi)
Max Flow Rate	13 L/min (3.43 GPM)
Max Water Temperature	Up to 90°C (194°F)
Fuel Type	Diesel
Fuel Tank Capacity	Approx. 10 L
Detergent Injection	Yes, adjustable
Nozzle Type	Adjustable or interchangeable
Hose Length	10 m (32.8 ft)
Power Cord Length	5 m (16.4 ft)
Weight	Approx. 85 kg (187 lbs)
Dimensions (L x W x H)	100 x 60 x 80 cm (39 x 24 x 31 in)
Motor Power	3.0 kW (4.0 HP)
Safety Features	Thermal overload protection, pressure relief valve, emergency stop
Maintenance	Periodic pump oil change, fuel filter cleaning, nozzle inspection
Spare Parts Availability	Yes, through IPC distributors
Warranty	Standard 1-2 years (check local policy)

Frequently Asked Questions - ST 1613 T IPC

What type of fuel does the IPC ST 1613 T use?

The burner uses diesel fuel. Do not use gasoline or other flammable liquids.

How do I start the IPC ST 1613 T?

1. Connect water supply and power. 2. Turn on the pump motor. 3. Open the spray gun trigger. 4. If using hot water, activate the burner after water flow is established. Refer to the manual for detailed steps.

Can I use detergent with this pressure washer?

Yes, the ST 1613 T has a detergent injection system. Use only specially formulated pressure washer detergents. Adjust the chemical metering valve as needed.

How do I change the nozzle?

Turn off the pressure and release pressure from the gun. Rotate the nozzle holder or replace the spray tip. Different nozzles are available for different spray patterns and pressures.

What maintenance is required regularly?

Check and change pump oil every 500 hours or annually. Clean the fuel filter monthly. Inspect the high-pressure hose for wear. Flush the detergent system after use.

Why is the burner not igniting?

Possible causes: empty fuel tank, clogged fuel filter, air in fuel lines, or faulty ignition electrodes. Check fuel level, bleed air, and clean or replace the filter.

How do I adjust the water temperature?

The temperature is regulated by the thermostat or burner control. Turn the knob to set the desired temperature (max 90°C). The burner will cycle to maintain it.

What safety precautions should I take?

Never point the spray at people or animals. Wear safety glasses and gloves. Ensure proper ventilation when using in enclosed spaces. Use a GFCI outlet.

How do I store the machine for a long period?

Drain all water, add antifreeze if needed. Remove fuel from tank. Clean the machine and store in a dry, frost-free area. Disconnect battery if applicable.

Where can I find spare parts?

Contact your local IPC dealer or visit the official IPC website. Many parts are available through authorized service centers. Refer to the manual's parts list.

USER MANUAL ST 1613 T IPC

Line drawing of a compact electric vacuum cleaner (no text or symbols)

Challenge - Match Point - Vincent

Mod. ST 1110 M - ST 1611 T - ST 1613 T

PLUS DS 138 M - DS 1210 M - DS 1310 M - DS 1310 T - DS 1613 T

WARMWATER SCHOONMAAK APPARAAT/VARMTVANDSRENSER/HETVATTENTVÄTTAR/VARMTVANNSSPYLER KUUMAVESIPESURI/MHXANHMA KAΘΑΡΙΣΜΟΥ ΜΕ ΖΕΣΤΟ ΝΕΡΟ

INSTRUKTIE-BOEK/BRUGSANVISNING/BRUKSANVISNING/BRUKSANVISNING/OHJEKIRJA/OΔΗΓΙΕΣ ΧΡΗΣΕΩΣ

Suomi

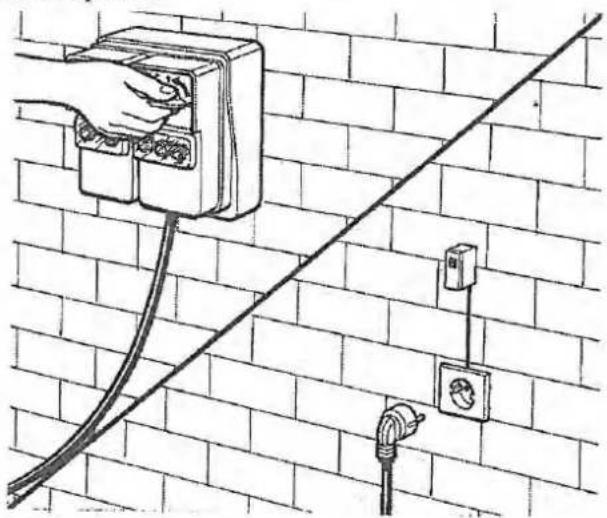

Sähkökytkentä.

Diagram of electrical connections on a brick wall, showing a hand holding an electrical outlet connected to a power outlet and a cable (no text or symbols present)

Suomi

PESURISSA OLEVIEN MERKKIEN KUVAUS

ÄLÄ KOHDISTA VESI- SUIHKUA IHMISIIN, ELÄI- MIIN, SEINÄPISTOIKKEISIIN TAI PÄÄLLE ITSE LAITTEE- SEEN.

Simple circular arrow symbol inside a rectangular frame, no text or labels present

PUMPUN MOOTTORIN KYTKEMINEN.

Simple line drawing of a megaphone emitting flames (no text or symbols)

POLTTIMEN SYTYTTÄMI- NEN.

Simple line drawing of a thermometer partially submerged in water, no text or symbols present

VEDEN LÄMPÖTILAN SÄÄTÄMINEN.

MAA.

Simple black-and-white icon of a handheld device with a screen and cord (no text or symbols)

POLTTOAINE (DIESEL).

Simple line drawing of a faucet spraying water (no text or symbols)

VEDEN SYÖTTÖ.

Simple line drawing of a laboratory flask with a curved top and liquid inside (no text or symbols)

KEMIKAALIT (PESUAINE).

Simple line drawing of a spray gun with motion lines (no text or symbols)

VEDEN TULO.

Simple line drawing of a laboratory flask with liquid, no text or symbols present

KUONANESTOAINE.

Suomi

Illustration of hands using a spray gun to handle a tool, no text or symbols present

SÄHKÖKYTKENTÄ

Diagram showing a person using a tool to connect wires to a car, with a magnifying glass nearby (no text or symbols)

Illustration of a person using a vacuum cleaner to lift a car (no text or symbols)

PESURIN PYSÄYTTÄMI- NEN

Four diagrams showing a mechanical component with arrows indicating motion, labeled FIG.9 (no text or symbols on components)

Technical line drawing of a handheld device with internal components and a circular arrow indicating motion (no text or symbols)

Suomi

KAKSINKERTAISEN KÄRKIOSAN TAI SÄÄDET- TÄVÄN PÄÄN (Fig. 11).

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Illustration of a car being tested with a tool, showing liquid level and scale (no text or symbols)

Illustration of hands using a tool to tie or connect wires (no text or symbols visible)

Diagram of a mechanical component with a central shaft and base, labeled FIG.17 (no text or symbols on the diagram itself)

VEDENSUODATTIMEN PUHDISTAMINEN

Illustration of a hand holding a tool and a water tap, with no visible text or symbols

SUUTTIMEN VAIHTAMINEN
