RL12X - Washing machine REX - Free user manual and instructions

Product Type	Washing Machine
Brand	Rex
Model	RL12X
Capacity	7 kg
Dimensions (H x W x D)	850 x 600 x 600 mm
Weight	70 kg
Energy Efficiency Class	A+
Spin Speed	1200 rpm
Water Consumption per Cycle	50 L
Noise Level (Wash/Spin)	56 dB / 75 dB
Number of Programs	15
Key Functions	Quick wash, Delicate, Cotton, Synthetics, Eco, Rinse+Spin, Spin only, Drum clean, Delay start, Child lock
Display	LED digital display
Drum Material	Stainless steel
Door Opening	Front-load
Door Diameter	340 mm
Power Supply	220-240 V, 50 Hz
Power Consumption	2000 W
Water Connection	Cold water only
Maintenance	Clean filter regularly, descale monthly, clean detergent drawer
Safety Features	Overflow protection, child lock, unbalanced load detection, anti-foam system
Spare Parts Availability	Genuine parts available through authorized service centers
Repairability Index	7.5/10 (based on standard criteria)
General Information	Freestanding, white, noise class B

Frequently Asked Questions - RL12X REX

How do I clean the lint filter?

Open the filter cover at the bottom right, unscrew the filter, remove lint, rinse under water, and replace securely. Do this every month.

What should I do if the machine doesn't start?

Check power supply, door closure, and water supply. Ensure the child lock is off. Try resetting by unplugging for 10 minutes.

How do I use the delay start function?

Press the Delay Start button repeatedly to set hours (1-24). Close door and press Start. The machine will begin after the set delay.

What does the 'E2' error code mean?

Error E2 indicates water drainage failure. Check if the drain hose is kinked or clogged, and clean the pump filter.

How much detergent should I use?

Use about 1-2 tablespoons of detergent for a full 7 kg load. Adjust based on water hardness and soil level. Do not overfill.

Can I wash delicate clothes in this machine?

Yes, select the Delicate program with cold water and low spin speed. Use a mesh bag for extra protection.

How do I clean the detergent drawer?

Remove the drawer by pressing the release lever. Rinse under warm water, scrub with a brush, and dry before reinserting. Do monthly.

What is the maximum spin speed?

Maximum spin speed is 1200 rpm. Use lower speeds for delicate fabrics. You can adjust via the spin button.

How do I install the washing machine?

Remove transit bolts, connect inlet hose to cold water tap, place drain hose in standpipe or sink, level feet, and plug in. Refer to manual for details.

How can I reduce noise during spin?

Ensure the machine is level and feet are adjusted. Check for unbalanced loads and reduce load size. Place anti-vibration pads if needed.

USER MANUAL RL12X REX

Illustration of a person using a tool near a door (no text or symbols visible)

Technical line drawing of an open electrical enclosure with internal components and a base plate (no text or symbols)

Illustration of a hand using a tool to adjust or install a device into a box (no text or symbols visible)

Aufstellung

Illustration of two hands pressing a small object with curved arrows indicating motion (no text or symbols)

Illustration of a hand holding a faucet with a valve inserted, no text or symbols present

Diagram of a pipe fitting with an arrow indicating direction (no text or symbols present)

Wasserablauf

Diagram of a pipe with a valve inserted into a basin, showing fluid flow direction (no text or labels)

Simple line drawing of a washing machine connected to a funnel and a dish, with no text or symbols present.

IHR NEUER WASCHAUTOMAT

GEBRAUCH

Bedienungsblende

8 Taste MINIPROGRAMM

Illustration of a hand holding a small object with an arrow indicating direction (no text or symbols)

Illustration of a hand using a tool to cut or install a wooden drawer into a drawer (no text or symbols visible)

Illustration of a hand inserting into a device into a drawer (no text or symbols visible)

Illustration of hands using a tool to interact with a device (no text or symbols visible)

Hand pressing a wooden block with a paper cutout, no visible text or symbols

Illustration of a hand using a tool to cut or inspect a rectangular object, no text or symbols visible

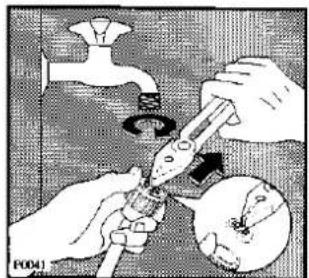

Illustration of hands using a tool to interact with a faucet, showing mechanical components and motion arrows (no text or symbols)

Hand holding a small rectangular object with an arrow pointing to it, against a textured wall background (no text or symbols)

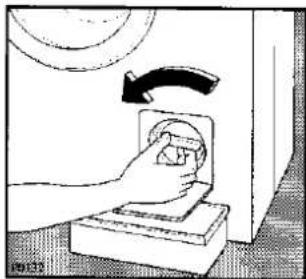

Illustration of a hand pressing down on a mechanical component with an arrow indicating rotation (no text or symbols)

Illustration of a hand cleaning a surface near a window with a plate and mirror (no text or symbols)

Illustration of a hand using a faucet to clean water, no text or symbols present

6. Notentleerung
