Product Type	Washing Machine
Brand	Rex
Model	LR14
Dimensions (H x W x D)	85 cm x 60 cm x 60 cm
Weight	70 kg
Power Supply	230 V, 50 Hz
Capacity	7 kg
Spin Speed	1200 rpm
Energy Efficiency Class	A+
Wash Programs	Cotton, Synthetic, Delicate, Wool, Quick Wash, Spin & Drain, Rinse
Key Features	Delay Start, Child Lock, Overflow Protection, Self-Cleaning Filter
Maintenance	Clean drum regularly, clean filter after each wash, check hose connections
Safety	Child lock, thermal fuse, door lock during operation
Spare Parts & Repairability	Motor, drum, pump, control board, door seal available for self-repair
Included Accessories	User manual, inlet hose, drain hose

Frequently Asked Questions - LR14 REX

How do I install the Rex LR14 washing machine?

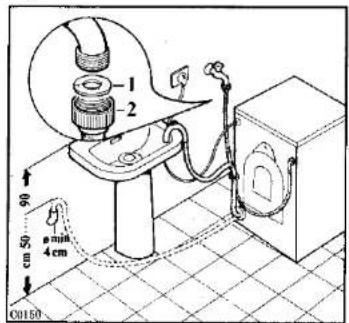

Remove shipping bolts, connect water inlet and drain hoses, level the machine using adjustable feet, and plug into a grounded outlet. Refer to the manual for detailed steps.

What do I do if the washing machine does not drain?

Check the drainage hose for kinks, clean the pump filter (located at the front bottom), and ensure the drain pipe is not clogged.

How can I clean the detergent drawer?

Remove the drawer by pressing the release lever, wash it under running water, and wipe the compartment with a damp cloth. Reinsert fully.

What error code E01 means?

E01 indicates a water filling problem. Check if the water tap is open, the inlet hose is not kinked, and the water pressure is adequate.

How often should I clean the drum?

Run a maintenance wash (drum clean cycle) every 3 months or use a descaling agent to prevent limescale buildup.

Can I open the door during a cycle?

The door is locked for safety. If you need to open it, press the pause button and wait 2 minutes until the door unlocks. Do not force it.

Why is the machine vibrating excessively?

Ensure the shipping bolts were removed, the machine is leveled, and the laundry is evenly distributed in the drum. Avoid overloading.

What type of detergent should I use?

Use low-sudsing detergents designed for automatic washing machines. Follow the dosage instructions based on water hardness and load size.

How do I replace the door seal?

Disconnect power, remove the old seal by unscrewing the clamp, clean the area, fit the new seal and tighten the clamp evenly. Check manual for specifics.

Where can I find spare parts for Rex LR14?

Spare parts are available from authorized Rex service centers or online retailers. Use the model number LR14 to ensure compatibility.

USER MANUAL LR14 REX

Illustration of a hand holding a circular object with a pointer, and a separate oval with small dots inside (no text or symbols)

Fig. 11

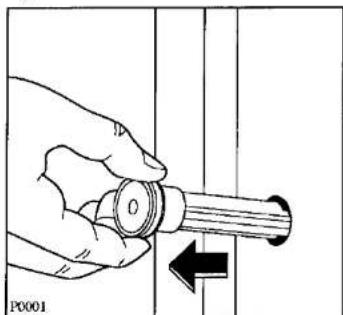

Hand inserting a circular component into a wall, showing mechanical parts and rotation arrows (no text or symbols)

Fig. 12

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Fig. 1

Illustration of a person using a tool on a wooden plank, with an arrow indicating rotation (no text or symbols)

Fig. 2

Technical line drawing of a mechanical assembly with no visible text or symbols

Fig. 3

Technical line drawing of a mechanical assembly with internal components and a directional arrow (no text or symbols)

Fig. 4

Hand holding a mechanical component with a circular dial and arrow indicating rotation (no text or symbols)

Fig. 5

Fig. 6

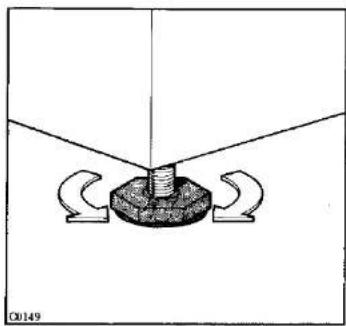

Diagram of a mechanical assembly with a central bolt and two curved arrows indicating motion (no text or symbols)

Fig. 7

Fig. 8

Technical line drawing of a ring component with an arrow indicating rotation (no text or symbols)

Fig. 9

Fig. 10
