3BC8880G - Range hood BALAY - Free user manual and instructions
Find the device manual for free 3BC8880G BALAY in PDF.
Pick your language and provide your email: we'll send you a specifically translated version.
| Product Type | Range Hood |
| Brand | Balay |
| Model | 3BC8880G |
| Width | 90 cm |
| Depth | 50 cm |
| Height (min-max) | 65 - 110 cm |
| Weight | 15 kg |
| Power Consumption | 250 W |
| Voltage | 220-240 V ~ 50/60 Hz |
| Number of Speeds | 3 |
| Noise Level (max speed) | 55 dB(A) |
| Lighting | 2 x 1.5 W LED |
| Grease Filter Type | Aluminum mesh, washable |
| Air Extraction Capacity (max) | 650 m³/h |
| Installation Type | Ducted or recirculation (carbon filter optional) |
| Control Type | Push buttons |
| Grease Filter Saturation Indicator | Yes |
| Motor Type | Asynchronous |
| Energy Efficiency Class | A |
| Grease Filter Efficiency Class | B |
| Annual Energy Consumption | 50 kWh/year |
| Color | Stainless steel |
| Warranty | 2 years |
| Spare Parts Availability | At least 7 years |
Frequently Asked Questions - 3BC8880G BALAY
How do I install the Balay 3BC8880G range hood?
Installation must be done by a qualified professional. Ensure the ducting is correctly connected for extraction mode, or install a carbon filter for recirculation mode. The hood must be mounted at least 65 cm above electric hobs and 75 cm above gas hobs.

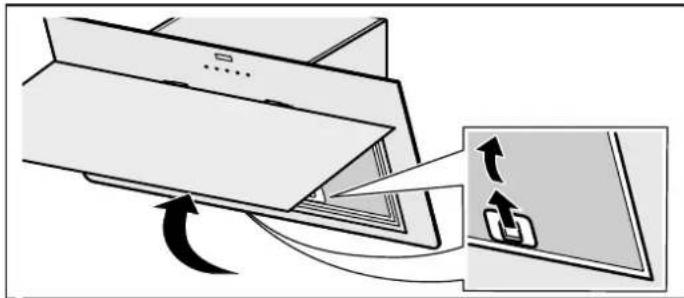

How often should I clean the grease filter?
The aluminum mesh grease filter should be cleaned every 2-3 months, or more frequently if used heavily. It can be washed in the dishwasher or by hand with warm soapy water. Allow it to dry completely before reinserting.

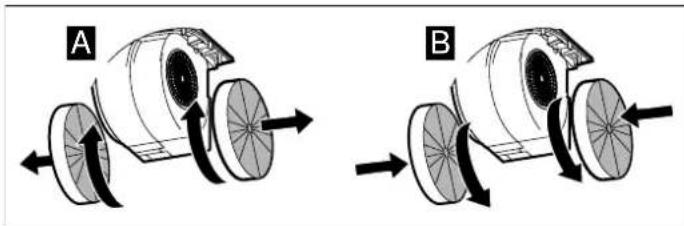

How do I replace the carbon filter?
If using recirculation mode, replace the carbon filter every 6-12 months. To replace, remove the grease filter, then the carbon filter. Insert a new one and reassemble.
Why is my range hood noisy?
Noise can be due to blocked filters, loose parts, or improper installation. Check the grease filter for clogs and ensure the hood is firmly fixed. If noise persists, contact service.
How do I change the LED lights?
The LED lights are integrated and should be replaced by a qualified technician. If they fail, contact Balay customer service for assistance.
Can I use the hood without ducting?
Yes, the Balay 3BC8880G can be used in recirculation mode with a carbon filter. The carbon filter absorbs odors and must be replaced periodically.
What is the maximum extraction capacity?
The maximum extraction capacity is 650 m³/h at the highest speed. Actual performance depends on duct length and installation conditions.
How do I reset the filter saturation indicator?
After cleaning or replacing the filters, press and hold the speed button for 3 seconds until the indicator turns off. Refer to the manual for exact procedure.
What should I do if the hood does not turn on?
Check the power supply and circuit breaker. Ensure the hood is properly connected. If it still doesn't work, contact Balay support.
Are spare parts available for this model?
Yes, Balay guarantees spare parts availability for at least 7 years after the model is discontinued. Contact Balay service to order parts.
