USER MANUAL KU15RA65HK SIEMENS
Register your product on My Siemens and discover exclusive services and offers. siemens-home.bsh-group.com/welcome
The future moving in.
1
5
6
9
Table of contents
1 Safety 6
1.1 General information...... 6
1.2 Intended use...... 6
1.3 Restriction on user group...... 6
1.4 Safe transport...... 6
1.5 Safe installation 7
1.6 Safe use 8
1.7 Damaged appliance...... 10
2 Preventing material damage ..... 11
3 Environmental protection and saving energy.... 11
3.1 Disposing of packaging ..... 11
3.2 Saving energy...... 11
4 Installation and connection..... 11
4.1 Scope of delivery.... 11
4.2 Criteria for the installation location 12
4.3 Installing the appliance ..... 12
4.4 Preparing the appliance for the first time.... 12
4.5 Connecting the appliance to the electricity supply...... 13
5 Familiarising yourself with your appliance.... 13
5.1 Appliance 13
5.2 Control panel.... 13
6 Features.... 13
6.1 Shelf.... 13
6.2 Pull-out container.... 13
6.3 Fruit and vegetable container with cover 13
6.4 Door rack.... 14
6.5 Accessories.... 14
7 Basic operation ...... 14
7.1 Switching on the appliance ..... 14
7.2 Operating tips.... 14
7.3 Switching off the appliance ..... 14
7.4 Setting the temperature...... 14
8 Refrigerator compartment ..... 15
8.1 Tips for storing food in the refrigerator compartment ..... 15
8.2 Chill zones in the refrigerator compartment 15
8.3 Cooling capacity.... 15
8.4 "OK" sticker 15
9 Defrosting 16
9.1 Defrosting in the refrigerator compartment 16
10 Cleaning and servicing...... 16
10.1 Care instructions for stainless steel surfaces...... 16
10.2 Preparing the appliance for cleaning 16
10.3 Cleaning the appliance ..... 16

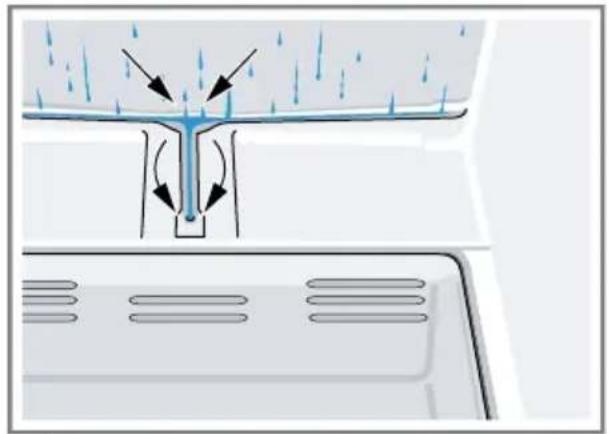

10.4 Cleaning the condensation channel and drainage hole .... 17
10.5 Cleaning the ventilation grille.... 17
10.6 Removing the fittings...... 17
11 Troubleshooting...... 18
12 Storage and disposal...... 19
12.1 Taking the appliance out of operation 19
12.2 Disposing of old appliance .... 19
13.1 Product number (E-Nr.) and production number (FD)...... 19
13 Customer Service.... 19
14 Technical data 20
1 Safety
Observe the following safety instructions.
1.1 General information
- Read this instruction manual carefully.
- Keep the instruction manual and the product information safe for future reference or for the next owner.
■ Do not connect the appliance if it has been damaged in transit.
1.2 Intended use
Only use this appliance:
■ For chilling food.
■ In private households and in enclosed spaces in a domestic environment.
■ Up to an altitude of 2000 m above sea level.
1.3 Restriction on user group
This appliance may be used by children aged 8 or over and by people who have reduced physical, sensory or mental abilities or inadequate experience and/or knowledge, provided that they are supervised or have been instructed on how to use the appliance safely and have understood the resulting dangers.
Do not let children play with the appliance.
Cleaning and user maintenance must not be performed by children unless they are being supervised.
1.4 Safe transport
⚠ WARNING – Risk of injury!
The high weight of the appliance may result in injury when lifted.
▶ Do not lift the appliance on your own.
1.5 Safe installation
⚠ WARNING – Risk of electric shock!
Incorrect installation is dangerous.
- Connect and operate the appliance only in accordance with the specifications on the rating plate.
- Connect the appliance to a power supply with alternating current only via a properly installed socket with earthing.
- The protective conductor system of the domestic electrical installation must be properly installed.
▶ Never equip the appliance with an external switching device, e.g. a timer or remote control. - When the appliance is installed, the mains plug of the power cord must be freely accessible. If free access is not possible, an all-pole isolating switch must be installed in the permanent electrical installation according to the installation regulations.
- When installing the appliance, check that the power cable is not trapped or damaged.
If the insulation of the power cord is damaged, this is dangerous.
▶ Never let the power cord come into contact with heat sources.
⚠ WARNING – Risk of explosion!
If the appliance's ventilation openings are sealed, a leak in the refrigeration circuit may result in a flammable mixture of gas and air.
- Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
⚠ WARNING – Risk of fire!
It is dangerous to use an extended power cord and non-approved adapters.
▶ Do not use extension cables or multiple socket strips.
▶ Only use adapters and power cords approved by the manufacturer.
If the power cord is too short and a longer one is not available, please contact an electrician to have the domestic installation adapted.
en Safety
Portable multiple socket strips or portable power supply units may overheat and cause a fire.
- Do not place portable multiple socket strips or power supply units on the back of the appliance.
1.6 Safe use
⚠ WARNING – Risk of suffocation!
Children may put packaging material over their heads or wrap themselves up in it and suffocate.
- Keep packaging material away from children.
▶ Do not let children play with packaging material.
Children may breathe in or swallow small parts, causing them to suffocate.
- Keep small parts away from children.
▶ Do not let children play with small parts.
⚠ WARNING – Risk of explosion!
If the cooling circuit is damaged, flammable refrigerant may escape and explode.
- To accelerate the defrosting process, do not use any other mechanical devices or means other than those recommended by the manufacturer. - If food is stuck to the freezer compartment, loosen it with a blunt implement such as the handle of a wooden spoon.
Products which contain flammable propellants and explosive substances may explode, e.g. spray cans.
- Do not store products which contain flammable propellants (e.g. spray cans) or explosive substances in the appliance.
⚠ WARNING – Risk of fire!
Electrical devices within the appliance may cause a fire, e.g. heat-ers or electric ice makers.
- Do not operate electrical devices within the appliance. The vapours from flammable liquids may catch fire (explosion). - Store high-percentage alcohol tightly closed and standing up.
⚠ WARNING – Danger: Magnetism!
The exchangeable coloured fronts are secured with magnets. The magnets may affect electronic implants, e.g. pacemakers, defibrillators or insulin pumps.
▶ Persons with electronic implants must stand at least 15 cm away from the magnets.
⚠ WARNING – Risk of injury!
Injury to the eyes caused by escaping flammable refrigerant and hazardous gases.
- Do not damage the tubes of the refrigerant circuit or the insulation.
⚠️ CAUTION – Risk of harm to health!
To prevent food from being contaminated, you must observe the following instructions.
- If the door is open for an extended period of time, this may lead to a considerable temperature increase in the compartments of the appliance.
▶ Regularly clean the surfaces that may come into contact with food and accessible drain systems. - Store raw meat and fish in suitable containers in the refrigerator so that they do not touch or drip on other food.
If the fridge/freezer is empty for an extended period of time, switch off the appliance, defrost it, clean it and leave the door open to prevent the formation of mould.
Metal or metal-style parts in the appliance may contain aluminium. If acidic food comes into contact with aluminium in the appliance, aluminium foil ions may pass into the food.
▶ Do not consume soiled food.
1.7 Damaged appliance
WARNING – Risk of fire!
If the tubes are damaged, flammable refrigerant and harmful gases may escape and ignite.
- Keep naked flames and ignition sources away from the appliance.
▶ Ventilate the room.
▶ Switch off the appliance. → Page 14
▶ Unplug the appliance from the mains or switch off the circuit breaker in the fuse box.
▶ Call after-sales service. → Page 19
2 Preventing material damage
ATTENTION!
Using the base, runners or appliance doors as a seat surface or climbing surface may damage the appliance.
- Do not stand or support yourself on the base, runners or doors. Contamination with oil or fat may cause plastic parts and door seals to become porous.
- Keep plastic parts and door seals free of oil and grease.
Metal or metal-style parts in the appliance may contain aluminium. Aluminium reacts when it comes into contact with acidic foods.
- Do not store unpackaged food in the appliance.
3 Environmental protection and saving energy
3.1 Disposing of packaging
The packaging materials are environmentally compatible and can be recycled.
- Sort the individual components by type and dispose of them separately.
3.2 Saving energy
If you follow these instructions, your appliance will use less power.
Selecting the installation location
- Keep the appliance out of direct sunlight.
■ Install the appliance as far away as possible from heating elements, cookers and other heat sources:
- Maintain a 30 mm clearance to electric or gas cookers. - Maintain a 300 mm clearance to oil or solid-fuel cookers.
■ Never cover or block the exterior ventilation grilles.
Saving energy during use
Note: The arrangement of the fittings does not affect the energy consumption of the appliance.
■ Open the appliance only briefly and then close it carefully.
■ Never cover or block the interior ventilation openings or the exterior ventilation grilles.
■ Transport purchased food in a cool bag and place in the appliance quickly.
■ Allow warm food and drinks to cool down before storing them.
■ Thaw frozen food in the refrigerator compartment to utilise the low temperature of the food.
■ Always leave some space between the food and to the back panel.
4 Installation and connection
4.1 Scope of delivery
After unpacking all parts, check for any transport damage and for completeness of delivery.
If you have any complaints, contact your dealer or our after-sales service → Page 19.
The delivery consists of the following:
■ Built-under appliance
■ Equipment and accessories ^1
■ Installation instructions
■ User manual
■ Customer service directory
■ Warranty enclosure ^2
■ Energy label
■ Information on energy consumption and noises
4.2 Criteria for the installation location
WARNING
Risk of explosion!
If the appliance is in a space that is too small, a leak in the refrigeration circuit may result in a flammable mixture of gas and air.
▶ Only install the appliance in a space with a volume of at least 1 m^3 per 8 g refrigerant. The volume of refrigerant is indicated on the rating plate. → Fig. 1/4
The weight of the appliance ex works may be up to 35 kg depending on the model.
The subfloor must be sufficiently stable to bear the weight of the appliance.
Permitted room temperature
The permitted room temperature depends on the appliance's climate class.
The climate class can be found on the rating plate. → Fig. 1/4
| Climate class | Permitted room temperature |
| SN 10 °C to 32 °C | |
| N 16 °C to 32 °C | |
| ST 16 °C to 38 °C | |
| Climate class | Permitted room temperature |
| T 16 °C to 43 °C | |
The appliance is fully functional within the permitted room temperature. If an appliance with climate class SN is operated at colder room temperatures, the appliance will not be damaged up to a room temperature of 5 °C.
Over-and-under and side-by-side installation
If you want to install 2 refrigerating appliances one over the other or side by side, you must maintain a clearance of at least 150 mm between the appliances. Selected appliances can be installed without a minimum clearance. Ask your dealer or kitchen planner about this.
Built-under
Attachment under certain worktops, e.g. stone, glass or stainless steel, is frequently not possible. You can order accessories from customer service for installation on the side walls.
→ "Customer Service", Page 19
4.3 Installing the appliance
- Install the appliance in accordance with the enclosed installation instructions.
4.4 Preparing the appliance for the first time
- Remove the informative material.
-
Remove the protective foil and transit bolts, e.g. remove the adhesive strips and carton.
-
Clean the appliance for the first time. → Page 16
4.5 Connecting the appliance to the electricity supply
-
Insert the mains plug of the appliance's power cable in a socket nearby.
The connection data of the appliance can be found on the rating plate. → Fig. 1/4 -
Check the mains plug is inserted properly.
√ The appliance is now ready for use.
5 Familiarising yourself with your appliance
5.1 Appliance
You can find an overview of the parts of your appliance here.
→Fig. 1
| 1 | Light switch → Page 18 |
| 2 | Control panel → Page 13 |
| 3 | Pull-out container → Page 13 |
| 4 | Rating plate → Page 20 |
| 5 | Fruit and vegetable container |
| 6 | Exterior ventilation grille → Page 17 |
| 7 | Door storage compartment for large bottles → Page 14 |
Note: Deviations between your appliance and the diagrams may differ with regard to their features and size.
5.2 Control panel
You can use the control panel to configure all functions of your appliance and to obtain information about the operating status.
→ Fig. 2
1 The temperature controller sets the temperature.
6 Features
The features of your appliance depend on the model.
6.1 Shelf
To vary the shelf as required, you can remove the shelf.
→ "Removing the shelf", Page 17
Re-position the stoppers on both sides and re-insert the shelf.
6.2 Pull-out container
Store animal-based food in the pull-out container. You can take out the pull-out container for loading and unloading. → Page 17
6.3 Fruit and vegetable container with cover
Store fresh fruit and vegetables loose in the fruit and vegetable container.
Cover any chopped fruit and vegetables, or store in air-tight packaging. Remove the fruit and vegetable container for loading and unloading.
→ Page 17
Condensation may form in the fruit and vegetable container depending on the food and quantity stored.
Remove the condensation with a dry cloth.
To ensure that the quality and aroma are retained, store fruit and vegetables that are sensitive to cold outside of the appliance at temperatures of approx. 8 °C to 12 °C, e.g. pineapple, bananas, citrus fruits, cucumbers, courgettes, peppers, tomatoes and potatoes.
6.4 Door rack
To adjust the door rack as required, you can remove the door rack and re-insert elsewhere.
→ "Removing door rack", Page 17
6.5 Accessories
Use original accessories. These have been made especially for your appli-ance.
The accessories for your appliance depend on the model.
Egg tray
Store eggs safely on the egg tray.
Bottle holder
The bottle holder prevents bottles from falling over when the appliance door is opened and closed.
→ Fig. 3
7 Basic operation
7.1 Switching on the appli- ance
- Turn the temperature controller from position "0".
√ The appliance begins to cool.
- Set the required temperature.
→ Page 14
7.2 Operating tips
■ Once you have switched on the appliance, the set temperature is only reached after several hours. Do not put any food in the appliance until the set temperature has been reached.
■ If you open the refrigerator compartment door frequently, put large quantities of food in the appliance or if the room temperature is high, the temperature of the refrigerator compartment rises.
■ When you close the door, a vacuum may be created. The door is then difficult to open again. Wait a moment until the vacuum is offset.
7.3 Switching off the appli- ance
- Turn the temperature controller to position "0".
7.4 Setting the temperature
Setting the refrigerator compartment temperature
- Turn the temperature controller to the required setting.
Setting to a higher number means a lower temperature.
The recommended temperature in the refrigerator compartment is 4 °C.
→ ""OK" sticker", Page 15
8 Refrigerator compartment
You can keep meat, sausage, fish, dairy products, eggs, prepared meals and pastries in the refrigerator compartment.
The temperature can be set from level 1 to level 5.
The refrigerator compartment can also be used to store highly perishable foods in the short to medium term. The lower the selected temperature, the longer the food remains fresh.
8.1 Tips for storing food in the refrigerator compartment
■ Only store food when fresh and undamaged.
■ Store food covered or in air-tight packaging.
■ To avoid impeding the circulation of air and to prevent food from freezing, do not place food directly against the back wall.
- Allow hot food and drinks to cool down first before placing in the appliance.
- Observe the best-before date or use-by date specified by the manufacturer.
8.2 Chill zones in the refrigerator compartment
The air circulation in the refrigerator compartment creates different chill zones.
Coldest zone
The coldest zone is in the pull-out container.
Tip: Store highly perishable food such as fish, sausages and meat in the coldest zone.
Warmest zone
The warmest zone is at the very top of the door.
Tip: Store food that does not spoil easily in the warmest zone, e.g. hard cheese and butter. Cheese can then continue to release its aroma and the butter will still be easy to spread.
8.3 Cooling capacity
The temperature in the refrigerator compartment may rise temporarily if loaded with fairly larger amounts of food or drinks.
Tip: Turn the temperature controller to a higher setting for approx. seven hours.
→ "Setting the refrigerator compartment temperature", Page 14
8.4 "OK" sticker
The "OK" sticker lets you check whether the refrigerator compartment reaches the safe temperature ranges of +4 °C or colder recommended for food.
The "OK" sticker is not included with all models.
If the sticker does not indicate "OK", gradually reduce the temperature.
→ "Setting the refrigerator compartment temperature", Page 14
Once the appliance is switched on, it may take up to 12 hours until the set temperature is reached.
Correct setting
9 Defrosting
9.1 Defrosting in the refrigerator compartment
When the appliance is operating, condensation droplets or frost form on the rear panel of the refrigerator compartment due to functional reasons. The back panel in the refrigerator compartment defrosts automatically.
Condensation runs through the condensation channel into the drainage hole to the evaporation pan and does not have to be wiped away.
To ensure that the condensation can drain and odours do not form, observe the following information:
→ "Cleaning the condensation channel and drainage hole", Page 17.
10 Cleaning and servicing
To keep your appliance working efficiently for a long time, it is important to clean and maintain it carefully. Customer Service must clean inaccessible points. Cleaning by customer service can give rise to costs.
10.1 Care instructions for stainless steel surfaces
When taking care of and cleaning stainless steel surfaces, use only cleaning cloths and cleaning agents suitable for stainless steel.
Tips
■ To prevent visible scratches, wipe the stainless steel surface in the direction of the grain.
■ Suitable cleaning agents and cleaning cloths are available from our customer service, your dealer or on our website.
10.2 Preparing the appliance for cleaning
- Switch off the appliance.
→ Page 14
- Disconnect the appliance from the power supply.
Unplug the appliance from the mains or switch off the circuit breaker in the fuse box.
- Take out all of the food and store it in a cool place.
Place ice packs (if available) onto the food.
- Remove all fittings and accessories from the appliance.
→ Page 17
10.3 Cleaning the appliance
WARNING
Risk of electric shock!
An ingress of moisture can cause an electric shock.
- Do not use steam- or high-pressure cleaners to clean the appliance.
Liquid in the lighting or in the controls can be dangerous.
- The rinsing water must not drip into the lighting or controls.
ATTENTION!
Unsuitable cleaning products may damage the surfaces of the appli-ance.
- Do not use hard scouring pads or cleaning sponges.
- Do not use harsh or abrasive detergents.
- Do not use cleaning products with a high alcohol content.
- Do not use stainless-steel cleaning agents on the outside of the appliance.
If liquid gets into the drainage hole, the evaporation pan may overflow.
- The rinsing water must not get into the drainage hole.
If you clean fittings and accessories in the dishwasher, this may cause them to become deformed or discol- our.
▶ Never clean fittings and accessory in the dishwasher.
- Prepare the appliance for cleaning. → Page 16
- Clean the appliance, the fittings, the accessories and the door seals with a dish cloth, lukewarm water and a little pH-neutral washing-up liquid.
- Dry thoroughly with a soft, dry cloth.
- Insert the fittings.
- Electrically connect the appliance. → Page 13
- Putting the food into the appliance.
10.4 Cleaning the condensation channel and drainage hole
Regularly clean the condensation channel and drainage hole to ensure that the condensation can drain.
- Remove the pull-out container. → Page 17
- Carefully clean the condensation channel and the drainage hole, e.g. using a moistened cotton bud. → Fig. 4
10.5 Cleaning the ventilation grille
-
Remove the exterior ventilation grille for cleaning.
-
To do this, depress the clips in the ventilation openings and simultaneously remove the exterior ventilation grille forwards.
→ Fig. 5 -
Clean the exterior ventilation grille with lukewarm soapy water and a dish cloth.
- Let the exterior ventilation grille dry completely and insert it.
10.6 Removing the fittings
If you want to clean the fittings thoroughly, remove these from your appliance.
Removing the shelf
- Lift the shelf, pull it forwards and swivel it out to the side ①and remove the plugs ②
→ Fig. 6
Removing door rack
▶ Lift the door rack and remove it.
→ Fig. 7
Removing pull-out containers
- Lift the pull-out container and remove it.
→ Fig. 8
Remove the fruit and vegetable container with the lid
- Fold up the lid of the fruit and vegetable container ①and remove the fruit and vegetable container with lid towards the front ②
→ Fig. 9
11 Troubleshooting
You can rectify minor faults on your appliance yourself. Read the troubleshooting information before contacting after-sales service. This will avoid unnecessary costs.
Fault Cause and troubleshooting
| The LED lighting does not work. | The illuminant is defective.1. Switch off the appliance. → Page 142. Disconnect the appliance from the mains.Unplug the appliance from the mains or switch off the circuit breaker in the fuse box.3. Remove the illuminant cover to the left.→ Fig. 104. Replace the illuminant.Replacement illuminant: 220–240 V AC, E14 bulb holder, see the defective illuminant's wattage. |
| The light switch is jammed.▶ Check whether the light switch can be moved.→ Fig. 11 | |
| The base of the refrigerator compartment is wet. | The condensation channel or drainage hole are blocked.▶ Clean the condensation channel and the drainage hole. → Page 17 |
| The appliance hums, bubbles, buzzes, gargles or clicks. | Not a fault. A motor is running, e.g. refrigerating unit, fan. Refrigerant flows through the pipes. The motor, switches or solenoid valves are switching on or off. No action required. |
| The appliance makes noises. | Fittings wobble or stick.▶ Check the removable fittings and, if required, replace these. |
| Bottles or containers are touching.▶ Move the bottles or containers away from each other. |
12 Storage and disposal
12.1 Taking the appliance out of operation
- Switch off the appliance.
→ Page 14 - Disconnect the appliance from the power supply.
Unplug the appliance from the mains or switch off the circuit breaker in the fuse box. - Remove all of the food.
- Clean the appliance. → Page 16
- To guarantee the ventilation inside the appliance, leave the appliance open.
12.2 Disposing of old appli- ance
Valuable raw materials can be re-used by recycling.
WARNING
Risk of harm to health!
Children can lock themselves in the appliance, thereby putting their lives at risk.
Leave shelves and containers inside the appliance to prevent children from climbing in.
- Keep children away from the redundant appliance.
WARNING
Risk of fire!
If the tubes are damaged, flammable refrigerant and harmful gases may escape and ignite.
- Do not damage the tubes of the refrigerant circuit or the insulation.
- Dispose of the appliance in an environmentally friendly manner.
Information about current disposal methods are available from your specialist dealer or local authority.
This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE). The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU.
13 Customer Service
Detailed information on the warranty period and terms of warranty in your country is available from our after-sales service, your retailer or on our website.
If you contact Customer Service, you will require the product number (E-Nr.) and the production number (FD) of your appliance.
The contact details for Customer Service can be found in the enclosed Customer Service directory or on our website.
13.1 Product number (E-Nr.) and production number (FD)
You can find the product number (E-Nr.) and the production number (FD) on the appliance's rating plate.
→ Fig. 1 / 4
Make a note of your appliance's details and the Customer Service telephone number to find them again quickly.
14 Technical data
Refrigerant, cubic capacity and further technical specifications can be found on the rating plate.
→ Fig. 1 / 4
目錄
1 安全性 22
siemens-home.bsh-group.com
Manufactured by BSH Hausgeräte GmbH under the trademark licence of Siemens AG
- Table of contents
- Safety 6
- Preventing material damage ..... 11
- Environmental protection and saving energy.... 11
- Installation and connection..... 11
- Familiarising yourself with your appliance.... 13
- Features.... 13
- Basic operation ...... 14
- Refrigerator compartment ..... 15
- Defrosting 16
- Cleaning and servicing...... 16
- Troubleshooting...... 18
- Storage and disposal...... 19
- Customer Service.... 19
- Technical data 20
- Safety
- General information
- Intended use
- Restriction on user group
- Safe transport
- ⚠ WARNING – Risk of injury!
- Safe installation
- ⚠ WARNING – Risk of electric shock!
- ⚠ WARNING – Risk of explosion!
- ⚠ WARNING – Risk of fire!
- en Safety
- Safe use
- ⚠ WARNING – Risk of suffocation!
- ⚠ WARNING – Danger: Magnetism!
- ⚠️ CAUTION – Risk of harm to health!
- Damaged appliance
- WARNING – Risk of fire!
- Preventing material damage
- ATTENTION!
- Environmental protection and saving energy
- Disposing of packaging
- Saving energy
- Selecting the installation location
- Saving energy during use
- Installation and connection
- Scope of delivery
- Criteria for the installation location
- WARNING
- Risk of explosion!
- Permitted room temperature
- Over-and-under and side-by-side installation
- Built-under
- Installing the appliance
- Preparing the appliance for the first time
- Connecting the appliance to the electricity supply
- Familiarising yourself with your appliance
- Appliance
- Control panel
- Features
- Shelf
- Pull-out container
- Fruit and vegetable container with cover
- Door rack
- Accessories
- Egg tray
- Bottle holder
- Basic operation
- Switching on the appli- ance
- Operating tips
- Switching off the appli- ance
- Setting the temperature
- Setting the refrigerator compartment temperature
- Refrigerator compartment
- Tips for storing food in the refrigerator compartment
- Chill zones in the refrigerator compartment
- Coldest zone
- Warmest zone
- Cooling capacity
- "OK" sticker
- Defrosting
- Defrosting in the refrigerator compartment
- Cleaning and servicing
- Care instructions for stainless steel surfaces
- Tips
- Preparing the appliance for cleaning
- Cleaning the appliance
- Risk of electric shock!
- Cleaning the condensation channel and drainage hole
- Cleaning the ventilation grille
- Removing the fittings
- Removing the shelf
- Removing door rack
- Removing pull-out containers
- Remove the fruit and vegetable container with the lid
- Troubleshooting
- Storage and disposal
- Taking the appliance out of operation
- Disposing of old appli- ance
- Risk of harm to health!
- Risk of fire!
- Customer Service
- Product number (E-Nr.) and production number (FD)
- Technical data
- 目錄
- 安全性 22
Brand : SIEMENS
Model : KU15RA65HK
Category : Dishwasher
