821-027 - Kitchen scale Menuett - Free user manual and instructions

Type	Kitchen Scale
Model	821-027
Brand	Menuett
Weighing Capacity	5 kg (11 lbs)
Graduation / Precision	1 g (0.1 oz)
Display	LCD, digital
Units	g, kg, lb, oz
Functions	Tare, zero reset, unit conversion
Power Supply	2 x AAA batteries (not included)
Auto Off	Yes, after 2 minutes of inactivity
Platform Material	Stainless steel
Housing Material	Plastic
Dimensions (W x D x H)	20 x 15 x 2 cm
Weight (device only)	Approx. 300 g
Overload Indicator	Yes, displays 'EEEEE'
Low Battery Indicator	Yes
Cleaning Instructions	Wipe with a damp cloth; do not immerse
Safety Warnings	Not for commercial use; keep away from water
Spare Parts & Repairability	Battery replacement only; no user-serviceable parts
Environmental Information	Dispose according to local regulations

Frequently Asked Questions - 821-027 Menuett

How do I change the battery?

Open the battery compartment on the bottom, remove old batteries, and insert two new AAA batteries observing polarity.

How to use the tare function?

Place an empty container on the scale, press the TARE button to reset to zero, then add ingredients.

What is the maximum weight?

The maximum capacity is 5 kg (11 lbs). Exceeding this may damage the scale.

How do I switch between units?

Press the UNIT button to toggle between g, kg, lb, and oz.

Why does the scale show 'EEEEE'?

The scale is overloaded. Remove weight immediately and never exceed 5 kg.

How to clean the scale?

Wipe with a soft damp cloth. Do not use abrasive cleaners or immerse in water.

Does the scale turn off automatically?

Yes, it shuts off after about 2 minutes of inactivity to save battery.

The scale shows inaccurate readings. What should I do?

Ensure the scale is on a flat, stable surface. Recalibrate by turning off and on, or replace batteries if low.

Can I use the scale for commercial purposes?

No, this scale is intended for household use only. Commercial use may cause damage.

What type of batteries does it use?

It requires 2 x AAA batteries (1.5V each), not included.

USER MANUAL 821-027 Menuett

EN - Operating instructions in original

Date of production: 2014-03-25

© Jula AB

SVENSKA....5

SÄKERHETSANVISNINGAR....5

BESKRIVNING ....5

FUNKTIONER....5

SÄTTA I ELLER BYTA BATTERIER 5

LCD-SKÄRM 5

ANVÄNDARLÄGEN 6

HANDHAVANDE 6

ANVÄNDA VÄGEN 6

FUNKTIONERNA ZERO OCH TARA 7

AUTOMATISK AVSTÄNGNING....8

VARNINGSSYMBOLER 9

UNDERHÅLL 9

NORSK 11

SIKKERHETSANVISNINGER 11

BESKRIVELSE....11

FUNKSJONER 11

SETTE INN ELLER BYTTE BATTERIER 11

LCD-SKJERM 11

BRUKSSTILLINGER 12

HÄNDTERING 12

BRUKE VEKTEN 12

FUNKSJONENE ZERO OG TARA 13

AUTOMATISK AVSLÅING 14

VARSELSYMBOLER....15

VEDLIKEHOLD 15

POLSKI 17

ZASADY BEZPIECZEŃSTWA 17

OPIS 17

FUNKCJE 17

WKŁADANIE LUB WYMIANA BATERII 17

WYŚWIETLACZ LCD 17

TRYBY UŻYTKOWNIKA 18

OBSŁUGA 18

UŻYTKOWANIE WAGI....18

FUNKCJE ZERO I TARA 19

AUTOmATYCZNE WYŁĄCZANIE .....20

TO INSTALL OR REPLACE BATTERIES....23

LCD SCREEN 23

WORKING mODES. 24

OPERATION....24

TO START WEIGHING....24

ZERO AND TARE FUNCTIONS 25

AUTO SHUT OFF 26

WARNING INDICATORS 27

MAINTENANCE 27

SÄKERHETSANVISNINGAR

Simple line drawing of a trash bin with diagonal lines crossing it, no text or symbols present.

Värna om miljön!

Read the operating instructions carefully before use.

Please retain for future reference.

DESCRIPTION

FEATURES

N.B.: LCD display in picture is for reference only. Use trial and error with the correct product.

• Indicate volume of water and milk
• Two weight unit systems g^ lb:oz convertible
• Two volume unit systems ml, fl'oz convertible
• Low battery power / Overload indication
• With high precision strain gauge sensor
• With tare function
• Auto off

TO INSTALL OR REPLACE BATTERIES

1x 3 V CR2032 lithium batteries (included). Remove isolation sheet before use.

• Open the battery case cover at the bottom of the scale.
  • Take out the used battery with the aid of a sharp object, as shown.
  • Install new battery by putting one side of the battery beneath the battery baffle (1) and then pressing down the other side.

LCD SCREEN

1. Tare
2. Negative value
3. Zero
4. Working mode weight
5. Working mode milk
6. Working mode water
7. Weight unit (lb:oz)
8. Volume unit (fl'oz)
9. Volume unit (ml)
10. Weight unit (g)

WORKING MODES

OPERATION

TO START WEIGHING

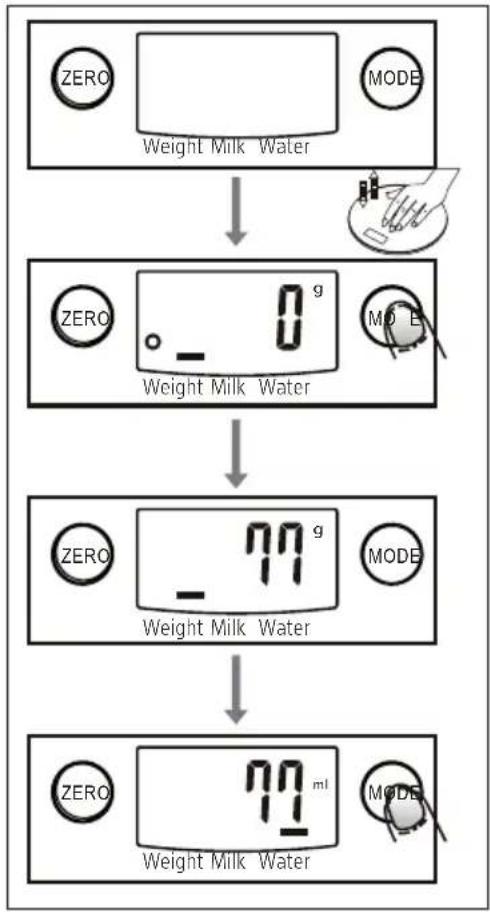

Weight mode

• Place the scale on a solid and flat surface.
• Place bowl (if used) on the scale before turning on the scale.
  • Gently press on the scale with your hand to turn it on.
• Wait until LCD shows all information.
• Put the load on the scale. LCD will show the weight reading.
• If the weighing object is water or milk, press MODE button to choose volume mode and view the volume of the object.


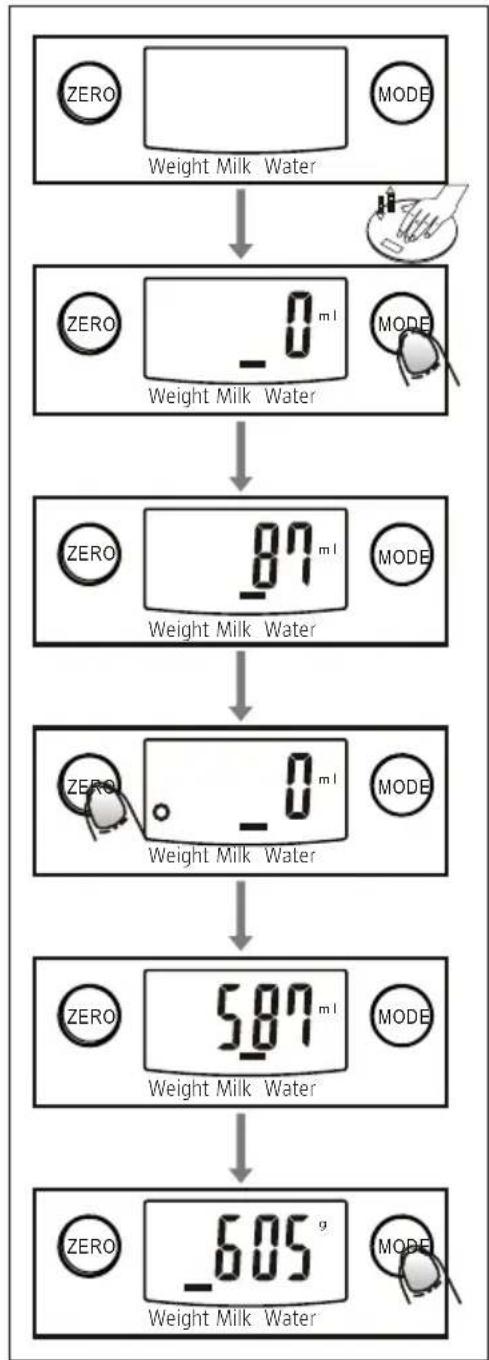

Volume indication mode

• Place the scale on a solid and flat surface.
  • Gently press on the scale with your hand to turn it on.
• Wait until the LCD shows "0", then press the MODE button to choose "Water" or "Milk" mode.
• Put a liquid container on the scale platform.
• Press ZERO button to reset LCD to "0".
• Pour liquid (water or milk) into the container. The LCD shows the volume of the liquid.
• Press the MODE button to choose "Weight" mode and view the weight of the liquid.

ZERO AND TARE FUNCTIONS

You can weigh different loads consecutively without removing loads from the scale. Put your first load on the scale; get the weight reading. Next, press the ZERO button to zero the scale. Make sure that "O" appears on the LCD before placing the next item you want to weigh on the scale. You can repeat this operation if necessary.

Condition 1: Zero functions

When total sum of all loads on scale ≤ 4% of scale's max. weight capacity. (4% = 80 g when weight capacity is 2000 g or 200 g when the weight capacity is 5000 g)

The LCD will show "----" or "0 g" each time the ZERO button is pressed. Wait a moment if "----" appears on the display. "0 g" and an "o" icon at the same time in the corner of the LCD mean the "Zero" function is activated. Max. weight capacity remains unchanged.

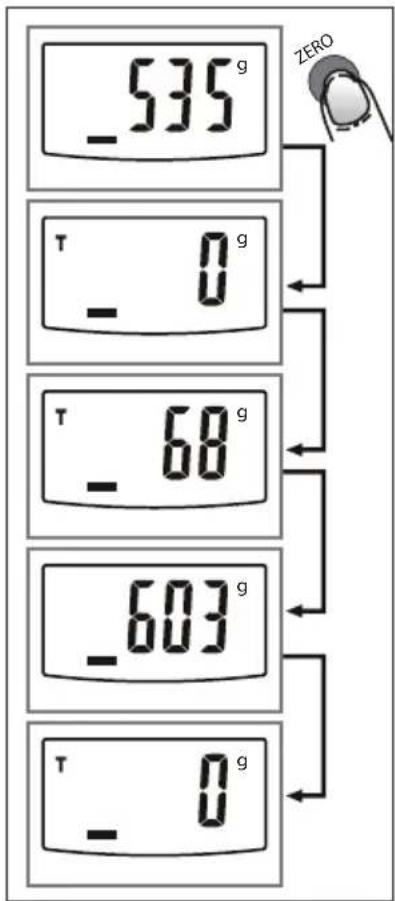

Condition 2: Tare function

When the total sum of all loads on the scale > 4 % of the scale's max. weight capacity. (4 % = 80 g when the weight capacity is 2000 g or 200 g when the weight capacity is 5000 g) The LCD will show "----" or "0 g" each time the ZERO button is pressed. Wait a moment if "----" appears on the display. "0 g" and a (T) icon (tare) at the same time on the upper left corner of the LCD mean the "Tare" function is activated. Max. weight capacity is reduced by the total weight of all loads.

Under this condition:

By pressing ZERO, you can see the total weight of all loads on the scale. If you want to weigh more loads, just press ZERO to reset the LCD reading to '0' again.

AUTO SHUT OFF

Auto shut-off occurs if display shows '0' or shows the same weight reading for one minute.

WARNING INDICATORS

1. Replace battery.
2. Scale overload. Remove the object to avoid damage to the scale. The max. weight capacity is specified on the scale.

1.

2.

mAINTENANCE

• Clean the scale with a damp cloth. Do not immerse the scale in water or use chemical/abrasive cleaning agents.
• All plastic parts should be cleaned immediately after contact with fats, spices, vinegar or strongly flavoured/coloured foods. Avoid contact with acidic citrus juices.
  • Always use the scale on a hard, flat surface. Do not use on carpet.
• Do not hit, shake or drop the scale.
• The scale is a high precision device. Please take care of it.
• Please keep it dry.
• If the scale cannot be turned on, check that the battery is correctly installed and that it doesn't need to be replaced.
• The scale is for household use only, not for commercial purposes.

Jula reserves the right to make changes. In the event of problems, please contact our service department. www.jula.com

Symbol of a trash bin crossed with no text or labels, representing waste sorting or disposal (no text present)

Care for the environment!

Must not be discarded with household waste!

This product contains electrical or electronic components that should be recycled.

Leave the product for recycling at the designated station e.g. the clocal authority's recycling station.
