BR603FRW-F - Range hood Bellini - Free user manual and instructions

Product Type	Range Hood
Installation Type	Wall-mounted
Width	60 cm
Net Weight	12 kg
Power Supply	220-240 V, 50/60 Hz
Motor Power	240 W
Airflow (Max)	720 m³/h
Noise Level (Max)	65 dB(A)
Energy Efficiency Class	A
Lighting Type	LED
Lighting Power	2 x 1.5 W
Control Type	Push buttons
Number of Speeds	3
Filter Type	Aluminum mesh (washable)
Grease Filter	Yes, removable
Charcoal Filter (optional)	Yes, for recirculation
Duct Diameter	150 mm
Exhaust Position	Top or rear
Auto Shut-off Timer	No
Remote Control	No
Safety Feature	Motor thermal protection
Maintenance	Clean grease filter monthly; replace charcoal filter every 3-6 months
Repairability	Spare parts available from Bellini service centers

Frequently Asked Questions - BR603FRW-F Bellini

How do I install the Bellini BR603FRW-F range hood?

Installation should be done by a qualified technician. The hood must be mounted at least 65 cm above an electric cooktop or 75 cm above a gas cooktop. Secure the unit to the wall using the provided brackets and ensure the ducting is properly connected to the outside.

How often should I clean the grease filter?

The aluminum mesh grease filter should be cleaned every month or more frequently if used heavily. Use warm soapy water or a dishwasher. Allow it to dry fully before reinstalling.

Does the BR603FRW-F support recirculation mode?

Yes, it can be used in recirculation mode with an optional charcoal filter (not included). This filter absorbs odors and must be replaced every 3-6 months.

What are the dimensions of this range hood?

The Bellini BR603FRW-F has a width of 60 cm, making it suitable for standard cooktops. Exact depth and height are approximately 50 cm and 15 cm respectively, but refer to the manual for precise measurements.

How do I change the LED light bulb?

LED bulbs are integrated and not user-replaceable. If the light fails, contact Bellini customer service for assistance or replacement.

What is the maximum noise level of this hood?

At the highest speed setting, the noise level reaches approximately 65 dB(A), which is comparable to normal conversation.

Does this hood have a remote control?

No, the Bellini BR603FRW-F is operated by manual push buttons on the front panel.

Can I use the hood without ducting?

Yes, but you must install a charcoal filter for recirculation mode. The air will be filtered and returned to the kitchen. Without ducting, the hood will not exhaust smoke outside.

How do I reset the filter alarm?

This model does not have a filter alarm. It is recommended to clean or replace filters based on usage frequency.

What should I do if the motor stops working?

Check if the power cord is plugged in and the circuit breaker hasn't tripped. If the motor still doesn't run, contact Bellini support for repair. Do not attempt to open the motor yourself.

USER MANUAL BR603FRW-F Bellini

60cm Recirculating Slide Out

Range hood

Model No.

BR603FRW

BR603FRW-F FINELINE: 5102733 AUS Only

Thank you

Thank you for choosing Bellini Appliances.

Bellini prides itself on ‘affordable living’ making sure there is no compromise in your favourite room ... The Kitchen All Bellini appliances carry a 3 year In Home warranty, be sure to retain your installation and user manual and receipt.

For all warranty and technical queries please contact 1300 373 199

Content

Safety instructions----2

Product description----4

Operation----5

Installation----6

Start using your Range hood----10

Maintenance and cleaning ----11

Warranty----12

Safety Instructions

This manual explains the proper installation and use of your range hood, please read it carefully before using even if you are familiar with the product. The manual should be kept in a safe place for future reference. In case of failure, only the Authorised Technical Servicemay repair this range hood. Otherwise the guarantee will be null and void. All Bellini Appliances are for domestic use only.

Never to do:

• This appliance is not intended for use by persons (including children) with reduced physical, sensory and mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Never carry out flammable cooking under the appliance
• The exhaust from the range hood must not be discharged into any heating flue, which may carry combustion products from other sources.

- Do not leave lit gas burners exposed due to the risk of fire.

- This range hood is not recommended for barbecues.

Always to do:

• Packaging materials (eg; polystyrene and plastic items) must be kept out of reach of babies or young children at all times due to risk of suffocation.
• Children should be supervised to ensure that they do not play with the appliance;
  -do not flambé under the range hood.;
• CAUTION: Accessible parts may become hot when used with cooking appliances

- Ensure the range hood is switched off before carrying out maintenance, to avoid any possibility of electric shock.

- Grease filters must be removed every four weeks (maximum) for cleaning to reduce the risk of fire.

- There must be adequate ventilation of the room when the range hood is used at the same time as appliances burning gas or other fuels.

- Always cover lit gas burners with pots or pans when range hood is in use.

- Always switch off gas burners before you remove pots or pans.

- If the supply cord is damaged, the cord must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard

- Plug must be accessible after installation.

Safety Instructions

Never to do:

• This range hood cannot be installed for outdoor use.
- It is prohibited to fit the range hood over a solid fuel stove
- This appliance must not be connected to a chimney or vent flue which is in use.
- This appliance is not to be vented into the roof cavity, must exit into open air.
- Exhaust air must not be discharged into a wall cavity, unless the cavity is designed for the purpose.
- This appliance should not be connected to ducting which ventilates rooms with fire places.

Always to do:

• Attention should be given to ensure that any applicable regulations concerning discharge of exhaust air are fulfilled.
• This appliance should be installed and maintained by a suitably qualified and competent person in accordance with the relevant safety regulations.
• Before connecting the appliance to the mains supply, ensure that the voltage and frequency details on the rating plate are consistent with the source of supply.

This product must not be disposed together with domestic waste. This product has to be disposed at an authorised place for recycling of electrical and electronic appliances.

By collecting and recycling waste, you help save natural resources, and make sure the product is disposed in an environmental friendly and healthy way.

Product Description

Accessories bag
Description	Picture	QTY
Installation & User Manual		1
Metal plate		1
L bracket		2
Outlet( diameter 120mm)		1
Dry wall anchors plugs		4
Screw (M4x10mm)		2
Screw(ST4x30mm)		4
Screw (ST3x12mm)*		2
Washer*		6
Screw (M4x35mm)*		6

*Used in installation method B

Component list:

1. L bracket(used installation A method)
2. Outlet(diameter 120mm)
3. Main body
4. Metal plate(used installation B method)
5. Grease mesh filters

Technical data:

Power supply: 220 - 240v, 50Hz

Motor: 2x100W

Lights: 2x40W Incandescent

Length of power cord: 1.70 M

Air outlet diameter: 120mm

Operation Mode

Your range hood can be operated in two optional modes, choose the mode suitable for your kitchen before installation.

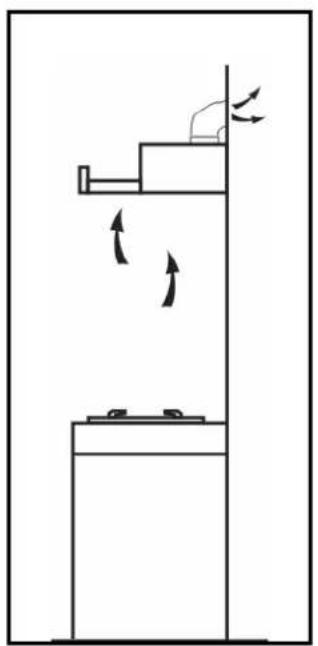

Air Extraction

For air extraction mode, a ducting kit is required, the air is drawn in and cleaned by the grease filters and directed outside.

Ducting must be vented to outside atmosphere.

Air Recirculation

For air recirculation mode, charcoal filter is a must to eliminate cooking smells.

The air is drawn in and cleaned first by the grease filters and then charcoal filter. The cleaned air is then re-circulated back into kitchen through holes above front panel.

Installation

BR603FRW, BR603FRW-F

Installation:

Warning:

Check that the installation complies with the standards of local building, gas and electrical authorities. Before connecting to the mains supply ensure the mains voltage corresponds to the voltage on the appliance rating plate inside the range hood.

When installing the range hood, make sure you adhere to the minimum and maximum distances from the range hood base to the cooktop hob surface.

Hints for exhaust duct installation

The following rules must be strictly followed to obtain optimal air extraction

• Keep exhaust duct short and straight
• Do not reduce the size or restrict exhaust duct
• When using flexible duct always install the duct pulled taut to minimize pressure loss
• Failure to observe these basic instructions will reduce the performance and increase noise levels of the range hood

Ensure the exhaust ducting selected for installation complies with relevant standards and is fire retardant.

We provide two options to install your range hood, against wall (method A) or into cabinet (method B), choose what kind of method you want and then follow up corresponding instruction.

A: Install against wall

1. Using a spirit level mark a vertical centre line on the wall where the hood is to be positioned, and a horizontal line where the hood base will be.

NOTE: The distance from the horizontal line to an electrical cooktop underneath must be minimum of 600mm & 650mm to a gas cook top and a maximum height of 750mm.

*If the instructions of the hob specify a greater distance than the minimum above, then that shall be the minimum height for installation

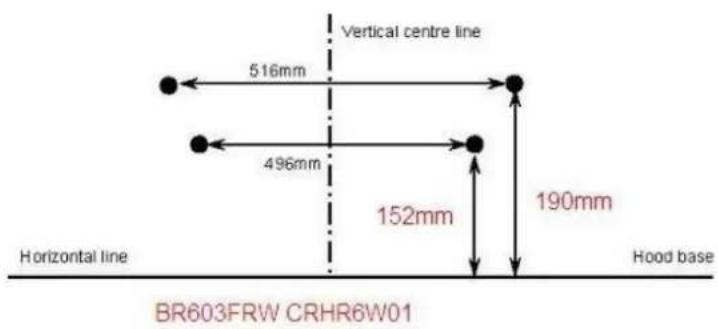

2 Drill 4 holes of 8mm diameter on the wall according to below drawing.

1. Hammer dry wall anchor plugs into holes. Insert 2pcs Screw(ST4x30mm) into the two lower holes(with distance to horizontal line 496mm) and fasten, they will be used to hang on the range hood.

Warning: Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards

Fit the outlet and flexible exhaust pipe on top of range hood body.

1. Hang on the range hood, fasten 2pcs Screw(ST4x30mm) and L bracket onto two higher holes(with distance to horizontal line 516mm), and then fasten 2pcs Screw (M4x10mm) and L bracket onto body.

Warning: Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards

B: Install into cabinet

1. According to below drawing to determine where want to place the range hood, and drill 6 holes with 4mm diameter at the hanging board of your cabinet.

1. Fit the outlet on top of range hood body.
2. Install the range hood onto the bottom of cabinet board, fasten 6pcs Screw (M4x35mm) with washers. If gap is there between range hood back and cabinet end, fasten 2pcs Screw (ST3x12mm) and metal plate onto body to fill it.

Warning: Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards

Installation of charcoal filters

When you choose front recirculation mode, charcoal filter is a must to be in stalled. Charcoal filter is optional accessory. Charcoal Filters are available at your local Bunnings Part Number: CF110 Fineline:5102399

1. Remove grease mesh filters.
2. Follow up below instruction you can remove or install charcoal filters.

Start Using Your Range Hood

① Lamp – Turn on/off light

“O” – to switch off light

"I" – to switch on light

② Speed –select speed to suit cooking conditions

“O” – to switch off motor

Low(I) - light frying/boiling

Medium( II ) - frying/wok cooking/heavy boiling

High (III) - grilling, intensive frying and wok cooking

Power – Slide out drawer, power on; slide in drawer, power off.

Below feature is for BR603FRW and BR603FRW-F only:

This is model has a shifter to enable you choose Air Extraction or Air Recirculation working mode. This range hood supplied as air extraction mode as default, when you choose air recirculation mode, make sure the plastic cover removed from the range hood as per below drawing.

Remove mesh filters from the range hood then you will see the shifter, you can choose air exaction mode or air recirculation mode by turning the shifter to corresponding position.

Air Extraction Mode

Air Recirculation Mode

Maintenance and cleaning

Caution:

• Before maintenance or cleaning is carried out, the range hood should be disconnected from the main power supply. Ensure that the range hood is switched off at the wall socket and the plug removed.
• External surfaces are susceptible to scratches and abrasions, so please follow the cleaning instructions to ensure the best possible result is achieved without damage.

GENERAL

Cleaning and maintenance should be carried out with the appliance cold especially when cleaning Avoid leaving alkaline or acid substances (lemon juice, vinegar etc.) on the surfaces

STAINLESS STEEL

The stainless steel must be clea ned regularly (e.g. weekly) to ensure long life expectancy.

Dry with a clean soft clot h. A speci alized stainless steel cleaning fluid may be used.

NOTE: Ensure that wiping is done along with the grain of the stainless steel to prevent any unsightly crisscross scratching patterns from appearing.

CONTROL PANEL SURFACE

The inlay control panel can be cleaned using warm soapy water. Ensure the cloth is clean and well wrung before cleaning. Use a dry soft cloth to remove any excess moisture left after cleaning.

Important

Avoid using harsh cleaning chemicals, strong household detergents or products containing abrasives as this will affect the appliance appearance and potentially remove any printing of artwork on the control panel and will void manufactures warrantee

GREASE MESH FILTERS

The mesh filters can be cleaned either by hand or in the dishwasher. After cleaning ensure that the filters are completely dry before refitting.

• By hand: Soak in warm water and a neutral washing up liquid. For stubborn grease stains use a soft nylon brush or sponge to help remove these stains. (Leave to dry naturally out of direct sun light)
• In a dishwasher: Ensure that placement of the filters is made so as to not impede the function of the spray arm. Washing the filters in a dishwasher may cause discoloration of the aluminum inner mesh over time although it will not affect their performance.
  Filters should be washed separately to crockery and kitchen utensils. it is advisable not to use rinse aid.

CHARCOAL FILTERS

When air recirculation mode is chosen, a charcoal filter is a must. It is not washable and should be replaced when it no longer absorbs kitchen odors effectively. Under normal use, this would be approximately every 3 months or more frequently for particularly heavy usage.

REPLACE LAMP

Remove two grease mesh filters, twist to remove bulb, whilst cool, and replace carefully with a new bulb. The range hood takes 2 x 40W incandescent bulbs.

Important

When handling bulb, make sure it is completely co ol down before any direct contact to hands.

WARRANTY

1.1 In this warranty:

1.1.1 Australian Consumer Law means the law as set out in Schedule 2 of the Competition and Consumer Act 2010;
1.1.2 Company means GSM Retail Australia Pty Ltd ABN 53 007 682 475 of 142-144 Fullarton Road, Rose Park SA 5067. Telephone [phone]. Email [e-mail];
1.1.3 Consumer means a "consumer" as that term is defined in Section 3 of the Australian Consumer Law as the original purchaser of a Belliniproduct;
1.1.4 Consumer Guarantees means the guarantees under the Australian Consumer Law;
1.1.5 You means the Consumer.

1.2 Nothing in this warranty affects any person's rights under the Australian Consumer Law. The benefits to any Consumer under this warranty are in addition to the rights and remedies available under any Consumer Guarantees.
1.3 Subject to the other clauses of this warranty, the Company warrants to the Consumer that the Bellini product will be free of manufacturing defects and will perform to the Company's specifications.
1.4 The benefit of this warranty extends only to the Consumer as original purchaser of a Bellini product which is installed in a domestic household area.

*The in Home warranty does not apply to Commercial and or industrial usage. * Please See 1.7.7 for additional information

1.5 This warranty commences on the date of purchase of the Bellini product by the Consumer and continues for the benefit only of the Consumer until the expiry of three (3) year (Warranty Period).
1.6 If within the Warranty Period a manufacturing defect is discovered in the Bellini product or it fails to perform to the Company's specifications as a result of some defect in materials, components or workmanship (Defect) then the Company will, at its option, repair the Bellini product or supply a replacement Bellini product free of charge. A replacement Bellini product may differ from the original product purchased by the Consumer.
1.7 This warranty will not apply to any Bellini product:

1.7.1 Installed by any person other than a qualified tradesperson; or
1.7.2 Subjected to misuse, neglect, negligence or accidental damage; or
1.7.3 Operated in any way contrary to any operating or maintenance instructions; or
1.7.4 Improperly handled, installed or maintained; or
1.7.5 Altered or modified prior to or after installation; or
1.7.6 Damaged directly or indirectly by power surges, electrical storm damage or connection to incorrect power supply
1.7.7 Industrial and or Commercial usage is inclusive of staff areas in office/shop environments, hotel/motel or other similar accommodation or rental type properties including Bed and Breakfast establishments.

The Australian Consumer Law requires the inclusion of the following

statement with this warranty:

Our goods come with guaranteed that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.

IN ORDER TO MAKE A CLAIM UNDER THIS WARRANTY THE CONSUMER MUST CALL 1300 373 199 (AUSTRALIA) OR 0800 764 912

(NEW ZEALAND) TO CONNECT TO THE NEAREST AUTHORISED CENTRE

1.8 You must provide proof of your purchase of the Bellini product and the date of purchase in order to obtain the benefit of this warranty.
1.9 If you live outside the service area of the Company or one of its service agents, this warranty does not cover the cost of transport of the Bellini product for service nor the service agent's traveling costs to and from your home.
1.10 If you are required to transport the Bellini product to the Company or its service agent, you must ensure it is safely disconnected by a qualified tradesman and securely packed and insured. The Company does not accept any responsibility for loss or damage of the Bellini product prior to it being received by the Company or its service agent.
1.11 You will be responsible for all costs of returning a Bellini product to the Company and for redelivery of the Bellini product by the Company (whether it is the original or a repaired and/or a replacement Bellini product) and for any other expenses you incur in claiming under this warranty.
1.12 The Company or its service agent will examine any Bellini product and if the Company determines that it is defective through no fault of the Owner and is otherwise undamaged, the Company will repair or replace the Bellini product in accordance with this warranty.

DO NOT SEND IN THIS WARRANTY

Fill out the following details and file with your purchase invoice.

RETAIN & FILE WITH YOUR RECEIPT

Your Purchase Receipt/Invoice is proof of date of purchase. If you are unable to establish the date of purchase, or if the fault is not covered by this warranty, or if the product is found to be in working order, you will be required to bear all service call charges.

GSM Retail Australia Pty Ltd reserves the right to discontinue items, modify designs and change specifications without incurring obligation.

Whilst every effort is made to ensure that descriptions, specifications and other information in this publication is correct, no warranty is given in respect thereof and the company shall not be liable for any errors therein.

Purchased from:

Co. Name:

Address:

Date of Purchase:

Serial number:

NOTE: Consistent with our continuing product development policy, improvements may have been made which render the contents of this packaging slightly different to that shown.

FOR WARRANTY SERVICE CALL 1300 373 199 (AUSTRALIA) OR 0800 764 912 (NEW ZEALAND) TO CONNECT YOU TO THE NEAREST AUTHORISED SERVICE CENTRE

Gerard Sourcing & Manufacturing

GSM RETAIL AUSTRALIA PTY LTD

The GSM Retail Australia Pty Ltd Group Companies has a policy of continual improvement throughout the product range. As such the unit contained within may differ slightly from the unit illustrated on the pack.

MADE IN CHINA for the GSM Retail Australia Pty Ltd. Group Companies
