CRHC9S01-1 - Range hood Bellini - Free user manual and instructions

Product Type	Range Hood
Brand	Bellini
Model	CRHC9S01-1
Width	90 cm
Depth	50 cm
Height (min-max)	60 - 110 cm
Weight	15 kg
Power Supply	220-240 V ~ 50 Hz
Maximum Extraction Rate	700 m³/h
Noise Level (max speed)	65 dB(A)
Lighting	2 x 1.5 W LED
Grease Filter Type	Aluminum mesh, washable
Control Type	Touch panel
Installation Type	Wall-mounted
Ducted / Recirculating	Ducted (optional recirculation kit)
Energy Class	A+
Motor Type	Single motor, 2 speeds + boost
Warranty	2 years
Maintenance	Clean grease filter monthly; replace carbon filter if recirculating
Safety Features	Auto shut-off timer, motor thermal protection
Spare Parts Availability	Filters, LED modules, control board through authorized service

Frequently Asked Questions - CRHC9S01-1 Bellini

How do I install the range hood?

Installation should be performed by a qualified professional. The hood must be mounted at least 65 cm above an electric hob and 75 cm above a gas hob. Use the provided template for drilling holes and ensure the wall can support the weight. For ducted installation, connect the exhaust pipe to an external vent. For recirculation, install the carbon filters.

How often should I clean the grease filters?

The aluminum grease filters should be cleaned every month or more frequently with heavy use. They can be washed in warm soapy water or in a dishwasher at low temperature. Dry thoroughly before reinstalling.

Can I use the hood in recirculation mode?

Yes, the CRHC9S01-1 can be used in recirculation mode with the optional carbon filter kit. The charcoal filter absorbs odors and should be replaced every 3-6 months depending on usage.

What is the maximum extraction rate?

The maximum extraction rate is 700 m³/h, achieved at boost speed. Normal speeds provide lower rates for quieter operation.

How do I replace the LED lights?

LED lights are built-in and should be replaced by a qualified technician. Contact Bellini customer service for assistance. Do not attempt to replace them yourself to avoid electrical shock.

Is the hood noisy?

Noise level varies by speed: approximately 55 dB at low speed, 60 dB at medium, and 65 dB at high speed. Boost mode may be louder. Use lower speeds for quiet operation.

What should I do if the hood stops working?

First check the power supply and circuit breaker. Ensure the plug is secure. If the motor does not start, there may be a thermal cutout triggered; let it cool down. If the issue persists, contact Bellini support for repair.

Can I vent the hood through a wall?

Yes, for ducted installation, you can vent through an external wall using the provided ducting. Ensure the duct is as short and straight as possible to maintain efficiency. Use a wall cap to prevent backdrafts.

What are the dimensions of the hood?

The hood measures 90 cm wide, 50 cm deep, and its height can be adjusted from 60 cm to 110 cm including the chimney. Exact dimensions are in the user manual.

How do I reset the filter indicator?

After cleaning or replacing filters, press and hold the boost button for 3 seconds until the indicator light turns off. Refer to the manual for exact model-specific instructions.

USER MANUAL CRHC9S01-1 Bellini

Abstract geometric line drawing of a 3D object with layered structure (no text or symbols)

BR603GCX-1, BR603GCX-1F

BR903GCX-1, BR903GCX-1F

BR603GTX-1, BR603GTX-1F

BR903GTX-1, BR903GTX-1F

Black Glass Fascia

Rangehood

Isometric line drawing of a rectangular box mounted on a base plate, labeled BDR603TBX (no other text or symbols)

BDR603TBX

BDR603TBX-F

BDR903TBX

BDR903TBX-F

Canopy

Rangehood

Line drawing of a 3D geometric structure resembling a chimney or duct (no text or symbols)

BR603CPX, BR603CPX-F,

BR903CPX, BR903CPX-F

CRHC9S01-1, CRHC9S01-F

BR603SCPX, BR603SCPX-F

Installation and User manual

Content

Safety instructions----2

Product description----4

Operation mode 7

Installation----8

Start using the range hood----14

Maintenance and cleaning----15

Warranty----16

For warranty service call 1300 373 199(Australia)

or 0508 123108 (New Zealand) to connect you to

the nearest authorised service centre

Safety instructions

This manual explains the proper installation and use of your range hood, please read it carefully before using even if you are familiar with the product. The manual should be kept in a safe place for future reference.

Never to do:

• This appliance is not intended for use by persons (including children) with reduced physical, sensory and mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  ● Never carry out flammable cooking under the appliance
  ● The exhaust from the range hood must not be discharged into any heating flue, which may carry combustion products from other sources.

Illustration of a laboratory setup with a lamp, beaker, and control panel (no text or symbols)

- Do not leave lit gas burners exposed due to the risk of fire.

Illustration of a steaming pot and fire with a crossed black smoke or flame symbol (no text or labels)

● This range hood is not recommended for barbecues.

Always to do:

● Packaging materials (eg; polystyrene and plastic items) must be kept out of reach of babies or young children at all times due to risk of suffocation.
● Young children should be supervised to ensure that they do not play with the appliance.
- Ensure the range hood is switched off before carrying out maintenance, to avoid any possibility of electric shock.
- Grease filters must be removed every four weeks (maximum) for cleaning to reduce the risk of fire.
- There must be adequate ventilation of the room when the range hood is used at the same time as appliances burning gas or other fuels.
● Always cover lit gas burners with pots or pans when range hood is in use.
● Always switch off gas burners before you remove pots or pans.
- If the supply cord is damaged, the cord must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard
- Plug must be accessible after installation.

Safety instructions

Never to do:

● This range hood cannot be installed for outdoor use.
- It is prohibited to fit the range hood over a solid fuel stove
- This appliance must not be connected to a chimney or vent flue which is in use.
● This appliance is not to be vented into the roof cavity, must exit into open air.
- Exhaust air must not be discharged into a wall cavity, unless the cavity is designed for the purpose.
- This appliance should not be connected to ducting which ventilates rooms with fire places.

Always to do:

• Attention should be given to ensure that any applicable regulations concerning discharge of exhaust air are fulfilled.
• This appliance should be installed and maintained by a suitably qualified and competent person in accordance with the relevant safety regulations.
• Before connecting the appliance to the mains supply, ensure that the voltage and frequency details on the rating plate are consistent with the source of supply.

Product description

BR603GCX-1, BR603GCX-1F, BR903GCX-1, BR903GCX-1F BR603GTX-1, BR603GTX-1F, BR903GTX-1, BR903GTX-1F

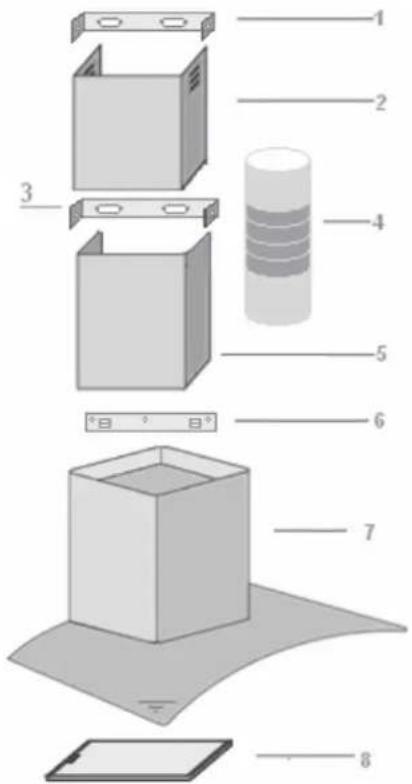

Exploded view diagram of a storage unit with numbered parts for identification

Accessories bag
Description	Picture
User Manual 1
Upper decorative chimney bracket			1
Lower decorative chimney bracket			1
Hood mount bracket			1
Dry wall anchors plugs			9
Screw(ST4x8mm)			2
Screw(ST4x30mm)			9

QTY

Component list:

1. Upper decorative chimney bracket
2. Upper decorative chimney(Inner)
3. Lower decorative chimney bracket
4. Flexible exhaust pipe
5. Lower decorative chimney(outer)
6. Hood mount bracket
7. Main body
8. Grease mesh filter

*Maximum extension of upper and lower chimney is 980mm

Technical data:

Power supply: 220 - 240v, 50Hz

Lights: 2x20W Halogen lamp

Motor: 210W

Length of power cord: 1.5m

Air outlet diameter: 150mm

BDR603TBX, BDR603TBX-F, BDR903TBX, BDR903TBX-F

Exploded view diagram of a refrigerator with numbered parts for identification

Accessories bag
Description	Picture
User Manual 1
Upper decorative chimney bracket		1
Lower decorative chimney bracket		1
Hood mount bracket		1
Dry wall anchors plugs		9
Screw(ST4x8mm)		2
Screw(ST4x30mm)		9

QTY

Component list:

1. Upper decorative chimney bracket
2. Upper decorative chimney(Inner)
3. Lower decorative chimney bracket
4. Flexible exhaust pipe
5. Lower decorative chimney(outer)
6. Hood mount bracket
7. Main body
8. Grease mesh filter*

* for BDR603TBX, BR603TBX-F, 2 filters; for BDR903TBX, BDR903TBX-F, 3 filters
* Maximum extension of upper and lower chimney is 780mm

Technical data:

Power supply: 220 - 240v, 50Hz

Lights: 2x20W Halogen lamp

Motor: 210W

Length of power cord: 1.5m

Air outlet diameter: 150mm

BR603CPX, BR603CPX-F, BR903CPX, BR903CPX-F, CRHC9S01-1, CRHC9S01-F, BR603SCPX, BR603SCPX-F

Diagram of a storage unit with labeled components including casing, panel, and cylindrical storage unit

3D diagram of a conical structure with labeled parts (7 and 8), no text or symbols present

Accessories bag
Description	Picture
User Manual 1
Upper decorative chimney bracket		1
Lower decorative chimney bracket		1
Hood mount bracket		1
Dry wall anchors plugs		9
Screw(ST4x8mm)		6
Screw(ST4x30mm)		9

QTY

Component list:

1. Upper decorative chimney bracket*
2. Upper decorative chimney(Inner)
3. Lower decorative chimney bracket
4. Flexible exhaust pipe
5. Lower decorative chimney(outer)*
6. Hood mount bracket
7. Main body
8. Grease mesh filter

Technical data:

Power supply: 220 - 240v, 50Hz

Lights:

BR603SCPX(-F) 2x28W incandescent bulbs

Others 2x20W Halogen lamp

Motor: 210W

Length of power cord: 1.5m

Air outlet diameter: 150mm

Operation Mode

Your range hood can be operated in two optional modes, choose the mode suitable for your kitchen before installation.

Air Exaction

To outside

For air exaction mode, a ducting kit is required, the air is drawn in and cleaned by the grease filters and directed outside.

Ducting must be vented to outside atmosphere.

Air Recirculation

To inside

For air recirculation mode, charcoal filter is a must to eliminate cooking smells.

The air is drawn in and cleaned first by the grease filters and then charcoal filter. The cleaned air is then re-circulated back into kitchen through grilles on the upper decorative chimney.

Installation

Dimensions:

BR603GC/TX-1, BR603GC/TX -1F

Width=600

BR903GC/TX-1, BR903GC/TX -1F

Width=900

BDR603TBX, BDR603TBX-F,

Width=600

BDR903TBX, BDR903TBX-F

Width=900

323 282 534-1000 64 500 Width

323 282 448-800 60 500 width

BR603CPX, BR603CPX-F, Width=600;

BR903CPX, BR903CPX-F, CRHC9S01-1, CRHC9S01-F, Width=900

222 172 638-1000 245 30 500 Width

BR603SCPX, BR603SCPX-F

172 222 553-920 600 480 20 180

Installation:

Warning:

Check that the installation complies with the standards of local building, gas and electrical authorities. Before connecting to the mains supply ensure the mains voltage corresponds to the voltage on the appliance rating plate inside the range hood.

When installing the range hood, make sure you adhere to the minimum and maximum distances from the range hood base to the cooktop hob surface.

Hints for exhaust duct installation

The following rules must be strictly followed to obtain optimal air extraction

• Keep exhaust duct short and straig ht
• Do not reduce the size or restrict exhaust duct
• When using flexible duct always install the duct pulled taut to minimize pressure loss
• Failure to observe these basic instructions will reduce the performance and increase noise levels of the range hood

Ensure the exhaust ducting selected for installation complies with relevant standards and is fire retardant.

1. Using a spirit level mark a vertical centre line on the wall where the hood is to be positioned, and a horizontal line where the hood base will be.

NOTE: The distance from the horizontal line to an electrical cooktop underneath must be minimum of 600mm & 650mm Free space to the gas cook top and a maximum height of 750mm (refer to table below).

2x8mm holes for Upper chimney retaining bracket Vertical centre line Dimension A Dimension B 3x8mm holes for Hood mount bracket Dimension C Dimension D Dimension E Dimension F Dimension G Horizontal line Hood Base Minimum: Top of hob/Trivet Electric 600mm Gas 650mm Maximum: 750mm

*If the instructions of the hob specify a greater distance than the minimum above, then that shall be the minimum height for installation

Model	Dimension(mm)
	A	B	C	D	E	F	G
BR603GC/TX-1, BR603GC/TX -1F	180	230	97.5	97.5	234	260 41
BR903GC/TX-1, BR903GC/TX -1F	180	230	97.5	97.5	234	260 45
BDR603TBX, BDR603TBX-F	180	131.5	97.5	97.5	236	260 76
BDR903TBX, BDR903TBX-F	180	131.5	97.5	97.5	236	260 76
BR603CPX, BR603CPX-F	124	364	97.5	97.5	216	350 51
BR903CPX, BR903CPX-F, CRHC9S01-1, CRHC9S01-F	124	364	97.5	97.5	216	500 51
BR603SCPX, BR603SCPX-F	124	364	97.5	97.5	144	300 58

1. Based on above drawing and dimension to drill holes(8mm diameter) and hammer dry wall anchor plugs into holes
2. This step is only for BR6/903CPX, BR6/903CPX-F, BR603SCPX, BR603SCPX-F

Use 2pcs ST4x8mm screws to attach lower and upper chimney together, do not fasten screws too much, make sure upper decorative chimney can be telescopically adjusted after assembled.

Upper decorative chimney (Inner) Lower Chimney bracket Lower decorative chimney (Outer)

1. Fit the flexible exhaust pipe onto outlet.

* If choose air extraction mode, please install the flexible exhaust pipe; if choose air recirculation mode, no need to install the flexible exhaust pipe, please skip this step and jump to step 6 directly

Illustration of a hand pouring liquid into a container with a tool, no text or symbols present

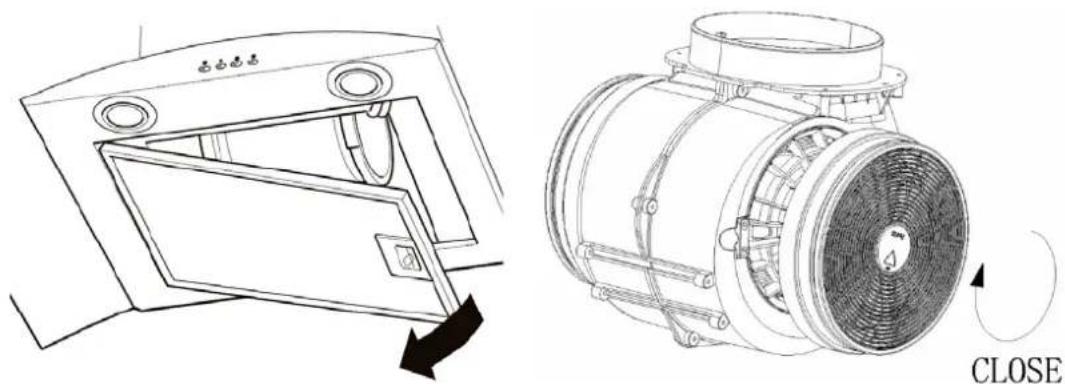

1. Remove grease mesh filter and install active charcoal filter onto motor chamber according to below drawing. * If choose air extraction mode, please skip this step and jump to step 7 directly. if choose air recirculation mode, we strongly recommend you have charcoal filter installed;

Technical line drawing of a mechanical device showing front and side views with no visible text or symbols

1. Secure the hood mount bracket onto wall with 3 x ST4x30mm screws, making sure screws are securely tightened.

2. Hang on the hood onto the hook of the hood mount bracket, make sure the mount slot on cooker hood completely slide into hooks.

Diagram showing a brick wall with a sensor device and a cylindrical device mounted on a base, with no visible text or symbols.

*Above photo is just for reference only, actual product could be varies...

1. Fasten the 2pcs anti-tilt ST4x30mm screws onto wall to ensure horizontality of cooker hood. You can find out screw holes inside hood near the motor chamber.

2. Plug in the main power supply.

3. This step is only for BR6/903CPX, BR6/903CPX-F

11.1 Fasten the Lower decorative chimney bracket to the lower chimney with 2 x ST4x8mm screws, put the chimney in position..

11.2 Fasten 2 x ST4x30mm screws onto the wall to fix Lower decorative chimney bracket.

11.3 Fasten 2 x ST4x8 screws to fix Lower decorative chimney onto the hood body.

Technical line drawing of a conical tower with directional arrows indicating force or movement (no text or symbols)

1. This step is for BR6/903GC/TX-1, BR6/903GC/TX-1F and BDR6/903TBX, BR6/903TBX-F

11.1 Fasten 2 x ST4x30mm screws onto the wall to fix Lower decorative chimney bracket.
11.2 Attach the upper chimney onto the hook position on lower chimney(both side)

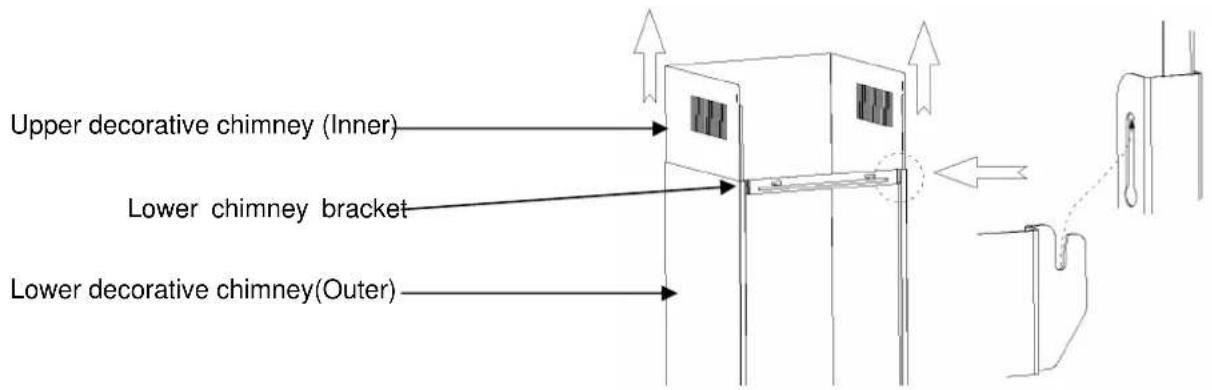

Upper decorative chimney (Inner) Lower chimney bracket Lower decorative chimney(Outer)

1. Determine position where upper decorative chimney maximum extent to, use 2pcs ST4x30mm screws to secure the upper decorative chimney bracket onto wall.
2. Extend the upper decorative chimney to desired height and fix it with the upper decorative chimney bracket by 2pcs ST4x8mm screws.

Line drawing of a brick wall structure with two hanging lights and a cabinet (no text or symbols)

1. Remove all blue protective film on chimney and cooker hood, the installation is now finished.

Start using your range hood

BR603GCX-1, BR603GCX-1F, BR903GCX-1, BR903GCX-1F

Four weather icons: sun, wind, moon, and partly cloudy (no text or symbols)

BR603CPX, BR603CPX-F, BR903CPX, BR903CPX-F, CRHC9S01-1, CRHC9S01-F, BR603SCPX, BR603SCPX-F

0 0 0 0 0

Lamp – Turn on/off light; 0 On/Off – Turn on/off unit

Speed –select speed to suit cooking conditions

Low – light frying/boiling. Depress this button to enter into low speed and again to turn off motor.

Medium – frying/wok cooking/heavy boiling. Depress this button to enter into medium speed and again to turn off motor

High – grilling, intensive frying and wok cooking. Depress this button to enter into high speed and again to turn off motor

BR603GTX-1, BR603GTX-1F, BR903GTX-1, BR903GTX-1F BDR603TBX, BR603TBX-F, BDR903TBX, BDR903TBX-F

- 8 +

On/Off button - Turn on/off unit, +/- Speed increase/decrease

Light button - Turn on/off light

8

Digital display

1 - Low fan speed; 2- Medium speed ; 3 - High speed.

Maintenance and cleaning

Caution:

• Before maintenance or cleaning is carried out, the range hood should be disconnected from the main power supply. Ensure that the range hood is switched off at the wall socket and the plug removed.
• External surfaces are susceptible to scratches and abrasions, so please follow below instruction to ensure the best possible result without damage.

GENERAL

Cleaning and maintenance should be carried out with the appliance cold especially when cleaning

Avoid leaving alkaline or acid substances (lemon juice, vinegar etc.) on the surfaces

STAINLESS STEEL

The stainless steel must be cleaned regularly (e.g. weekly) to ensure long life expectancy.

Dry with a clean soft cloth. A specialized stainless steel cleaning fluid may be used.

NOTE: Ensure that wiping is done along with the grain of the stainless steel to prevent any unsightly scratching patterns from appearing.

CONTROL PANEL SURFACE

The inlay control panel can be cleaned using warm soapy water. Ensure the cloth is clean and well wrung before cleaning. Use a dry soft cloth to remove any excess moisture left after cleaning.

Important

Avoid using harsh cleaning chemicals, strong household detergents or products containing abrasives as this will affect the appliance appearance and potentially remove any printing of artwork on the control panel and will void manufactures warrantee

GREASE MESH FILTERS

The mesh filters can be cleaned either by hand or in the dishwasher. After cleaning ensure that the filters are completely dry before refitting.

- By hand: Soak in warm water and a neutral washing up liquid. For stubborn grease stains use a soft nylon brush or sponge to help remove these stains. (Leave to dry naturally out of direct sun light) - In a dishwasher: Ensure that placement of the filters is made so as to not impede the function of the

spray arm. Washing the filters in a dishwasher may cause discoloration of the aluminum inner mesh over time although it will not affect their performance.

Filters should be washed separately to crockery and kitchen utensils. It is advisable not to use rinse aid.

Replace Halogen(Max 20W) lamp

1. Switch the unit off and unplug the appliance.
2. Undo 4 screws on top of the glass and take off the glass.*

Technical line drawing of a mechanical assembly with no visible text or symbols

1. Pat the bulb down and replace the bulb.
2. Disconnect the wire connector which is located within the hood (behind grease mesh filter)

Pure electrical circuit lines without any symbols

*Step 2 for curve glass models only, for other models simply remove grease mesh filter then go to step 3. Or if you don't want to replace entire lamp but bulb inside only, do as per below

Important

When handling globes hold with a cloth or gloves to ensure perspiration does not come in contact with the globe as this can reduce the life of the globe.

Replace incandescent lamp(For BR603SCPX(-F))

Remove two grease mesh filters, twist to remove bulb,

Simple line drawing of a device with a droplet falling into a container (no text or symbols)

whilst cool, and replace carefully with a new bulb. It takes 2 x 28W incandescent bulbs.

WARRANTY

1.1 In this warranty:

1.1.1 Australian Consumer Law means the law as set out in Schedule 2 of the Competition and Consumer Act 2010;
1.1.2 Company means GSM Sales Pty Ltd ABN 53 007 682 475 of 142-144 Fullarton Road, Rose Park SA 5067. Telephone [phone]. Email [e-mail]
1.1.3 Consumer means a “consumer” as that term is defined in Section 3 of the Australian Consumer Law as the original purchaser of a Bellini product;
1.1.4 Consumer Guarantees means the guarantees under the Australian Consumer Law;
1.1.5 You means the Consumer.

1.2 Nothing in this warranty affects any person's rights under the Australian Consumer Law. The benefits to any Consumer under this warranty are in addition to the rights and remedies available under any Consumer Guarantees.

1.3 Subject to the other clauses of this warranty, the Company warrants to the Consumer that the Bellini product will be free of manufacturing defects and will perform to the Company's specifications.

1.4 The benefit of this warranty extends only to the Consumer as original purchaser of a Bellini product which is installed in a residential property.

1.5 This warranty commences on the date of purchase of the Bellini product by the Consumer and continues for the benefit only of the Consumer until the expiry of two (2) years (Warranty Period).

1.6 If within the Warranty Period a manufacturing defect is discovered in the Bellini product or it fails to perform to the Company's specifications as a result of some defect in materials, components or workmanship (Defect) then the Company will, at its option, repair the Bellini product or supply a replacement Bellini product free of charge. A replacement Bellini product may differ from the original product purchased by the Consumer.

1.7 This warranty will not apply to any Bellini product:

1.7.1 Installed by any person other than a qualified tradesperson; or
1.7.2 Subjected to misuse, neglect, negligence or accidental damage; or
1.7.3 Operated in any way contrary to any operating or maintenance instructions; or
1.7.4 Improperly handled, installed or maintained; or
1.7.5 Altered or modified prior to or after installation; or

1.7.6 Damaged directly or indirectly by power surges, electrical storm damage or connection to incorrect power supply

The Australian Consumer Law requires the inclusion of the following statement

with this warranty:

Our goods come with guaranteed that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.

IN ORDER TO MAKE A CLAIM UNDER THIS WARRANTY THE CONSUMER MUST CALL 1300 373 199 (AUSTRALIA) OR 0508 123 108 (NEW ZEALAND) TO CONNECT TO THE NEAREST AUTHORISED CENTRE

1.8 You must provide proof of your purchase of the Bellini product and the date of purchase in order to obtain the benefit of this warranty.
1.9 If you live outside the service area of the Company or one of its service agents, this warranty does not cover the cost of transport of the Bellini product for service nor the service agent's travelling costs to and from your home.
1.10 If you are required to transport the Bellini product to the Company or its service agent, you must ensure it is safely disconnected by a qualified tradesman and securely packed and insured. The Company does not accept any responsibility for loss or damage of the Bellini product prior to it being received by the Company or its service agent.
1.11 You will be responsible for all costs of returning a Bellini product to the Company and for redelivery of the Bellini product by the Company (whether it is the original or a repaired and/or a replacement Bellini product) and for any other expenses you incur in claiming under this warranty.
1.12 The Company or its service agent will examine any Bellini product and if the Company determines that it is defective through no fault of the Owner and is otherwise undamaged, the Company will repair or replace the Bellini product in accordance with this warranty.

DO NOT SEND IN THIS WARRANTY

Fill out the following details and file with your purchase invoice.

RETAIN & FILE WITH YOUR RECEIPT

Your Purchase Receipt/Invoice is proof of date of purchase. If you are unable to establish the date of purchase, or if the fault is not covered by this warranty, or if the product is found to be in working order, you will be required to bear all service call charges.

GSM Sales Pty Ltd reserves the right to discontinue items, modify designs and change specifications without incurring obligation.

Whilst every effort is made to ensure that descriptions, specifications and other information in this publication is correct, no warranty is given in respect thereof and the company shall not be liable for any errors therein.

Purchased from:

Co. Name:

Address:

Date of Purchase:

Serial number:

NOTE: Consistent with our continuing product development policy, improvements may have been made which render the contents of this packaging slightly different to that shown.

FOR WARRANTY SERVICE CALL 1300 373 199 (AUSTRALIA) OR 0508 123 108 (NEW ZEALAND) TO CONNECT YOU TO THE NEAREST AUTHORISED SERVICE CENTRE

G | S | M

Gerard Sourcing & Manufacturing

GSM Sales Pty Ltd.

The GSM Sales Pty Ltd. Group of Companies has a policy of continual improvement throughout the product range. As such the unit contained within may differ slightly from the unit illustrated on the pack.

MADE IN CHINA for the GSM Sales Pty Ltd. Group of Companies

N1028
