Frequently Asked Questions - STE 74 BA+ Saivod

How do I clean the lint filter on my Saivod STE 74 BA+ tumble dryer?

Clean the lint filter after every cycle. Open the door, locate the filter at the bottom of the door opening, pull it out, remove lint by hand or with a soft brush, rinse under running water if needed, dry it, and reinsert until it clicks.

What does the error code E1 mean on the Saivod STE 74 BA+?

Error code E1 usually indicates a water tank full or drainage issue. Empty the water tank and ensure the drain hose is not blocked. If the error persists, check the condenser unit for obstructions.

Why is my tumble dryer not drying properly?

Common causes: overloaded drum, clogged lint filter, full water tank, blocked condenser, or improper program selection. Ensure the filter is clean, the water tank is emptied, and the load size matches the program.

Can I dry all types of fabrics in the Saivod STE 74 BA+?

No. The dryer has dedicated programs for cotton, synthetics, delicates, wool, and sportswear. Always check garment care labels. Do not dry items with foam rubber, plastic, or wool that is not labeled tumble-dry safe.

How do I empty the water tank on my Saivod STE 74 BA+?

The water tank is located at the bottom right of the dryer. Pull it out, pour the water into a sink, wipe the tank dry, and slide it back in until it locks. The indicator light will turn off.

What is the energy consumption of the Saivod STE 74 BA+?

The energy consumption is approximately 5.0 kWh per full drying cycle for cotton. Actual consumption varies based on load, program, and settings. The dryer has an energy efficiency class of D.

How do I install the Saivod STE 74 BA+ tumble dryer?

Place the dryer on a stable, level surface. Keep at least 5 cm clearance on all sides for ventilation. Connect the power plug to a grounded outlet. For condenser models, ensure the water tank is inserted correctly. No external venting is needed.

How often should I clean the condenser on my Saivod tumble dryer?

Clean the condenser every 3-6 months or when the 'Clean Condenser' indicator lights up. Remove the condenser unit from the bottom panel, rinse it under warm water, brush off any fluff, and reinstall.

Why does my dryer stop mid-cycle?

Possible reasons: water tank full, overheat protection activated, door opened, or power interruption. Check the water tank, let the dryer cool for 10 minutes, and restart. If the issue persists, contact support.

How do I activate the child lock on the Saivod STE 74 BA+?

Press and hold the 'Child Lock' button (or a combination of buttons, refer to manual) for 3 seconds. A lock icon will appear on the display. To deactivate, press and hold again.

USER MANUAL STE 74 BA+ Saivod

Simple geometric diagram with a circle inside a square, no text or symbols present

Please read this user manual first!

Dear Customer,

Thank you for preferring this product. We hope that your product which has been manufactured with high quality and technology will give you the best results. We advise you to read through this manual and the other accompanying documentation carefully before using your product and keep it for future reference. If you transfer the product to someone else, give its manual as well. Pay attention to all details and warnings specified in the user manual and follow the instructions given therein.

Use this user manual for the model indicated on the cover page.

Explanation of symbols

Throughout this user manual the following symbols are used:

	Important information or useful hints about usage.
	Warning for hazardous situations with regard to life and property.
	Warning against electric shock.
	Warning against hot surfaces.
	Warning against fire hazard.
	Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations.

Do not dispose of the packaging wastes with the domestic waste or other wastes, discard them to the dedicated collection points designated by the local authorities.

1 Important instructions for safety and environment

This section contains safety instructions that will help protect from risk of personal injury or property damage. Failure to follow these instructions shall void any warranty.

1.1 General safety

• The dryer can be used by children at and above 8 years old and by persons whose physical, sensory or mental capabilities were not fully developed or who lack experience and knowledge provided that they are supervised or trained on the safe usage of the product and the risks it brings out. Children should not play with the product. Cleaning and maintenance works should not be performed by children unless they are supervised by someone.
• Adjustable feet should not be removed. The gap between the dryer and the floor should not be reduced with materials such as carpet, wood and tape. This will cause problems with the dryer.
• Always have the installation and repairing procedures carried out by the Authorized Service. Manufacturer shall not be held liable for damages that may arise from procedures carried out by unauthorized persons.
• Never wash the dryer by spraying or pouring water onto it! There is the risk of electric shock!

Important instructions for safety and environment

1.1.1 Electrical safety

Electrical safety instructions should be followed while electrical connection is made during the installation.

• Connect the dryer to a grounded outlet protected by a fuse at the value specified on the type label. Have the grounding installation performed by a qualified electrician. Our company shall not be liable for any damages that will arise when the dryer is used without grounding in accordance with the local regulations.
• The voltage and allowed fuse protection is stated on the type label plate.
• The voltage specified on the type label must be equal to your mains voltage.
• Unplug the dryer when it is not in use.
• Unplug the dryer from the mains during installation, maintenance, cleaning and repair works.
• Do not touch the plug with wet hands! Never unplug by pulling on the cable, always pull out by grabbing the plug.
• Do not use extension cords, multi-plugs or adaptors to connect the dryer to power supply in order to decrease the risk of fire and electric shock.
• Power cable plug must be easily accessible after installation.

Damaged mains cable should be changed notifying the Authorized Service.

If the dryer is faulty, it must not be operated unless it is repaired by an authorized service agent! There is the risk of electric shock!

Important instructions for safety and environment

1.1.2 Product safety

Points to be taken into consideration for fire hazard:

Below specified laundry or items must not be dried in the dryer considering fire hazard.

• Unwashed laundry items
• Items soiled with oil, acetone, alcohol, fuel oil, kerosene, stain removers, turpentine, paraffin or paraffin removers must be washed in hot water with plenty of detergent before being dried in the dryer.

For this reason especially the items containing the above specified stains must be washed very well, to do this use adequate detergent and choose a high washing temperature.

Below specified laundry or items must not be dried in the dryer due to the fire hazard:

• Garments or pillows bolstered with rubber foam (latex foam), shower bonnets, water resistant textiles, materials with rubber reinforcement and rubber foam pads.
• Clothing cleaned with industrial chemicals.

Items such as lighter, match, coins, metal parts, needle etc. may damage the drum set or may lead to functional problems. Therefore check all the laundry that you will load into your dryer.

Never stop your dryer before the programme completes. If you must do this, remove all laundry quickly and lay them out to dissipate the heat.

Clothes that are washed inadequately may ignite on their own and even may ignite after drying ends.

Important instructions for safety and environment

- You must provide enough ventilation in order to prevent gases exiting from devices operating with other types of fuels including the naked flame from accumulating in the room due to the back fire effect.

	Underwear that contains metal reinforcements should not be driedin the dryer. Dryer may be damaged if metal reinforcements come loose and break off during drying.
	Use softeners and similar products in accordance with the instructions of their manufacturers.
	Always clean the lint filter before or after each loading. Never operate the dryer without the lint filter installed.

• Never attempt to repair the dryer by yourself. Do not perform any repair or replacement procedures on the product even if you know or have the ability to perform the required procedure unless it is clearly suggested in the operating instructions or the published service manual. Otherwise, you will be putting your life and others' lives in danger.
• There must not be a lockable, sliding or hinged door that may block the opening of the loading door in the place where your dryer is to be installed.
• Install your dryer at places suitable for home use. (Bathroom, closed balcony, garage etc.)
• Make sure that pets do not enter the dryer. Check the inside of the dryer before operating it.
• Do not lean on the loading door of your dryer when it is open, otherwise it may fall over.
• The lint must not be allowed to accumulate around the tumble dryer

1.2 Mounting over a washing machine

- A fixing device should be used between the two machines when installing the dryer above a washing machine. The fitting device must be installed by the authorized service agent.

Important instructions for safety and environment

- Total weight of the washing machine and the dryer -with full load- when they are placed on top of each other reaches to approx. 180 kilograms. Place the products on a solid floor that has sufficient load carrying capacity!

Washing machine cannot be placed on the dryer. Pay attention to the above warnings during the installation on your washing machine.

Installation Table for Washing Machine and Dryer
Dryer Depth	Washing Machine Depth
	62cm 60 cm 54 cm 50 cm 49 cm 45 cm 40 cm
54 cm	Can be installed	Can be installed	Can be installed	Can be installed	Can be installed	Can be installed	Cannot be installed
60 cm	Can be installed	Can be installed	Can be installed	Can be installed	Can be installed	Cannot be installed	Cannot be installed

1.3 Intended use

• Dryer has been designed for domestic use. It is not suitable for commercial use and it must not be used out of its intended use.
• Use the dryer only for drying laundry that are marked accordingly.
• The manufacturer waives any responsibility arisen from incorrect usage or transportation.
• The service life of the dryer that you purchased is 10 years. During this period, original spare parts will be available to operate the dryer properly.

Important instructions for safety and environment

1.4 Child safety

• Packaging materials are dangerous for the children. Keep packaging materials away from children.
• Electrical products are dangerous for the children. Keep children away from the product when it is operating. Do not let them tamper with the dryer. Use the child-proof lock in order to prevent the children to tamper with the dryer.

Child-proof lock is on the control panel. (See 5.12 Child lock)

- Keep loading door closed even when the dryer is not in use.

1.5 Compliance with the WEEE regulation and disposing of the waste product

This product does not contain the harmful and prohibited substances which are specified in the “Control of the Waste Electrical and Electronic Equipment” as published by Republic of Turkey Ministry of Environment and Urbanization. It complies with the WEEE Directive.

This product was made of high quality items and materials which are recyclable and reusable. Therefore, do not dispose of the product at the end of its service life with the domestic and other wastes. Take it to a collection point for the recycling of electrical and electronic equipment. Please consult your local authorities to learn the nearest collection point. Help protect the environment and natural resources by recycling used products. For children's safety, cut the power cable and break the locking mechanism of the door, if any, so that it will be non-functional before disposing of the product.

1.6 Package information

Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations. Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.

Important instructions for safety and environment

1.7 Technical Specifications

EN

Height (min. / max.) 84,6 cm / 86,6 cm*
Width 59,5 cm
Depth 59,8 cm
Capacity (max.) 7 kg**
Net weight (plastic front door usage) 49 kg
Net weight (glass front door usage) 51 kg
Voltage	See type label***Rated power in|
Model code

* Min. height: Height with adjustable feet are closed.
Max. height: Height with adjustable feet are opened maximum.

** Dry laundry weight before washing.

*** Type label is located behind the loading door.

i	Technical specifications of the dryer are subject to specification without notice to improve the quality of the product.
i	Figures in this manual are schematic and may not match the product exactly.
i	Values stated on markers on the dryer or in the other published documentation accompanying with the dryer are obtained in laboratory in accordance with the relevant standards. Depending on operational and environmental conditions of the dryer, these values may vary.

2 Your Dryer

2.1 Package Contents

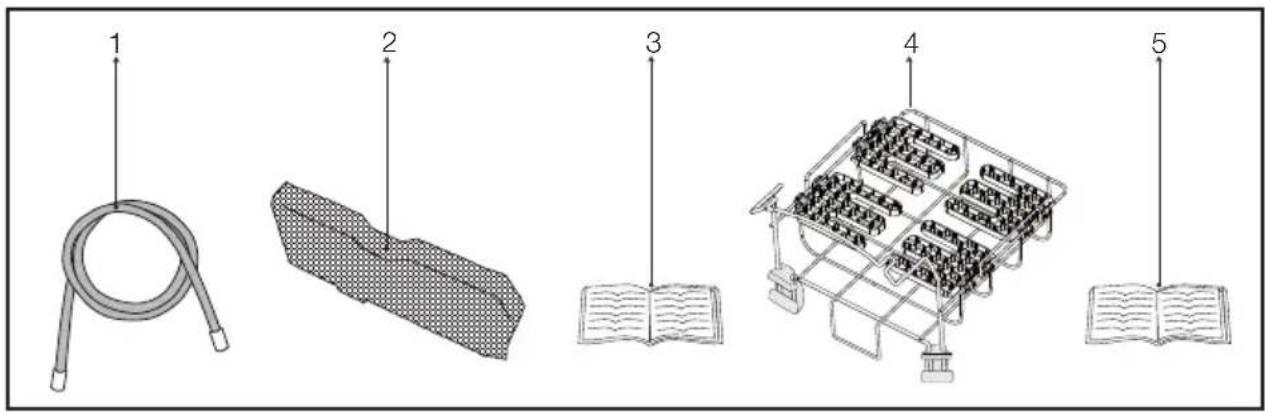

1. Water drain hose *
2. Filter drawer spare sponge*
3. User Manual
4. Drying basket*
5. Drying basket user manual*

*It can be supplied with your machine depending on its model.

3 Installation

Before the calling the nearest Authorized Service for the installation of the dryer, ensure that electrical installation and water drain is appropriate referring to the user's manual. (See 3.4 Connecting to the drain and 3.6

Electrical connection) If they are not suitable, contact a qualified electrician and technician to make necessary arrangements.

Preparation of the dryer's location as well as the electrical and waste water installations is under customer's responsibility.

Prior to installation, visually check if the dryer has any defects on it. If the drier is damaged, do not have it installed. Damaged products cause risks for your safety.

Let your dryer wait for 12 hours before starting to use it.

3.1 Appropriate installation location

Install the dryer on a stable and level surface.

Dryer is heavy. Do not move it by yourself.

• Operate your dryer in a well ventilated, dust-free environment.
• The gap between the dryer and the surface should not be reduced by the materials such as carpet, wood and tape.
• Do not cover the ventilation grills of the dryer.
• There must not be a lockable, sliding or hinged door that may block the opening of the loading door in the place where your dryer is to be installed.
• Once the dryer is installed, it should stay at the same place where its connections have been made. When installing the dryer, make sure that its rear wall does not touch anywhere (tap, socket, etc.).
• Place the dryer at least 1 cm away from the edges of other furniture.
• Your dryer can be operated at temperatures between +5°C and +35°C. If the operating conditions fall outside of this range, operation of the dryer will be adversely affected and it can get damaged.
• The rear surface of the tumble dryer shall be placed against a wall.

Do not place the dryer on the power cable.

3.2 Removing the transportation safety assembly

Remove the transportation safety assembly before using the dryer for the first time.

• Open the loading door.
• There is a nylon bag inside the drum that contains a piece of styrofoam. Hold it from its section marked with XX XX.
• Pull the nylon towards yourself and remove the transportation safety assembly.

Diagram of a hand inserting a component into a circular device, showing internal components and wiring (no text or symbols)

Check that no part of the transportation safety assembly remains inside the drum.

3.3 Under counter installation

- This product can be installed under a counter if the height of the counter is sufficient.

CAUTION: While using the under counter dryer, never operate the dryer without under counter installation part.

Dryer Depth 60 cm	54 cm
Stock number of under-bench installation part	2979700200	2973600200

- Leave at least 3 cm of space around the sides and the rear wall of the product when installing it under a counter or in a cupboard.

3.4 Connecting to the drain

In products equipped with condenser unit, water accumulates in the water tank during the drying cycle. You should drain accumulated water after each drying cycle.

You can directly drain accumulated water through the water drain hose supplied with the product instead of periodically draining the water collected in the water tank.

Connecting the water drain hose

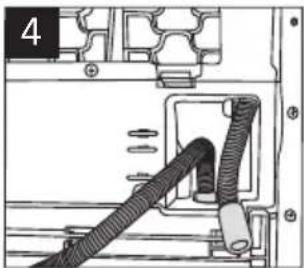

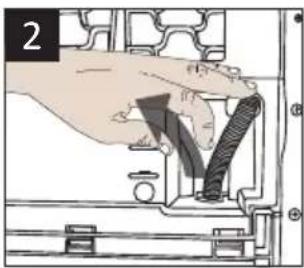

1-2 Pull hose at the behind of the dryer by hand in order to disconnect it from where it is connected. Do not use any tools to remove the hose.

Installation

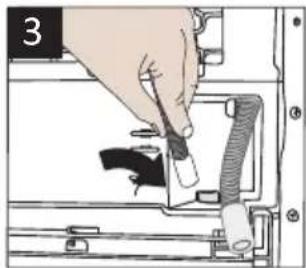

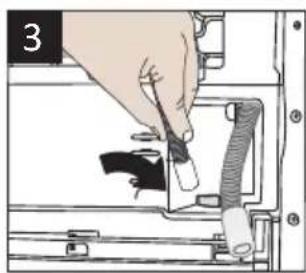

3 Connect one end of the drain hose supplied with the dryer to the connection point from where you removed the hose of the product in previous step.
4 Connect the other end of the drain hose directly to the wastewater drain or to the washbasin.

Technical line drawing of a mechanical or electronic component with no visible text or symbols

Illustration of a hand inserting a cable into a mechanical component (no text or symbols visible)

Illustration of a hand using a tool to adjust or install a mechanical component, no text or symbols visible

Technical diagram of a mechanical assembly with labeled components (no readable text or symbols)

	Hose connection should be made in a safe manner. Your drain house will be flooded if the hose comes out of its housing during water discharge.
	Water drain hose should be attached to a height of maximum 80 cm.
	Make sure that the water drain hose is not stepped on and it is not folded between the drain and the machine.

3.5 Adjusting the feet

• In order to ensure that the dryer operates more silently and vibration-free, it must stand level and balanced on its feet. Balance the machine by adjusting the feet.
• Turn the feet to left or right until the dryer stands level and firmly.

Illustration of a hand holding a mechanical component with a curved arrow indicating rotation (no text or symbols)

Never unscrew the adjustable feet from their housings.

3.6 Electrical connection

For specific instructions for electrical connection required during installation (see 1.1.1 Electrical Safety)

3.7 Transportation of the dryer

Unplug the dryer before transporting it.

Drain all water that has remained in the dryer. If direct water drain connection is made, then remove the hose connections.

We recommend carrying the dryer in upright position. If it is not possible to carry the machine in the upright position, we recommend carrying it by tilting towards the right side when looked from the front.

3.8 Warnings about sounds

It is normal to hear a metallic noise from the compressor sometimes during operation.

Line drawing of a washing machine with a circular vent and a rectangular base, showing sound waves (no text or symbols)

Water collected during operation is pumped to water tank. It is normal to hear pumping noise during this process.

4 Preparation

4.1 Laundry suitable for drying in the dryer

Always obey the instructions given on the garment tags. Dry only the laundry having a label stating that they are suitable for drying in a dryer and make sure that you select the appropriate programme.

LAUNDRY DRYING SYMBOLS
	Drying Symbols	Suitable for dryer		No Iron		Sensitive / Delicate dry		Do not dry with dryer	Do not dry		Do not dry-clean
	Drying Settings		At any temperature	At high temperature	At medium temperature	At low temperature	Without heating		Hang wet to dry	Lay in shadow to dry	Dry-cleanable
	Iron -
	Dry or Steam			Iron at high temperature		Iron at medium temperature		Iron at low temperature	Do not iron		Iron without steam
	Maximum temperature			200°C 150		°C 110		°C

	Drying Settings
		At any temperature	At high temperature	At medium temperature	At low temperature	Without heating	Hang to dry	Lay to dry	Hang wet to dry	Lay in shadow to dry	Dry-cleanable
	Iron -
	Dry or Steam			Iron at high temperature		Iron at medium temperature		Iron at low temperature	Do not iron		Iron without steam
	Maximum temperature			200 °C 150		°C 110		°C

	Iron -
	Dry or Steam	Iron at high temperature	Iron at medium temperature	Iron at low temperature	Do not iron	Iron without steam
	Maximum temperature	200 °C 150	°C 110	°C

4.2 Laundry not suitable for drying in the dryer

Delicate embroidered fabrics, woolen, silk garments, delicate and valuable fabrics, airtight items and tulle curtains are not suitable for machine drying.

4.3 Preparing laundry for drying

• Laundry may be tangled with each other after washing. Separate the laundry items before placing them into the dryer.
• Dry garments having metal accessories such as zippers, inside out.
• Fasten the zippers, hooks and buckles and button sheets.

4.4 Things to be done for energy saving

Following information will help you use the dryer in an ecological and energy-efficient manner.

• Spin your laundry at the highest speed possible when washing them. Thus, the drying time is shortened and energy consumption is reduced.(See 5.6 Programme selection and consumption table)

- Sort out the laundry depending on their type and

thickness. Dry the same type of laundry together. For example thin kitchen towels and table clothes dries earlier than thick bathroom towels.

• Follow the instructions in the user manual for programme selection.
• Do not open the loading door of the machine during drying unless necessary. If you must certainly open the loading door, do not to keep it open for a long time.
• Do not add wet laundry while the dryer is in operation
• Clean the lint filter before or after each drying cycle. (See 6 Maintenance and cleaning)
• Clean the filter drawer regularly either when the Filter Drawer Cleaning warning symbol appears or after every 5 drying cycles. (See 6 Maintenance and cleaning)
• Ventilate the room, where the dryer is located, well during drying.

Preparation

4.5 Correct load capacity

Follow the instructions in the "Programme selection and consumption table". Do not load more than the capacity values stated in the table.

Diagram of a washing machine with internal components and ventilation duct (no text or labels)

It is not recommended to load the dryer with laundry exceeding the level indicated in the figure. Drying performance will degrade when the machine is overloaded. Furthermore, dryer and the laundry can get damaged.

Following weights are given as examples.

Laundry	Approximate weights (g)*
Cotton quit covers (double) 1500
Cotton quit covers (single) 1000
Bed sheets (double) 500
Bed sheets (single) 350
Large tablecloths 700
Small tablecloths 250
Tea napkins 100
Bath towels 700
Hand towels 350
Blouses 150
Cotton shirts 300
Shirts 200
Cotton dresses 500
Dresses 350
Jeans	700
Handkerchiefs (10 pieces)	100
T-Shirts	125

*Dry laundry weight before washing.

5 Selecting a Programme and Operating Your Machine

5.1 Control panel

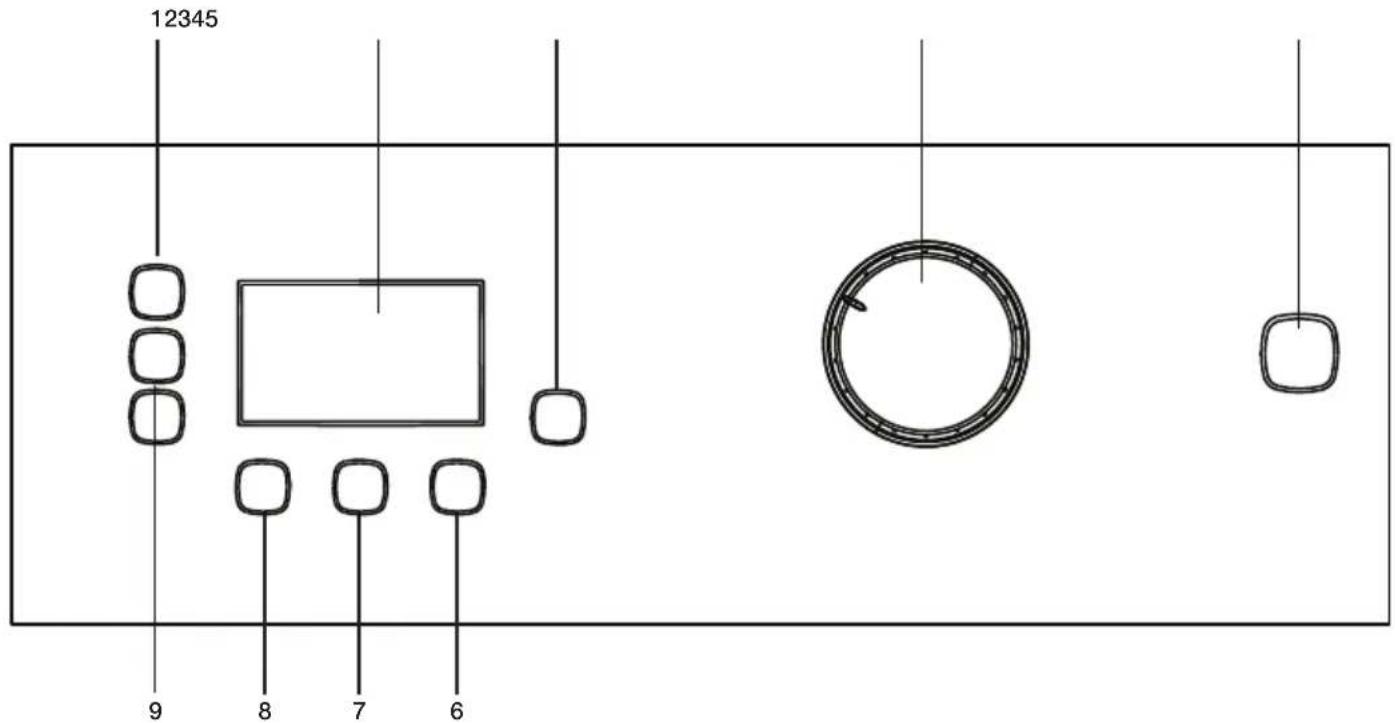

1. Washing Machine Spin Speed / Timer Programme Selection button
2. Display
3. Start / Pause / Cancel button
4. Programme Selection knob
5. On / Off button
6. Anti-creasing button
7. Dryness Level button
8. Cancel Audio Warning button
9. Time Delay buttons

* Spin speed is used to show the remaining time more accurately. It does not affect the performance of your machine.

** Time that appears on display indicates the remaining time until the end of the programme and changes according to the dampness level of the laundry.

Selecting a Programme and Operating Your Machine

5.2 Preparing the machine

1. Plug in the machine.
2. Place the laundry in the machine.
3. Press the On / Off button.

Pressing the On / Off button does not necessarily mean that the programme has started. Press Start / Pause / Cancel button to start the programme.

5.3 Programme selection

1. Decide the appropriate programme from the table below which includes drying levels.
2. Select the desired programme with the Programme Selection knob.

Extra Dry	Only the cotton laundry is dried at normal temperature. Thick and multi layered laundry (towels, linens, jeans and etc.) are dried in a way that they do not require ironing before being placed in the wardrobe.
Cupboard dry	Normal laundry (tablecloths, underwear and etc.) are dried in a way that they do not require ironing before being placed in the wardrobe.
Iron Dry	Normal laundry (shirts, dresses and etc.) are dried ready to be ironed.

For further programme details, see "Programme selection and consumption table".

5.4 Main programmes

Depending on the fabric type, the following main programmes are available:

- Cottons

Dry durable laundry with this programme. Dries at normal temperature. It is recommended to use for your cotton items (bed sheets, quilt covers, towels, bathrobes, etc.).

- Synthetics

Dry less durable laundry with this programme. Recommended for synthetics.

5.5 Additional programmes

For special cases, following additional programmes are available in the machine.

Additional programs may differ according to the features of your machine.

- Express

You can use this program to dry your cotton laundry that you have spun at high speeds in your washing machine. This program dries 1 kg cotton laundry (3 Shirts/3T-shirts) in 45 minutes.

To obtain better results from your dryer, your laundry must be washed at suitable programs and spun at the recommended speed in the washing machine.

- Shirt

This programme dries the shirts more sensitively and creases them less and thus, helps to iron them more easily.

There may be a little moisture on the shirts at the end of the programme. We recommend you not to leave the shirts in the dryer.

- Jeans

Use this programme to dry your jeans that are spun at high speeds in the washing machine.

- Mixed

Use this programme to dry non-pigmenting synthetic and cotton laundry items together.

- Sport

Use this programme to dry together the synthetic and cotton laundry items and the laundry items made of mixed fabrics.

- Wool Refresh

You can use this program to ventilate and soften your woolen laundry that can be washed in the washing machine. Do not use this program to dry your laundry completely. Take out your laundry and ventilate them immediately after the program is over.

• Daily

This program is used to dry cottons and synthetics daily, and lasts for 1.5 hour.

- BabyProtect

This program is used for baby clothes that bear machine dryable approval on its label.

- Delicates

You can dry your highly delicate laundry that are suitable for drying or laundry which is advised to be hand-washed at a lower temperature.

Selecting a Programme and Operating Your Machine

It is recommended to use a cloth bag to prevent certain delicate laundry from getting creased or damaged. Take your laundry immediately out of the dryer and hang them after the program is over in order to prevent them from getting crease

- Ventilation

Only ventilation is performed for 10 minutes without blowing hot air. You can air the clothes that have been kept at closed environments for a long time and deodourise unpleasant odours thanks to this programme.

- Timer programmes

You can select one of the 10 min., 20 min., 30 min., 40 min., 50 min., 60 min., 80 min., 100 min., 120 min., 140 min. and 160 min. timer programmes to achieve the desired final drying level at low temperatures.

With this programme, the machine dries for the time selected regardless of the dryness level.

5.6 Programme selection and consumption table

EN

Programs Capacity (kg)			Spin speed in washing machine (rpm)	Approximate amount of remaining humidity	Drying time (minutes)
Cottons / Coloreds
	Extra dry 7 1000 % 60 175
	Cupboard dry 7 1000 % 60 156
	Iron dry 7 1000 % 60 125
BabyProtect 3 1000 % 60 80
Shirt 1.5 1200 % 50 50
Jeans 4 1200 % 50 120
Daily		4 1200 % 50 90
Mixed 4 1000 % 60 115
Sport 4 1000 % 60 105
Express 1 1200 % 50 45
Delicates 2 600		% 40 55
Wool Refresh		1.5	600	% 50	8
Synthetics
	Cupboard dry	3.5	800	% 40 62
	Iron dry	3.5	800	% 40 50
Energy consumption values
Programs Capacity (kg)			Spin speed in washing machine (rpm)	Approximate amount of remaining humidity	Energy consumption value kWh
Cupboard dry for cottons*		7 1000 % 60 2,15
Iron dry for cottons		7 1000 % 60 1,8
Cupboard dry for synthetics		3.5	800	% 40	0,8
Power consumption of the off-mode for the standart cotton programme at full load, PO (W)					0,5
Power consumption of the left-on mode for the standart cotton programme at full load, PL (W)					1,0

* : Energy Label standard programme (EN 61121:2012)
All values given in the table have been fixed according to EN 61121:2012 Standard. These values may deviate from the values in the table according to the laundry type, laundry spin speed, environmental conditions and voltage fluctuations.

"Cotton cupboard dry programme" used at full and partial load is the standard drying programme to which the information in the label and the fiche relates, that this programme is suitable for drying normal wet cotton laundry and that it is the most efficient programme in terms of energy consumption for cotton..

Selecting a Programme and Operating Your Machine

5.7 Auxiliary functions

Audio Warning

The machine will give an audio warning when the programme comes to an end. If you do not want the machine give an audio warning, press the Volume Level button repeatedly until "x" appears on the display. Use the same button to adjust the volume level.

You can activate this function either before or after the programme starts.

Cancel audio warning

Audio warning level 1

Audio warning level 2

Audio warning level 3

Dryness level

Used to adjust the required dryness level. More drying is performed compared to the default settings when “+” sign appears and less drying is performed when “-” sign appears. Programme duration can change depending on the selection.

You can activate this function only before the programme has started.

Anti-creasing

You can use Anti-creasing function to prevent laundry from creasing if you will not take the laundry out after the program has come to an end. This program rotates the laundry in every 240 second for 2 hours to prevent creasing.

Anti-creasing is activated but the programme is still running in the first display image below. Drying cycle is completed and the Anti-creasing step has started in the second display image.

Press Anti-creasing button to activate this function.

Changing the contrast

Adjust the display contrast in order to make the symbols on the display appear clearer. It may particularly be necessary to change the contrast setting of the display when the dryer is installed over a washing machine.

Press and hold the Spin Speed / Timer Programme button for 3 seconds.

When the contrast is changed, all symbols on the display will appear for 3 seconds in order to indicate that the process is complete.

Perform the same procedure to revert back to the previous contrast setting.

5.8 Warning symbols

Warning symbols may differ according to the model of your machine.

Lint filter cleaning

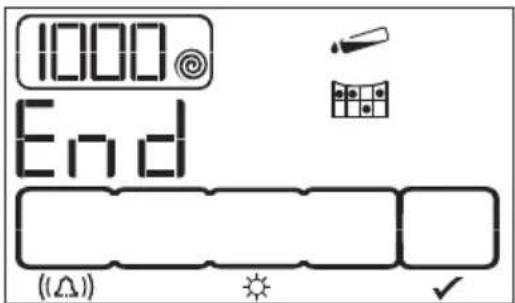

When the programme is completed, a warning symbol will appear to remind that the filter needs to be cleaned.

If the Filter Cleaning symbol flashes continuously, refer to "Troubleshooting" section.

Water tank

When the programme is completed, a warning symbol will appear to remind that the water tank needs to be drained.

If the water tank becomes full while the programme is running, the warning symbol will start to flash and machine will pause. Drain the water in the water tank and press Start / Pause / Cancel button to resume the programme. The warning symbol turns off and the programme resumes operating.

Cleaning of filter drawer

Warning symbol flashes with certain intervals to remind that the filter drawer needs to be cleaned.

Selecting a Programme and Operating Your Machine

Loading door open

This warning symbol appears when the loading door of the dryer is open.

5.9 Time Delay

Time Delay function allows you to delay the startup of the programme up to 24 hours.

1. Open the loading door and put the laundry in.
2. Select the drying programme, spin speed and, if required, the auxiliary functions.

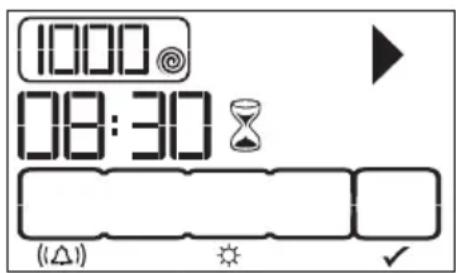

3. Press Time Delay buttons + and - to set the desired time delay. The Time Delay symbol will flash.
4. Press Start / Pause / Cancel button. The Time Delay starts to count down. The Time Delay symbol lights up. Start symbol appears. The “:” in the middle of the displayed delay time will start flashing.

Additional laundry may be loaded / taken out during the Time Delay period. At the end of the Time Delay countdown process, Time Delay symbol disappears, drying process starts and the programme duration is displayed. The time on the display is the total of normal drying time and delay time.

Time Delay is activated by pressing the Start / Pause / Cancel button in the above display image.

Changing the delay time

If you want to change the time during countdown:

1. Press Start / Pause / Cancel button for 3 seconds to cancel the programme. Repeat the Time Delay procedure for the desired time.
2. Set the desired delay time with Time Delay + and - buttons. The Time Delay symbol will flash.
3. Press Start / Pause / Cancel button. The Time Delay starts to count down. The Time Delay symbol lights up. Pause symbol disappears. Start symbol appears.
4. The “:” in the middle of the displayed delay time will start flashing.

Cancelling the Time Delay

If you want to cancel the Time Delay countdown and start the programme immediately:

1. Press Start / Pause / Cancel button for 3 seconds to cancel the programme.
2. Press Start / Pause / Cancel button to start the programme you have previously selected.

5.10 Starting the programme

Press Start / Pause / Cancel button to start the programme.

Start / Pause symbol will light up to indicate that the programme has started and “:” symbol between the remaining time will continue flashing.

5.11 Progress of programme

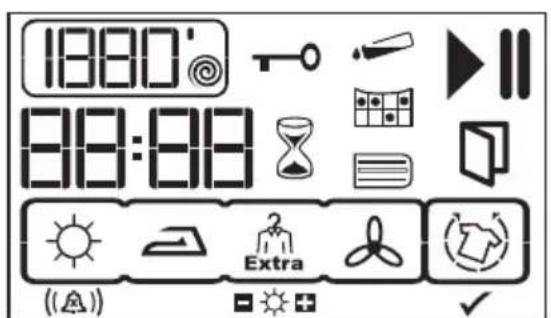

Progress of a running programme is indicated on the display by means of a set of symbols.

At the beginning of each programme step, the relevant symbol in the series of symbols will light up and thus, at the end of the programme, all symbols will remain lit up. The rightmost symbol on the display indicates the step being carried out.

Drying

Drying symbol lights up in all programmes apart from ventilation.

Iron Dry

Starts to illuminate when the dryness level reach Iron Dry step.

Cupboard Dry

Starts to illuminate when the dryness level reach Cupboard Dry step.

Extra dry

Starts to illuminate when the dryness level reach Wardrobe Dry Extra step.

Ventilation

Ventilation symbol illuminates when the programme comes to an end.

Anti-creasing symbol will illuminate at the end of the programme if Anti-creasing function is activated.

Selecting a Programme and Operating Your Machine

5.12 Child-proof Lock

Machine is equipped with a Childproof Lock which prevents interfering with the current programme flow by pressing any button. All buttons except the On / Off button on the control panel are deactivated when the Child-proof Lock is active.

In order to activate the Childproof Lock, press Audio Warning and Anti-Creasing buttons simultaneously for 3 seconds.

To start a new programme after the current programme is over or to interrupt the current programme, the Child-proof Lock should be deactivated. Press the same buttons for 3 seconds again to deactivate the Child-proof Lock.

Lock symbol will appear on the display when the Child-proof Lock is activated.

Child-proof Lock is deactivated when the machine is switched off and on with On / Off button.

When the Child-proof Lock is activated:

• Display symbols will not change even if the position of Programme Selection knob is changed while the machine is running or in halt.
• If the Child-proof Lock is deactivated after changing the position of the Programme Selection knob while the machine is running, the machine stops and new programme information is displayed.

5.13 Changing the programme after it has started

After the machine starts, you can change the selected programme and dry your laundry in a different programme.

1. If you want to select Extra Dry programme instead of Iron Dry programme, press and hold the Start / Pause / Cancel button for 3 seconds to cancel the programme.
2. Select Extra Dry programme by turning the Programme Selection knob.
3. Press Start / Pause / Cancel button to start the programme.

You can also select a new programme by turning the Programme Selection knob while the machine is operating. In this case, current programme is aborted and the new programme information appears on the display.

Adding / removing laundry in Pause mode

In order to add or take out laundry after the drying programme has started:

1. Press Start / Pause / Cancel button to switch the machine to Pause mode. Drying process will stop.
2. While in Pause mode, open the loading door, add or take out laundry and close the loading door.
3. Press Start / Pause / Cancel button to start the programme.

Any laundry added after the drying process has started may cause the clothes that are already dried in the machine intermingle with wet clothes and the result will be wet laundry after the drying process is over.

You may repeat laundry adding or removing process as many times as you desire during drying. However, this process will increase the programme time and energy consumption since the drying process will be interrupted repeatedly. Therefore, it is recommended to add laundry before the drying programme has started.

Selecting a Programme and Operating Your Machine

If you select a new programme by turning the Programme Selection knob while your machine is in Pause mode, then the current program is aborted and new programme information is displayed.

Do not touch the inner surface of the drum when adding or taking out laundry while a programme is running. Surfaces of the drum are hot.

5.14 Canceling the programme

If you want to stop drying and cancel the programme for any reason after the machine has started to run, press and hold the Start / Pause / Cancel button for 3 seconds. Lint Filter Cleaning and Water Tank warning symbols light up and "End" label appears on the display as a reminder at the end of this period.

As the inside of the machine will be excessively hot when you cancel the programme while the machine is running, activate the ventilation program to cool it down.

Machine will stop if you turn the Programme Selection knob while it is operating. In this case, current programme is aborted and the new programme information appears on the display.

5.15 End of programme

Lint Filter Cleaning and Water Tank warning symbols light up in the programme follow-up indicator and "End" label appears on the display when the programme comes to an end. The loading door can be opened and the machine becomes ready for a second cycle. Press On / Off button to switch off the machine.

If Anti-creasing function is activated and the laundry is not taken from the machine at the end of the programme, 2-hours Anti-creasing programme is activated.

Clean the lint filter after each drying. (See "Lint Filter / Loading Door Inner Surface")

Drain the water tank after each drying cycle. (See "Draining the water tank")

6 Maintenance and cleaning

Service life of product extends and frequently experienced problems will be reduced if it is cleaned at regular intervals.

6.1 Cleaning Lint Filter / Loading Door Inner Surface

Lint and fiber released from the laundry to the air during the drying cycle are collected in the Lint Filter.

	Such fiber and lint are generally formed during wearing and washing.
	Always clean the lint filter and the inner surfaces of the loading door after each drying process.
	You can clean the lint filter housing with a vacuum cleaner.

To clean the lint filter:

• Open the loading door.

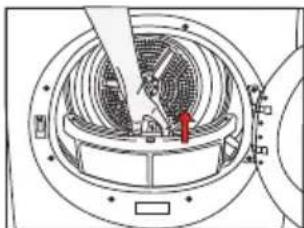

• Remove the lint filter by pulling it up and open the lint filter.

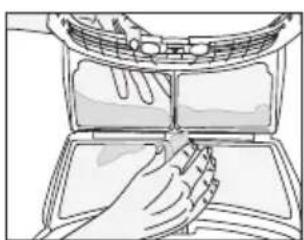

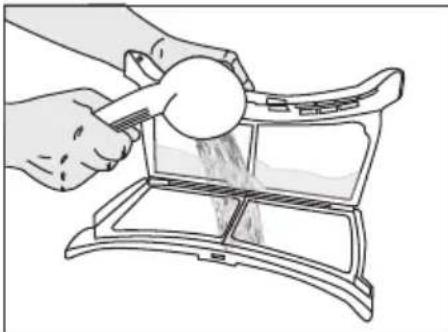

• Clean lint, fiber, and cotton raveling by hand or with a soft piece of cloth.
• Close the lint filter and place it back into its housing.

Technical diagram of a mechanical device with internal components and a red arrow indicating a specific part (no text or symbols present)

Illustration of hands holding a cylindrical object with red arrows indicating force or movement (no text or symbols)

Line drawing of a person sitting on a bench with a cup, no text or symbols present

Illustration of hands cleaning a car air conditioner cover (no text or symbols)

- A layer can build up on the filter pores that can cause clogging of the filter after using the dryer for a while. Wash the lint filter with warm water to remove the layer that builds up on the lint filter surface. Dry the lint filter completely before reinstalling it.

Illustration of a hand using a tool to clean or wash liquid from a tray (no text or symbols)

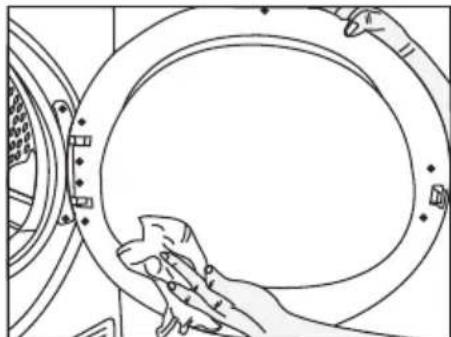

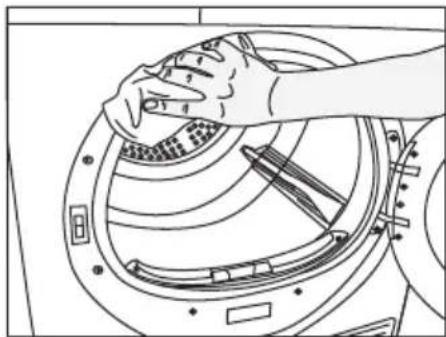

- Clean the entire inner surface of the loading door and loading door gasket with a soft damp cloth.

Line drawing of a washing machine with hand cleaning the rim (no text or symbols)

Line drawing of hands cleaning a circular mechanical component (no text or symbols)

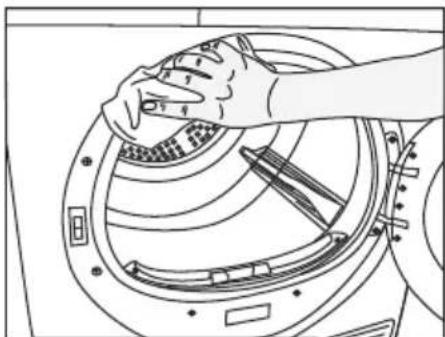

6.2 Cleaning the sensor

There are dampness sensors in the dryer that detect whether the laundry is dry or not.

To clean the sensors:

• Open the loading door of the dryer.
• Allow the machine to cool down if it is still hot due to the drying process.
• Wipe the metal surfaces of the sensor with a soft cloth, dampened with vinegar and dry them.

	Clean metal surfaces of the sensors 4 times a year.
	Do not use metal tools when cleaning metal surfaces of the sensors.
	Never use solvents, cleaning agents or similar substances for cleaning due to the risk of fire and explosion!

Maintenance and cleaning

Line drawing of a hand inserting a small component into a circular device component (no text or symbols)

6.3 Draining the water tank

Dampness of the laundry is removed and condensed during drying process and the water that arise accumulates in the water tank. Drain the water tank after each drying cycle.

Condensed water is not drinkable!

Never remove the water tank when the program is running!

If you forget to drain the water tank, the machine will stop during the subsequent drying cycles when the water tank is full and the Water Tank warning symbol will flash. If this is the case, drain the water tank and press Start / Pause button to resume the drying cycle. To drain the water tank:

- Pull the drawer and remove the water tank carefully.

Line drawing of hands installing or adjusting a mechanical component on a machine (no text or symbols)

- Drain the water in the tank.

Line drawing of a hand operating a mechanical device with a tool inserted (no text or symbols)

- If there is lint accumulation in the funnel of the water tank, clean it under running water.

- Place the water tank into its seat.

If the direct water draining is used as an option, there is no need to empty the water tank.

6.4 Cleaning the filter drawer

Lint and fiber that could not be captured by the lint filter are blocked in the filter drawer behind the kick plate. Filter Drawer Cleaning warning light will light up maximum at every 5 drying cycles as a reminder. There is a two-level filter in the filter drawer. Te first level is the filter drawer sponge and the second level is the filter cloth.

To clean the filter drawer:

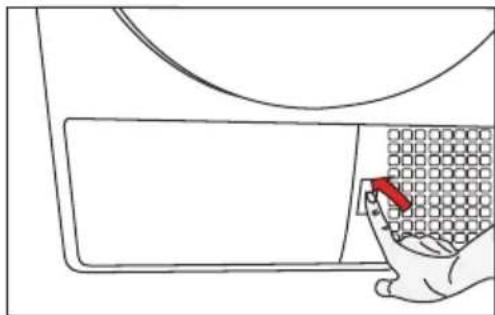

- Press the kick plate button to open the kick plate.

Line drawing of a hand holding a grid-patterned object inside a container (no text or symbols)

- Remove the filter drawer cover by turning it in the direction of arrow.

Hand inserting a component into a computer drive compartment (no text or symbols visible)

Maintenance and cleaning

• Pull out the filter drawer.

Line drawing of a hand inserting a component into a device panel (no text or symbols)

- Open the filter drawer by pressing the red button.

Illustration of a hand holding a device with a scroll wheel, showing a curved arrow indicating rotation (no text or symbols present)

• Take out the filter drawer sponge.

Diagram of a mechanical device with two arrows indicating directional movement, no text or symbols present

- Clean lint, fiber, and cotton raveling on the filter cloth by hand or with a soft piece of cloth.

- When you notice a layer that may lead clogging on the filter cloth, please clean the layer by washing in warm water. Let the filter cloth dry thoroughly before installing back the filter drawer.

Line drawing of a hand holding an open notebook or folder (no text or symbols visible)

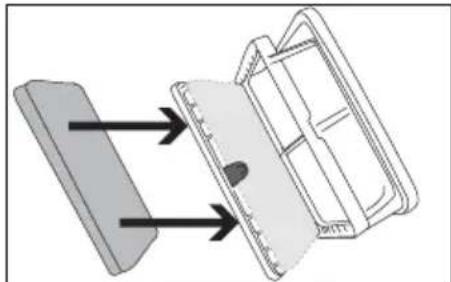

- Wash the filter drawer sponge by hand to remove the fiber and lint on the surface. After washing the sponge, squeeze it by hand and remove the excess water. Well-dry the sponge before storing it.

It is not necessary to clean the sponge if lint and fiber accumulation on it is not significant.

- Place the sponge back into its place.

Diagram showing two mechanical components with arrows indicating direction, no text or symbols present

- Close the filter drawer as to lock the red button.

Illustration of a hand holding a device with an arrow indicating rotation (no text or symbols)

- Place the filter drawer back into its place, turn the filter drawer cover in the arrow direction and close it securely.

Hand inserting a component into a vehicle's door panel (no text or symbols visible)

Maintenance and cleaning

- Close the kick plate cover.

Line drawing of a hand pressing down on a device panel with a red arrow indicating the handle (no text or symbols)

	Drying without the filter drawer sponge in place will damage the machine!
	A dirty lint filter and filter drawer will cause longer drying periods and higher energy consumption.

6.5 Cleaning the evaporator

Clean the lint accumulated on the fins of the evaporator located behind the filter drawer with a vacuum cleaner.

Hand placing a black X symbol on a device panel, no text or symbols present

You can also clean by hand provided that you wear protective gloves. Do not attempt to clean with bare hands. Evaporator fins can harm your hand.

7 Troubleshooting

Drying process takes too much time.

• Pores of the lint filter are clogged. >>> Wash the lint filter with warm water.
  • Filter drawer is clogged. >>> Clean the sponge and the filter cloth in the filter drawer.
• Ventilation grids on the front side of the machine are blocked. >>> Remove the objects (if any) that block ventilation in front of the ventilation grids.
• Ventilation is not sufficient since the room where the machine is installed is very small. >>> Open the door and window of the room to avoid the room temperature increase too much.
• Lime deposit has built up on the dampness sensor. >>> Clean the dampness sensor.
• Excessive laundry is loaded. >>> Do not load the dryer in excess.
• Laundry is not spun sufficiently. >>> Spin your laundry at a higher speed in your washing machine.

Laundry comes out wet at the end of drying.

After drying, the hot clothes feel damper than their actual dampness level.

• It is likely that the selected programme did not suit the laundry type.>>>Checking the care labels on clothes, select appropriate programme for the laundry type or use timer programmes in addition.
• Pores of the lint filter are clogged. >>> Wash the lint filter with warm water.
  • Filter drawer is clogged. >>> Clean the sponge and the filter cloth in the filter drawer.
• Excessive laundry is loaded. >>> Do not load the dryer in excess.
• Laundry is not spun sufficiently. >>> Spin your laundry at a higher speed in your washing machine.

Dryer does not switch on or the programme does not start. Dryer does not start when it is set.

• It is not plugged in. >>> Make sure that the machine is plugged in.
  • The loading door is ajar. >>> Make sure that the loading door is closed securely.
• Programme is not selected or the Start / Pause / Cancel button is not pressed. >>> Make sure that the programme is selected and the machine is not in Pause mode.
• Childproof Lock is activated. >>> Deactivate the Childproof Lock.

Programme is interrupted without any cause.

• Loading door is ajar. >>> Make sure that the loading door is closed securely.
  • There was a power failure. >>> Press Start / Pause / Cancel button to start the programme.
  • Water tank is full. >>> Drain the water tank.

Laundry has shrunk, become felted or deteriorated.

- A programme suitable for the laundry type is not used. >>> Check the garment tag and select a programme suitable for the fabric type.

Drum lighting does not turn on. (On models with lamp)

• Dryer is not switched on with the On / Off button. >>> Make sure that the dryer is switched on.
• Lamp is defective. >>> Call Authorized Service Agent to have the lamp replaced.

End/Anti-creasing symbol is on.

- Anti-releasing programme is activated in order to prevent laundry that has remained in the machine from creasing. >>> Turn off the dryer and take out the laundry.

End symbol is on.

• Programme is over. Turn off the dryer and take out the laundry.

Troubleshooting

Lint Filter Cleaning symbol is on.

• Lint filter is not cleaned. >>> Clean the lint filter.

Lint Filter Cleaning symbol is flashing.

• Filter housing is clogged with lints. >>> Clean the lint filter housing.• A deposit has built up on the lint filter pores that may cause clogging. >>> Wash the lint filter with warm water.• Filter drawer is clogged. >>> Clean the sponge and the filter cloth in the filter drawer.

Water leaks from the loading door

• Lint has accumulated on the inner surfaces of the loading door and on the surfaces of the loading door gasket. >>> Clean the inner surfaces of the loading door and the surfaces of the loading door gasket.

Loading door opens spontaneously.

• Loading door is ajar. >>> Push the loading door to close until you hear a locking sound.

Water Tank warning symbol is on/flashing.

• Water tank is full. >>> Drain the water tank.• Water draining hose is bent. >>> If the product is connected directly to a wastewater drain, check the water drain hose.

Filter Drawer Cleaning warning symbol is flashing.

• Filter drawer is not cleaned. >>> Clean the sponge and the filter cloth in the filter drawer.

If you cannot eliminate the problem although you follow the instructions in this section, consult your dealer or the Authorized Service Agent. Never try to repair a nonfunctional product yourself.

Diagram of a hand inserting a component into a circular device, showing internal components and mounting holes (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Illustration of a hand inserting a cable into a mechanical component (no text or symbols visible)

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Technical diagram of a mechanical assembly with coiled tubing and numbered components (no text or symbols)

Illustration of a hand holding a mechanical component with a circular arrow indicating rotation (no text or symbols)

Line drawing of a washing machine with a circular vent and a rectangular base, showing sound waves (no text or symbols)

Technical line drawing of a mechanical housing with internal components and a magnified inset showing sound waves (no text or symbols)

4 Preparação

Diagram of a washing machine with internal components and lid, showing no text or symbols

Technical diagram of a circular mechanical device with internal components and a red arrow indicating a specific part (no text or symbols present)

Illustration of hands holding a cylindrical object with red arrows indicating force or movement (no text or symbols)

Line drawing of a hand holding a tray with a curved frame (no text or symbols)

Line drawing of hands cleaning a window with a tray (no text or symbols)

Line drawing of hands using a tool to clean or store items from a tray (no text or symbols)

Line drawing of hands cleaning a circular mechanical component (no text or symbols)

Line drawing of hands cleaning a circular mechanical component (no text or symbols)

6.2 Limpeza do sensor

Line drawing of a hand inserting a small component into a circular device component (no text or symbols)

Line drawing of hands installing or adjusting a device panel on a machine (no text or symbols visible)

Line drawing of a hand operating a mechanical device with a tool inserted (no text or symbols)

Line drawing of a hand holding a grid-patterned object inside a container (no text or symbols)

Line drawing of a hand inserting a component into a computer case (no text or symbols visible)

Line drawing of a hand inserting a component into a device panel (no text or symbols)

Illustration of a hand pressing down on a device with an arrow indicating rotation (no text or symbols)

Diagram showing a mechanical component with arrows indicating direction, no text or symbols present

Line drawing of a hand holding a folded notebook or folder (no text or symbols visible)

Diagram showing a device being processed into a folder, with arrows indicating process flow (no text or symbols present)

Illustration of a hand holding a device with a black arrow indicating rotation (no text or symbols)

Hand inserting a device into a computer case (no text or symbols visible)

Illustration of a hand pressing down on a computer monitor with a red arrow indicating the button (no text or symbols present)

Diagram of a hand opening a device with a black X symbol indicating no text or symbols on the device itself

Pure electrical circuit lines without any symbols

Diagram of a hand cleaning a circular mechanical component with a lid open (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Illustration of a hand inserting a component into a mechanical housing (no text or symbols visible)

Hand inserting a component into a device (no visible text or symbols)

Diagram of a mechanical or electrical component with coiled cable and housing (no text or symbols visible)

Hand holding a mechanical component with a curved arrow indicating rotation (no text or symbols)

Line drawing of a washing machine with a circular vent and a rectangular base, showing sound waves (no text or symbols)

Cross-sectional diagram of a washing machine showing internal components and sound waves (no text or labels)

4 Preparación

Diagram of a washing machine with internal tissue and ventilation duct (no text or labels)

Technical diagram of a mechanical fan or impeller assembly with no visible text or symbols

Illustration of hands holding a cylindrical object with red arrows indicating direction (no text or symbols)

Diagram of a hand holding a tray with a handle, showing internal compartments and a small object (no text or symbols)

Illustration of hands cleaning a car air conditioner cover (no text or symbols)

Line drawing of hands using a tool to clean or remove a plastic bag (no text or symbols)

Line drawing of a washing machine with hand cleaning the rim (no text or symbols)

Line drawing of hands installing or adjusting a mechanical component inside a washing machine (no text or symbols)

Line drawing of a hand placing a small object into a circular mechanical component (no text or symbols)

Line drawing of hands installing or adjusting a mechanical component on a device (no text or symbols visible)

Line drawing of a mechanical component with a tool inserted, no text or symbols present

Hand holding a cleaning tool next to a window with a grid pattern (no text or symbols visible)

Hand inserting a component into a device housing (no text or symbols visible)

Illustration of a hand inserting a component into a computer monitor (no text or symbols visible)

Illustration of a hand holding a device with a scroll, showing a curved arrow indicating rotation (no text or symbols present)

Diagram of a device with two arrows indicating movement or force, showing internal components (no text or symbols)

Line drawing of a hand holding an open notebook or case (no text or symbols visible)

Diagram showing a device being processed into a closed notebook (no text or symbols present)

Illustration of a hand holding a device with an arrow indicating rotation (no text or symbols present)

Hand inserting a component into a device panel (no text or symbols visible)

Illustration of a hand pressing down on a device panel with a red arrow indicating the handle (no text or symbols present)

Diagram of a hand holding a device with a black X mark, no text or symbols present
