Product Type	Pneumatic Hot Melt Glue Gun
Model	TR 55 LCD
Brand	Reka
Weight	1400 g
Power Supply	230 V / 50 Hz or 120 V / 60 Hz
Power Consumption	600 W (230 V) / 400 W (120 V)
Current Consumption	2.6 A (230 V) / 3.3 A (120 V)
Degree of Protection	IP30
Class of Protection	I
Temperature Control	Electronic with digital LCD display
Operating Temperature Range	50 – 210 °C
Temperature Consistency	±2 °C
Heat-Up Time	Approx. 3 – 10 minutes
Gross Tank Capacity	330 ml
Conveying System	Pneumatic (compressed air)
Operating Pressure	0.5 – 6 bar
Recommended Melts	Hot-melt granulate, pillows, and 43 mm sticks/slugs
Power Cord Length	8.5 m
Air Tube Length	5 m
Connection Kit Length	3 m
Safety Features	Temperature limiter, vent valve (SEV), sound absorber, hot surface warning
Maintenance	Regular cleaning of nozzle and vent valve; use of cleaning agents for PUR glues
Accessories (Optional)	Nozzle set M14 Professional, suspender (balancer), stand, stationary equipment, foot switch, pre-melter

Frequently Asked Questions - TR 55 LCD Reka

What type of glue can I use with the Reka TR 55 LCD?

The TR 55 LCD is designed for hot-melt granulate, pillows, and 43 mm sticks or slugs with a viscosity range of 2,000 to 15,000 mPas. For glues outside this range, performance may be limited.

How do I set the working temperature on the TR 55 LCD?

Press the button to turn temperature control on or off. To raise temperature, press the button until the desired temperature is displayed, then press once to confirm. To lower, press the button until desired temp appears and confirm. Two dots appear behind the first two digits during adjustment.

What safety precautions should I take when using the glue gun?

Always wear protective gloves and safety goggles. Never direct the glue jet towards people. Keep the nozzle pointed downward. Do not lay the applicator on its side. Unplug before changing nozzles. If hot glue contacts skin, cool with cold water immediately; do not remove adhesive. Seek medical attention if necessary.

Why is glue leaking from the nozzle?

Minor leakage during heat-up is normal due to expansion. If persistent, check if the silencer/vent valve (SEV) is clogged. Clean the vent valve and replace the silencer if needed. Also check for foreign objects in the nozzle or a stuck piston in cartridge models.

How do I clean the glue gun?

For standard glues, the applicator seldom needs cleaning if used properly. Lower heating temperature during breaks to prevent coking. Never use solvents or flammable materials. For PUR glues, use a special cleaning cartridge: remove the old cartridge, attach a cleaner cartridge, warm for 20 minutes, then flush the nozzle adapter until clean cleaner comes out.

What does the flashing display mean?

When the applicator is heating up to the set temperature, the numbers on the LCD display flash. Once the set temperature is reached, the display becomes steady.

How do I load glue into the tank?

Wait until the applicator is warm. Turn the star grip (item 6) anti-clockwise and open the lid upward. Fill the tank up to max. 1.5 cm below the upper rim with hot-melt granulate, pillows, or sticks. Close the lid by turning the star grip clockwise. Allow 3-10 minutes for melting.

What should I do if the glue is too thin or too thick?

Check the temperature setting. If the glue is too thin, the temperature may be too high; if too thick, it may be too low. Adjust the temperature accordingly. Also ensure the glue viscosity is within the recommended range.

How do I replace the nozzle?

Unplug the connecting cable first. Only replace nozzles when the applicator is warm (60-80°C) and the glue tank is empty. Use protective gloves and safety goggles. Unscrew the old nozzle and screw on a new one. Do not replace when cold or too hot to avoid damage or burns.

Can I use PUR hot-melt cartridges in the TR 55 LCD?

No, the TR 55 LCD is designed for granulate, pillows, and sticks. For PUR cartridges, use models TR 700, TR 70, or TR 80. The TR 55 LCD has a tank capacity of 330 ml, not a cartridge holder.

USER MANUAL TR 55 LCD Reka

Product Manual for Pneumatic Reka Glue Guns

Table of Contents

ProductDescription1

GeneralSafetyInstructions2

SafetyMeasuresduringOperation3

Start-upandControl4

CleaningandMaintenance8

Trouble-Shooting10

EnvironmentalProtection11

AdditionalInformation11

EUDeclarationofConformity12

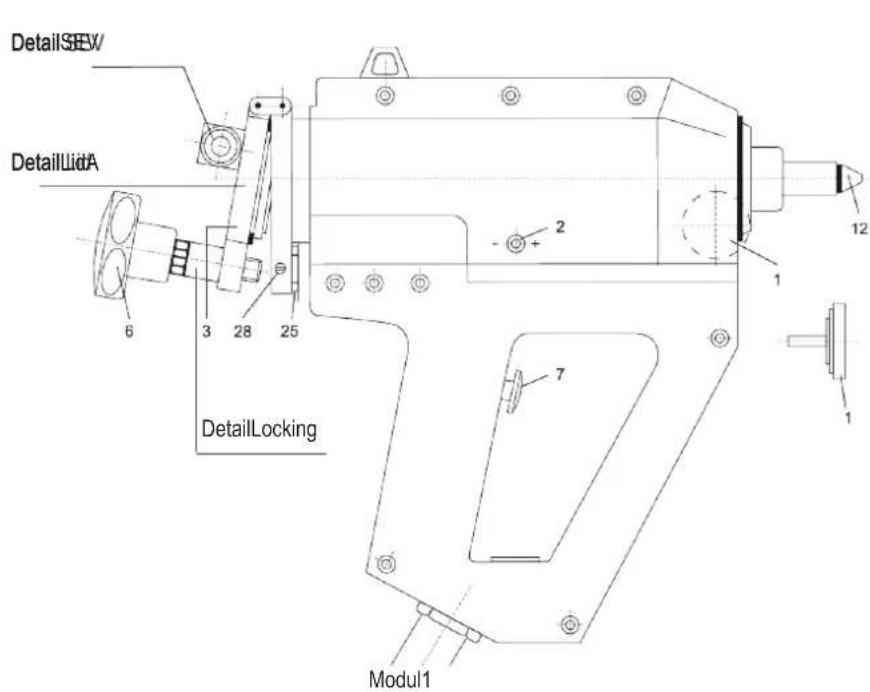

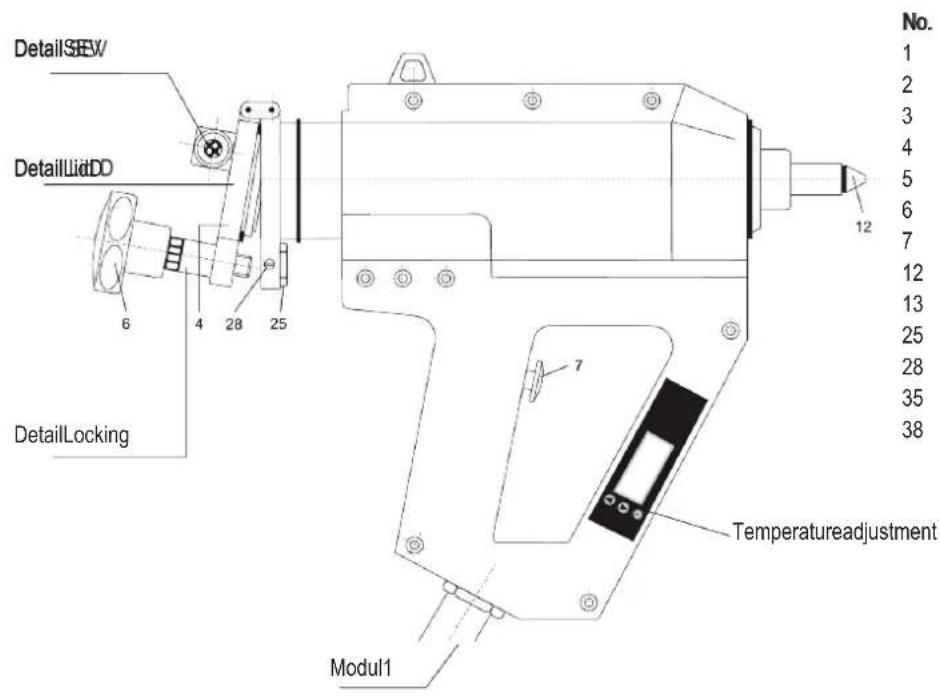

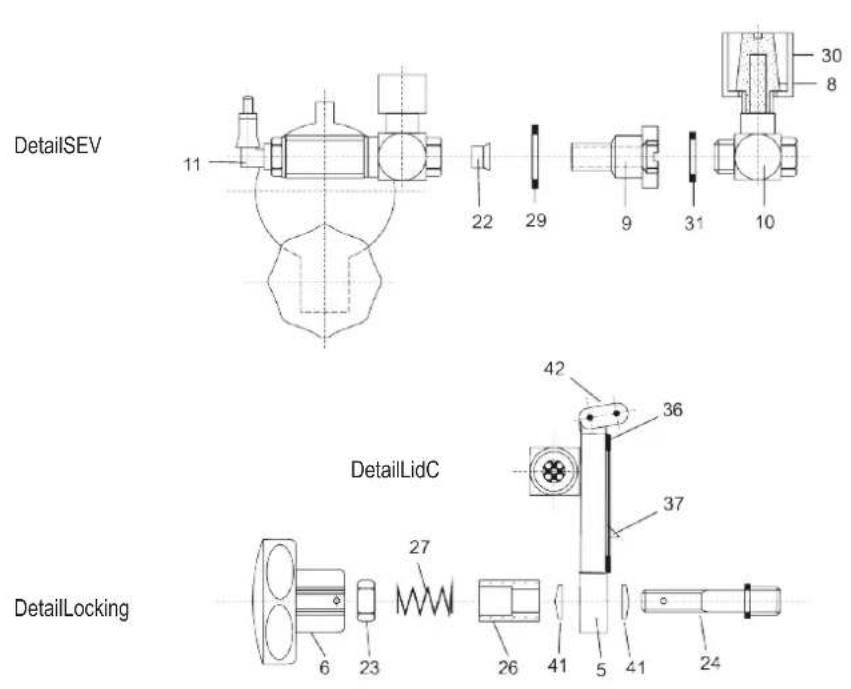

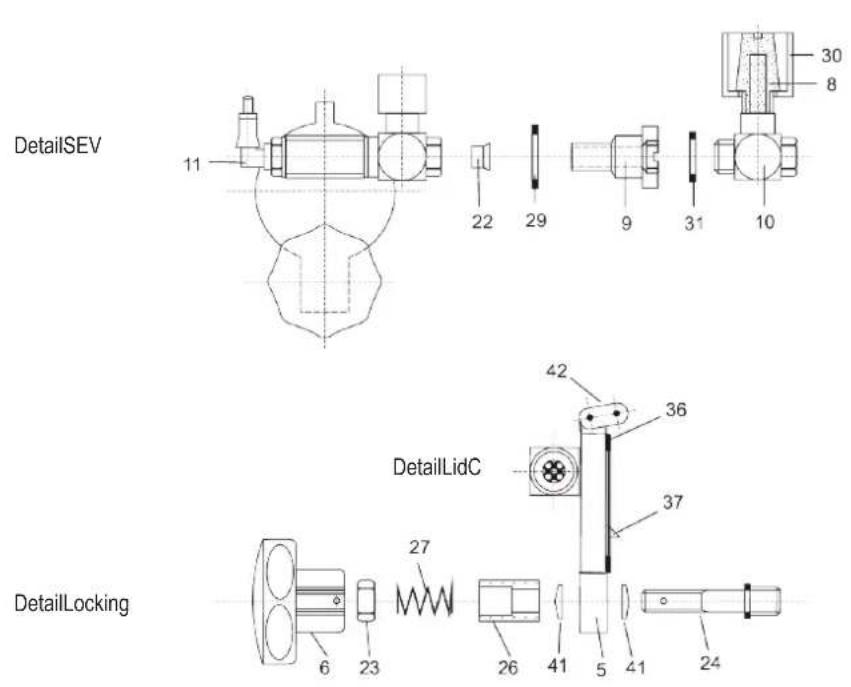

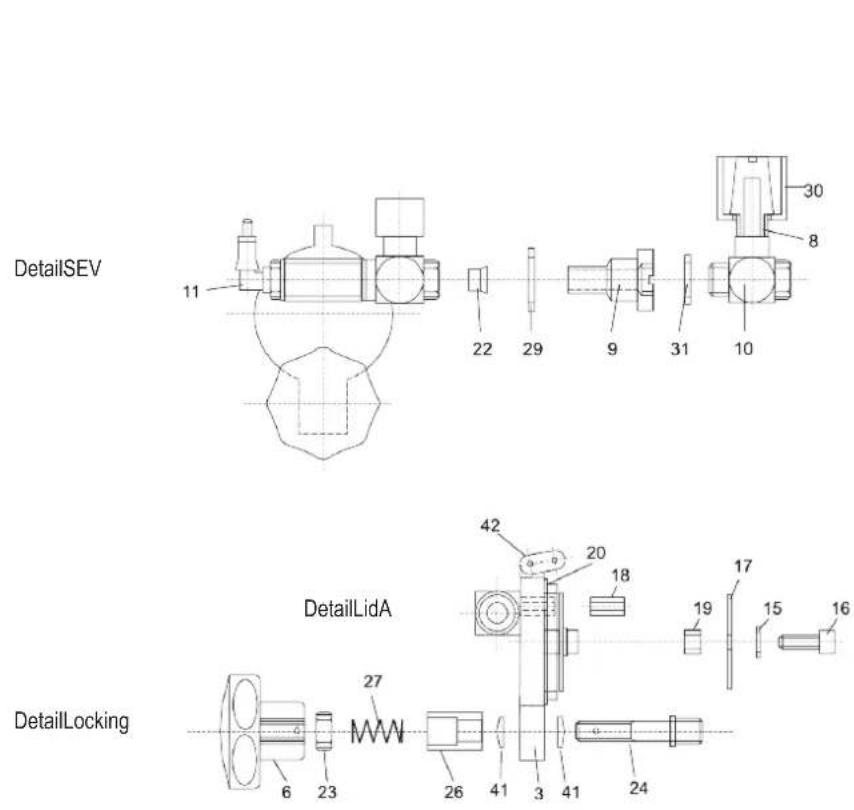

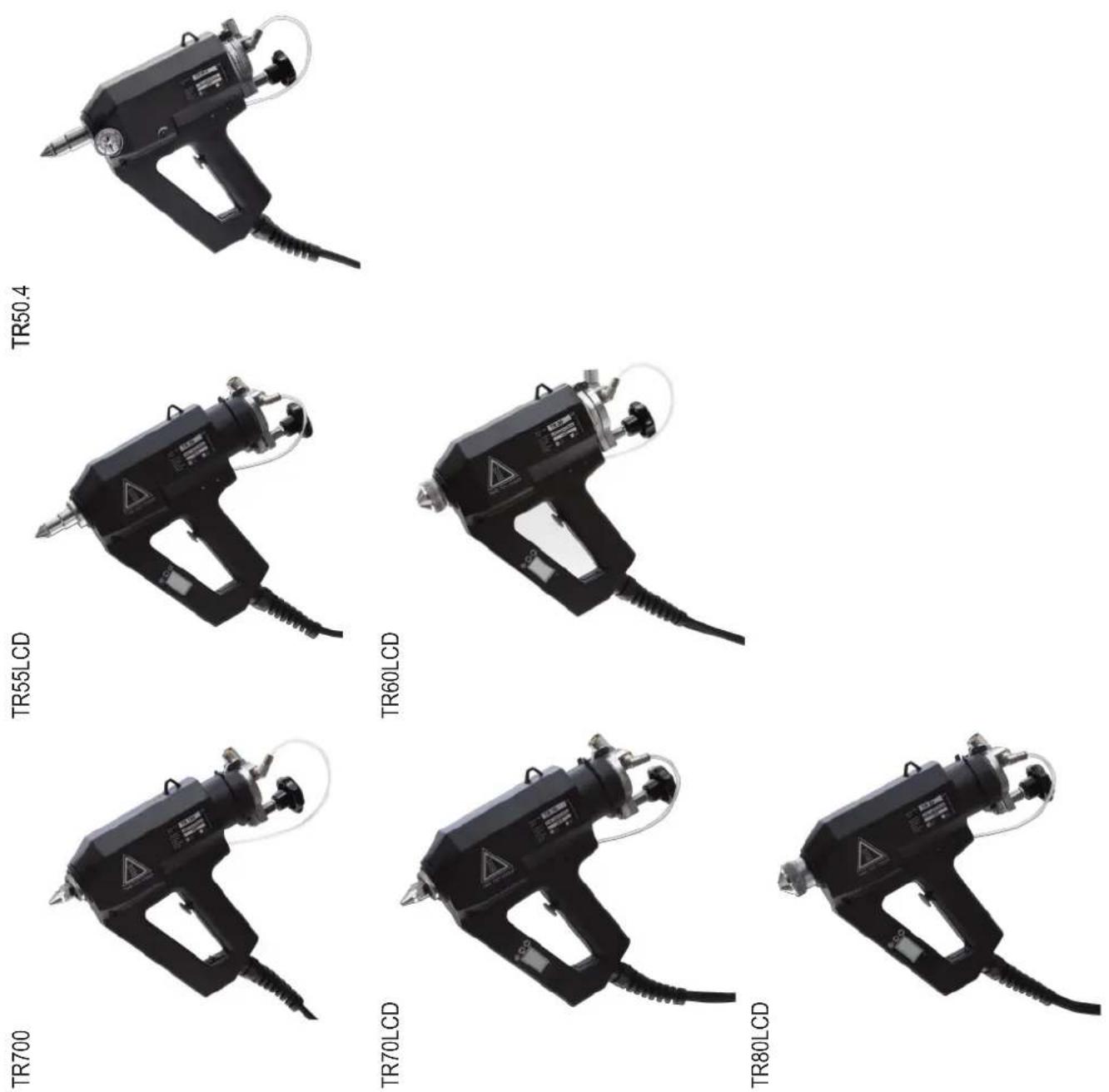

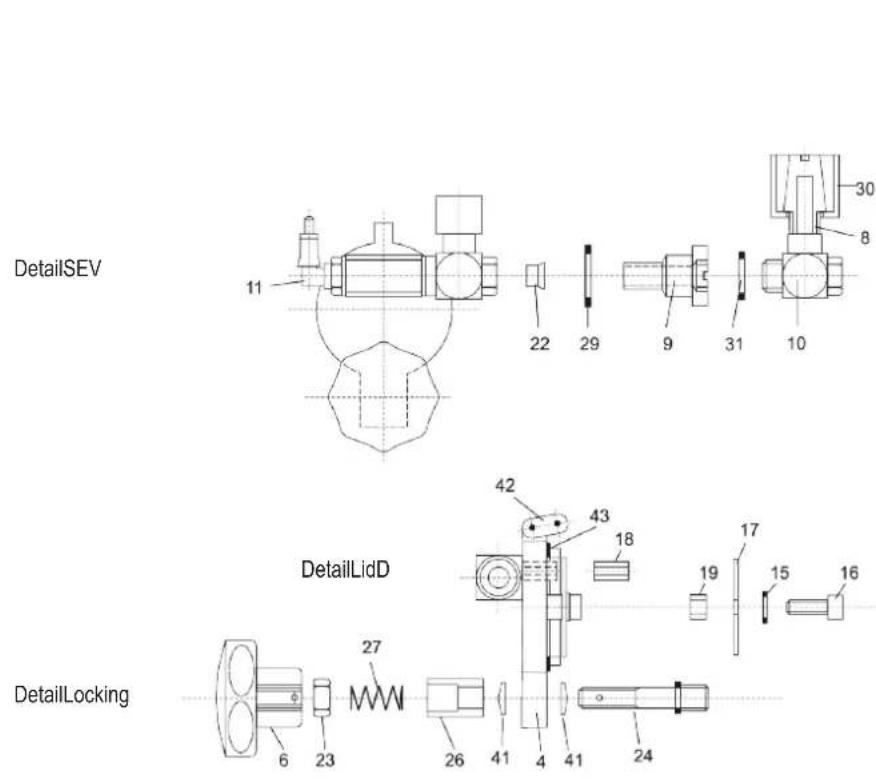

SpareParts|TechnicalSpecifications|Accessories

TR50.414

TR55LCD/HT16

TR60LCD/HT18

TR700

20

TR70LCD/HT22

TR80LCD/HT24

Product Description

Dear customer,

theglueapplicatoryoupurchasedwillhelpyoutogluepartstogethermoreeasilyandmorerapidly.Toensureoptimum usageoftheglueapplicatorwerecommendthatyoureadtheseinstructionsthoroughlybeforeusingtheapplicatorfor thefirsttime.

Thetypeofyourapplicatorcanbetakenfromthenameplatefittedtothesideofthecasing.

Eggenstein-Leopoldshafen, March 1st 2016

Indended Use

The applicator works with hot glue which is dispensed by a pneumatic conveying system. It is suitable for hotmelt from 2.000 - 15.000 mPas*. The glue applicator should only be used by trained, instructed and authorized persons who have been familiarized with its proper use and the safety precautions. Handling the applicator properly will avoid unnecessary accident hazards and problems. Bodily injury or material damage caused by not using the glue applicator as intended shall not be the manufacturer's,buttheuser'sresponsibility.

*lessthan2.000andmorethan15.000mPaspossiblewithlimitations.

General Safety Instructions

Care and Diligence of the User

The glues applied to the design and fabricated conformity with the applicable harmonized standards and additional technical specifications. So, it is state of the art and ensures maximum safety. This safety, however, can only be achieved in the operational practice, if all then necessary measures are taken. The user of the equipment shall be obliged to plan these measures and to make sure that they are taken.

In particular, the user shall ensure that

• theapplicatortobeusedisingoodworkingcondition.
• the personal protective equipment (protective gloves, safety goggles) required for the operating personnel is available and used.
• theoperatinginstructionsareinlegibleconditionand availabletotheoperator.
• onlysufficientlyqualifiedandauthorizedpersonnel operatesandmaintainstheapplicator.
• thispersonnelisregularlyinstructedintheapplicable regulationsofoperationalsafetyandenvironmental protectionandknowstheoperatinginstructionsand, inparticular,thesafetyinstructions.

Making the Information Available

Thisoperatingmanualshallalwaysbekeptattheplace ofoperationoftheapplicator.Besurethatallpersopersons handlingtheapplicator can consulttheinstructions atanytime.Inadditiontothisoperatingmanual,there mustbeavailableinstructionsregardinglegalandother mandatoryregulationsrelatingtoaccidentprevention andtorelevantrequirementsoftheemployers'liability insuranceassociation.

Safety Symbols

Thisoperatingmanualgivesconcretesafetyinstructions toalerttheusertoremainingunavoidablehazards.

Thesehazardsimplydangerets to

• persons
• productandequipment

Meaning of the Symbols used in the Manual

This symbol indicates that there is, above all, dangertopersons, but also to equipment and material.

Caution:hotsurface! AccidentPreventionRegulation/BCG25-25 - W26Hots surface, such as machine parts, tanksormaterials, but also hot liquids cannot always be perceived. Theutmost cautionis advised when this symbol is attached to a component. Wearprotective gloves whenever you have to touch hot surfaces.

To avoid accidents lay the cablesso that they will not cause any risk of stumbling.

Wearprotectiveglovesandsafetygoggles wheneveryouworkwiththeapplicator.If thesafetyglovesignisn'tclearlyvisibleor notatallontheglueapplicatorplease contactRekaKlebetechnikGmbH&Co. KG.

Safety Measures to be taken during Operation

The applicator must only be used by trained, instructed and authorized persons. These persons must have read the operating instructions and be able to work accordingly. Before using the applicator, check it for visible damage and make sure that it is only used when in proper and safe condition. Notify detected defect to the appropriate person immediately.

Safety Instructions for the Operation of the Hot-Melt Applicator

Wearprotectiveglovesandsafety goggleswheneveryouworkwiththe applicator.

Avoidaccidentsbystumbling-Layall cables, hosesandconduitssothatthey willnotcauseanyriskofstumbling. For this, installcableductsandbridges.

Onlyfillthetankupto1.5cmundertheupperrim. m.

Neverexcess the operating temperature of the test melt. This temperature is indicated in the technical specification of the glue. Overheating may lead to decomposition which may affect the health of the user as well as the operability of the applicator.

Oncetheglueapplicatorhaswarmedup,nozzleand lidareveryhot.

Donotstartworkingbeforefittinganozzlefirst.

Onlyreplacenozzlewhenapplicatoriswarm.

Unplugtheconnectingcablebeforereplacinga nozzle. Warning:riskofburns!Whenanozzleis replaced,liquidgluemightleakout.

Neverbringthehotnozzleintocontactwiththecable.

Neverdirectthegluejettowardspeople.

Ifhotgluecomesintocontactwiththe skin,coolitwithcoldwaterimmediately. Donottrytoremovethehot-meltfromthe skinfirst.Ifnecessary,consultadoctor.If hotgluecomesintocontactwiththeeyes, immediatelycoolthemunderrunning waterforabout15minutesandconsult yourdoctoratonce.

Alwaysdeposittheglueapplicatoronthewirestandor therespectiveplatedestinedforthispurpose.

Donotlaytheapplicatoronitsside.

Neverholdnozzletopupward. Otherwise hot-meltmayreachthelid. This causes theventingmechanismtogetcloggedor alsoletshot-meltleakoutofthe applicatorwhenthelidisopened.

Donotcarryoutoverheadwork.

Stopusingtheequipmentimmediately,ifthecasingis damagedduetoshock,breakageorheavywear.

Donotfeedsolvent, benzine, benzene, toluene, acetone, turpentine or other flammable material. Riskofexplosion!

Start-up and Control

Wearprotective gloves and safety goggles whenever you work with the applicator.

Avoid accidents by stumbling lay all cables, hoses and conduits so that they will not cause any risk of stumbling. For this, install cableducts and bridges.

Neverdirectthegluejettowardspeople!

Donotlaytheapplicatoronitsside.

Neverholdnozzletopupward.

Donotcarryoutoverheadwork.

Neverstartworkingbeforefittinganozzle first.

Changenozzlesonlywhentheapplicatoriswarmedup.d up.

Open lid only when the application is treated up.

Domotoverchargetheapplicator;onlyfillituptomax. 1.5cmbelowupperrim.

The heating temperatures should beloweredduring longerworkbreakstopreservethehot-melt. Ongoing heating make the hot-melt coke and may also change its characteristics.

Stopusingtheequipmentimmediately,ifthecasingis damagedduetoshock,breakageorheavywear.

The glue application only be used/ applied for its intended purpose. Pleaseread the chapter, General Safety Instructions.

If it is not used as intended, this may cause personal injuries or equipment damages. Disregard of the safety instructions for the use of the applicator may lead to serious burns.

Before you use the applicator perform functionality test according to the following list:

• Iscompressedairsuppliedtotheglueapplicator?
- Istheapplicatorconnectedtoacompressorwithoil mistseperator?
- Isthepressuremax.6barsandmin.2bars?
- Istheapplicatorconnectedto230volts(or120volts, ifrequiredbythespecificapplicator)?
- Istheapplicatorswitchedon?
- Isthenozzlecleanandfreeofforeignmatters?
- Hastheheat-uptimeofapprox.10minutes (dependingongluetype)beenkept?
- Ishot-meltglueinthemeltingtank?

Setting the hot-melt working temperature (all LCD types)

Switchingthetemperature controlonandoff: Pressthebuttonto

switch the temperature control on or off. If the temperature control is switched off, three hyphens(---) will be on the display.

Raising the temperature: Pressthebuttonuntilthe desiredtemperatureis

indicated.Pressthebuttononcetoconfirmthe setting.Aslongasthecircuitboardisintemperature adjustmentmodetwodotswillappearbehindthefirst twodigits.

Reducing the temperature: Pressthebuttonuntilthedesiredtemperatureis indicated.Pressthebuttononcetoconfirmthe setting.Aslongasthecircuitboardisintemperature adjustmentmodetwodotswillaprearbehindthefirsttwo digits.

While the applicator is heating up to the set temperature, then number on the display are flashing.

Setting the Working Temperature of the Hot-Melt (TR 50.4)

After having stated the application water for approx. 10 minutes and check the working temperature at the thermometer. If necessary, correct the temperature at the thermostat.

• Clockwise=highertemperature
• Anti-clockwise=lowertemperature

Minorleakingoutofthenozzleduringtheheat-upphase isduetothehot-meltexpandinginthenozzle/heating chamber.Assoonastheworkingtemperatureis reached,thehot-meltwillstopleaking.

General Notice on Hot-Melt Working Temperature (all Applicators)

Pleasenote:

Thetemperatureregulationisnotcalibrated!!fanexact temperatureisrequired,useacalibratedthermometerto checkthetemperature.Pleasealsonotethattheoutside temperatureofthemeltingtankdiffersfromtheactual temperatureinsidethemeltingtgrtank.

Theheatingtemperatureshouldbeloweredduringlonger workbreakstopreservethehot-melt.Ongoingheating makesthehot-meltcokeandmayalsochangeits' characteristics.

Working with a Balancer (Suspender) (Accessories)

If the glue applicator is fixed to a balancer (suspender), it is recommended to set the suspension #10436. Thereby it is avoided that by an positioning, glue gets into the ventralve.

ThisappliestoglueapplicatorsTR50.4, TR55, TR60, TR700, TR70, TR80.

Stand including Pressure Regulator and Manometer (Accessories)

The precision adjustment for the compressed air regulates your gauge application to the set pressure may be read from the indication of the manometer.

• Whenyouusethestandfordepositingtheapplicator, removethewirestand.
• Connectthecompressed-airhosetotherearsideof thestand. Connecttheglueapplicatorandthestand withthecompressed-airhosewhichisfirmlyfittedto theglueapplicator.(TR50.4/55/700/70)
• Pressurecontrollerontheright=airforglueoutput 1-6bars*(StandforStoring2770andTR60/80)
• Pressurecontrollerontheleft=airforsprayair discharge1-6bars*(TR60/80)

Working with Stationary Equipment (in connection with pneumatic foot switch) (Accessories)

Warning:

Riskofburns!When,inthestationary modeofoperation,workpiecesare passedbelowtheglueapplicatorby hand,thereisariskofburns;so,itis absolutelynecessarythatyouwear protective gloves.

First,mount the preneumatic foot switch and the stationary equipment. Therelevant instructions are supplied together with the respective accessories. To connect the system, proceeds as follows:

• Pressthetriggerdownand holdit.
• Puttheenclosedplugintothe boreholeprovidedforthispurpose atonesideofthecasinghandle.
• Releasethetrigger.
• Thetriggerislocked.

Start-up and Control

Loading Hot-Melt Glue (TR 50.4 / 55 / 60)

• As soon as the application is warmed up, then the starch (106) anti-clockwise and openthelidupward (TR50.4/60: item3; TR55: item4). Now you can load the desired non-reactive glue.
• Onlyfillthetankuptoapprox.1.5cmbelowitsupper rim.Turnthestargripclockwisetoclosethelid.
• Ittakestheapplicatorapprox.3–10minutestomelt theglue,dependingonquantityandtypeoftheglueas wellastheprocessingtemperature.
• Toapplyglue, pushthetrigger. Thedispensedamount iscontrolledbythetrigger, thepressureappliedtothe gluegunaswellasthenozzlediameter. Thelongerthe triggerispushedandthebiggerthenozzlediameteris, themoreglueisdispensed.

Using PUR Hot-Melt Cartridges (TR 700 / 70 / 80)

Cartridgesmayonlybeinsertedorexchanged,when theapplicatoriswarmoratedepDopDyusely use cartridgesinperfectcondition,thatiswithoutdents,etc., sothatthepistonmaymovefreelyinthecartridge.

Wearprotectiveglovesandsafety goggleswheneveryouworkwiththe applicator.

Whentheapplicatorhaswarmedup, thereisariskofburns!

If,whenchangingthecartridge,another typeofglueisused,thenozzlemustbe rinsedthoroughly(seechapter,Cleaning oftheNozzle/NozzleAdapter").

Theheatingtemperatureshouldbelowered duringlongerworkbreakstopreservethehot-melt. Ongoingheatingmakesthehot-meltcoke andmayalsochangeits'characteristics.

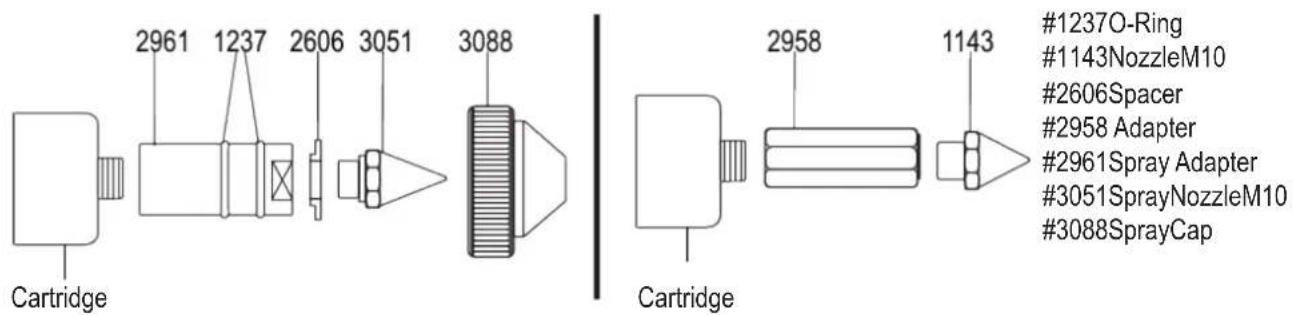

Preparation of the Cartridge

Toopenthecartridgepiercetheoutlet, usingapointedtool.

Screwnozzleadapterandnozzleonto thecartridge.

Preheating the Cartridge

To ensure optimal operation is recommended to use Reka cartridge preheater (article 5398 (230 V); article 5399(120V). Cartridges in the cartridge preheater should always be fitted with nozzle adapter and nozzle.

Loading the Hot-Melt Cartridge

Assoonastheapplicatorhaswarmedup,turnthestar grip(item6)anti-clockwiseandopentheliid(item5) upward.

Besurethatthecartridge getlethas been opened and a adapter and hozzla refitted (see „Preparationofthe Cartridge“).

Insertthecartridgeintothe cartridgeapplicator.

Allowapprox.20minutesforthe applicatortowarmup(depending onthetypeofglue).Warming-up willnottakeaslong,ifthecartridge hasbeenpreheated.

Applythehot-meltglue.

Ifanemptycartridgeisreplacedbyafullonecontaining adifferenttypeofglue, nozzleandadaptermustbe cleaned. For this, pleaseread, Cleaningthe Nozzle/NozzleAdapterafterworkingwithPURHot-Melt GlueCartridges"inchapter,CleaningandMaintenance". (Page8).

Applying Hot-Melt Glue

Wearprotective gloves and safety goggles whenever you work with the applicator.

Neverstartworkingbeforefittinganozzle first.

Neverdirectthegluejettowardspeople!

Ifhotgluecomesintocontactwiththe skin,coolitwithcoldwaterimmediately. Donottrytoremovethehot-meltfromthe skinfirst.Ifnecessary,consultadoctor.If hotgluecomesintocontactwiththeeyes, immediatelycoolthemunderrunning waterforabout15minutesandconsult yourdoctoratonce.

Makeyourselffamiliarwiththeinstrumentfirst.Apply alittleglueinvaryingformsonapieceofpaperor cardboard.Forexample,lines,smallorbigsprayorglue points.Trytofindoutthecorrectquantityandtheideal patternbyadjustingtheairandgluequantitiesbymeans ofthepressureregulatoratthestand(TR60/80), alwaysobservingthecorrectworkingtemperaturesofthe specifichot-melt.Thistemperatureisindicatedinthe technicaldatasheetoftherespectivehot-melt.

Spraying Hot-Melt Glues (TR 60 / 80)

Thesuppliedhot-spraysystesTRO/80are designed for spraying pressure-sensitive adhesives and PURhot-meltglues. Please check, whether the completes spray head(drawingDetailFront) is fitted to the applicator; if this is not the case, attach it. Thespraycap(#3088) must bescrewed on slightly by hand; never use any tools. You are advised to wear protective gloves. Donot

turnoffthesprayairaslongasaspraycapisfittedto thegluegun.

Modification for Dot and Line Application (TR 60 / 80)

Forthis, the completes spray head must be exchanged. Pleaseread the following chapter, Re: Racement of Nozzles" (see below). Thenozzle-adapter-assembly is shown on page 19 for TR60 and page 25 for TR80. To apply dots and lines, the pressureregulator for the spray air on the stand must be set to zero pressure.

Replacement of Nozzles

Warning:riskofburns! Ifhotgluecomesintocontactwiththe skin,coolitwithcoldwaterimmediately. Donottrytoterwarethe hot-meltfrom the skinfirst.Ifnecessary,consultadoctor.If hotgluecomesintocontactwiththeeyes, immediatelycoolthemunderrunning waterforabout15minutesandconsult yourdoctoratonce.

Foryouwnsafetywearprotective glovesandsafetygoggleswheneveryou workwiththeapplicator.

Unplugtheconnectingcablebefore replacingnozzles!

Only replacenozzleswhentheapplicatoriswarm (applicatortemperature60-80°C) and the gluetankis empty. Replacinganozzlewhentheapplicatoriscold, may damage the applicator. If thenozzle is replaced when the applicatoristoohot, liquid gluemayleakout. For themelting range and themelting point of the used glue, please seethetechnical datasheet of the respective glue.

After Work

Pleaseunplugthedeviceafterworkingwithit.Donot unplugitbypullingthecord,pullthepluginstead.

Cleaning and Maintenance

Theapplicatoristobemaintainedbyskilledpersonnel onaregularbasis. Thefrequencyofmaintainance dependsonwearandthehotmeltinuse.

Neverfillsoiledglueintothemeltingtank. The heating temperatures should beloweredduringlongerwork breakstopreservethehot-melt. Ongoingheatingmakes thehot-meltcokeandmayalsochangeits' characteristics. If you follow all advices given in the operating manual, the glue applicator does normally not need cleaning. Then on reactive glue contained in the applicator will remelt and can be used for glue ing again. The working temperature of these respective glue may be taken from the technical datasheet which can be procured from the producer of the glue. This temperature must not be exceeded, otherwise the glue may coke in the glue applicator. Hot-meltson apolyamide basis are particularly sensitive. If the glue has coked, the applicator should be cleaned. If a special cleaning agent is needed, information on this cleaning agent is available at your gluesupplier.

Nevercleantheapplicatorwithsolvent,benzine, benzene,toluene,acetone,turpentineorotherflamable material.Riskofexplosion!

WhenreactivePURhot-meltgluesareused, theadapter and thenozzlesmustbeflushedthoroughly. For this, use aspecialcleaningagentin310mlcartridges. Please ask yourgluesupplierforthecleaningagentsuitedforthe hot-meltusedbyyou.

Cleaning the Nozzle/Nozzle Adapter after having applied PUR Hot-Melt Cartridges (TR 700 / 70 / 80)

When the application will not be used for a longer time, were recommend that you clean them to the adapter because PURhot-melts may harden within a short time and cannot melt anymore.

Warning:riskofburns!

Foryourownsafetyyouareadvised towearprotectiveglovesandsafety goggleswhirnmeptaleicigogozzizes.

Proceed as follows:

Removethe PDBabridge from the applicator.

Unscrewthenozzleaderfrom thewarmgluecartridge.

Useapointedtooltoopentheoutletof thePUR-cleanercartridge.

Screwthenozzleadapteronthe screwthreadofthecleanercartridge.

Insertthecleanercartridgeinthe applicator.Pleaseasktheglue producerforthecleaningagent suitedfortheglueusedbyyou.

20min.

Allowabout20minutesforthe applicatortowarmupthecleaner.

Flushthenozzleaderwith cleaneruntilyouseecleaning agentcomeoutsteadily.

Removethecleanercartridgefromtheapplicatorand unscrewthenozzleadapterandnozzlefromthecleaner cartridgewhileitisstillwarm.

Caution: Hotcleaningagentmayflowout! Allowthecleanercartridgetocoolandkeepitforfurther use.

Cleaning the Vent Valve

Eachtimethetrigger(item7)hasbeenpulled,the applicatormustaudiblyventthroughtheventvalve ("SEV").Ifthesoundabsorber(item8)gotstuck,the gluetankmaybeunderpressure.

Warning:

With this hot gemight come out of the sound absorber!

Iftheventvalveisclogged, hot-meltcan exitthegluegunthroughthenozzleeven whenthedeviceisswitchedoff!

Preventliquidgluefromgettingintothesoundabsorber, whentheapplicatorisreadyforoperationby...

• depositing the glue applicator on a level plane, using its wire bracket;
• depositing the glue applicator on the stand (#2770, included in TR60/TR80);
• suspending the glue applicator at a spring balancer (#3544);
• fillingtheglueapplicatoronlyuptoapprox.1.5cm belowtheupperrim;

- alwayspointingthenozzledownwards.

Ifneverthelessgluegotintotheventvalve,replaceitor cleanitifpossibleandwhentheglueguniswarmedup. Replacementorcleaningoftheventvalvewhentheglue guniscoldmayleadtodamagingthedevice.

Trouble-Shooting

List of possible fault indications and assistance in trouble-shooting

In case of damage, send the glue applicator to Reka, indicating type and serial no. of your applicator. Self-made repairs void the warranty.

Fault	Possible Cause	Measures to be taken
No or too little glue output, though the heat-up time has been observed exactly	·Foreign objects in nozzle?	·Replace nozzle
	·Low air pressure	·Check pressure settings and check air pressure supply if applicable
	·Low hot-melt temperature	·Check temperature setting
	·Cartridge devices TR 700 / 70 / 80: The piston in the cartridge can't move freely	·Replace cartridge
Hot-melt is too thin or too	·Temperature either too high or too low	·Check the temperature
Hot-melt contains brown flakes	·Hot-melt was heated over recommended temperature	·Lower the heating temperature
	·Hot-melt was heated for too long and is coked	·Lower the heating temperature during work breaks
Leaking nozzle	·Silencer / Vent Valve is clogged	·Clean the vent valve and replace silencer
	·Foreign objects in nozzle?	·Replace nozzle
	·Cartridge devices TR 700 / 70 / 80: The piston in the cartridge can't move freely	·Replace cartridge
Applicator doesn't heat up	·Device is switched off	·Check power supply·Turn on applicator, if applicable (LCD-Models).·TR 700: Turn on on-/off-switch.
Spray pattern is not as desired (TR 60 / 80)	·Setting of pressure on air / hot-melt needs to be adjusted	Check air-pressure:·Set pressure regulator of hot-melt to zero at stand·Set pressure regulator of spray air to maximum (max. 6 bar) at stand·Set temperature to 200 °C·Hot-air must exit the spray cap after about 30 seconds
	·Hot-melt is not suitable for spray application	·Use suitable hot-melt

Environmental Protection

Neverthroveelectrictoolsistredomesticwaste. According to the Europe and Directive 2002/96/EC for use electricic and electronic devices and according to national regulations, use electric tools must be collected separately and treated in an environmentally compatible way for use.

PackingmaterialusedbyRekaKlebetechnikcanberecycledcompletely.

Pleasetakeinstructionsforthedisposalofhot-meltgluesandhot-meltcartridgesfromtherespective safetyspecifications.

Additional Information

Doyouhaveanymorequestionsorrequests?We will beglache helpyou.

Pleasecontactusby:

Telephonesales+4972197078-30

Telephonereception+4972197078-0

Telefax+49721705069

EU Declaration of Conformity

Product: HotMeltGleAppliators

Type:TR50.4

TR55LCD

TR55LCDHT

TR60LCD

TR60LCDHT

TR700

TR70LCD

TR70LCDHT

TR80LCD

TR80LCDHT

This is to certify that the above applicators in the design marketed by us are in conformity with the following EC directives:

until 15-01-2007:73/23/EEC, from 16-01-2007: 2006/95 EC

until19-07-2009:91/368EEC, from20-09-2009:2004/108EC

until28-12-2009:89/336EEC, from29-12-2009:2006/42EC

2002/95/EC

The following standards have been applied:

IECCISPR14

IEC60335

IEC60204

IEC61000

This declaration of conformity shall get invalid, if the product is modified, extended, or otherwise changed without express approval of RekaKlebetechnik

- and/or other components than accessories of Reka Klebetechnik are fitted,

- andiftheproductisnotconnectedorusedasintended.

Eggenstein-Leopoldshafen, 1. March 2016

Chinda Aocu drust

ChristaArmbruster

ManagementPurchasingandProduction

Spare Parts Technical Specifications Accessories

Spare Parts TR 50.4

No.	Art.No.	nameofarticle
1	2518	Thermometer
2	2517	Thermostat
3	3657	Lid"A"forTR50.4/60
4	3661	Lid"D"forTR55
5	3660	Lid"C"forTR70/700/80
6	2613	StarGrip
7	2711	Trigger
12	3074	NozzleM14forTR50.4/55
13	1143	NozzleM10forTR70/700
25	2884	LockNutforLidRelease
28	2911	Coversafetyscrew
35	2958	Adapter
38	2918	Switchon/off

No.	Art.No.	nameofarticle
3	3657	LidAforTR50.4/60
4	3661	LidDforTR55
5	3660	LidCforTR70/700/80
6	2613	StarGrip
8	2683	SoundAbsorberSEV
9	2693	DT-SEV
10	3016	L-Screwing
11	2697	90°-Screwing
14	3051	SprayNozzle
15	2800	Disc
16	2801	ScrewM6x16
17	2819	Plate
18	2820	Spacer
19	2802	Intensification
20	2603	O-RingD40x3forTR50.4/60
22	2696	Membrane
23	3665	LocknutM8
24	2883	Lidreleaseshaft
26	2885	Spacerbush
27	2718	Spring
29	2692	O-RingSEV
30	2694	CapSEVD18
31	2695	O-RingDTSEV
32	3088	SprayCap
33	2616	Spacer25x2
36	2955	FlatSealGasket
37	2953	Cartridgepiercer
41	2124	DiscSpring
42	2617	Hingelink
43	2533	O-Ring40x4
	2621	Repairing-SetSEV
	2882	Lockingcomplete

Technical Data Glue Gun TR 50.4

	TR5040
ArticleNumber	5327(230V)5333(120V)	5327 (230
Weight1200g
PowerSupply230V/50Hz120V/60Hz
PowerConsumption550Watt(230V)400Watt(120V)
CurrentConsumption	2,2A	3,3A
Degreeofprotection	IP30
Classofprotection	I
Temperaturecontrol	Thermostat
Temperaturelimitation	Temperaturemonitor
Operatingtemperature	50-200°C
Consistencyoftemperature	±5°C
Temperatureindication	analog
Heat-uptime	approx.3-10min.
GrossTankCapacity	250ml
Conveyingsystem	Airpressure
Operatingpressure	0,5-6bar
Lengthofelectriccord	8,5m
Lengthofairtube	3m
Lengthofconnectionkit	3m
Recommendedmelts	Hot-meltgranulate,pillowsand43mmsticks/slugs

Accessories (optional)

3466NozzleSetM10Professional

3544S8sppede(BBaher)

2770StandforStoring

3746StationaryEquipment

3518Footswitch

5563PremelterVSB40(230V)

5567PremelterVSB40(120V)

Inquireaboutournozzlerange

Spare Parts TR 55 LCD / HT

No.	Art.No.	nameofarticle
1	2518	Thermometer
2	2517	Thermostat
3	3657	Lid"A"forTR50.4/60
4	3661	Lid"D"forTR55
5	3660	Lid"C"forTR70/700/80
6	2613	StarGrip
7	2711	Trigger
12	3074	NozzleM14forTR50.4/55
13	1143	NozzleM10forTR70/700
25	2884	LockNutforLidRelease
28	2911	Coversafetyscrew
35	2958	Adapter
38	2918	Switchon/off

No.	Art.No.	nameofarticle
3	3657	LidAforTR50.4/60
4	3661	LidDforTR55
5	3660	LidCforTR70/700/80
6	2613	StarGrip
8	2683	SoundAbsorberSEV
9	2693	DT-SEV
10	3016	L-Screwing
11	2697	90°-Screwing
14	3051	SprayNozzle
15	2800	Disc
16	2801	ScrewM6x16
17	2819	Plate
18	2820	Spacer
19	2802	Intensification
20	2603	O-RingD40x3forTR50.4/60
22	2696	Membrane
23	3665	LocknutM8
24	2883	Lidreleaseshaft
26	2885	Spacerbush
27	2718	Spring
29	2692	O-RingSEV
30	2694	CapSEVD18
31	2695	O-RingDTSEV
32	3088	SprayCap
33	2616	Spacer25x2
36	2955	FlatSealGasket
37	2953	Cartridgepiercer
41	2124	DiscSpring
42	2617	Hingelink
43	2533	O-Ring40x4
	2621	Repairing-SetSEV
	2882	Lockingcomplete

TR55LDDR55LCDTR55LCBH5TR55LCDHTR 55 LCD HT TR 55 LCD HT

ArticleNumber5424(230V)5427(120V)5384(230V)5388(120V)
Weight1400g
Power Supply	230 V / 50 Hz	120 V / 60 Hz	230 V / 50 Hz	120 V / 60 Hz
Power Consumption	600 Watt (230 V)	400 Watt (120 V)	600 Watt (230 V)	400 Watt (120 V)
Current Consumption	2,6 A	3,3 A	2,6 A	3,3 A
Degreeofprotection	IP30
Classofprotection	I
Temperaturecontrol	Electronic
Temperaturelimitation	Temperaturemonitor
Operating temperature	50 – 210 °C	50 – 210 °C	50 – 235 °C(250°CConrequest)	50 – 235 °C(250°CConrequest)
Consistencyoftemperature	±2°C
Temperatureindication	digital
Heat-uptime	approx.3–10min.
GrossTankCapacity	330ml
Conveyingsystem	Airpressure
Operatingpressure	0,5–6bar
Lengthofelectriccord	8,5m
Lengthofairtube	5m
Lengthofconnectionkit	3m
Recommendedmelts	Hot-meltgranulate,pillowsand43mmsticks/slugs

Accessories (optional)

3465NozzleSetM14Professional

3544S8sppede(BaHocer)

2770StandforStoring

3746StationaryEquipment

3518Footswitch

5563PremelterVSB40(230V)

5567PremelterVSB40(120V)

Inquireaboutournozzlerange

Spare Parts TR 60 LCD / HT

No.	Art.No.	nameofarticle
1	2518	Thermometer
2	2517	Thermostat
3	3657	Lid"A"forTR50.4/60
4	3661	Lid"D"forTR55
5	3660	Lid"C"forTR70/700/80
6	2613	StarGrip
7	2711	Trigger
12	3074	NozzleM14forTR50.4/55
13	1143	NozzleM10forTR70/700
25	2884	LockNutforLidRelease
28	2911	Coversafetyscrew
35	2958	Adapter
38	2918	Switchon/off

No.	Art.No.	nameofarticle
3	3657	LidAforTR50.4/60
4	3661	LidDforTR55
5	3660	LidCforTR70/700/80
6	2613	StarGrip
8	2683	SoundAbsorberSEV
9	2693	DT-SEV
10	3016	L-Screwing
11	2697	90°-Screwing
14	3051	SprayNozzle
15	2800	Disc
16	2801	ScrewM6x16
17	2819	Plate
18	2820	Spacer
19	2802	Intensification
20	2603	O-RingD40x3forTR50.4/60
22	2696	Membrane
23	3665	LocknutM8
24	2883	Lidreleaseshaft
26	2885	Spacerbush
27	2718	Spring
29	2692	O-RingSEV
30	2694	CapSEVD18
31	2695	O-RingDTSEV
32	3088	SprayCap
33	2616	Spacer25x2
36	2955	FlatSealGasket
37	2953	Cartridgepiercer
41	2124	DiscSpring
42	2617	Hingelink
43	2533	O-Ring40x4
	2621	Repairing-SetSEV
	2882	Lockingcomplete

TR60LDDR60LCDTR60LCBHTR60LCDHTR 60 LCD HT TR 60 LCD HT
ArticleNumber5461(230V)5462(120V)5382(230V)120Vuponrequest

Weight1200g
Power Supply	230 V / 50 Hz	120 V / 60 Hz	230 V / 50 Hz
Power Consumption	480 Watt (230 V)	400 Watt (120 V)	480 Watt (230 V)
CurrentConsumption	2,6A	3,3A	2,6A
Degreeofprotection	IP30
Classofprotection	I
Temperaturecontrol	Electronic
Temperaturelimitation	Temperaturemonitor
Operating temperature	50 – 210 °C	50 – 210 °C	50 – 235 °C(250°CConrequest)
Consistencyoftemperature	±2°C
Temperatureindication	digital
Heat-uptime	approx.3–10min.
GrossTankCapacity	250ml
Conveyingsystem	Airpressure
Operatingpressure	0,5–6bar
Lengthofelectriccord	4m
Lengthofconnections(standtohandgun)	4,5m
Lengthofconnectionkit	3m
Recommendedmelts	Hot-meltgranulate,pillowsand43mmsticks/slugs

Accessories (optional)

3466NozzleSetM10Professional

3522Point-/Line-AdapterforTR60 60

3544SSuppender(Balancer)

3746StationaryEquipment

3518Footswitch

5563PremelterVSB40(230V)

5567PremelterVSB40(120V)

Inquireaboutournozzlerange

TR 60 LCD – Detail Front

Spare Parts TR 700

No.	Art.No.	nameofarticle
1	2518	Thermometer
2	2517	Thermostat
3	3657	Lid"A"forTR50.4/60
4	3661	Lid"D"forTR55
5	3660	Lid"C"forTR70/700/80
6	2613	StarGrip
7	2711	Trigger
12	3074	NozzleM14forTR50.4/55
13	1143	NozzleM10forTR70/700
25	2884	LockNutforLidRelease
28	2911	Coversafetyscrew
35	2958	Adapter
38	2918	Switchon/off

No.	Art.No.	nameofarticle
3	3657	LidAforTR50.4/60
4	3661	LidDforTR55
5	3660	LidCforTR70/700/80
6	2613	StarGrip
8	2683	SoundAbsorberSEV
9	2693	DT-SEV
10	3016	L-Screwing
11	2697	90°-Screwing
14	3051	SprayNozzle
15	2800	Disc
16	2801	ScrewM6x16
17	2819	Plate
18	2820	Spacer
19	2802	Intensification
20	2603	O-RingD40x3forTR50.4/60
22	2696	Membrane
23	3665	LocknutM8
24	2883	Lidreleaseshaft
26	2885	Spacerbush
27	2718	Spring
29	2692	O-RingSEV
30	2694	CapSEVD18
31	2695	O-RingDTSEV
32	3088	SprayCap
33	2616	Spacer25x2
36	2955	FlatSealGasket
37	2953	Cartridgepiercer
41	2124	DiscSpring
42	2617	Hingelink
43	2533	O-Ring40x4
	2621	Repairing-SetSEV
	2882	Lockingcomplete

Technical Data Glue Gun TR 700

TR7000

ArticleNumber5385(230V)5370(120V)	5385 (230 V)
Weight1400g
PowerSupply230V/50Hz120V/60Hz
PowerConsumption400Watt(230V)400Watt(120V)
Current Consumption	1,75 A	3,3 A
Degreeofprotection	IP30
Classofprotection	I
Temperaturecontrol	Thermostat
Temperaturelimitation	Temperaturemonitor
Operatingtemperature	120°C
Consistencyoftemperature	±5°C
Heat-uptime	approx.3–10min.
GrossTankCapacity	310ml
Conveyingsystem	Airpressure
Operatingpressure	0,5–6bar
Lengthofelectriccord	8,5m
Lengthofairtube	3m
Lengthofconnectionkit	3m
Recommendedmelts	310mlhot-meltcartridges

Accessories (optional)

3466NozzleSetM10Professional al

29580 Cartridgeadapterfordot/lineapplication

7099Blankcartridgeincl.piston

3544Suspender(Balancer)

2770StandforStoring

3746StationaryEquipment

3518Footswitch

5398CartridgePreheater

Inquireaboutournozzlerange

Spare Parts TR 70 LCD / HT

No.	Art.No.	nameofarticle
1	2518	Thermometer
2	2517	Thermostat
3	3657	Lid"A"forTR50.4/60
4	3661	Lid"D"forTR55
5	3660	Lid"C"forTR70/700/80
6	2613	StarGrip
7	2711	Trigger
12	3074	NozzleM14forTR50.4/55
13	1143	NozzleM10forTR70/700
25	2884	LockNutforLidRelease
28	2911	Coversafetyscrew
35	2958	Adapter
38	2918	Switchon/off

No.	Art.No.	nameofarticle
3	3657	LidAforTR50.4/60
4	3661	LidDforTR55
5	3660	LidCforTR70/700/80
6	2613	StarGrip
8	2683	SoundAbsorberSEV
9	2693	DT-SEV
10	3016	L-Screwing
11	2697	90°-Screwing
14	3051	SprayNozzle
15	2800	Disc
16	2801	ScrewM6x16
17	2819	Plate
18	2820	Spacer
19	2802	Intensification
20	2603	O-RingD40x3forTR50.4/60
22	2696	Membrane
23	3665	LocknutM8
24	2883	Lidreleaseshaft
26	2885	Spacerbush
27	2718	Spring
29	2692	O-RingSEV
30	2694	CapSEVD18
31	2695	O-RingDTSEV
32	3088	SprayCap
33	2616	Spacer25x2
36	2955	FlatSealGasket
37	2953	Cartridgepiercer
41	2124	DiscSpring
42	2617	Hingelink
43	2533	O-Ring40x4
	2621	Repairing-SetSEV
	2882	Lockingcomplete

TR70LCDTR70LCDTR70LCBHTTR70LCDHTR 70 LCD HT TR 70 LCD HT

ArticleNumber5422(230V)5423(120V)5386(230V)120Vuponrequest
Weight1400g
PowerSupply230V/50Hz	120V/60Hz	230V/50Hz
Power Consumption	600 Watt (230V)		400 Watt (120 V) 600 Watt (230 V)
Current Consumption	2,6 A		3,3 A 2,6 A
Degreeofprotection	IP30
Classofprotection	I
Temperaturecontrol	Electronic
Temperaturelimitation	Temperaturemonitor
Temperatureindication	digital
Operating temperature	50 – 210 °C	50 – 210 °C	50 – 235 °C(250°C on request)
Consistencyoftemperature	±2°C
Heat-uptime	approx.3–10min.
GrossTankCapacity	310ml
Conveyingsystem	Airpressure
Operatingpressure	0,5–6bar
Lengthofelectriccord	8,5m
Lengthofairtube	5m
Lengthofconnectionkit	3m
Recommendedmelts	310mlhot-meltcartridges

Accessories (optional)

3466NozzleSetM10Professional

29580 Cartridge adapter for dot/line application

7099Blankcartridgeincl.piston

3544Suspender(Balancer)

2770StandforStoring

3746StationaryEquipment

3518Footswitch

5398CartridgePreheater

Inquireaboutournozzlerange

Spare Parts TR 80 LCD / HT

No. Art.No. nameofarticle

1 2518 Thermometer

2 2517 Thermostat

3 3657 Lid"A"forTR50.4/60

4 3661 Lid"D"forTR55

5 3660 Lid"C"forTR70/700/80

6 2613 StarGrip

7 2711 Trigger

12 3074 NozzleM14forTR50.4/55

13 1143 NozzleM10forTR70/700

25 2884 LockNutforLidRelease

28 2911 Coversafetyscrew

35 2958 Adapter

38 2918 Switchon/off

No. Art.No. nameofarticle

3 3657 LidAforTR50.4/60

4 3661 LidDforTR55

5 3660 LidCforTR70/700/80

6 2613 StarGrip

8 2683 SoundAbsorberSEV

9 2693 DT-SEV

10 3016 L-Screwing

11 2697 90°-Screwing

14 3051 SprayNozzle

15 2800 Disc

16 2801 ScrewM6x16

17 2819 Plate

18 2820 Spacer

19 2802 Intensification

20 2603 O-RingD40x3forTR50.4/60

22 2696 Membrane

23 3665 LocknutM8

24 2883 Lidreleaseshaft

26 2885 Spacerbush

27 2718 Spring

29 2692 O-RingSEV

30 2694 CapSEVD18

31 2695 O-RingDTSEV

32 3088 SprayCap

33 2616 Spacer25x2

36 2955 FlatSealGasket

37 2953 Cartridgepiercer

41 2124 DiscSpring

42 2617 Hingelink

43 2533 O-Ring40x4

2621 Repairing-SetSEV

2882 Lockingcomplete

TR80LDDR80LCDTR80LCBHTR80LCDHTR 80 LCD HT TR 80 LCD HT

ArticleNumber5454(230V)5463(120V)5408(230V)120Vuponrequest
Weight1400g
PowerSupply230V/50Hz	120V/60Hz	230V/50Hz
Power Consumption	650 Watt (230 V)		400 Watt (120 V) 650 Watt (230 V)
Current Consumption	2,8 A		3,3 A 2,8 A
Degreeofprotection	IP30
Classofprotection	I
Temperaturecontrol	Electronic
Temperaturelimitation	Temperaturemonitor
Operating temperature	50 – 210 °C		50 – 210 °C 50 – 235 °C(250°C on request)
Consistencyoftemperature	±2°C
Temperatureindication	digital
Heat-uptime	approx.3–10min.
GrossTankCapacity	310ml
Conveyingsystem	Airpressure
Operatingpressure	0,5–6bar
Lengthofelectriccord	4m
Lengthofconnections(standtohandgun)	4,5m
Lengthofconnectionkit	3m
Recommendedmelts	310mlhot-meltcartridges

Accessories (optional)

3466NozzleSetM10Professional

29580Acrtldgedaptetforbotdintelapplication

7099Blankcartridgeincl.piston

3544Suspender(Balancer)

3746StationaryEquipment

3518Footswitch

5398CartridgePreheater

Inquireaboutournozzlerange

TR 80 LCD – Detail Front
