FRMA801 - Oven Profilo - Free user manual and instructions

Product Type	Built-in Electric Oven
Brand	Profilo
Model	FRMA801
Installation Type	Built-in under worktop or in tall unit
Maximum Installation Height	2000 m above sea level
Dimensions (Approx.)	595 x 595 x 550 mm (H x W x D)
Weight (Approx.)	35 kg
Power Supply	220-240V, 50/60 Hz, 3300 W
Electrical Connection	Hardwired or plug (certain countries) with earthing
Required Cable	H05 V V-F 3G, 1.5 mm²
Safety Protection Class	Class I
Heating Methods	Conventional top and bottom heat, fan, grill, defrost
Cleaning	Standard enamel interior; manual cleaning
Ventilation Requirements	5 mm gap between appliance and adjacent units; ventilation cut-out in intermediate floor
Spare Parts Availability	Contact Profilo customer service
Reparability	Service requires qualified technician; cable replacement by technical support only
Manual Languages	English (EN)

Frequently Asked Questions - FRMA801 Profilo

What are the installation requirements for the Profilo FRMA801 oven?

The oven can be installed under a worktop or in a tall unit. Ensure a 5 mm air gap around the appliance and proper ventilation cut-outs. The maximum installation height is 2000 m above sea level. Do not install behind a decorative panel to avoid overheating.

How do I connect the oven to the power supply?

The oven requires a dedicated earthed mains socket (class I). Use a cable of type H05 V V-F 3G, 1.5 mm². The yellow-green earth conductor must be slightly longer than the other wires. Connection must be done by a qualified electrician.

What are the dimensions and weight of the oven?

Typical dimensions are approximately 595 x 595 x 550 mm (H x W x D) and weight around 35 kg. Exact specifications can be found in the installation manual.

What heating modes does the oven have?

The oven offers conventional top and bottom heat, fan-assisted cooking, grill, and defrost functions. Specific modes may vary; refer to the user manual for details.

How do I clean the oven?

The oven has a standard enamel interior. Clean with a damp cloth and mild detergent. Avoid harsh abrasives. Do not use steam cleaners.

Is it safe to use the oven at high altitudes?

Yes, the oven is designed for use up to 2000 m above sea level. At higher altitudes, cooking times may need adjustment.

Can I install the oven under a hob?

Yes, but you must follow the hob's installation instructions. Ensure proper ventilation and electrical separation between appliances.

What should I do if the mains cable is damaged?

Only qualified technical support personnel should replace the cable. Never attempt to replace it yourself due to risk of electric shock.

Why does my oven need a 5 mm gap from adjacent cabinets?

The gap ensures adequate air circulation for heat dissipation and prevents overheating of surrounding units or the appliance itself.

How can I obtain spare parts for my Profilo FRMA801?

Contact Profilo customer service or an authorized service center. Please have your model number (FRMA801) ready.

USER MANUAL FRMA801 Profilo

Isometric line drawing of a double door with an oven, mounted on a wall (no text or symbols)

3

D

4

Technical illustration of a door with screw fasteners and a close-up of the interior panel showing a wooden structure (no text or symbols)

de

Wichtige Hinweise

This appliance is intended for use up to a maximum height of 2000 metres above sea level.

If the appliance is being installed under a hob, refer to the assembly instructions for the hob.

Do not use the door handle to carry or install the appliance.

Before installation, check the appliance for transportation dan Before starting up the appliance, remove any packaging material and adhesive film from the cooking compartment and the door.

The appliance must be disconnected from the power supply all installation work.

Preparing the units - Figure1

This appliance is intended for use up to a maximum height of des 2000 metres above sea level.
■ The safe operation of this appliance can only be guarar installation been installed to a professional standard in accordance these installation instructions. The installer is liable for damage führemcurred as a result of incorrect installation.

■ Fitted units must be heat-resistant up to 90 °C, and neighbouring unit fronts up to 70 °C.
- Do not install the appliance behind a decorative panel. There is a risk of overheating.
- Carry out all cut-out work on the kitchen unit and work fitting the appliances. Remove any shavings or the function of the Electrical components may be impaired.
■ Caution during installation. Parts that are accessible during ventilation may have sharp edges. Wear protective gloves to prevent cuts
■ The power socket for the appliance must either be local hatched area B or outside of the area where the appliance is installed.
There must be an air gap of 5 mm between the appliance and adjacent cabinets.
- Secure any unsecured units to the wall using a standard C.

Appliance under the worktop - Fig. 1

There must be a ventilation cut-out made in the intermediate floor of the surround unit.

dem Secure the worktop to the fitted units.

If a fitted oven is to be built in underahob, pay attention Umbain installation instructions.

Appliance in a tall unit - Figs 2+4

The appliance may also be installed in a tall unit.

There must be a gap between the intermediate floors and the mounting wall of approx. 20 mm in order to provide ventilation to the oven.

Only fit the appliance at a height where removing baking trays does not present a problem.

Corner installation - Fig. 3

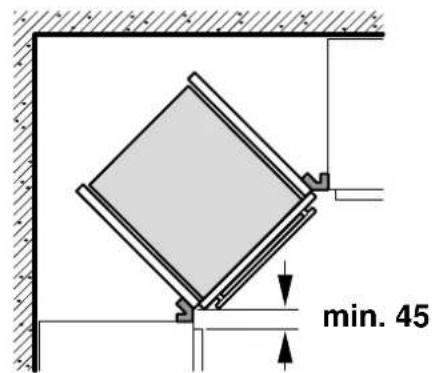

For corner installation, dimension D must be taken into consideration. Dimension E is dependent on the thickness of the unit front and the handle.

Connecting the appliance to the power supply

Before using the appliance for the first time, make sure that the domestic power line is equipped with a conductor which complies with the relevant safety regulations. The appliance must only be connected by a qualified electrician and must comply with the statutory and official provisions, as well as the provisions of the local network operator. In rare cases, failure of a conductor or an incorrect installation may cause material damage or serious injury (death or to electric shock). The manufacturer accepts no responsibility for personal injuries or damage to the appliance due to faulty or incorrect electrical connection.
■ During all installation work, the appliance must be discon from the power supply.
The appliance fulfils the requirements of protection class I and may only be connected to an earthed mains socket.
■ The mains connecting cable must be at least type H05 V V-F 3G, 1.5 mm².

The yellow-green conductor must be connected first and be slightly longer than the two other wires on the appliance side.

In accordance with safety regulations, an all-pole sepa at least a 3 mm contact opening must be provided. A separator is not required during connection, which is carried out via an earthed power socket which is easily accessible at all times.
■ Contact protection must be ensured during installation.
■ Determine the phase conductor and neutral conductor (zero conductor) in the socket. The appliance may be damaged if incorrectly connected.
■ The oven must be connected in accordance with the on the rating plate.
- Place the appliance in front of the conversion cabinet it. The service cable must be long enough.

Caution: During installation, ensure that the mains cable is not jammed and does not come into contact with hot

■ All work on the appliance, including replacing the cabling, must only be carried out by technical support.

Only in Sweden, Finland and Norway

The appliance can also be connected using the plug provided which has an earthing contact system. This must still be accessible after installation. If this is not the case, an all-pole isolating switch must be used on the installation side gap of at least 3 mm.

Screwing the oven to the conversion cabin 5

■ Slide the appliance fully into the conversion cabinet. The mains cable must not be laid over sharp edges or underneath be jammed, bent or squashed, and must not come into contact with hot appliance parts.
- Align the oven centrally in the conversion cabinet and screw in using the screws provided (4 x 25).
If the conversion cabinet corresponds to the dimensions specified by us, there must be a ventilation slot above. To ensure sufficient ventilation, never cover this ventilation slot.
A safety distance of at least 5 mm is required between the appliance and the adjacent kitchen walls and units.

Removal

Disconnect the appliance from the power supply. Undo the securing screws. Raise the appliance slightly and pull it out completely.
