ZX 56 - Washing machine ZEROWATT - Free user manual and instructions

Product type	Freestanding washing machine
Brand	Zerowatt
Model	ZX 56
Load capacity	6 kg
Maximum spin speed	1000 rpm
Energy efficiency class	A++
Water consumption per cycle	45 L
Noise level (spin)	76 dB
Noise level (wash)	58 dB
Dimensions (H x W x D)	85 cm x 60 cm x 50 cm
Weight	62 kg
Power supply	220-240 V / 50 Hz
Programs	Cotton, Synthetics, Delicates, Wool, Quick 30', Rinse & Spin, Drain
Drum material	Stainless steel
Child lock	Yes
Delay start	Up to 24 hours
Temperature selection	Cold, 30°C, 40°C, 60°C, 90°C
Self-cleaning drum	Yes
Remaining time display	Yes
Spare parts availability	7 years
Repairability index	8.0 / 10

Frequently Asked Questions - ZX 56 ZEROWATT

How do I clean the detergent drawer?

Remove the drawer by pressing the lever inside. Rinse it under warm water and use a soft brush to remove residue. Dry it before reinserting.

What does the error code E10 mean?

Code E10 indicates a water supply issue. Check that the water tap is open and the inlet hose is not kinked or blocked. Turn the tap off and on again.

Can I wash a duvet in this machine?

Yes, but ensure the duvet is machine-washable and does not exceed 2 kg (dry weight). Use a gentle program like ‘Synthetics’ with a low spin speed.

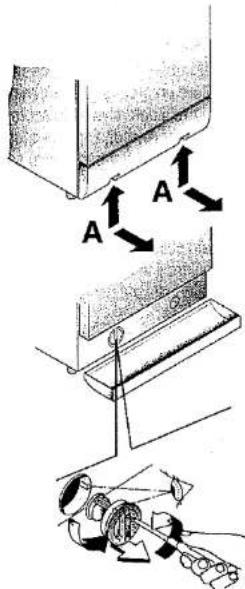

How often should I clean the pump filter?

Clean the filter every 2-3 months or if the machine fails to drain. Turn off the power, open the filter cover, and remove debris. Place a towel to catch water.

What is the maximum load for a quick wash?

For the Quick 30' program, do not exceed 3 kg of lightly soiled laundry for best results.

How do I activate the child lock?

Press and hold the ‘Start/Pause’ button for 5 seconds until the lock icon appears on the display. To deactivate, repeat the process.

The door won't open after a cycle. What should I do?

Wait 2-3 minutes after the cycle ends for the door lock to release. If still locked, ensure the drain cycle is complete and water level is below the door. Try restarting a drain or spin program.

What is the recommended detergent type?

Use high-efficiency (HE) detergent for front-loaders. For colored fabrics, use color-safe detergent. Avoid excessive suds.

How do I level the washing machine?

Adjust the front feet by turning them clockwise to raise or counterclockwise to lower. Use a spirit level on the top of the machine; ensure it is stable and does not rock.

Can I delay the start of a cycle?

Yes. Select your program and then press the ‘Delay Start’ button to set a delay from 1 to 24 hours. The machine will start automatically after the set time.

USER MANUAL ZX 56 ZEROWATT

Instructions for use

The manufacturer declines all responsibility in the event of any printing mistakes in this booklet. The manufacturer also reserves the right to make appropriate modifications to its products without changing the essential characteristics.

Line drawing of a front-loading washing machine with control panel and door (no text or symbols)

Cod. 90489306/A

Prefazione

Contents	Page
Preface	24
General delivery notes	25
Notes on safety	25
Quick start (quick reference)	26
Useful advice for the user	27
Super Silent	27
Description of controls	28
Detergent drawer	30
Programme selector	30
The main wash	31
Programme Table	34
Detergents, washing aids and amounts to use	36
Cleaning and routine maintenance	38
Investigating malfunctions	40
Technical data	42
Setting up, installation	43

Isometric line drawing of a mechanical housing or enclosure with internal components (no text or symbols)

Technical illustration of a bolt and nut assembly (no text or symbols)

CARICO DETERSIVO
I	II	△	✿
●	●	●	●
	●	●	●
	●	●	●
●	●	●	●
	●	●	●
	●	●	●
	●		●
	●		●
		●
			●
			●
●	●		●
	●		●
	●		●
	●		●
			●
			●
●	●		●
	●		●
			●

Note da considerare

Illustration of hands using a pipette to test a test tube in a rack (no text or symbols visible)

Ricerca guasti

Illustration of a hand holding a tool above a door with a handle, no text or symbols present
