USER MANUAL RMX3 GEMINI
Product Registration 27
ESPAÑOL
Advertencias 9
Diagramas 10
Introducción 11
Connections 11
Controles 12
CAUTION: This product satisfies FCC regulations when shielded cables and connectors are used to connect the unit to other equipment. To prevent electromagnetic interferon-with-thelectric appliance, such as radios and televisions, uses shielded cables and connectors for connections.
The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature/accompanying/tepliance.
The lightning flash with arrowhead symbol, within an aquilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product sending that may be sufficient magnitude constitute an unknown headtoparson.
READ INSTRUCTIONS: All the safety and operating instructions should be read before the product is operated.
RETAIL INSTRUCTIONS: The safety and operating instructions should be retained for future reference. HEED WARNINGS: AI warnings on the product and in the operating instructions should be adhered to
FOLLOWINSTRUCTIONS: Alloperating and use instructions should be followed.
CLEANING: The product should be cleaned only with a polishing cloth or a soft dry cloth. Never clean with furniture wax, barzinc, insecticides or other volatile liquids since they may correlate the cabinet.
ATTACHMENTS: Do not use attachments not recommended by the product manufacturer as they may cause hazards.
WATER AND MOISTURE: Do not use this product near water, for example, near a bathtub, wash bowl, kitchen sink, or laundry lub; in a well basement, or near a swimming pool, and heike.
ACCESSORIES: Do not place this product on an unstable cart, stand, tripod, bracket, or table. The product may fail, causing serious injury to a child or adult, and serious damage to the product. Use only with a car, stand, tripod, bracket, or table recommended by the manufacturer, or sold with the product. Any mounting of the product should follow them manufacturer's instructions and should use amounting access or recommend by them manufacturer.
CART: A product and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the product and cart combination to over-lum. See Figure A.
VENTILATION: Slide and openings in the cabinet are provided for ventilation and to ensure reliable operation of the product and to protect it from overheating, and these openings must not be blocked or covered. The openings should never be blocked by placing the product on a bed, sofa, rug, or other similar surface. This product should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer's instructions have been adhered to.
POWER SOURCES: This product should be operated only from the type of power sources indicated on the marking land. If you are not sure of the type of power supply to your home, consult your product dealer for a power company.
LOCATION: The appliance should be installed in a location.
NON-USE PERIODS: The power cord of the appliance should be unplugged from the outlet when left unused for a long period of time.
GROUNDINGORPOLARIZATION:
- If this product is equipped with a polarized alternating current fine plug (a plug having one blade wider than the outlet), it will fit into the outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, by reversing the plug, if the plug should still fall to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug. - If this product is equipped with a three-wire grounding (two plug, a plug having a third (grounding) pin.) it will only fit into a grounding type power outlet. This is a safety feature. If you are unable to insert the plug into the outlet, contact your electrician to replace your obsolete outlet. Donotofeltherafelyyouprecellisgroundingtypeplug.
POWER-CORD PROTECTION: Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the product.
OUTDOOR ANTENNA GROUNDING: If an outside antenna or cable system is connected to the product, be sure the antenna or cable system is grounded so as to provide some protection against voltage surge and built-up static charges. Article 810 of the National Electrical Code. ANSINFPA 70, provides information with regard to proper grounding of the mast and supporting structure, grounding of the load-in wire to an antenna discharge unit, size of grounding conductors, location of antenna-discharge unit, connection/m grounding/electrodes, and requirement/st matching/electrodes. See Figure B.
LIGHTNING: For addac protection for this product during a lightening storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cablesystem. This will prevent damage to the product due lightening and power linesurges.
POWER LINES: An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touchings such power lines or circuits as contact with thermoglibofatal.
OVERLOADING: Do not overload wall outlets, extension cards, or integral convenience receptacles as this can result in a risk of fire or electric shock.
OBJECT AND LIQUID ENTRY: Never push objects of any kind into this product through openings as they may touch dangerous voltage points or short-out part that could result in the electric shock Naversapilliquidofanykindonthproduct.
SERVICING: Do not attempt to service this product yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Referralservicing/qualifiedservicepersonnel.
DAMAGE REQUIRING SERVICE: Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions: 4(4)whitoverpass-er-verwonderal-midbrapped
- The company is based on the 5th day
- Iniquit has been, subjects have been into the product.
• The product has been exposed for norwate.
- If the product does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the product to its normal operation.
• If the product has been dropped or damaged anyway.
•When the product exhibits are distinct, changing performance, this indicates an operator service.
REPLACEMENT PARTS: When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or have the same characteristics of the original part. Unauthorized substitutions may result in fine electric shock, or nonmazards.
SAFETY CHECK: Upon completion of any service or repairs to this product, ask the service technician to perform safety checks to determine that the product is in proper operating condition.
ALLORCEILINGMOUNTING: The product should not amounted to water for calling.
HEAT: The product should be situated away from heat sources such as radiators, heat registers, stoves, or other products (including amplifiers) that produce heat.
Fig.A
Fig.B
UNIT OVERVIEW

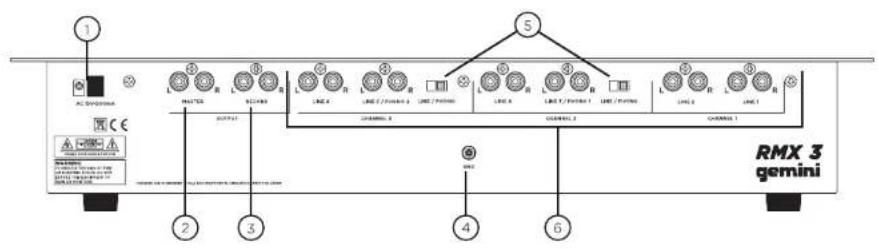

REAR VIEW

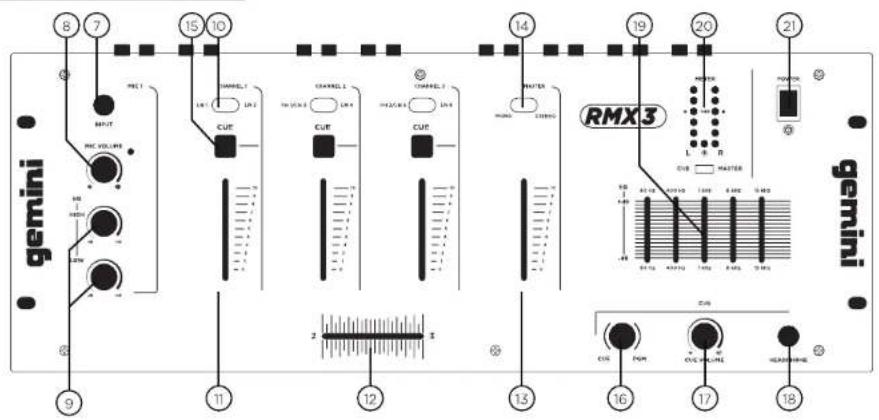

TOP VIEW
FUNCTIONS
① Power Input
② Master RCA Output
③ Record RCA Output
④ Grounding screw
⑤ Convertible Phono/Line Switch
⑥ RCA Phono/Line Inputs
⑦ Mic Input
⑧ Mic Volume
⑨ Mic EQ
⑩ Channel Input Selector
⑪ Channel Fader
⑫ Cross Fader
⑬ Master Fader
⑭ Mono/Stereo Switch
⑮ Channel Cue Assign
⑯ Cue/PGM Mix Rotary
⑰ Cue Volume Rotary
18 Headphone Input
19 5-band Graphic EQ
20 VU Meter
21 Power Switch
Congratulations on your purchase of Gemini RMX3 19" 3 channel stereo mixer. This-state-of-the-art mixer features the latest technological advances and is backed by a 1 year warranty, excluding the cross fader. The cross fader is backed by a separate 90 day warranty. Prior to use we suggest that you carefully read all the instructions.
CAUTION
- All operating instructions should be read before using this equipment.
- To reduce risk of electrical shock, do not open the unit. Please refer servicing to a Gemini-qualified service technician.
- Do not expose this unit to direct sunlight or a heat source such as a radiator or stove.
- Dust, dirt and debris can interfere with the performance of this unit. Make an effort to keep the unit away from dusty, dirty environments, and cover the unit when it is not in use. This unit should be cleaned only with a damp cloth. Avoid solvents or other cleaning detergents.
- When moving this equipment, it should be placed in its original carton and packaging. This will reduce the risk of damage during transit.
- DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE.
- DO NOT USE ANY SPRAY CLEANER OR LUBRICANT ON ANY CONTROLS OR SWITCHES.
FEATURES
• 19" 3 Stereo channel mixer
• 6 line, 2 convertible phono/line, RCA inputs
• Master & record RCA outputs
- Microphone Input
• 5 band graphic equalizer.
• Cue button switches for easy channel cue
• Rotary cue volume, CUE/PGM
• Dual VU display with mode switch
• Master fader with Mono/Stereo selector
CONNECTIONS
Ensure that the POWER SWITCH (21) is in the OFF position prior to making any connections. This unit comes with a power cord. Plug into the rear panel POWER INPUT (1) jack before plugging it into a proper power source.
- The RMX3 has 2 stereo outputs located on the rear panel:
- The MASTER RCA OUTPUT (2) connects the mixer to your main amplifier using standard audio cables with RCA-type connectors.
-
The REC (3) output jacks can be used to connect the mixer to the record input of your recording unit, thus enabling you to record your mix with RCA cables.
-
The HEADPHONE OUTPUT (18) located at the bottom right hand corner of the RMX3 will accept any headphone with a standard 1/4" connector and or adaptor and will allow you to CUE your music program before you play it, you can adjust the volume and PGM mix of the HEADPHONE below.
-
The MIC INPUT (7) is located at the top left hand corner of the front of the RMX3 and will accept any standard balanced and unbalanced 1/4" connector. You can control the gain and even set the low's and the high's for the mic below.
-
The RMX3 has 2 CONVERTIBLE PHONO/LINE (PH/LN) RCA INPUT. These small switches which are located to the right of the RCA inputs for channels 2 and 3 allow you to choose between a PHONO (Turntable) input or a LINE level. When switched to the PH position you may use any Turntable with a magnetic cartridge, remember to connect your ground wire (see GROUNDING SCREW) or there may be a system hum. And when the switch is in the LN position you may connect any line level device as described before (Mp3, CD, Tape etc).
NOTE: CONNECTING A LINE LEVEL DEVICE TO A PH INPUT MAY CAUSE THAT MIXER CHANNEL TO OVERLOAD AND OR DISTORT.
- When using (a) turntable(s), you will need to ground the RCA cable(s) by screwing in the grounding fork(s) to the GROUNDING SCREW (4) located in the rear panel of the RMX3 mixer. Attach each PH ground line to the GROUND THUMB SCREW (4).
CONTROLS
-
Once all of your connections have been made in the rear panel, turn on the mixer by pressing the POWER SWITCH(21).
-
The CHANNEL INPUT SELECTOR switches allow you to choose which input will be controlled by that channels corresponding volume FADER. For example on CHANNEL (1) the INPUT SELECTOR allows you to choose between LINE 1 in or LINE 2 in, and on CHANNEL (2) the INPUT SELECTOR allows you to choose between PHONO 1/LINE 3 and LINE 4, and also on CHANNEL (3) the INPUT SELECTOR SWITCH will let you choose between PHONO 2/LINE 5 and LINE 6. (see CONVERTIBLE LINE INPUT) for PHONO 1/ LINE 3 and PHONO 2/ LINE 5 switching.
After you have chosen which input you will use with the INPUT SELECTOR the corresponding CHANNEL FADER (11) will allow you to adjust the volume for that particular CHANNEL.
- CUE: By connecting a set of headphones to the HEADPHONE (18) jack, you can monitor any or all channels.
The CHANNEL CUE ASSIGN (15) allows you to choose which channel you wish to monitor in your headphones by pressing this switch on any channel you will be able to listen to that channels input in your headphones. Multiple CHANNEL CUE ASSIGNs can be pressed to monitor more than on input at a time.
Use the face panel located rotary CUE VOLUME CONTROL (17) to adjust the CUE volume without changing the overall mix. By turning the face panel located CUE/MIX/PGM ROTARY CONTROL (16) counter clockwise you will be able to monitor the assigned cue signal. Slowly turning the control clockwise to middle position allows you to monitor CUE MIX with PGM. Moving the control clockwise to the right allows you to monitor PGM (Main) output.
- CROSS FADER SECTION: The CROSS FADER (12) allows you to mix from one source to another. The CROSS FADER (12) in your unit is removable and if the need arises can be easily replaced.
NOTE: DO NOT APPLY PRESSURE WHILE USING THE CROSS FADER (19). LIGHTLY GLIDE THE CROSSFADER BACK AND FORTH. PRESS-
ING DOWN ON THE CONTROLS CAN BEND CONTACTS AND CAUSE A LOSS OF SOUND.
-
The 5 BAND GRAPHIC EQUALIZER (19) adjusts the tone of the MAIN OUTPUTS by giving you a choice 5 frequencies (BANDS) to adjust, from lows 60Hz and 400Hz to midrange 1KHz to highs 6KHz and 15KHz you can use the adjustment sliders to higher or lower the 5 separate frequencies till the sound of the MAIN OUTPUT's is appropriate to your listening environment.
-
The MASTER FADER (13) adjusts the volume of the main music program. The MONO/ STEREO SWITCH (14) allows you to set the main output to mono which is a combination of both LEFT and RIGHT inputs. And STEREO which is a standard LEFT pan RIGHT pan stereo setup.
-
MIC SECTION: Under the microphone input jack are the microphone controls, which consist of: MICROPHONE VOLUME (8) which allows you to adjust the volume of the microphone signal. The MICROPHONE EQ (9) allows you to control the low frequency and the high frequency of the microphone signal.
-
VU METER: The RMX3 has a dual mode VU METER that allows you to monitor the decibel levels of the CUE and PGM or LEFT and RIGHT stereo levels of the MASTER output. When the VU MODE SWITCH is set to CUE the VUMETER will display the CUE/PGM level or if set to MASTER the VU METER will display the level of the MASTER output.
SPECIFICATIONS

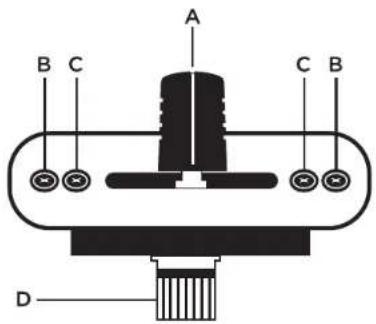

CROSS FADER REPLACEMENT
- UNSCREW THE OUTSIDE FACE PLATE SCREWS ON THE LOWER HALF OF THE MIXER. REMOVE THE FADER CAPS AND FACE PLATE.
- UNSCREW THE FADER (B) SCREWS. DO NOT TOUCH INSIDE SCREWS (C). CAREFULLY REMOVE OLD CROSS FADER AND-UNPLUG CABLE (D).
- PLUG IN THE NEW CROSS FADER INTO CABLE (D) AND PLACE BACK INTO MIXER.
- SCREW THE CROSS FADER TO MIXER WITH THE FADER PLATE SCREWS (B).
- REPLACE THE LOWER HALFFACE PLATE.
INPUTS
Phono....3 mV, 47 KOhm Line....150 mV, 27 KOhm MIC....1.5 mV, 1 KOhm Balanced
OUTPUTS
Max....20V Peak-to-Peak Rec....225 mV, 5 KOhm
GENERAL
Frequency Response....20Hz - 20KHz +/- 2 dB Distortion.... < 0.02% S/N Ratio.... Better Than 85 dB Headphone impedance....16 Ohm Power Source (external)....AC 15V, 500mA Unit Demensions....19" x 3.3" x 7" ....(482.6 x 83.82 x 177.8 mm) Weight....6.35 lbs (2.88 kg)
SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTIFICATION FOR IMPROVEMENT.
ESPAÑOL
VISTA SUPERIOR
FUNCIONES
① Alimentacion
② Salida Master por RCA
③ Salida Record por RCA
④ Tornilo de Masa
⑤ Phono/Line Switch
⑥ Phono/Line Entradas
⑦ Mic Entrada
⑧ Mic Ganancia
⑨ Mic EQ
⑩ Canal Line Switch
⑪ Control Deslizante
⑫ Cross Fader
⑬ Master Fader
⑭ Mono/Stereo Switch
⑮ Channel Cue Assign
⑯ Cue Mix/Pgm Rotativo
⑰ Control de Voumen Cue
18 Auriculares
⑲ EQ Grafico de 5 bandas
⑳ VU Meter
21 Interruptor General
• 19" 3 Stereo channel mixer
• 6 line, 2 convertible phono/line, RCA inputs
• Master & record RCA outputs
- Microphone Input
• 5 band graphic equalizer.
• Cue button switches for easy channel cue
• Rotary cue volume, CUE/PGM
• Dual VU display with mode switch
• Master fader with Mono/Stereo selector
CONNECTIONS
MANUEL D'INSTRUCTIONS
gemini®
AVANT TOUTE UTILISATION DE L'APPAREIL, MERCI DE PRENDRE CONNAISSANCE DES INSTRUCTIONS D'UTILISATION & DE SECURITE! RISQUE DE CHOC ÉLECTRIQUE, NE PAS OUVRIR!
Distortion....< 0.02%
Warranty and Repair:
All GCI products are designed and manufactured to the highest standards in the industry. With proper care and maintenance, your product will provide years of reliable service.
LIMITED WARRANTY
A. GCI warrants its products to be free from defects in materials and workmanship for One (1) year from the original purchase date. Exceptions: Laser assemblies on CD Players, cartridges, and crossfaders are covered for 90 days.
B. This limited warranty does not cover damage or failure caused by abuse, misuse, abnormal use, faulty installation, improper maintenance or any repairs other than those provided by an authorized GCI Service Center.
C. There are no obligations of liability on the part of GCI for consequential damages arising out of or in connection with the use or performance of the product or other indirect damages with respect to loss of property, revenues, of profit, or costs of removal, installation, or reinstallation. All implied warranties for GCI, including implied warranties for fitness, are limited in duration to One (1) year from the original date of purchase, unless otherwise mandated by local statutes.
RETURN/REPAIR
A. In the U.S.A., please call our helpful Customer Service Representatives at (732)738-9003, and they will be happy to give you a Return Authorization Number (RA#) and the address of an authorized service center closest to you.
B. After receiving an RA#, include a copy of the original sales receipt, with defective product and a description of the defect. Send by insured freight to: GCI Sound Products Corp, and use the address provided by your customer service representative. Your RA# must be written on the outside of the package, or processing will be delayed indefinitely!
C. Service covered under warranty will be paid for by GCI and returned to you. For non-warrantied products, GCI will repair your unit after payment is received. Repair charges do not include return freight. Freight charges will be added to the repair charges.
D. On warranty service, you pay for shipping to GCI, we pay for return shipping within the continental United States. Alaska, Hawaii, Puerto Rico, Canada, Bahamas, and the Virgin Islands will be charged for freight.
E. Please allow 2-4 weeks for return of your product. Under normal circumstances your product will spend no more than 10 working days at Gemini. We are not responsible for shipping times.
GCI Technologies Corp.
Worldwide Headquarters
280 Raritan Center Dr
Edison, NJ 08837 USA
Tel: (732) 346-0061
Fax: (732) 346-0065
IN THE UNITED KINGDOM
In the event that you need service on your GCI product under warranty, simply write a letter describing the problem, along with your contact information. Make sure to enclose a copy of your receipt for proof of warranty information. A return number is not required. You will be responsible for shipping charges to Gemini UK, and Gemini UK will pay to return the unit to you if it is considered under warranty.
GCI Technologies Ltd
Unit 44 Brambles Enterprise Centre
Waterberry Drive
Waterlooville
Hampshire, P07, 7TH, UK
Tel: +44 (0) 87 087 00880
Fax: +44 (0) 87 087 00990
EN ESPAÑA
80995 München, Munich, Germany
T:+49(0)8931901980
F: +49 (0) 89 319 019 819
RMX3 MANUAL • GEMINIDJ.COM
Register your product online at www.geminidj.com to be eligible for great prize giveaways! If you do not have Internet access, fill out the form included and mail it to the appropriate address listed previously.
First and Last Name
Address (Number and Street)
Apartment Number
City and State or Province
Country
Zip Code or Postal Code
Email Address
Telephone Number
Date of Birth
Date of Purchase
Purchase Price (Excluding Tax)
City of Purchase
Model Number (Example: CDT-05)
Serial Number (back of unit)
RMX3 MANUAL · GEMINIDJ.COM
IN THE USA: IF YOU ARE EXPERIENCING PROBLEMS WITH THIS UNIT CALL 1-732-346-0061 FOR GCI TECHNOLOGIES CUSTOMER SERVICE. DO NO ATTEMPT TO RETURN THIS EQUIPMENT TO YOUR DEALER.
Parts of the design of this product may be protected by worldwide patents. Information in this manual is subject to changes without notice and does not represent a commitment on the part of the vendor.
GCI Technologies Corp. shall not be liable for any loss or damage whatsoever arising from the use of information or any error contained in this manual.
No part of this manual may be reproduced, stored in a retrieval system or transmitted, in any form or by any means, electronic, electrical, mechanical, optical, chemical, including photocopying and recording, for any purpose without the express written permission of GCI Technologies Corp.
It is recommended that all maintenance and service on this product is performed by GCI Technologies. Corp or its authorized agents. GCI Technologies will not accept liability for loss or damage caused by maintenance or repair performed by unauthorized personnel.
Worldwide Headquarters • 280 Raritan Center Dr. Edison, NJ 08837 • USA Tel: (732) 346-0061 • Fax: (732) 346-0065
Gemini Sound Products Unit 44 Brambles Enterprise Centre Waterlooville P07 7TH, UK Tel: 087 087 00880 Fax: 087 087 00990
GCI Technologies S.A. Caspe, 172 - 5° A 08013 Barcelona, Spain Tel: 34 93 436 37 00 Fax: 34 93 347 69 61
GCI TECHNOLOGIES 2 bis, rue Léon Blum 91120 Palaiseau, France Tél: + 33 1 69 79 97 70 Fax: + 33 1 69 79 97 80
GCI Technologies GmbH Lerchenstraße 14 80995 München, Germany Tel: 089 - 319 019 8 - 0 Fax: 089 - 319 019 8 - 18
WWW.GEMINIDJ.COM
© GCI Technologies Corp. 2011 All Rights Reserved.
- ESPAÑOL
- GROUNDINGORPOLARIZATION:
- UNIT OVERVIEW
- FUNCTIONS
- CAUTION
- FEATURES
- CONNECTIONS
- NOTE: CONNECTING A LINE LEVEL DEVICE TO A PH INPUT MAY CAUSE THAT MIXER CHANNEL TO OVERLOAD AND OR DISTORT.
- CONTROLS
- ING DOWN ON THE CONTROLS CAN BEND CONTACTS AND CAUSE A LOSS OF SOUND.
- SPECIFICATIONS
- INPUTS
- OUTPUTS
- GENERAL
- FUNCIONES
- gemini®
- AVANT TOUTE UTILISATION DE L'APPAREIL, MERCI DE PRENDRE CONNAISSANCE DES INSTRUCTIONS D'UTILISATION & DE SECURITE! RISQUE DE CHOC ÉLECTRIQUE, NE PAS OUVRIR!
- Warranty and Repair:
- LIMITED WARRANTY
- RETURN/REPAIR
- GCI Technologies Corp.
- IN THE UNITED KINGDOM
- EN ESPAÑA
- IN THE USA: IF YOU ARE EXPERIENCING PROBLEMS WITH THIS UNIT CALL 1-732-346-0061 FOR GCI TECHNOLOGIES CUSTOMER SERVICE. DO NO ATTEMPT TO RETURN THIS EQUIPMENT TO YOUR DEALER.
Brand : GEMINI
Model : RMX3
Category : DJ Equipment
