Tab 7 Dual - Tablet Sunstech - Free user manual and instructions

Product Type	Tablet
Brand	Sunstech
Model	Tab 7 Dual
Display	7-inch TFT LCD, 1024x600 pixels
Processor	Dual-core 1.2 GHz
RAM	1 GB
Internal Storage	8 GB
Expandable Storage	microSD up to 32 GB
Operating System	Android 4.4 KitKat
Rear Camera	2 MP
Front Camera	0.3 MP (VGA)
Connectivity	Wi-Fi 802.11 b/g/n, Bluetooth 4.0
SIM	Dual SIM (Mini-SIM) for 3G
Battery	3000 mAh Li-Ion
Dimensions	191 x 108 x 10 mm
Weight	300 g
Charging Port	microUSB
Audio	3.5mm headphone jack, built-in speaker
Sensors	G-sensor
Care and Cleaning	Clean with a soft dry cloth. Avoid exposure to moisture.
Safety	Do not disassemble the device. Keep away from heat sources and water.
Spare Parts and Repairability	Battery, screen, and charger are available for replacement. Contact authorized service center.

Frequently Asked Questions - Tab 7 Dual Sunstech

How do I turn on the Sunstech Tab 7 Dual tablet?

Press and hold the power button located on the side of the device for a few seconds until the screen turns on.

How to charge the battery?

Connect the microUSB cable to the tablet and plug the charger into a power outlet. The battery icon will show charging status.

How to insert a SIM card?

Locate the SIM card slot on the side. Use the ejection tool or a paperclip to open the tray. Insert the SIM card with the gold contacts facing down.

How to connect to Wi-Fi?

Go to Settings > Wi-Fi, toggle Wi-Fi on, select your network, and enter the password if required.

How to take a screenshot?

Press and hold the power button and volume down button simultaneously. The screen will flash and the screenshot will be saved in the gallery.

How to reset to factory settings?

Go to Settings > Backup & Reset > Factory Data Reset. This will erase all data, so back up important files first.

How to update the software?

Go to Settings > About Tablet > System Updates. If an update is available, follow the on-screen instructions to download and install.

How to clean the screen properly?

Use a soft, lint-free cloth slightly dampened with water. Avoid using harsh chemicals or paper towels that may scratch the screen.

Why is the battery draining quickly?

Check for apps running in the background, reduce screen brightness, disable Wi-Fi/Bluetooth when not in use, and consider calibrating the battery by draining it completely then charging to 100%.

How to expand storage?

Insert a microSD card into the dedicated slot. The tablet supports cards up to 32 GB. Format the card if prompted in Settings > Storage.

USER MANUAL Tab 7 Dual Sunstech

Tablet displaying a wind turbine and floating bubbles against a blue sky (no text or symbols visible)

Basic Introduction

• CPU: Rockchip 3066 Cortex A9 Dual Core up to 1.6 Ghz
• LCD Screen:7 " 800 * 480 TFT LCD
• Camera: Build-in 0.3M pixel camera
• Operating System: Google Android 4.1
• Network Connection: Built-in 802.11b/g/n wireless
• Audio format: MP3,WMA,MP2,OGG,AAC,M4A,FLAC,APE,WAV
• Video format: max 1080p full HD video (AVI,3GP, MP4, MPG, RM, RMVB, MOV,FLV, WMV,MKV)
• Touch Panel: Capacitive Multi-touch
• Language: support multiple language
- Ports: mini USB*1(OTG), mini HDMI*1, Earphone * 1, TF card slot * 1, DC IN*1, MIC*1
- Buttons: Back/Home/Menu/Power/Reset/Vol+/Vol-

Quick Start

Battery management and charging

Before using this device, please charge it fully. Put the charger adapter into the DC jack, the device will start to charge.

【TIPS】：

This device adopts built-in polymer battery. Only the specified charger should be used.

when it is charging, the icon of battery will be rolling.

when the charging finish, the battery icon will turn green and stop rolling.

• If you do not use this device for a long time, please charge/release it once per month to avoid deep discharge.

- When it is power off because of low battery, connect to the charger, the device will indicate "low power" or "charging", please wait for a second until the machine can turn to the main interface once the power is enough.

• The built-in polymer battery should be charged regularly. The damage caused

by battery over-consuming is not included in the warranty.

Boot and Shutdown

Boot: Press and hold the power button, the system will enter the boot process System has been started, entering the Android system.

The system enters the default home interface.

Shutdown: Press the power button, pop-up device options, select Power off, Click OK, you can safely shut down.

Connect with PC

By mini USB (OTG) interface of the device, you can connect with PC by mini USB cable attached with the device. USB Data transferring is available. You can operate the files through the PC.

When your device is connected successfully, to pull up the notification area of the status bar, can see the USB icon

Then click USB connected to enter the next step

Click Turn on USB storage, Then the device can transmission data with PC.

Note: The device also supports the FAT32 format for external devices, for example U disk, Micro SD card to Transfer data.

Bottom bar of the Interface

Pure graphical icons without any text, numbers, or symbols

A. Menu, Home, Back, virtual buttons
B. OTG connect icon: If the device connected to the PC, will show the OTG connected icon.
C. Time display: Display the time of the current system, which has been set.
D. WIFI signal status icon: If connected to the WIFI wireless network, the icon will be displayed
E. Battery status icon: Displays the current battery level and the charging status.

The HOME Screen menu

Press the menu icon on the device. (top right side of the screen), it will display a home screen menu.

Desktop

Press the button ☐, on the right side of the screen frame and you will see the following options.

Wallpaper: Users can replace the wallpaper with you wishes.

Manage apps: It can quickly open a list of all applications.

System Settings: Fast access to system settings, user can choose "Wireless & networks", "Display", "Date & time" etc, for personalized settings. In the option "Storage", the user can find all the recordings that have been made, downloaded videos, music, pictures, etc.

When sliding around with your finger to switch the main screen, the desktop fixed on the main screen, will not move. User could drag the application icon placed on the desktop area in the main screen, by pressing the desired icon during 3 seconds.

Basic Operation

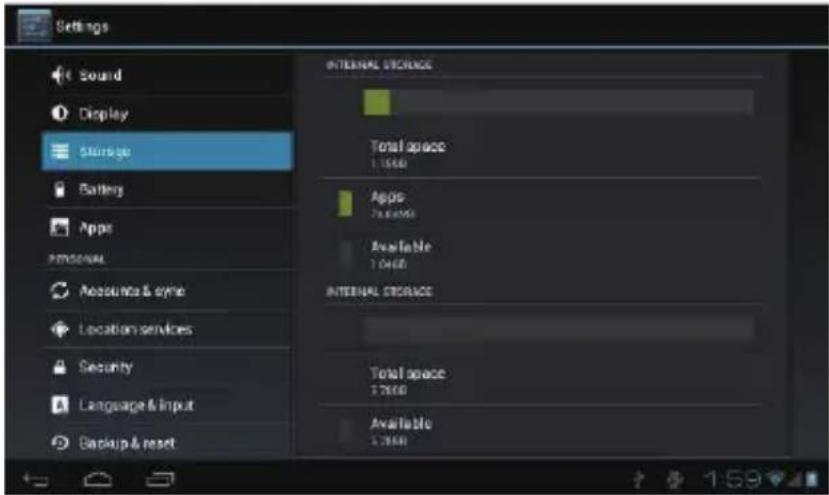

Click the "Settings" icon setting interface.

in the main applications area, you can open the system

Select the appropriate operation of the relevant items, such as: wireless and network, Display, date and time settings, about Device, etc.

Date and time settings:

Click "Date & time" to enter the Date and time settings interface:

Select to set the date, select the time zone, set the time, time format, date format and other information.

Select +: that the increase of 1 unit, Select

- : that the reduction of 1 unit.

Also you can choose the number, enter the input mode. Directly entering the desired number, then click "Done" to set the Date.

Display settings

In the settings interface choose "Display" to enter the display settings interface, select "Brightness", Pull the progress bar to adjust the brightness.

Click Sleep, adjust the inactivity time of the device. You can press power key to activate the device.

When display "Screen locked" interface, follow the prompts to unlock it.

Wireless Connection:

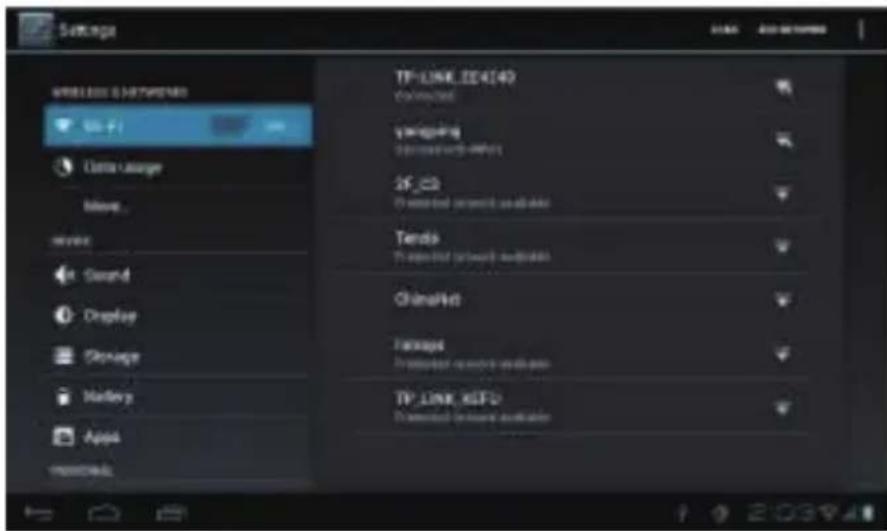

Click the main menu "Settings" icon, go to "Settings" screen, click on "Wireless and networks" into the "Wireless and networks settings" interface. Turn on Wi-Fi switch, the Wi-Fi module built-in the device will search AP lists automatic, click the searched AP can be used, will pop up settings dialog, please follow the prompts to complete the WIFI network links. Some encrypted network, need to enter a valid key.

According to the above method to connected Wi-Fi, as shown below,

Applications install and uninstall

Install applications from Google play:

Google play is the on-line shop preinstalled in this device, that allows look for and download applications. You just need to press the icon "Play Store".

The user can find and buy applications (not all the applications are free of charge) and games among the 450.000 available. It also allows the user to watch HD new releases, award winner and classic films. It's possible to watch the movies on-line or download them to watch them when, for example there is no wi-fi convection available. It also allow the user to find a wide selection of eBooks.

All the applications are classified in different categories to make it easier for the user to find the desired application. And also there is the possibility to read the comments that other users have left regarding the applications, or write their own opinion after

the application has been installed.

To install the application, you just need to press the button "Install", and the device will automatically start downloading and installing the application. During the process of installing the application, the device will show a notification message, and once it is installed, the icon of the application will appear on the screen of the device (please remember that you can also access to the installed applications on the applications sacreen)

Install applications thag doesn't come from Google play

1. First you should select the Unknown sources which allow installation of non-Market apps

2. Copy the APK installer software to Micro SD or NAND FLASH.

3. Click Apk Installer to find the app directory, then Select applications to install. Users can "Android market" online installation, or download via the computer, or online through the machine built-in browser to download and install.

Uninstall applications

Click on the item "Settings – Apps – Downloaded," select the appropriate application has been installed, click the applications which you need to uninstall

Browser

When the network connected, open the Web browser enter the URL, you can quickly Browse the Web or through the main desktop search bar enter the URL, open the web page.

Video player:

Online video: The product supports HTML5 online video playback.

Local video: Click the Video Icon. The Player can loading new albums and photos automatically which stored in local disk or micro SD card, then select the videos to playback

Music player:

Click the music icon

you can enter the music player interface.

Click the music files you will enter the player to play music

Click:	Play the previous music, long press to fast reverse.
Click:	Click it to suspend, the icon turn to " " click and return to the normal playing again.
Click:	To play the next song, long press to do function.
Click:	To display the present playing list.
Click:	To select the random playing mode.
Click:	To select the repeat playing mode.

Photo Browser

Click "Gallery" to get into Photo Browser directly, there will list all the picture files and video files

Select a picture file and enter the picture playback interface, as shown below. Can select "Zoom", "narrow" "set" and "delete" etc operation.

Colorful pencil spools arranged in a circular pattern on a textured surface (no text or symbols visible)

Camera

Click the Camera icon

in the applications menu, as shown below

Click the camera shutter

to take photos or videos

Sound Recorder

Click the recorder icon

in the applications menu.

Note: Select "Record" Button

to record when it is completed select "stop."

button At this point you can find the recordings folder in the file browser, which saved the recordings.

Market

Click the icon

create a Gmail account

HDMI connection

We suggest you to conect TAB7DUAL to your TV through the HDMI convection. Connecting TAB7DUAL to your TV will allow you to enjoy all your contents with a resolution up to 1080p. For HDMI connection you need an adapter of Mini HDMI to HDMI.

Frequently Asked Questions

Android

Q: What Android OS version is on my Device?

A: 4.1

APK

Q: What is APK?

A: APK is Android Package acronym that Android installation package.

Q: How to obtain the APK?

A: You can download via PC-side installation, you can also "Android market" online to download and install.

Email

Q: Can I use any of my personal email addresses to send/receive email?

A: The device supports POP3 and SMTP accounts. Some free email accounts are not supported on mobile devices. Check with your email provider to see if you account is supported.

Q: Which media cards are compatible with my Device?

A: micro SD cards or TF cards.

Music

Q: What type of music files can I play on my device?

A: MP3,WMA,MP2,OGG,AAC,M4A,FLAC,APE,WAV

Photos

Q: What type of photo files can I view on my device?

A: JPG, JPEG, BMP, JPG and PNG.

Video

Q: What type of video files can I play on my device?

A: AVI, 3GP, MP4, MPG, RM, RMVB, MOV, FLV, WMV, MKV (max 1080p full HD video)

Q: Can I play YouTube videos on my device?

A: Yes, you can. Tap the YouTube application icon to quick access videos.

Wi-Fi

Q: Do I need a Wi-Fi adapter to connect to the Internet?

A: No. The Wi-Fi adapter is built-in to the device.

Important Safety Precautions

Always follow these basic safety precautions when using your Tablet. This reduces the risk of fire, electric shock, and injury.

• Do not expose this product to rain or moisture.
- Keep the device out of direct sunlight and heat sources.
- Protect the power cord. Route power cords so that they are not likely to be walked on or pinched by items placed on or against them. Pay particular attention to the point where the cord attaches to the device.
• Only use the AC adapter included with the device. Using any other power adapter voids your warranty.
• Do not remove the cover. There are no user-serviceable parts inside.
- Clean your Device

Treat the screen gently. To clean fingerprints or dust from the screen, we recommend using a soft, non-abrasive cloth such as a camera lens cloth.

! As a switching equipment, power adaptor should be convenient for operating. the device should be far away from water dropping and splashing, as well as vase full of liquid.

Warranty conditions

- The warranty of this product is for 2 years since the purchase date.

- The warranty will exclude breakdowns caused by bad use of the product, wrong installation or installation in not desirable places for a proper maintenance of the product, rips, updates of the products that are not the supplied by the brand, pieces wore away for its use or for not domestic or inappropriate use. Also are excluded breakdowns caused for manipulations of the products by people or companies alien to our company.

- For any request regarding the warranty terms, the purchase receipt must be attached.

Correct disposal of this Product

(Waste Electrical & Electronic Equipment(WEEE)

Your product is designed and manufactured with high quality materials and components which can be recycled and reused.

This symbol means that electrical and electronic equipment, at their end-of-life should be disposed of separately from your household waste.

Please dispose of this equipment at your local community waste collection/recycling centre.

In the European Union there are separate collection systems for used electrical and electronic products. Please help us to conserve the environment we live in!
