Product Type	Smartphone
Brand	Lenovo
Model	VIBE P1m
Dimensions	141.5 x 71 x 9.3 mm
Weight	148 g
Battery Capacity	4000 mAh (Li-Po)
Standby Time	Up to 648 h (2G)
Talk Time	Up to 30 h (2G)
Operating System	Android 5.1 Lollipop
Processor	MediaTek MT6735P quad-core 1.0 GHz
RAM Memory	2 GB
Storage Capacity	16 GB (expandable up to 32 GB via microSD)
Screen Type	IPS LCD
Screen Size	5.0 inches
Screen Resolution	720 x 1280 pixels
Main Camera	13 megapixels
Front Camera	5 megapixels
Network	GSM / HSPA / LTE
Connectivity	Wi-Fi 802.11 b/g/n, Bluetooth 4.0, GPS, FM radio
Sensors	Accelerometer, proximity, ambient light, fingerprint
Care and Cleaning	Clean with a soft, dry cloth. Avoid contact with liquids.
Safety	Use only the original charger and accessories. Do not expose to water or extreme temperatures.
Spare Parts and Repairability	Battery and screen replaceable by an authorized service center.
General Information	Dual SIM (Micro-SIM, dual standby). Fingerprint reader on the back.

Frequently Asked Questions - VIBE P1m LENOVO

How to increase battery life?

Enable power saving mode in settings, reduce screen brightness, and disable unnecessary connections like Wi-Fi and Bluetooth when not in use.

The phone is not charging, what to do?

Check that the cable and charger are properly connected. Try a different cable or charger. If the problem persists, it may be a defect in the charging port; contact customer service.

How to insert a SIM card and a microSD card?

Turn off the phone, open the back cover, remove the battery if necessary, then insert the SIM and microSD cards into the designated slots. The phone supports two Micro-SIM cards and one microSD card.

Can Android be updated?

The maximum official version is Android 5.1 Lollipop. There is no official update to a later version. However, custom ROMs can be installed, but this voids the warranty.

How to take a screenshot?

Press and hold the power button and the volume down button simultaneously for about 2 seconds. The screenshot will be saved in the gallery.

The touchscreen is not responding, what to do?

Try restarting the phone by holding the power button. If the problem persists, make sure the screen is clean and dry. As a last resort, perform a factory reset (back up your data first).

How to use the fingerprint reader?

Go to Settings > Security > Fingerprints. Add a fingerprint by following the instructions. You can then unlock the screen or approve purchases with your finger.

The phone gets hot, is this normal?

Slight heating during intensive use (games, video) is normal. If the temperature becomes excessive, stop the application, close background tasks, and let it cool down. If it persists, contact customer service.

How to free up storage space?

Delete unused applications, move photos and videos to the SD card, clear application cache in Settings > Storage. You can also transfer large files to a computer.

Wi-Fi disconnects often, what to do?

Restart the router and the phone. Forget the Wi-Fi network in settings and reconnect. Make sure the phone does not enter power saving mode that turns off Wi-Fi. Also check for interference.

USER MANUAL VIBE P1m LENOVO

Read this guide carefully before using your smartphone.

Read first — regulatory information

Be sure to read the Regulatory Notice for your country or region before using the wireless devices contained in your Lenovo Mobile Phone. To obtain a PDF version of the Regulatory Notice, see the “Downloading publications” section. Some regulatory information is also available in Settings > About phone > Legal information on your smartphone.

Getting support

To get support on network service and billing, contact your wireless network operator. To learn how to use your smartphone and view its technical specifications, go to http://support.lenovo.com/.

Downloading publications

To obtain the latest smartphone manuals, go to: http://support.lenovo.com/

Accessing your User Guide

Your User Guide contains detailed information about your smartphone. To access your User Guide, Go to http://support.lenovo.com and follow the instructions on the screen.

Legal notices

Lenovo and the Lenovo logo are trademarks of Lenovo in the United States, other countries, or both.

Other company, product, or service names may be trademarks or service marks of others.

Contents

First glance....1

Preparing your smartphone....2

Charging the battery.... 3

Important safety and handling information....4

Service, support, and warranty information....7

Recycling and environmental information....8

European Union Compliance Statement.... 11

Specific Absorption Rate information....12

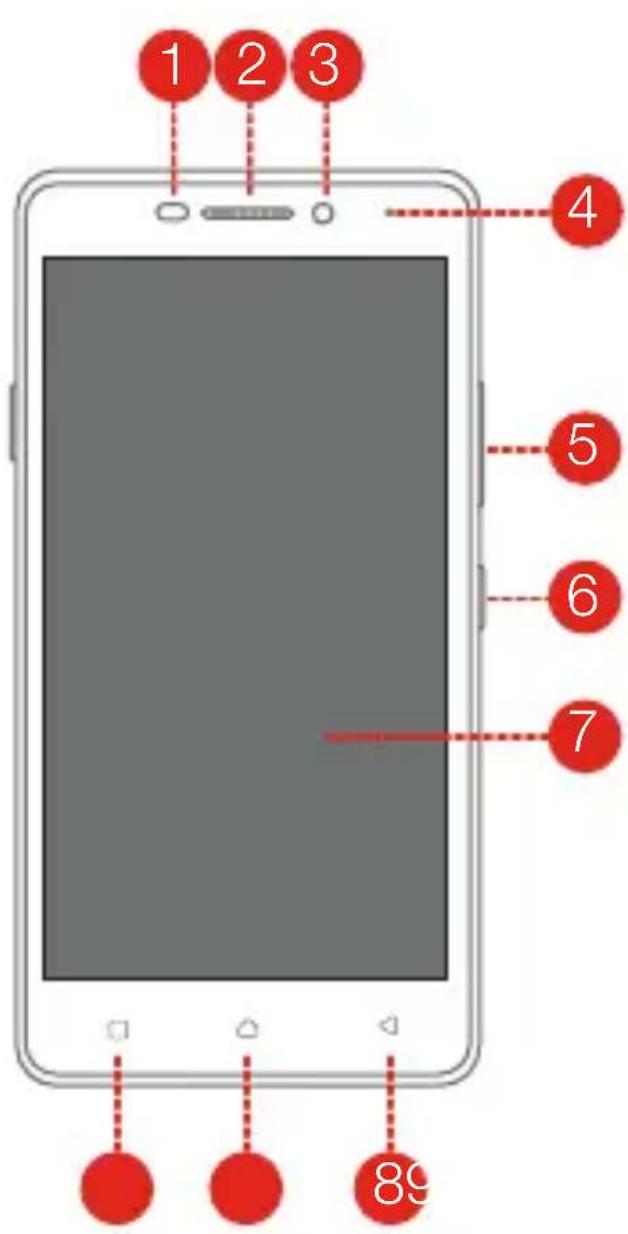

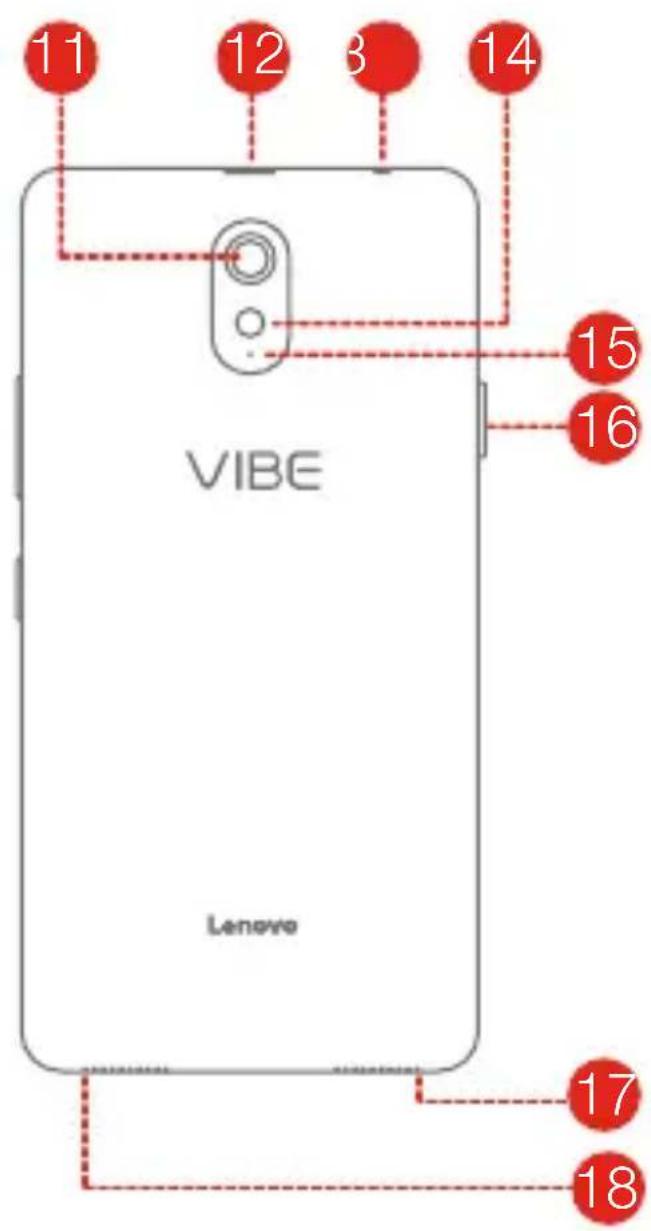

First glance

1 Light/Proximity sensor 2 Receiver
4 Indicator light 5 Volume buttons
7 Touch screen 8 Back button
10 Multitask button 11 Rear-facing camera
13 Headset connector 14 Flashlight
16 One-key Power Saver 17 Speaker Microphone
3 Front-facing camera
6 On/Off button
9 Home button
12 Micro USB connector
15 Anti-noise microphone

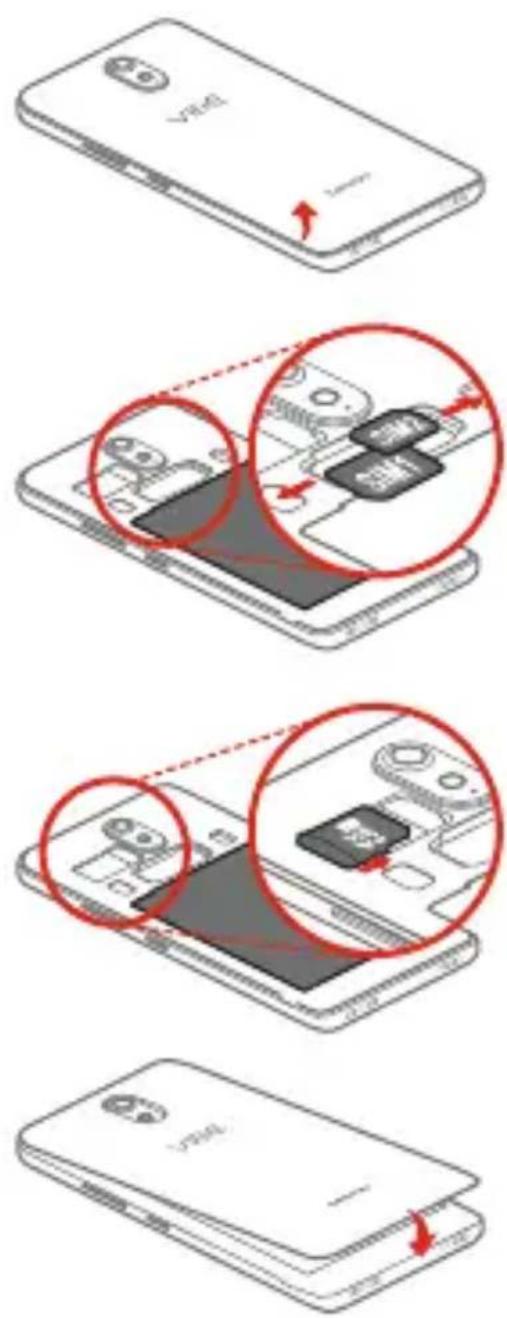

Preparing your smartphone

You must insert the SIM card provided by your carrier to use cellular services. Set up your smartphone as shown.

Step 1. Open the back cover.

Tip: Your phone is battery embedded design with removable back cover and non-removable battery.

Step 2. Insert the Micro SIM cards ^① .

Tip: Insert the Micro SIM cards ^2 into SIM1 slot and SIM2 slot.

Step 3. Insert the microSD card.

Step 4. Install the back cover.

① Always turn off your smartphone first before you insert or remove a SIM card. Insert or remove a SIM card with your smartphone on may damage your SIM card or smartphone permanently.

② Both of the card slots support 4G/3G/2G data services, but you can enable only one SIM card for data connection at a time. If you want to change the SIM card used for data connection, see the User Guide for instructions.

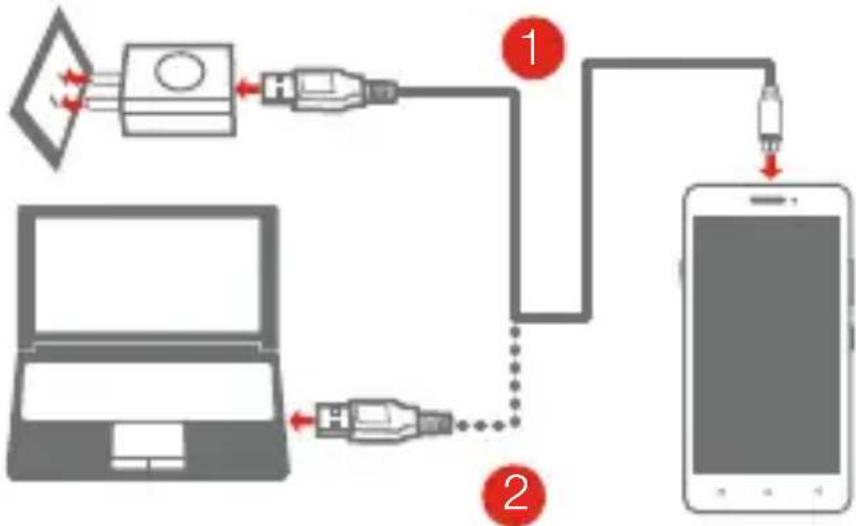

Charging the battery

Charge the battery as shown.

Method 1. Connect your smartphone to a power outlet using the cable and USB power adapter that come with your smartphone.

Method 2. Connect your smartphone to a computer using the cable that comes with your smartphone.

Low battery power Fully charged Charging

Turning on or turning off your smartphone

Simple line drawing of a rectangular cabinet or enclosure with vertical and horizontal lines (no text or symbols)

Turn on: Press and hold the On/Off button until the Lenovo logo appears.

Turn off: Press and hold the On/Off button for a few seconds, then tap Power off.

Your smartphone has a rechargeable battery. For more information about battery safety, see the "Rechargeable battery notice" section.

Important safety and handling information

This section contains important safety and handling information for Lenovo smartphones. Additional safety and handling information is provided in the User Guide. See the “Accessing your User Guide” section for details.

Operating temperature

Use the Lenovo Phone only in the temperature range of -10^ ( 14^ ) — 35^ ( 95^ ) to avoid damage.

Plastic bag notice

DANGER: Plastic bags can be dangerous. Keep plastic bags away from babies and children to avoid danger of suffocation.

General battery notice

Batteries supplied by Lenovo for use with your product have been tested for compatibility and should only be replaced with approved parts. Risk of explosion if the battery is replaced with an incorrect type. Dispose of used batteries according to the instructions.

Rechargeable battery notice

CAUTION: Risk of explosion if the battery is replaced with an incorrect type.

When replacing the lithium battery, use only the same or an equivalent type that is recommended by the manufacturer. The battery contains lithium and can explode if not properly used, handled, or disposed of. Dispose of used batteries according to the instructions.

Do not:

• Throw or immerse into water
  • Heat to more than 100^ C ( 212^ F)
  • Repair or disassemble

Built-in rechargeable battery notice

CAUTION: Do not attempt to replace the internal rechargeable lithium ion battery. Contact Lenovo Support for factory replacement.

Charging

Lenovo is not responsible for the performance or safety of products not manufactured or approved by Lenovo. Use only approved Lenovo ac adapters and batteries. Adapter shall be installed near the equipment and shall be easily accessible.

Prevent hearing damage

The Lenovo Phone has a headphone connector. Always use the headphone connector for headphones (also called a headset) or earphones.

CAUTION: Excessive sound pressure from earphones and headphones can cause hearing loss. Adjustment of the equalizer to maximum increases the earphone and headphone output voltage and the sound pressure level. Therefore, to protect your hearing, adjust the equalizer to an appropriate level.

Excessive use of headphones or earphones for a long period of time at high volume can be dangerous if the output of the headphone or earphone connectors do not comply with specifications of EN 50332-2.

The headphone output connector of the Lenovo Phone complies with EN 50332-2 Sub clause 7. This specification limits the Lenovo Phone's maximum wide band true RMS output voltage to 150 mV. To help protect against hearing loss, ensure that the headphones or earphones you use also comply with EN 50332-2 (Clause 7 limits) for a wide band characteristic voltage of 75 mV. Using headphones that do not comply with EN 50332-2 can be dangerous due to excessive sound pressure levels.

If the Lenovo Phone came with headphones or earphones in the package, as a set, the combination of the headphones or earphones and the Lenovo Phone already complies with the specifications of EN 50332-1. If different headphones or earphones are used, ensure that they comply with EN 50332-1 (Clause 6.5 Limitation Values). Using headphones that do not comply with EN 50332-1 can be dangerous due to excessive sound pressure levels.

Sound pressure warning statement

For the device that is tested in accordance with EN 60950-1:

2006+A11:2009+A1:2010+A12:2011, it is mandatory to perform audio tests for EN50332.

This device has been tested to comply with the Sound Pressure Level requirement in the applicable EN 50332-1 and/or EN 50332-2

standards. Permanent hearing loss may occur if earphones or headphones are used at high volume for prolonged periods of time.

Warning statement: To prevent possible hearing damage, do not listen at high volume levels for long periods.

Polyvinyl Chloride (PVC) cable and cord notice

WARNING: Handling the cord on this product or cords associated with accessories sold with this product will expose you to lead, a chemical known to the State of California to cause cancer, and birth defects or other reproductive harm. Wash hands after handling.

Disposing according to local laws and regulations

When the Lenovo Phone reaches the end of its useful life, do not crush, incinerate, immerse in water, or dispose of the Lenovo Phone in any manner contrary to local laws and regulations. Some internal parts contain substances that can explode, leak, or have an adverse environmental effect if disposed of incorrectly. See “Recycling and environmental information” for additional information.

Service, support, and warranty information

The following information describes the technical support that is available for your product, during the warranty period or throughout the life of your product. Refer to the Lenovo Limited Warranty for a full explanation of Lenovo warranty terms.

Online technical support

Online technical support is available during the lifetime of a product at: http://www.lenovo.com/support

Telephone technical support

Where applicable, you can get help and information from the Customer Support Center by telephone. Before contacting a Lenovo technical support representative, please have the following information available: model and serial number, the exact wording of any error message, and a description of the problem.

Your technical support representative might want to walk you through the problem while you are at your phone during the call.

Worldwide Lenovo Support telephone list

IMPORTANT: Telephone numbers are subject to change without notice. The most up-to-date telephone list for the Customer

Support Center is always available at:

http://support.lenovo.com/supportphonelist

The Customer Support Center phone number is subject to change.

For the latest phone number, go to the e-support website. If the telephone number for your country or region is not listed, contact your Lenovo reseller or Lenovo marketing representative.

Lenovo Limited Warranty (LLW) notice

Read the full LLW at http://support.lenovo.com/smartphone-llw. You can view the LLW in a number of languages from this Web site. If you cannot view the LLW either from the Web site or from your phone, contact your local Lenovo office or reseller to obtain a printed version of the full LLW.

IMPORTANT: Lenovo Smartphone Products do not have International Warranty Services.

Recycling and environmental information

General recycling statement

Lenovo encourages owners of information technology (IT) equipment to responsibly recycle their equipment when it is no longer needed. Lenovo offers a variety of programs and services to assist equipment owners in recycling their IT products. For information on recycling Lenovo products, go to http://www.lenovo.com/recycling.

Important WEEE information

Electrical and electronic equipment marked with the symbol of a crossed-out wheeled bin may not be disposed as unsorted municipal waste. Waste of electrical and electronic equipment (WEEE) shall be treated separately using the collection framework available to customers for the return, recycling, and treatment of WEEE.

Country-specific information is available at: http://www.lenovo.com/recycling

Recycling information for India

Recycling and disposal information for India is available at: http://www.lenovo.com/social_responsibility/us/en/sustainability/ptb_india.html

Battery recycling information for the European Union

Batteries or packaging for batteries are labeled in accordance with European Directive 2006/66/EC concerning batteries and accumulators and waste batteries and accumulators. The Directive determines the framework for the return and recycling of used batteries and accumulators as applicable throughout the European Union. This label is applied to various batteries to indicate that the

battery is not to be thrown away, but rather reclaimed upon end of life per this Directive.

In accordance with the European Directive 2006/66/EC, batteries and accumulators are labeled to indicate that they are to be collected separately and recycled at end of life. The label on the battery may also include a chemical symbol for the metal concerned in the battery (Pb for lead, Hg for mercury, and Cd for cadmium). Users of batteries and accumulators must not dispose of batteries and accumulators as unsorted municipal waste, but use the collection framework available to customers for the return, recycling, and treatment of batteries and accumulators. Customer participation is important to minimize any potential effects of batteries and accumulators on the environment and human health due to the potential presence of hazardous substances. For proper collection and treatment, go to:

http://www.lenovo.com/recycling

Restriction of Hazardous Substances Directive (RoHS)

European Union

Lenovo products sold in the European Union, on or after 3 January 2013 meet the requirements of Directive 2011/65/EU on the restriction of the use of certain hazardous substances in electrical and electronic equipment (“RoHS recast” or “RoHS 2”).

For more information about Lenovo progress on RoHS, go to:

http://www.lenovo.com/social_responsibility/us/en/RoHS_Communication.pdf

India

RoHS compliant as per E-Waste (Management & Handling) Rules, 2011.

Vietnam

Lenovo products sold in Vietnam, on or after September 23, 2011, meet the requirements of the Vietnam Circular 30/2011/TT-BCT (“Vietnam RoHS”).

Ukraine

The Lenovo product meets the requirements of the Republic of Turkey Directive on the Restriction of the Use of Certain Hazardous

Substances in Waste Electrical and Electronic Equipment (WEEE).

European Union Compliance Statement

Radio and Telecommunications Terminal Equipment Directive

C€2200

Lenovo declares that this product is in compliance with:

• The essential requirements and other relevant provisions of the Radio and Telecommunications Terminal Equipment Directive, 1999/5/EC
  • All other relevant EU directives

The Declaration of Conformity information is located in the Regulatory Notice. To obtain a PDF version of the Regulatory Notice, see the “Downloading publications” section.

European Union contact

Lenovo, Einsteinova 21, 851 01 Bratislava, Slovakia

Specific Absorption Rate information

This mobile device meets the government's requirements for exposure to radio waves. Your mobile device is a radio transmitter and receiver. The exposure standard for mobile devices employs a unit of measurement known as the Specific Absorption Rate, or SAR.

The SAR limit adopted by Europe is 2.0 W/kg averaged over 10 grams of tissue. The India SAR limit for mobile devices is 1.6 W/kg averaged over 1 grams of tissue. Tests for SAR are conducted using standard operating positions with the device transmitting at its highest certified power level in all tested frequency bands.

The highest SAR value for your Lenovo device when tested for use at the head and body is outlined as follows:

Position Regulation highest SAR value
Head	0.882	Europe 10g SAR Limit (2.0 W/kg)
Body-worn	0.674	Europe 10g SAR Limit (2.0 W/kg)
Head	1.18	India 1g SAR Limit (1.6 W/kg)
Body-worn	0.915	India 1g SAR Limit (1.6 W/kg)

During use, the actual SAR values for this device are usually well below the values stated above. This is because, for purposes of system efficiency and to minimize interference on the network, the operating power of your mobile devices is automatically decreased when full power is not needed for the call. The lower the power output of the device, the lower its SAR value.

To meet RF exposure guidelines during body-worn operation, the device must be positioned at least 1.5cm away from your body.

Français

Diagram of a smartphone showing internal components and a screen, with two red circles highlighting areas of interest (no text or symbols present)

Illustration of a smartphone with a red arrow pointing to the side panel (no text or symbols present)

Simple line drawing of a rectangular cabinet or enclosure with vertical and horizontal lines (no text or symbols)
