MCT-005A - Barbecue Jocel - Free user manual and instructions

Product Type	Portable Charcoal Barbecue Grill
Brand	Jocel
Model	MCT-005A
Dimensions (L x W x H)	Approx. 40 x 30 x 25 cm
Weight	Approx. 4.5 kg
Fuel Type	Charcoal
Cooking Surface	Removable nickel-plated steel grid, approx. 30 x 20 cm
Number of Grates	1
Main Function	Grilling meat, vegetables, and other foods
Airflow Control	Adjustable vents for temperature regulation
Ash Management	Removable ash tray for easy cleanup
Handle	Heat-resistant plastic handle on lid
Legs	Foldable metal legs with locking mechanism
Assembly Required	Yes, minimal assembly with included tools
Cleaning	Wash grill grid with warm soapy water; empty ash tray after each use
Safety Features	Stable base, locking legs, heat-resistant handle, safety latch on lid
Spare Parts Available	Grill grid, ash tray, and legs can be replaced
Repairability	Modular design; components can be replaced individually
Warranty	1 year limited warranty against manufacturing defects
Manual Language	English (ES, PT available via request)

Frequently Asked Questions - MCT-005A Jocel

How do I assemble the Jocel MCT-005A barbecue?

Refer to the included manual. Typically, attach the legs to the base, insert the ash tray, place the charcoal grate, and attach the cooking grid. Use the provided screws and tools.

What type of charcoal should I use?

Standard lump charcoal or briquettes are suitable. Avoid using lighter fluid alternatives; use a chimney starter for best results.

How long does it take to preheat the grill?

Preheating typically takes 15-20 minutes for charcoal to ash over and reach cooking temperature (around 230°C / 450°F).

Can I use the barbecue in windy conditions?

It is not recommended as wind can cause uneven heat and flare-ups. If necessary, place the grill in a sheltered area and adjust vents accordingly.

How do I clean the cooking grid?

After each use, brush the grid with a wire brush while still warm. For deep cleaning, remove the grid and wash with warm soapy water, then rinse and dry thoroughly.

How often should I replace the grill grid?

Replace when signs of rust or warping appear, typically every 1-2 years depending on usage and maintenance.

Is the barbecue safe to use on a wooden deck?

Always place the barbecue on a non-flammable surface. Use a grill mat or heat-resistant pad to protect wooden decks from sparks and heat.

How do I control the temperature?

Adjust the air vents on the bottom and lid. Open vents increase heat, closed vents reduce it. Use a grill thermometer to monitor internal temperature.

What spare parts are available for this model?

Replacement grill grids, ash trays, and leg sets are available. Contact Jocel customer service or check online retailers.

Does the barbecue come with a warranty?

Yes, the Jocel MCT-005A includes a 1-year limited warranty covering manufacturing defects. Retain your proof of purchase.

USER MANUAL MCT-005A Jocel

Black outdoor cooktop table with open lid and side legs, no visible text or symbols

MCT-005A

Please read carefully this Instruction Manual

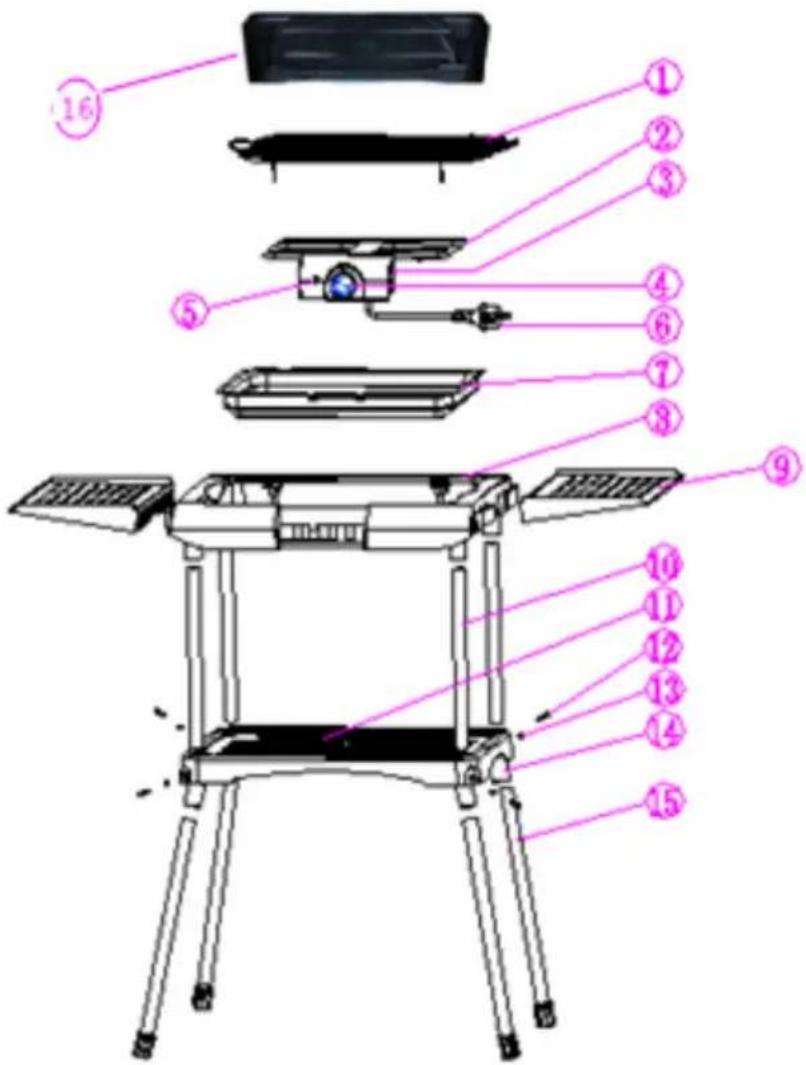

COMPONENTES

PORTUGUÊS

1. GRELHA
2. RESISTÊNCIA
3. TERMOSTÁTO
4. BOTÃO DE CONTROLO
5. LUZ INDICADORA
6. FICHA
7. PINGADEIRA
8. BASE
9. MESAS LATERAIS
10. SUPORTE PEQUENO
11. PRATELEIRA INFERIOR
12. PARAFUSO
13. PORCA
14. ENCAIXE DOS SUPORTES
    15.SUPORTES GRANDES
15. PROTEÇÃO CONTRA O VENTO

1. PARRILLA
2. CALENTADOR ELÉCTRICO
3. TERMOSTÁTICO
4. INTERRUPTOR DE CONTROL
5. LÁMPARA INDICADORA
6. ENCHUFE
7. REFLECTOR
8. REJILLA BASE
9. MESAS LATERALES
10. COLUMN A PEQUEÑA
11. BANDEJA INFERIOR
12. TORNILLO
13. TUERCA
14. ENCAJE DE LA COLUMNNA
15. COLUMNALARGA
    16.PROTECCIÓN CONTRA EL VIENTO

1. GRILL
2. HEATING ELEMENT
3. THERMOSTATIC
4. CONTROL SWITCH
5. INDICATOR LAMP
6. PLUG
7. REFLECTOR
8. BASE RACK
9. WINGS
10. SHORT COLUMN
11. LOWER TRAY
12. SCREW
13. NUT
14. COLUMN HOLDER
15. LONG COLUMN
16. WING SHIELD

Please read the following instructions carefully before using the unit for the first time. They give important information for your safety and for using the unit.

Caution! The unit is only intended for normal domestic use and not for commercial use.

NORMAL USE

The unit is only intended for grilling suitable food. No other use is permitted! Any liability or guarantee will cease to apply in the event of damage caused by incorrect operation, incorrect use and not observing the safety regulations.

SAFETY REGULATIONS

Be careful when you use the unit.
Only connect the unit to an alternating current supply as per the type plate.
Only connect the unit to a correctly installed shockproof socket.
Do not allow the unit or cable to come into contact with extremely hot surfaces.
Do not use the cable coiled up. (This also applies to any extension cable used)
The socket must be easily accessible at any time to ensure that the unit can be disconnected quickly from the electricity supply.
➢ Check the power cable and the unit regularly for damage.
Do not use the unit again if the power cable shows signs of damage or if the unit is damaged in such a way as to expose electrical components.
This appliance cannot be worked by the external timer or the individual remote control.
Danger of injury If necessary remove the plug carefully and contact your specialist dealer or customer service.
Do not use the unit in easily combustible atmospheres (e.g. near inflammable gases or spray cans).

DANGER OF EXPLOSION AND FIRE

Do not use the unit in rooms with baths, showers or swimming pools or near wash basins or taps.
Do not expose the unit to rain or other damp conditions.
Children or people under the influence of drugs or alcohol may only use the unit under supervision.
➢ Ensure that children do not have the opportunity to play with electrical equipment
Leave the unit to cool down after use before you picks it up and put it away.
Never put plastic parts or any other items except for the food to be grilled on the grill rack.
➢ Watch out for fat splashing when grilling meat. Risk of burns
Do not use any plastic cutlery to put the food on the grill rack, turn it or remove it.
The unit must never be used under a running extractor fan or wall cupboards.
Never cover the grill rack completely when it is operating, e.g. with aluminum foil because otherwise the heat cannot be dissipated.

RISK OF OVERHEATING

Caution! This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
➢ Caution! The grill rack, heating element and housing get very hot when in use. Therefore, put the unit somewhere where it can't be touched accidentally.
➢ Caution! Never use charcoal or similar fuels on the electric grill.
Do not touch the grill rack and heating element.
Only use the unit when the aluminum reflector is immersed in water.
The operating instructions belong to the unit and must be handed over too if the unit is passed on.
Do not use any accessories that are not expressly approved by the manufacturer.

Ensure that the thermostat is inserted correctly into the base. Otherwise the unit cannot be used.

The thermostat is fitted with a safety switch. The heating element switches off automatically if the thermostat is removed from the unit. Do not touch the heating element when it is on. It gets extremely hot.

ASSEMBLING THE UNIT

1. First of all unpack everything.
2. Fit the reflector into the base and the heating element into de reflector.
3. Fit the aluminum grill rack over the heating element.
4. Attach the four feet one after the other under the base by turning them clockwise. Tighten the screws.
5. Fit the lateral wings and wing shield.

Caution! NEVER use the unit without water in the base tray. The water level must be between the MIN & MAX marks.

OPERATION

The aluminum reflector must be in the water in the base.
Switch the unit on and set the required temperature with the thermostat knob. To do this turns the ("MIN/MAX") knob clockwise. The unit heats up automatically to the set temperature and then turns the heat off. The control light comes on while it is heating up. Should the temperature fall below the set temperature the unit heats up again and the control light comes on again. Thus a constant temperature is maintained.
The grill rack can be placed at various heights to ensure the optimum distance between the food and the heating element.
Power consumption depends on the thermostat setting. For lengthy grilling it is advisable to set the temperature as high as possible.
When you finish grilling turn the thermostat knob to "MIN". The unit will now cool down. Take the plug out of the socket.
The cooling process will take some time.

Do not move the unit until it has cooled down.

GRILLING

This unit can be used to grill sausages, meat, fish etc. Materials like charcoal and wood may not be used for this. Put the food directly onto the grill rack. Do not cover the grill rack with film (aluminum foil or transparent film, for example).

CLEANING

1. Before cleaning remove the plug from the socket and let the unit cool down.
2. Remove the heating element from the base.
3. Then remove the base, the outer heat retaining cover and the grill rack and wash the unit by hand. (Do not use any cleaning agents). Do not clean the unit with scourers to avoid scratching it.
4. NEVER immerse the plug, the power cable, the heating element or the thermostat in liquids.
5. These parts must only be wiped over with a dry cloth.
6. The grill rack can be cleaned with a soft brush.

TIP: After grilling let the grill rack cool down and then cover it with damp tea towels and let it soak for 30 – 60 minutes.

In order to ensure that the unit works properly, if necessary, remove lime scale deposits from the water tray

HELP WITH FAULTS

If the control light does not come on the heating element may not be inserted correctly into the base.

Caution! Improperly carried out repairs may lead to considerable danger for the

We reserve the right to make modifications to the structure or design of the unit in the interests of further technical development.

Voltage: 230V\~50Hz

Power: 2000W ;

Protection Class: IPX4

ATTENTION:

This marking ■ indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling

GENERAL WARRANTY TERMS

1. The warranty is valid only on presentation of invoice of purchase.
2. This WARRANTY is limited exclusively to parts substitution ineffective due to faulty manufacture, made in our workshops.
3. The elimination of several faults of the scope of the guarantee is made for repair or replacement of defective parts, according to the discretion of our technical services. Defective parts are our property.
4. Are not covered under warranty damage caused by transportation, neglect or poor use, improper assembly or installation, as well as external influences such as: lightning strikes or power, flooding, humidity, etc..
5. Lose warranty, all appliances that are not being used according to the instructions, or connected to FEEDING NETWORKS not guarantee a constant voltage of 220/240Volts.
6. The warranty does not cover damages for personal injury or damage caused directly or indirectly in any capacity whatsoever.
7. This warranty terminates when it is found to have been undergoing repairs, alterations or interventions by any person not authorized by Jocel.

THE WARRANTY BECOMES VOID

1. With the modification or disappearance of the nameplate of the appliance.
2. Exceeded 24 months for home appliances and 06 months for industrial appliances date of acquisition, warranty expires and assistance will be made by debiting the costs of manpower, according to the task force.

TECHNICAL ASSISTANCE

1. To get any information our TECHNICAL SERVICES available to help the users of our products.
2. When prompted, elaborate prior estimate of repair.

WARRANTY PERIOD:

• 02 YEARS FOR DOMESTIC APPLIANCES
• 06 MONTHS FOR INDUSTRIAL APPLIANCES

ASSISTÊNCIA TÉCNICA

ASISTENCIA TÉCNICA

TECHNICAL ASSISTANCE

Telef. 00 351 252 910351

Fax: [phone]

E-mail: [e-mail]

http://www.jocel.pt
