Product Type	Microwave Oven
Brand	Holland Electro
Model	EG8021P-K1
Capacity	20 liters
Power Output	700 Watts
Power Supply	230V / 50Hz
Dimensions (W x D x H)	45 x 33 x 26 cm
Weight	12 kg
Control Type	Dial and buttons
Display	Digital LED
Cooking Modes	Microwave, defrost, auto cook
Timer	Up to 60 minutes
Turntable	Yes, 25 cm diameter
Child Lock	Yes
Interior Light	Yes
Door Type	Drop-down with handle
Material	Stainless steel exterior, ceramic interior
Cleaning and Maintenance	Wipe with a damp cloth; avoid abrasive cleansers
Safety Features	Auto shut-off, door interlock, overheat protection
Spare Parts and Repairability	Parts available through authorized service centers
Warranty	2 years

Frequently Asked Questions - EG8021P-K1 Holland Electro

How do I set the cooking time?

Turn the timer dial to the desired time up to 60 minutes. The microwave will start automatically.

Can I use metal containers?

No. Metal can cause sparks and damage the microwave. Use microwave-safe glass or plastic containers.

How do I defrost food?

Press the Defrost button and enter the weight of the food. The microwave will automatically adjust time and power.

What is the capacity of this microwave?

It has a 20 liter capacity, suitable for medium-sized dishes.

How do I clean the microwave?

Wipe the interior and exterior with a damp cloth. For stubborn stains, use a mild detergent. Avoid abrasive cleaners.

Does it have a child lock?

Yes. Press and hold the Stop button for 3 seconds to lock/unlock the control panel.

What power supply does it need?

It requires 230V / 50Hz AC power. Plug into a standard grounded outlet.

Can I use the microwave without the turntable?

No. The turntable ensures even cooking. Operating without it may damage the microwave.

What should I do if the microwave stops working?

Check the power cord and fuse. If the problem persists, contact an authorized service center for repairs.

Where can I find spare parts?

Authorized service centers and some online retailers carry original parts. Refer to the manual for part numbers.

USER MANUAL EG8021P-K1 Holland Electro

Read these instructions carefully before using your microwave oven, And keep it carefully for future reference.

If you follow the instructions, your oven will provide you with many years of good service.

SAVE THESE INSTRUCTIONS CAREFULLY

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY

(a) Do not attempt to operate this oven with the door open since this can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks.
(b) Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces.
(c) Do not operate the oven if it is damaged. It is particularly important that the oven door closes properly and that there is no damage to the:
(1) DOOR(dent)
(2) HINGES AND LATCHES(broken or loosened)
(3) DOOR SEALS AND SEALING SURFACE
(d) The oven should not be adjusted or repaired by anyone except properly qualified service personnel.

SPECIFICATIONS

Model:	EG8021P-K1
Power Source:	230V~ 50Hz
Power Consumption:	1300 W
Maximum Output:	800 W
Grill Output:	1000 W
Oven Capacity:	21 Litres
Turntable Diameter:	270 mm
External Dimensions (LxWxH):	467mmX369mmX292mm
Net Weight:	Approx. 14.0 Kg

SAFETY

1. The oven must be level.
2. The turntable and turntable roller rest must be in the oven during cooking. Place the cookware gently on the turntable and handle it carefully to avoid possible breakage.
3. Incorrect use of browning dish may cause the turntable to break.
4. Use only the specified bag size when using Direct Access Popcorn.
5. The oven has several built-in safety switches to ensure that the power remains off when the door is open. Do not tamper with these switches.
6. Do not operate the microwave oven empty. Operating the oven with no food or food that is extremely low in moisture can cause fire, charring or sparking.

7. Do not cook bacon directly on the turntable. Excessive local heating of the turntable may cause the turntable to break.

8. Do not heat baby bottles or baby food in the microwave oven. Uneven heating may occur and could cause physical injury.

9. Do not heat narrow-necked containers, such as syrup bottles.

10. Do not attempt to deep-fry in your microwave oven.

11. Do not attempt home canning in this microwave oven as it is impossible to be sure all contents of the jar have reached boiling temperature.
12. Do not use this microwave oven for commercial purpose. This microwave oven is made for household use only.
13. To prevent delayed eruptive boiling of hot liquids and beverages or scalding yourself, stir liquid before placing the container in the oven and again halfway through cooking time. Let stand in the oven for a short time and stir again before removing the container.
14. Please do notice the food in the microwave oven to avoid burning due to excessive cooking when cooking food in it.

WARNING—

To reduce the risk of fire, electric shock, injury to persons, or exposure to excessive microwave oven energy when using your appliance, follow these basic precautions:

1. Read all instructions before using the appliance.
2. Read and follow the specific:" PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY".
3. As with most cooking appliances, close supervision is necessary to reduce the risk of a fire in the oven cavity.

If a fire should start:

1. Keep the oven door closed
2. Turn the oven off, and unplug the appliance.
3. Disconnect the power at the fuse or circuit breaker panel.

Keep in mind the following rules at all times:

1. Do not overcook food. Carefully attend the appliance if paper, plastic, or other combustible materials are placed inside the oven to facilitate cooking.
2. Do not use the oven cavity for storage purposes. Do not store combustible items such as bread, cookies, paper products, etc. inside the oven. If lightning strikes the power line, the oven may turn on by itself.
3. Remove wire twist-ties and metal handles from paper or plastic containers/bags before placing them in the oven.
4. This oven must be grounded. Connect only to properly grounded outlet. See "GROUN-DING INSTRUCTIONS".
5. Install or locate this oven only in accordance with the installation instructions provided.
6. Some products such as whole eggs, water with oil or fat, sealed

containers and closed glass jars may explode and therefore should not be heated in this oven.

1. Use this appliance only for its intended uses as described in the manual. Do not use corrosive chemicals or vapors in this appliance. This oven is specifically designed to heat or cook food. It is not designed for industrial or laboratory use.
2. As with any appliance, close supervision is necessary when used by children.

3. Do not operate this oven if it has a damaged cord or plug, if it is not working properly or if it has been damaged or dropped.

4. This appliance should be serviced only by qualified service technicians. Contact the nearest authorised service facility for examination, repair or adjustment.

5. Do not cover or block any vents on the oven.

6. Do not store or use this appliance outdoors.
7. Do not use this oven near water, near a kitchen sink, in a wet basement or near a swimming pool.
8. Do not immerse cord or plug in water.
9. Keep cord away from heated surfaces.
10. Do not let cord hang over edge of table or counter.
11. When cleaning door and oven surfaces use only mild, nonabrasive soaps or detergents applied with a sponge or soft cloth.

Grounding Installation

DANGER

Electric Shock Hazard Touching some of the internal components can cause serious personal injury or death. Do not disassemble this appliance

WARNING

Electric Shock Hazard

Improper use of the grounding can result in electric shock. Do not plug into an outlet until appliance is properly installed and grounded.

Three-pronged (grounding) plug

Simple line drawing of a cable inserted into a wall-mounted electrical outlet (no text or symbols)

Properly polarised and grounded outlet

Utensils

This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. This appliance is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded.

Consult a qualified electrician or serviceman if the grounding instructions are not completely understood or if doubt exists as to whether the appliance is properly grounded. If it is necessary to use an extension cord, use only a 3-wire extension cord that has a 3-pronged grounding plug, and a 3-slot receptacle that will accept the plug on the appliance.

1. A short power-supply cord is provided to reduce the risks resulting from becoming entangled in or tripping over a longer cord.
2. Longer cord sets or extension cord is provided to reduce the risks resulting from becoming entangled in or tripping over a longer cord.
3. If a long cord set or extension cord is used: 1) The marked electrical rating of the cord set or extension cord should be at least as great as the electrical rating of the appliance. 2) The extension cord must be a grounding-type 3-wire cord, and 3) The longer cord should be arranged so that it will not drape over the counter top or tabletop where it can be pulled on by children or tripped over unintentionally.

CAUTION Personal Injury Hazard

Tightly-closed utensils could explode. Closed containers should be opened and plastic pouches pierced before cooking.

See next page for further instructions “Materials you can use in microwave oven or to be avoided in microwave oven.” There may be certain non-metallic utensils that are not safe to use for microwaving. If in doubt, you can test the utensil in question following the procedure below.

Utensil Test:

1. Fill a microwave-safe container with 1 cup of cold water (250ml) along with the utensil in question.
2. Cook on maximum power for 1 minute.
3. Carefully feel the utensil. If the empty utensil is warm, do not use it for microwave cooking.
4. Do not exceed 1 minute cooking time.

Materials you can use in microwave oven

Utensils	Remarks
Aluminum foil	Shielding only. Small smooth pieces can be used to cover thin parts of meat or poultry to prevent overcooking. Arcing can occur if foil is too close to oven walls. The foil should be at least 1 inch (2.5cm) away from oven walls.
Browning dish	Follow manufacturer's instructions. The bottom of browning dish must be at least 3/16 inch (5mm) above the turntable.Incorrect usage may cause the turntable to break.
Dinnerware	Microwave-safe only. Follow manufacture's instructions. Do not use cracked or chipped dishes.
Glass jars	Always remove lid. Use only to heat food until just warm. Most glass jars are not heat resistant and may break.
Glassware	Heat-resistant oven glassware only. Make sure there is no metallic trim. Do not use cracked or chipped dishes.
Oven cooking bags	Follow manufacture's instructions. Do not close with metal tie. Make slits to allow steam to escape.
Paper plates and cups	Use for short-term cooking/warming only. Do not leave oven unattended while cooking.
Paper towels	Use to cover food for reheating and absorbing fat. Use with supervision for short-term cooking only.
Parchment paper	Use as a cover to prevent splattering or a wrap for steaming.
Plastic	Microwave-safe only. Follow the manufacturer's instructions.Should be labelled "Microwave Safe". Some plastic containers soften as the food inside gets hot. "Boiling bags" and tightly closed plastic bags should be slit, pierced or vented as directed by package.
Plastic wrap	Microwave-safe only. Use to cover food during cooking to retain moisture. Do not allow plastic wrap to touch food.
Thermometers	Microwave-safe only (meat and candy thermometers).
Wax paper	Use as a cover to prevent splattering and retain moisture.

Materials to be avoided in microwave oven

Utensils	Remarks
Aluminum tray	May cause arcing. Transfer food into microwave-safe dish.
Food carton with metal handle	May cause arcing. Transfer food into microwave-safe dish.
Metal or metal-trimmed utensils	Metal shields the food from microwave energy. Metal trim may cause arcing.
Metal twist ties	May cause arcing and could cause a fire in the oven.
Paper bags	May cause a fire in the oven.
Plastic foam	Plastic foam may melt or contaminate the liquid inside when exposed to high temperature.
Wood	Wood will dry out when used in the microwave oven and may split or crack.

SETTING UP YOUR OVEN

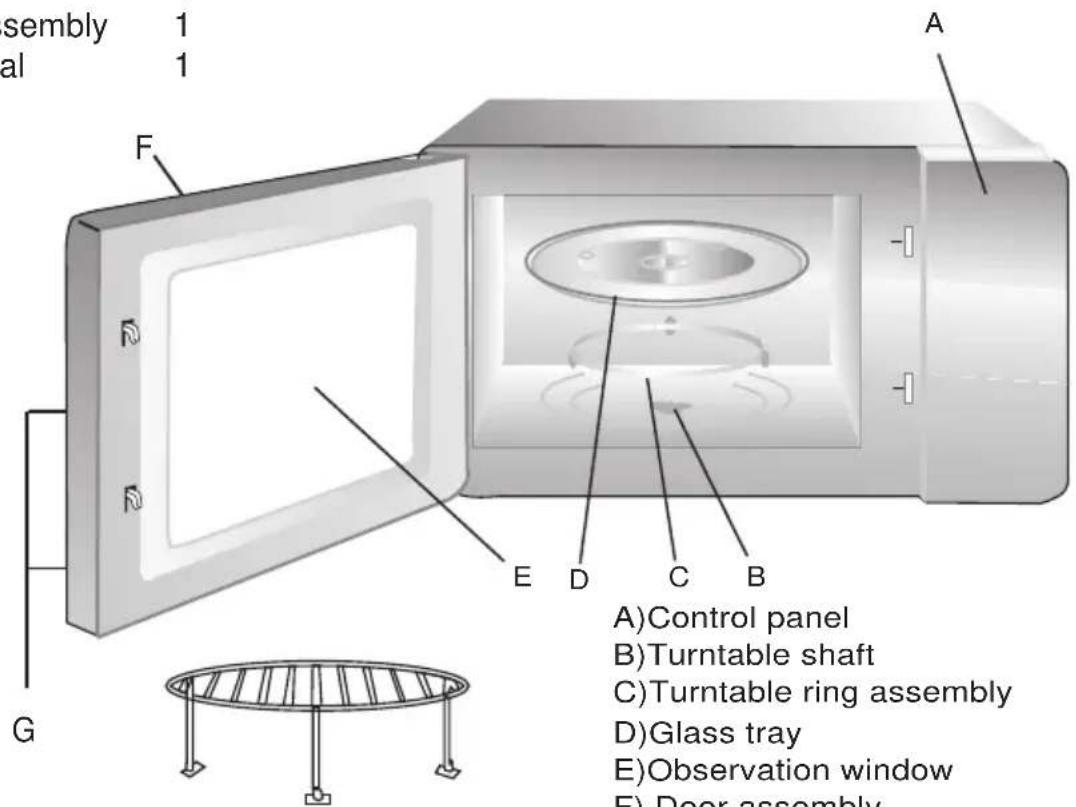

Names of Oven Parts and Accessories

Remove the oven and all materials from the carton.

Your oven comes with the following accessories:

Glass tray 1

Turntable ring assembly 1

Instruction Manual 1

Grill ( Only for Grill series )

A) Control panel
B) Turntable shaft
C) Turntable ring assembly
D)Glass tray
E) Observation window
F) Door assembly
G) Safety interlock system

Shuts off oven power if door is opened during operation.

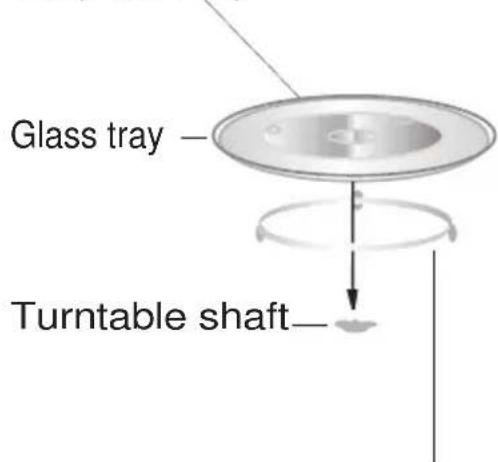

TURNTABLE INSTALLATION

Hub(underside)

Turntable ring assembly

a. Never place the glass tray upside down. The glass tray should never be restricted.
b. Both glass tray and tumtable ring assembly must always be used during cooking.
c. All food and containers of food should always placed on the glass tray for cooking.
d. The glass tray rotates clockwise; this is normal.
e. If glass tray or turntable ring assembly cracks or breaks, contact your nearest authorised service centre.

Installation

Remove all packing material and accessories. Examine the oven for any damage such as dents or broken door. Do not install if oven is damaged.

Countertop

Cabinet: Remove any protective film found on the cabinet surface.

Do not remove the light brown Mica cover that is screwed to the oven cavity to protect the magnetron.

Installation

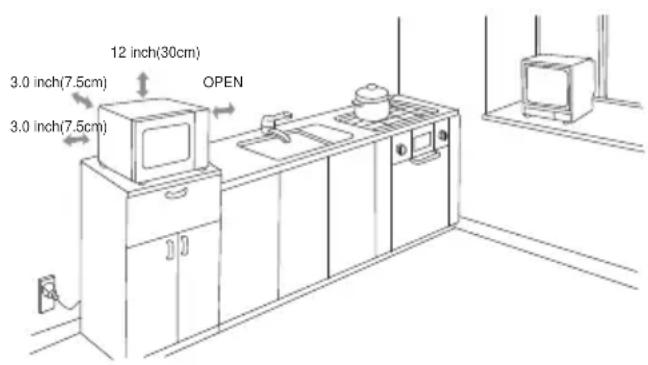

1. Select a level surface that provide enough open space for the intake and/or outlet vents.

A minimum clearance of 3.0 inch (7.5cm) is required between the oven and any adjacent wall. One side must be open.

(1) Leave a minimum clearance of 12 inch(30cm) above the oven.
(2) Do not remove the legs from the bottom of the oven.

(3) Blocking the intake and/or outlet openings can damage the oven.
(4) Place the oven as far away from radios and TVs as possible. Operation of microwave oven may cause interference to your radio or TV reception.
2. Plug your oven into a standard household outlet. Be sure the voltage and the frenquce same as the voltage and the frenquce on the rating label.

WARNING: Do not install oven over a range cooktop or other heat-producing appliance. If installed could be damaged and the warranty would be void.

OPERATION

This microwave oven uses modern electronic control to adjust cooking parameters to better meet your needs for cooking.

1. Clock Setting

When the microwave oven is plugged into a wall outlet, the oven shows "0:00".

1)Press"

",the hour digits flash

2)Turn "

" to adjust the hour setting

3)Press"

",the minute digits flash

4)Turn "

" to adjust the minute setting

5)Press"

" to finish clock setting.

Note: During setting of the clock, if you press clock setting mode will be exited.

pad,the

2. Cooking food

Press" Micro./Grill/Combi " to select the power level required. Turn " cooking time.Press " Quick Start/Start " to start cooking.

Example: If 80% microwave cooking food for 20 minutes is required, operate the oven by the following steps.

1) Press" Micro.Gill.Camb." twice to select 80% microwave power P80.
2) Turn " 🔥 " to adjust the cooking time until the oven display 20:00.
3) Press " [icon] " to start cooking. 18:00

Note: "Micro./Grill/Combi" Pad pressing instructions

Pressing Instructions	LED Display	Microwave Power	Grill Power
1		100%
2		80%
3		50%
4		30%
5		10%
6			100%
7			45%
8			70%

3. Quick start

In normal state, press “Quick Start Start”, the oven will be cooked by 100% microwave output power, 30 seconds up by each press, maximumly up to 12 minutes.

4. Auto defrost

Press "

" pad.

Turn "

" to select the weight of food.

Press "

" to start defrosting food.

5. Auto cook

Press "

" pad to select the type of auto cook

Turn "

" to select the weight of food.

Press "

to start cooking food.

Note: "Auto Function" Pad pressing instructions

Pressing Instructions	Function	LED Display	Portions
A-1	Rice	50g	50g
		100g	100g
		150g	150g
		200g	200g
A-2	Chicken	250g	250g
		500g	500g
		750g	750g
		1000g	1000g
A-3	Vegetable	150g	150g
		300g	300g
		450g	450g
		600g	600g
A-4	Meat	150g	150g
		300g	300g
		450g	450g
		600g	600g
A-5	Beverage	200ml	200ml
		300ml	300ml
A-6	Pizza	300g 300g

6. Delay start

First, set the cooking process according to the instructions above, then set the time you want to start.

Example: You want to start cooking "A-1" rice with auto function at 11:30.

1) At first set the cooking process, press the "Auto Function" to select "A-1" Rice function.

7. Auto light-off

The light is on when door is opened, if no operation is effected for 10 minutes, the light would turn off automatically.

8. Display indication

In normal state, the displayer shows time, the “second” doesn’t flash;

The displayer shows the setting controlled by the user;

During working and pause state, the displayer shows the rest of cooking time;

In preset state, the displayer shows time with “second” flashing. If the time button is pressed, the preset time could be checked, after 2-3 seconds, the displayer would come back to the original state.

9. Child safe lock

Lock: Press "Cancel/Stop" keys is three second, after a long "beep". it shows and enters the Locked status.

Unlock: Press " Cancel/Stop " keys is three second, 9:20 disappears and the oven returns to normal status.

10. Cleaning and Maintenance

Always disconnect the oven from the power supply.

1. Clean the inside of the oven after use with a slightly damp cloth.
2. Clean the accessories in soapy water.
3. The door frame and seal and neighbouring parts must be cleaned carefully with a damp cloth when they become dirty.

11. Disposal and the environment

If your electrical appliance requires replacement or is of no further use, please think of protecting the environment. Contact you local authority for advice, as many have facilities for environmentally safe disposal.

REMARK:

1) Beep tone sound five times after cooking.
2) The maximum cooking time is 60 minutes.

12.Trouble shooting

Normal
Microwave oven interfering TV reception	Radio and TV reception may be interfered when microwave oven is operation. It is similar to the interference of small electrical appliances, like mixer, vacuum cleaner,and electric fan.It is normal.
Dim oven light	In low power microwave cooking, oven light may become dim. It is normal.
Steam accumulating on door, hot air out of vents	In cooking, seam may come out of food. Most will come out from vents. But some may accumulate on cool place like oven door. It is normal.
Oven started accidentally with no food in.	It does no damage to oven if it operates empty for quite short time. But it should be avoided.

Trouble	Possible Cause	Remedy
Oven can not be started.	(1) Power cord not plugged in tightly.	Unplug. Then plug again after 10 seconds.
	(2) Fuse blowing or circuit breaker works.	Replace fuse or reset circuit breaker (repaired by professional personnel of our company)
	(3) Trouble with outlet.	Test outlet with other electrical appliances.
Oven does not heat.	(4) Door not closed well.	Close door well.
Glass turntable makes noise when microwave oven operates	(5) Dirty roller rest and oven bottom.	Refer to "Maintenance of Microwave" to clean dirty parts.

This appliance conforms with the CE directives for radio interference suppression and low-voltage safety and has been built to meet current safety requirements.

Subject to technical changes without prior notice.

NOTE

1. Before commissioning this oven please read this instruction manual and keep it carefully.
2. There must be more than 30cm high space necessary above the top surface of oven.
3. Do not repair the oven yourself, please consult an authorized expert.
4. The contents of feeding bottles and baby food jars are to be stirred or shaken and the temperature is to be checked before consumption, in order to avoid burns.
5. Check the oven and the cable regularly for damage. If there is any kind of damage, the oven should not be used.

Warning:1. It is hazardous for anyone other than a trained person to carry out any service or repair operation, which involves the removal of any cover which gives protection against exposure to microwave energy;

1. Only allow children to use the oven without supervision when adequate instructions have been given so that the children is able to use the oven in a safe way and understands the hazards of improper use.
2. If the supply cord is damaged, it must be replaced by the manufacture or its service agent or a similarly qualified person in order to avoid a hazard.

NOTE

• Do not attempt to operate this oven with the door open since open-door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks.
• Carefully clean door seals and sealing surfaces
  Do not operate the oven if it is damaged. It is particularly important that the oven door close properly and that there is no damage to the :(1)door(bent), (2)hinges and latches(broken or loosened), (3) door seals and sealing surfaces.
• Utensils should be checked to ensure that they are suitable for use in microwave ovens.
  When heating food in plastic or paper containers, check the oven frequently due to the possibility of ignition.
  Microwave heating of beverages can result in delayed eruptive boiling, therefore care has to be taken when handling the container.
• If smoke is observed, switch off or unplug the appliance and keep the door closed in order to stifle any flames.
• Eggs in their shell and whole hard-boiled eggs shall not be heated in microwave ovens since they may explode.
  If the door or door seals are damaged, the oven must not be operated until it has been repaired by a trained person.
• Liquids or other foods must not be heated in sealed containers since they are liable to explode.
