Product Type	Built-in Dishwasher
Brand	Constructa
Model	CG 560J5
Energy Efficiency Class	E (typical for this class)
Number of Place Settings	13
Dimensions (Height x Width x Depth)	84.5 x 60 x 60 cm
Weight	Approx. 45 kg
Power Supply	220-240 V, 50/60 Hz, 10 A
Water Consumption per Cycle	9.5 L (Eco program)
Annual Water Consumption	266 L (based on 280 cycles)
Noise Level	47 dB(A) re 1pW
Drying Efficiency Class	A
Programs	Eco 50°C, Auto, Intensive 70°C, Quick 45°C, Rinse & Hold
Special Features	AquaStop, VarioSpeed Plus, Load Sensor
Control Type	Electronic with push buttons and display
Interior Lighting	Yes, LED
Rinse Aid Indicator	Yes
Salt Indicator	Yes
Safety Features	Child lock, leakage protection (AquaStop), overflow protection
Maintenance	Clean filters regularly, check spray arms, descale as needed
Spare Parts Availability	Spare parts available for at least 10 years after discontinuation
Warranty	2 years (standard)

Frequently Asked Questions - CG 560J5 CONSTRUCTA

How do I install the Constructa CG 560J5 dishwasher?

Installation must be carried out by a qualified technician. Ensure proper electrical and water connections. Refer to the manual for precise dimensions and connection requirements.

What are the wash programs available?

The CG 560J5 offers Eco 50°C, Auto, Intensive 70°C, Quick 45°C, and Rinse & Hold. Use Eco for normal soiled dishes to save energy.

How do I clean the filters?

Turn off the dishwasher, remove the lower rack, and take out the filter assembly (microfilter, flat filter, coarse filter). Rinse under running water and reassemble. Clean monthly.

Why is the dishwasher not draining?

Check if the drain hose is kinked or blocked. Clean the filters and ensure the sink drain is not clogged. If problem persists, call customer service.

How can I reduce noise from the dishwasher?

Ensure the dishwasher is level and not touching adjacent cabinets. Load dishes properly to avoid rattling. The CG 560J5 operates at 47 dB(A), which is quiet.

What detergent should I use?

Use dishwasher detergent (powder, gel, or tablets). For optimal results, also use rinse aid and salt. Avoid hand dishwashing liquid.

How do I activate the child lock?

Press and hold the 'Child Lock' button (usually for 3 seconds) until the indicator lights up. To deactivate, repeat the same step.

What does the AquaStop feature do?

AquaStop prevents water damage by automatically shutting off the water supply if a leak is detected. It consists of a safety hose and an electromagnetic valve.

How many place settings does it hold?

The CG 560J5 holds up to 13 place settings, suitable for a family of 4-5 persons.

Where can I find spare parts?

Authorized Constructa service centers or online spare parts retailers. Use the model number CG 560J5 to find compatible parts.

USER MANUAL CG 560J5 CONSTRUCTA

Technical line drawing of a multi-chamber refrigerator with internal compartments and base panel (no text or labels)

DE Gebrauchsanweisung
GB Instruction for Use
FR Mode d'emploi
NL Gebruiksaanwijzing

Sicherheitshinweise

Bei der Anlieferung

Mechanical processing diagram showing a funnel pouring granular material into a conical mold with a gear mechanism (no text or symbols)

Hand pressing a button on a device with arrows indicating action (no text or symbols)

Line drawing of a laboratory setup with a beaker, dropping liquid, and a gas stove (no text or symbols)

Hinweis

Black-and-white illustration of a shopping cart filled with various items (no visible text or symbols)

Töpfe

Illustration of a kitchen sink with plates, utensils, and a plate (no text or symbols)

Besteck

Line drawing of a hand using a tool to adjust or install components inside a storage unit (no text or symbols)

Illustration of a kitchen interior with a plate, drawer, and food items (no text or symbols)

Messeretagere (\*)

Die Etagere \*

Abstract line drawing of a grid-like structure with an arrow pointing to a dark triangular shape (no text or symbols)

Technical diagram showing two mechanical assembly steps with pulley and wheel components (no text or labels)

Illustration of a hand using a tool to press or install a mechanical component, no text or symbols present

Mechanical assembly diagram showing a piston and lever mechanism (no text or labels)

Hand turning a valve on a mechanical component (no text or symbols visible)

Wartung und Pflege

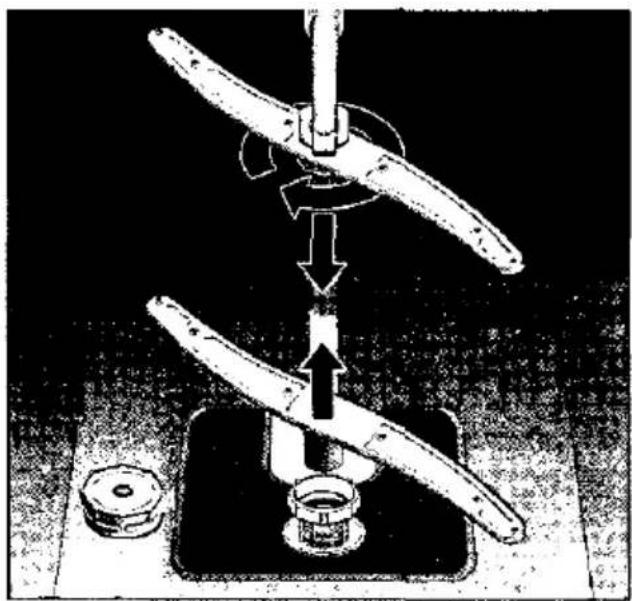

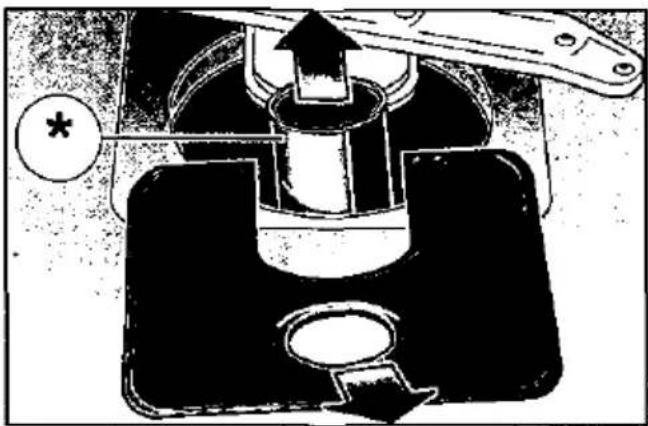

Sprüharme

Mechanical assembly diagram showing a propeller being lifted by a valve, with no visible text or symbols

Sprüharme

Abwasserpumpe

Fehlersuche

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols present)

Achtung

Illustration of a tray with various food items including sliced vegetables, mushrooms, and bread (no text or symbols)

Bild A

Illustration of a mechanical device with multiple rotating components and central hub (no text or symbols)

Bild B

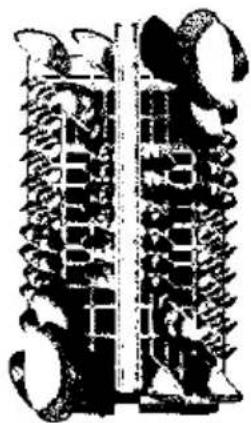

Bild C

Hinweise

Bild D

Allgemeines

minimal 10 Liter/Minute

Wassertemperatur:

• Check packaging and dishwasher immediately for signs of transport damage. If the appliance is damaged, do not put it into use but contact your supplier without delay.
• Please dispose of packaging materials properly.

During installation

• Site the dishwasher and connect it up in accordance with the installation instructions.
• The dishwasher must not be connected to the electricity supply while installation is being carried out.
• Ensure that the domestic wiring is properly earthed.
• The mains electricity supply must conform to the details shown on the dishwasher nameplate.
• Do not connect the dishwasher to the electricity supply via an extension cable.
• Not on all models: The plastic housing on the water input contains an electrically operated valve. The connecting wires are inside the inlet hose. Do not cut through this hose and do not immerse the plastic housing in water.
• Built-under and built-in appliances should always be installed under a continuous work surface which is attached to the adjacent cupboards, in order to ensure that the appliance is entirely stable.
• After the appliance has been installed, the mains plug should still be easily accessible.

During normal use

• Use the dishwasher solely in a domestic environment and for its designated purpose: washing household tableware and other utensils.
• Do not place any heavy objects or stand on the door when it is open. The appliance could tip forward.
• The water inside the dishwasher is not suitable for drinking.
• Do not use solvents of any kind inside your dishwasher. They could cause an explosion.
• Open the door very carefully if the dishwasher is operating. There is a risk of water squirting out.

If your family includes children

• Do not permit small children to play with or operate the dishwasher.
• Keep children away from detergents and rinse-aids.
• Keep small children away from the open door of the dishwasher. There could still be some detergent left inside.

Safety information

Child lock \*

* on applicable models

Please refer to the drawings enclosed in the envelope

40 Engaging the child lock (Door handle 2)
41 Opening the door with the child lock engaged
42 Disengaging the child lock

If a fault occurs

• Repairs or other work on the dishwasher should only be carried out by a qualified specialist.
• The dishwasher must be disconnected from the electricity supply before any repairs or other work are started. Pull the mains plug out of the wall socket or switch off at the fuse box. Grasp the plug to remove it from the socket; do not tug on the cable. Turn the water off at the tap.

When disposing of old appliances

• Appliances that have reached the end of their service life should be rendered inoperable in order to exclude the possibility of subsequent accidents. Pull the mains plug out of the wall socket, cut through the connecting cable and disable the door lock.
• Take the appliance to a designated waste disposal centre.

Getting to know your dishwasher

Illustrations of the control panel and the interior of the dishwasher are shown on the rear fold-out cover of this manual. Fold this page out before you read the manual.

Control panel

1 Main switch
2 Door handle
3 End programme button.
4 Programme buttons
5 LOW SALT indicator
6 LOW RINSE-AID indicator

Appliance interior

20 Upper spray arm
21 Upper basket with 2-tiered cup rack
22 Lower spray arm
23 Filters
24 Lower basket with 2-tiered cup rack
25 Container for salt
26 Cutlery baskets
27 Detergent dispenser
28 Container for rinsé-aid, with refill indicator.
29 Nameplate
30 Upper cutlery baskets (*)

* on applicable models

You will need to purchase the following before using the dishwasher for the first time:

• special salt for use in dishwashers
• detergent
• rinse-aid

Water softener

In order to rinse dishes and glasses satisfactorily, the dishwasher requires soft water, i.e. containing little or no lime, otherwise water stains will be left behind on crockery and glasses, etc.

If the tap water exceeds a certain level of hardness, it must be softened, i.e. decalcified, so that it can be used in the dishwasher.

This is achieved by adding a special salt to the water softener inside the dishwasher.

The water softener, that is the required amount of salt, is set up according to how hard the tap water is.

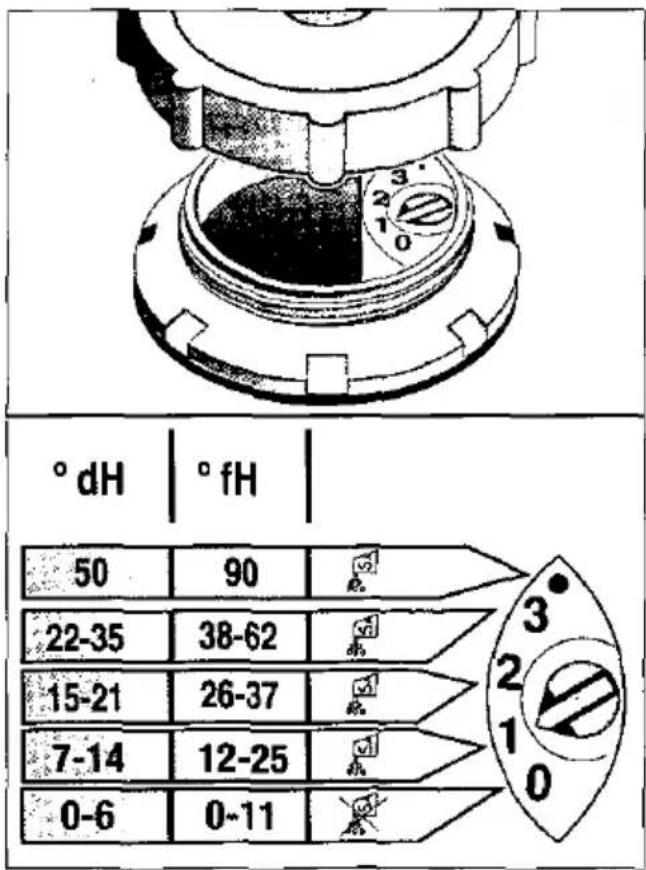

Water hardness table

Setting up the water softener

- Determine the level of hardness of your tap water. Your local water company or service agent can help you with this.

- Identify setting from the following water hardness table.

Filling the special salt container

How the salt works

While washing is taking place, salt is automatically rinsed out of the salt container into the water softener where it dissolves the lime in the water.

The dissolved lime is pumped out of the dishwasher. The water softening system is then ready for the next load.

This process of regeneration can only function when the salt is dissolved in water.

Unscrew the lid on the salt container 25

Before you use the dishwasher for the first time, pour approx. 1 litre of water into the salt container.

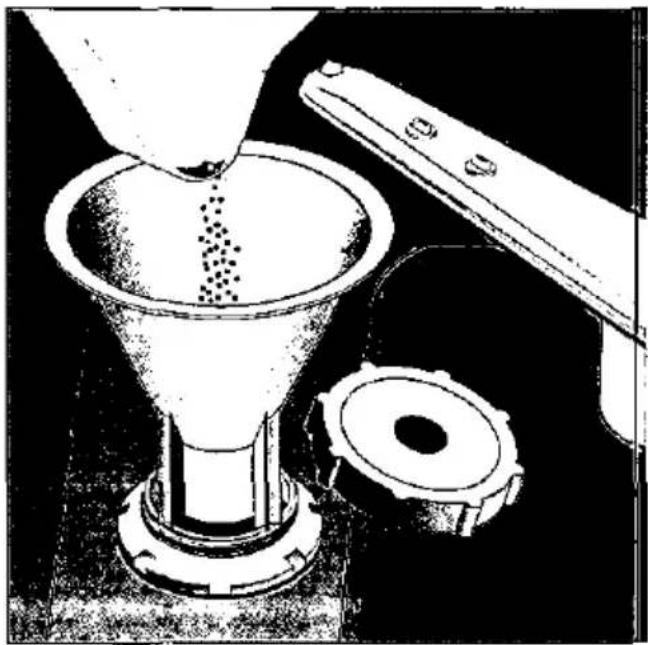

Place the funnel supplied with the dishwasher in the filler hole.

Tip in enough salt to fill the container to the top (maximum of 1.5 kg). As you tip in salt, some of the water is displaced and drains away. When you have done this, clean off any remnants of salt from the area round the neck of the container. Screw the lid back onto the container, ensuring that it is not cross-threaded.

Illustration of a funnel pouring granular material into a mechanical device (no text or symbols visible)

The LOW SALT indicator 5 on the front panel will light up initially but will extinguish again after a short period when the salt solution has become sufficiently concentrated.

Warning!

Do not pour detergent into the container for special salt. This would destroy the water softener.

LOW SALT indicator

Add more salt as soon as the LOW SALT indicator 5 on the front panel lights up.

Filling the rinse-aid container

The purpose of a rinse-aid is to prevent the formation of water marks on tableware and utensils, and to ensure that glasses are clean and sparkling. The rinse-aid is consumed during the washing process.

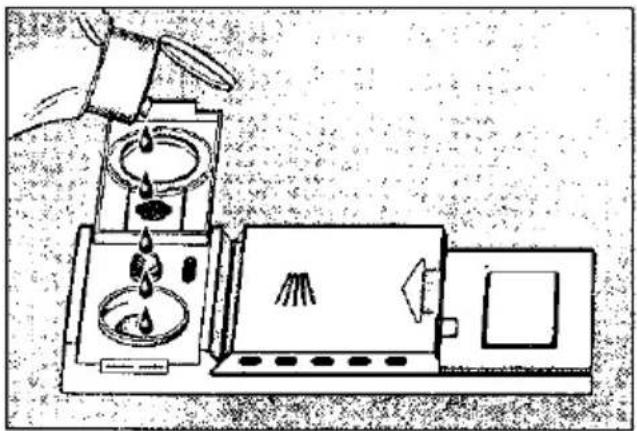

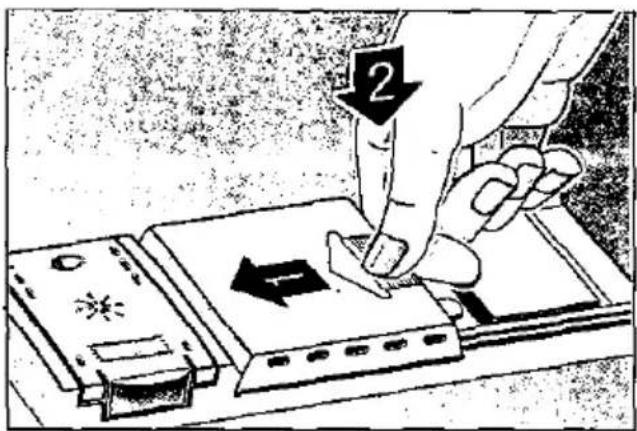

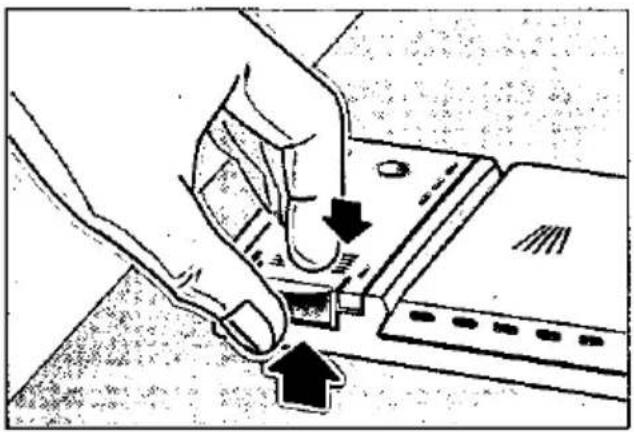

- Fold back the lid on the rinse-aid container 28. To open the lid, press the mark on the rinse-aid lid and simultaneously lift the lid off the lug

Illustration of a hand using a tool to press or adjust a component, with arrows indicating motion (no text or symbols present)

• Pour the rinse-aid into the filler hole until the level indicator turns dark.
• Close the lid, ensuring that you hear it snap closed.

Line drawing of a laboratory setup with a dropping funnel, beaker, and control panel (no text or symbols)

Important

Use only rinse-aids intended for use in domestic dishwashers.

Adjusting the amount of rinse-aid

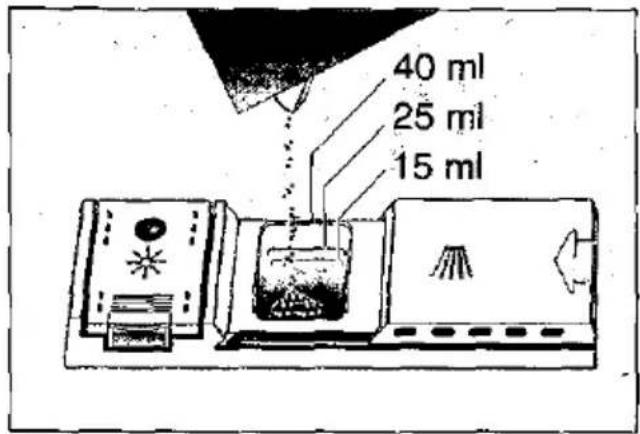

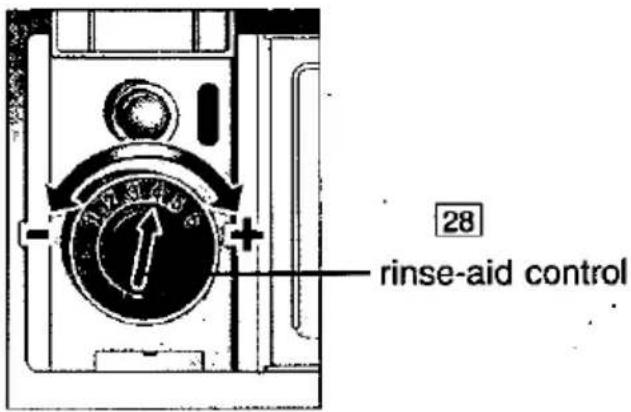

The amount of rinse-aid added to the water can be varied by adjusting the stepless control. The rinse-aid control has been set to "4" in the factory. Do not alter the setting of the rinse-aid control unless streaks (turn knob towards "-") or water marks (turn knob towards "+") are left on the dishes.

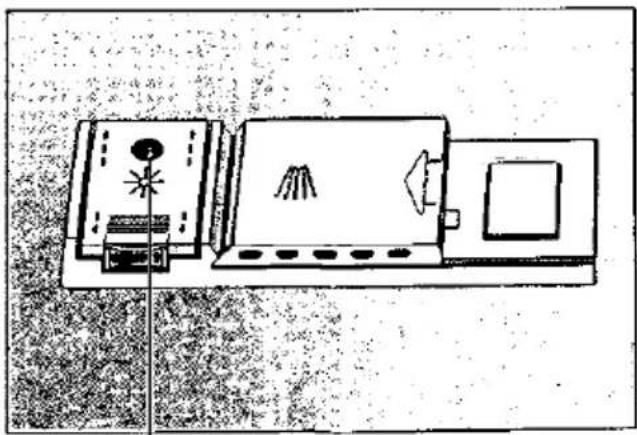

Low rinse-aid indicator

As long as the rinse-aid refill indicator on the panel 6 or dispenser has not illuminated, there is sufficient rinse-aid in the dishwasher.

Diagram of a device with labeled components and directional arrows, no readable text or symbols present

LOW RINSE-AID indicator

Not suitable for the dishwasher

What you should not put into the dishwasher:

Cutlery and tableware manufactured in whole or part from wood. They become faded and unsightly in appearance. Furthermore, the adhesives that are used are not suitable for the temperatures that occur inside the dishwasher. Delicate decorative glassware and vases, special antique or irreplaceable china. The decorative patterns on such items will not be dishwasher-proof.

Plastic objects that are not resistant to hot water, copper and pewter utensils are also not suitable. Decorative patterns printed or painted onto the surface of crockery, glasses, etc., aluminium and silver items tend to become discoloured or faded if washed in the dishwasher. Some types of glass can become opaque in appearance after they have been washed many times in a dishwasher. Highly absorbent materials, such as sponges and towels, should never be placed in the dishwater.

Our recommendation:

In future, only purchase table or kitchenware that has been confirmed as being dishwasher-proof.

Important

Dishes or cutlery that have been soiled by tobacco ash, wax, lubricating grease or paint, should not be put in the dishwasher.

Damage to glassware and other dishes

Possible causes:

-type of glass or manufacturing process
- chemical composition of detergent
– water temperature and duration of dishwasher programme.

Suggested remedy:

• Use glassware or porcelain dishes that have been marked fdishwasher-proofí by the manufacturer..
• Use a mild detergent that is described as kind to dishesi. If necessary, seek further information from detergent manufacturers.
• Select a programme with as low a temperature and as short a duration as possible.
• To prevent damage, take glass and cutlery out of the dishwasher as soon as possible after the programme has ended.

Arranging crockery, glasses, etc. in the dishwasher

Scrape off any large amounts of left-over food. It is not necessary to rinse the dishes under running water.

Place objects in the dishwasher in such a way that items such as cups, glasses, pots/pans, etc. are stood upside down, curved items, or those with recesses, should be at a slant so that water can run off, they are stacked securely and cannot tip over, they do not prevent the spray arms from rotating while washing takes place.

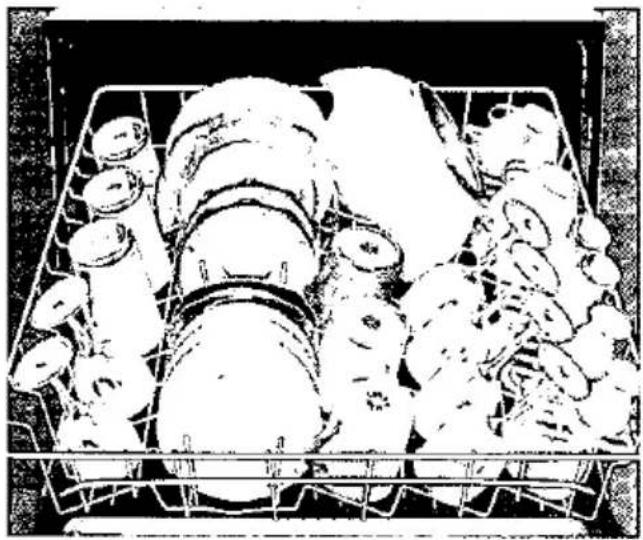

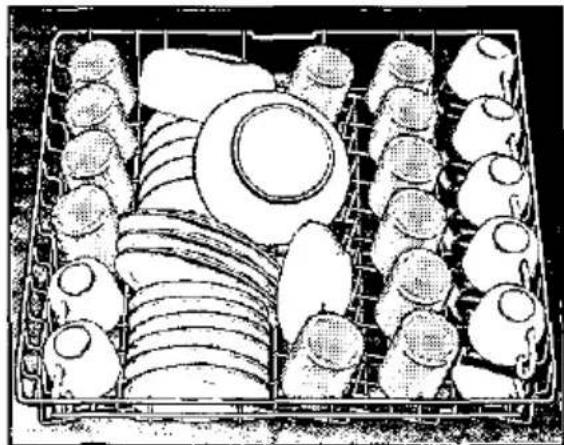

Cups and glasses 21

Cups and smaller glasses should preferably be arranged at the back or the front of the racks.

Black-and-white illustration of a shopping cart filled with various items (no visible text or symbols)

Pots and pans

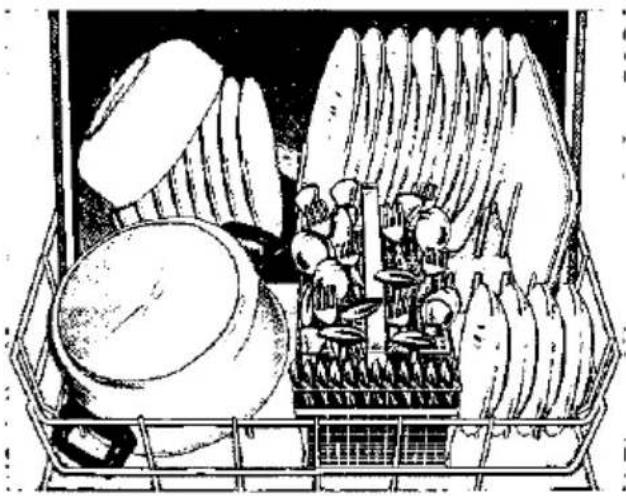

Pots and pans can be placed at the front of the rack 24.

Illustration of a grocery basket filled with various items including a plate, cheese, and bananas (no text or symbols)

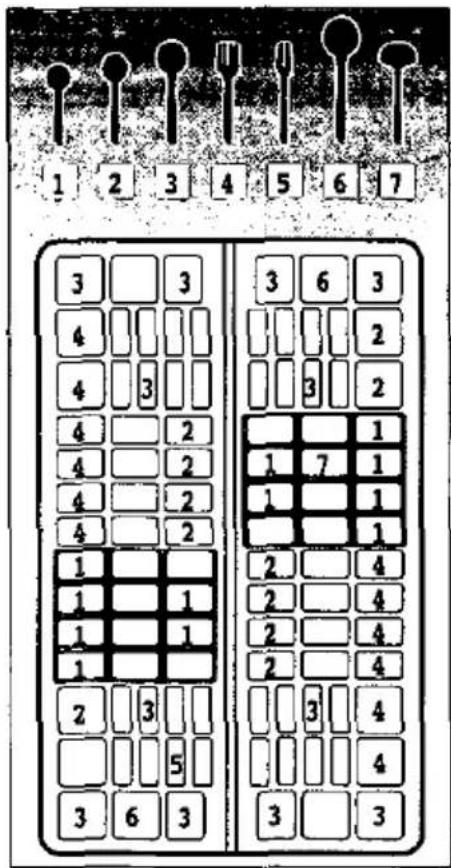

Cutlery

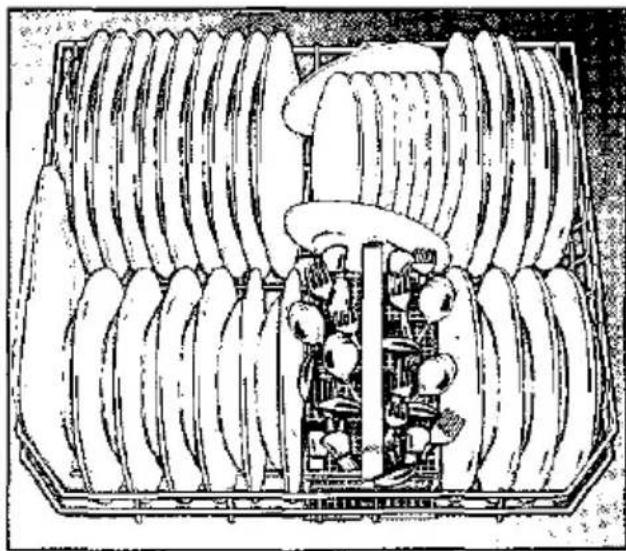

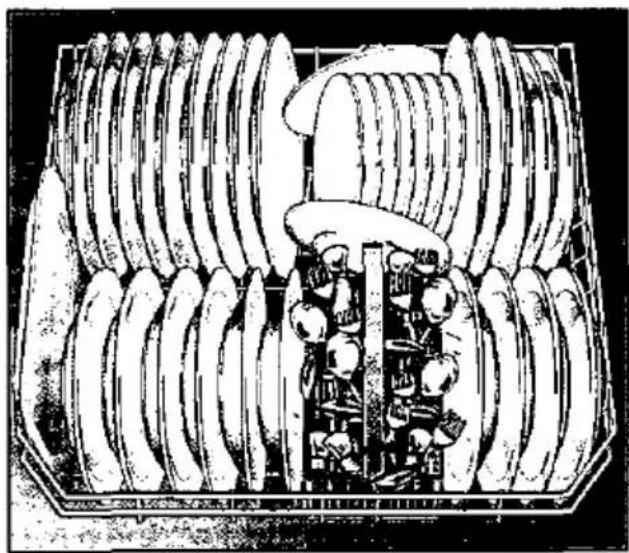

Cutlery should always be inserted in random order with the handles pointing downwards (take care with knife blades!). This enables the jet of water to reach the individual items more easily.

To prevent the risk of injury, place long and pointed implements and knives on the shelf (some models) or knife shelf (available as an accessory).

Arranging crockery; glasses, etc. in the dishwasher

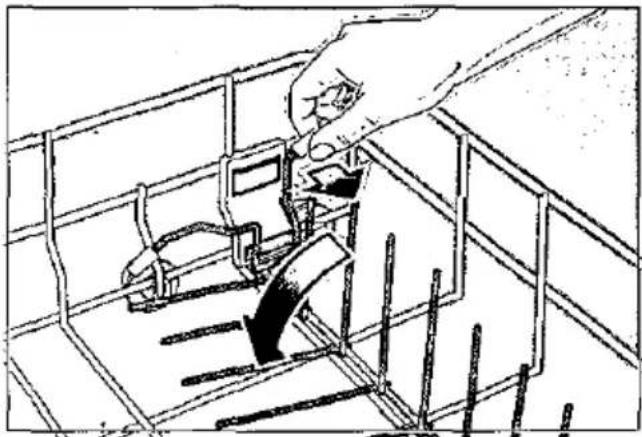

Folding spikes \*

* on applicable models.

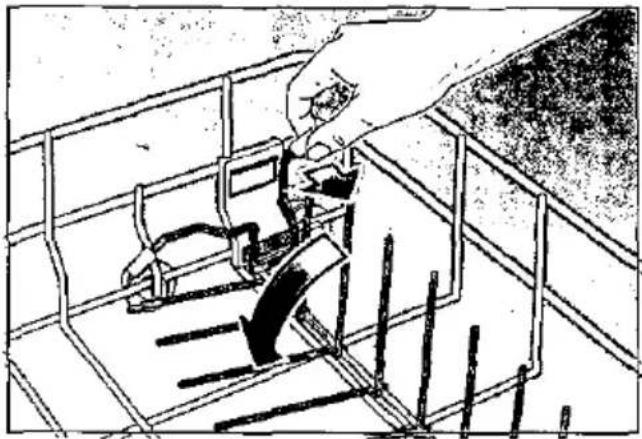

To improve stacking of pots and pans, the spikes can be folded down.

Illustration of a hand using a tool to interact with a mechanical device on a platform (no text or symbols visible)

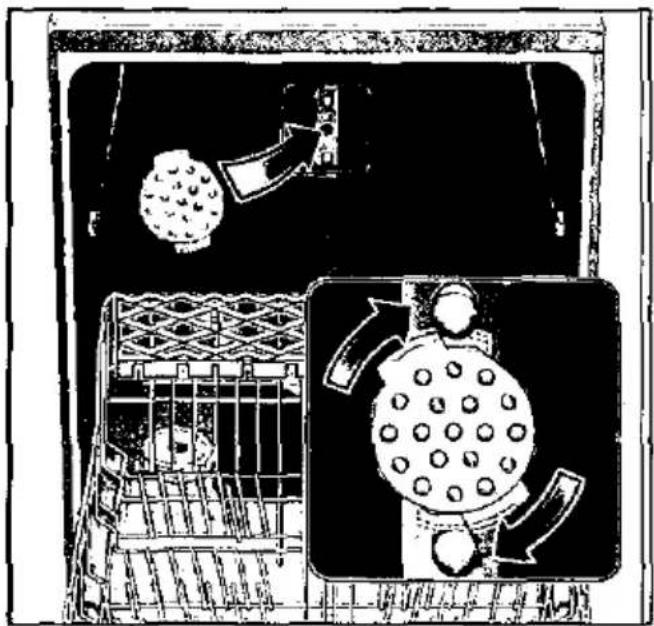

Spray head for baking sheets \*

* on applicable models

Please refer to the drawings enclosed in the envelope

Large baking sheets or grids can be cleaned with the aid of the special spray head. Remove the top basket and attach the spray head as shown in the drawing. Arrange the baking sheets as illustrated, so that the jet of water can reach all parts of them (max. 4 baking sheets and 2 grids).

Illustration of a supermarket interior with a hand holding a bag and a large bowl, alongside a side view of a product container (no text or symbols)

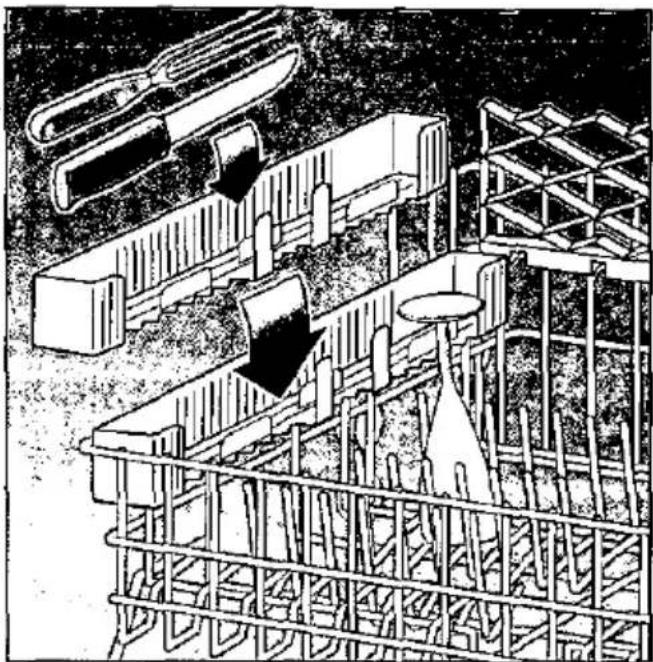

Knife rack \*

* on applicable models

Illustration of a construction or steel structure with tools and structural elements (no text or symbols)

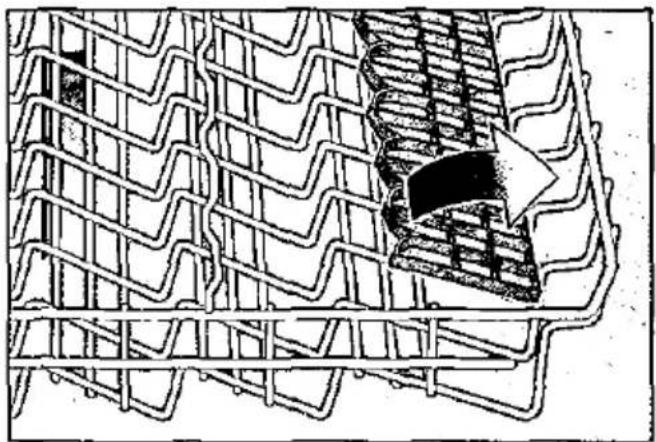

Shelf \*

* not on all models

Lean tall glasses and those with long stems against the shelf - not against other items to be washed.

Diagram of a grid-patterned structure with an arrow pointing to a specific area (no text or symbols present)

Long items, serving cutlery, salad servers or knives should be placed on the shelf so that they do not obstruct the rotation of the spray arms. The shelf can be folded back when not required for use.

GB

Arranging crockery

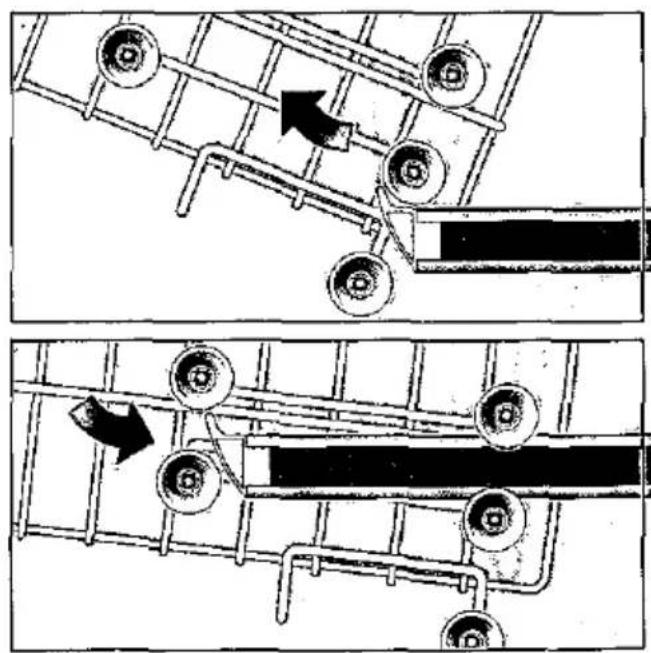

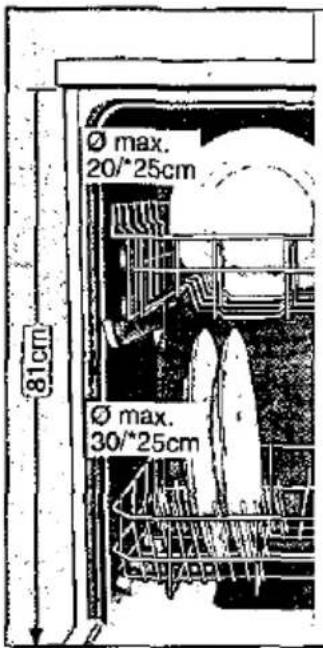

Adjusting position of basket \*

* not on all models

The top basket can be inserted on either its upper or lower rollers, according to requirement. This enables more height to be gained for bigger dishes in either the top or bottom basket.

The height of the cutlery-basket handle can also be adjusted.

Technical diagram showing two mechanical assembly steps with pulleys and rotating components (no text or labels)

Detergents

Information about detergents

You can use any brand of liquid or powder detergent, as well as tablets, that have been specifically designed for use in domestic dishwashers. (Do not use normal washing-up liquid!)

Nowadays there are three types of dishwasher detergent available:

1. those containing phosphates and chlorine,
2. those containing phosphates but no chlorine,
3. those containing neither phosphates nor chlorine.

When a phosphate-free detergent is used in conjunction with hard water, there is a greater possibility that white marks will be left behind on crockery and glasses, etc. These can be avoided by pouring an increased amount of detergent into the dispenser.

Chlorine-free detergents have a reduced bleaching effect. This can mean that tea stains are not completely removed or plastic items become discoloured.

This can be resolved by:

• selecting a higher temperature programme, or
• increasing the amount of detergent, or
• using a detergent that contains chlorine.

Check the label on the detergent packaging to determine whether a particular product is suitable for use with silverware.

If you have any further questions, we recommend that you contact the customer advice departments of the various detergent manufacturers.

Detergent

Detergent compartment with measuring marks

The side of the detergent compartment is marked with lines to help you determine how much powder to add.

The capacity of the detergent container is 15 ml up to the bottom line and 25 ml up to the middle line. When the compartment is full it contains 40 ml.

Important

If the lid on the detergent compartment is closed, press the release lever to open the flap.

Adding detergent

- Tip detergent powder into the 27

Please observe the manufacturer's instructions printed on the detergent packaging when determining the correct dosage.

When you select the INTENSIVE programme, tip an extra 10-15 ml of detergent onto the inside surface of the door.

Reduce costs!

If you are using the upper rack only, or if your dishes are only moderately dirty, it will normally suffice to employ a reduced amount of detergent than otherwise recommended.

- Close the lid on the detergent compartment. Press down the lid (1) until it clicks shut (2).

- If you are using detergent in tablet form, read the manufacturer's recommendations on the packaging in order to determine where the tablets should be placed inside the dishwasher (e.g. in cutlery basket, detergent compartment, etc.).

Make sure that the lid on the detergent compartment is closed, even if you are using tablets.

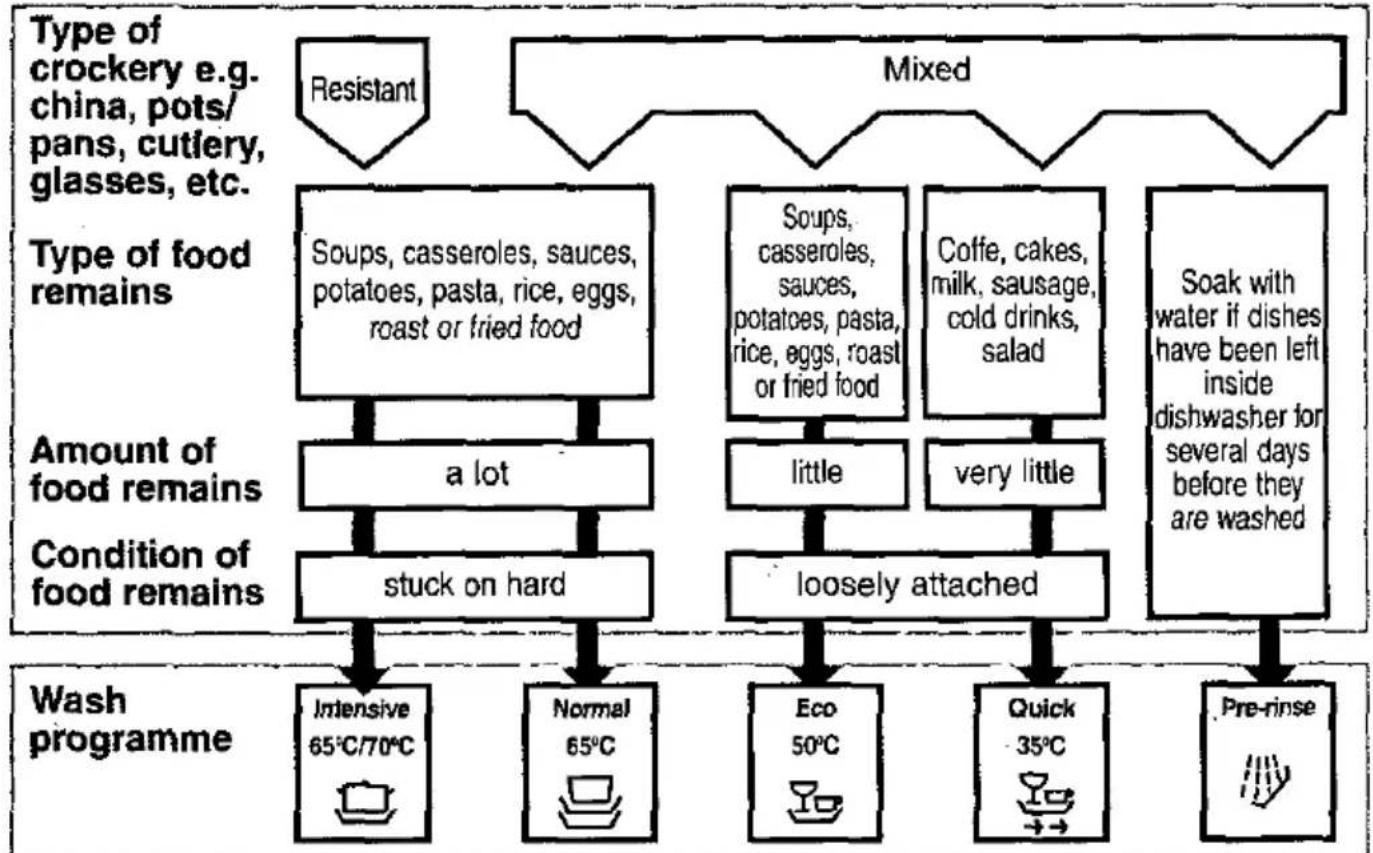

Programme overview

This overview lists the max. possible number of programmes. The programmes supplied with your appliance are indicated on the fascia.


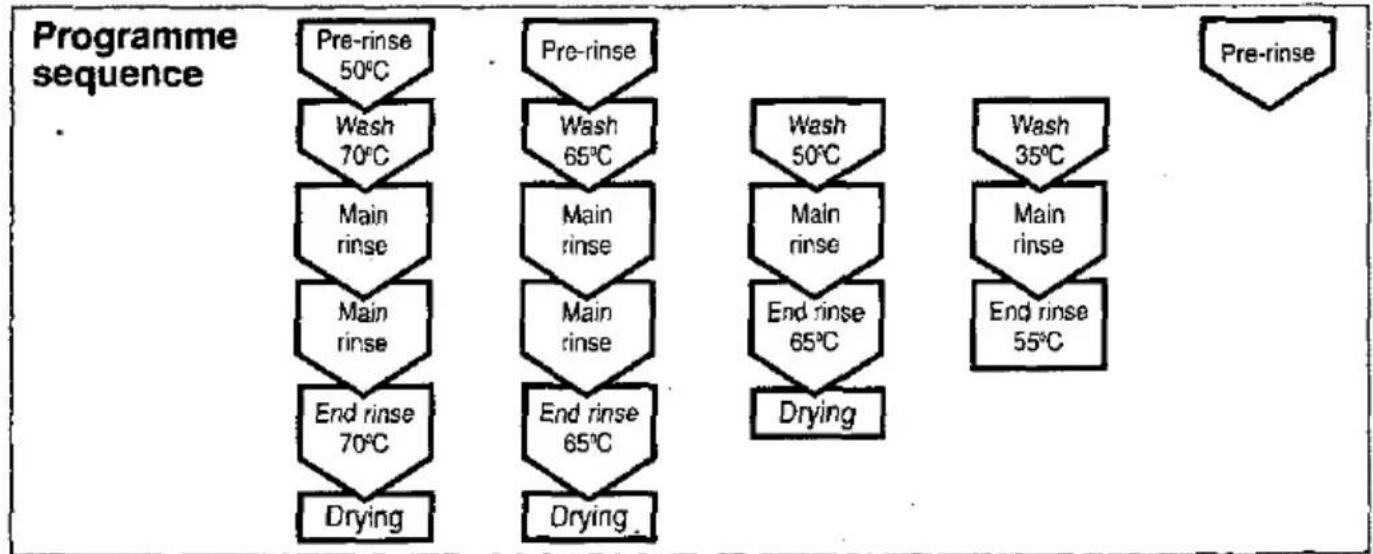


    H["Pre-rinse"] --> I["Wash 65°C"]
    I --> J["Main rinse"]
    J --> K["Main rinse"]
    K --> L["End rinse 65°C"]
    L --> M["Drying"]

    N["Wash 50°C"] --> O["Main rinse"]
    O --> P["End rinse 65°C"]
    P --> Q["Drying"]

    R["Wash 35°C"] --> S["Main rinse"]
    S --> T["End rinse 55°C"]

    U["Pre-rinse"] --> V["End rinse"]

Programme details	Laboratory measured value in accordance with European Standard EN 50242
Duration in minutes	99	96	90	30	13
Electricity consumption in kWh	2,0	1,75	1,44	0,80	0,10
Water consumption in litres	26	26	18	15	5

Washing dishes

Programme selection

The most appropriate programme can be identified by comparing the type of crockery, cutlery, etc., as well as the amount and condition of food remains, with the details contained in the programme overview.

The corresponding programme sequence, duration and consumption details are shown in the bottom half of the overview.

For example:

Use the "Normal" programme for dishes and utensils which have plenty of food remains stuck on hard.

Reduce costs!

If only small number of dishes have been loaded into the dishwasher, selecting a programme that operates at the next lowest temperature will usually suffice.

Programme data

The stated programme data are based on standard operating conditions. The values can vary considerably according to:

• different amounts of dishes
• temperature of mains water supply
• pressure of mains water supply
• ambient temperature
• fluctuations in mains voltage
• machine-related factors (e.g. temperature, water volume, ...).

Energy and water consumption is reduced by up to 1/4 when dishes are washed in the upper basket only.

Water consumption values are based on a water hardness setting of 4.

Switching the dishwasher ON

• Set main switch 1 to ON. Indicators light up according to the last programme that was selected. This same programme will run again if no other programme button is pressed.
• The programme starts automatically.

End of programme

The programme has ended when a light 3 turn on.

Switching the dishwasher OFF

Several minutes after the programme has ended:

• Set the main switch 1 to OFF.
• Turn the water tap off. (Does not apply when Aqua-Stop unit has been fitted)
• Remove dishes, etc. when they have cooled down.

Interrupting the programme

• Set main switch 1 to OFF.
• Indicator lights extinguish. The programme is retained in the dishwasher memory.
• If the hot water was switched ON or the appliance has already heated up and then the appliance door opened, leave the door ajar for several minutes and then close. Otherwise, the appliance door may fly open due to expansion.
• In order to continue with the stored programme, set the main switch to ON again.

GB

Washing dishes

Cancel programme (Reset)

• Only when the master switch is ON. Press the "reset" or "new selection" buttons simultaneously, and hold them pressed for approx. 3 seconds.
• The programme continues for approx. 1 min.
• When it has ended, set the main switch to OFF.
• Close the detergent compartment.

To restart the dishwasher, set main switch 1 to ON again and select desired programme.

Changing the programme

You can change the selected programme on the first 2 minutes after switching on the dishwasher.

If you wish to change a selected programme when it's running, first finish stages initialized before you can change it.

Care and maintenance

Regular inspection and maintenance of your appliance helps to prevent problems from occurring. This saves time and aggravation. You should therefore carefully inspect the inside of your dishwasher from time to time.

Overall condition of appliance

• Check that no grease or scale has accumulated on the inside of the dishwasher.
• If you discover any deposits: Clean the interior of the dishwasher thoroughly with a detergent solution.

Special dishwasher salt

Check the LOW SALT indicator 5. Top up with salt, if required.

Rinse-aid

Check the LOW RINSE-AID indicator 6 on the front panel or the level indicator on the rinse-aid container 27. Top up with rinse-aid, if required.

Care and maintenance

Filters

The filters 23 prevent larger remnants of food or other objects from getting inside the pump. This residue can occasionally clog up the filters.

The filter system consists of a filter cylinder, a flat fine filter and, depending on the model, a microfilter (*).

Inspect the filters for obstructions every time the dishwasher has been used.

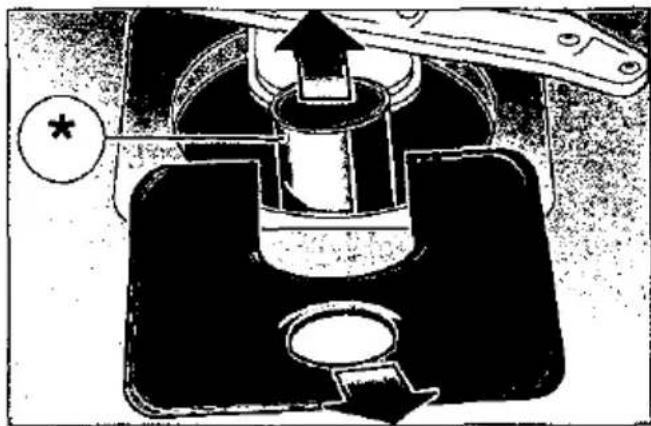

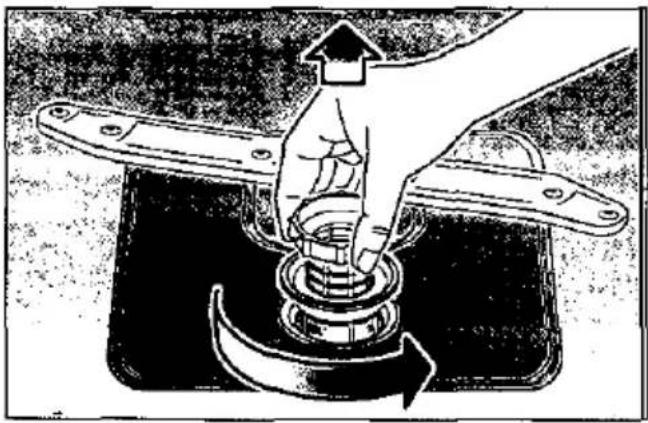

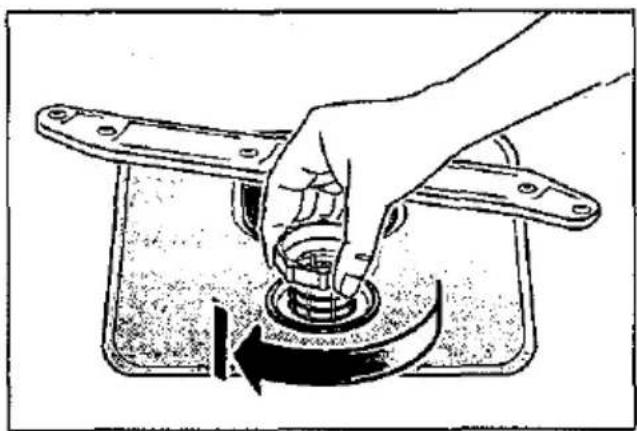

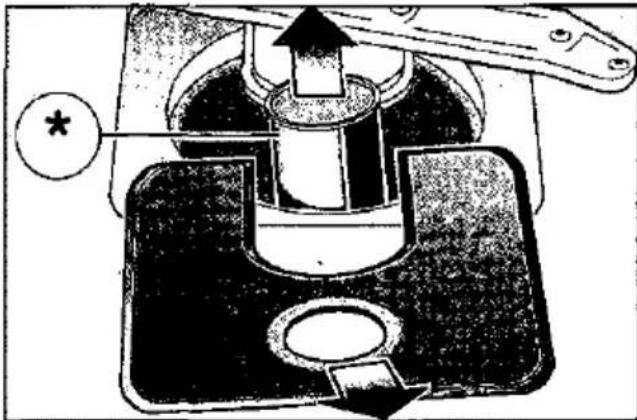

By unscrewing the filter cylinder, you can remove the filter system. Remove any food remnants and clean the filters under running water.

Illustration of a hand pressing down on a mechanical component with a curved arrow indicating rotation (no text or symbols)

Cross-sectional diagram of a mechanical device showing internal components and directional arrows (no text or labels)

Reassembly: Insert the filter system and screw down with the filter cylinder.

Hand turning a mechanical component into a circular housing (no text or symbols visible)

Care and maintenance

Spray arms

Lime and remnants of food in the washing water can block the nozzles in the spray arms 20 and 22 and the arm mountings.

• Inspect the nozzles in the spray arms for blocked holes due to remnants of food.
• If necessary, pull the lower arm 22 upwards and lift it off.
• Unscrew the upper spray arm 20.
• Clean both spray arms under running water.
• Refit the spray arms. Ensure that the lower arm has locked into place and the upper one is screwed tight.

Pump

Larger remnants of food that have not been trapped by the filters and have been left in the water can cause a blockage in the pump. The water is no longer pumped out of the dishwasher and it can be seen covering the filter.

Proceed as follows:

• Ladle out as much water as possible.
• Remove the filters 23.

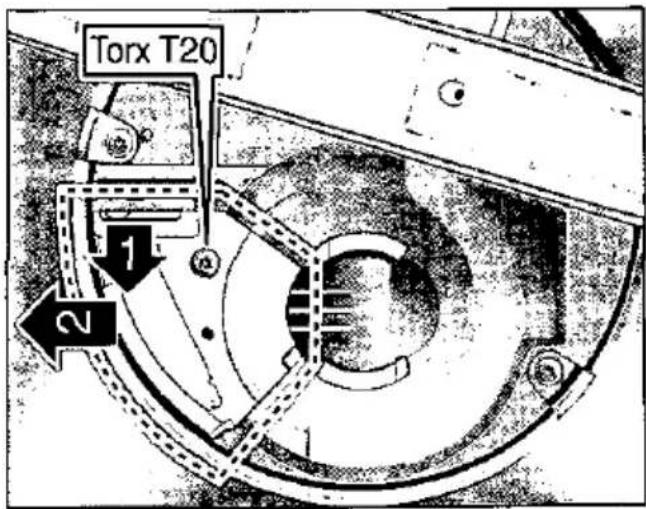

• Undo the screw in the cover (Torx T 20) and remove the cover.
• Inspect the inside and remove any obstructions that you find.
• Re-insert the cover and screw down.
• Re-insert the filters and screw down.

Diagram of a mechanical device with three blades and a base, showing a process with an arrow indicating motion (no text or symbols present)

Spray arms

Fault finding

Resolving minor problems yourself

Experience has shown that you can resolve most problems that arise during normal daily usage yourself, without having to call out a service engineer. Not only does this save costs, but it also means that the appliance is available for use again that much sooner. The following list of common occurrences and their remedies should help you identify the causes of most problems.

Problems ...

... when the appliance is switched on

• Appliance does not start up

• Fault with fuse in mains electricity supply.
• Plug not inserted in wall socket.
• Appliance door not closed properly.
• Water tap not turned on.

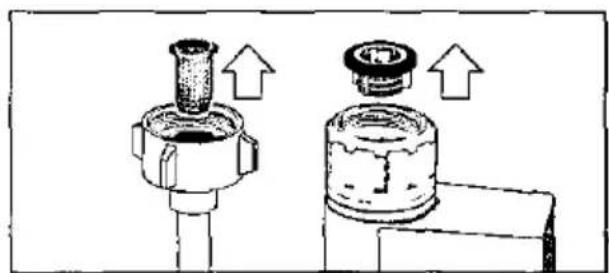

• Blocked strainer in water intake hose. The strainer is situated in the Aquastop or supply-hose connection.

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols present)

Caution

Do not forget that repairs should only be carried out by a qualified specialist. Improper repairs can lead to considerable equipment damage as well as danger to the user.

... with the appliance itself

• Lower spray arm rotates with difficulty

- Spray arm is blocked by small items or food remains.

• Lid in detergent compartment cannot be closed

• Detergent compartment has been overfilled.
• Mechanism is clogged with remnants of detergent. Indicator lamps do not extinguish after washing has finished.

- Indicator lamps do not extinguish after washing has finished

- Main switch is still set to ON.

- Remnants of detergent stuck inside dispenser

- Compartment was damp when it was filled up with detergent. Compartment must be dry before detergent is added

Fault finding

• Water remains inside appliance after programme has ended

• Blockage or kink in drainage hose.
• Pump is jammed.
• Filters are blocked.
• The programme is still running. Wait for the programme to end (numerical display will indicate 0).
• Perform "Reset" function.

... during washing

• Unusual amount of foam is created

- Normal washing up liquid has been poured into the rinse-aid container.

• Appliance stops suddenly while washing is taking place

• Cut in electricity supply to appliance.
  – Water supply has been interrupted.

- Knocking sound can be heard while washing is taking place

- A spray arm is knocking against the dishes inside the appliance.

- Rattling sound can be heard while washing is taking place

- Crockery has not been stacked properly inside the appliance.

- Knocking sound coming from inlet valves

- This is caused by the way the water pipes have been laid and it has no effect upon the way the appliance functions. There is no remedy for this.

... with the dishes, cutlery, etc.

- Remnants of food are stuck to the dishes, cutlery, etc.

• Dishwasher was not loaded properly. Jets of water could not reach all parts of the dishes, etc.
• Too many items in the rack.
• Items in the rack were touching each other.
• Not enough detergent was added to dispenser.
• Selected wash programme was not intensive enough.
• Rotation of spray arm was obstructed by dish, etc.
• Nozzles in spray arm are blocked by remnants of food.
• Filters are blocked.
• Filters have been incorrectly fitted.
• Waste-water pump is jammed.

- Plastic items are discoloured

• Not enough detergent was added to dispenser.
• Detergent has insufficient bleaching properties. Use a detergent containing a chemical bleaching agent.

Fault finding

- White stains are left on crockery, glasses have a milky appearance

• Not enough detergent was added to input compartment.
• Amount of rinse-aid was set too low.
• Although water is quite hard, no salt has been put in appliance.
• Water softener was set too low.
• Lid on salt container is not screwed tight.
• If you used a phosphate-free detergent, try a detergent containing phosphates and compare results.

• Dishes, cutlery, etc. have not been dried

– Selected programme did not include drying function.
- Amount of rinse-aid was set too low.
- Items were removed from dishwasher too soon.

• Glasses have a dull appearance

- Amount of rinse-aid was set too low.

• Tea stains or traces of lipstick have not been completely removed

• Detergent does not have a sufficient bleaching effect.
• Washing temperature was set too low.

• Traces of rust on cutlery

• Cutlery is not sufficiently rustproof.
• Salt content in washing water is too high.
• Lid on salt container is not screwed tight.
• Too much salt was spilt while filling container.

• Glasses become clouded and discoloured; coating cannot be wiped off

• Unsuitable detergent was used.
• Glasses are not dishwasher-proof.

- Smears left behind on glasses and cutlery; glasses have acquired a metallic appearance

- Amount of rinse-aid set too high.

Customer Service

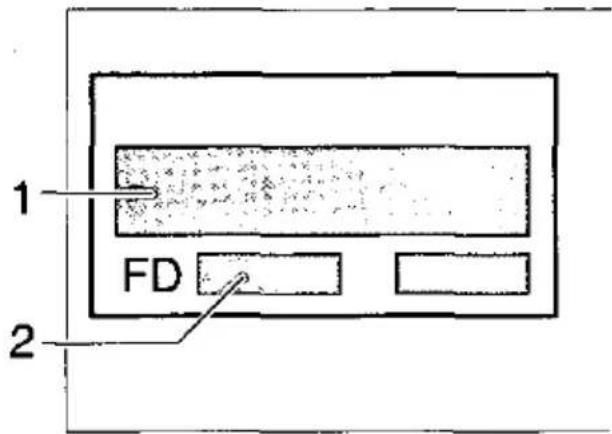

Please call your local service agent, if you are not able to resolve any problem yourself. The name of your nearest service agent is shown in the Customer Service address list. When you call, please provide details of the model number (1) and the production (FD) number (2) which are shown on the nameplate on the appliance door.

Other information

Notes on waste disposal

Old appliances still have some residual value. An environment-friendly method of disposal will ensure that valuable raw materials can be recovered and used again.

When an appliance has reached the end of its working life, unplug it from the mains. Cut through the mains cable and dispose of it together with the plug.

Destroy the door locking mechanism. This will ensure that children at play cannot become locked inside and are not exposed to the risk of suffocation.

Your new appliance was protected by suitable packaging while it was on its way to you. All materials used for this purpose are environment-friendly and can be recycled. Please make a contribution to protecting the environment by disposing of the packaging appropriately.

Do not allow children to play with any parts of the packaging. There is a risk of suffocation by the cardboard boxes and the plastic wrapping.

Up-to-date information concerning options for disposal can be obtained from your retailer or local municipal administration.

Other Information

Information on comparability tests implemented in compliance with EN 50242

Appliance loaded in accordance with standard specifications.

Example of loaded dishwasher: see Figs. A-D

Capacity: 12 place settings

Comparability programme: Eco.

Rinse-aid setting: 4

Height-adjustable top-basket must be inserted in the uppermost position.

If the comparability tests do not comply fully EN 50242, e.g. degree of soiling, type of dishes and cutlery, etc., contact the appliance manufacturer before starting the test.

Black-and-white illustration of a tray with various food items including sliced vegetables, bread, and cheese (no text or symbols)

Fig. A

Illustration of a mechanical device with multiple coiled components and internal components (no text or symbols)

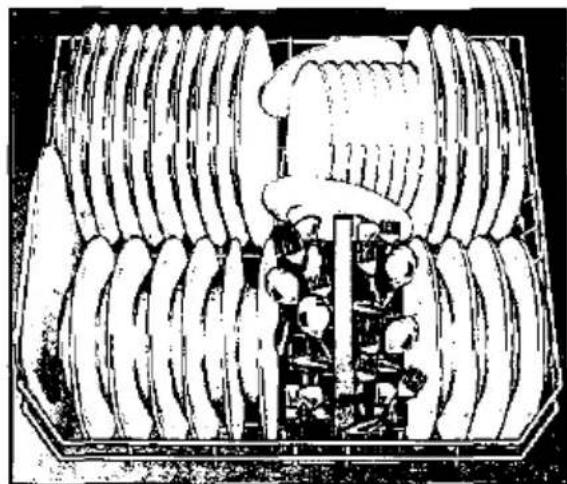

Fig. B

Black-and-white illustration of two vertical cylindrical objects with textured surfaces and decorative elements (no visible text or symbols)

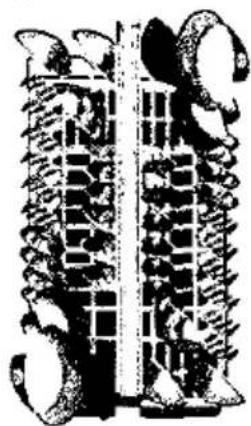

Fig. C

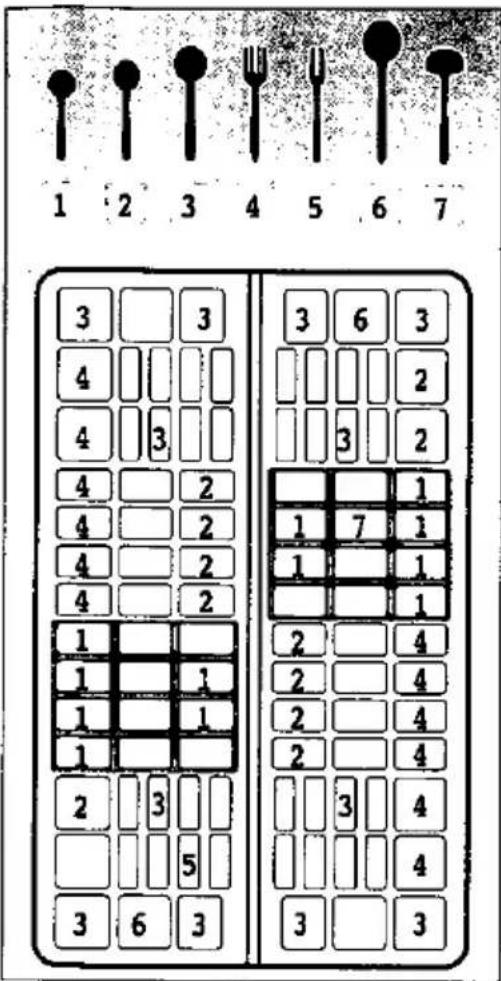

Fig. D

General information

Measures must be taken to ensure that built-under and built-in units that are subsequently re-sited as free-standing appliances cannot topple over. This can be achieved by bolting the dishwasher to the wall or fitting it under a continuous work surface which is screwed to the adjacent cupboards.

Installation

In order to function correctly the dishwasher must be properly installed. Specifications for the water intake and waste-water drainage, as well as electrical connections, must fulfil the criteria that are set out in the following paragraphs and the installation instructions.

When installing the dishwasher, carry out tasks in the following order:

• check contents of delivery upon receipt,
• site dishwasher,
• connect drainage hose,
• connect inlet hose to water supply,
• connect dishwasher to electricity supply.

Checking contents of delivery

All functions of your dishwasher have been thoroughly tested in the factory. A small number of water marks have been left on the dishwasher as a result. They disappear as soon as the appliance is used for the first time.

Siting the dishwasher

Dimensions associated with siting the dishwasher are contained in the installation instructions. Ensure that the appliance is completely level by adjusting the feet. Make sure that it is standing on a firm surface.

Drainage connection

See the installation instructions for details of procedure to be followed.

If necessary, fit a siphon trap (U-bend) with a connecting piece for the drainage hose. Connect the drainage hose to the trap using the enclosed parts.

Fresh-water connection

Connect the inlet hose to a water tap using the enclosed parts and in accordance with the installation instructions.

Water pressure:

Minimum 0,5 bar - maximum 10 bar.

If the water pressure is higher, install a pressure reducing valve.

Flow rate:

Minimum of 10 litres per minute.

Water temperature:

We recommend that you use cold water.

If you do use hot water, the temperature should not exceed 60°C.

Installation

Electrical connection

This appliance should only be connected to a 230/240 V AC source via a properly installed earthed socket. See nameplate for size of required fuse.

The socket must be installed close to the dishwasher.

If you need to extend the mains connecting lead, do not cut off the plug. Replace the whole cable, which can be disconnected at the junction box on the rear of the appliance.

If the domestic wiring includes a residual- current-operated (FI) circuit-breaker, make sure that it bears the mark, as only this type conforms to the latest regulations

Disconnecting the dishwasher

Here too, it is important that tasks are carried out in the correct sequence: always unplug the appliance from the mains electricity first of all.

Pull plug out of wall socket.

Turn off water supply.

Disconnect drain and water input hoses.

Remove screws in underside of work surface. Detach base board, if fitted.

Pull out appliance and carefully withdraw hoses at same time.

Transporting the dishwasher

Drain water from the dishwasher. Secure all loose parts. The appliance should only be transported in an upright position.

If the appliance is not kept upright during transport, any water left inside may seep into the control module and cause subsequent errors with programme functions.

Protection from freezing temperatures

If the appliance is installed in a location where there is a risk of freezing temperatures (e.g. in a holiday home), all water must be completely drained out of the interior (see "Transporting the dishwasher").

Turn OFF the tap, disconnect the supply hose and allow to drain.

Illustration of a funnel pouring granular material into a conical container with a gear mechanism nearby (no text or symbols)

Hand pressing down on a mechanical component with arrows indicating motion (no text or symbols)

Line drawing of a laboratory setup with a dropping funnel, beaker, and control panel (no text or symbols)

Remarque

Line drawing of a device with labeled components and a screen (no text or symbols)

Black-and-white illustration of a shopping cart filled with various items (no visible text or symbols)

Casseroles

Illustration of a kitchen sink with plates, utensils, and a tray (no text or symbols)

Couverts

Illustration of a person climbing stairs with a hand reaching toward it (no text or symbols)

Illustration of a shopping cart with a fruit and a person holding a large bowl, no text or symbols present.

Illustration of a construction site with scaffolding, steel beams, and workers (no text or symbols)

L'étagère (\*)

Diagram of a grid-patterned structure with an arrow pointing to a specific area (no text or symbols present)

Technical diagram showing two mechanical assembly steps with pulleys and rotating components (no text or labels)

Détergent

Illustration of a hand pressing down on a mechanical component with a curved arrow indicating rotation (no text or symbols)

Cross-sectional diagram of a mechanical device with internal components and an arrow indicating motion (no text or symbols)

Hand turning a mechanical component with a rotating arrow (no text or symbols visible)

Diagram of a mechanical device with a propeller and base, showing a downward force application (no text or symbols)

Bras pivotants

Pompe de vidange

Détction des pannes

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols present)

Attention

Contenance 12 couverts standard.

Black-and-white illustration of a tray with various items including a large bowl, rings, and containers (no text or symbols)

Fig. A

Black-and-white illustration of a mechanical device with multiple circular components and a central knob (no text or symbols)

Fig. B

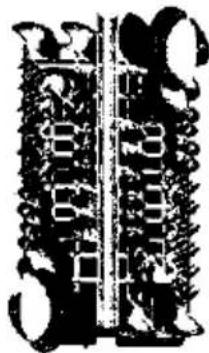

Fig. C

Fig. D

Généralités

Illustration of a funnel pouring granular material into a mechanical component (no text or symbols visible)

Zout bijvullen

Hand pressing down on a device component with arrows indicating force or movement (no text or symbols)

Illustration of a laboratory setup with a hand pouring liquid into a gas stove and a control panel (no text or symbols visible)

Attentie

Simple line drawing of a device with no text, numbers, or symbols visible

Black-and-white illustration of a shopping cart filled with various items (no visible text or symbols)

NL

Illustration of a kitchen sink with plates and utensils (no text or symbols)

Bestek

To improve stacking of pots and pans, the spikes can be folded down.

Line drawing of a hand using a tool to adjust or install a component inside a metal frame (no text or symbols)

Illustration of a food delivery box with a plate and directional arrows indicating loading or movement (no text or symbols)

Illustration of a construction or steel framework with tools and structural elements, no visible text or symbols

De etagère (\*)

Diagram of a grid-like structure with an arrow pointing to a specific area, no text or symbols present.

Diagram of a mechanical assembly with pulleys and a directional arrow (no text or symbols)

Technical diagram of a mechanical assembly with pulleys and a central shaft (no text or labels)

Afwasmiddelen

Attentie

Mechanical assembly diagram showing a rotating shaft, flange, and housing components with directional arrows indicating motion (no text or labels)

Mechanical assembly diagram showing a propeller being lifted by a valve, with no visible text or symbols

Sproeiarmen

NL

Opsporing van storingen

Technical line drawing of a mechanical component with two views showing upward motion (no text or symbols)

Attentie

- De servieskorf was te vol.

Top-down line drawing of a plastic tray filled with various kitchen utensils (no text or symbols)

afb. A

Illustration of a mechanical device with multiple rollers and internal components (no text or symbols)

afb. B

Illustration of two buildings with windows and a cloud-like structure, no visible text or symbols

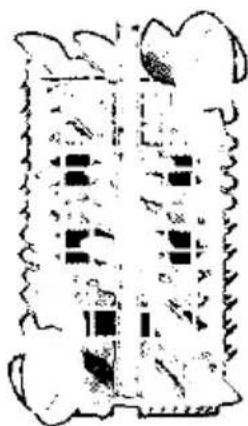

afb. B

Attentie

afb. D

Algemeen
