USER MANUAL VIBE 236 Lanzar
1600 63rd Street, Brooklyn, NY 11204
(718) 236-8000
www.lanzar.com
Lanzar®
AMERICAN CRAFTED
PERFORMANCE
VIBE226
VIBE236
VIBE246
VIBE256
VIBE266
VIBE276
VIBE286
VIBE416
VIBE426
VIBE436
Congratulations on your purchase of a Lanzar Vibrant amplifier. You have purchased a quality product designed and engineered to give you many years of uncompromised musical service. VIBE amplifiers are designed with the latest technology available, which provides headroom for even the most demanding peaks and dynamic ranges found on modern CD's and recordings.
TABLE OF CONTENTS
Table of Contents
Feature and Controls
-
VIBE 226/236/246/256/266/276/286
-
VIBE 416/426/436
-
Installation
-
Specifications
System Wiring
6.2 channel stereo
7.2 channel bridged mode
8.2 channel tri-mode
9.2 channel triamp system
10.4 channel stereo
11.4 channel bridged mode
12.4 channel tri-mode
- Precautions
14.Troubleshooting
15.Notes
- INPUT LEVEL CONTROLS
Enables the matching of input levels to the output levels from head unit (or other signal source).
- CROSSOVER MODE SELECTOR
Determines the mode of built-in crossover:
low pass (permits only low frequency signals to pass to speakers), high pass (permits only high frequency signals to pass to speakers), or flat.
- BASS BOOST CONTROL
With a bass hoist switch engaged, the bass level is increased approx 18dB.
- REMOTE BASS BOOST
Plug in the remote bass hoast control wire in here
- POWER & PROTECTION INDICATORS
Provide instant information on status of amplifier, Including short-circuit and thermal overload alerts.
- HIGH PASS FILTER (IIPF)
When Crossover Mode Selector is in High Pass Mode, this control limits the frequencies which will be distributed to the speakers to those below the value to which this is set within the range 80-2.5KHz.
- LOW PASS FILTER (LPF)
When Crossover Mode Selector is in Low Pass Mode, this control limits the frequencies which will be distributed to the speakers to those below the value to which this is set within the range 25-400Hz.
Lancore Viocrent Owner's Manual
Lancor Vivierant Owner's Manual

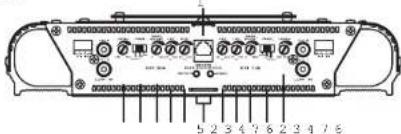

Features and Controls Installation VIBE 416/426/436
1. REMOTE BASS BOOST
Plug in the remote bass boost control wire in here
2. INPUT LEVEL CONTROLS
Enables the matching of input levels to the output levels from head unit (or other signal source).
3. CROSSOVER MODE SELECTOR
Determines the mode of built-in crossover: low pass (permits only low frequency signals to pass to speakers), high pass (permits only high frequency signals to pass to speakers), or flat.
4. BASS BOOST CONTROL
With a bass boost switch engaged, the bass level is increased approx 18dB.
5. POWER & PROTECTION INDICATORS
Provide instant information on status of amplifier, including short-circuit and thermal overload alerts.
6. HIGH PASS FILTER (HPF)
When Crossover Mode Selector is in High Pass Mode, this control limits the frequencies which will be distributed to the speakers to those below the value to which this is set within the range 80-2.5KHz.
7. LOW PASS FILTER (LPF)
When Crossover Mode Selector is in Low Pass Mode, this control limits the frequencies which will be distributed to the speakers to those below the value to which this is set within the range 25-400 Hz.
Viberant Owner's Manus 2
-
Find a suitable location in the vehicle to mount the amplifier.
-
Make sure there is sufficient air flow around the intended mounting location.
-
Bok the amplifier to the mounting surface.
-
Connect the power ground terminal to the nearest point on the chassis of the car. Keep this ground wire less than one meter (39") in length. Use 8 gauge wire.
-
Connect the remote terminal to the remote output of the head unit using 14 gauge wire.
-
Connect an empty fuse holder within 300mm (12") of the battery and run 8 gauge of larger high quality cable from this fuse to the amplifier location.
-
Make sure there is no fuse in this fuse holder. Then make the connection to the "BATT" connection on the amplifier.
-
If multiple amplifiers are being used, use cables (each with its own fuse at the battery) or a #0 or #2 cable from the fuse holder at the battery to a distribution block at or near the amplifier's location.
-
Connect all line inputs and outputs using high-quality RCA-RCA cables.
-
Insert fuse(s) at the battery fuse holder(s).
-
Recheck all connections before powering up.
-
Set all level controls to their least sensitive positions and set all crossover controls, switches, etc. to the desired frequency or position.
-
Once the system is powered up, set the volume control on the head unit to about the 2 o'clock position, and then set all the amplifiers' level controls for maximum output level.
-
Further line tuning of the various controls may be necessary to obtain the desired results.
Viberart Owner's Manus - 3
Specifications
| MODE | VIBE 226 2-charged amplifier | VIBE 236 2-charged amplifier | VIBE 246 2-charged amplifier | VIBE 256 2-charged amplifier | VIBE 266 2-charged amplifier |
| SPIE at 4 Ohms | 2 × 300 W | 2 × 75 W | 2 × 100 W | 2 × 125 W | 2 × 150 W |
| MOS at 4 Ohms | 2 × 400 W | 2 × 500 W | 2 × 600 W | 2 × 800 W | 2 × 1000 W |
| At 4 Ohms Bridged | 1 × 900 W | 1 × 1000 W | 1 × 1200 W | 1 × 1600 W | 1 × 2000 W |
| SPIE at 2 Ohms | 2 × 80 W | 2 × 100 W | 2 × 150 W | 3 × 200 W | 3 × 250 W |
| Min. Speaker Impedance | 2ohm | 2ohm | 2ohm | 2ohm | 2ohm |
| T-B | 0.04% | 0.04% | 0.04% | 0.04% | 0.04% |
| Frequency Response | 15Hz - 35KJ/x,dB | 15Hz - 35KJ/x,dB | 15Hz - 35KJ/x,dB | 15Hz - 35KJ/x,dB | 15 35KJ/x,dB |
| Input Sensitivity | 250mV - 500cmV | 250mV - 500cmV | 250mV - 500cmV | 250mV - 500cmV | 250mV - 500cmV V |
| Input Impedance | 22kcal/m | 22kcal/m | 22kcal/m | 22kcal/m | 22kcal/m |
| SPIR Rate | >90dB | >90dB | >90dB | >90dB | >90dB |
| Chordant Sustained | >65dB | >65dB | >65dB | >65dB | >65dB |
| Cross-Channel Low Pass High Pass | 35Hz - 100Hz 80Hz - 2.50KJ/x | 35Hz - 100Hz 80Hz - 2.50KJ/x | 35Hz - 100Hz 80Hz - 2.50KJ/x | 15Hz-400Hz80Hz-2.50KJy | 35Hz - 90Hz 80Hz - 2.50KJ/x |
| Base Boost | +8dB | +8dB | +8dB | +8dB | +8dB |
| Dimensions (Wx/KL) | 11.05 × 2.24 × 0.25^ | 11.06 × 2.24 × 0.02^ | 11.06 × 2.24 × 0.13^ | 11.06 × 2.24 × 0.13^ | 11.06 × 2.24 × 0.13^ |
| Fuse(s) | 15A | 20A | 30A | 30A | 20A×2 |
Laner Viberant Owner's Manus 4 -
Specifications
| VIBE 276 VIBE 286 VIBE 430 VIBE426 VIBE | 4 chugal amplifier | 4 chugal amplifier | ||
| 2 x 200W 2 x 300W 4 x 35W 4 x 50W 4 x 75W | ||||
| 2 x 1200W 2 x 2000W 4 x 250W 4 x 400W 4 x 500W | ||||
| 1 x 2100W 1 x 4000W 2 x 500W 2 x 800W 2 x 1000W | ||||
| 2 x 300W 2 x 450W 4 x 55W 4 x 80W 4 x 120W | ||||
| 2 ohm 2 ohm 2 ohm | 2 ohm | 2 ohm | ||
| 0.04% | 0.04% | 0.04% | 0.04% | 0.04% |
| 15Hz-35KHz, 1dB | 15Hz-35KHz, 1dB | 15Hz-35KHz, 1dB | 15Hz-35KHz, 1dB | 15Hz-35KHz, 1dB |
| 250mV-5000mV | 250mV-5000mV | 250mV-5000mV | 250mV-5000mV | 250mV-5000mV |
| 22 Kohm | 22 Kohm | 22 Kohm | 22 Kohm | |
| >90dB | >90dB >90dB >90dB >90dB | |||
| >65dB | >65dB | >65dB | >65dB | >65dB |
| 35Hz-400Hz80Hz-2.50KHz | 35Hz-400Hz80Hz-2.50KHz | 35Hz-400Hz80Hz-2.50KHz | 35Hz-400Hz80Hz-2.50KHz | 35Hz-400Hz80Hz-2.50KHz |
| +18dB | +18dB | +18dB | +18dB | +18dB |
| 11.06"x2.24"x9" | 11.06"x2.24"x21" | 11.06"x2.24"x12" | 11.06"x2.24"x15" | 11.06"x2.24"x17" |
| 25A×2 | 35A×2 | 20A | 30A | 20A×2 |
Lanzar Viberart Owner's Manus - 5

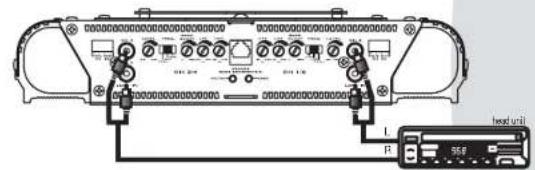

System Wiring System Wirin

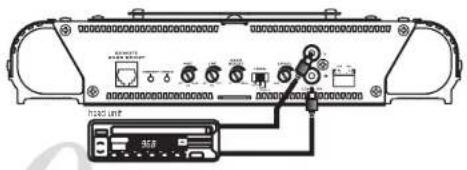

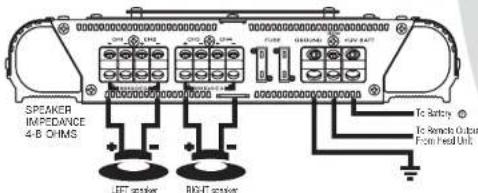

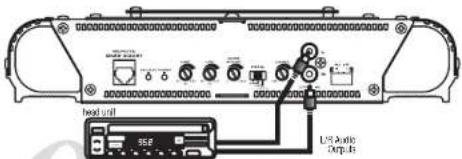

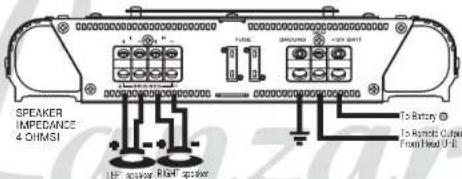

2 CHANNEL STEREO CONFIGURATION
FRONT
REAR
Viberant Owner's Manual 6

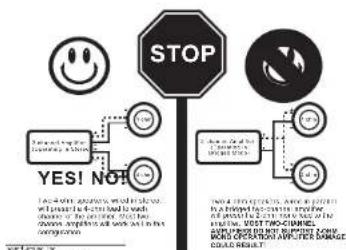

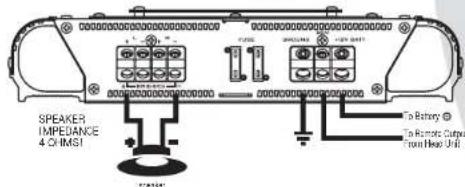

VIBE 226/236/246/256/266/276/286 VIBE 226/236 CHANNEL/BRIDDED MODE CONFIGURATION
FRONT
REAR
Viberart Owner's Manus - 7
System Wiring

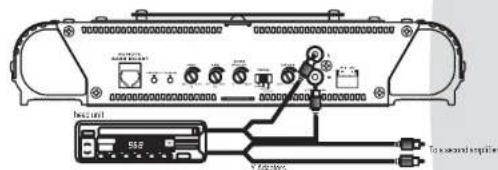

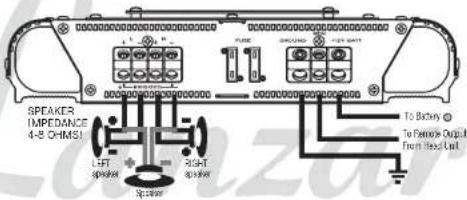

2 CHANNEL TRI-MODE CONFIGURATION
VIBE 226/236/246/256/266/276/286
FRONT
REAR
L
Viberant Owner's Manual 8
System Wiring

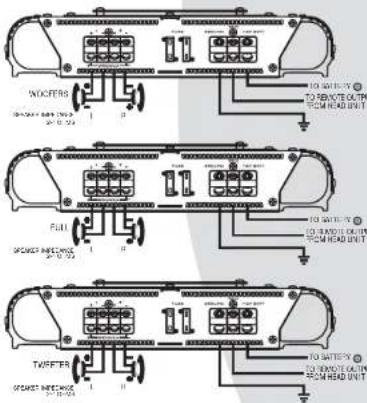

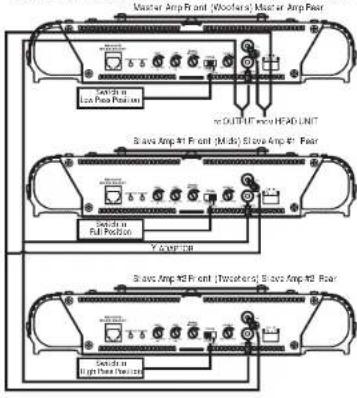

VIBE 226/236/246/256/266/276/286 TRIAMP SYSTEM USING THREE 2 CHANNEL AMPLIFIERS
Lance Viberant Owner's Manual - 9
System Wiring

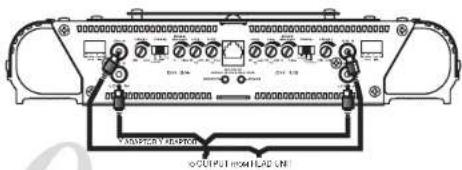

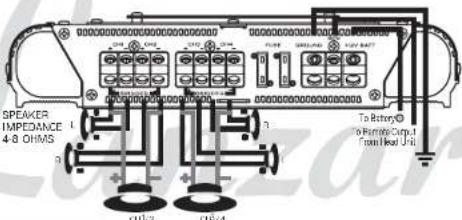

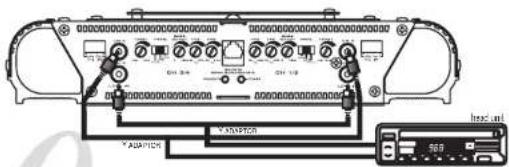

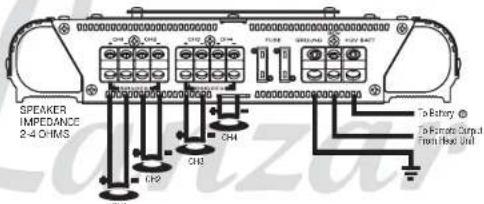

4 CHANNEL STEREO CONFIGURATION
VIBE 416/426/436
VIBE 416/426/436
System Wiring

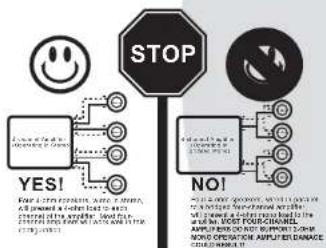

4 CHANNEL BRIDGED MODE CONFIGURATION
FRONT
REAR
Lanzer Viberant Owner's Manual 10-
FRONT
Lamore Viberant Owner's Manus-11
System Wiring
4 CHANNEL TRI-MODE CONFIGURATION
VIBE 416/426/436
FRONT
REAR
Lanzer Viberant Owner's Manual 12-
Precautions
- Before you drill or cut any holes, investigate your car's layout very carefully. Take care when your work near the gas tank, fuel lines, hydraulic lines and electrical wiring.
- Do not operate the amplifier when it is unmounted. Attach all audio system components securely within the automobile to prevent damage, especially in an accident.
- Do not mount this amplifier so that the wire connection, or likely to be damaged by nearby objects. Be sure to select a location inside your vehicle which has adequate ventilation.
- Before making or breaking power connections in your system, disconnect the vehicle battery. Confirm that your head unit or other equipment is turned off while connecting the input jacks and speaker terminals.
- If you need to replace the power fuse, only replace it with a fuse identical to that supplied with the system. Using a fuse of a different type or rating may result in damage to your system which isn't covered by the manufacturer's warranty.
Amplifier Will Not Power Up.
- Check for good ground connection.
- Check that remote DC terminal has at least 12V DC.
- Check that there is battery power on the '+' terminal.
- Check all fuses.
- Check that Protection LED is not lit. If it is lit., shot off amplifier briefly and then repower it.
Lamme Viberant Owner's Manus-15
Troubleshooting
High Hiss Or Engine Noise (Alternator Whine) In Speakers.
- Disconnect all RCA inputs to the amplifier(s) if hiss/noise disappears, then plug in the component driving the amplifier and unplug its inputs. If hiss/noise disappears, go on until the faulty/noisy component is found.
- It is best to set the amplifier's input level as low as possible. The best subjective SI'N ratio is obtainable this way. Try to drive at high a signal level from the head unit as possible.
Protection Led Comes On When The Amplifier Is Powered Up
- Check for shorts on speaker leads.
- Check that the volume control on the head unit is turned down low
- Remove speaker leads, and reset the amplifier. If the Protection LED still comes on, then the amplifier is faulty.
Amplifier (S) Gets Very Hot
- Check that the minimum speaker impedance for that model is correct.
- Check for speaker shorts.
- Check that there is good airflow around the amplifier. In some applications, an external cooling fan may be required.
Distorted Sound
- Check that the level control(s) is set to match the signal level of the head unit.
- Check that all crossover frequencies have been properly set.
- Check for shorts on the speaker leads.
High Squeal Noise From Speakers
- This is almost always caused by a poorly-grounded RCA patch cord.
Lanee Viberant Owner's Manual 14-
Notes
