VIBE 256 - Car stereo Lanzar - Free user manual and instructions

Product Type	Car Stereo
Brand	Lanzar
Model	VIBE 256
DIN Size	Single DIN (Standard)
Chassis Dimensions (W x H x D)	178 mm x 50 mm x 110 mm
Weight	1.2 kg (2.6 lbs)
Power Supply	12V DC (Negative Ground)
Maximum Output Power	4 x 50 Watts
RMS Power Output	4 x 22 Watts
FM Tuner Frequency Range	87.5 – 108.0 MHz
AM Tuner Frequency Range	530 – 1710 kHz
USB Port	Yes (Front Panel)
AUX Input	Yes (3.5mm Jack)
Audio Features	EQ Presets, Bass/Treble Control, Loudness
Display Type	LCD with Adjustable Color
Remote Control	Included (IR)
Mounting Options	Screw Mount with Sleeve
Maintenance	Clean with a soft dry cloth. Do not use solvents.
Safety	Fuse Protection (Replace with same rating)
Spare Parts / Repairability	Contact Lanzar support for service parts
General Information	For use in 12V vehicles. Avoid extreme temperatures.

Frequently Asked Questions - VIBE 256 Lanzar

How do I install the Lanzar VIBE 256 car stereo?

First, disconnect the vehicle's negative battery terminal. Remove the existing stereo, connect the wiring harness (male to female), insert the mounting sleeve, slide in the VIBE 256, and secure with screws. Finally, reconnect the battery and test.

What are the exact dimensions of the VIBE 256?

The chassis measures 178 mm (width) x 50 mm (height) x 110 mm (depth). It fits standard single DIN slots.

Does the VIBE 256 support Bluetooth?

No, the VIBE 256 does not have built-in Bluetooth. It offers USB and AUX inputs for external devices.

How can I reset the stereo to factory settings?

Use a thin object (like a pen) to press the reset button located on the front panel. This will clear all settings and presets.

What is the maximum power output of this stereo?

The maximum power is 4 x 50 Watts (peak). The RMS (continuous) output is 4 x 22 Watts.

Can I use steering wheel controls with the VIBE 256?

The VIBE 256 does not have a dedicated steering wheel control input. An aftermarket adapter may be required.

How do I connect a USB device?

Plug your USB drive into the front USB port. The stereo will automatically detect and play MP3/WMA files. Use the controls to browse folders.

How do I set the clock on the VIBE 256?

Press the CLK button (or hold) until the hour blinks. Rotate the volume knob to set hour, press again to set minutes, then press CLK to confirm.

Does the VIBE 256 have a CD player?

No, this model does not include a CD/DVD disc player. It is a digital media receiver with USB/AUX.

What should I do if I get no sound from the speakers?

Check the speaker connections and ensure the mute function is off. Verify that the fader/balance settings are centered. Test with a known good speaker.

USER MANUAL VIBE 256 Lanzar

1600 63rd Street, Brooklyn, NY 11204

[phone]

www.lanzar.com

Lanzar®

AMERICAN CRAFTED

PERFORMANCE

VIBE226

VIBE236

VIBE246

VIBE256

VIBE266

VIBE276

VIBE286

VIBE416

VIBE426

VIBE436

Congratulations on your purchase of a Lanzar Vibrant amplifier. You have purchased a quality product designed and engineered to give you many years of uncompromised musical service. VIBE amplifiers are designed with the latest technology available, which provides headroom for even the most demanding peaks and dynamic ranges found on modern CD's and recordings.

TABLE OF CONTENTS

Table of Contents

Feature and Controls

1. VIBE 226/236/246/256/266/276/286

2. VIBE 416/426/436

3. Installation

4. Specifications

System Wiring

6.2 channel stereo

7.2 channel bridged mode

8.2 channel tri-mode

9.2 channel triamp system

10.4 channel stereo

11.4 channel bridged mode

12.4 channel tri-mode

1. Precautions

14.Troubleshooting

15.Notes

1. INPUT LEVEL CONTROLS

Enables the matching of input levels to the output levels from head unit (or other signal source).

1. CROSSOVER MODE SELECTOR

Determines the mode of built-in crossover:

low pass (permits only low frequency signals to pass to speakers), high pass (permits only high frequency signals to pass to speakers), or flat.

1. BASS BOOST CONTROL

With a bass hoist switch engaged, the bass level is increased approx 18dB.

1. REMOTE BASS BOOST

Plug in the remote bass hoast control wire in here

1. POWER & PROTECTION INDICATORS

Provide instant information on status of amplifier, Including short-circuit and thermal overload alerts.

1. HIGH PASS FILTER (IIPF)

When Crossover Mode Selector is in High Pass Mode, this control limits the frequencies which will be distributed to the speakers to those below the value to which this is set within the range 80-2.5KHz.

1. LOW PASS FILTER (LPF)

When Crossover Mode Selector is in Low Pass Mode, this control limits the frequencies which will be distributed to the speakers to those below the value to which this is set within the range 25-400Hz.

Lancore Viocrent Owner's Manual

Lancor Vivierant Owner's Manual

Features and Controls Installation VIBE 416/426/436

1. REMOTE BASS BOOST

Plug in the remote bass boast control wire in here

2. INPUT LEVEL CONTROLS

Enables the matching of input levels to the output levels from head unit (or other signal source).

3. CROSSOVER MODE SELECTOR

Determines the mode of built-in crossover: low pass (permits only low frequency signals to pass to speakers), high pass (permits only high frequency signals to pass to speakers), or flat.

4. BASS BOOST CONTROL

With a bass boost switch engaged, the bass level is increased approx 18dB.

5. POWER & PROTECTION INDICATORS

Provide instant information on status of amplifier, including short-circuit and thermal overload alerts.

6. HIGH PASS FILTER (HPF)

When Crossover Mode Selector is in High Pass Mode, this central limits the frequencies which will be distributed to the speakers to those below the value to which this is set within the range 80-2.5KHz.

7. LOW PASS FILTER (LPF)

When Crossover Mode Selector is in Low Pass Mode, this control limits the frequencies which will be distributed to the speakers to those below the value to which this is set within the range 35-400 Hz.

Viberant Owner's Manual 2

1. Find a suitable location in the vehicle to mount the amplifier.

2. Make sure there is sufficient air flow around the intended mounting location.

3. Bolt the amplifier to the mounting surface.

4. Connect the power ground terminal to the nearest point on the chassis of the car. Keep this ground wire less than one meter (39") in length. Use 8 gauge wire.

5. Connect the remote terminal to the remote output of the head unit using 14 gauge wire.

6. Connect an empty fuse holder within 300mm (12") of the battery and run 8 gauge of larger high quality cable from this fuse to the amplifier location.

7. Make sure there is no fuse in this fuse holder. Then make the connection to the "BATT" connection on the amplifier.

8. If multiple amplifiers are being used, use cables (each with its own fuse at the battery) or a #0 or #2 cable from the fuse holder at the battery to a distribution block at or near the amplifier's location.

9. Connect all line inputs and outputs using high-quality RCA-RCA cables.

10. Insert fuse(s) at the battery fuse holder(s).

11. Recheck all connections before powering up.

12. Set all level controls to their least sensitive positions and set all crossover controls, switches, etc. to the desired frequency or position.

13. Once the system is powered up, set the volume control on the head unit to about the 2 o'clock position, and then set all the amplifiers' level controls for maximum output level.

14. Further line tuning of the various controls may be necessary to obtain the desired results.

Viberant Owner's Manual - 3

Specifications

MODE	VIBE 226 2-charged amplifier	VIBE 236 2-charged amplifier	VIBE 246 2-charged amplifier	VIBE 256 2-charged amplifier	VIBE 266 2-charged amplifier
SPIE at 4 Ohms	2 × 300 W	2 × 75 W	2 × 100 W	2 × 125 W	2 × 150 W
MOS at 4 Ohms	2 × 400 W	2 × 500 W	2 × 600 W	2 × 800 W	2 × 1000 W
At 4 Ohms Bridged	1 × 900 W	1 × 1000 W	1 × 1200 W	1 × 1600 W	1 × 2000 W
SPIE at 2 Ohms	2 × 80 W	2 × 100 W	2 × 150 W	3 × 200 W	3 × 250 W
Min. Speaker Impedance	2ohm	2ohm	2ohm	2ohm	2ohm
T-B	0.04%	0.04%	0.04%	0.04%	0.04%
Frequency Response	15Hz - 35KJ/x,dB	15Hz - 35KJ/x,dB	15Hz - 35KJ/x,dB	15Hz - 35KJ/x,dB	15 35KJ/x,dB
Input Sensitivity	250mV - 500cmV	250mV - 500cmV	250mV - 500cmV	250mV - 500cmV	250mV - 500cmV V
Input Impedance	22kcal/m	22kcal/m	22kcal/m	22kcal/m	22kcal/m
SPIK Rate	>90dB	>90dB	>90dB	>90dB	>90dB
Chordant Specification	>65dB	>65dB	>65dB	>65dB	>65dB
Cross-Channel FilterLow PassHigh Pass	35Hz - 100Hz 80Hz - 2.50KJ/x	35Hz - 100Hz 80Hz - 2.50KJ/x	35Hz - 100Hz 80Hz - 2.50KJ/x	35Hz-400Hz80Hz-2.50KJHz	35Hz-400Hz80Hz-2.50KJHz
Base Boost	+8dB	+8dB	+8dB	+8dB	+8dB
Dimensions (Wx/KL)	11.05 × 2.24 × 0.25^	11.06 × 2.24 × 0.02^	11.06 × 2.24 × 0.13^	11.06 × 2.24 × 0.13^	11.06 × 2.24 × 0.13^
Fuse(s)	15A	20A	30A	30A	20A×2

Laner Viberant Owner's Manus 4 -

Specifications

VIBE 276 VIBE 286 VIBE 430 VIBE426 VIBE			4 chugal amplifier	4 chugal amplifier
2 x 200W 2 x 300W 4 x 35W 4 x 50W 4 x 75W
2 x 1200W 2 x 2000W 4 x 250W 4 x 400W 4 x 500W
1 x 2100W 1 x 4000W 2 x 500W 2 x 800W 2 x 1000W
2 x 300W 2 x 450W 4 x 55W 4 x 80W 4 x 120W
2 ohm 2 ohm 2 ohm	2 ohm	2 ohm
0.04%	0.04%	0.04%	0.04%	0.04%
15Hz-35KHz, 1dB	15Hz-35KHz, 1dB	15Hz-35KHz, 1dB	15Hz-35KHz, 1dB	15Hz-35KHz, 1dB
250mV-5000mV	250mV-5000mV	250mV-5000mV	250mV-5000mV	250mV-5000mV
22 Kohm	22 Kohm	22 Kohm	22 Kohm
>90dB	>90dB >90dB >90dB >90dB
>65dB	>65dB	>65dB	>65dB	>65dB
35Hz-400Hz80Hz-2.50KHz	35Hz-400Hz80Hz-2.50KHz	35Hz-400Hz80Hz-2.50KHz	35Hz-400Hz80Hz-2.50KHz	35Hz-400Hz80Hz-2.50KHz
+18dB	+18dB	+18dB	+18dB	+18dB
11.06"x2.24"x9"	11.06"x2.24"x21"	11.06"x2.24"x12"	11.06"x2.24"x15"	11.06"x2.24"x17"
25A×2	35A×2	20A	30A	20A×2

Lanzar Viberart Owner's Manus - 5

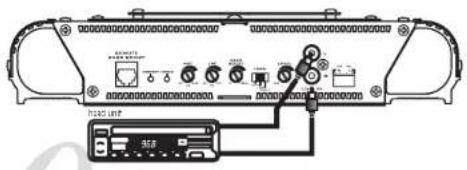

System Wiring System Wirin

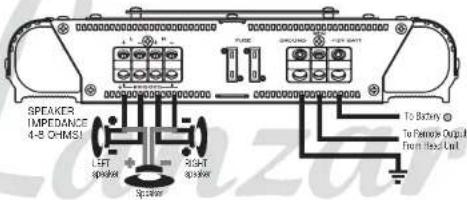

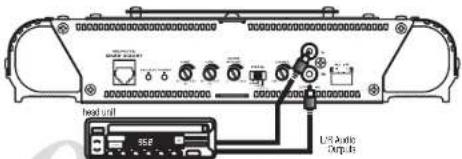

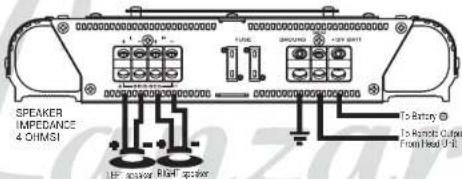

2 CHANNEL STEREO CONFIGURATION

FRONT

REAR

Viberant Owner's Manual 6

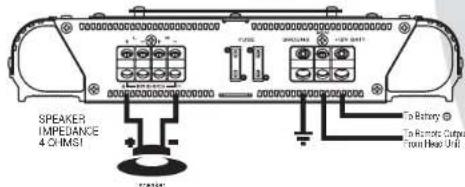

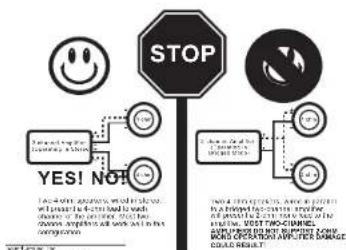

VIBE 226/236/246/256/266/276/286 VIBE 226/236 CHANNEL/BRIDDED MODE CONFIGURATION

FRONT

REAR

Viberart Owner's Manus - 7

System Wiring

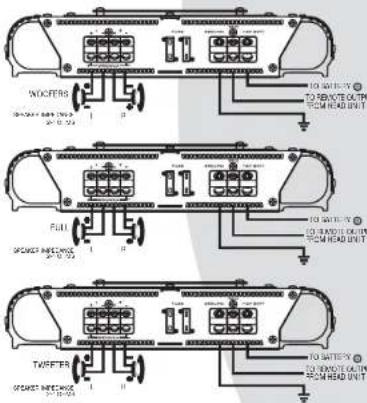

2 CHANNEL TRI-MODE CONFIGURATION

VIBE 226/236/246/256/266/276/286

FRONT

REAR

L

Viberant Owner's Manual 8

System Wiring

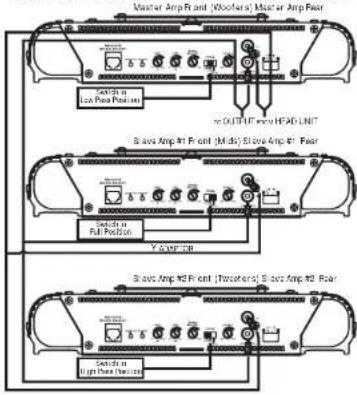

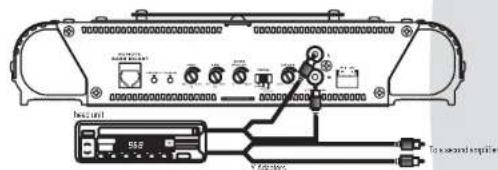

VIBE 226/236/246/256/266/276/286 TRIAMP SYSTEM USING THREE 2 CHANNEL AMPLIFIERS

Lance Viberant Owner's Manual - 9

System Wiring

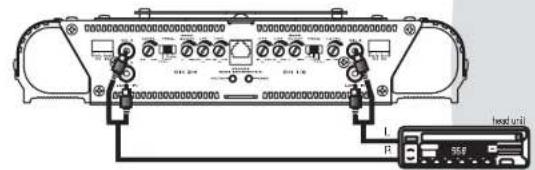

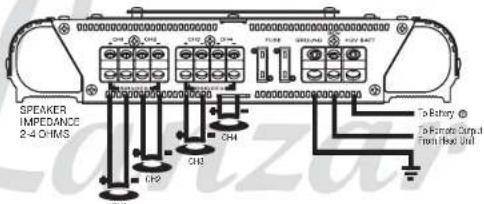

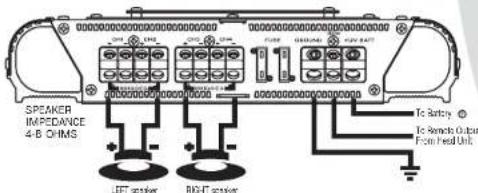

4 CHANNEL STEREO CONFIGURATION

VIBE 416/426/436

VIBE 416/426/436

System Wiring

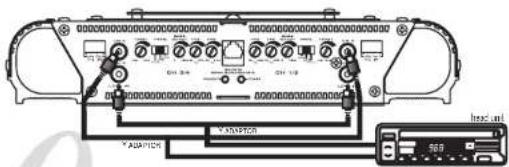

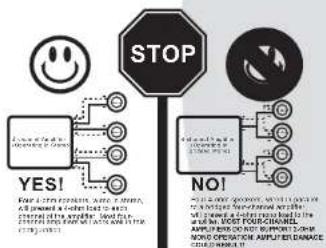

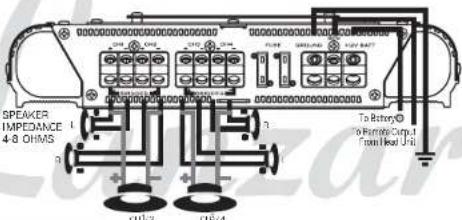

4 CHANNEL BRIDGED MODE CONFIGURATION

FRONT

REAR

Lanzer Viberant Owner's Manual 10-

FRONT

Lamore Viberant Owner's Manus-11

System Wiring

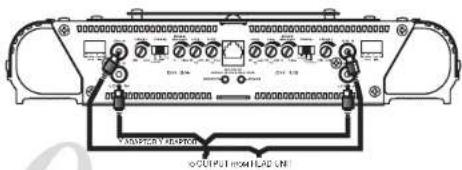

4 CHANNEL TRI-MODE CONFIGURATION

VIBE 416/426/436

FRONT

REAR

Lanzer Viberant Owner's Manual 12-

Precautions

• Before you drill or cut any holes, investigate your car's layout very carefully. Take care when your work near the gas tank, fuel lines, hydraulic lines and electrical wiring.
• Do not operate the amplifier when it is unmounted. Attach all audio system components securely within the automobile to prevent damage, especially in an accident.
• Do not mount this amplifier so that the wire connection, or likely to be damaged by nearby objects. Be sure to select a location inside your vehicle which has adequate ventilation.
• Before making or breaking power connections in your system, disconnect the vehicle battery. Confirm that your head unit or other equipment is turned off while connecting the input jacks and speaker terminals.
• If you need to replace the power fuse, only replace it with a fuse identical to that supplied with the system. Using a fuse of a different type or rating may result in damage to your system which isn't covered by the manufacturer's warranty.

Amplifier Will Not Power Up.

• Check for good ground connection.
• Check that remote DC terminal has at least 12V DC.
• Check that there is battery power on the '+' terminal.
• Check all fuses.
• Check that Protection LED is not lit. If it is lit., shot off amplifier briefly and then repower it.

Lamme Viberant Owner's Manus-15

Troubleshooting

High Hiss Or Engine Noise (Alternator Whine) In Speakers.

- Disconnect all RCA inputs to the amplifier(s) if hiss/noise disappears, then plug in the component driving the amplifier and unplug its inputs. If hiss/noise disappears, go on until the faulty/noisy component is found.

- It is best to set the amplifier's input level as low as possible. The best subjective SI'N ratio is obtainable this way. Try to drive at high a signal level from the head unit as possible.

Protection Led Comes On When The Amplifier Is Powered Up

- Check for shorts on speaker leads.

- Check that the volume control on the head unit is turned down low

- Remove speaker leads, and reset the amplifier. If the Protection LED still comes on, then the amplifier is faulty.

Amplifier (S) Gets Very Hot

- Check that the minimum speaker impedance for that model is correct.

- Check for speaker shorts.

- Check that there is good airflow around the amplifier. In some applications, an external cooling fan may be required.

Distorted Sound

- Check that the level control(s) is set to match the signal level of the head unit.

- Check that all crossover frequencies have been properly set.

- Check for shorts on the speaker leads.

High Squeal Noise From Speakers

- This is almost always caused by a poorly-grounded RCA patch cord.

Lanee Viberant Owner's Manual 14-

Notes
