Product Type	Digital Photo Frame
Brand	Naxa
Model	NF-503
Screen Size	8 inches (diagonal)
Resolution	800 x 600 pixels
Aspect Ratio	4:3
Supported Memory Cards	SD, MMC, MS
USB Port	USB 2.0 for host and PC connection
Remote Control	Infrared remote control included
Power Supply	DC 5V, 1A (adapter included)
Image Formats	JPEG, BMP, PNG
Slideshow Modes	Multiple transition effects and timing options
Calendar & Clock	Built-in calendar and clock display
Auto Rotate	Automatic image orientation based on sensor
Dimensions (W x H x D)	210 x 160 x 30 mm
Weight	450 g
Color	Black
Material	Plastic with glass screen
Cleaning	Use a soft, dry cloth. Do not use liquids or abrasives.
Safety Precautions	Keep away from moisture and heat. Do not disassemble. Use only supplied adapter.
Included Accessories	Power adapter, remote control, stand, user manual
Warranty	1 year limited warranty

Frequently Asked Questions - NF-503 Naxa

How do I insert a memory card?

Locate the memory card slot on the side or back of the frame. Insert the card with the label facing up until it clicks. To remove, push the card inward to release it.

How do I set up a slideshow?

Press the 'Slideshow' button on the remote or navigate to the slideshow menu. You can choose transition effects and interval time (e.g., 5, 10, 30 seconds).

Can I connect the frame to my computer?

Yes, use the included USB cable to connect the frame to your PC. It will appear as an external drive; you can copy images directly. Ensure the frame is powered on.

Does the frame support wall mounting?

The NF-503 does not have VESA mount holes. It is designed for tabletop use with the included stand. Do not attempt to mount on wall.

What power adapter is required?

Use only the supplied DC 5V, 1A adapter. Using a different adapter may damage the frame. Plug the adapter into a standard wall outlet.

How do I clean the screen?

Turn off the frame and unplug it. Use a soft, lint-free dry cloth to gently wipe the screen. Do not use any liquids, sprays, or abrasive cleaners.

Can the frame play videos?

No, the NF-503 is designed for still images only (JPEG, BMP, PNG). Video files are not supported.

How do I change the language?

Press the 'Menu' button on the remote, navigate to 'Language Settings', and select your desired language (e.g., English, Spanish, French). Confirm with 'OK'.

What should I do if the frame freezes?

Try a reset by pressing the reset button (if available) with a paperclip, or unplug the power adapter for 30 seconds, then plug it back in.

What is the warranty period?

The Naxa NF-503 comes with a 1-year limited warranty from the date of purchase. Keep your receipt for warranty claims. For issues, contact Naxa support.

USER MANUAL NF-503 Naxa

Precautions and maintenance

• For indoor use only
• To avoid risk of fire or electric shock, do not expose the unit to moisture or condensation.
• To avoid overheating, do not block the ventilation holes on the back of the Digital Photo Frame.
• Keep the Digital Photo Frame out of direct sunlight.
• Do not dismantle the Digital Photo Frame. There is a risk of electric shock and there are no user-serviceable parts inside. Dismantling the Digital Photo Frame will void your warranty.

Cleaning the LCD Screen

• Treat the screen carefully. Because the screen of the Digital Photo Frame is made of glass and it would easily be broken or scratched.
• If fingerprints or dust accumulate on the LCD screen, we recommend using a soft, non-abrasive cloth such as a camera lens cloth to clean the LCD screen.
• Moisten the cleaning cloth with the cleaning solution and apply the cloth to the screen.

WARNING:

Please power off the unit before inserting or removing a card or USB device.

Failure to do so may cause damage to the card/USB and the unit. To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture.

Introduction:

Thank you for your purchase of the Digital Photo Frame. It is designed to allow quick and easy view of photos taken from your digital camera, mobile phone, or from a memory storage card. Please read this User Manual carefully to learn the correct way to use the Digital Photo Frame.

Features:

1. Support Photo format: JPEG
2. USB interface: USB2.0 HOST
3. Support Memory Card: SD/MMC/SDHC
4. Support viewing pictures in thumbnail mode
5. Auto Slideshow when inserting Memory Card
6. Built-in Clock and calendar with slideshow window
7. Image-display mode: slideshow, preview, rotate function.
8. Adjustable slideshow speed and above 10 kinds of transition slideshow
9. Adjustable brightness, contrast, saturation
10. Copy files to memory and delete files in cards&memory
11. OSD language : English, Spanish, German and Italian

Packaging Check List:

1. 7 inch digital photo frame
   1 piece
2. User manual
   1 piece
3. AC/DC adapter
   1 piece
4. Bracket
   1 piece

CONTENTS

1. Product Diagram ...... 4

1.1 Left Side of Frame 4
1.2 Rear of Frame 4

2. Getting Started ....4

3. Operating Instruction 5

3.1 Card and USB 5
3.2 Picture Mode 5
3.3 Copy & Delete function 6

4. File 6

1. Calendar 7
2. Setup 7
3. Technical Specifications....7
4. Troubleshooting Guide......8

1. Product Diagram

1.2 Left Side of Frame

1. SD/MMC/SDHC CARD
2. USB PORT
3. DC IN

1.3 Rear of Frame

1. Power on/off
   2.UP
   3.Play/Pause/OK
2. Right
3. Left
4. Down
5. Menu (Long Press) / Exit (Short Press)

2. Getting Started

2.1 Put the digital photo frame on a stable position, then plug one end of the included AC adapter into a standard 110-240V AC electrical outlet and the other end into the right side of the frame. The unit will power on directly by this way.
2.2. Remove the protective film covering the LCD.
2.3. Power off/on the unit by pressing the Power button on the unit.

3. Operating Instruction

After turning on the unit, it will show the startup picture, Then go to Main Menu after 3-5 seconds automatically, press MENU to access to Card choosing interface.

3.1 Card and USB

It supports SD/MMC/SDHC and USB 2.0. After inserting a card or USB device, slideshow will play automatically, then press MENU twice to access to Photo, File, Calendar and Setup Main Menu interface.

Note: Make sure there are supported picture files in the Card or USB device.

3.2 Picture Mode

Press OK to choose "SD/MMC CARD" in the card choosing interface. Highlight Photo, press OK to access to the six-picture mode, use ▲▼◀▶to choose the picture you want to display, press OK to play the picture.

Collage of three nature scenes: a flying duck, a tree branch in water, and a leaf with dark skin reflection (no text or symbols)

Press OK to start slideshow pictures in the selected slide mode.

Change slide mode as follows: press EXIT to SETUP, and then choose SLIDE MODE (single window/ four windows/triple windows), select with ▲▼, press OK to confirm.

3.3 Copy & Delete function

Copy pictures to built-in memory: In Picture pause mode, use ◀▶ to select the picture you want to copy to the built-in memory, then long press MENU to enter operation interface, you could select the save/rotate/zoom function, press OK to confirm.

Note: "Disk is full, pls press any key to continue" will be showed if there is no enough space to store the photo in the built-in memory.

Delete pictures in built-in memory or memory card in six-picture mode, use ◀▶ to select the picture you want to delete in the built-in memory or card, then long press MENU to enter delete interface, press OK to confirm.

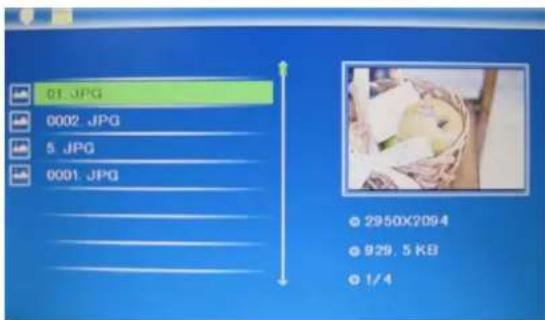

4. File

Select File, then press OK to access to file interface. You can browse all the pictures in the memory card or the built-in memory.

5. Calendar

Select the Calendar from the main menu, press OK to enter, use ▲▼ ◀▶ to view the desired date.

6. Setup

Select the Setup from the main menu, then press OK to access to Setup interface. Use ▲ select the item you want to set up. Press OK to show the sub menu, select with ▲▼, then press OK to confirm.

7. Technical Specifications

- Adapter:

Input: AC 100-240V 50/60HZ 350mA

Output: DC 5V/1A

● Picture Format: JPEG
● Memory Cards: SD/MMC/SDHC
- USB connection: USB 2.0 Host
- Screen Parameter:

Screen Size: 7 inch TFT

Resolution:480*234 pixels

Contrast: 300:1

Aspect Ratio:16:9

Brightness: 300 cd/m²

Response Time: 20ms

Viewing Angle: 60°(left/right/vertical), 40°(horizontal)

Working Temperature: 0°C\~40°C, Humidity: 10-85

8. Troubleshooting Guide

If you have problems with your player, please consult both this guide and manual. If you need further assistance, please contact Technical Support.

- No power:

Please check whether the plug is inserted correctly.

- Can not read the CARD or USB:

Please confirm whether there is storage in the card or USB device.

Empty devices cannot be read.

- Can not play the file:

Please confirm if the file format is compatible with the player.

● Display too bright or too dark:

Please adjust the brightness or contrast in the setup menu.

● The color is light or no color:

Please adjust the color and contrast setup.
