NF-1000 - Digital photo frame Naxa - Free user manual and instructions

Product Type	Digital Photo Frame
Brand	Naxa
Model	NF-1000
Screen Size	10 inch TFT
Display Resolution	1024x600 pixels
Aspect Ratio	16:9
Brightness	300 cd/m²
Contrast Ratio	200-300:1
Response Time	20 ms
Viewing Angle	60° (horizontal/vertical), 40° (horizontal)
Supported Photo Format	JPEG
Memory Card Slots	SD/SDHC/MMC
USB Port	USB 2.0 HOST
Built-in Memory	8 MB Flash (stores 1-3 pictures)
Slideshow Modes	Single, two, triple, four windows
Slideshow Transitions	10+ types
Adjustable Settings	Brightness, contrast, saturation, slideshow speed
Clock/Calendar	Yes, with slideshow window
OSD Languages	English and others (selectable)
Power Input	AC 100-240V, 50/60Hz, 350mA
Power Output (Adapter)	DC 5V, 1.5A
Stand	Included, adjustable bracket
Cleaning Instructions	Use soft, non-abrasive cloth; avoid moisture
Safety Precautions	Indoor use only; do not expose to moisture or direct sunlight; do not dismantle

Frequently Asked Questions - NF-1000 Naxa

How do I insert memory cards or USB devices?

Insert an SD/SDHC/MMC card or USB drive into the corresponding slot on the left side of the frame. The slideshow will start automatically. Press MENU twice to access the main menu for more options.

What photo formats does the frame support?

The Naxa NF-1000 supports JPEG photo format only.

How do I start a slideshow?

After inserting a card or USB, the slideshow begins automatically. To manually start, navigate to Photo in the main menu, select a picture in nine-picture mode, and press the play button. You can also choose slideshow modes (single, two, three, four windows) in the setup.

Can I delete pictures from the frame?

Yes. In nine-picture mode, select a picture and long press MENU to enter the delete interface, then press ▶ to confirm deletion. You can also delete files from the File menu.

How do I adjust brightness and contrast?

Go to Setup from the main menu, navigate to brightness or contrast settings using ▲▼, and adjust. Press ▶ to confirm each change.

How do I set up the calendar?

Select Calendar from the main menu and press ▶. Use the arrow keys to choose a date. The calendar displays with a slideshow of your pictures on the left side.

What should I do if the frame does not power on?

Check that the AC adapter is properly connected to both the frame and a working electrical outlet (100-240V). Ensure the power button on the back is pressed. If it still doesn't work, consult the troubleshooting guide.

Why can't I read my USB or card?

Ensure the card or USB device contains supported JPEG files and is not empty. Also confirm it is inserted correctly. The frame supports SD/SDHC/MMC cards and USB 2.0 devices.

How do I clean the screen?

Power off the frame. Use a soft, non-abrasive cloth (like a camera lens cloth) slightly dampened with cleaning solution. Gently wipe the screen. Avoid moisture entering the frame.

Can I copy pictures to the internal memory?

Yes. While a single picture is paused (not in slideshow), long press MENU to enter copy interface, then press ▶ to copy the picture to the built-in 8 MB memory. Note: internal memory holds only 1-3 pictures.

USER MANUAL NF-1000 Naxa

Precautions and maintenance

• For indoors use only
• To avoid risk of fire or electric shock; do not expose the unit to moisture or condensation.
• To avoid overheating, do not block the ventilation holes on the back of the Digital Photo Frame.
• Keep the Digital Photo Frame out of direct sunlight.
• Do not dismantle the Digital Photo Frame. There is a risk of electric shock and there are no user-serviceable parts inside. Dismantling the Digital Photo Frame will void your warranty.

Cleaning the LCD Screen

• Treat the screen carefully. Because the screen of the Digital Photo Frame is made of glass and it would be easily broken or scratched.
• If fingerprints or dust accumulate on the LCD screen, we recommend using a soft, non-abrasive cloth such as a camera lens cloth to clean the LCD screen.
• Moisten the cleaning cloth with the cleaning solution and apply the cloth to the screen.

WARNING:

Please power off the unit before inserting or removing a card or USB device.

Failure to do so may cause damage to the card/USB and the unit. To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture.

Introduction:

Thank you for purchasing of the Digital Photo Frame. It is designed to allow quick and easy view of photos taken from your digital camera, mobile phone, or from a memory storage card. Please read this Use Manual carefully to learn the correct way to use the Digital Photo Frame.

Features:

1. Support Photo format: JPEG
2. USB Connection: USB2.0 HOST
3. Support Memory Card: SD/SDHC/MMC
4. Built-in 8M Flash Memory with 1-3pcs picture storage
5. Support viewing pictures in thumbnail mode
6. Auto Slideshow when inserting Memory Card
7. Support slideshow pictures in single/two/triple /four windows
8. Built-in Clock and calendar with slideshow Window
9. Image-display mode: slideshow, preview, zoom, rotate function.
10. Adjustable slideshow speed and above 10 kinds of transition slideshow
11. Adjustable brightness, contrast, saturation
12. Copy files to memory and delete files in the cards & memory
13. OSD language: English and other languages optional

Packaging Check List:

1. 10 inch digital photo frame

2. User manual 1 piece

3. AC/DC adapter 1 piece

4. Stand 1 piece

1 piece

CONTENTS

1. Product Diagram...... 4

1.1 Left Side of Frame 4
1.2 Rear of Frame 4

1. Getting Started .... 4
2. Operating Instruction 5

3.1 Card and USB 5
3.2 Picture Mode 5
3.3 Copy & Delete function 6

1. File 6
2. Calendar 7
3. Setup 7
4. Stand Instruction.... 7
5. Technical Specifications 8
6. Troubleshooting Guide 8

1. Product Diagram

1.1 Left Side of Frame

1. SD/SDHC/MMC CARD
2. USB PORT
3. DC IN

1.2 Rear of Frame

1. Power on/off
2. UP
3. Play / Pause / OK
4. Right / Forward / Next
5. Left / Back / Previous
6. Down
7. Menu / Exit (short press)

2. Getting Started

3.1 Extend the digital photo frame bracket on the back of the frame to the widest position for greatest stability, and then plug one end of the included AC adapter into a standard 110-240V AC electrical outlet and the other end into the right side the frame.
3.2. Remove the protective film covering on the LCD.
3.3. Power on the unit by connecting the adapter or pressing the Power button on the

backside of the DPF

3. Operating Instruction

After turning on the unit, it will show the startup picture and will enter into the card select interface. Press ▶ to get into the memory you choose.

3.1 Card and USB

It supports SD/SDHC/MMC and USB 2.0. After inserting a card or USB device, slideshow will play automatically, Then press MENU twice to access to Photo, File, Calendar and Setup. Press ▶ to confirm what you choose.

Note: Make sure there are supported picture files in the Card or USB device.

3.2 Picture Mode

Press MENU to enter the main menu. Highlight Photo, press ▶II to access to the nine-picture mode, use ▲▼◀▶ to choose the picture you want to display, press ▶II to play the picture in single window.

Note: In the nine-picture mode, press ▶II to select the picture, press ▶II again to start slideshow

Four-panel collage showing scenic views: a lake with mountains, tropical beach with palm tree, whole peach cut open, and fresh fruit bowl (no text or symbols)

Press ▶ to start slideshow pictures in the selected slide mode.

Change slide mode as follows: In the setup mode, choose SLIDE MODE (single window/Two Windows/ four windows/Triple windows).select with ▲▼, press ▶ to confirm.

3.3 Copy & Delete function

In the pause state of single picture, long press MENU to enter copy interface, press ▶ to copy the picture to built-in memory. (In the pause state, you can also take the action of rotating the picture for 4 times by pressing ▲▼ or choosing Rotate)

Note: System will hint "Memory Full" if remaining built-in memory size is not enough to store the photo.

In nine-picture mode, use ▲▼◀ ▶ to select the picture you want to delete, then long press MENU to enter delete interface, press ▶to confirm.

4. File

Select File, then press ▶ to access to file interface. You can browse all the picture files in the memory card and in the built-in memory.

Use ▲▼ to select the file you want to delete, then long press MENU to enter delete interface, press ▶II to confirm.

5. Calendar

Select Calendar from the main menu, press ▶ to enter. The calendar is displayed and any pictures on the connected memory are slideshow in the left side of the screen. Use ▶ to ▶ select the date you want to view.

6. Setup

Press Setup from the main menu, then press ▶ to access to Setup interface. Use ▲ to select the item you want to set up. Press ▶ to enter the sub menu, select with ▲, then press ▶ to confirm.

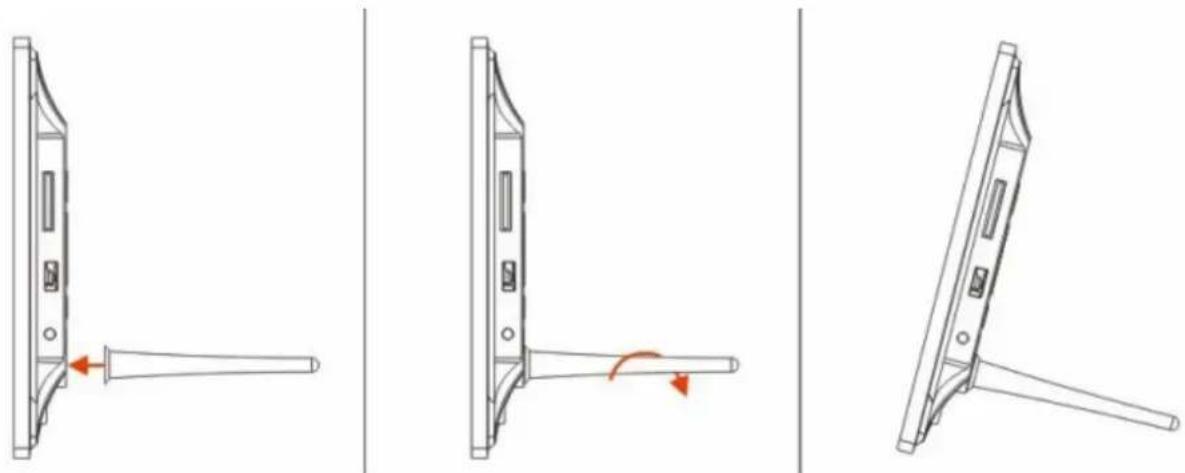

7. Stand Instruction

Insert the bracket into the slot of the digital photo frame and rotate the bracket clockwise. Please make sure the stand is locked before standing it on the table steadily. Please refer to the illustration showing below.

Three technical line drawings showing a door handle mechanism with arrows indicating rotation (no text or symbols)

8. Technical Specifications

- Adapter:

Input: AC 100-240V 50/60HZ 350mA

Output: DC 5V/1.5A

● Picture Format: JPEG

● Memory Cards: SD/SDHC/MMC

- USB connection: USB 2.0

- Screen Parameter:

Screen Size: 10 inch TFT

Resolution: 1024X3 (RGB) X600

Contrast:200-300:1

Aspect Ratio: 16: 9

Brightness: 300 cd/m2

Response Time: 20ms

Viewing Angle: 60°(left/right/vertical), 40°(horizontal)

Working Temperature: 0°C\~40°C, Humidity: 10-85%

9. Troubleshooting Guide

If you have problems with your player, please consult both this guide and manual. If you need further assistance, please contact Technical Support.

- No power:

Please check whether the plug is inserted correctly.

● Can not read the CARD or USB:

Please confirm whether there is storage in the card or USB device.

Empty devices cannot be read.

- Can not play the file:

Please confirm if the file format is compatible with the player.

● Display too bright or too dark:

Please adjust the brightness or contrast in the setup menu.

● The color is light or no color:

Please adjust the color and contrast in the Setup Menu.
