USER MANUAL FI9805EP FOSCAM

Outdoor HD PoE IP Camera

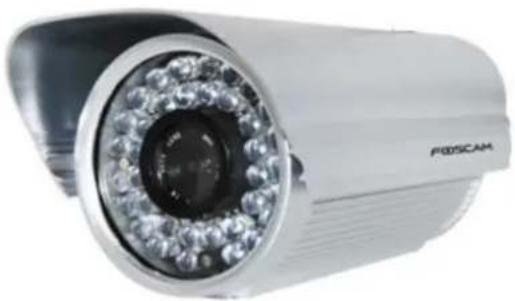

Close-up of a white F00SCAM security camera with circular lens and central lens (no visible text or symbols)

Table of Contents

Security Warning.... 3

1 Overviews.... 3

1.1 Key Features....4
1.2 PoE (Power over Ethernet)....4
1.3 Read Before Use....5
1.4 Packing Contents....5
1.5 Physical Description.... 5

2 Accessing the Network Camera....8

2.1 Access the Camera in LAN....8
2.2 Access the Camera in WAN....8
2.2.1 Static IP Addresses....8
2.2.2 Dynamic IP Addresses....10

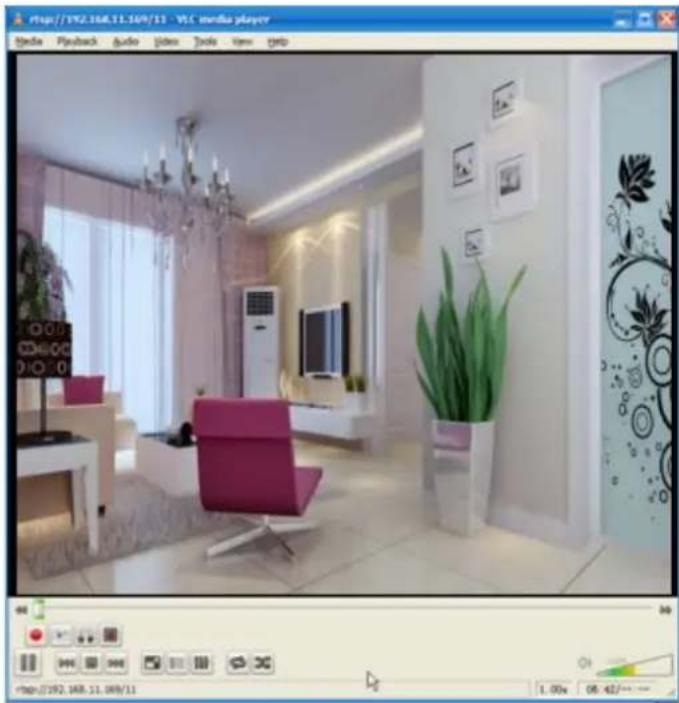

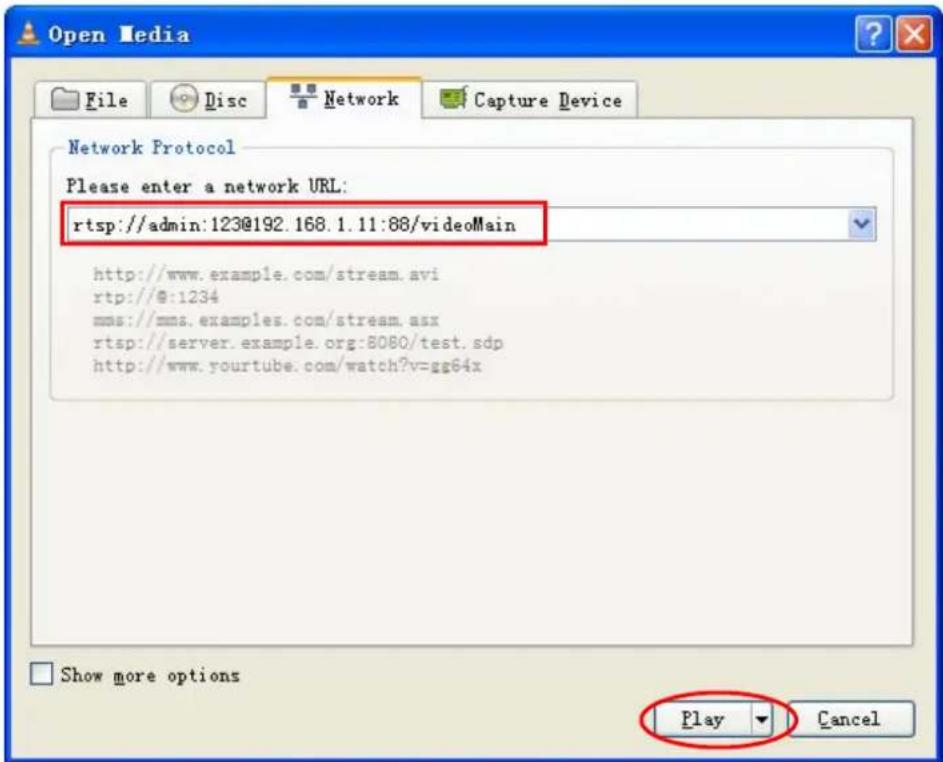

2.3 Using the VLC player.... 13
2.4 IP camera connection to the server....15

3 Surveillance Software GUI.... 16

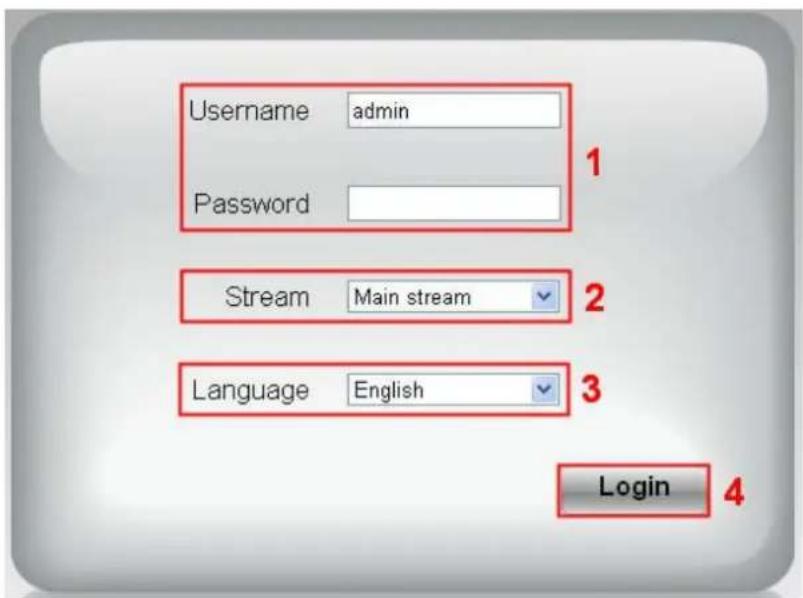

3.1 Login Window.... 16

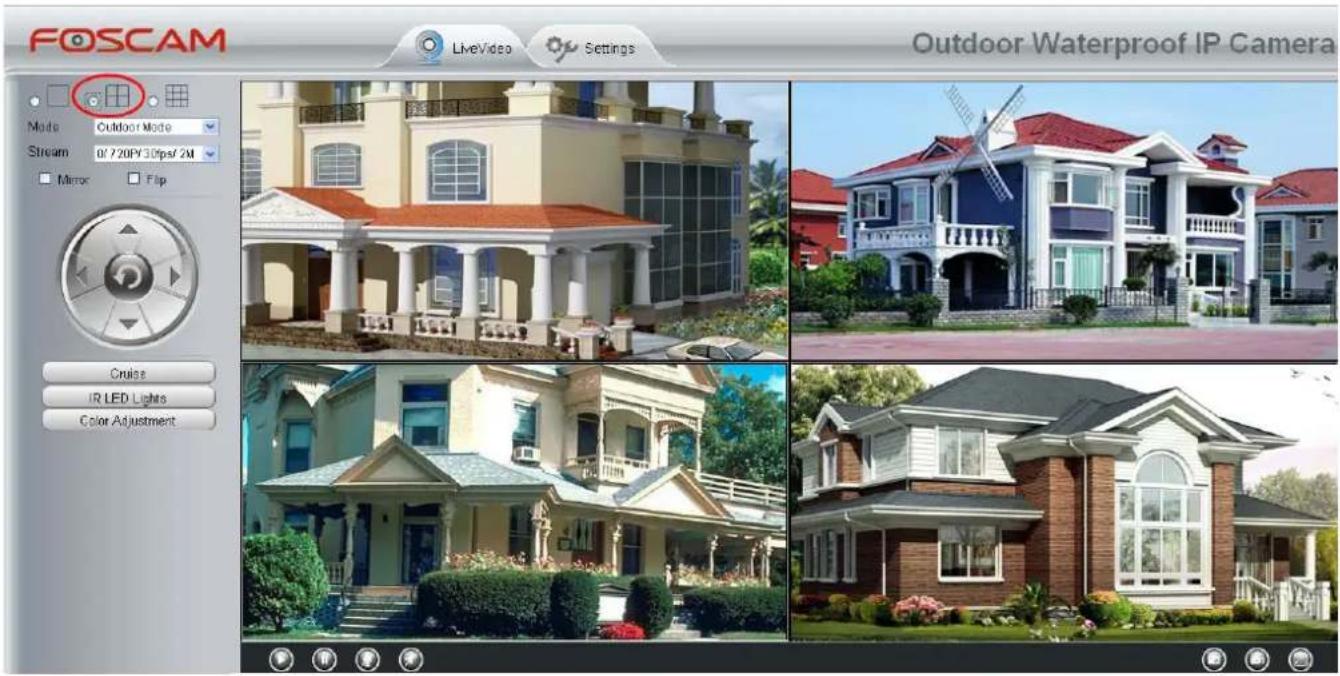

3.2 Surveillance Window....19

4 Advanced Camera Settings....25

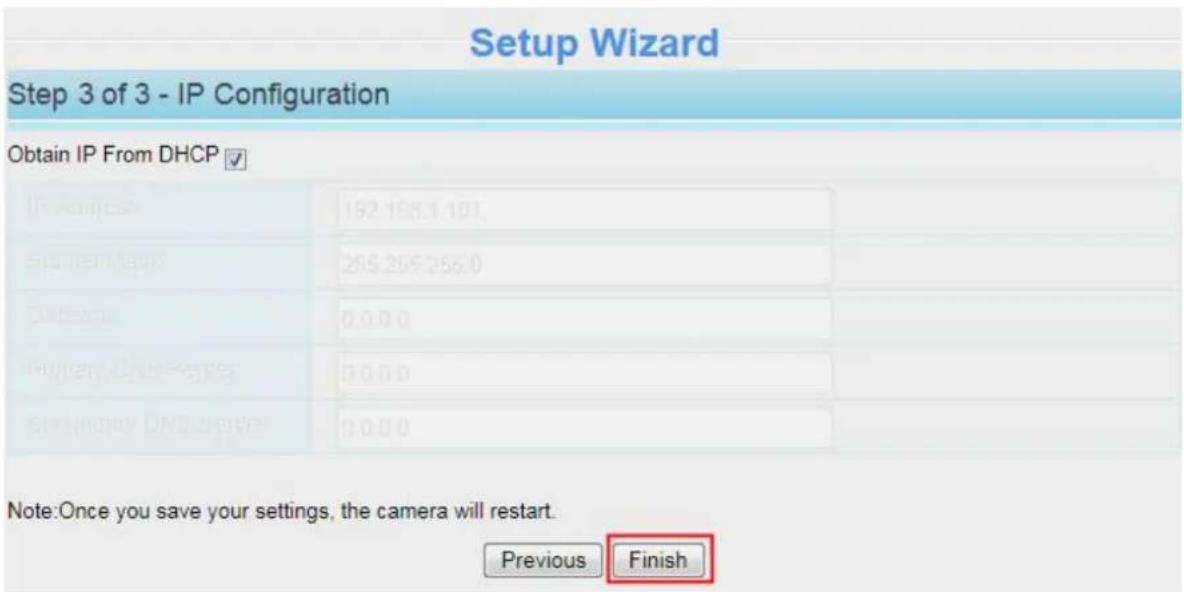

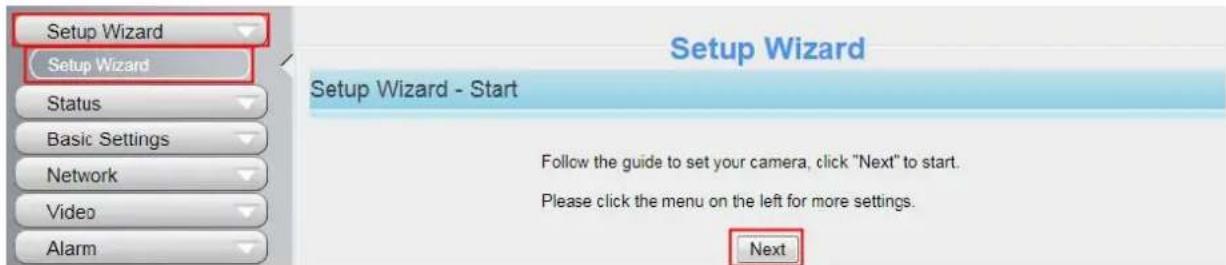

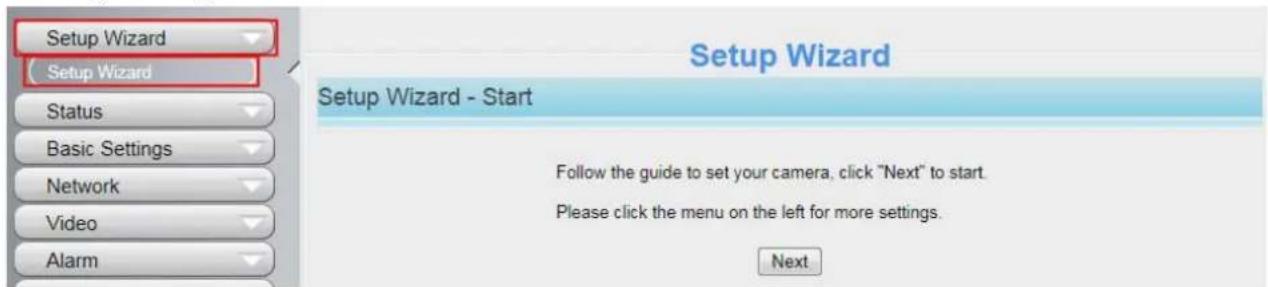

4.1 Setup Wizard....25
4.2 Device Status....26
4.2.1 Device Information....26
4.2.2 Device Status....26
4.2.3 Session status.... 27
4.2.4 Log....27

4.3 Basic Settings....28

4.3.1 Camera Name....28
4.3.2 Camera Time....28

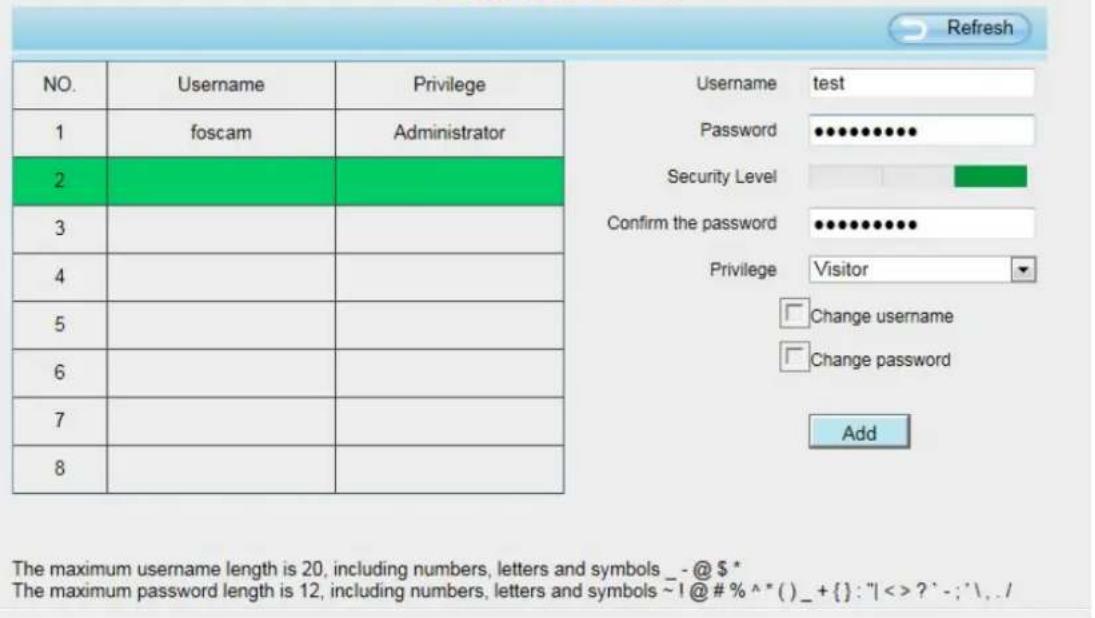

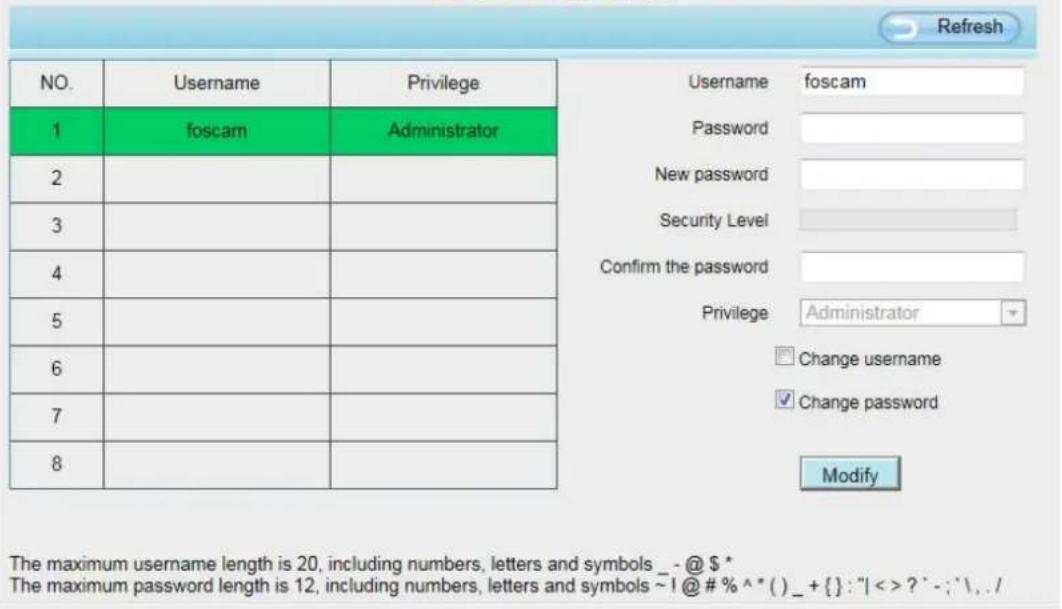

4.3.3 User Accounts....29

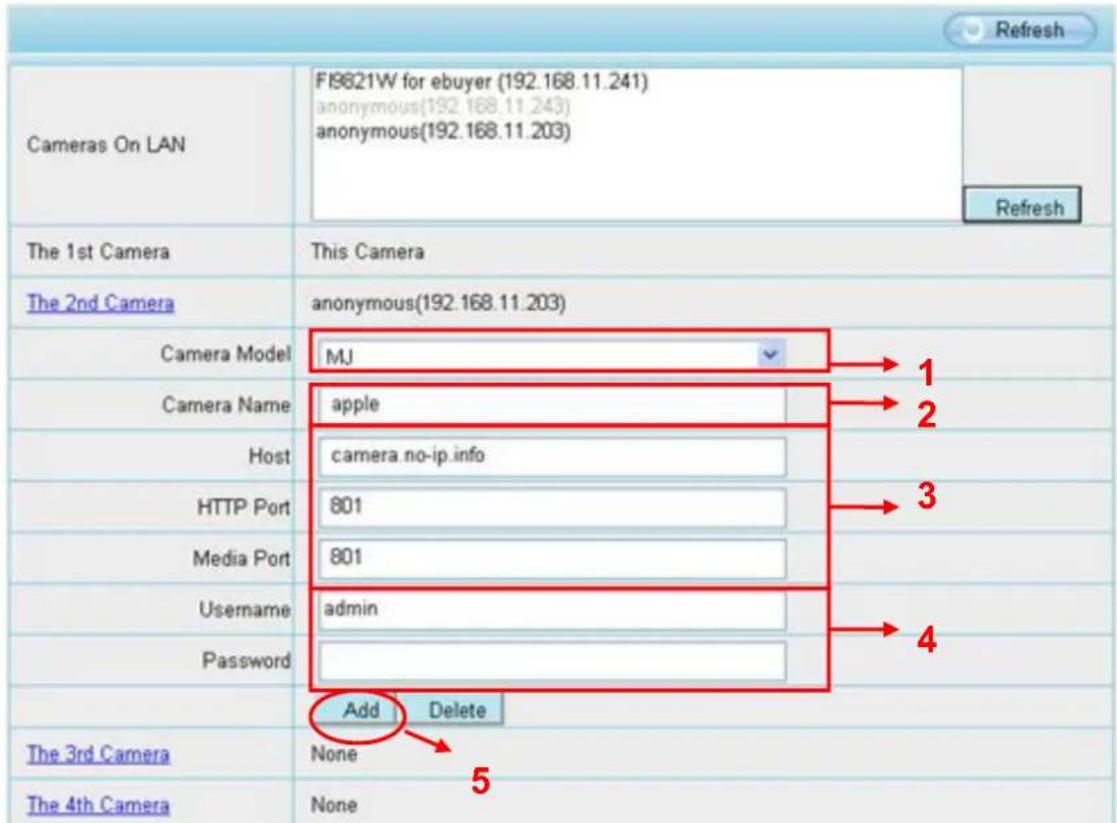

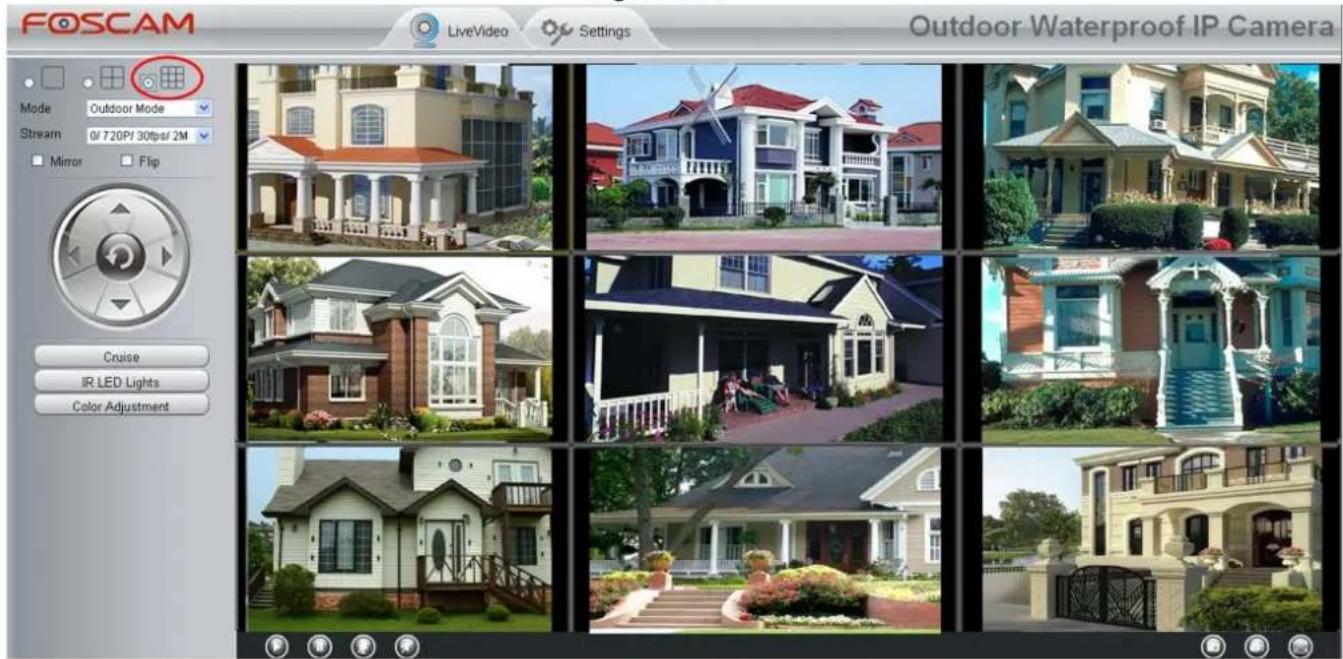

4.3.4 Multi-Camera.... 31

4.4 Network....36

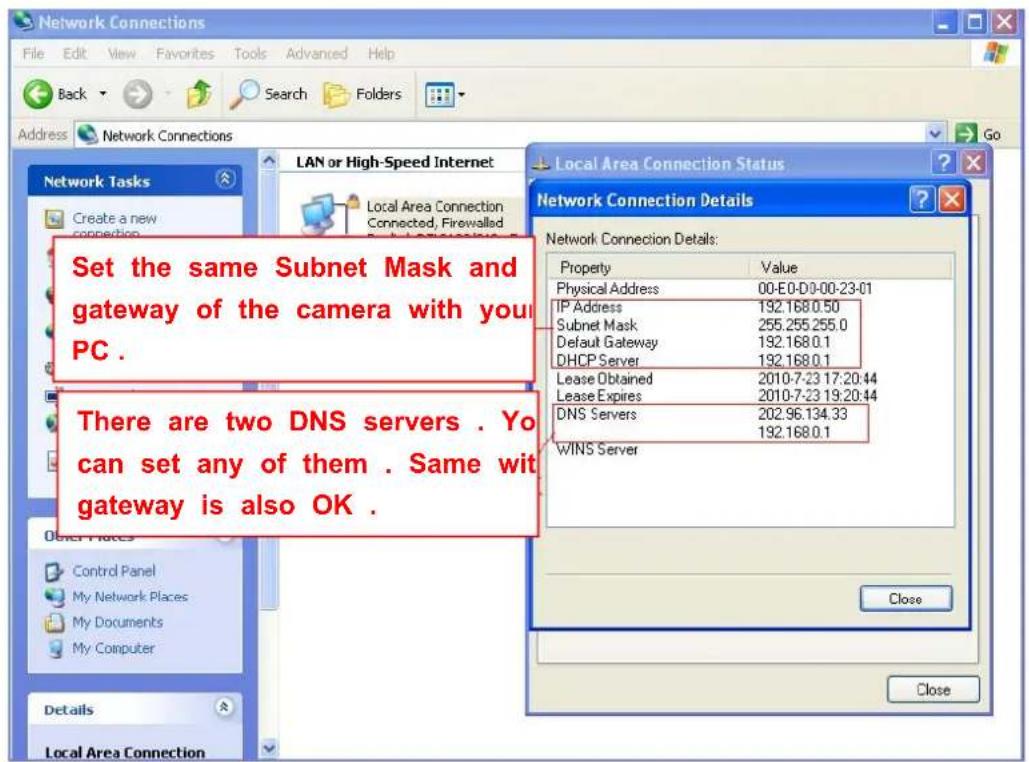

4.4.1 IP Configuration....36
4.4.2 PPPoE 38
4.4.3 DDNS....38

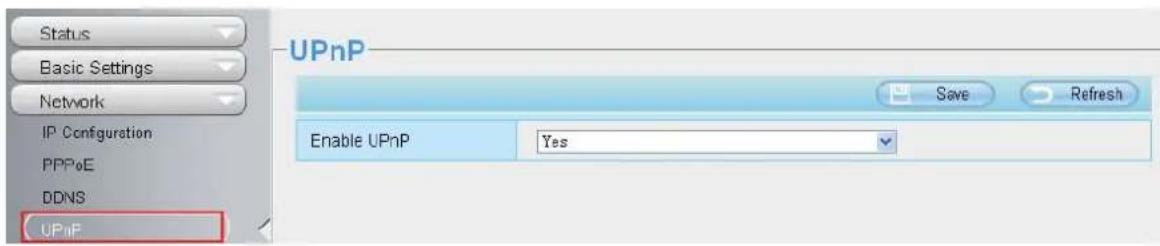

4.4.4 UPnP 42
4.4.5 Port 42

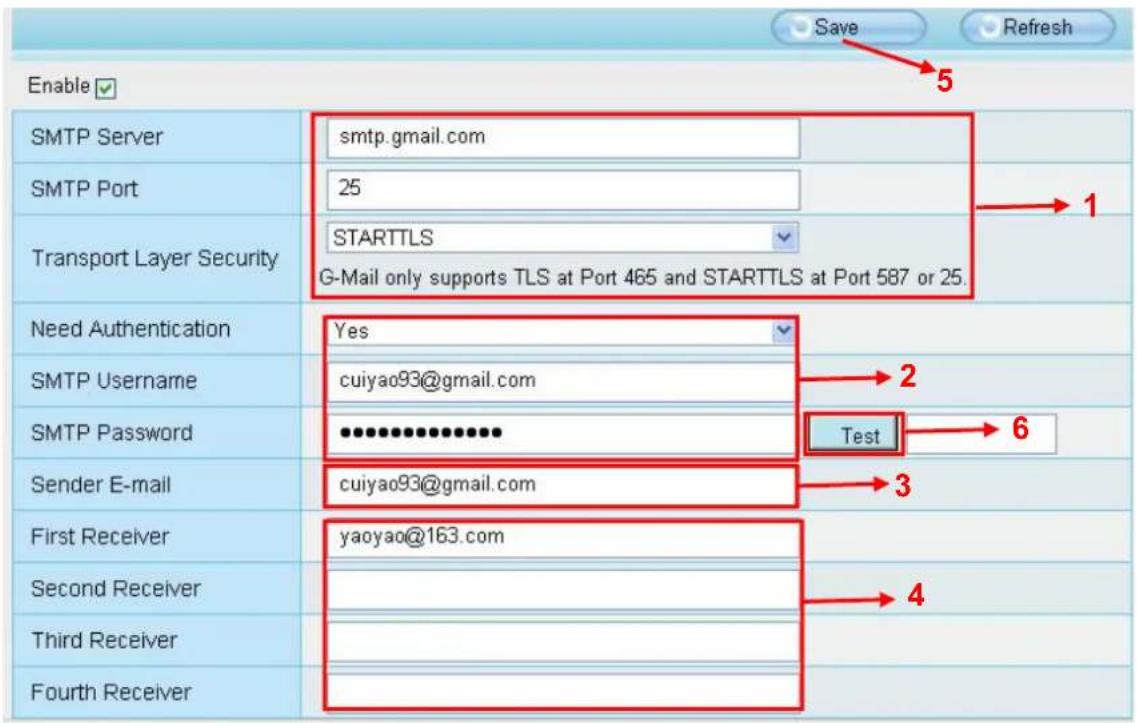

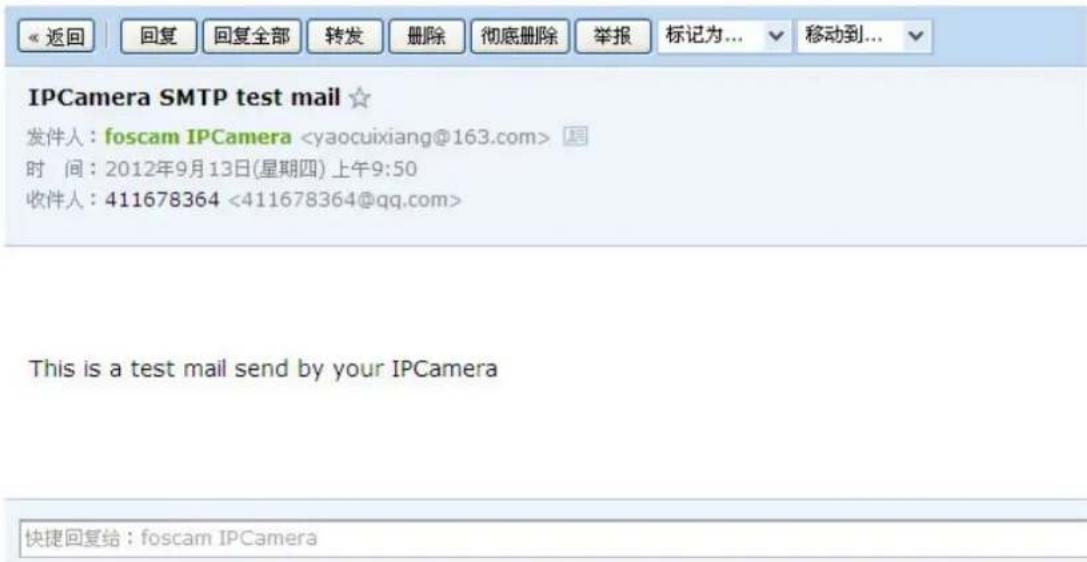

4.4.6 Mail Settings.... 44

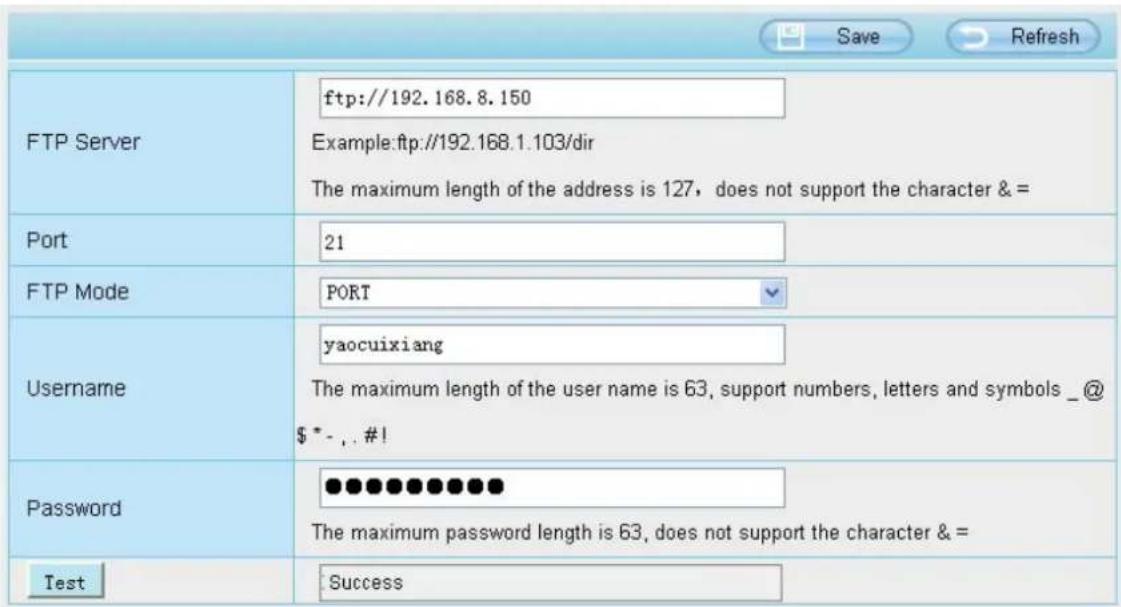

4.4.7 FTP Settings....46

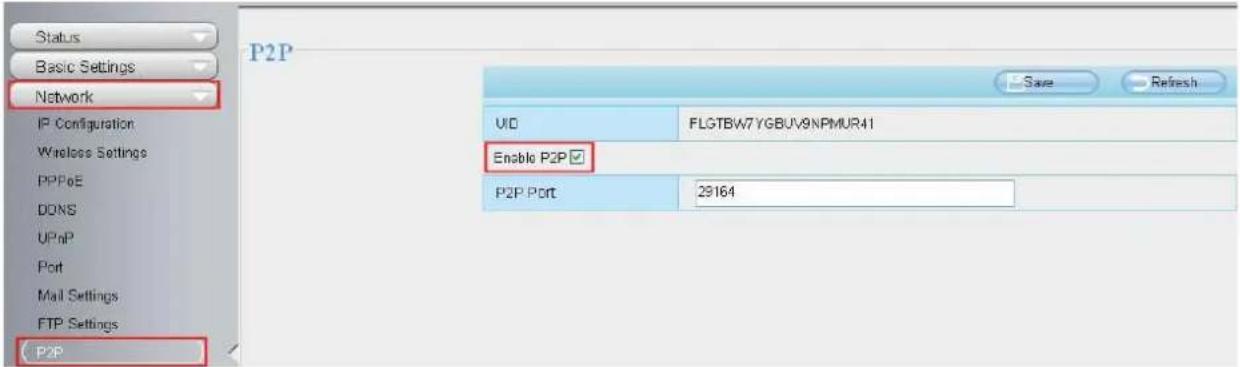

4.4.8 P2P 47

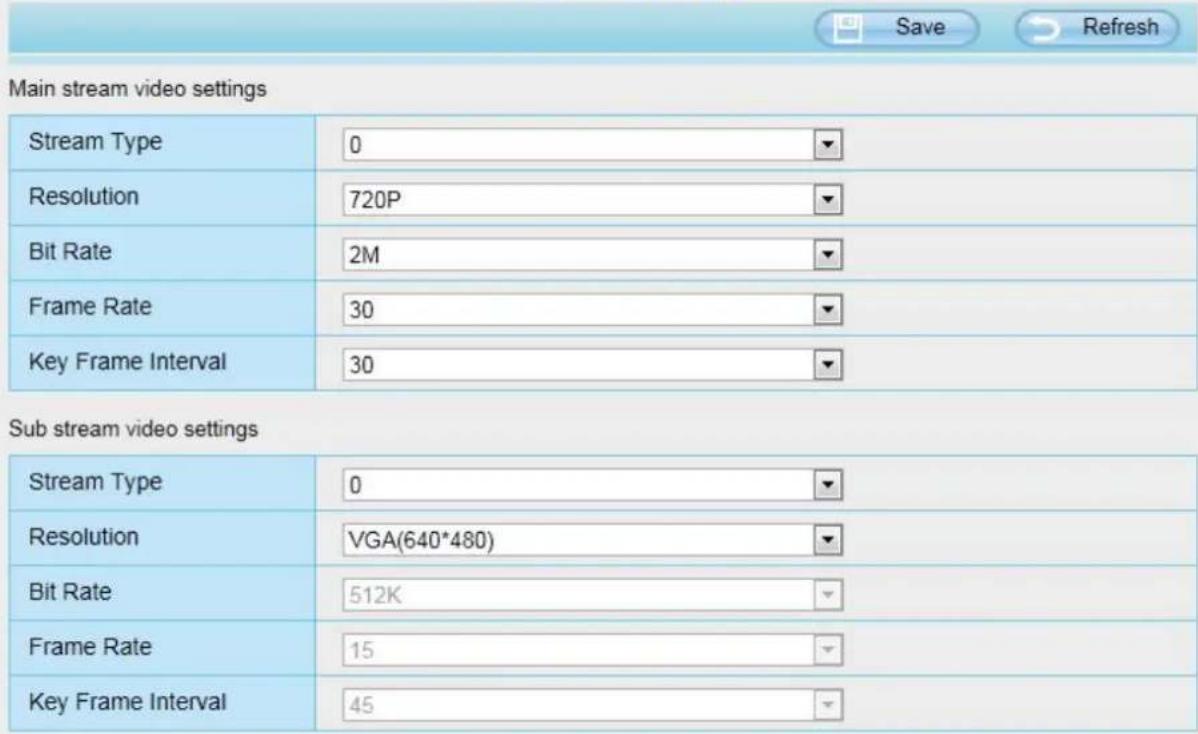

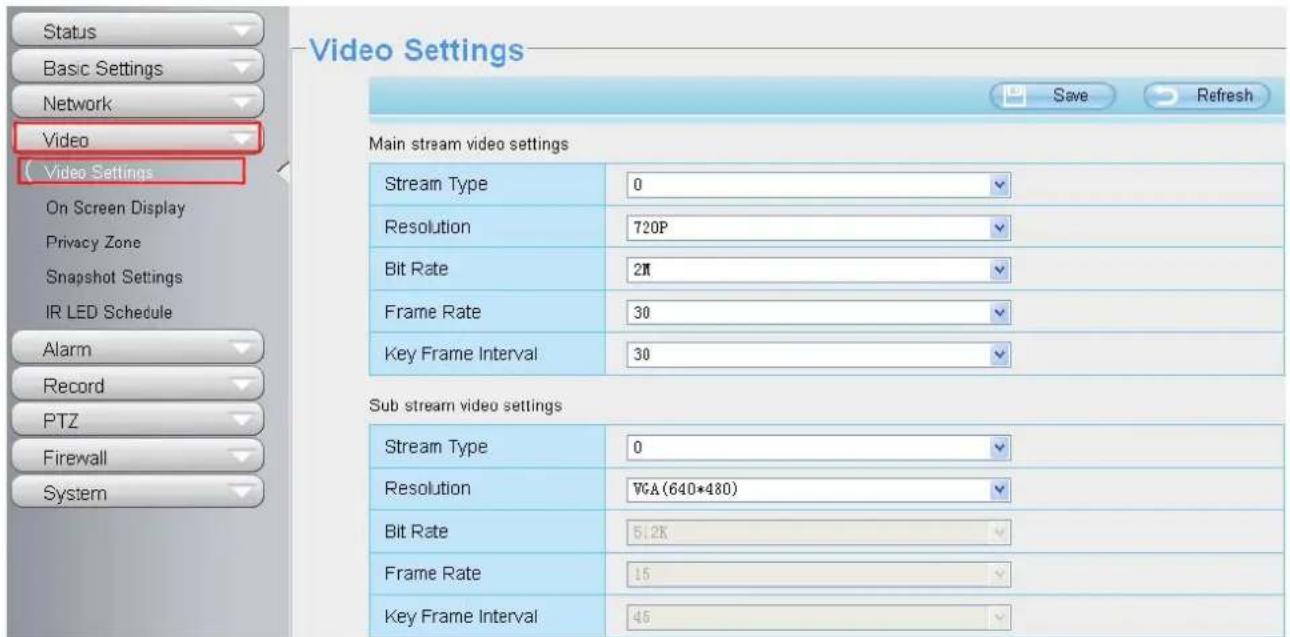

4.5 Video....47

4.5.1 Video Settings.... 47
4.5.2 On Screen Display....48

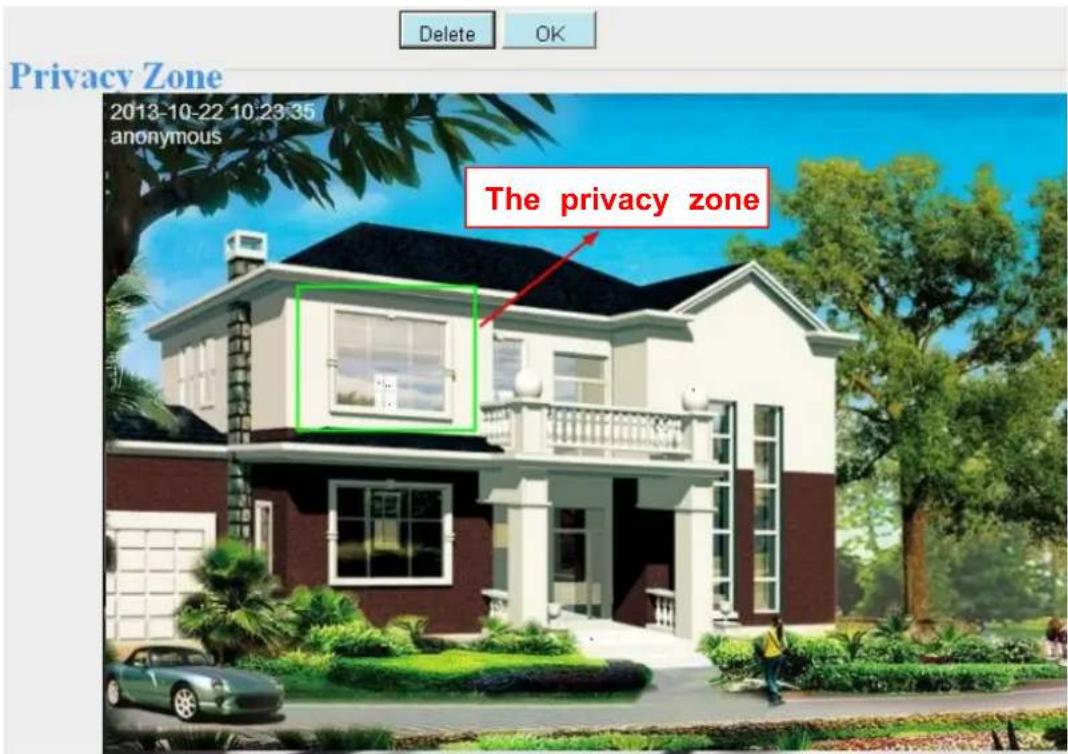

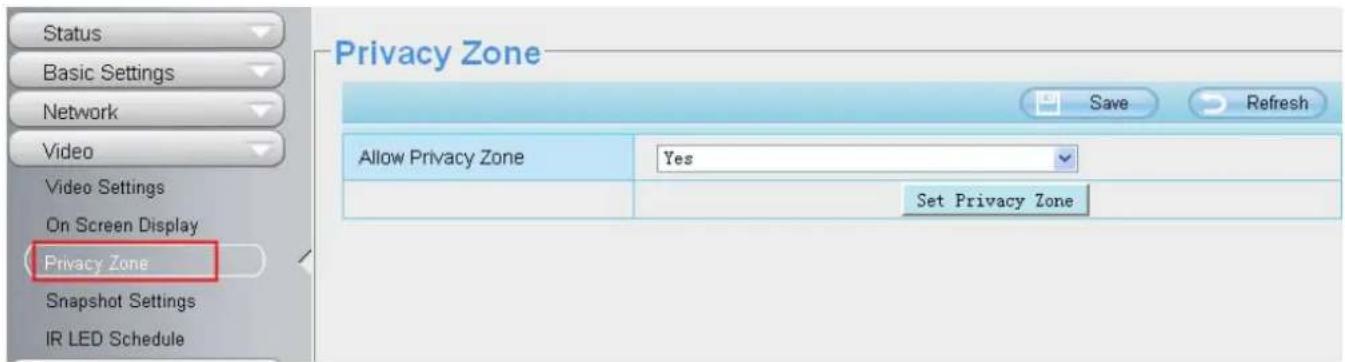

4.5.3 Privacy Zone....49
4.5.4 Snapshot Settings....50

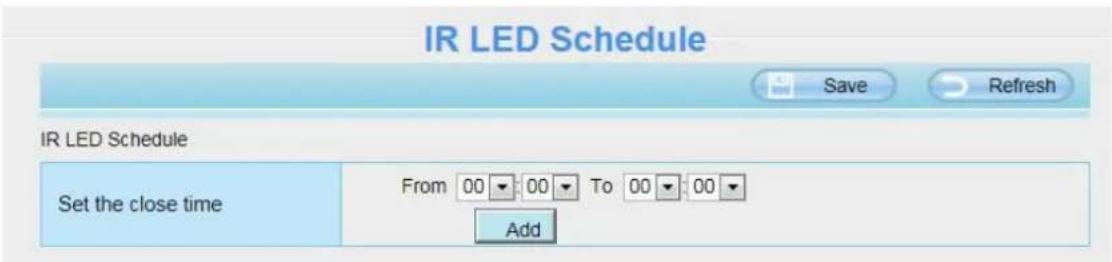

4.5.5 IR LED Schedule....51

4.6 Alarm....52

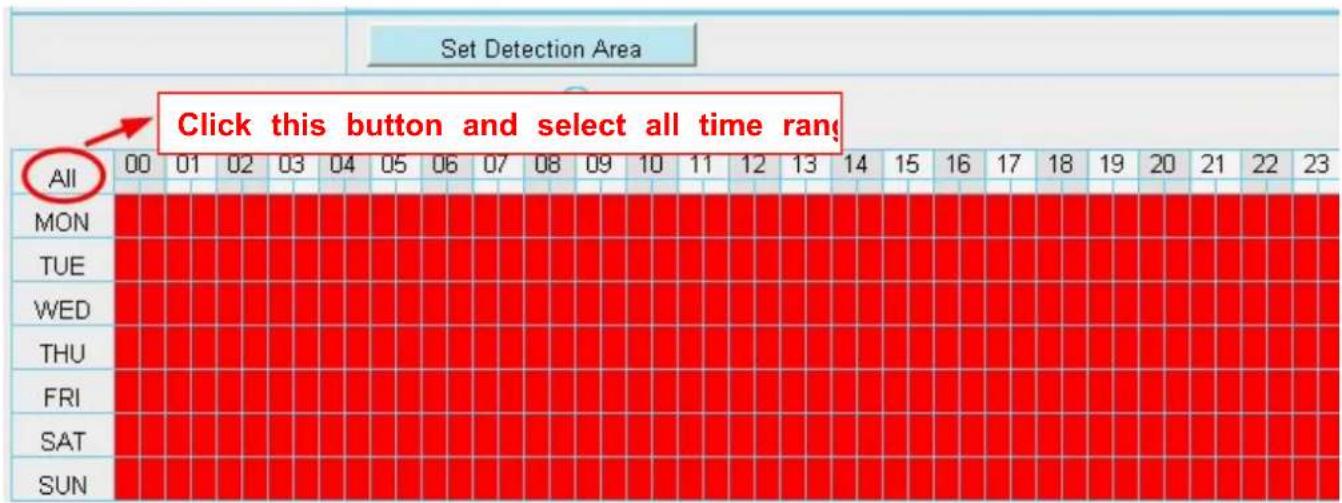

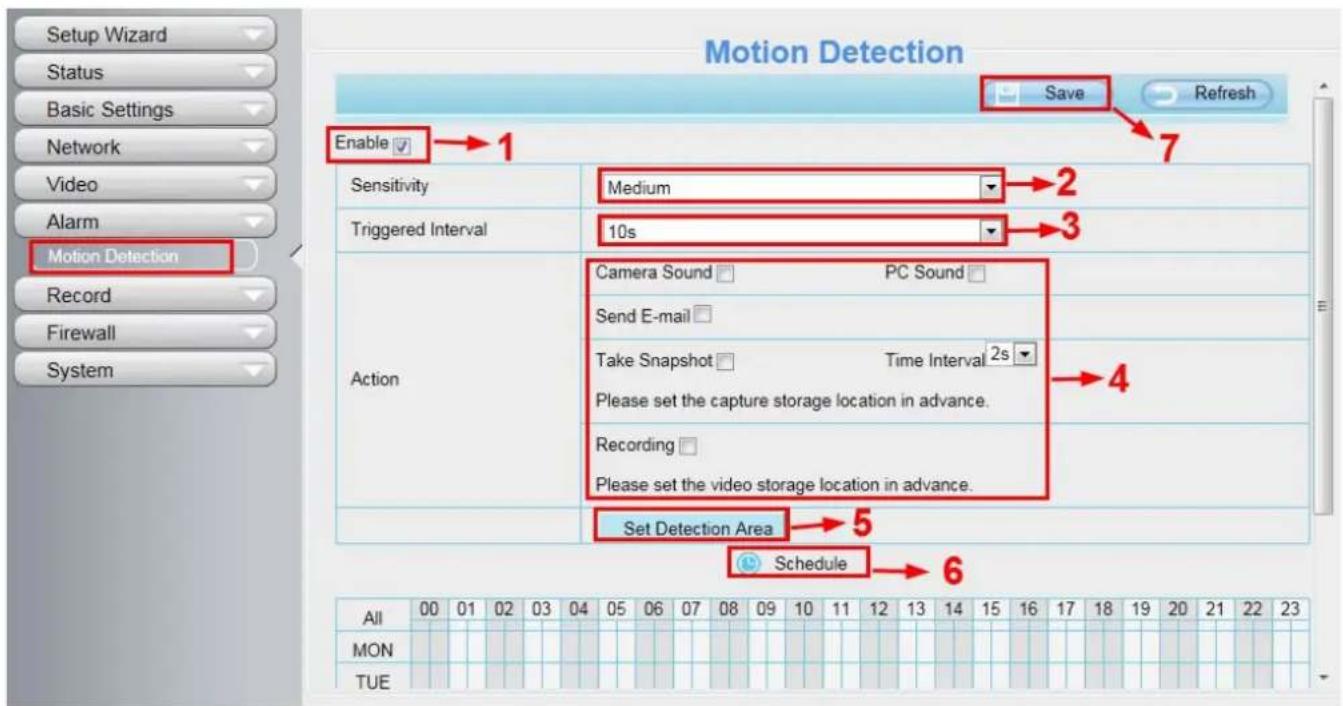

4.6.1 Motion Detection....52
4.6.2 IO Alarm....55

4.7 Record....58

4.7.1 Storage Location....58

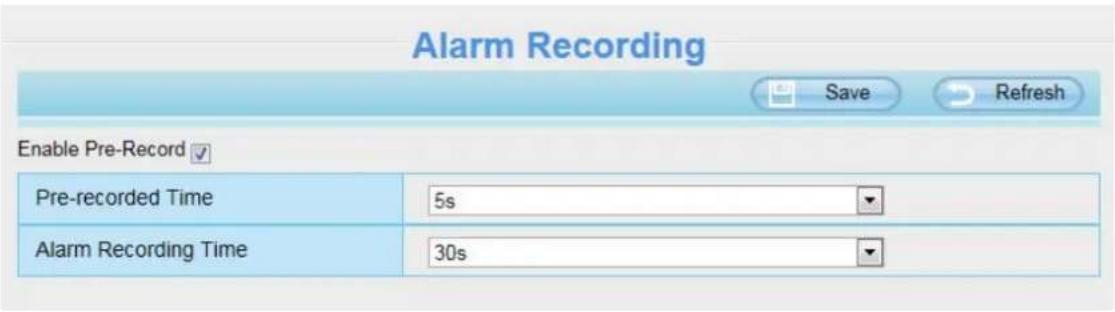

4.7.2 Alarm Record....59
4.7.3 Local Alarm Location....59

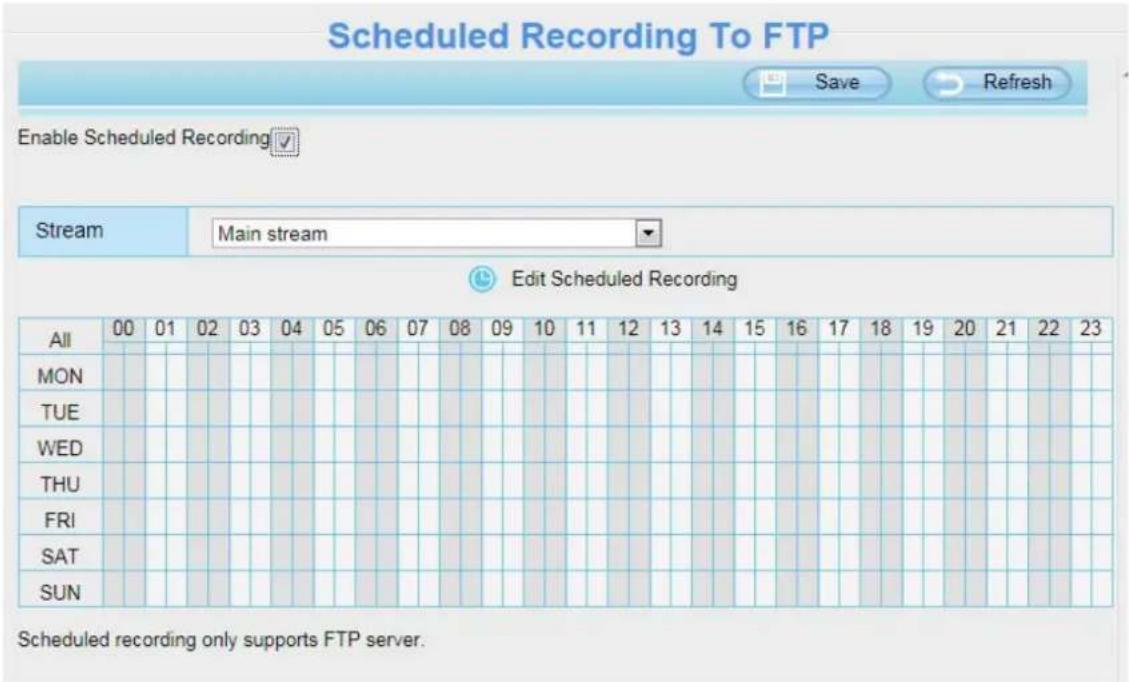

4.7.4 Record Schedule....59

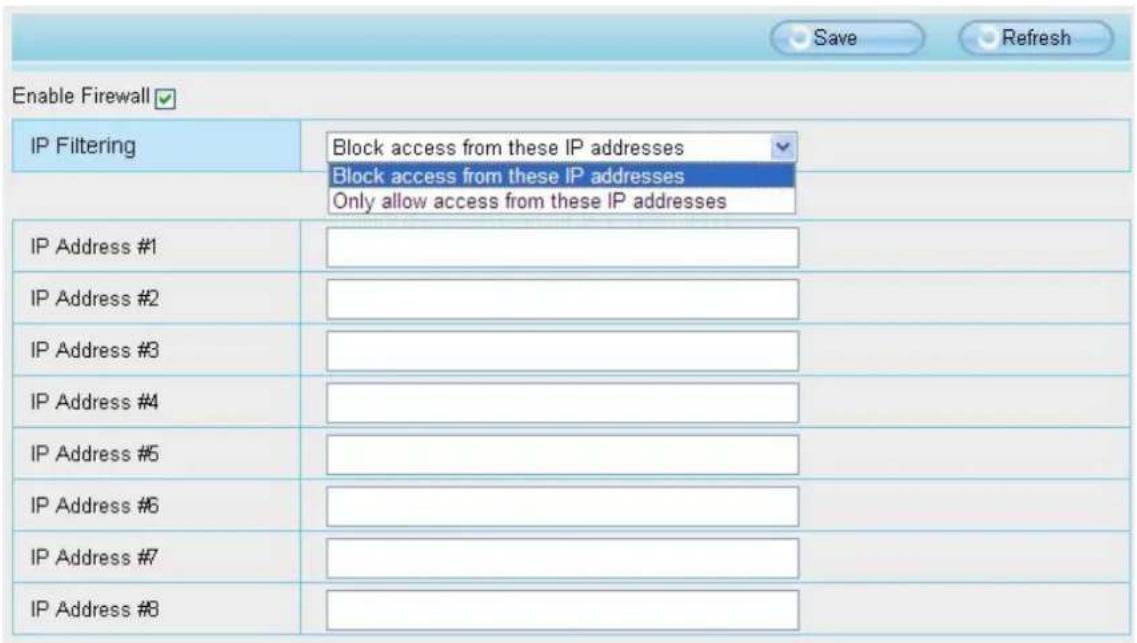

4.8 Firewall....60

4.9 System....60

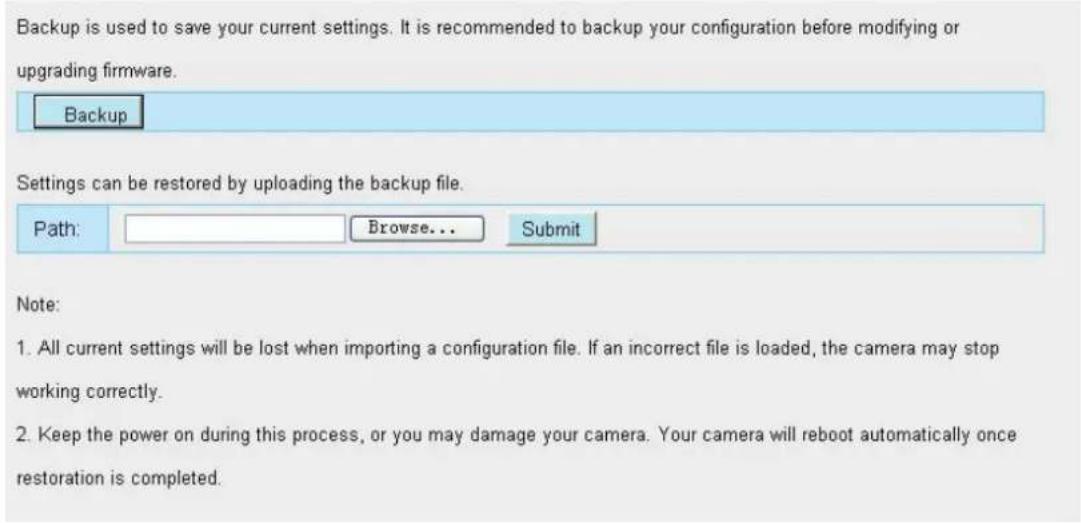

4.9.1 Back up& Restore settings....61

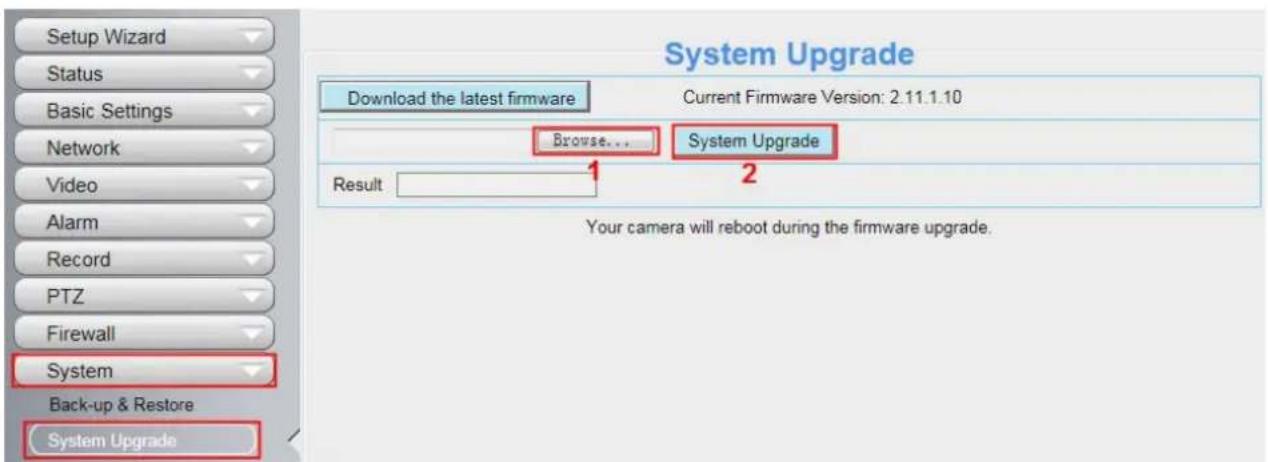

4.9.2 System Upgrade....61
4.9.3 Patch Installation....63
4.9.4 Factory Reset....64
4.9.5 Reboot....64

5 Phone APPs....64
6 Appendix......65

6.1 Frequently Asked Questions....65

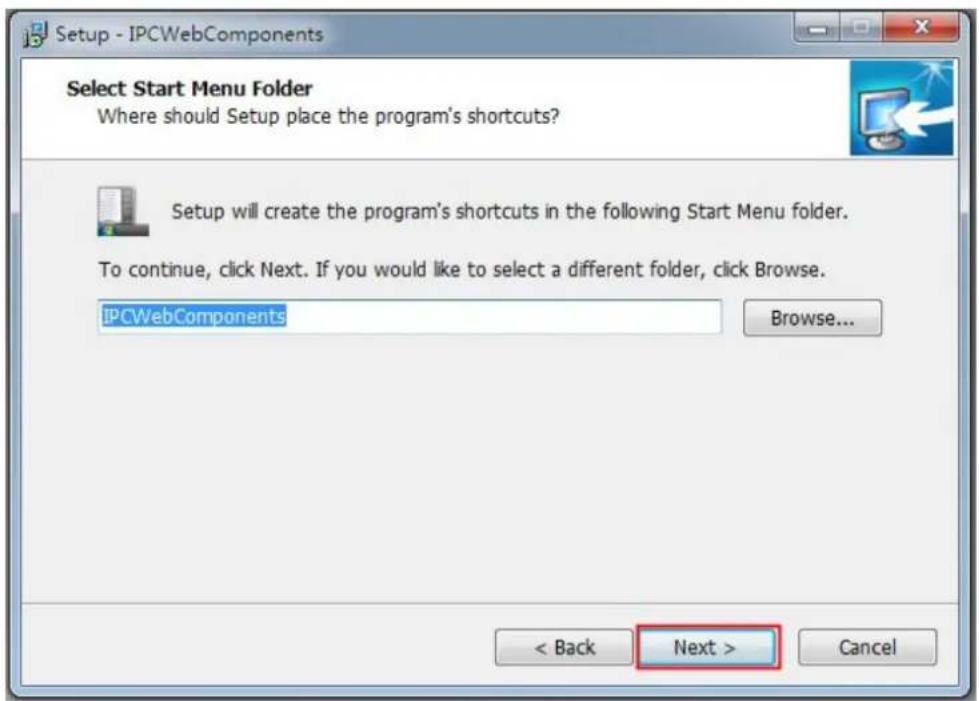

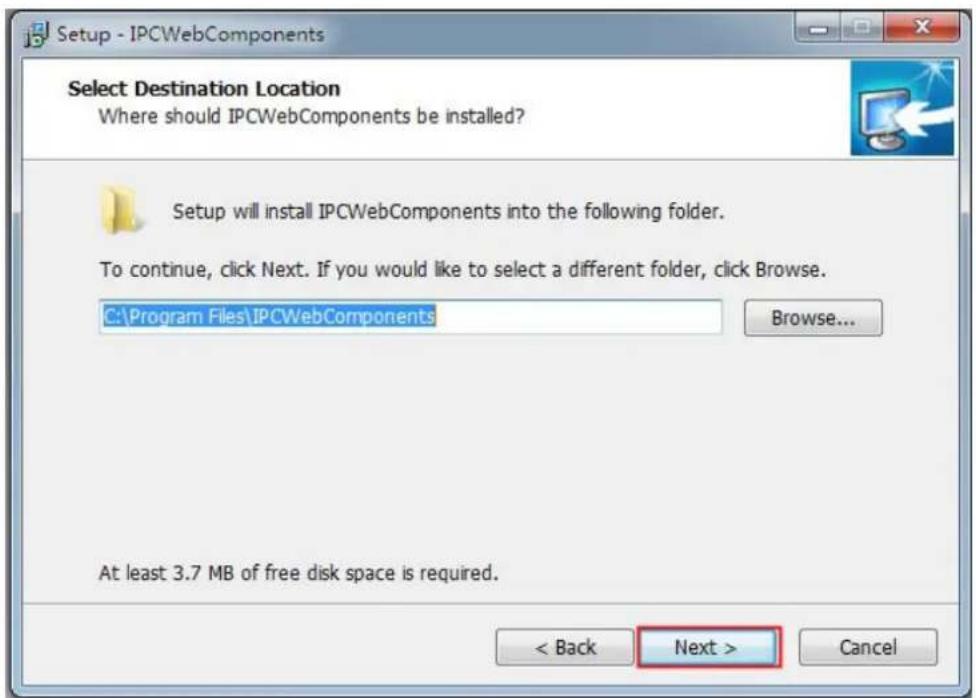

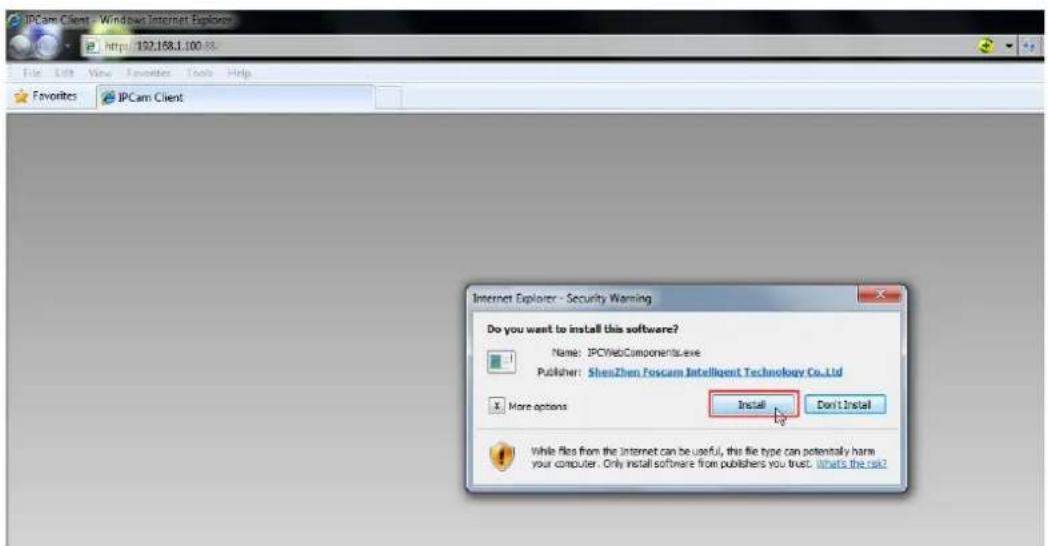

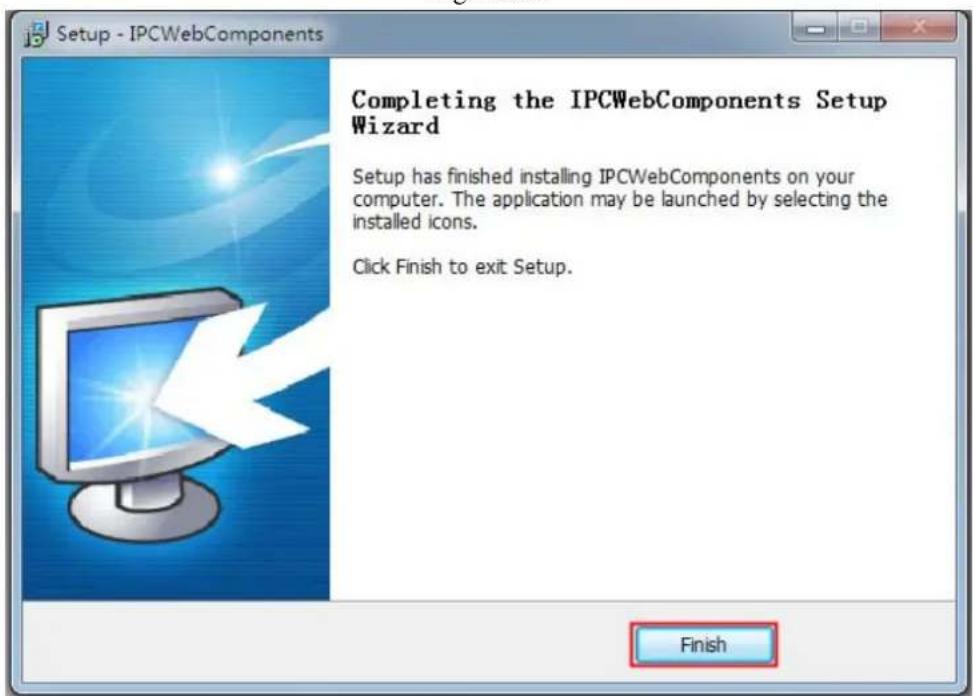

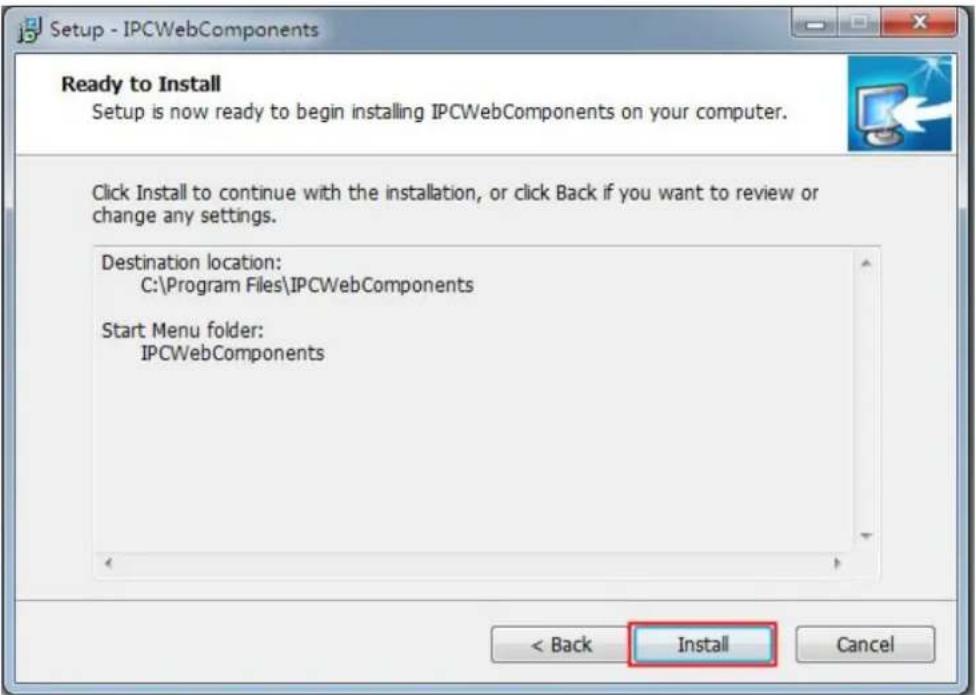

6.1.1 Install the ActiveX of Firefox browser, Google Chrome and IE Chrome.... 65

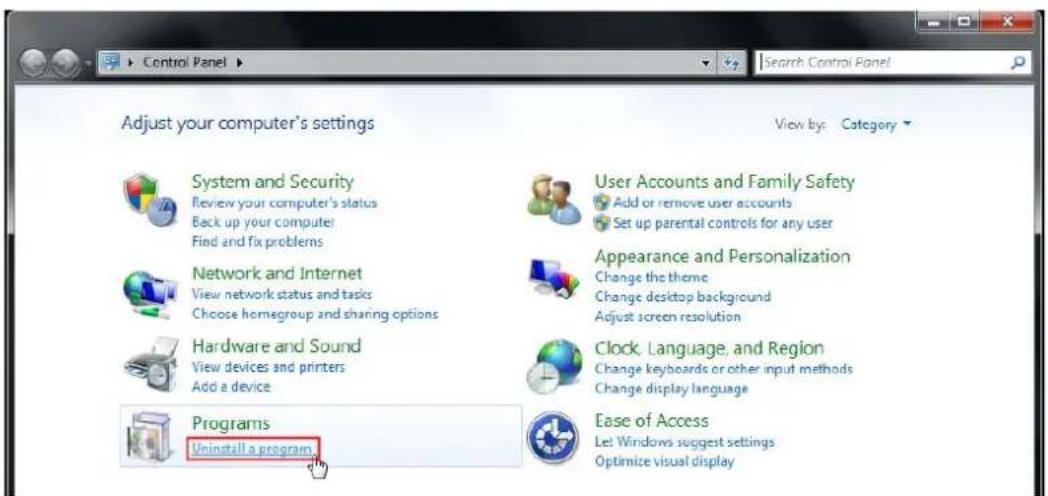

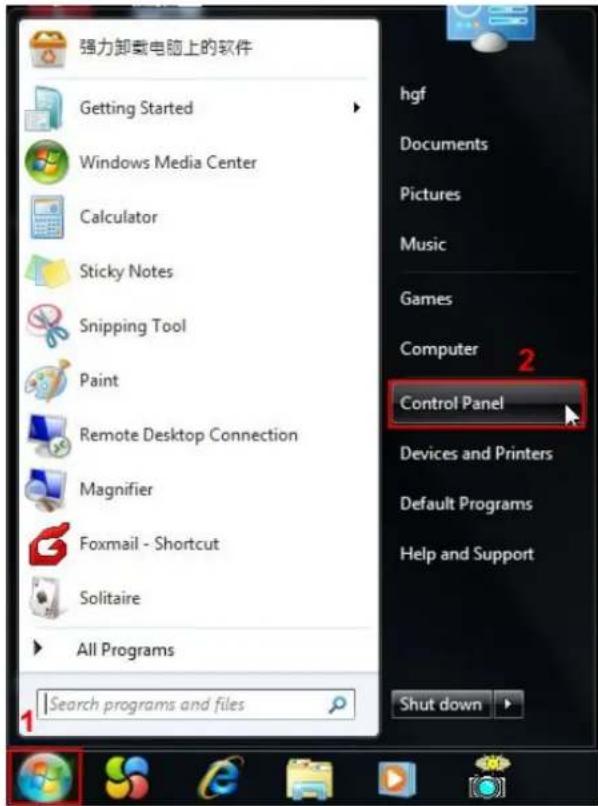

6.1.2 Uninstall the ActiveX of Firefox browser, Google Chrome and IE Chrome....68
6.1.3 I have forgotten the administrator password....69
6.1.4 Subnet doesn't match....69
6.1.5 Camera can not record....69
6.1.6 No Pictures Problems....69
6.1.7 Can't access IP camera in internet....70
6.1.8 UPnP always failed....71

6.2 Default Parameters....71
6.3 Specification....71
6.4 CE & FCC....73

7 Obtaining Technical Support....73

Security Warning

Safeguarding Your Privacy

Foscam cameras require good security practices to safeguard your privacy. You can help protect your camera by changing the default username and/or password. Input a username and/or password that is at least 8 – 10 characters or longer. Try to use a combination of lower-case and upper-case letters as well as numbers and special characters. The more complex the username and password, the harder it will be to guess by an unauthorized user.

You should update your camera regularly at http://www.foscam.us/firmware.html. Make sure your camera has the latest firmware installed for your specific camera model. The latest firmware for Foscam cameras utilizes protection against various types of online hacking, cracking, and unauthorized access. Doing so will make your device more secure, may add features, and will contain bug fixes to make your device work faster.

1 Overviews

FOSCAM FI9805EP is an integrated wireless IP Camera with a color CMOS sensor enabling viewing resolution 1280 x 960. It combines a high quality digital video camera, with a powerful web server, to bring clear video to your desktop from anywhere on your local network or over the Internet.

FI9805EP supports the industry-standard H.264 compression technology, drastically reducing file sizes and conserving valuable network bandwidth.

The IPCAM is based on the TCP/IP standard. There is a WEB server inside which could support Internet Explorer. Therefore the management and maintenance of your device is simplified by using the network to achieve the remote configuration and start-up.

The camera is designed for outdoor surveillance applications such as courtyards, supermarket, and school. Controlling the IPCAM and managing images are simplified by using the provided web interface across the network.

FOSCAM provides Smart Phone APP for Android and iPhone users, please search and install Foscam Viewer on Google Play for Android devices, search and install Foscam Viewer on APP Store for iOS devices, then you can view your camera anywhere, anytime on your smart mobile devices.

Please note to change your default username and password once you have initially logged into your Foscam camera. Changing your default user settings enables better protection against any types of attacks against your camera.

1.1 Key Features

◆ Standard H.264 video compression algorithm to satisfy the transmission of high definition video in narrow bandwidth network
◆ P2P feature for easy access
◆ 1.3 Mega-Pixel
◆ Supports IE/Firefox/Google/Safari browser or any other standard browsers
◆ Supports WEP, WPA and WPA2 Encryption
◆ PoE compliant with PoE standards IEEE 802.3af
◆ IR night vision (Range:30m)
◆ Supports image snapshot
◆ Supports dual-stream
◆ Supports IR-Cut and the filter change automatically
◆ Embedded FOSCAM DDNS(dynamic domain name service) Service
◆ Supports remote viewing & record from anywhere anytime
◆ Multi-level users management with password protection
◆ Motion detection alert via email or upload image to FTP

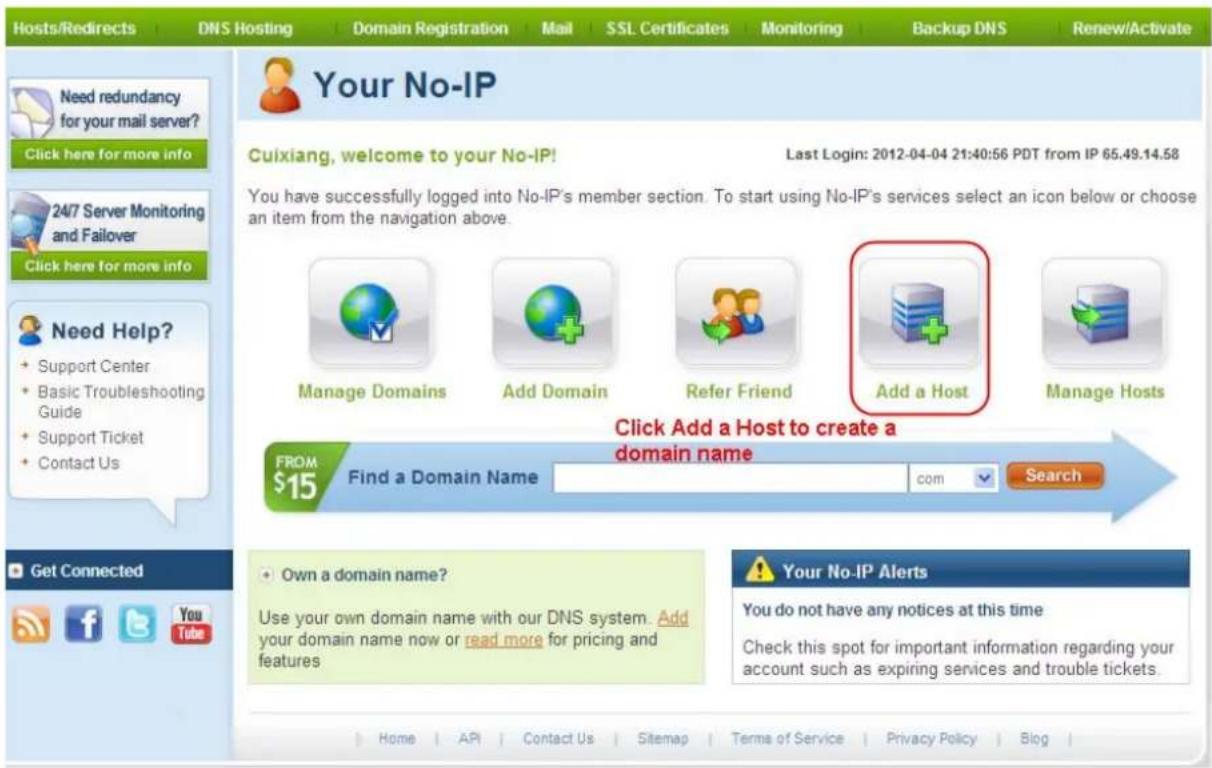

◆ Supporting Third Party Domain name
◆ Providing Phone APPs for Android and iPhone users
◆ Supports multiple network protocols: HTTP /HTTPS/ RTSP/ TCP /IP /UDP /FTP /DHCP /DDNS / UPNP /ONVIF
◆ Providing Central Management Software to manage or monitor multi-cameras

1.2 PoE (Power over Ethernet)

The Network Camera is PoE-compliant, allowing transmission of power and data via a single Ethernet cable. Such as the following picture: connect the Network Camera to a PoE-enabled router/ switch via Ethernet cable.

power + data transmission PoE Switch

1.3 Read Before Use

Please first verify that all contents received are complete according to the Package Contents listed below. Before the Network Camera is installed, please carefully read and follow the instructions in the Quick Installation Guide to avoid damage due to faulty assembly and installation. This also ensures the product is used properly as intended.

1.4 Packing Contents

• IPCAM×1 • CD×1
• DC Power Supply×1 • Quick Installation Guide ×1
• Mounting bracket×1 • Security Warning Card × 1
• Network Cable×1

1.5 Physical Description

Front Panel

1 2 3 PDSCAAM

Figure 1.1

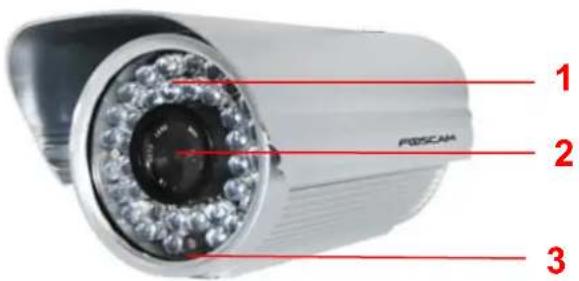

1 Infrared LED: 36 IR LEDs
2 LENS: CMOS sensor with fixed focus lens
3 Induction IC

Interface

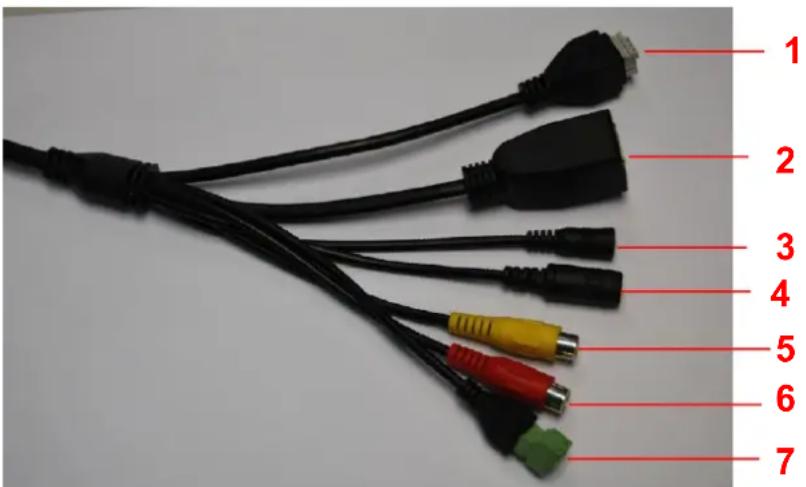

1 2 3 4 5 6 7

Figure 1.2

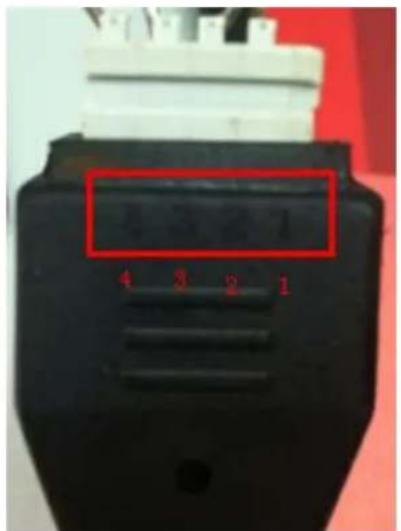

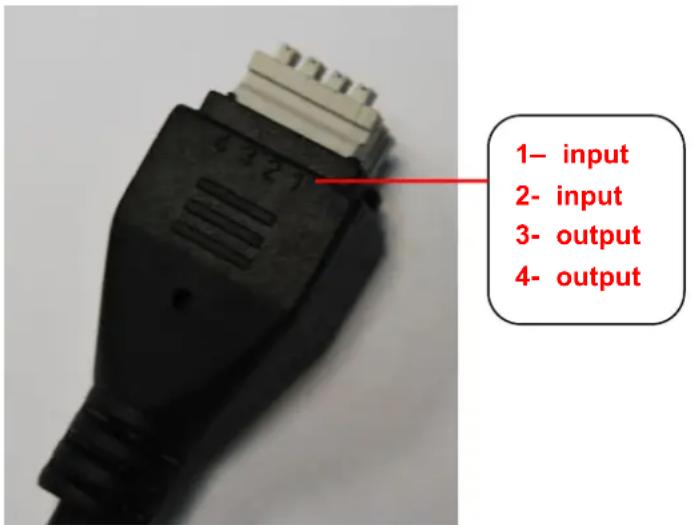

1 I/O alarm terminal block

This network camera provides a I/O alarm terminal block which is used to connect to external input / output device. The pin(there are four number in the terminal block from no. 1 to no. 4) definitions are as follows::

1- input 2- input 3- output 4- output

Figure 1.3

This camera supports I/O alarm, you can go to Settings - Alarm - I/O page to configure it.

2 LAN

10/100M adaptive Ethernet interface. Through this interface, IPCAM can be connected with various network devices, such as hub, router, etc.

3 Reset button

Press and hold on the reset button for 5 seconds. Releasing the reset button, the password will back to the factory default administrator password. The default administrator user is admin with no password.

4 Power Interface

Connect the external power adapter, request for 12V/2A power.

5 Audio input interface:

The jack is used to plug external input device such as sound pick up device directly. Here microphone cannot directly

insert to the interface, it must connect to commutator first.

6 Audio output interface:

The jack is used to plug external output device such as loud speaker directly. Here microphone cannot directly insert to the interface, it must connect to commutator first.

7 RS485 Cradle head interface

This camera supports the standard 485 cradle head protocol. Please configure the RS485 protocol corresponding information first (go to Settings- PTZ – RS485 Configuration page and do settings), or else the cradle head may cannot work.

Bottom View

There are up to two labels located at the bottom of the camera; this is an important feature of original Foscam cameras. If your camera does not have labels as shown in Figure 1.4, it may be a clone. Cloned Foscam cameras can not use original firmware and are not eligible for warranty or technical services.

Model:FI9805EP HD PoE IP Camera MAC ID:000000000000 DDNS XXXXXX. myfoscam.org FCC ID:ZDEFI9805EP S/N FIA1403000001 FSOSCAM Username(default) admin Password(default) (blank) CE RCHS Product Label & SN Label & QR NO.

Figure 1.4

2 Accessing the Network Camera

This chapter explains how to access the network camera through web browsers and RTSP players.

2.1 Access the Camera in LAN

This camera support HTTP and HTTPS protocols, so here will allow you to use HTTP and HTTPS port no.

(1) Http:// LAN IP + Http Port no.

Double click the IP Camera Tool icon and it should find the camera's IP address automatically after you plug in the network cable.

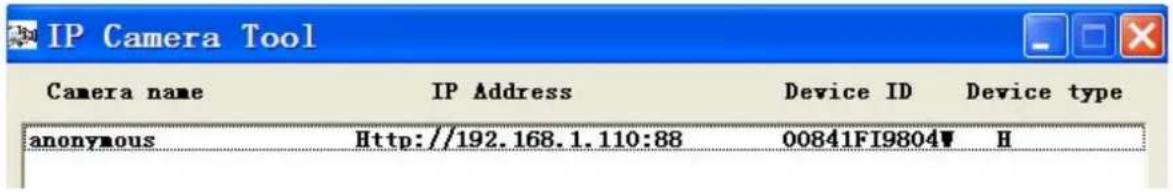

IP Camera Tool Camera name IP Address Device ID Device type anonymous Http://192.168.1.110:88 00841FI9804W H

Figure 2.1

Double click the IP address of the camera; your default browser will open to the camera login page.

(2) Https:// LAN IP + Https Port no.

The default Https port no. is 443. You can use the url to access the camera: https:// LAN IP + HTTPS port.

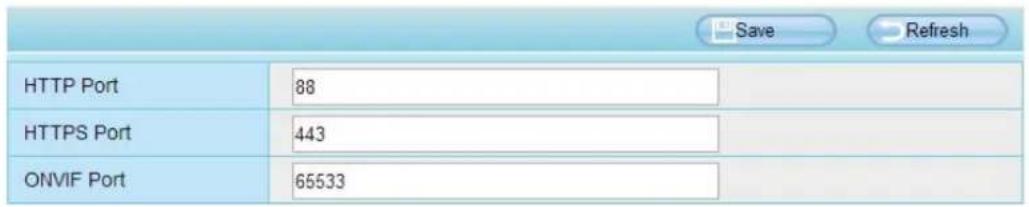

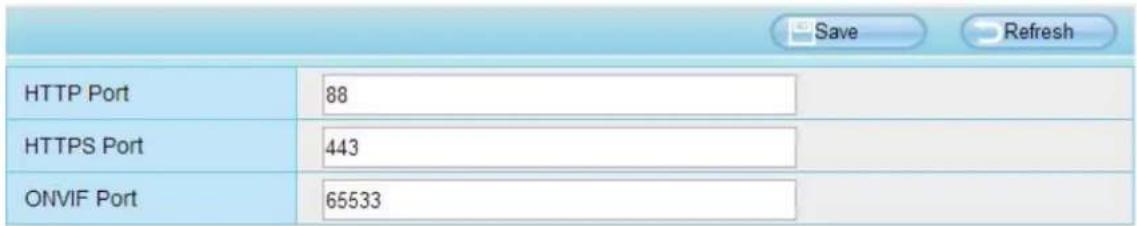

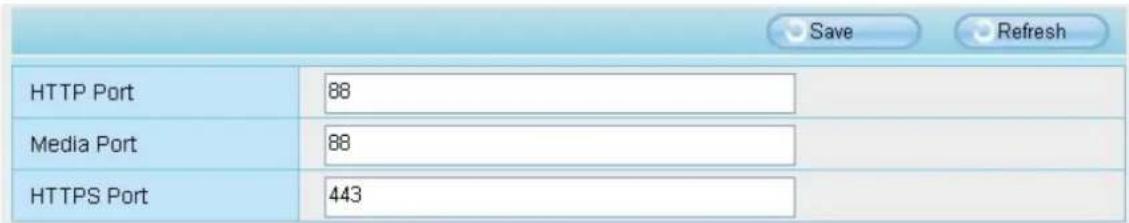

Go to Settings - Network - Port panel, you can see and change the https port no.

HTTP Port 88 HTTPS Port 443 ONVIF Port 65533

Figure 2.2

2.2 Access the Camera in WAN

2.2.1 Static IP Addresses

Users who have static IP addresses do not need to set DDNS service settings for remote access. When you have finished connecting the camera using the LAN IP address and port forwarding, you can access the camera directly from the Internet using the WAN IP address and port number.

How to Obtain the WAN IP address from a public website

To obtain your WAN IP address, enter the following URL in your browser: http://www.whatismyip.com. The

webpage at this address will show you the current WAN IP.

What Is My IP Address - Shows Your IP Address - Windows Internet Explorer File Edit Recent Pages Tools Help Favorites Supported Sites Free Hotmail Web Style Gallery What Is My IP Address - Shows Your IP Address WIMI • WIMI Forum • Internet Speed Test • IP Address Lookup • IP WHOIS Lookup • Host Name Lookup • User Agent Info • Server Headers Check • How To Change Your IP • How To Trace An Email • What Is As IP Address • IP Address Management • What Is DHCP • DOS : Windows IP Commands • Linux IP Commands • UNIX IP Commands • WIMI Shows A Different IP FORUM SPEED TEST IP LOOKUP TRADE AN EMAIL CHANGE YOUR IP What Is My IP Address - WhatIsMyIP.com Your IP Address Is: 183.37.28.254 Whats My IP Address? Our visitors need to know their IP address for many reasons including gaming, tech support, remote desktop connection, proxy detection, anonymity, or simply to see if their address has changed. Visitors often come here to do an IP Address UNBEATABLE DEDICATED SERVERS ✓ DELL R200 Intel Core2Duo E2220 2.4Ghz ✓ 1GB DDR RAM ✓ 160GB SATA HDD Search Recent Forum Posts help speed up my connection My problem is my connection goes up and down. Its extremely fast for a few min. then it is painfully slow. Time Warner cable is my service... up confused help me smart people haha ok as stupid as this sounds i have friends in another country we have become really close to the point im brought into their life's. this is sweet... See other peoples computer screens? This is fairly complex, but i wonder if it's possible. I was wondering if there was some way you can hack

Figure 2.3

Access your IP Camera from the Internet

You can access the IP Camera from the Internet (remote access). Enter the WAN IP address and port number in your standard browser. For example, you would enter http://183.37.28.254:85

NOTE :

Make sure port forwarding is successful. You can do port forwarding two ways.

1. Login to your router to enable the "UPNP" function. You can then login to the camera as administrator, choose Network, and then choose UPnP to enable UPnP. Make sure that the status of UPnP reads "UPnP Successful" on the Device Status page.
2. Do port (HTTP port) forwarding manually.

If your router has a Virtual Server, it can do port forwarding. Add the camera's LAN IP and port which you had set earlier to your router's port forwarding settings.

NOTE: If you plug the camera into a router, it will have a dynamic IP address and you need to set DDNS service settings to view it remotely.

Step 1: Enter the username and password of the Administrator, and click "OK" to apply changes.

Step 2: Wait around 10 seconds, you'll see that the camera's LAN IP address has changed. In our example it was changed to 2000, so we see http://192.168.8.102:2000 in IP Camera Tool. Also, the LAN IP address is now fixed at a static IP address of http://192.168.8.102:2000. This IP address will not change even if the camera is powered off and back on, the camera will remain on this LAN IP address. This is very important that a static LAN IP address is set, or you may have problems later with remote access and seeing the camera remotely if the camera loses power and reconnects on a different LAN IP address. Make sure you set a static LAN IP address!

2.2.2 Dynamic IP Addresses

DDNS is a service that allows your IP Camera, especially when assigned with a dynamic IP address, to have a fixed host and domain name. This means that even though your WAN IP address is constantly changing, you will have a fixed hostname you can use to access your cameras at all times. You can access the camera directly from the Internet using the hostname and port number.

What is the HTTP Port no.?

1) Default HTTP Port is 88

All cameras have the default HTTP port of 88. For example, if the LAN IP link of the camera is http://192.168.8.102:88, this means that the camera's HTTP port is 88. You can change port 88 to another port if you'd like such as 2000 or 8090, which will not be conflict with other existing ports like 25, 21, 10000. Here you can set the port no. between 1 and 65535.

2) Change the default http no.88 to another one.

How to assign a different HTTP Port No. and fixed the LAN IP of the camera by the IP Camera Tool?

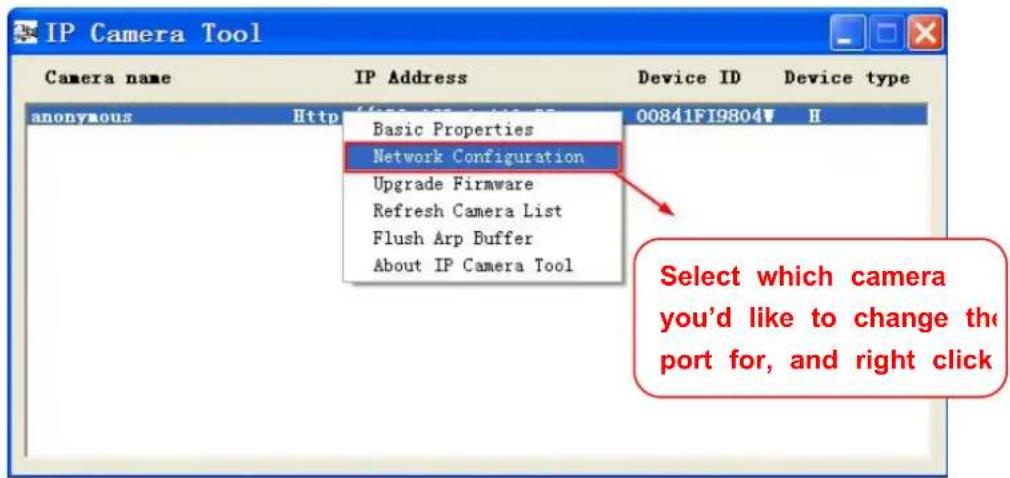

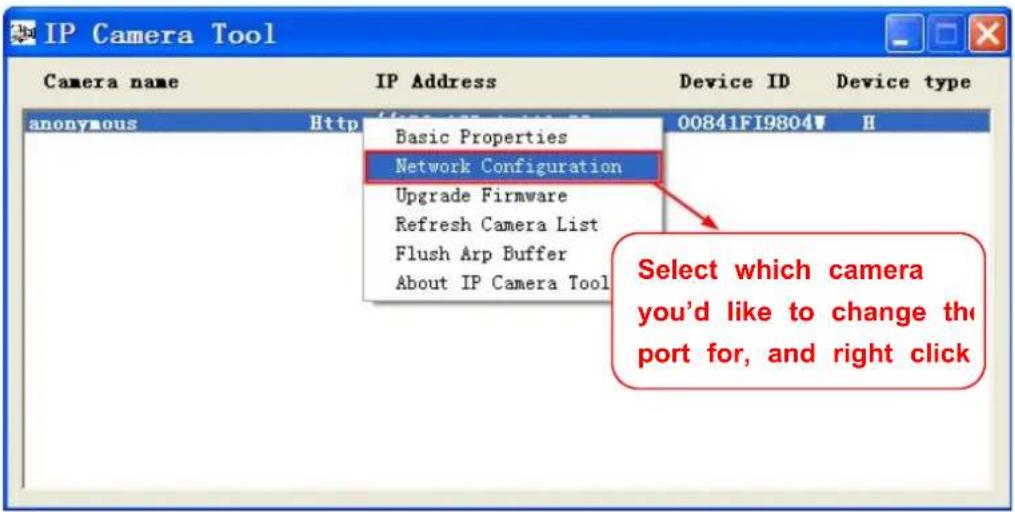

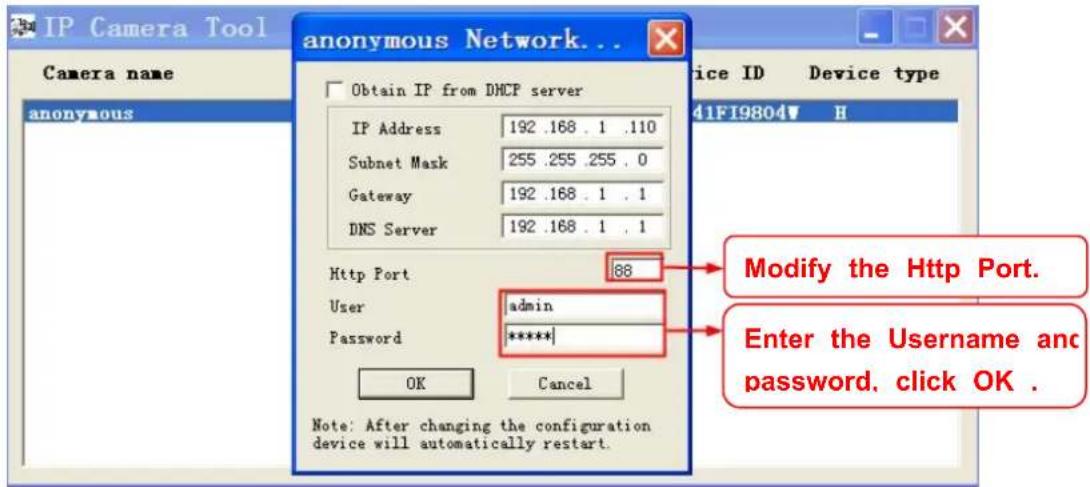

Step 1: Open the IP Camera Tool, select the camera you would like to change the port of, right click on the IP address, and click on "Network Configuration", this brings up the network configuration box as shown in Figure 2.4 and 2.5.

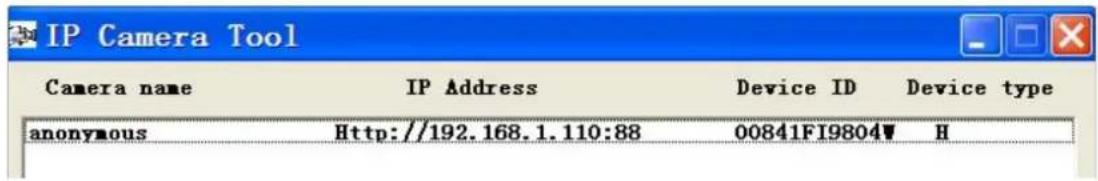

IP Camera Tool Camera name IP Address Device ID Device type anonymous Http 00841FI9804W H Basic Properties Network Configuration Upgrade Firmware Refresh Camera List Flush Arp Buffer About IP Camera Tool Select which camera you'd like to change the port for, and right click

Figure 2.4

IP Camera Tool anonymous Network... Camera name anonymous Obtain IP from DHCP server IP Address 192 .168 . 1 .110 Subnet Mask 255 .255 .255 . 0 Gateway 192 .168 . 1 . 1 DNS Server 192 .168 . 1 . 1 Http Port 88 User admin Password *****| OK Cancel Note: After changing the configuration device will automatically restart. Modify the Http Port. Enter the Username and password, click OK.

Figure 2.5

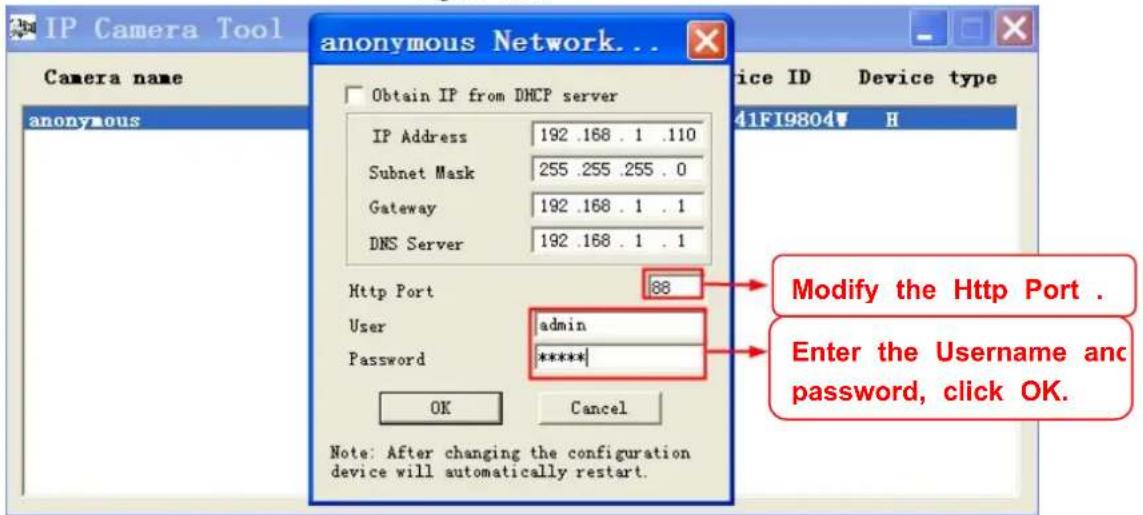

Step 2: Modify the Http Port and enter the username and password of the Administrator, and click "OK" to apply changes.

Step 3: Wait around 10 seconds, you'll see that the camera's LAN IP address has changed. Also, the LAN IP address is now fixed at a static IP address of http://192.168.1.110:88. This IP address will not change even if the camera is powered off and back on, the camera will remain on this LAN IP address. This is very important that a static LAN IP address is set, or you may have problems later with remote access and seeing the camera remotely if the camera loses power and reconnects on a different LAN IP address. Make sure you set a static LAN IP address!

Camera name	IP Address	Device ID	Device type
anonymous	Http://192.168.1.110:88	00841FI9804W	H

Figure 2.6

What is Port forwarding?

If you have never done port forwarding before, you can open and view the following link to understand the basic concept. Port forwarding allows for outside connections to access a specific device on your network from anywhere in the world. Every router automatically blocks any incoming connections for safety purposes. Using port forwarding, you are telling your router to allow a connection through a certain port (you can think of it as a gateway) into your router. You set this port to a specific device, in our case an IP Camera, so it can be accessed from anywhere in the world.

Click this link to learn more about port forwarding: http://portforward.com/help/portforwarding.htm

How do we configure Port Forwarding?

For this section, we will be using an example:

Let's say the camera's LAN IP address is http://192.168.8.100:2000

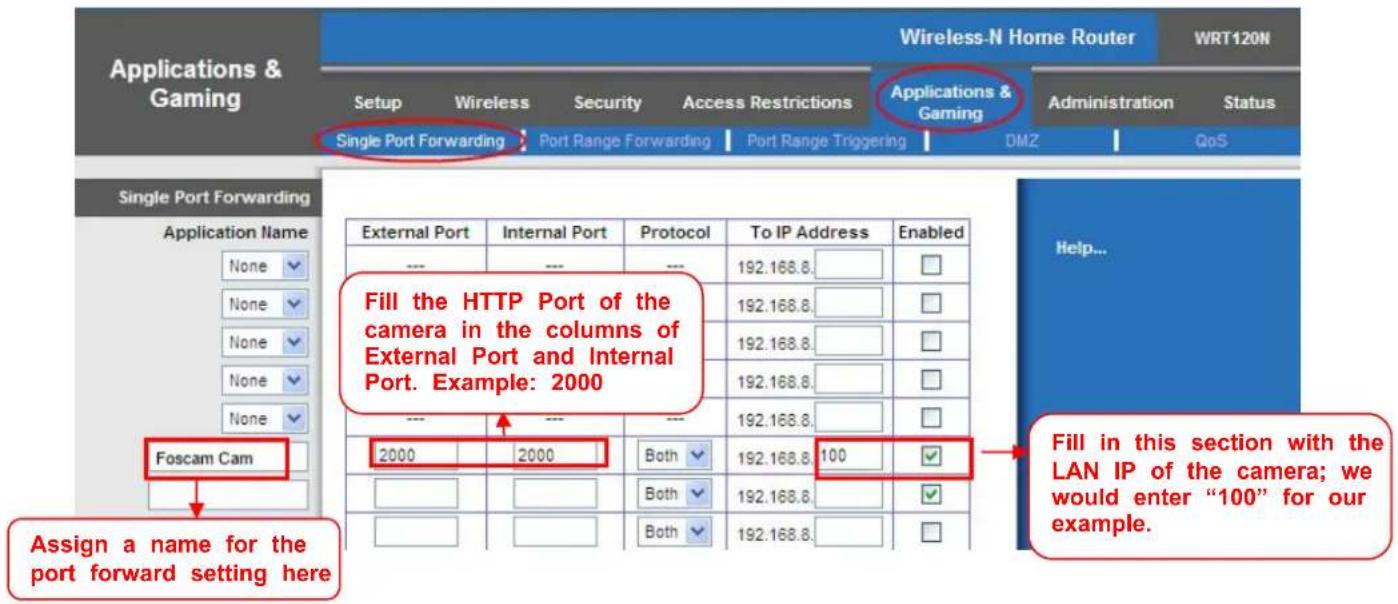

Step 1: Login to the router, and go to your router's port forwarding or port triggering menu. Sometimes this is also under the name of Virtual Server or NAT.

Using the Linksys brand router as an example, we would log into the router, and go to the Applicat & Gaming menu. We would then click on the “Single Port Forwarding” sub-menu.

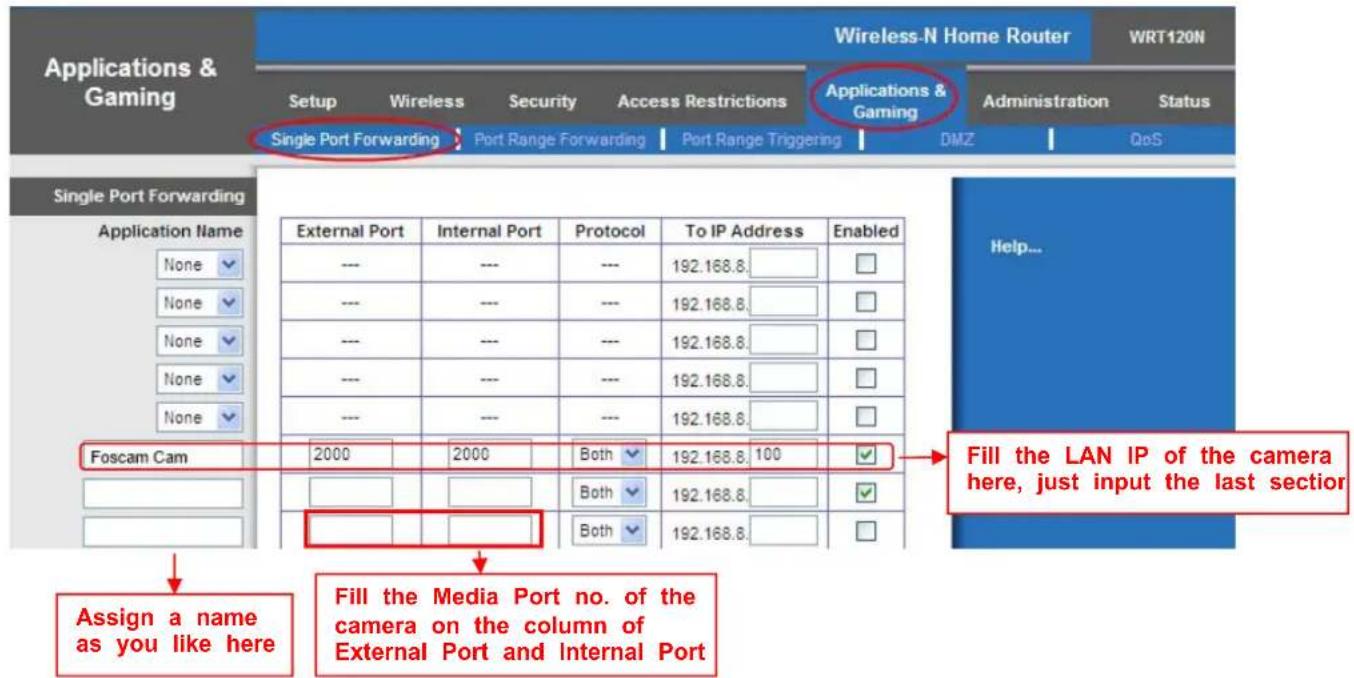

Step 2: Create a new column using the LAN IP address & HTTP Port of the camera within the router as shown below, then push OK or Submit to save your settings:

Applications & Gaming Wireless-N Home Router WRT120N Setup Wireless Security Access Restrictions Applications & Gaming Administration Status Single Port Forwarding Port Range Forwarding Port Range Triggering DMZ QoS Single Port Forwarding Application Name None None None None None Foscam Cam Fill the HTTP Port of the camera in the columns of External Port and Internal Port. Example: 2000 2000 2000 Both 192.168.8. 192.168.8. 192.168.8. 192.168.8. 192.168.8. 192.168.8. 100 Fill in this section with the LAN IP of the camera; we would enter "100" for our example. Assign a name for the port forward setting here

Figure 2.7

First method :

Use the embedded DDNS to access the camera via the Internet

Each Foscam camera has an embedded unique DDNS domain name, the format of this domain name is xxxxxx.myfoscam.org. On the bottom of the camera, you can see the domain name sticker with this information on it.

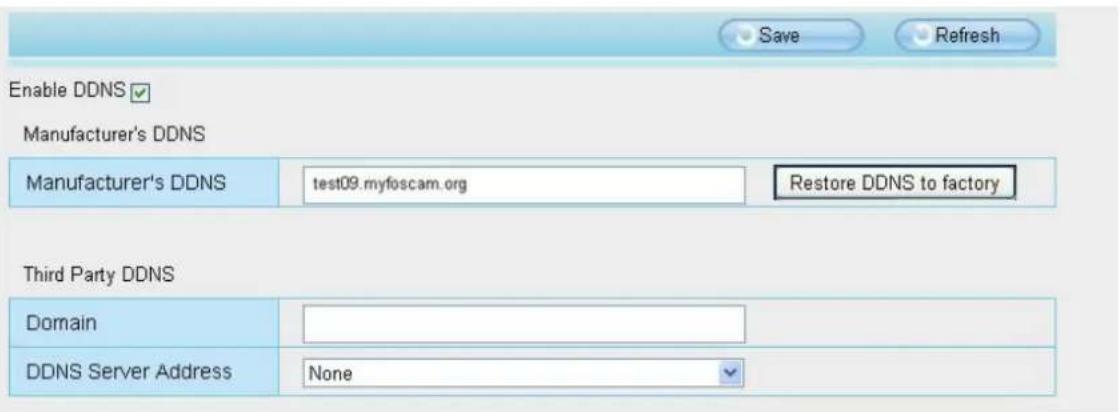

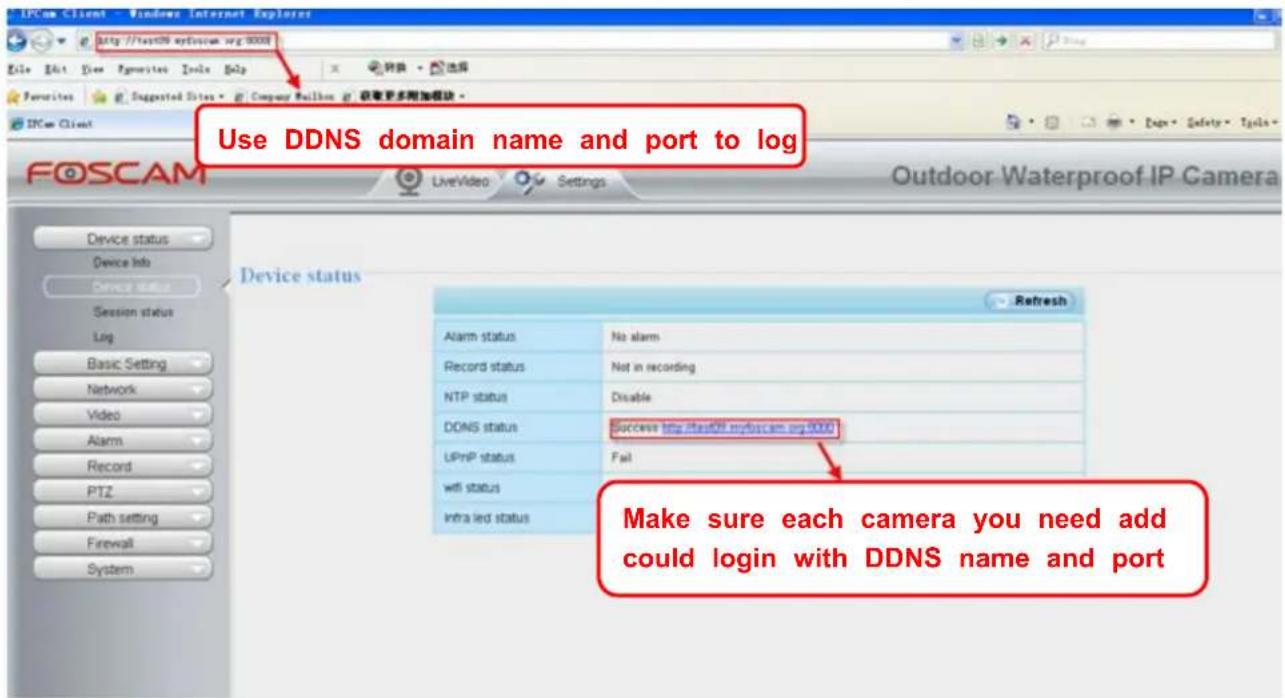

For example, we can use test09.myfoscam.org. In the camera, click Settings at the top, click "Network" on the left, then click "DDNS" to get to the DDNS settings page. Here you can see the unique domain name of your camera.

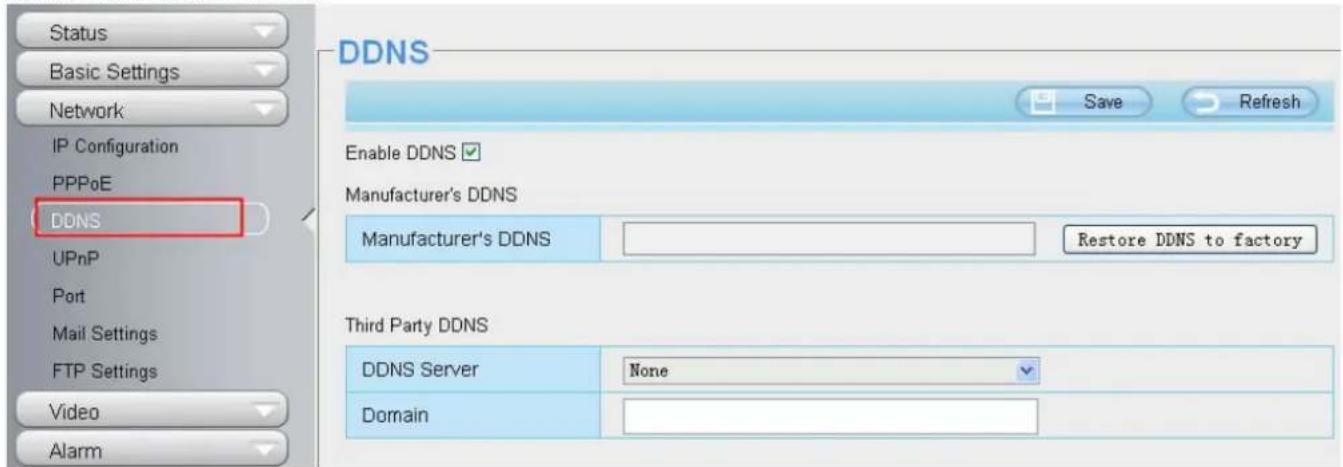

Enable DDNS Manufacturer's DDNS Manufacturer's DDNS test09.myfoscam.org Restore DDNS to factory Third Party DDNS Domain DDNS Server Address None

Figure 2.8

Now you can use "http://Domain name + HTTP Port" to access the camera via the Internet.

Take hostname test09.myfoscam.org and HTTP Port of 2000 for example, the URL link to access the camera via the Internet would be http://test09.myfoscam.org:2000.

Now you can use "http://Domain name + HTTP Port" to access the camera via the Internet.

Take hostname test09.myfoscam.org and HTTP Port of 2000 for example, the URL link to access the camera via the Internet would be http://test09.myfoscam.org:2000.

Second method :

Use the Third party DDNS to access the camera via the Internet

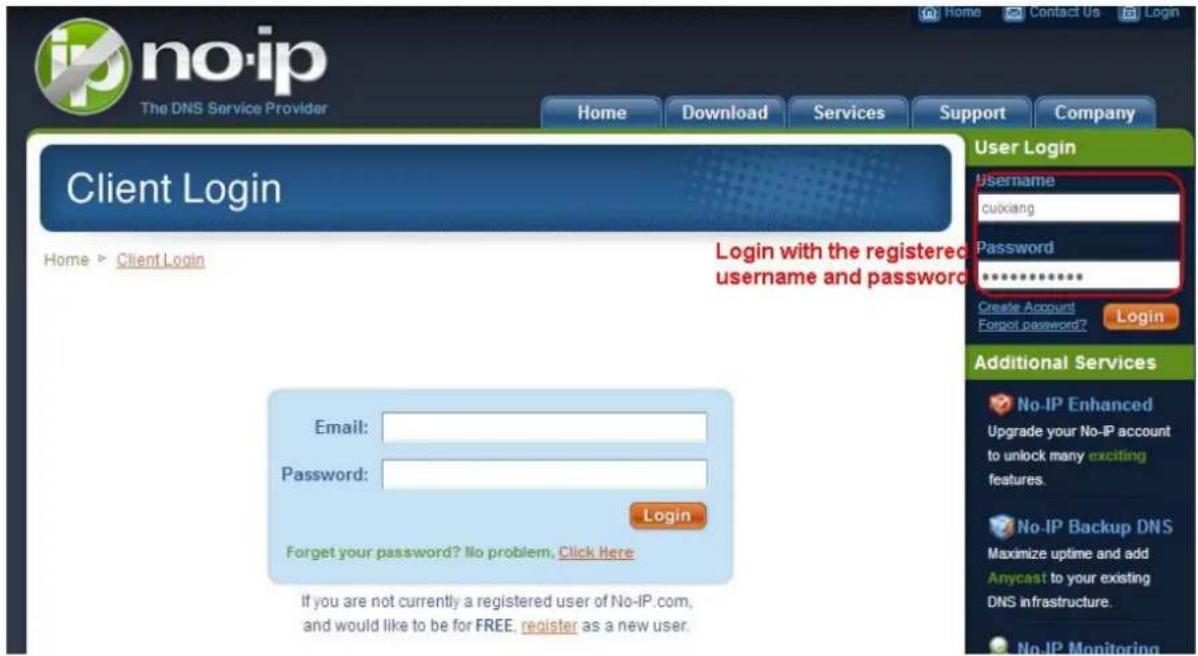

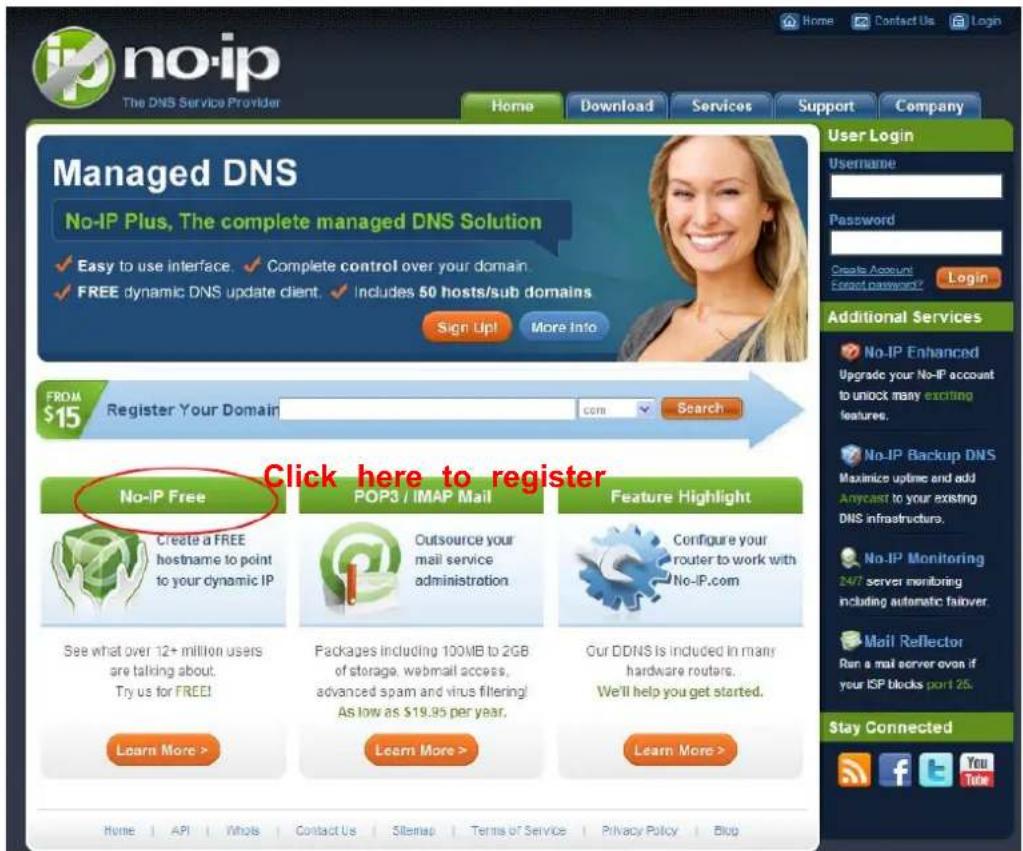

Step 1, Please go to the third party DDNS website(such as www.no-ip.com) to create a free hostname.

Step 2, DO DDNS Service Settings within the Camera

Please set DDNS Settings within the camera by hostname, a user name and password you've got from www.no-ip.com

Take hostname ycxgwp.no-ip.info, user name foscam, password foscam2012 for example.

Firstly, goes to option of DDNS Settings on the administrator panel.

Secondly, select No-lp as a server.

Thirdly, fill foscam as DDNS user, fill password foscam2012 as DDNS password, fill ycxgwp.no-ip.info as DDNS domain and server URL, Then click save to make effect. The camera will restart and to take the DDNS settings effective.

Fourthly, after the restart, login the camera, and go to option of Device Status on the administrator panel, and check if the DDNS status is successful.

If failed, please double check if you have input the correct hostname, user name, and password, and try to redo the settings.

NOTE:

If you have set Third Party DDNS successfully, the Foscam Domain Name will be invalid. The Third Party DDNS and the Foscam Domain Name cannot work at the same time, the last time you configured will take effect.

2.3 Using the VLC player

This camera supports RTSP streaming, here you can view the camera using VLC player.

RTSP URL rtsp:// [user name][:password]@IP:HTTP port number/videosream

The part in the square brackets may be omitted.

user name & password:

The user name and password to access the camera. This part can be omitted.

IP: WAN or LAN IP address.

Videostream:

Here support three mode: videoMain, videoSub and audio. When the network speed is bad, here you had better select videoSub. If you select audio, you can only hear the sound but cannot see the video.

For example:

IP: 192.168.1.11

HTTP Port number: 88

User name: admin

Password: 123

Here I can enter one of the following URLs in the VLC.

1) rtsp://admin:123@192.168.1.11:88/videoMain
2) rtsp://@192.168.1.11:88/videoMain
3) rtsp://:123@192.168.1.11:88/videoMain
4) rtsp://admin@192.168.1.11:88/videoMain

Open the VLC, and go to Media→Open Network Stream option, then enter the URL into VLC.

VLC media player Media Playback Audio Video Tools View Help Open File... Ctrl+O Advanced Open File... Ctrl+Shift+O Open Folder... Ctrl+F Open Disc... Ctrl+D Open Network Stream... Ctrl+N Open Captive Device... Ctrl+C Open Location from clipboard Ctrl+V Recent Media Save Playlist to File... Ctrl+Y Convert / Save... Ctrl+R Streaming... Ctrl+S Quit Ctrl+Q

Figure 2.9

Open Media File Disc Network Capture Device Network Protocol Please enter a network URL: rtsp://admin:123@192.168.1.11:88/videoMain http://www.example.com/stream.avi rtp://@:1234 mms://mms.examples.com/stream.asx rtsp://server.example.org:8080/test.sdp http://www.yourtube.com/watch?v=gg64x Show more options Play Cancel

Figure 2.10

Sometimes you may need to enter the user name and password again. Click OK and you can see the real-time

preview.

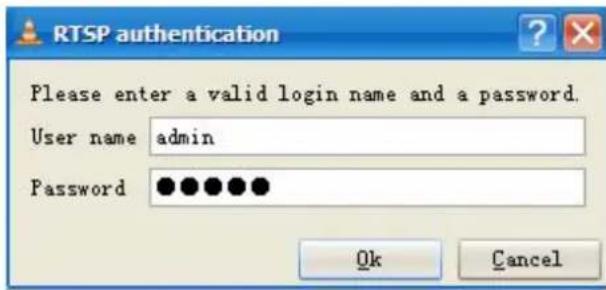

RTSP authentication Please enter a valid login name and a password. User name admin Password Ok Cancel

Figure 2.11

Interior view of a modern living room with a pink chair, chandelier, and decorative wall art (no visible text or symbols)

Figure 2.12

If you cannot play the video in the VLC player, please check the port mapping. You can read Quick Installation Guide about How to configure port forwarding.

NOTE:

If you modify the camera's username or password, you had better reboot the camera, or else the new username and password cannot take effect when you enter the authentication in the VLC.

2.4 IP camera connection to the server

Device supports ONVIF 2.2.1 protocol, You can easily access the NVR with ONVIF or server with ONVIF.

3 Surveillance Software GUI

Please refer to the Quick Installation Guide if you install the camera at first time. After finishing quick installation, you can take time to learn the operation of the software.

3.1 Login Window

Username admin Password Stream Main stream Language English Login 4

Figure 3.1

Section1 Enter the Username and password

The default administrator username is admin with no password, please change the password at first using and prevent unauthorized users login the camera.

Section2 Stream

The camera supports two stream modes: Main stream and sub stream. If you want to access the camera form LAN, here you can select Main stream. If you want to access the camera from Internet, here we recommend sub stream.

Note: When the network bandwidth is bad you'd better select Sub Stream and the video will be more fluent.

Section3 Select the language

You can select the language you need by clicking on the language dropdown list.

Section4 login the camera

Click "Login" button.

NOTE:

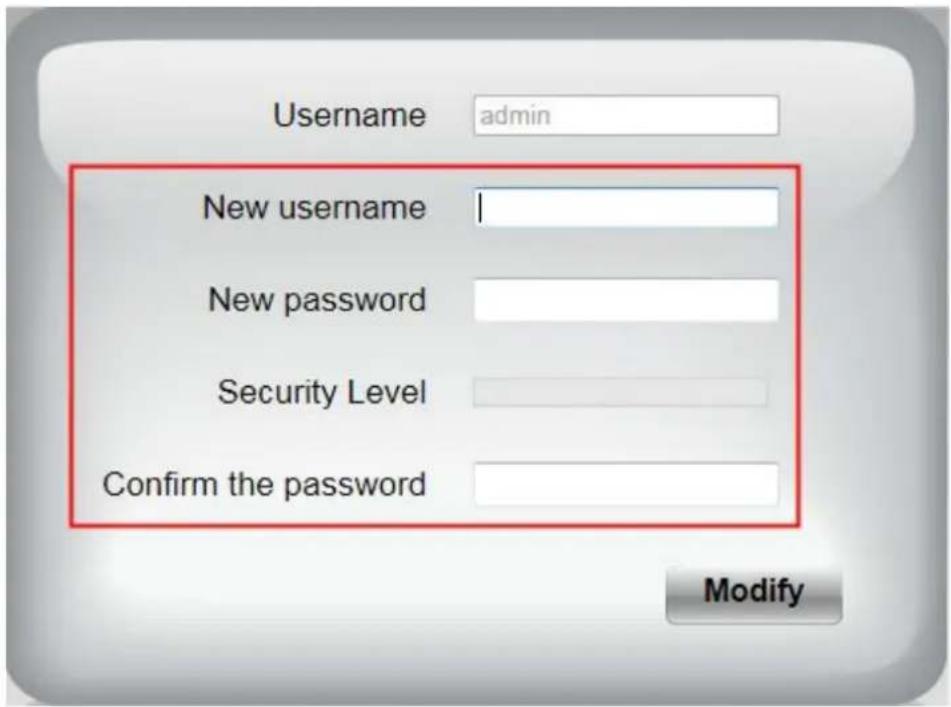

When setting up your camera for the first time, it will request that you modify the default username and/or password if both are still set to default. Input the new username and password, click "Modify" to complete the modification. You will now use the new username and password to login the camera in the future.

Username admin New username | New password Security Level Confirm the password Modify

Figure 3.2

After logging in for the first time, you will go to "Setup Wizard" automatically. Here you can set the basic parameters of camera, such as camera name, camera time, wireless settings, IP configuration.

Setup Wizard Setup Wizard Status Basic Settings Network Video Alarm Setup Wizard Setup Wizard - Start Follow the guide to set your camera, click "Next" to start. Please click the menu on the left for more settings. Next

Figure 3.3

Device Name: You could give name for your camera.

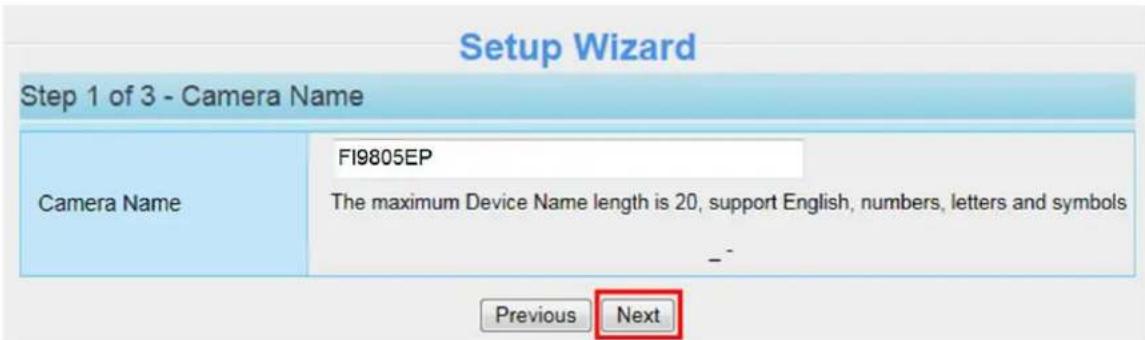

Setup Wizard Step 1 of 3 - Camera Name Camera Name F19805EP The maximum Device Name length is 20, support English, numbers, letters and symbols Previous Next

Figure 3.4

System Time: Select the time zone you need to set the date, time, format, etc.

Setup Wizard Step 2 of 3 - Camera Time Time Zone (GMT) Greenwich mean time; London, Lisbon. Sync with NTP server NTP Server time.nist.gov Date Format YYYY-MM-DD Time Format 12-hour use DST Previous Next

Figure 3.5

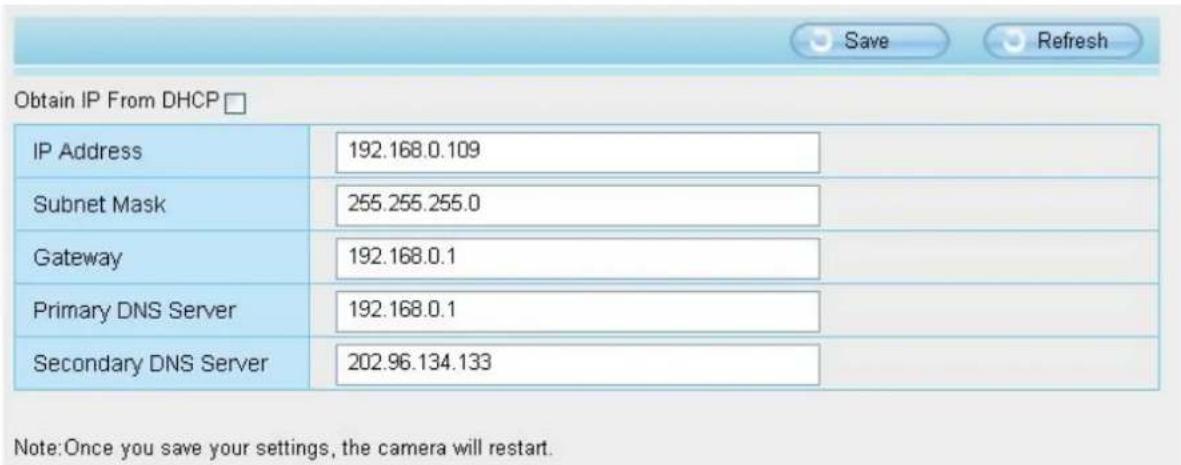

IP: Set IP address of the camera. You could choose to obtain an IP automatically or set the IP address according to your needs.

Setup Wizard Step 3 of 3 - IP Configuration Obtain IP From DHCP ✓ IP Address: 162.168.1.101 Sign Name: 252525$0 Subtotal: 0.0.0.0 Binary Data Save: 0.0.0.0 Secondary DNS Save: 0.0.0.0 Note:Once you save your settings, the camera will restart. Previous Finish

Figure 3.6

NOTE:

It needs about 1 minute to connect the camera to your router.

3.2 Surveillance Window

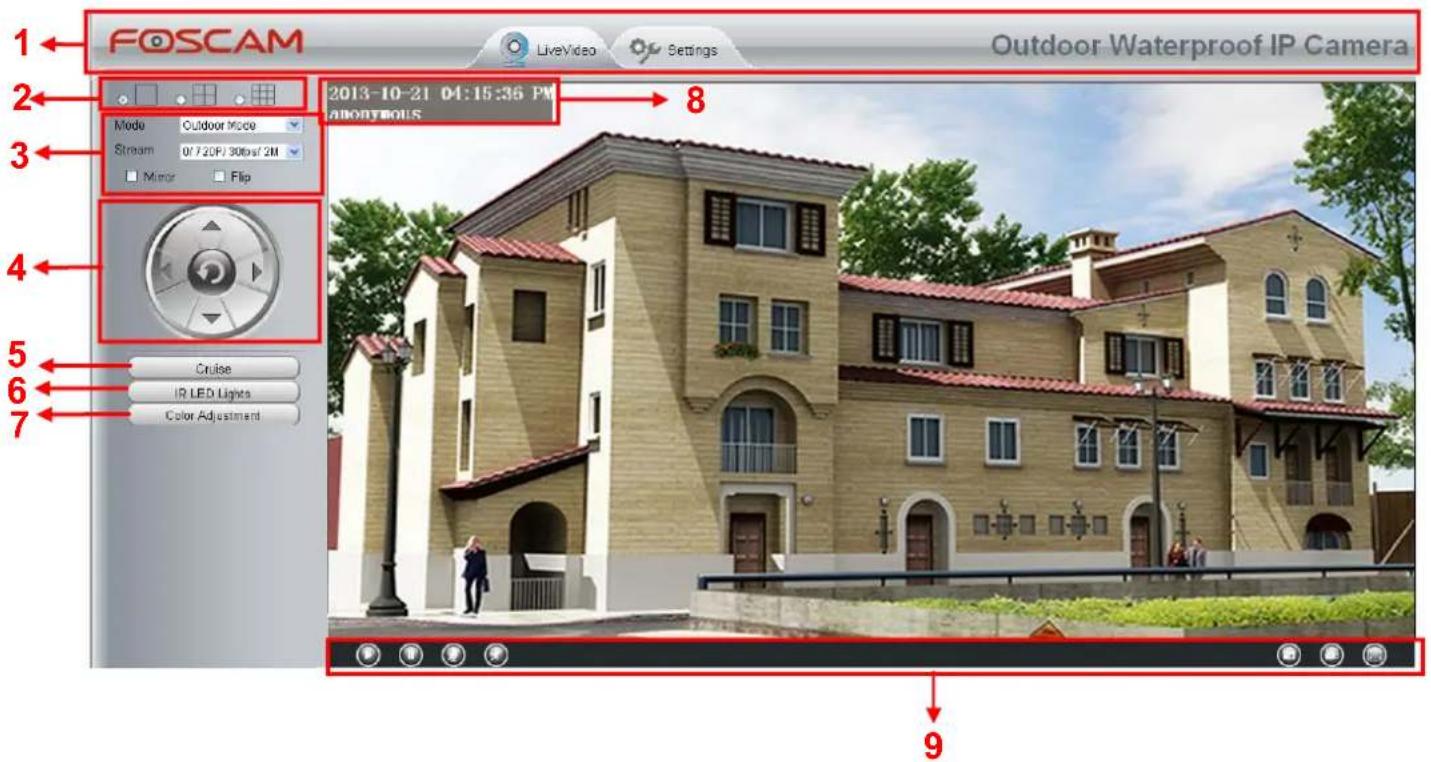

FOSCAM LiveVideo Settings Outdoor Waterproof IP Camera 1 2 3 4 5 6 7 Mode Outdoor Mode Stream 0/720P/30fps/2M Minor Flip Cruise IP LED Lights Color Adjustment 8 9

Figure 3.7

Section1 FOSCAM Logo/ LiveVideo / Settings buttons

FOSCAM : FOSCAM LOGO

LiveVideo

Settings

Settings: Path to Administrator Control Panel, Click it, and it will lead to Administrator Control Panel and do advanced settings.

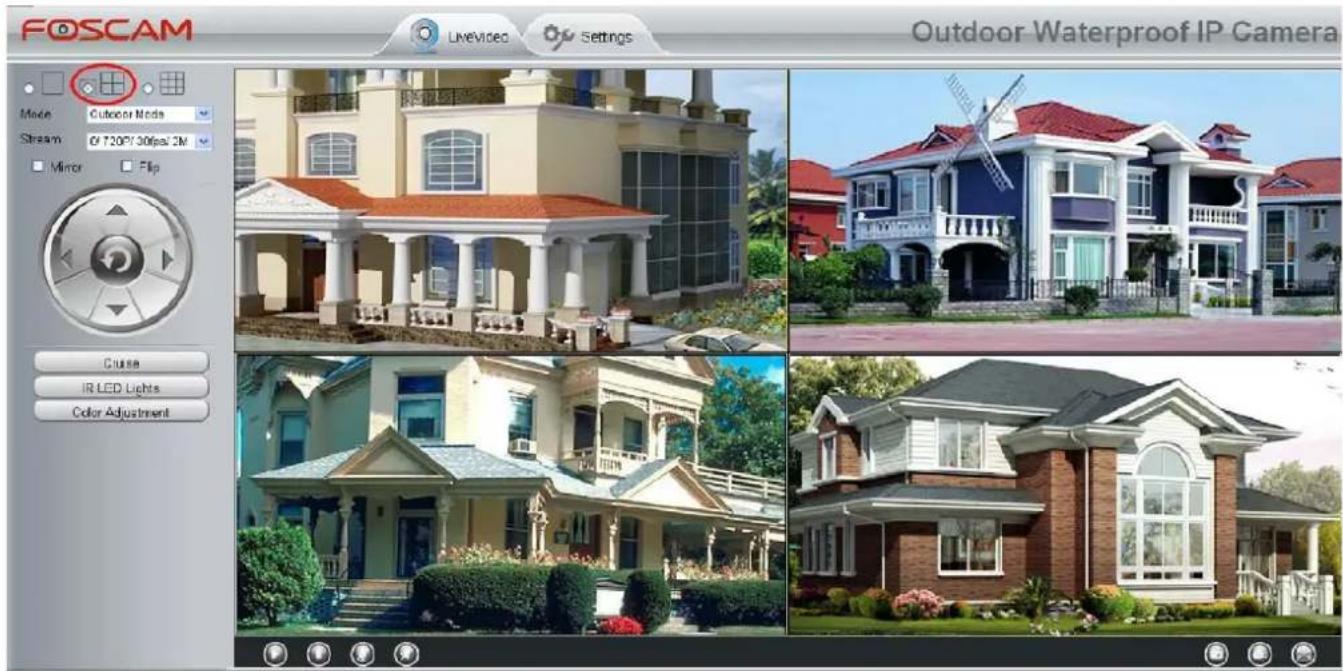

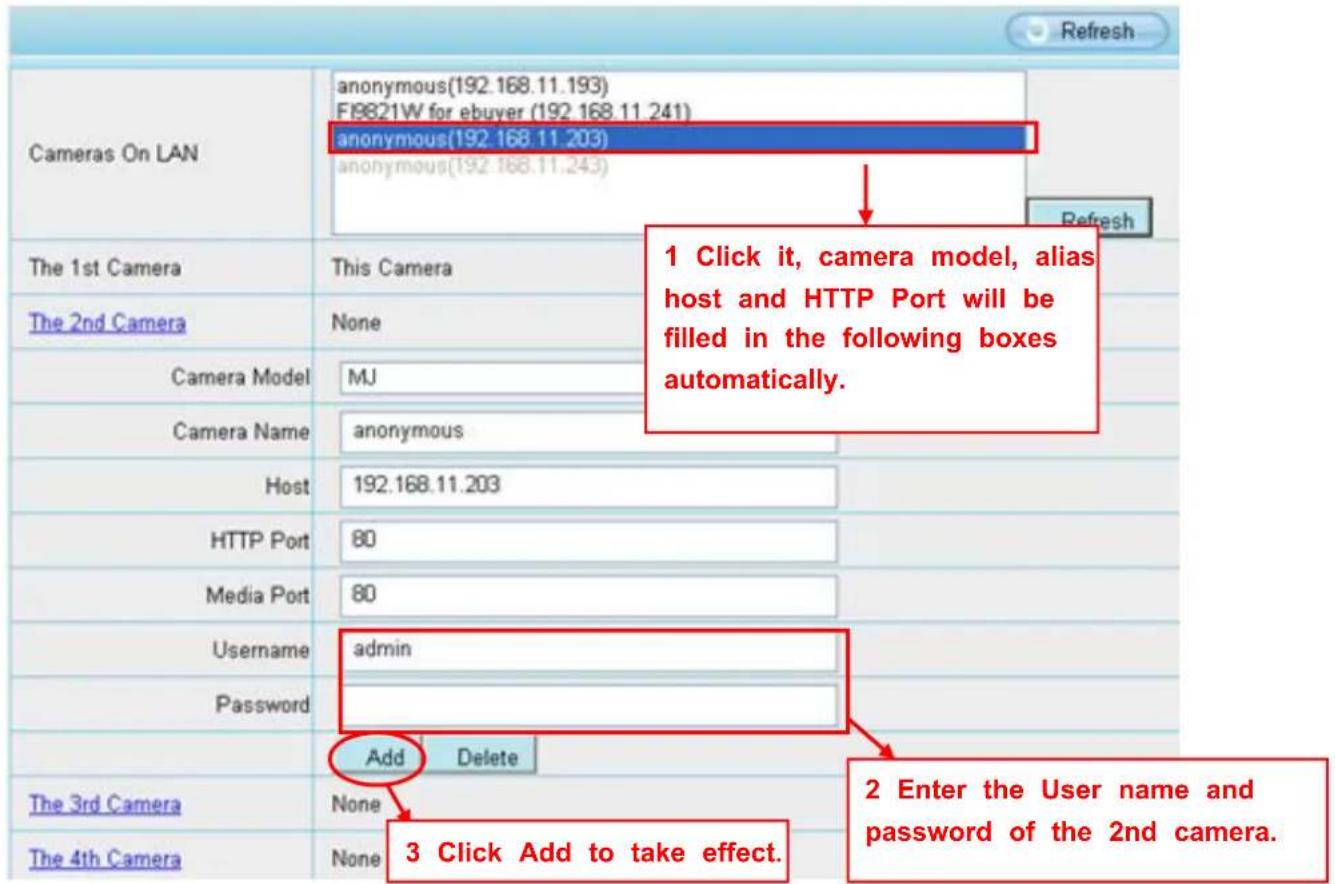

Section2 Multi-Device Window

The firmware inside the camera supports up to maximum of 9 cameras being monitoring at the same time. You can add other cameras in multi-camera panel.

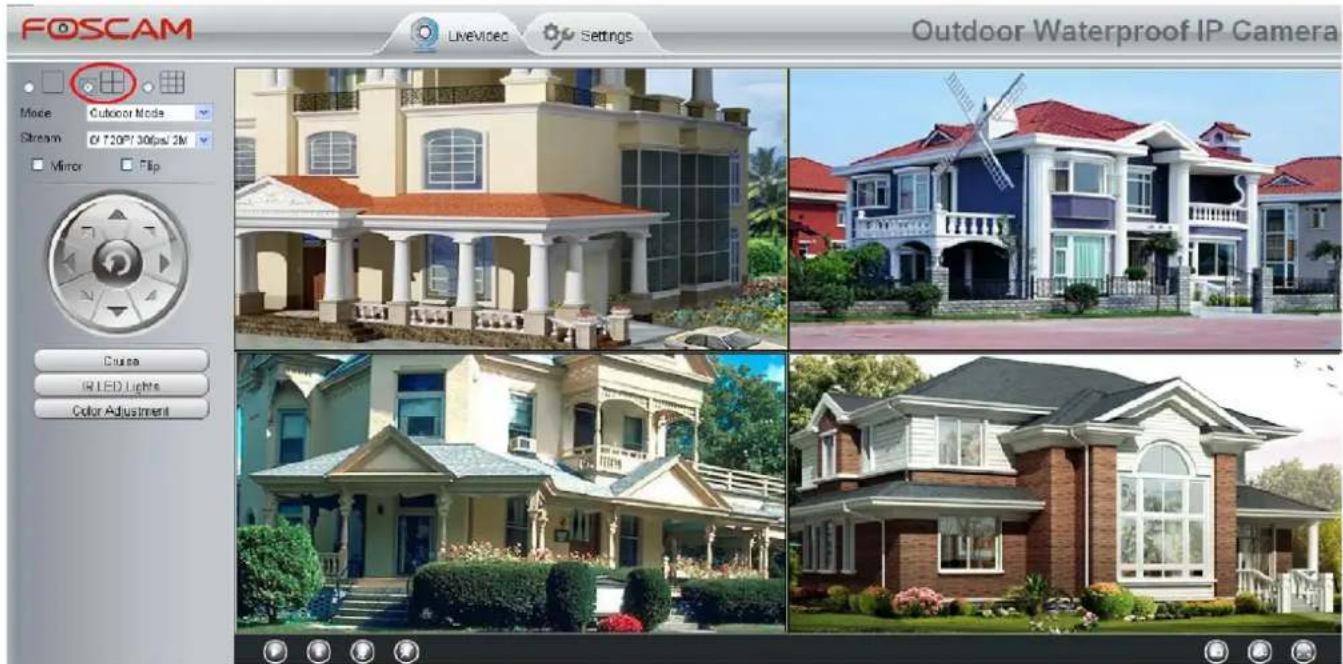

FOSCAM LiveVideo Settings Outdoor Waterproof IP Camera Mode Outdoor Mode Stream 0/720PY 30fps/2M Mirror Flip Cruise IR LED Lights Color Adjustment

Figure 3.8

Section3 Mode/ Stream / Mirror/ Flip buttons

Mode

1) 50Hz ----Indoor surveillance (Region: Europe, China)
2) 60Hz ----Indoor surveillance (Region: USA, Canada)
3) Outdoor Mode----Outdoor surveillance

Stream

The default stream supports multiple modes, For example: 0/720P/30fps/2M meanings: Stream type no. / Resolution / Maximum frame rate/ Bit rate. (Different models support different specific mode.)

1) Stream type no. : The number is used to identify the stream type.
2) Resolution

The lowest resolution is QVGA. The bigger the resolution, the better of the image quality is. If you are accessing the camera via internet and want to get more fluent video streaming, please select resolution VGA.

3) Maximum frame rate

When the video format is 50Hz, the maximum frame rate is 25 fps. When the video format is 60Hz, the maximum frame rate is 30 fps. You should lower frame rate when the bandwidth is limited. Normally, when the frame rate above 15, you can achieve fluently video.

4) Bit rate

Generally speaking, the larger the bit rate is, the clearer video will become. But the bit rate configuration should combine well with the network bandwidth. When the bandwidth is very narrow, and bit rate is large, that will lead to video cannot play well.

You can reset the stream type on "Settings->Video->Video Settings" panel.

Status Basic Settings Network Video Video Settings On Screen Display Privacy Zone Snapshot Settings IR LED Schedule Alarm Record PTZ Firewall System Video Settings Main stream video settings Stream Type 0 Resolution 720P Bit Rate 2π Frame Rate 30 Key Frame Interval 30 Sub stream video settings Stream Type 0 Resolution WGA(640*480) Bit Rate 5:2K Frame Rate 15 Key Frame Interval 45 Save Refresh

Figure 3.9

Section4 Pan/Tilt Control

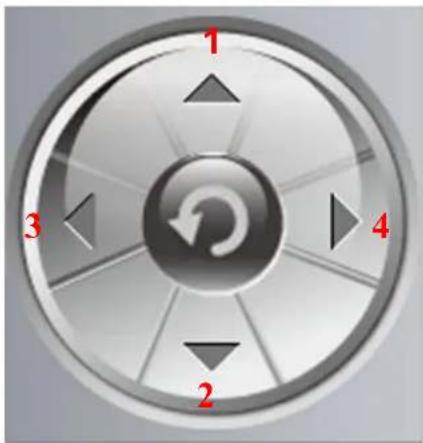

When via RS485 interface to connect an external PTZ device, you can use this feature.

1 3 4 2

1----Up control button, 2----Down control button,
3----Left control button, 4----Right control button,

Click this button and go to center

Section5 Cruise settings

If via RS485 interface to connect an external PT device, you can use this feature.

Cruise Track Vertical Preset

The default cruise tracks have two types: Vertical and Horizontal.

Vertical: The camera will rotate from up to down.

Horizontal: The camera will rotate from left to right.

If you want to define or change the cruise trace, please go to Settings→PTZ→Preset Settings panel.

How to do cruise?

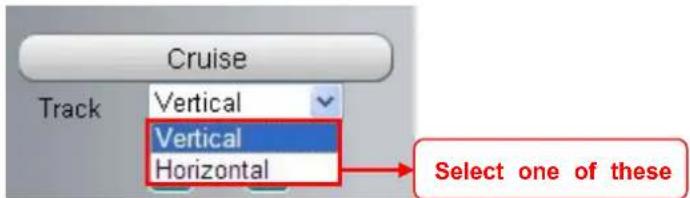

Firstly: Select one track in the track drop-down list

Cruise Track Vertical Vertical Horizontal Select one of these

Secondly: Click Start cruise button, the camera will cruise following the predefined path.

Thirdly: Click stop button and finish cruising.

Section6 IR LED Lights

IR LED Lights Mode Schedule Auto Manual Schedule

Click Infra led and there are three modes to adjust the infrared led: Auto, Manual and Schedule.

Auto: Select it and the camera will adjust the infra led (on or off) automatically.

Manual: Select it and turn off the infra led manually.

Schedule: Select it and the IR led light will be off at the schedule period. If you want to define or change the IR led lights schedule time, please go to Settings→Video→IR LED Schedule page.

Section7 Image quality settings

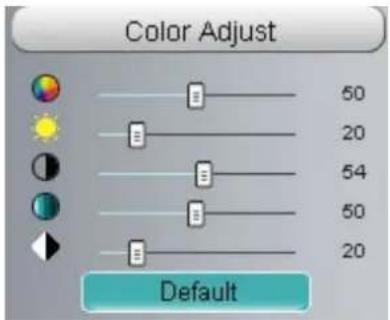

In this page, you can tune Hue, Brightness, Contrast, Saturation, and Sharpness to get higher quality.

Color Adjust 50 20 54 50 20 Default

Section8 OSD

If you have added time and camera name in the video, you can see it in the live window.

Go to Settings ---Basic settings---Camera name panel, and you can change another device name. The default device name is anonymous.

Go to Settings ---Basic settings---Camera time panel and adjust the device time.

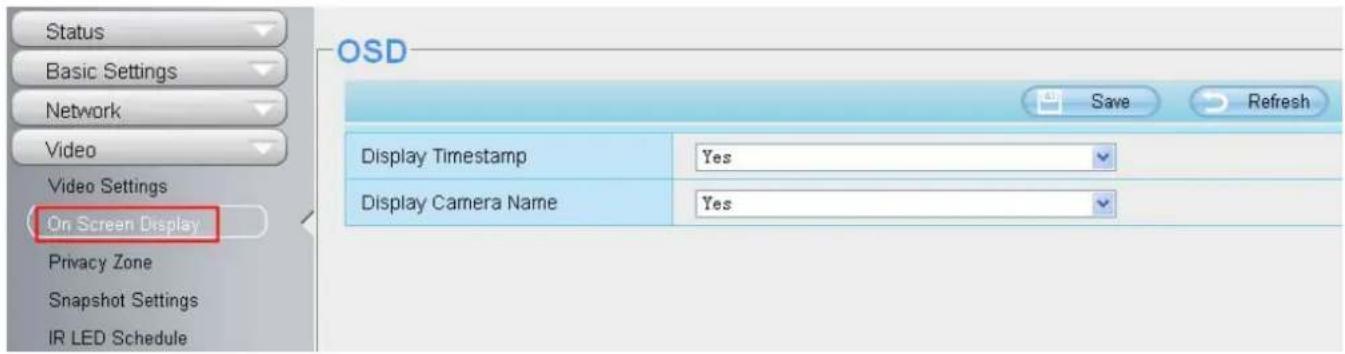

Go to Settings ---Video---On Screen Display panel, you can add or no add OSD.

Section9 Play/Stop/ Talk/Audio/ Snap/ Record/ Full screen button

1 2 3 4

1----Play Click it to play the video of the camera

2----Stop Click it to stop the video of the camera

5 6 7

3---- Talk: Click the button and the icon will become to 📄, then talk to the microphone that connected with PC, people around the camera can hear your voice if the camera has connected with audio output device. Click the icon again and stop talking.

4---- Audio Click the button and the icon will become to 📄, you can hear the sound around the camera if the camera has connected with other audio input device through the Audio Input port of the camera, Click the icon again and stop audio.

5---- Snap: Click it to make snapshot and it pop up a window which picture you snapshot, right click in the window and save the picture to anywhere you want.

6---- Record: Click the icon and the camera start recording, you can see a green dot in the live window. Click again and stop recording. The default storage path is C:\IPCamRecord. You can change the storage path: Go to Settings->Record->Storage Location panel.

7----Full Screen Click it to make full-screen, or you can double click the surveillance screen to make full-screen. Double click again and exit full-screen.

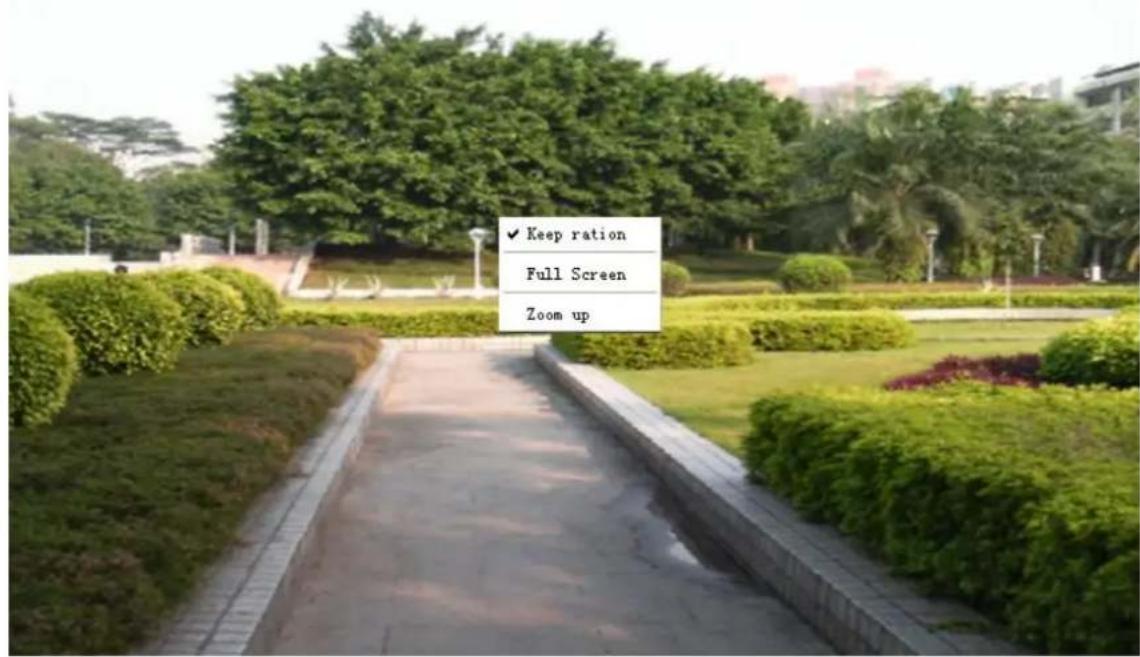

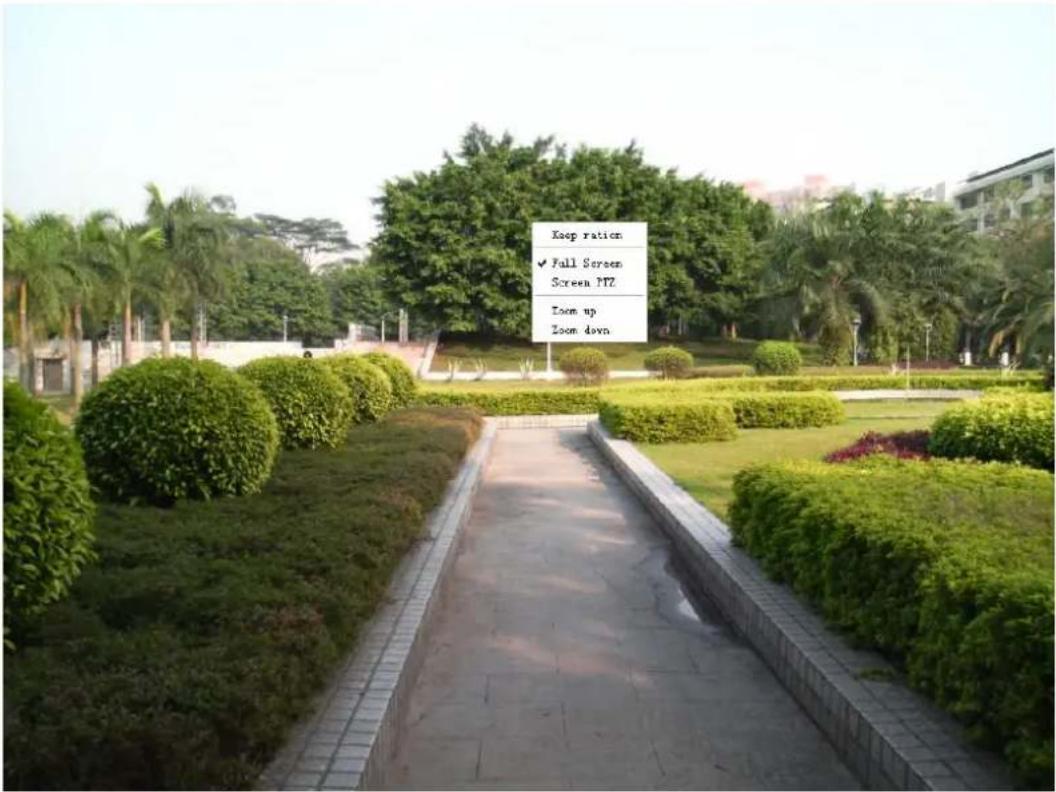

Onscreen Mouse Control

Right click the mouse and you can adjust the screen ration, full screen and Zoom up.

✓ Keep ration Full Screen Zoom up

Figure 3.10

Keep ration: Select it and the camera will adjust the size of live window based on the computer monitor automatically.

Sometimes there is a black border around the video, please select Keep ration to get a better visual quality.

FOSCAM LiveVideo Settings Outdoor Waterproof IP Camera Mode Outdoor Mode Stream 0/720PJ 30fpsU 2M Mirror Flip Cruise IR LED Lights Color Adjustment

Figure 3.11

Full Screen: Select it and Click it to make full-screen, press ESC and exit full-screen.

Zoom up/down: Click it and the live view will be digital zoomed up, then click Zoom Down and the live view back to original size.

Keep ration ✓ Full Screen Screen MTZ Zoom up Zoom down

Figure 3.12

NOTES:

For Mac OS, the plugin cannot support Onscreen Mouse function, so you cannot allow to use it.

4 Advanced Camera Settings

Click the button "Settings", goes to Administrator Control Panel to make advanced camera settings.

4.1 Setup Wizard

The way to set it, you could refer to section 3.1.

Setup Wizard Setup Wizard Status Basic Settings Network Video Alarm Setup Wizard Setup Wizard - Start Follow the guide to set your camera, click "Next" to start. Please click the menu on the left for more settings. Next

Figure 4.1

4.2 Device Status

Device Status contains four columns: Device Information, Device Status, Session Status and Log, it will show you various information about your camera.

4.2.1 Device Information

Device Information

Camera Model	FI9805EP
Camera Name	FI9805EP
Camera ID	0ABC00CCD302
Camera Time	2014/06/22 05:29:18
System Firmware Version	1.4.1.9
Application Firmware Version	2.14.1.10
Plug-In Version	3.1.0.3

Figure 4.2

Camera Model: Display the model of the camera.

Camera Name: The Device Name is a unique name that you can give to your device to help you identify it. Click Basic Settings and go to Device Name panel where you can change your camera name. The default device name is anonymous.

Camera ID: Display the MAC address of your camera. For example Device ID is 008414350787, the same MAC ID sticker is found at the bottom of the camera.

Camera Time: The system time of the device. Click Basic Settings and go to Camera Time panel and adjust the time.

System Firmware version: Display the System Firmware version of your camera.

App Firmware version: Display the application firmware version of your camera.

Plug-in version: Display the plug-in version of your camera

4.2.2 Device Status

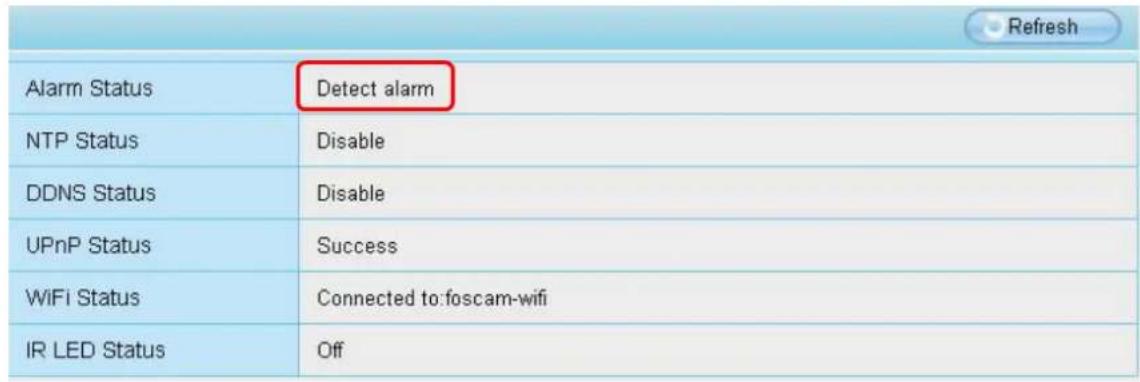

On this page you can see device status such as Alarm status, NTP/DDNS status, WIFI status and so on.

Alarm Status	Disabled
NTP Status	Disable
DDNS Status	Disable
UPnP Status	Success
WiFi Status	Not connected
IR LED Status	Off

Figure 4.3

4.2.3 Session status

Session status will display who and which IP is visiting the camera now.

Session status

Figure 4.4

4.2.4 Log

The log record shows who and which IP address accessed or logout the camera and when.

Log

Pages:83 <<1 2 3>> Go NO. Time User IP Log 1 Click the page number and go to the corresponding page to see more logs. 2 3 2012-09-18 01:29:51 admin 192.168.1.102 Log out 4 2012-09-18 01:27:54 admin Fill in one page number, click Go butt and go to the corresponding page. 5 2012-09-18 01:26:21 admin 6 2012-09-18 01:25:42 admin 218.17.160.187 Login 7 2012-09-18 01:25:15 admin 192.168.1.102 Login 8 2012-09-18 01:25:13 admin 192.168.1.102 Log out 9 2012-09-18 01:24:46 admin 192.168.1.100 Login 10 2012-09-18 01:21:44 admin 192.168.1.102 Login

Figure 4.5

4.3 Basic Settings

This section allows you to configure your Camera Name, Camera Time, Mail, User Accounts and Multi-Device.

4.3.1 Camera Name

Default alias is anonymous. You can define a name for your camera here such as apple. Click Save to save your changes. The alias name cannot contain special characters.

Camera Name anonymous

Figure 4.6

4.3.2 Camera Time

This section allows you to configure the settings of the internal system clocks for your camera.

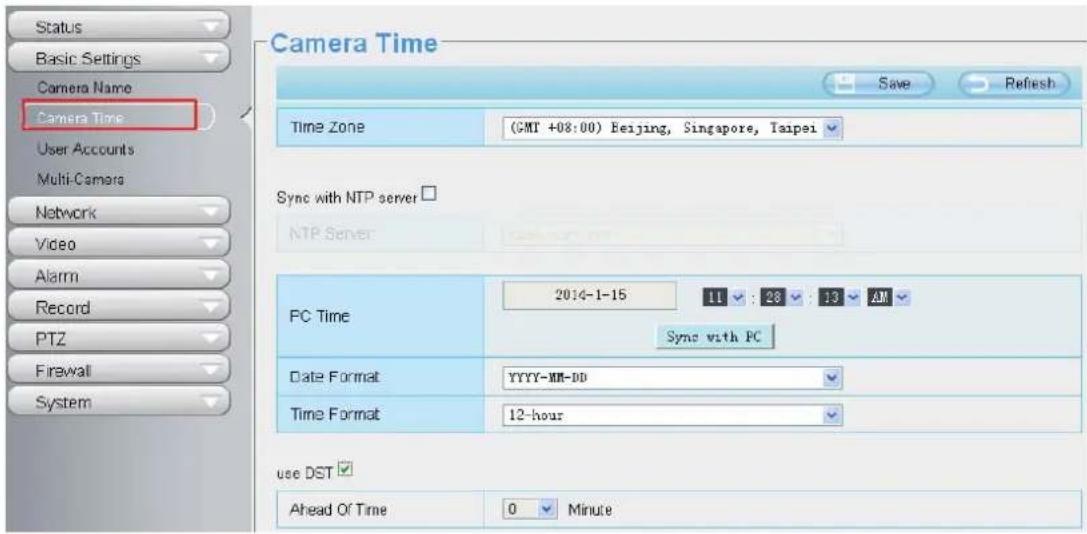

Status Basic Settings Camera Name Camera Time User Accounts Multi-Camera Network Video Alarm Record PTZ Firewall System Camera Time Time Zone (GMT +08:00) Beijing, Singapore, Taipei Sync with NTP server □ NTP Server PC Time 2014-1-15 11 : 28 : 13 AM Sync with PC Date Format YYYY-MM-DD Time Format 12-hour use DST ✓ Ahead Of Time 0 Minute

Figure 4.7

Time Zone: Select the time zone for your region from the drop-down menu.

Sync with NTP server: Network Time Protocol will synchronize your camera with an Internet time server.

Choose the one that is closest to your camera.

Sync with PC: Select this option to synchronize the date and time of the Network Camera with your computer.

Manually: The administrator can enter the date and time manually. Please select the date and time format.

use DST: Select the use DST, then select the daylight saving time from the drop-down menu.

Click Save button to submit your settings.

NOTE: If the power supply of camera is disconnect, you need set the camera's time again.

4.3.3 User Accounts

Here you can create users and set privilege, visitor, operator or administrator. The default administrator user accounts are admin with a blank password.

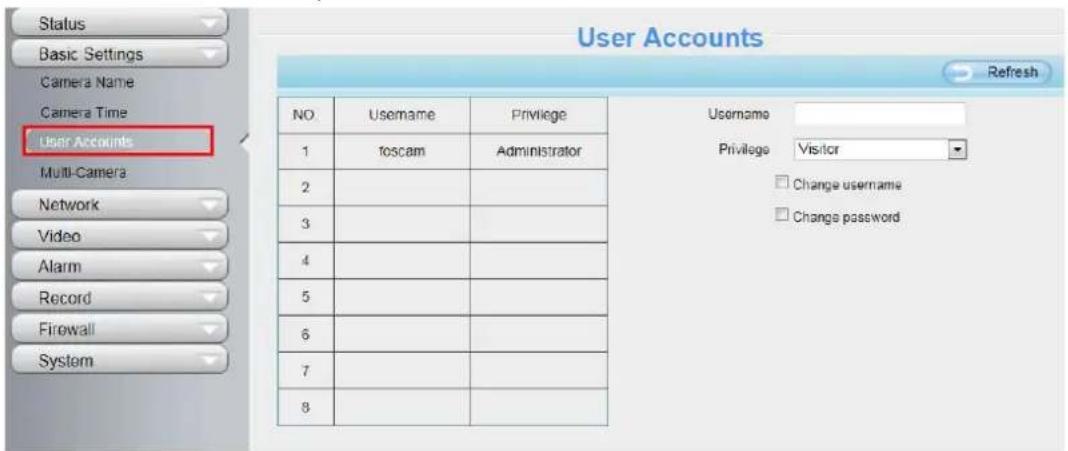

Status Basic Settings Camera Name Camera Time User Accounts Multi-Camera Network Video Alarm Record Firewall System User Accounts NO Username Privilege Username 1 toscam Administrator Privilege Visitor 2 3 4 5 6 7 8 Change username Change password

Figure 4.8

How to change the password?

Firstly, select the account which you want to change the password, then select "Change password", enter the old password and the new password, lastly click modify to take effect.

User Accounts

NO. Username Privilege 1 foccam Administrator 2 3 4 5 6 7 8 Username foccam Password New password Security Level Confirm the password Privilege Administrator Change username Change password Modify The maximum username length is 20, including numbers, letters and symbols _ - @ $ * The maximum password length is 12, including numbers, letters and symbols ~ ! @ # % ^ * () _ + { }: " | < > ? ' - ; ' \ . / Modify

Figure 4.9

How to add account?

Select one blank column, then enter the new user name, password and privilege, last click Add to take effect.

You can see the new added account on the Account list.

User Accounts

NO. Username Privilege 1 foscam Administrator 2 3 4 5 6 7 8 Username test Password ••••••••••• Security Level Confirm the password ••••••••••• Privilege Visitor Change username Change password Add The maximum username length is 20, including numbers, letters and symbols _ - @ $ * The maximum password length is 12, including numbers, letters and symbols ~ ! @ # % ^ " () _ + {}: " | < > ? ' - ; ' \ . / Refresh

Figure 4.10

User Accounts NO. Username Privilege 1 foscam Administrator 2 test Visitor 3 4 5 6 7 8 Username test Privilege Visitor Change username Change password Delete The maximum username length is 20, including numbers, letters and symbols _ - @ $ * The maximum password length is 12, including numbers, letters and symbols ~!@ # % ^ * () _ + {} : "| < > ? ` - ; '\ . / Refresh The maximum username length is 20, including numbers, letters and symbols _ - @ $ * The maximum password length is 12, including numbers, letters and symbols ~!@ # % ^ * () _ + {} : "| < > ? ` - ; '\ . /

Figure 4.11

Delete: Select the account which you want to delete, then click Delete button to take effect.

NOTE:

The default administrator account cannot be deleted, but you can add other administrator users.

4.3.4 Multi-Camera

If you want to view multi-surveillance screens on one window, you need to login one camera, and set it as the main device, and do Multi-Device Settings, add other cameras to the first one camera. Before you do multi-cams settings, you need to assign different port such as 81, 82, 83, 84, 85, 86, 87, 88 to the cameras if there is 8 cams installed.

The firmware within the camera can support a maximum of 9 devices monitoring all at the same time. This page you can both add FOSCAM MJPEG and H.264 series cameras to the first camera and view multi-surveillance screen on one window.

Add cameras in LAN

In Multi-Device Settings page, you can see all devices searched in LAN. The 1st Device is the default one. You can add more cameras in the list in LAN for monitoring. The camera's software supports up to 9 IP Cameras online simultaneously. Click The 2nd Device and click the item in the Device List in LAN, the Alias, Host and Http Port will be filled in the boxes below automatically. Enter the correct username and password then click Add. Add more cameras in the same way.

Cameras On LAN anonymous(192.168.11.193) F19821W for ebuyer (192.168.11.241) anonymous(192.168.11.203) anonymous(192.168.11.243) The 1st Camera This Camera The 2nd Camera None Camera Model MJ Camera Name anonymous Host 192.168.11.203 HTTP Port 80 Media Port 80 Username admin Password Add Delete The 3rd Camera None The 4th Camera None 3 Click Add to take effect. 1 Click it, camera model, alias host and HTTP Port will be filled in the following boxes automatically. 2 Enter the User name and password of the 2nd camera.

Figure 4.12

Camera Model: Our Company produces two series cameras: MJPEG and H.264. Here will show you which series the camera belongs to.

Cameras On LAN	anonymous(192.168.11.193) FI9821W for ebuyer (192.168.11.241) anonymous(192.168.11.203) anonymous(192.168.11.243)
	Refresh
The 1st Camera	This Camera
The 2nd Camera	anonymous(192.168.11.203)
The 3rd Camera	FI9821W for ebuyer (192.168.11.241)
The 4th Camera	anonymous(192.168.11.203)
The 5th Camera	None
The 6th Camera	None
The 7th Camera	None
The 8th Camera	None
The 9th Camera	None
Note: If you want to access your camera remotely, make sure you are able to access it separately through a browser.

Figure 4.13

Back to Surveillance Windows, and click Four Windows option, you will see four cameras you added.

FOSCAM LiveVideo Settings Outdoor Waterproof IP Camera Mode Outdoor Media Stream: 0720P130fps/2M Mirror Flip Cluse IR LED Lights Color Adjustment

Figure 4.14

FOSCAM LiveVideo Settings Outdoor Waterproof IP Camera Mode Outdoor Mode Stream 0/720P/30fps/2M Mirror Flip Cruise IR LED Lights Color Adjustment

Figure 4.15

Add cameras in WAN

If you want to view all cameras via the internet(remote computer), you will need to add them using DDNS domain name. Firstly, make sure all of the cameras you added can be accessed through the internet. (Read How to configure DDNS settings in chapter 4.4.3)

Login to the first camera using a DDNS domain name and port.

Use DDNS domain name and port to log Device status Device info Device status Session status Log Basic Setting Network Video Alarm Record PTZ Path setting Firewall System Refresh Alarm status No alarm Record status Not in recording NTP status hemable DDNS status Success http://usr09.mfoscam.org/0000 UPnP status Fail wifi status Intra led status Make sure each camera you need add could login with DDNS name and port

Figure 4.16

Click Multi-Device Settings. Choose The 2nd Device. Fill in the 2nd camera's name, DDNS domain name, port number. Enter user name and password and then choose Add.

Camera On LAN F19821W for ebuyer (192.168.11.241) anonymous(192.168.11.243) anonymous(192.168.11.203) Refresh The 1st Camera This Camera The 2nd Camera anonymous(192.168.11.203) Camera Model MJ Camera Name apple Host camera.no-ip.info HTTP Port 801 Media Port 801 Username admin Password Add Delete The 3rd Camera None The 4th Camera None

Figure 4.17

1---- The camera model: MJ or H264.
2---- The 2nd camera's name

3---- Fill in the 2nd camera's DDNS host not LAN IP

NOTE:

The FI98s series have the same HTTP Port no.

4 ---- Enter the 2nd camera's user name and password

5---- Click Add button and to take effect

NOTE:

Here the Host must be entered as the second camera's DDNS domain name, not its LAN IP.

Device List in LAN	apple(192.168.13.102) mycamera(192.168.13.108) ipcam(192.168.13.107) FI9821W-01(192.168.13.106)	Refresh
The 1st Device	This Device
The 2nd Device	apple(camera.no-ip.info)
The 3rd Device	ipcam(test01.foscam.org)
The 4th Device	mycamera(owlejww.no-ip.info)
The 5th Device	None
The 6th Device	None
The 7th Device	None
The 8th Device	None
The 9th Device	None
Attention: If you want to access the device from internet, be sure the host and port that you set can be accessed from internet.

Figure 4.18

Return to video window. You will see all of the cameras accessible through the internet.

When you are away from home, you can use the first camera's DDNS domain name and port to view all the cameras via internet.

FOSCAM LiveVideo Settings Outdoor Waterproof IP Camera Mode Outdoor Mode Stream 0720P/30fps/2M Mirror Flip Cause R LED Lights Color Adjustment

Figure 4.19

4.4 Network

This section will allow you to configure your camera's IP, PPOE, DDNS, UPnP, Port, Mail Settings and FTP Settings.

4.4.1 IP Configuration

If you want to set a static IP for the camera, please go to IP Configuration page. Keep the camera in the same subnet of your router or computer.

Obtain IP From DHCP IP Address 192.168.0.109 Subnet Mask 255.255.255.0 Gateway 192.168.0.1 Primary DNS Server 192.168.0.1 Secondary DNS Server 202.96.134.133 Note:Once you save your settings, the camera will restart.

Figure 4.20

Changing settings here is the same as using the IP Camera Tool.

It is recommended that you use the subnet mask, gateway and DNS server from your locally attached PC. If

you don't know the subnet mask, gateway and DNS server, you can check your computer's local area connection as follows:

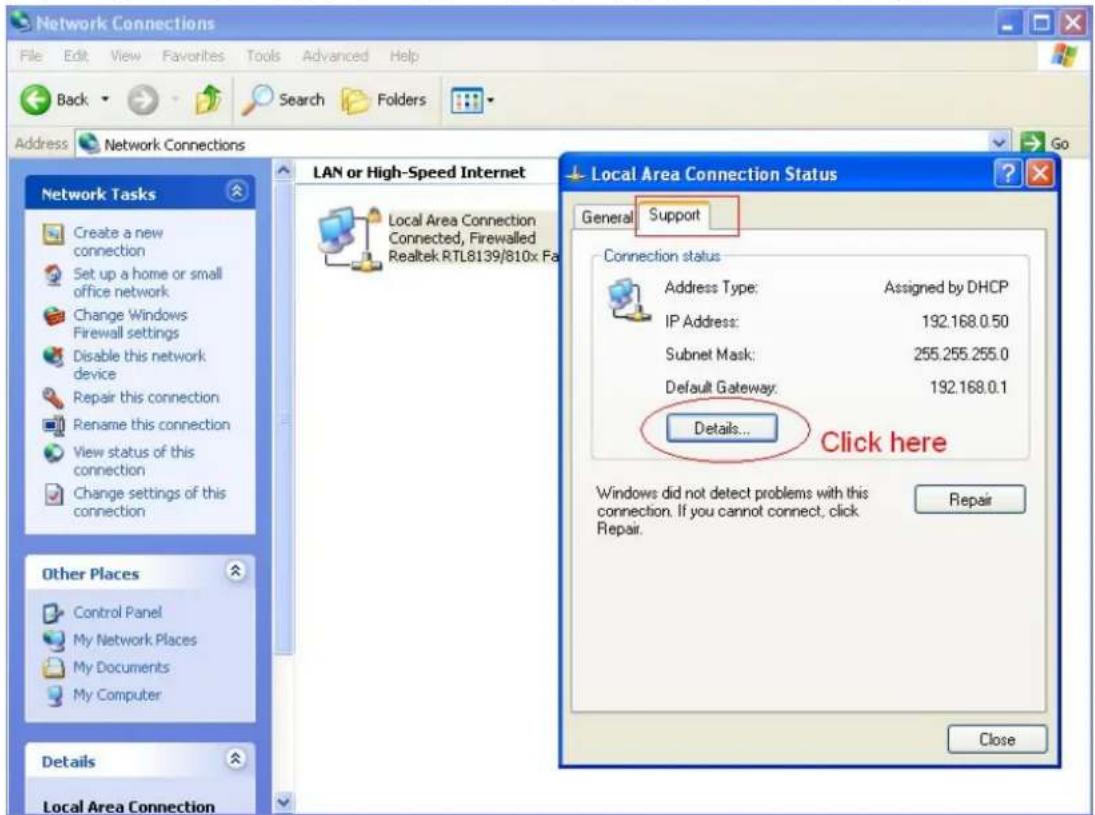

Control Panel→Network Connections→Local Area Connections → Choose Support→Details.

Network Connections File Edit View Favorites Tools Advanced Help Back Search Folders Address Network Connections LAN or High-Speed Internet Local Area Connection Status General Support Connection status Address Type: Assigned by DHCP IP Address: 192.168.0.50 Subnet Mask: 255.255.255.0 Default Gateway: 192.168.0.1 Details... Click here Windows did not detect problems with this connection. If you cannot connect, click Repair. Repair Close Network Tasks Create a new connection Set up a home or small office network Change Windows Firewall settings Disable this network device Repair this connection Rename this connection View status of this connection Change settings of this connection Other Places Control Panel My Network Places My Documents My Computer Details Local Area Connection

Figure 4.21

Network Connections File Edit View Favorites Tools Advanced Help Back Search Folders Address Network Connections LAN or High-Speed Internet Local Area Connection Connected, Firewalled Network Tasks Create a new connection Set the same Subnet Mask and gateway of the camera with you PC . There are two DNS servers . You can set any of them . Same wit gateway is also OK . Local Area Connection Network Connection Details Property Value Physical Address 00-E0-D0-00-23-01 IP Address 192.168.0.50 Subnet Mask 255.255.255.0 Default Gateway 192.168.0.1 DHCP Server 192.168.0.1 Lease Obtained 2010-7-23 17:20:44 Lease Expires 2010-7-23 19:20:44 DNS Servers 202.96.134.33 WINS Server Close Close

Figure 4.22

If you don't know the DNS server, you can use the same settings as the Default Gateway.

4.4.2 PPPoE

If you are using a PPPoE connection, enable it and enter the User Name and Password for your PPPoE account.

Status Basic Settings Network IP Configuration PPPoE DDNS UPnP Port Mail Settings FTP Settings Video Alarm Record Use PPPoE ✓ PPPoE account The maximum length of the user name is 20, support numbers, letters and symbols @ .$ *_ PPPoE password The maximum password length is 12, including numbers, letters and symbols ~ ! @ # * ( ) _ ( ): " | < > ? ` ` ; ' \ , / Note: Once you save your settings, the camera will restart.

Figure 4.23

4.4.3 DDNS

FOSCAM camera has embedded a unique DDNS domain name when producing, and you can directly use the domain name, you can also use the third party domain name.

FOSCAM domain name

Here take test09.myfoscam.org for example. Go to option of DDNS on the Settings->Network panel, you can see the domain name.

Status Basic Settings Network IP Configuration PPPoE DDNS UPnP Port Mail Settings FTP Settings Video Alarm DDNS Enable DDNS ✓ Manufacturer's DDNS Manufacturer's DDNS Restore DDNS to factory Third Party DDNS DDNS Server None Domain

Figure 4.24

Now you can use http:// Domain name + HTTP Port to access the camera via internet.

Take hostname test09.myfoscam.org and HTTP Port no. 8000 for example, the accessing link of the camera via internet would be http://test09.myfoscam.org:8000

Restore DDNS to factory: If you have configured Third Party DDNS successfully, but you want to use Manufacturer's DDNS again, here click this button and start Manufacturer's DDNS Service.

Third Party Domain Name Settings

User can also use third part DDNS, such as www.no-ip.com., www.3322.com

Here take www.no-ip.com for example:

① Step 1, Go to the website www.no-ip.com to create a free hostname

Firstly: Login on www.no-ip.com and click No-IP Free to register.

no-ip The DNS Service Provider Home Download Services Support Company Managed DNS No-IP Plus, The complete managed DNS Solution ✓ Easy to use interface. ✓ Complete control over your domain. ✓ FREE dynamic DNS update client. ✓ Includes 50 hosts/sub domains Sign Up! More Info FROM $15 Register Your Domain.com Search User Login Username Password Create Amount Export password? Login Additional Services No-IP Enhanced Upgrade your No-IP account to unlock many exciting features. No-IP Backup DNS Maximize uptime and add Anycast to your existing DNS infrastructure. No-IP Monitoring 247 server monitoring including automatic failover. Mail Reflector Run a mail server even if your ISP blocks port 2& Stay Connected Home API WhoIs Contact Us Sitemap Terms of Service Privacy Policy Blog

Figure 4.25

Please register an account step by step according to instructions on www.no-ip.com

After registration, please login your email which used to register. You will receive an email from website, please click the link to activate your ACCOUNT as indicated in email.

Secondly: Login the link with the registered username and password to create your domain name.

no-ip The DNS Service Provider Home Download Services Support Company Client Login Home > Client Login Login with the registered username and password Username cuixiang Password ****** Create Account Forgot password? Login Additional Services No-IP Enhanced Upgrade your No-IP account to unlock many exciting features. No-IP Backup DNS Maximize uptime and add Anycast to your existing DNS infrastructure. No-IP Monitoring Email: Password: Login Forget your password? No problem, Click Here If you are not currently a registered user of No-IP.com, and would like to be for FREE, register as a new user.

Figure 4.26

Hosts/Redirects DNS Hosting Domain Registration Mail SSL Certificates Monitoring Backup DNS Renew/Activate Need redundancy for your mail server? Click here for more info 24/7 Server Monitoring and Failover Click here for more info Need Help? • Support Center • Basic Troubleshooting Guide • Support Ticket • Contact Us Your No-IP Cuixiang, welcome to your No-IP! Last Login: 2012-04-04 21:40:56 PDT from IP 65.49.14.58 You have successfully logged into No-IP's member section. To start using No-IP's services select an icon below or choose an item from the navigation above. Manage Domains Add Domain Refer Friend Add a Host Manage Hosts Click Add a Host to create a domain name FROM $15 Find a Domain Name kom Search Get Connected Own a domain name? Use your own domain name with our DNS system. Add your domain name now or read more for pricing and features Your No-IP Alerts You do not have any notices at this time Check this spot for important information regarding your account such as expiring services and trouble tickets. Home API Contact Us Sitemap Terms of Service Privacy Policy Blog

Figure 4.27

Please create the domain name step by step according to instructions on www.no-ip.com Step 2, DO DDNS Service Settings within the Camera

Please set DDNS Settings within the camera by hostname, a user name and password you've got from www.no-ip.com

Take hostname ycxgwp.no-ip.info, user name foscam, password foscam2012 for example.

Firstly, goes to option of DDNS Settings on the administrator panel.

Secondly, select No-lp as a server.

Thirdly, fill foscam as DDNS user, fill password foscam2012 as DDNS password, fill ycxgwp.no-ip.info as DDNS domain and server URL, Then click save to make effect. The camera will restart and to take the DDNS settings effective.

Fourthly, after the restart, login the camera, and go to option of Device Status on the administrator panel, and check if the DDNS status is successful.

If failed, please double check if you have input the correct hostname, user name, and password, and try to redo the settings.

NOTE:

If you have set Third Party DDNS successfully, the Foscam Domain Name will be invalid. The Third Party DDNS and the Foscam Domain Name cannot work at the same time, the last time you configured will take effect.

② Do port forwarding within the router

Example: The camera's LAN IP address is http://192.168.8.100:2000

Firstly, login the router, goes to the menu of Port Forwarding or Port Trigger (or named Virtue

Server on some brands of router). Take Linksys brand router as an example, Login the router, and goes to Applications & Gaming->Single Port Forwarding.

Secondly, Create a new column by LAN IP address & HTTP Port No. of the camera within the router showed as below.

Applications & Gaming Wireless-N Home Router WRT120N Setup Wireless Security Access Restrictions Applications & Gaming Administration Status Single Port Forwarding Port Range Forwarding Port Range Triggering DMZ QoS Single Port Forwarding Application Name None None None None None External Port Internal Port Protocol To IP Address Enabled --- --- --- 192.168.8. --- --- --- 192.168.8. --- --- --- 192.168.8. --- --- --- 192.168.8. Foscam Cam 2000 2000 Both 192.168.8. 100 Both 192.168.8. Both 192.168.8. Fill the LAN IP of the camera here, just input the last section Assign a name as you like here Fill the Media Port no. of the camera on the column of External Port and Internal Port

Figure 4.28

③ Use domain name to access the camera via internet

After the port forwarding is finished, you can use the domain name+ http no. to access the camera via internet. Take hostname ycxgwp.no-ip.info and http no. 2000 for example, the accessing link of the camera via internet would be http://ycxgwp.no-ip.info:2000

4.4.4 UPnP

Status Basic Settings Network IP Configuration PPPoE DDNS UPnP UPnP Save Refresh Enable UPnP Yes

Figure 4.29
The default UPnP status is closed. You can enable UPnP, then the camera's software will be configured for port forwarding. Back to the "Device Status" panel, you can see the UPnP status:

Alarm Status	Disabled
NTP Status	Disable
DDNS Status	Success http://aa2022.myfoscam.org 8000
UPnP Status	Success
IR LED Status	Off

Figure 4.30

The camera's software will be configured for port forwarding. There may be issues with your routers security settings, and sometimes may error. We recommend you configure port forwarding manually on your router.

4.4.5 Port

This camera supports HTTP Port / HTTPS Port / ONVIF Port. HTTP Port is used to access the camera remotely.

HTTP port: By default, the HTTP and Media port is set to 88. Also, they can be assigned with another port number between 1 and 65535. But make sure they can not be conflict with other existing ports like 25, 21.

HTTP Port 88 HTTPS Port 443 ONVIF Port 65533 Save Refresh

Figure 4.31

Another way to change the HTTP port no.

Step 1: Open the IP Camera Tool, select the camera you would like to change the port of, right click on the IP address, and click on "Network Configuration", this brings up the network configuration box as shown in Figure as below.

IP Camera Tool Camera name IP Address Device ID Device type anonymous Http 00841FI9804W H Basic Properties Network Configuration Upgrade Firmware Refresh Camera List Flush Arp Buffer About IP Camera Tool Select which camera you'd like to change the port for, and right click

Figure 4.32

IP Camera Tool anonymous Network... Camera name anonymous Obtain IP from DHCP server IP Address 192 .168 . 1 .110 Subnet Mask 255 .255 .255 . 0 Gateway 192 .168 . 1 . 1 DNS Server 192 .168 . 1 . 1 Http Port 88 User admin Password ***** OK Cancel Note: After changing the configuration device will automatically restart. Modify the Http Port . Enter the Username and password, click OK.

Figure 4.33

Step 2: Enter the username and password of the Administrator (default username is admin with a blank password), and click "OK" to apply changes.

Step 3: Wait around 10 seconds, you'll see that the camera's LAN IP address has changed. In our example it was changed to 2000, so we see http://192.168.8.102:2000 in IP Camera Tool. Also, the LAN IP address is now fixed at a static IP address of http://192.168.8.102:2000. This IP address will not change even if the camera is powered off and back on, the camera will remain on this LAN IP address. This is very important that a static LAN IP address is set, or you may have problems later with remote access and seeing the camera remotely if the camera loses power and reconnects on a different LAN IP address. Make sure you set a static LAN IP address!

IP Camera Tool Camera name IP Address Device ID Device type anonymous Http://192.168.1.110:88 00841FI9804W H

Figure 4.34

NOTE:

If the camera cannot be accessed, please make sure the port forwarding is succeed.

HTTPS port: The default port is 443. You can use the url to access the camera: https://IP+HTTPS port.

ONVIF port: By default, the ONVIF port is set to 888. Also, they can be assigned with another port number between 1 and 65535(except 0 and 65534). But make sure they can not be conflict with other existing ports.

4.4.6 Mail Settings

If you want the camera to send emails when motion has been detected, here Mail will need to be configured.

Enable SMTP Server smtp.gmail.com SMTP Port 25 Transport Layer Security STARTTLS G-Mail only supports TLS at Port 465 and STARTTLS at Port 587 or 25. Need Authentication Yes SMTP Username [e-mail] SMTP Password ************ Sender E-mail [e-mail] First Receiver [e-mail] Second Receiver Third Receiver Fourth Receiver Save Refresh 5 1 2 Test 3 4

Figure 4.35

1---- SMTP Server/ Port /Transport Layer Security Enter SMTP server for sender. SMTP port is usually set as 25. Some SMTP servers have their own port, such as 587 or 465, and Transport Layer Security usually is None. If you use Gmail, Transport Layer Security must be set to TLS or STARTTLS and SMTP Port must be set to 465 or 25 or 587, which port you choose should be decided by which Transport Layer Security you select.

2----SMTP Username/ password: ID account and password of the sender email address
3---- Sender E-mail Mailbox for sender must support SMTP
4---- Receiver Mailbox for receiver need not support SMTP, you can set 4 receivers
5---- Save Click Save to take effect
6---- Test Click Test to see if Mail has been successfully configured.

Click Test to see if Mail has been successfully configured.

Enable SMTP Server smtp.gmail.com SMTP Port 25 Transport Layer Security STARTTLS G-Mail only supports TLS at Port 465 and STARTTLS at Port 587 or 25. Need Authentication No SMTP Username [e-mail] SMTP Password Test Success Sender E-mail [e-mail] First Receiver [e-mail] Second Receiver Third Receiver Fourth Receiver Test result .

Figure 4.36

If the test success, you can see the Success behind the Test, at the same time the receivers will receive a test mail.

If the test fails with one of the following errors after clicking Test, verify that the information you entered is correct and again select Test.

1) Cannot connect to the server
2) Network Error. Please try later
3) Server Error
4) Incorrect user or password
5) The sender is denied by the server. Maybe the server need to authenticate the user, please check it and try again

6) The receiver is denied by the server. Maybe because of the anti-spam privacy of the server
7) The message is denied by the server. Maybe because of the anti-spam privacy of the server
8) The server does not support the authentication mode used by the device

4.4.7 FTP Settings

If you want to upload record images to your FTP server, you can set FTP Settings.

FTP Server ftp://192.168.8.150 Example:ftp://192.168.1.103/dir The maximum length of the address is 127, does not support the character & = Port 21 FTP Mode PORT Username yaocuixiang The maximum length of the user name is 63, support numbers, letters and symbols _@ $ * - , . #! Password ●●●●●●●●● The maximum password length is 63, does not support the character & = Test Success

Figure 4.38

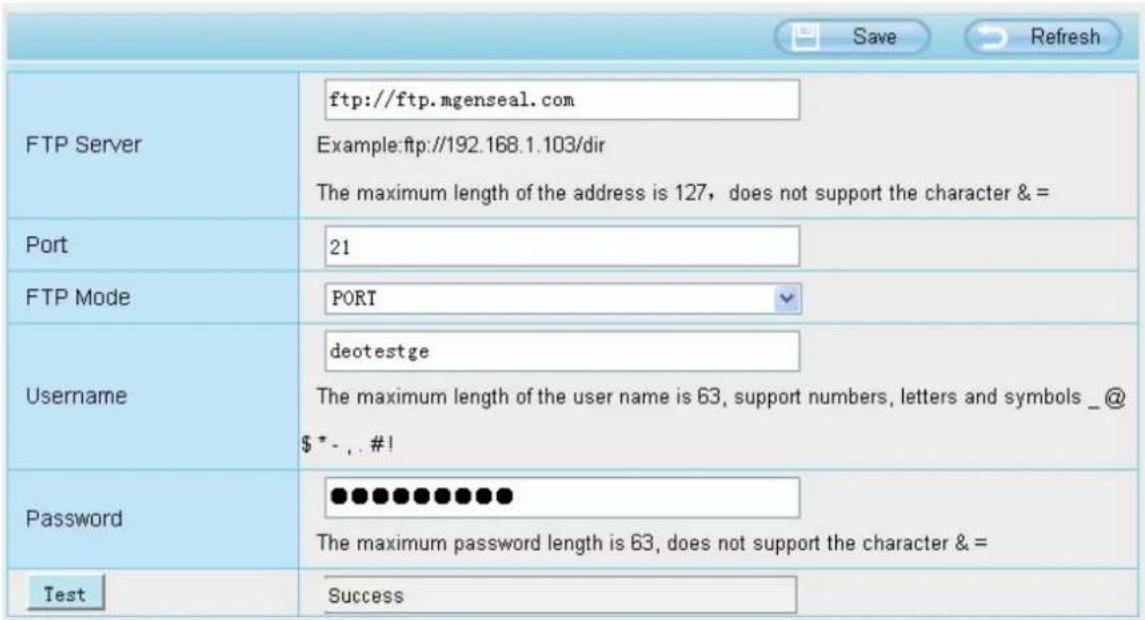

FTP Server ftp://ftp.mgenseal.com Example:ftp://192.168.1.103/dir The maximum length of the address is 127, does not support the character & = Port 21 FTP Mode PORT Username deotestge The maximum length of the user name is 63, support numbers, letters and symbols _@ $ * - , . # !Password ●●●●●●●●●● The maximum password length is 63, does not support the character & = Test Success

Figure 4.39

FTP server: If your FTP server is located on the LAN, you can set as Figure 4.38.

If you have an FTP server which you can access on the internet, you can set as Figure 4.39.

Port: Default is port 21. If changed, external FTP client program must change the server connection port accordingly.

FTP Mode: Here supports two modes: PORT and PASV.

Username/password: The FTP account and password.

Click Save to take effect.

Click Test to see if FTP has been successfully configured.

4.4.8 P2P

Access the camera by smart phone (Android or iOS operating system)

First of all, you need to open the P2P function of the camera at "Settings-->Network-->P2P."

Status Basic Settings Network IP Configuration Wireless Settings PPPoE DONS UPnP Port Mail Settings FTP Settings P2P P2P Save Refresh UID FLGTBW7YGBUV9NPMUR41 Enable P2P P2P Port 29164

Figure 4.40

Search and install Foscam Viewer on Google Play and App Store for for Android and iOS devices.

If you want to know more details of the iOS APP or Android APP, see the iOS App User Manual or Android App User Manual.

4.5 Video

This section allows you to configure Video stream settings, On screen display and Snapshot settings.

4.5.1 Video Settings

There are two ways to set the stream video settings. They are main stream video settings and sub stream video settings.

Video Settings

Main stream video settings Stream Type 0 Resolution 720P Bit Rate 2M Frame Rate 30 Key Frame Interval 30 Sub stream video settings Stream Type 0 Resolution VGA(640*480) Bit Rate 512K Frame Rate 15 Key Frame Interval 45 Save Refresh

Figure 4.41

Stream type: There are four types to identify different streams you have set.

Resolution: The camera supports two types: 720P, VGA. The higher the resolution is, the clearer video will become. But the code flux will become larger too, and it will take up more bandwidth.

Bit rate: Generally speaking, the larger the bit rate is, the clearer video will become. But the bit rate configuration should combine well with the network bandwidth. When the bandwidth is very narrow, and bit rate is large, that will lead to video can not play well.

Frame rate: Note that a larger frame size takes up more bandwidth. When the video format is 50Hz, the maximum frame rate is 25 fps. When the video format is 60Hz, the maximum frame rate is 30 fps. You should lower frame rate when the bandwidth is limited. Normally, when the frame rate above 15, you can achieve fluently video.

Key Frame Interval: The time between last key frame and next key frame. The shorter the duration, the more likely you will get a better video quality, but at the cost of higher network bandwidth consumption.

4.5.2 On Screen Display

This page is used to add timestamp and device name on the video.

Status Basic Settings Network Video Video Settings On Screen Display Privacy Zone Snapshot Settings IR LED Schedule OSD Save Refresh Display Timestamp Yes Display Camera Name Yes

Figure 4.42

Display Timestamp: There are two options: Yes or NO. Select Yes and you can see the system date on the video.

Display Camera Name: There are two options: Yes or NO. Select Yes and you can see the device name on the video.

4.5.3 Privacy Zone

This page is used to add privacy zone on the video.

Status Basic Settings Network Video Video Settings On Screen Display Privacy Zone Snapshot Settings IR LED Schedule Privacy Zone Save Refresh Allow Privacy Zone Yes Set Privacy Zone

Figure 4.43

There are two options: Yes or NO. Select Yes, then click "Set Privacy Zone" and draw a privacy area on the video, the privacy area will be black on the video.

Privacy Zone 2013-10-22 10:23:35 anonymous The privacy zone Delete OK

Figure 4.44

Click OK button and return to the Privacy Zone page, click Save to take effect.

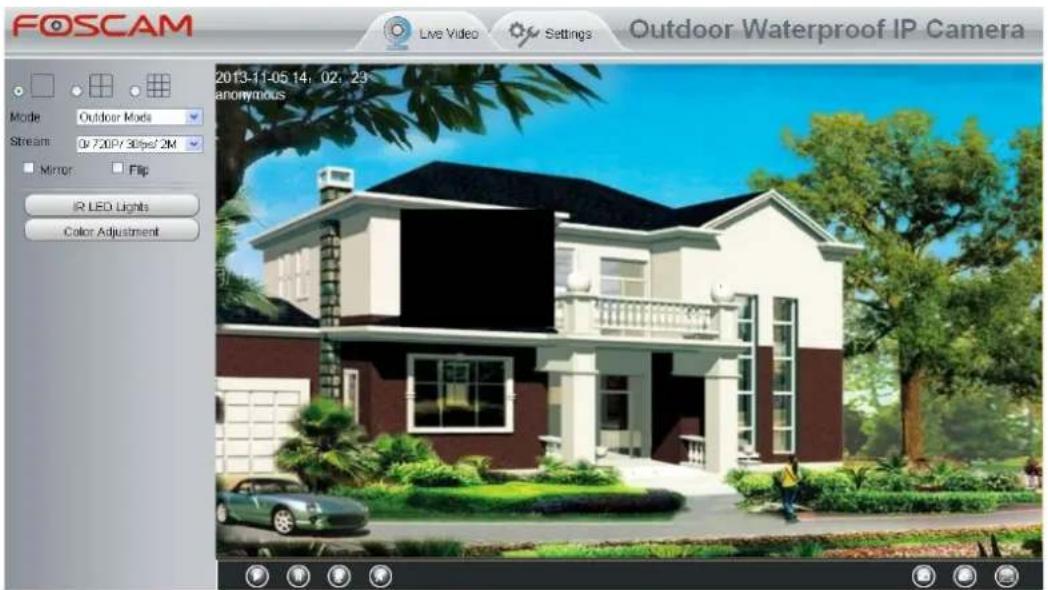

Back to the surveillance window, you can see the privacy area as the following picture:

FOSCAM Live Video Settings Outdoor Waterproof IP Camera Mode Outdoor Mode Stream 0x720P/30fps/2M Mirror Flip IP LED Lights Color Adjustment 2013-11-05 14:02:29 anonymous

Figure 4.45

4.5.4 Snapshot Settings

On this page you can set the snapshot pictures' image quality and the storage path.

Status Basic Settings Network Video Video Settings On Screen Display Privacy Zone Snapshot Settings IR LED Schedule Alarm Record PTZ Firewall System Snapshot Settings Save Refresh Manual snap Quality Medium Alarm Pictures Save To FTP Enable timing to capture ✓ Capture interval 2 (1-65535s) Schedule All 00 01 02 03 04 05 06 07 08 09 10 11 12 13 14 15 16 17 18 19 20 21 22 23 MON TUE WED THU FRI SAT SUN

Figure 4.46

Image Quality: Low, Middle and High. The higher the quality, the picture will be clearer.

Alarm Pictures Save Path: FTP. If you have done FTP and Alarm settings, when alarming, the camera will snap pictures to the FTP automatically.

Enable timing to capture

To enable capture interval, follow the steps below:

1 Select Enable timing to capture
2 Capture interval: The interval time between two captures.
3 Select the capture time

- Capture anytime

Click the black button up the MON, you will see all time range turn red. When something moving in the detection area at anytime, the camera will capture.

- Specify an capture schedule

Click the week day words, the corresponding column will be selected. For example, click TUE, the all column of TUE turns to red, that means during Tuesday whole day, the camera will capture.

- Press the left mouse and drag it on the time boxes, you can select the serial area,

4 Click Save button to take effect.

4.5.5 IR LED Schedule

On this page you can set the schedule time for switching IR LED lights. When parameter Mode is set to the Schedule on the Live Video window, At these schedule time, the IR LED lights will be turned off.

IR LED Schedule Save Refresh IR LED Schedule Set the close time From 00 00 To 00 00 Add

Figure 4.47

4.6 Alarm

4.6.1 Motion Detection

IP Camera supports Motion Detection Alarm, when the motion has been detected, it will send emails or upload images to FTP.

Setup Wizard Status Basic Settings Network Video Alarm Motion Detection Record Firewall System Enable ✓ → 1 Sensitivity Medium Triggered Interval 10s Action Camera Sound PC Sound Send E-mail Take Snapshot Time Interval 2s Please set the capture storage location in advance. Recording Please set the video storage location in advance. Set Detection Area → 5 Schedule → 6 Save Refresh All 00 01 02 03 04 05 06 07 08 09 10 11 12 13 14 15 16 17 18 19 20 21 22 23 MON TUE

Figure 4.48

To enable motion detection, follow the steps below:

1 Enable Motion detection
2 Sensitivity---- It supports three modes: Low, Middle and High. The higher the sensitivity, the camera will be more easily alarmed. Select one motion sensitivity.
3 Trigger interval--- The interval time between two motion detections. Here supports 5s/6s/7s/8s/9s/10s/11s/12s/13s/14s/15s. Select one interval time.
4 Select the alarm indicators

When the motion has been detected, the alarm status will turn to Detect alarm.

Alarm Status Detect alarm NTP Status Disable DDNS Status Disable UPnP Status Success WiFi Status Connected to:foscam-wifi IR LED Status Off

Figure 4.49

There are four alarm indicators:

A Camera Sound and PC Sound

If the camera has connected with a speaker or other audio output device, if you select Camera Sound or PC Sound, when the motion has been detected, the people around the camera will hear beep alarm sound.

B Send E-mail

If you want to receive alarm emails when motion is detected, you must select Send E-mail and set Mail Settings first.

C Take Snapshot

If you select this checkbox, when the motion has been detected, the camera will snap the live view window as a still picture and load it to the FTP. Make sure you have set FTP and set FTP as the storage path in Video->Snapshot settings panel.

Time interval: The interval time between two pictures.

D Recording

If you select this checkbox, when the motion has been detected, the camera will recording and load it to the FTP server. Make sure you have set FTP and set FTP as the storage path in Video->Snapshot settings panel.

5 Set detect area

Click set detect area and it pop up a window, then you can draw the detection area. Click Back button after settings. When something moving in the detection area, the camera will alarm.

2018-10-22 03:16:13 H! Honeyears OK

Figure 4.50

6 Alarm Schedule

① Alarm anytime when motion is detected

Click the black button up the MON, you will see all time range turn red. When something moving in the detection area at anytime, the camera will alarm.

Set Detection Area Click this button and select all time rang All 00 01 02 03 04 05 06 07 08 09 10 11 12 13 14 15 16 17 18 19 20 21 22 23 MON TUE WED THU FRI SAT SUN

Figure 4.51

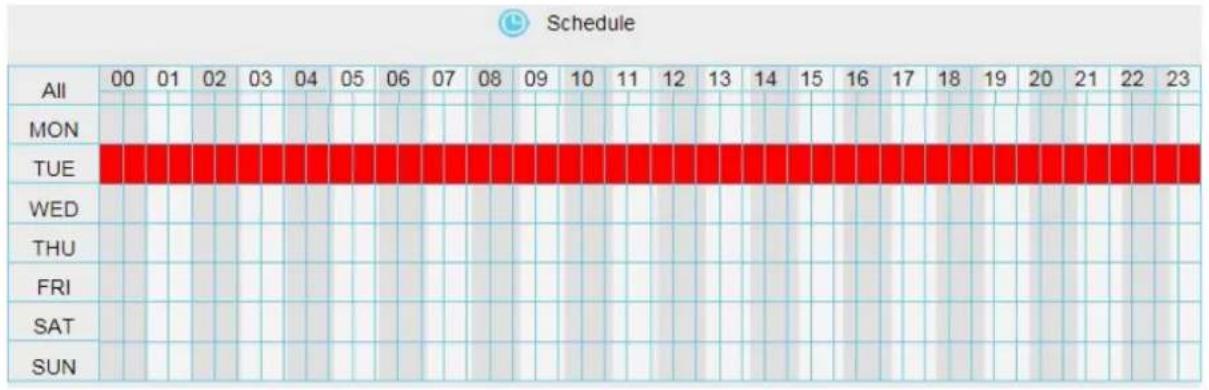

② Specify an alarm schedule

Click the week day words, the corresponding column will be selected. For example, click TUE, the all column of TUE turns to red, that means during Tuesday whole day, when something moving in the detection area, the camera will alarm.

Figure 4.52

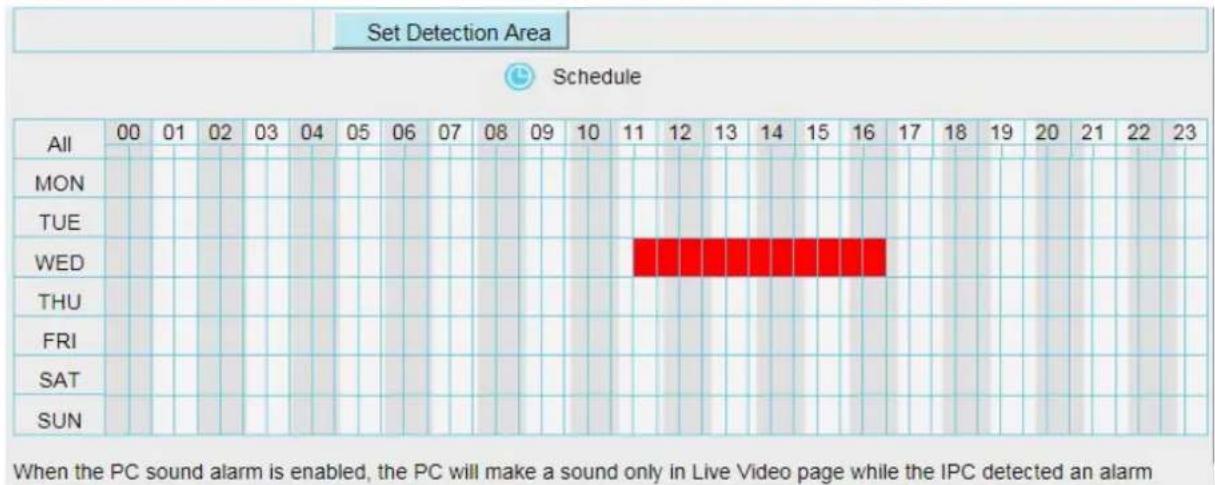

③ Press the left mouse and drag it on the time boxes, you can select the serial area,

Set Detection Area Schedule All 00 01 02 03 04 05 06 07 08 09 10 11 12 13 14 15 16 17 18 19 20 21 22 23 MON TUE WED THU FRI SAT SUN When the PC sound alarm is enabled, the PC will make a sound only in Live Video page while the IPC detected an alarm

Figure 4.53

7 Click Save button to take effect. When the motion is detected during the detection time in the detection area, the camera will alarm and adopt the corresponding alarm indicators.

NOTE: You must set the detection area and detection schedule, or else there is no alarm anywhere and anytime.

4.6.2 IO Alarm

This IP camera provides a IO alarm terminal block which is used to connect to external input / output device. The alarm device (door sensor, infrared sensor, smoke detectors, etc) send input command to the network camera, then the network camera send output command to the alarm output device (local audible alarm, lights alarm, etc.

Status Basic Settings Network Video Alarm Motion Detection IO Record PTZ Firewall System Enable Trigger level Low Triggered Interval 5s Action Camera Sound □ PC Sound □ Send E-mail □ Take Snapshot □ Time Interval 2s □ IO Output □ Clear IO Alarm Output Schedule All 00 01 02 03 04 05 06 07 08 09 10 11 12 13 14 15 16 17 18 19 20 21 22 23 MON TUE WED THU FRI

Figure 4.54

There is an IO alarm input/output lines in the FOSCAM camera tails. Enable IO alarm need this cable to connect to the alarm device (door sensor, infrared sensor, smoke detector, etc.).

I/O Alarm has four ports:

● Port 1 and port 2 indicate IO alarm input
● Port 3 and port 4 indicate IO alarm output

1 4 3 2 1

Figure 4.55

Setting IO alarm

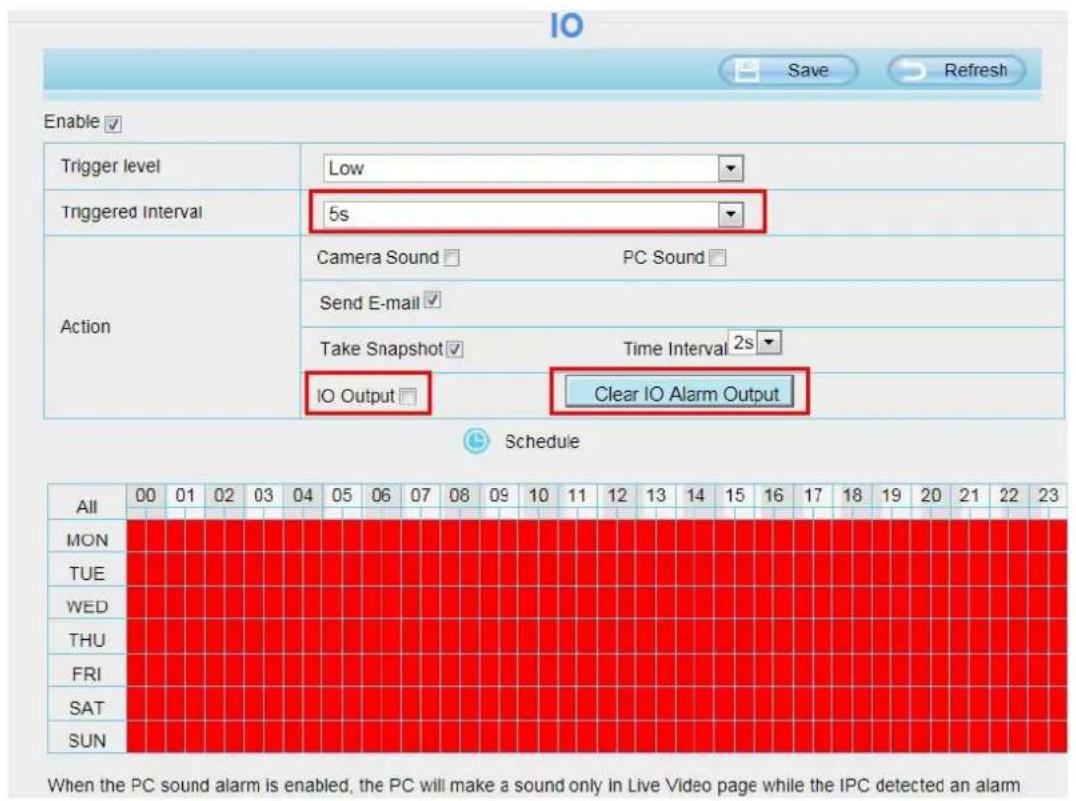

On the IO page, Enable the I/O alarm, select the "Send E-mail" and "Snapshot" before you have configured the mail and FTP.

Enable Trigger level Low Triggered Interval 5s Action Camera Sound □ PC Sound □ Send E-mail ✓ Take Snapshot ✓ Time Interval 2s ✓ IO Output □ Clear IO Alarm Output Schedule Click this button and select all time range. All 00 3 09 10 11 12 13 14 15 16 17 18 19 20 21 22 23 MON TUE WED THU FRI SAT SUN When the PC sound alarm is enabled, the PC will make a sound only in Live Video page while the IPC detected an alarm

Figure 4.56

If an IO alarm is triggered and IO alarm output device will always alarm (sound alarm is issued a warning sound, alarm lights in flash etc.). Click "Clear IO alarm output", the alarm output device will stop alarming. If IO alarm is triggered again after alarm interval, IO alarm output device will be restart.

IO Save Refresh Enable ✓ Trigger level Low Triggered Interval 5s Action Camera Sound PC Sound Send E-mail ✓ Take Snapshot ✓ Time Interval 2s ✓ IO Output ✓ Clear IO Alarm Output Schedule All 00 01 02 03 04 05 06 07 08 09 10 11 12 13 14 15 16 17 18 19 20 21 22 23 MON TUE WED THU FRI SAT SUN When the PC sound alarm is enabled, the PC will make a sound only in Live Video page while the IPC detected an alarm

Figure 4.57

Note: motion detection alarm can also be triggered IO alarm output.

Status Basic Settings Network Video Alarm Motion Detection IO Record PTZ Firewall System Enable Sensitivity Medium Triggered Interval 10s Action Camera Sound □ PC Sound □ Send E-mail □ Take Snapshot □ Time Interval 2s □ IO Output ✓ Clear IO Alarm Output Set Detection Area Schedule All 00 01 02 03 04 05 06 07 08 09 10 11 12 13 14 15 16 17 18 19 20 21 22 23 MON TUE WED THU

Figure 4.58

4.7 Record

4.7.1 Storage Location

On this page you can change the manually recording storage path, the default storage path is C:\IPCamRecord.

Storage Location Recording Location FTP Local Recording Location c:\IPCamRecord Browse Recording Location is used for schedule recordings. The local recording must be stored in local storage. The default Windows storage location is "c:\IPCamRecord". The default Mac OS storage location is "/IPCamRecord".If you modify the path on other cameras, this default storage location will be modified accordingly.

Figure 4.59

Recording Location : FTP.

Local Recording Location: For Windows OS, the manual recording path is C:/ IPCamRecord, you can change another one. For MAC OS, the manual recording path is: / IPCamRecord.

4.7.2 Alarm Record

Alarm Recording Save Refresh Enable Pre-Record ✓ Pre-recorded Time 5s Alarm Recording Time 30s

Figure 4.60

4.7.3 Local Alarm Location

On this page you can enable local alarm record, and select the local alarm record time.

Local Alarm Recording Save Refresh Enable Local Alarm Recording Local Alarm Recording Time 30s

Figure 4.61

4.7.4 Record Schedule

On this page you can enable schedule record.

Scheduled Recording To FTP Save Refresh Enable Scheduled Recording Stream Main stream Edit Scheduled Recording All 00 01 02 03 04 05 06 07 08 09 10 11 12 13 14 15 16 17 18 19 20 21 22 23 MON TUE WED THU FRI SAT SUN Scheduled recording only supports FTP server.

Figure 4.62

You can select the main stream or sub stream from the drop-down.

You can set the store path of the recording file on the Storage Location page.

Stream: You can select the main stream or sub stream from the drop-down.

You can set the store path of the recording file on the Storage Location page.

Click Save button to take effect.

4.8 Firewall

This section explains how to control the access permission by checking the client PC's IP addresses. It is composed of the following columns: Block access from these IP addresses and Only allow access from these IP addresses.

Enable Firewall IP Filtering Block access from these IP addresses Block access from these IP addresses Only allow access from these IP addresses IP Address #1 IP Address #2 IP Address #3 IP Address #4 IP Address #5 IP Address #6 IP Address #7 IP Address #8 Save Refresh

Figure 4.63

Enable firewall, If you select Only allow access from these IP addresses and fill in 8 IP addresses at most, only those clients whose IP addresses listed in the Only allow access from these IP addresses can access the Network Camera. If you select Block access from these IP addresses, only those clients whose IP addresses are in the IP list cannot access the Network Camera.

Click Save to take effect.

4.9 System

In this panel, you can back up/restore your camera settings, upgrade the firmware to the latest version, restore the camera to default settings and reboot the device.

4.9.1 Back up& Restore settings

Click Backup to save all the parameters you have set. These parameters will be stored in a bin file for future use.

Click Browse and select the parameters file you have stored, then click Submit to restore the restore the parameters.

Backup is used to save your current settings. It is recommended to backup your configuration before modifying or upgrading firmware. Backup Settings can be restored by uploading the backup file. Path: Browse... Submit Note: 1. All current settings will be lost when importing a configuration file. If an incorrect file is loaded, the camera may stop working correctly. 2. Keep the power on during this process, or you may damage your camera. Your camera will reboot automatically once restoration is completed.

Figure 4.64

4.9.2 System Upgrade

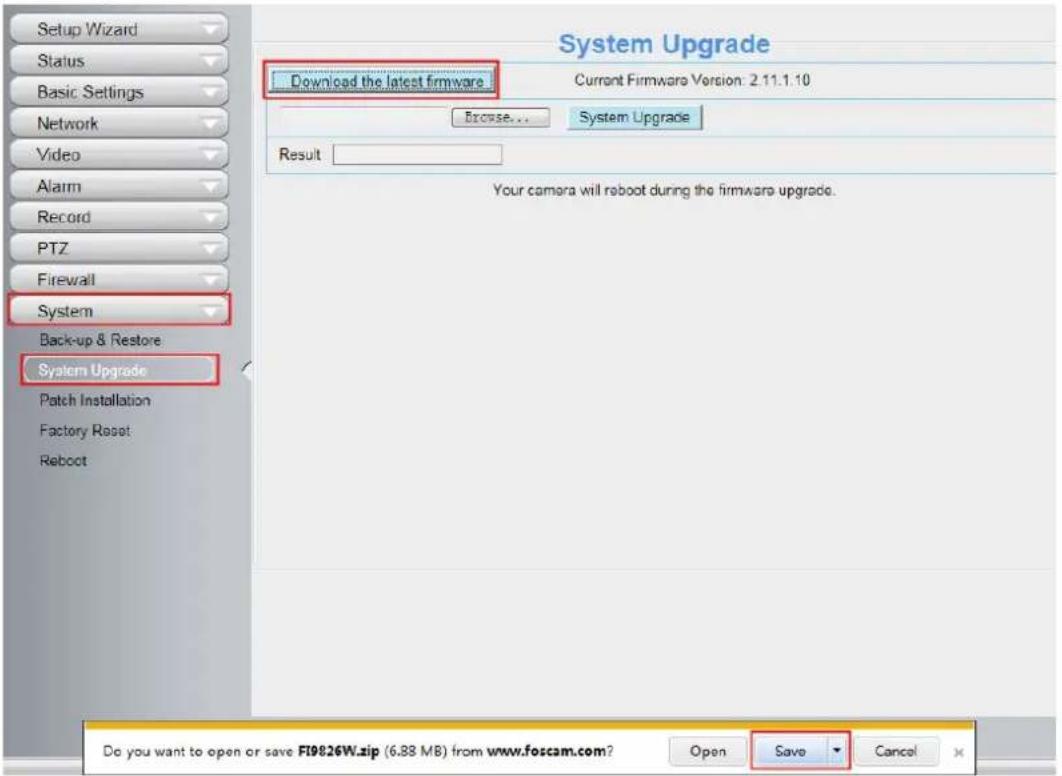

Click "Download the latest firmware", you will see the following screen. And click "save" to save the firmware on your computer locally.

Setup Wizard Status Basic Settings Network Video Alarm Record PTZ Firewall System Back-up & Restore System Upgrade Patch Installation Factory Reset Reboot Download the latest firmware Current Firmware Version: 2.11.1.10 Browse... System Upgrade Result Your camera will reboot during the firmware upgrade. Do you want to open or save FI9826W.zip (6.88 MB) from www.foscam.com? Open Save Cancel

Figure 4.65

Your current firmware version will be displayed on your screen. You may go to the Status → Device Information page to check for the latest firmware versions available.

Click Browse, choose the correct bin file and then click System upgrade.

Don't shut down the power during upgrading. After upgrading, you can see the upgrade result.

Setup Wizard Status Basic Settings Network Video Alarm Record PTZ Firewall System Back-up & Restore System Upgrade System Upgrade Download the latest firmware Current Firmware Version: 2.11.1.10 Browse... System Upgrade Result 1 2 Your camera will reboot during the firmware upgrade.

Figure 4.66

Upgrade Firmware by IP Camera Tool

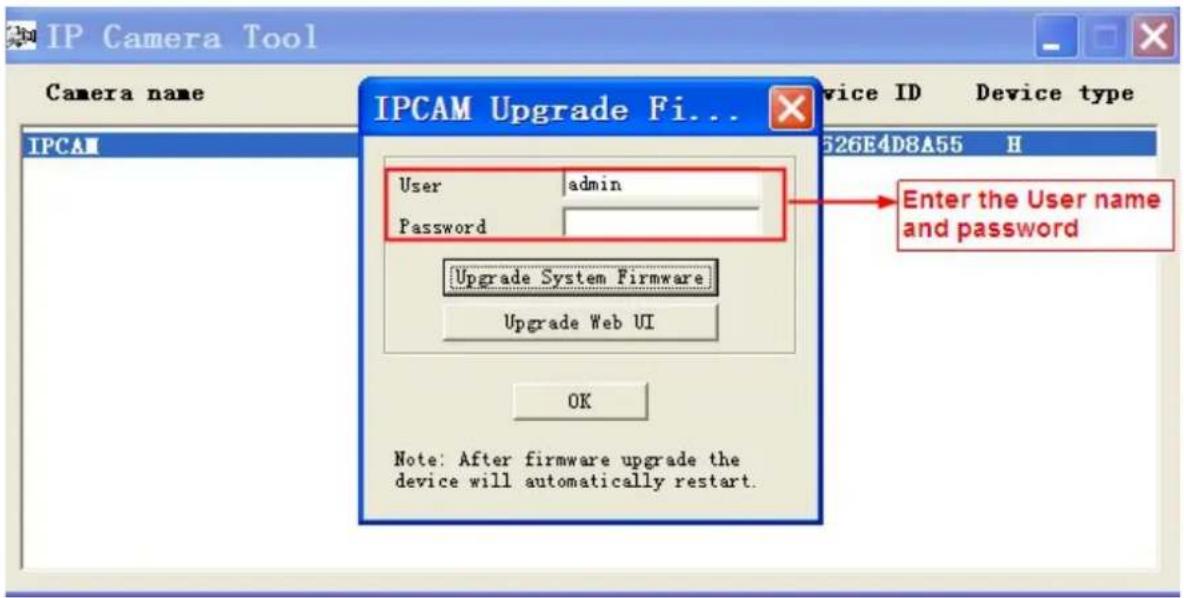

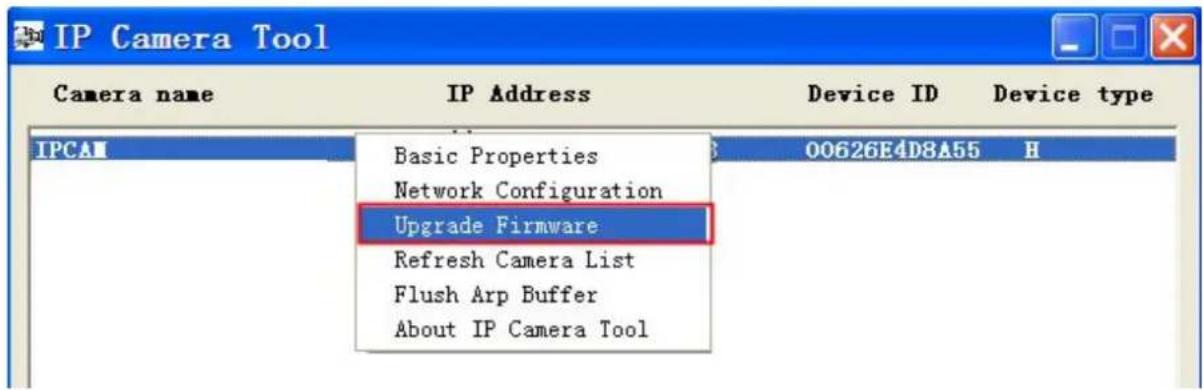

Double click the IP Camera Tool shot icon, select the Camera IP that you want to upgrade the

firmware. Then select Upgrade Firmware and enter the username and password, choose the firmware file, and upgrade.

IP Camera Tool Camera name IP Address Device ID Device type IPCAI Basic Properties 00626E4D8A55 H Network Configuration Upgrade Firmware Refresh Camera List Flush Arp Buffer About IP Camera Tool

Figure 4.67

IP Camera Tool Camera name IPCAM Upgrade Fi... Device ID Device type User admin Password Upgrade System Firmware Upgrade Web UI OK Enter the User name and password Note: After firmware upgrade the device will automatically restart.

Figure 4.68

CAUTION: If your camera works well with the current firmware, we recommend not upgrading. Please don't upgrade the firmware unnecessarily. Your camera may be damaged if misconfigured during an upgrade.

Please ensure you have download the correct firmware package for your camera before upgrading. Read the upgrade documentation (readme.txt file) in the upgrade package before you upgrade.

Upon downloading the firmware check the sizes of the bin files. They must match the size in the readme.txt file. If not, please download the firmware again until the sizes are the same. Your camera will not function correctly if a corrupt .bin file is used.

Normally, only Device WEB UI need to be upgrade, please do not try to upgrade the Device System Firmware.

1) Never shut down the power of the camera during upgrade until the IP camera restart and get connected.
2) After upgrade successfully, please uninstall the old plugin and re-install it, then reset the camera to the default factory settings before using the camera.

4.9.3 Patch Installation

Click "Browse" to select the correct patch file, and then click "Install Patch" to install the patch. Do not turn off the power during it installing. After installing is complete, you will receive a system prompt.

Setup Wizard Status Basic Settings Network Video Alarm Record PTZ Firewall System Back-up & Restore System Upgrade Patch Installation Patch Installation Browse... Install Patch Uninstall Patch Result Your camera will reboot when you install/uninstall patch.

Figure 4.69

4.9.4 Factory Reset

Click Factory Reset button and all parameters will return to factory settings if selected.

The default administrator username is admin with a blank password.

Factory Reset

Click this button to hard reset the camera to its default factory settings.

Figure 4.70

4.9.5 Reboot

Click Reboot to reboot the camera. This is similar to unplugging the power to the camera.

Reboot Click this button to reboot your camera.

Figure 4.71

5 Phone APPs

FOSCAM provides APP for Android and iOS system, which helps to view and listen to your world anywhere..... anytime. Search and install Foscam Viewer on Google Play for Android devices, search and install Foscam Viewer on APP Store for iOS devices.

If you would like to read more details on the Android APP or iOS APP, Please refer to the Android APP User Manual or iOS App User Manual.

6 Appendix

6.1 Frequently Asked Questions

6.1.1 Install the ActiveX of Firefox browser, Google Chrome and IE Chrome.

IPCam Client - Windows Internet Explorer http://192.168.1.100.03/ File Edit View Favorites Tools Help Favorites IPCam Client Internet Explorer - Security Warning Do you want to install this software? Name: IPCWebComponents.Eve Publisher: ShenZhen Foscam Intelligent Technology Co.,Ltd More options Install Don't Install While files from the internet can be useful, this file type can potentially harm your computer. Only install software from publishers you trust: What's the risk?

Figure 6.1

Setup - IPCWebComponents Welcome to the IPCWebComponents Setup Wizard This will install IPCWebComponents 3.0.0.2 on your computer. It is recommended that you close all other applications before continuing. Click Next to continue, or Cancel to exit Setup. Next > Cancel

Figure 6.2

Setup - IPCWebComponents Select Destination Location Where should IPCWebComponents be installed? Setup will install IPCWebComponents into the following folder. To continue, click Next. If you would like to select a different folder, click Browse. C:\Program Files\IPCWebComponents Browse... At least 3.7 MB of free disk space is required. < Back Next > Cancel

Figure6.3

Setup - IPCWebComponents Select Start Menu Folder Where should Setup place the program's shortcuts? Setup will create the program's shortcuts in the following Start Menu folder. To continue, click Next. If you would like to select a different folder, click Browse. IPCWebComponents Browse... < Back Next > Cancel

Figure 6.4

Setup - IPCWebComponents Ready to Install Setup is now ready to begin installing IPCWebComponents on your computer. Click Install to continue with the installation, or click Back if you want to review or change any settings. Destination location: C:\Program Files\IPCWebComponents Start Menu folder: IPCWebComponents < Back Install Cancel

Figure 6.5

Setup - IPCWebComponents Completing the IPCWebComponents Setup Wizard Setup has finished installing IPCWebComponents on your computer. The application may be launched by selecting the installed icons. Click Finish to exit Setup. Finish

Figure 6.6

6.1.2 Uninstall the ActiveX of Firefox browser, Google Chrome and IE Chrome.

强力卸载电脑上的软件 Getting Started Windows Media Center Calculator Sticky Notes Snipping Tool Paint Remote Desktop Connection Magnifier Foxmail - Shortcut Solitaire All Programs Search programs and files Control Panel hgf Documents Pictures Music Games Computer 2 Devices and Printers Default Programs Help and Support Shut down

Figure 6.7

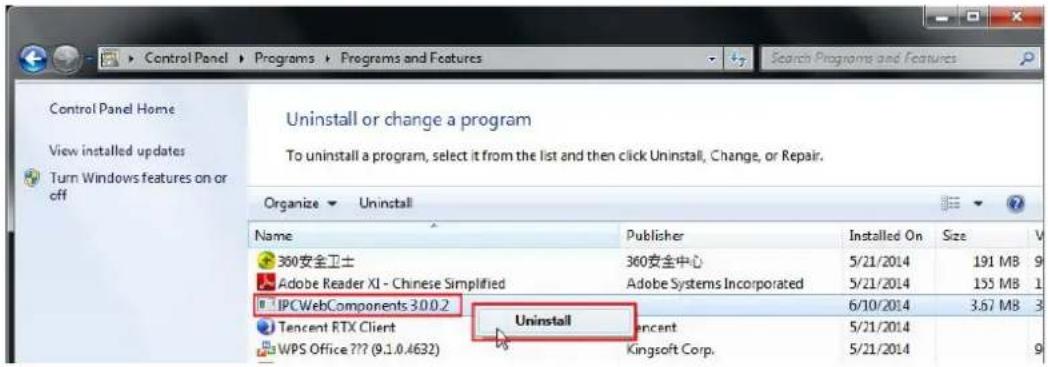

Control Panel Adjust your computer's settings View by: Category System and Security Review your computer's status Back up your computer Find and fix problems Network and Internet View network status and tasks Choose homegroup and sharing options Hardware and Sound View devices and printers Add a device Programs Uninstall a program User Accounts and Family Safety Add or remove user accounts Set up parental controls for any user Appearance and Personalization Change the theme Change desktop background Adjust screen resolution Clock, Language, and Region Change keyboards or other input methods Change display language Ease of Access Let Windows suggest settings Optimize visual display

Figure 6.8

Control Panel Home View installed updates Turn Windows features on or off Uninstall or change a program To uninstall a program, select it from the list and then click Uninstall, Change, or Repair. Organize Uninstall Name Publisher Installed On Size 360安全卫士 360安全中心 5/21/2014 191 MB 9 Adobe Reader XI - Chinese Simplified Adobe Systems Incorporated 5/21/2014 155 MB 1 IPCWebComponents 3.0.0.2 Uninstall 6/10/2014 3.67 MB 3 Tencent RTX Client Tencent 5/21/2014 WPS Office ??? (9.1.0.4632) Kingsoft Corp. 5/21/2014 9

Figure 6.9

6.1.3 I have forgotten the administrator password

To reset the administrator password, you had better unplug the network cable firstly. After that, press and hold down the RESET BUTTON about 5 seconds. Releasing the reset button, the password will turn to the factory default.

Default administrator username/password: admin with blank password

6.1.4 Subnet doesn't match

Check whether your ipcamera in the same subnet of your computer. The step is Control Panel→Network Connections→Dbclick Local Area Connections → Choose General→Properties.

Check subnet mask, IP address and gateways. When you set IP address please make sure they are in the same subnet. Otherwise you can't access camera.

6.1.5 Camera can not record

Camera can not record when I click Record button or I can't change the manually record path.

When you use Windows7 or Vista, you may be not able to do manually record or change the record path because of the security settings of computer.

There are two ways to resolve this problem:

(1) Please add the camera as a trusted site to resolve this issue. The steps are IE browser→Tool→Internet Properties→Security→Trusted sites→Sites→Add
(2) Open IE browser, then right click, select "Run as administrator"

6.1.6 No Pictures Problems

The video streaming is transmitted by the ActiveX controller. If ActiveX controller isn't installed correctly you will see no video image. You can resolve this problem by this way:

Download ActiveX controller and set the safety property of IE in the PC when you view it first time: IE browser Tool Internet Proper Security Custom Level ActiveX control and Plug-ins. Three options of

front should be set to be "Enable", The ActiveX programs read by the computer will be stored. As follows:

Enable: Download unsigned ActiveX controls

Enable: Initialize and script ActiveX controls not marked as safe

Enable: Run ActiveX controls and plug-ins

Internet Options General Security Privacy Content Connections Programs Advanced Select a zone to view or change security settings. Internet Local intranet Trusted sites Rest Internet This zone is for Internet websites, except those listed in trusted and restricted zones. Security level for this zone Allowed levels for this zone: Medium to High Medium-high - Appropriate for most websites - Prompts before downloading potenda content - Unsigned ActiveX controls will not be Custom level... Reset all zones OK Cancel Security Settings - Internet Zone Settings Disable Enable Download signed ActiveX controls (not secure) Disable Enable (not secure) Prompt (recommended) Download unsigned ActiveX controls (not secure) Disable (recommended) Enable (not secure) Prompt Initimize and script ActiveX controls not marked as safe for a Disable (recommended) Enable (not secure) Prompt Run ActiveX controls and plug-ins Administrator approved *Takes effect after you restart Internet Explorer Reset custom settings Reset to: Medium-high (default) Reset... OK Cancel

Figure 6.10

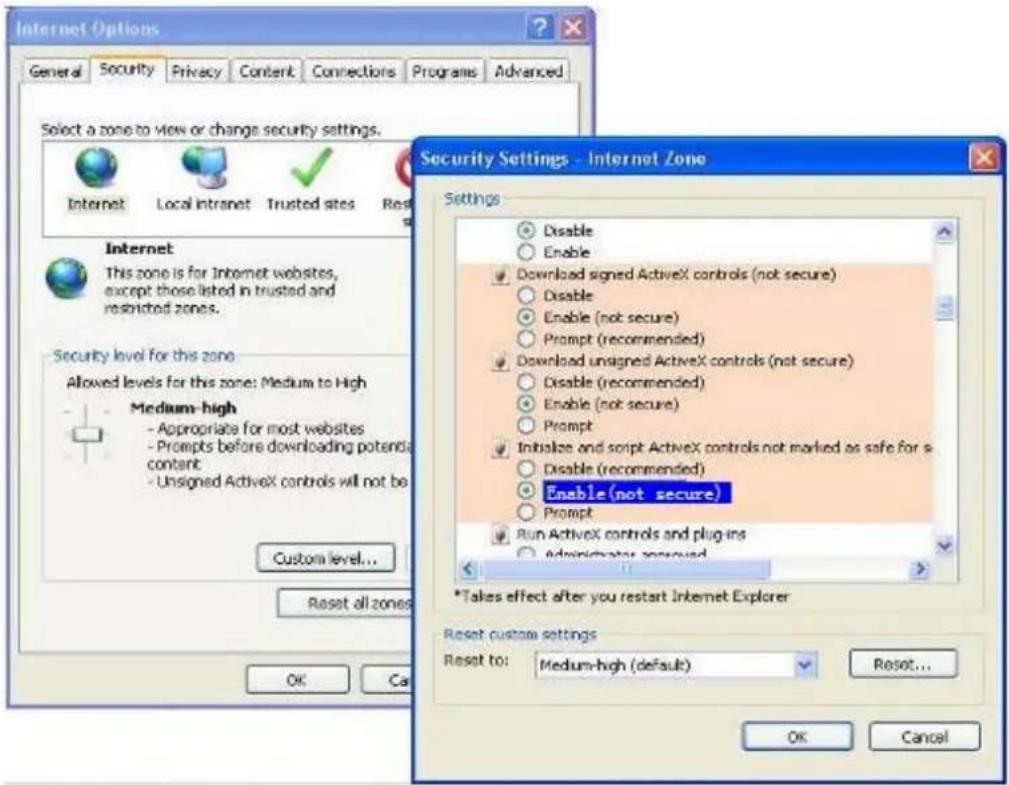

If you allow the ActiveX running, but still could not see living video. Please change another port number to try. Don't use port 8000.

HTTP Port 88 Media Port 88 HTTPS Port 443 Save Refresh

Figure6.11

NOTE: Make sure that your firewall or anti-virus software does not block the camera or ActiveX. If you could not see video, please shut down firewall or anti-virus software to try again.

6.1.7 Can't access IP camera in internet

There are some reasons:

1 ActiveX controller is not installed correctly
2 The port which camera used is blocked by Firewall or Anti-virus software. Please change another port number and try again.
3 Port forwarding is not successful.

Check these settings and make sure they are correct.

6.1.8 UPnP always failed

UPnP only contains port forwarding in our recent software. Sometimes, it may be failed to do port forwarding automatically because of firewall or anti-virus software. It also has much relation with router's security settings. So we recommend you do port forwarding manually. You can view your camera in internet successfully after you do port forwarding manually in your router.

6.2 Default Parameters

Default network Parameters

IP address: obtain dynamically

Subnet mask: obtain dynamically

Gateway: obtain dynamically

DDNS: Embedded FOSCAM DDNS Service

Username and password

Default admin username: admin with a blank password

6.3 Specification

Specification F19805EP
Image Sensor	Image Sensor High Definition Color CMOS Sensor
	Lens f : 4mm
	Mini. Illumination 0 Lux (With IR Illuminator)
Lens Lens Type Glass	Lens
	IR_CUT Filter can switch automatically
Audio Input/Output		Linear Input/Output, which can realize two-way voice the intercom
Video	Image Compression	H.264
	Image Frame Rate 25fps(50Hz), 30fps(60Hz),Down adjustable
	Resolution	960p(1280 x 960),720p(1280 x 720),VGA(640 x 480),
	View	H.264 dual streaming
	Image adjust	The brightness, contrast, saturation, chromaticity, is adjustable
	Infrared mode	Auto & Manually
	Night visibility	Φ8mm 36 IR LEDs, Night visibility up to 30 meters
Network	Ethernet	One 10/100Mbps RJ-45
	Remote Access	P2P,DDNS
	Supported Protocol	TCP/IP, UDP/IP, HTTP, SMTP, FTP, DHCP, DDNS,UPNP, ONVIF
	Support IP address static	IP address, dynamic IP address
Alarm	Alarm detection The motion detecting 、I/O alarm
	Alarm inform	Support Email、FTP、I/O output alarm etc alarm inform way
Hardware Interface	POWER Interface	DC 12V/2.0A (EU,US,AU adapter or other types option, Power Consumption < 8 Watts
	Audio Input/Output Interface One audio input jack, One audio output jack.
	Reset Buttons One Reset
	I/O alarm interface	External Input / output terminal block
	Control Interface	one RS - 485 port, support of transparent channel transmission
PoE	PoE Standard	IEEE 802.3af
	Input Voltage	DC 36V~DC 57V
	Output Voltage	DC 12V
	Output Power 15.4W (Max.)
	Wiring standards	100M BASE-T
Environment	Operate Temper	-20° ~ 55°C (-4°F ~ 131°F)
	Operate Humidity	20% ~ 85% non-condensing
	Storage Temper	-20°C ~ 60° (-4°F ~ 140°F)
	Storage Humidity	0% ~ 90% non-condensing
	Dimension(mm)	180(L)x 98(W)x 103(H)
	Net Weight	900g
	Gross Weight	1150g
PC Requirements	CPU	2.0GHz or above (suggested 3.0GHz)
	Memory Size	256MB or above (suggested 1.0GHz)
	Display Card	64M or above
	Supported OS	Microsoft Windows 2000/XP, Vista, 7; Mac OS iOS, Android
	Browser	IE6 and above version or compatible browser, Firefox, Chrome, Safari or other standard browsers
Software	Upgrade	Upgrade from network
Certification	CE,FCC,RoHS
Warranty	Limited 1-year warranty

6.4 CE & FCC

Electromagnetic Compatibility (EMC)

FCC Statement

This device compiles with FCC Rules Part 15. Operation is subject to the following two conditions.

■ This device may not cause harmful interference, and
This device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the installation manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is like to cause harmful interference, in which case the user will be required to correct the interference at his own expense.

FCC Caution

Any changes or modification not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.

CE Mark Warning

This is a Class A product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures.

7 Obtaining Technical Support

While we hope your experience with the IPCAM network camera is enjoyable and easy to use, you may experience some issues or have questions that this User's Guide has not answered.

Please contact support via e-mail at [e-mail]. You can also reach technical support at 1-800-930-0949 by following the automated instructions.
