Product Type	In-ceiling Speaker
Brand	Legrand
Model	HT1655
Dimensions (Diameter)	8 inches (203 mm)
Dimensions (Depth)	3 inches (76 mm)
Weight	1.5 kg (3.3 lbs)
Power Handling (RMS)	30 W
Frequency Response	80 Hz – 20 kHz
Impedance	8 ohms
Sensitivity	87 dB
Driver Configuration	6.5-inch woofer + 0.75-inch tweeter
Installation Type	Flush mount in ceiling
Housing Material	ABS plastic, metal grille
Connection Type	Screw terminals
Recommended Use	Multi-room audio system
Warranty	2 years
Care Instructions	Wipe with dry cloth only
Safety Precautions	Avoid exposure to moisture
Spare Parts Availability	Contact Legrand support
Compliance	CE, RoHS

Frequently Asked Questions - HT1655 LEGRAND

How do I install the Legrand HT1655 speaker?

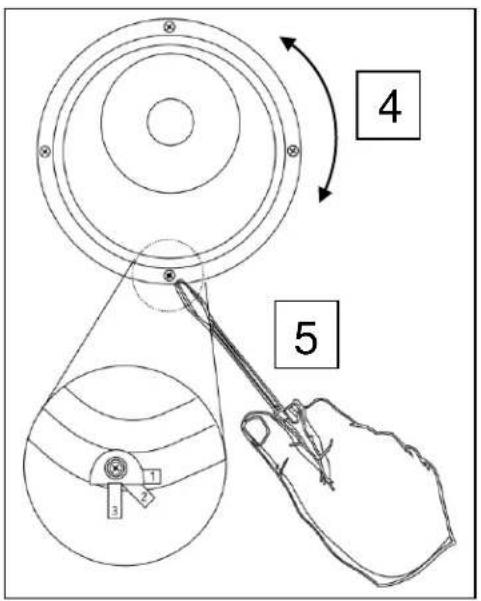

Cut a hole in the ceiling using the provided template, connect wires to screw terminals, then secure the speaker with mounting tabs.

What is the recommended amplifier power for this speaker?

Use an amplifier with 10–50W RMS per channel at 8 ohms for optimal performance.

Can I paint the grille to match my ceiling?

Yes, the grille is paintable. Remove it first, apply thin coats of latex paint, and reattach after drying.

Is the HT1655 suitable for outdoor use?

No, it is designed for indoor use only. Exposure to moisture or extreme temperatures may damage it.

How do I clean the speaker?

Wipe the grille and housing with a dry, soft cloth. Do not use water or cleaning chemicals.

What is the frequency response of the HT1655?

The frequency response is 80 Hz to 20 kHz, suitable for full-range audio reproduction.

Does the speaker come with a mounting template?

Yes, a cutout template is included in the package for easy installation.

Can I use the HT1655 with a 70V distributed audio system?

This model is designed for low-impedance (8 ohms) systems. For 70V applications, consider a compatible transformer.

What is the depth required for installation?

The speaker requires approximately 3 inches (76 mm) of clearance behind the ceiling.

How do I obtain spare parts or service?

Contact Legrand customer support or visit www.onqlegrand.com for authorized service centers.

USER MANUAL HT1655 LEGRAND

301 Fulling Mill Road, Suite G

Middletown, PA 17057

Phone [phone] / Fax [phone]

www.onqlegrand.com

IS-1507096 Rev. O

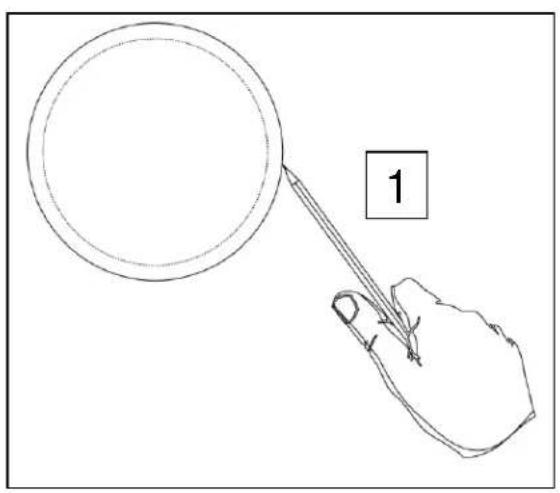

Line drawing of a hand holding a magnifying glass over a circle, with a numbered label '1' in the corner (no text or symbols on the diagram itself)

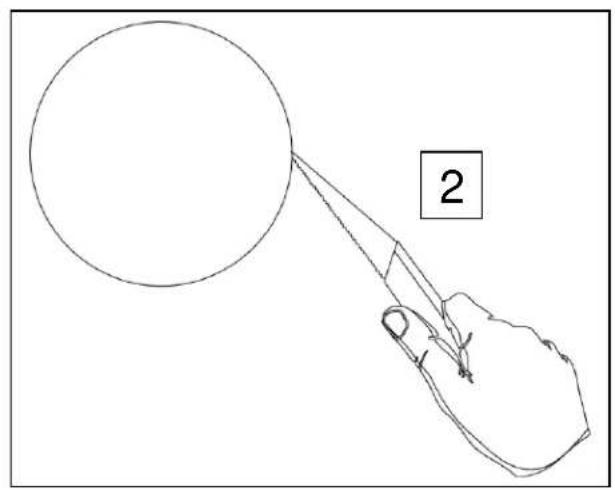

Line drawing of a hand holding a circular object with a pointer, labeled '2' (no text or symbols on the diagram itself)

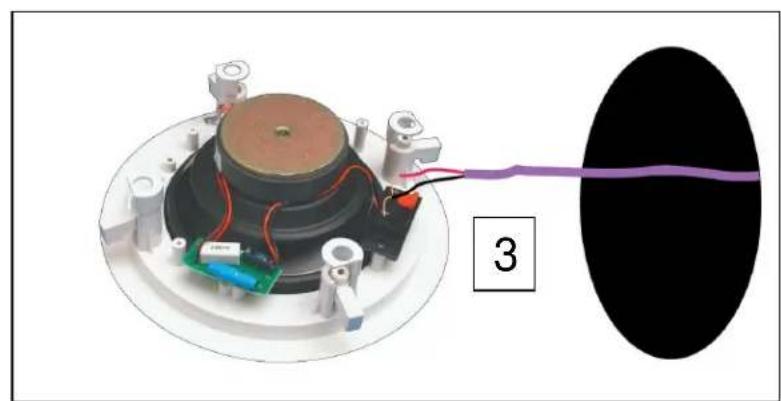

Close-up of a mechanical device with wires and components, connected to a purple waveform line (no text or symbols visible)
