USER MANUAL DI-325CS(PL)-W Provision-ISR

Content

EN English Manual 2

In order to avoid electrical shock or fire, please use proper power according to the manual.

Nota:

Thank you for using our products. Before use, please read this manual carefully to ensure correct use of this series of products. Please keep the manual properly for future use.

This series of cameras take high-sensitivity CCD as the image sensor, all circuits have long work life and high reliability. Excellent image will be top choice for your camera.

Main Features

1. Easy to install and assemble.
2. High resolution, high sensitivity and high s/n ratio.
3. Low illumination, high quality image.
4. CCD sensor can prolong the work life of camera.
5. With SONY DSP and CCD chip, image is clear and stable.

Precautions

1. Do not install the camera in places where the temperature is above 50^ C or under -10^ C.
2. Do not touch the CCD surface with your finger. If cleaning is needed, please wipe it using a soft cloth with a little bit of alcohol.
3. Do not install in places with high humidity, it can seriously damage the quality of the picture.
4. Do not drop the camera and avoid physical shock.
5. Do not face your camera to a strong light, it can damage the CCD.
6. Do not expose the camera to rain or dusty surroundings.
7. Its highly important to use the correct and suitable power supply(DC12V) for the camera.
8. Only professional and qualified technician can install and test
9. During use, if any errors occur, cut off the power immediately and contact your local distributor.

EN

2

Structure and Components

Color Camera

AES Auto Electronic Shutter Switch (Auto)

BLC Backlight Compensation Switch (Auto)

AGC Auto Gain Control Switch (Auto)

AWB Auto White Balance Switch (Auto)

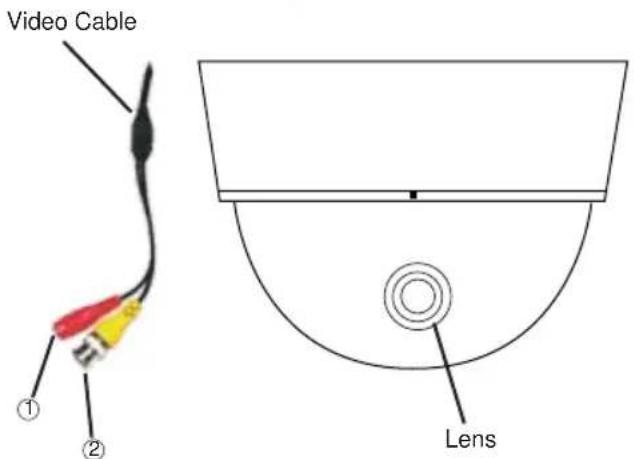

Video Cable:

①Power Supply Socket

②Video out

Operation Steps

(1) Confirm that the power supply for the camera is correct; Connect① Power Supply Socket to the power supplier.
(2) Connect "Video Out"② of the camera to the monitor or other video equipment (DVR) with a 75 ohm cable (RG59).

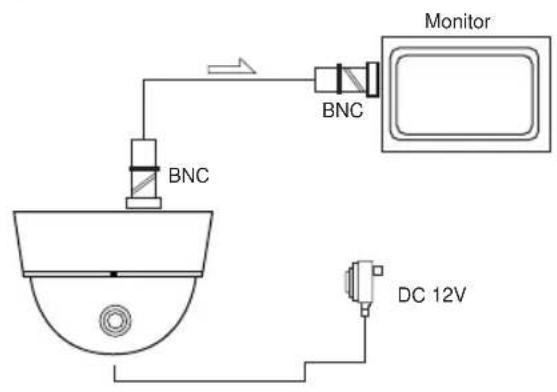

System connection

① Use one camera and one monitor


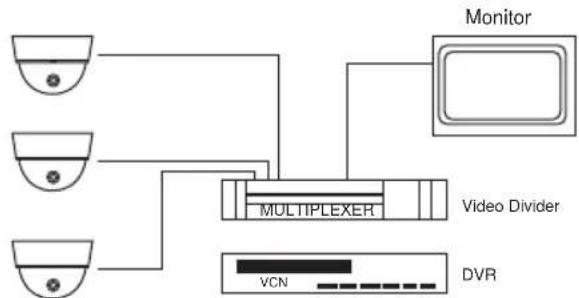

②Use Several Cameras and one Monitor

Camera Specification Camera Specification

MODEL	DA-352CS	DA-322CS
Image Sensor	1/3" SONY Super HAD CCD
DSP System		SONY DSP ChipsetSONY HQ1
TV System	PAL/NTSC
Effective Pixels	PAL:795(H)x596(V)NTSC:811(H)x508(V)	PAL:537(H)x597(V)NTSC:537(H)x505(V)
Horizontal Resolution	540TVL 420TVL
Minimum Illumination		0.05 LUX/F2.00.02 LUX/F2.0
S/N Ratio	48db(AGC OFF)
Video Output	Composite 1.0Vp-p at 75ohm
White Balance	AWB / ATW
Electronic Shutter	1/50 - 1/100000sec
Gamma correction	0.45
Sync System	Internal
Auto Iris Control	Video/DC Switchable
Lens	C/CS
Power Supply	DC12V ± 1V/15.0mA
Operation Temperature	-10°C → -50°C
Dimensions	150W x 110H mm
Net Weight	1250g

MODEL	DX-322CS	DX-425CS
Image Sensor	1/3" SONY Super HAD CCD	1/4" SONY CCD
DSP System	SONY DSP Chipset
TV System	PAL/NTSC
Effective Pixels	PAL:537(H)×597(V) / NTSC:537(H)×505(V)
Horizontal Resolution	420TVL
Minimum Illumination	0.05 LUX/F1.2 0.5 LUX/F1.2
S/N Ratio	48db(AGC OFF)
Video Output	Composite 1.0Vp-p at 75ohm
White Balance	AWB ON (ATW OFF PUSH) Switchable
Electronic Shutter	1/50 - 1/100000sec
Gamma correction	0.45
Sync.System	Internal
Auto Iris Control	Video/DC Switchable
Lens	3.6/4/6/8mm Board Lens
Power Supply	DC12V ± 1V/180mA
Operation Temperature	-10°C -1 - 50°C
Dimension	84W x 53H mm
Net Weight	280g

EN

EN

6

Camera Specification Camera Specification

MODEL	DX-352CS
Image Sensor	1/3" SONY Super HAD CCD
DSP System	SONY HQ1 DSP Chipset
TV System	PAL/NTSC
Effective Pixels	PAL:795(H)x596(V) / NTSC:811(H)x508(V)
Horizontal Resolution	540TVL
Minimum Illumination	0.02 LUX/F1.2
S/N Ratio	48db(AGC OFF)
Video Output	Composite 1.0Vp-p at 75ohm
White Balance	AWB ON (ATW OFF PUSH) Switchable
Electronic Shutter	1/50 ~ 1/100000sec
Gamma correction	0.45
Sync System	Internal
Auto Iris Control	Video/DC Switchable
Lens	3.6/4/6/8mm Board Lens
Power Supply	DC12V ± 1V/180mA
Operation Temperature	-10°C -1 -50°C
Dimension	100W x 80H mm
Net Weight	280g

MODEL	DI-355CSVF	DI-325CSVF
Image Sensor	1/3" SONY Super HAD
DSP System	SONY HQ1	SONY DSP Chipset
TV System	PAL/NTSC
Effective Pixels	PAL:795(H)x596(V)NTSC:811(H)x508(V)	PAL:537(H)x597(V)NTSC:537(H)x505(V)
Horizontal Resolution		420TVL540TVL
Minimum Illumination	0.5 LUX/F2.0 (0 Lux IR On)
S/N Ratio	48db(AGC OFF)
Video Output	Composite 1.0Vp-p at 75ohm
White Balance	Auto Tracking White Balance
AGC	Adjustable
Backlight Compensation	Adjustable
Electronic Shutter	1/50 ~ 1/120000sec
Gamma correction	0.45
Sync.System	Internal
IR LED	36PSC
Lens	4-9mm Vari-focal Lens
IR View Distance	30m
Power Supply	DC12V / 110mA
Operation Temperature	-10°C--50°C
Dimension	94W x 69H mm
Net Weight	300g

EN

EN

8

Camera Specification Camera Specification

MODEL	DI-355CS(FL)	DI-325CS(FL)
Image Sensor	1/3" SONY Super HAD
DSP System		SONY DSP ChipsetSONY HQ1
TV System	PAL/NTSC
Effective Pixels	PAL:795(H)x596(V)NTSC:811(H)x508(V)	PAL:537(H)x597(V)NTSC:537(H)x505(V)
Horizontal Resolution		420TVL540TVL
Minimum Illumination	0.5 LUX/F2.0 (0 Lux IR On)
S/N Ratio	48db(AGC OFF)
Video Output	Composite 1 0Vp-p at 75ohm
White Balance	AWB
AGC	Adjustable
Backlight Compensation	Adjustable
Electronic Shutter	1/50 - 1/120000sec
Gamma correction	0.45
Sync.System	Internal
IR LED	24PSC
Lens	3.6/4/6/8mm Board Lens
IR View Distance	20m
Power Supply	DC12V / 110mA
Operation Temperature	10 C -- 50 C
Dimension	94W x 69H mm
Net Weight	300g

MODEL	DI-355CS(PL)	DI-325CS(PL)
Image Sensor	1/3" SONY Super HAD
DSP System		SONY DSP ChipsetSONY HQ1
TV System	PAL/NTSC
Effective Pixels	PAL:795(H)x596(V)NTSC:811(H)x508(V)	PAL:537(H)x597(V)NTSC:537(H)x505(V)
Horizontal Resolution		420TVL540TVL
Minimum Illumination	0.5 LUX/F2.0 (0 Lux IR On)
S/N Ratio	48db(AGC OFF)
Video Output	Composite 1 0Vp-p at 75ohm
White Balance	AWB
AGC	Adjustable
Backlight Compensation	Adjustable
Electronic Shutter	1/50 - 1/120000sec
Gamma correction	0 45
Sync System	Internal
IR LED	24PSC
Lens	3.6/4/6/8mm Board Lens
IR View Distance	20m
Power Supply	DC12V / 110mA
Operation Temperature	-10°C - +50°C
Dimension	94W x 69H mm
Net Weight	150g

Camera Specification Camera Specification

MODEL	CM-325CS
Image Sensor	1/3" SONY Super HAD CCD
DSP System	SONY DSP chipset
TV System	PAL/NTSC
Effective Pixels	PAL:537(H)×597(V) / NTSC:537(H)×505(V)
Horizontal Resolution	420TVL
Minimum Illumination	0Lux (IR ON)
S/N Ratio	48db(AGC OFF)
Video Output	Composite 1.0Vp-p at 75ohm
White Balance	AWB
AGC	Adjustable
Backlight Compensation	Adjustable
Electronic Shutter	1/50 ~ 1/120000sec
Gamma correction	0.45
Sync System	Internal
IR LED	12 PSC
Lens	3.6/4/6/8mm Board Lens
IR View Distance	15M
Power Supply	DC12V ± 1V/110mA
Operation Temperature	-10°C - +50°C
Dimension	55W x 85H x 85L
Net Weight	130g

MODEL	DX-322CP36
Image Sensor	1/3" CCD
DSP System	PROVISION DSP Chipset
TV System	PAL / NTSC
Effective Pixels	PAL:537H x 597VNTSC:537H x 505V
Horizontal Resolution	420TVL
Minimum Illumination	0.5 LUX/F1.2
S/N Ratio	More than 48dB
Video Output	1.0Vp p composite video signal 75 Ω
White Balance	AWB
Electronic Shutter	1/50 ~ 1/100,000
Gamma correction	0.45
Sync.System	Internal
Auto Iris Control	Video/DC Switchable
Lens	3.6mm Board Lens / 3 Axis system
Power Supply	DC 12V / 110mA
Operation Temperature	-10° to 50°
Dimension	90W x 60H mm
Net Weight	280g

Camera Specification

MODEL	DI-322CP36(P)
Image Sensor	1/3" CCD
DSP System	PROVISION DSP Chipset
TV System	420TVL
Effective Pixels	PAL:537H x 597V / NTSC:537H x 505V
Horizontal Resolution	420TVL
Minimum Illumination	0.5 Lux (0 Lux IR On)
Lens Mount	3.6mm
S/N Ratio	More than 48dB
Electronic Shutter	1/60(1/50)~1/100,000 sec
Gamma Modification	0.45
Gain Control	Auto
White Balance	Auto
Synchronous System	Internal
Video Output	1.0Vp p composite video signal 75 Ω
Leds Number	10 Big Leds / 15m
Infra Lamps Control	Day/night Turn off/on Automatic
Operating Temperature	-10° to 50°
Power Supply	DC12V / 110mA
Dimensions	100x65mm
Weight	150g
