USER MANUAL TLM-1506T Tatung
OPERATING INSTRUCTIONS
TRIVIEW
TABLE OF CONTENTS
| FCC information ---- 2
| CE information 2
Safety Precautions 3
1.Scope 4
2.Unpacking 4
3.Functional specification 4
4.Controls and indicators 8
5.OSD Menu 9
6.Regulatory Agency 18
7.Mechanical 18
8.Reliability 19
9. Appendix 20
10.LCD Video Monitor Specification 21
TRIVIEW
FCC INFORMATION
This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
Shielded interface cables and A.C. power cord, if any, must be used in order to comply with emission limits.
Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
CE INFORMATION
The product must be installed according to the currently valid installation regulations for EMC to guarantee the designed use and to prevent EMC problems.
The device supplied with this manual is according to the EC, EMC Directive,
89/336/EEC & LVD 73/23/EEC
Standard used for showing compliance with the essential requirements of the device:
EN 55022
EN 61000-3-2
EN 61000-3-3
EN 50130-4
EN 55024
LVD: EN60950-1
TRIVIEW
-
Do not modify the three-prong grounding type monitor power plug in any way.
-
Operate this unit only from the type of power source indicated on the label.
-
Do not block or cover ventilation openings on the back or bottom of the monitor cabinet.
-
Do not place this monitor near a radiator or heating vent.
-
Do not push objects of any kind through cabinet openings. This may result in fire or electrical shock.
-
Before adding attachments always ask a service technician to perform routine safety tests to determine that equipment is in safe operating condition. Ground potential tests should be part of the routine safety check made by the service technician.
-
Do not place monitor on an unstable cart, stand, or shelf where it may fall and injure personnel or damage equipment.
-
Route power cords so that they cannot be walked upon or tripped over. Do not allow anything to rest on the power cord.
-
Do not install monitor in wet areas, or where it may be exposed to rain or water. Do not spill liquid of any kind on the unit.
-
Unplug the power cord from the unit before cleaning the display. Use only a damp cloth. Do not use alcohol, spirits, or ammonia to clean the display. DO NOT ATTEMPT TO CLEAN THE INTERIOR OF THIS UNIT- THIS ACTION MUST BE PERFORMED BY THE SERVICE TECHNICIAN AS REQUIRED DURING NORMAL MAINTENANCE.
-
Refer all servicing to qualified service personnel. REMOVAL OF BACK COVER BY UNAUTHORIZED PERSONNEL MAY EXPOSE THE USER TO DANGEROUS VOLTAGES OR OTHER HAZARDS.
-
Unplug the unit immediately and notify the service technician.
A. If liquid has been spilled into the display or the display has been exposed to rain or water.
B. If the unit has been dropped or the cabinet damaged.
C. If fuses continue to blow.
D. If the power cord is damaged or frayed.
E. If a distinct change from normal operation is apparent.
TRIVIEW
When replacement parts are required, be sure that the service technician uses components specified by the manufacturer which have the same characteristics as the original parts. UNAUTHORIZED SUBSTITUTIONS MAY RESULT IN FIRE, ELECTRICAL SHOCK OR OTHER HAZARDS.
Upon completion of any service or repairs, ask the technician to perform safety checks to determine that the equipment is in safe operating condition.
WARNING: SERIOUS SHOCK HAZARDS EXIST WITHIN THE COVERS OF THIS MONITOR. DO NOT OPEN THE COVERS UNDER ANY CIRCUMSTANCES, THERE ARE NO USER SERVICEABLE COMPONENTS INSIDE
1. Scope
This specification is used to define the performance of TLM-1506T / TLM-1706T / TLM-1906T color TFT LCD monitor. This system supports both video input and PC VGA input. In video input mode, the system can automatically detect the NTSC signal and PAL signal. In PC mode, TLM-1506T can support up to 1024x768 VESA standards. TLM-1706T and TLM-1906T can support up to 1280x1024 VESA standards.
2. Unpacking
After you unpack your LCD monitor, make sure the following items are included in the box and in good condition:
I 15", 17" or 19" LCD monitor.
1 Monitor to PC analog signal cable (15 pin).
I Power cord, US type, 6-ft long, black.
1 Operating Instructions.
3. Functional Specifications
Power Supply
The power supply spec is listed below,
AC INPUT
*AC power input range: 100-240 VAC, 60/50Hz, 1.5Arms (Max)
* Power consumption: TLM-1506T: 20W (Max)
TLM-1706T: 22W (Max)
TLM-1906T: 25W (Max)
TRIVIEW
4 -
- LCD Video Monitor Specification
| MODELDESCRIPTION | TLM-1506T | TLM-1706T | TLM-1906T | |
| Panel type | 15" TFT color LCD | 17" TFT color LCD | 19" TFT color LCD | |
| Screen size | 15" (381mm) diagonal | 17" (432mm) diagonal | 19" (483mm) diagonal | |
| Viewable size | 304.1×228.1mm | 337.9×270.3mm | 376.3×301.0mm | |
| Dot pitch | 0.297×0.297mm | 0.264×0.264mm | 0.294×0.294mm | |
| Viewing angle (H/V) | 150°/130° | 160°/160° | 160°/160° | |
| Contrast ratio | 500:1 | 1000:1 | 1000:1 | |
| Brightness | 250 c d/m2 | 250 c d/m2 | 250 c d/m2 | |
| Resolution | 1024×768 | 1280×1 024 | 1280×1024 | |
| Display color | 16.2M | 16.7M | 16.7M | |
| Response time | 8ms | 5ms | 5ms | |
| Power input | AC 100-240 V | |||
| Power consumption | 20W 25W | 22W | ||
| Dimension (Physical)WxHxD m m | 356×387×200mm (with base)356×300×87mm (without base) | 387×402×200mm (with base)367×338×67mm (without base) | 458×416×215mm (with base)458×373×77mm (without base) | |
| Weight (Physical) | 4.0 Kg (with base) | 5.0 Kg (with base) | 6.4 Kg (with base) | |
| Wall mount | VESA standard 100mm×100mm | |||
| Input signal | PC | Connector: 15-pin D-sub | ||
| SVGA/XGA | SVGA/XGA/SXGA | SVGA/XGA/SXGA | ||
| Video | NTSC/PAL composite video, Connector: 2 BNC for Video I/O,1 mini-din 4pin for S-video Input Level: 1.0Vp-p / 75 ohm | |||
| System : NTSC / PAL BGHI | ||||
| Audio | Input | 1 × Stereo Audio I/O (RCA x 2) | ||
| Speaker | 2W × 2 | |||
| DC output | N/A | |||
| User's control | CH, MENU, -, +, Power | |||
| Remote control | N/A | |||
| Rack Mount Kit (Optional) | TRK-1506 | TRK-1706 | TRK-1906 | |
| Regulation | UL, CUL, FCC-B, CE | |||
Specification subjects to change without notice.
TRIVIEW
-21-
9. Appendix

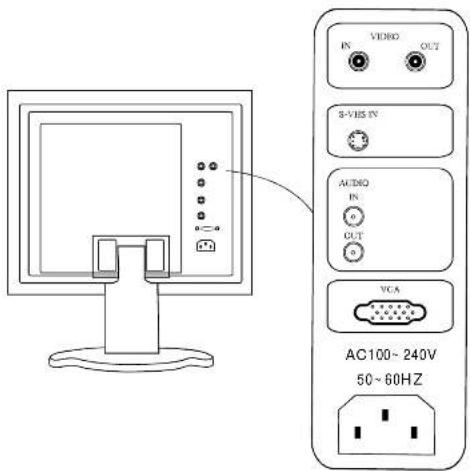

REAR PANEL COMPONENTS AND CONTROL
VIDEO: Video Input / Looping output
S-VHS: S-Video input
AUDIO: Audio input/output
VGA : VGAinput
AC IN : AC power input
LCD Panel:
| TLM-1506T | TLM-1706T | TLM-1906T | |
| Type | 15" TFT LCD | 17" TFT LCD | 19" TFT LCD |
| Screen Size | 304.1(H) x 228.1(V) mm ^2 | 397.9(H) x 270.3(V) mm ^2 | 376.3(H) x 301.0(V) mm ^2 |
| Viewable Picture Area | 381mm (15 in) diagonal | 431.8mm (17 in) diagonal | 482.6mm (19 in) diagonal |
| Pixel Pitch | 0.297(H)×0.297(V)mm | 0.264(H)×0.264(V)mm | 0.294(H)×0.294(V)mm |
| Resolution | 1024×768 pixels | 1280×1024 pixels | 1280×1024 pixels |
| Aspect Ratio | 4:3 | 5:4 | 5:4 |
| Display Colors | 16.2M | 16.7M | 16.7M |
| Response Time | 8ms | 5ms | 5ms |
| Back Light Life Time | 50,000 | 50,000 | 50,000 |
Optical Characteristics:
| TLM-1506T | TLM-1706T | TLM-1906T | |
| Luminance | 250 cd/m2 | 250 cd/m2 | 250 cd/m2 |
| Contrast Ratio | 500:1 | 1000:1 | 1000:1 |
| Viewing Angle | 150° Horizontal, 130° Vertical | 160° Horizontal, 160° Vertical | 160° Horizontal, 160° Vertical |
TRIVIEW
20-
Video Characteristics:
Composite Video (CVBS): 1.0 Vp-p (0.5 - 1.5Vpp), Automatic switching from 75Ω unbalanced termination to Hi-Z with loop-through operation.
Y/C (S-video): 1.0 Vp-p (0.5-1.5Vpp), Automatic switching from 75Ω unbalanced termination to Hi-Z with loop-through operation.
VGAInput:
Analog RGB: 0.707 Vrms.
VGA Timing Modes
| RESOLUTION\MODEL | TLM-1506T | TLM-1706T | TLM-1906T |
| 640 x 480 | 60/75Hz | 60/75Hz | 60/75Hz |
| 800 x 600 | 60/75Hz | 60/75Hz | 60/75Hz |
| 1024 x 768 | 60/75Hz | 60/75Hz | 60/75Hz |
| 1280 x 1024 | N/A | 60/75Hz | 60/75Hz |
7.3 Wall mount:
Optional wall mount (VESA standard 100mm×100mm)
8. Reliability
Mean Time Between Failures (MTBF):
MTBF shall be 50,000 hours minimum at 90% confidence level and 100% duty cycle continuous operation at 25°C. The calculation shall not include LCD panel.
6. Regulatory Agency
6.1 Safety Approvals
This series design shall meet the standards of the following domestic and foreign agencies:
UL listed: UL60950-2000 listing (Information Processing and Business Equipment)
CUL Certified: CAN/CSA C22.2 No. 950-95 (Information Technology Equipment)
CE LVD: IEC 60950: 1999 3 ^rd edition
CB: IEC 60950: 1999 3 ^rd edition
6.2 EMI/EMS Emission Approvals
This series design shall meet following EMI/EMS specifications:
FCC Compliance: FCC Rules and Regulations, Part 15, subpart B, Class B.
CE COMPLIANCE: EN55022:1998 class B, EN55024:1998, EN50130-4:1998
EN 61000-3-2:2000, EN 61000-3-3:1995.
7. Mechanical
7.1 Weight
| Model | TLM-1506T | TLM-1706T | TLM-1906T |
| Net weight | 4.0 KG/ 8.8 lb | 5.0 KG/ 11.0 lb | 6.4 KG/ 14.5 lb |
| Gross weight | 6.0 KG/ 13.2 lb | 7.0 KG/ 15.5 lb | 8.8 KG/ 19.5 lb |
7.2 Dimensions:
| Model | TLM-1506T | TLM-1706T | TLM-1906T |
| Physical dimension | 356(W) × 387(H) × 200(D)mm 14.0(W) × 15.2(H) × 7.9(D)inch | 387(W) × 402(H) × 200(D)mm 15.2(W) × 15.8(H) × 7.9(D)inch | 458(W) × 416(H) × 215(D)mm 18.0(W) × 16.4(H) × 8.5(D)inch |
| Packing dimension | 415(W) × 460(H) × 230(D)mm 16.5(W) × 18.3(H) × 9.3(D)inch | 445(W) × 496(H) × 230(D)mm 17.8(W) × 19.5(H) × 9.3(D)inch | 505(W) × 530(H) × 240(D)mm 20.0(W) × 21.0(H) × 9.5(D)inch |
Audiolnput:
Signal Level: 1.0 Vrms
Audio Output:
Speaker 2W ×2
Controls: Front panel push buttons
CH : Select Video, S-Video(Y/C), VGA
MENU : Enter On-Screen Display (OSD) menu
: Decrease the volume
+ : Increase the volume
POWER : Power On/Off
Indicators:
LED: Power-on (Green), Power Off (Red)
Connectors:
Power inlet: AC powersocket.
Video : Two (2) BNC, one in, one loop thru out.
S-Video (Y/C): One (1) Mini-DIN, 4-pin, one in
VGA : One (1) 15-pin D-sub
Audio : Two (2) RCA, one in; one out
Environmental:
Temperature:
Operating: 0°C to +40°C
Storage: -20°C to +60°C
Humidity:
Operating: 10% to 85% (non-condensing)
Storage: 10% to +95% (non-condensing)

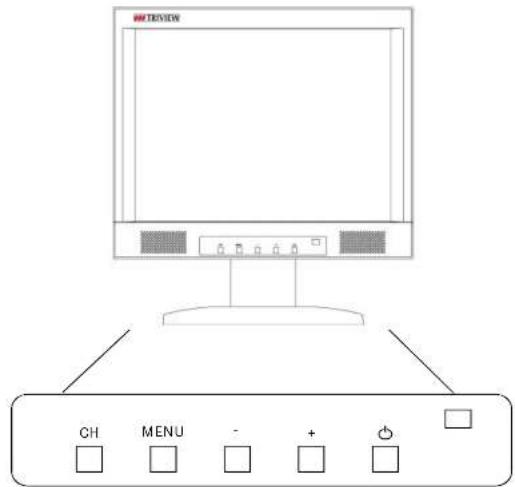

- Controls and Indicators
Press this button to turn ON/OFF the monitor
-
Press this button to enter OSD menu
-
Press this button to confirm and exit the selected parameter
-

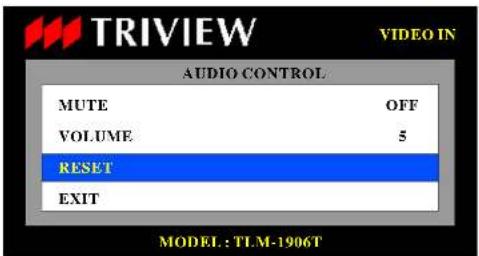

Press the buttons to adjust volume
-

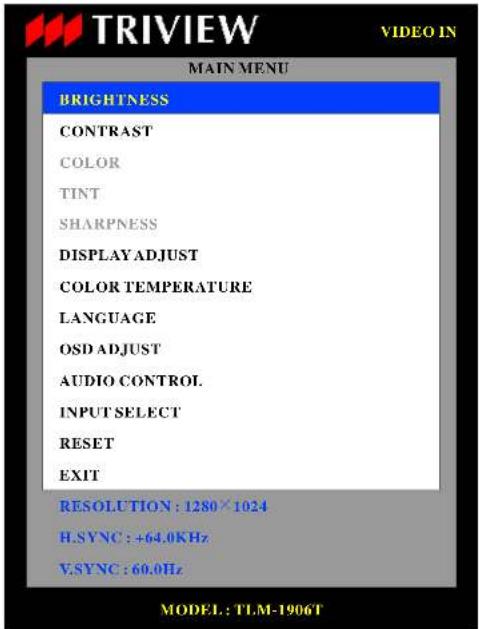

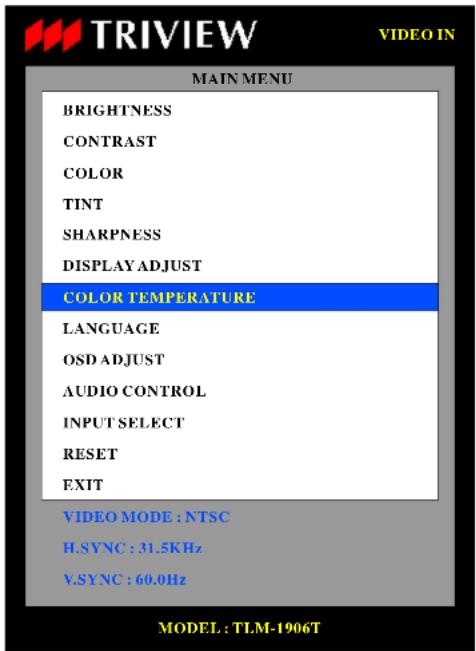

Under the main OSD menu, press the buttons to move the cursor to desired selection in OSD menu
-
Press the buttons to adjust the value of selected parameter in sub OSD menu
CH Press this button to switch VIDEO, S-VIDEO and VGA channels
TRIVIEW
-8-

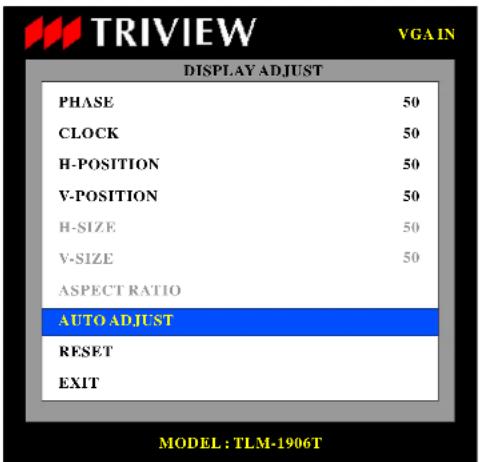

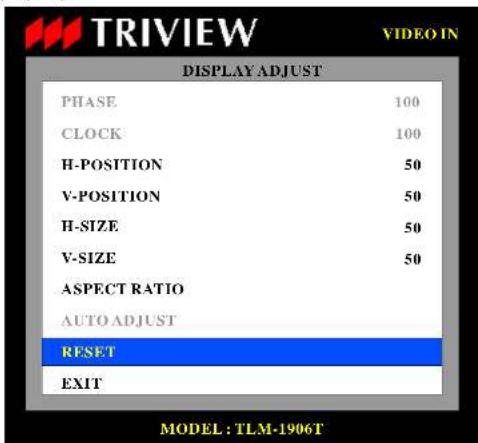

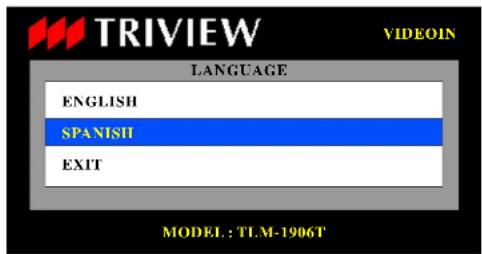

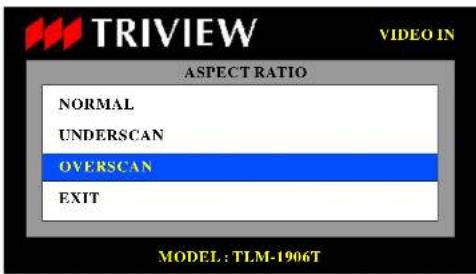

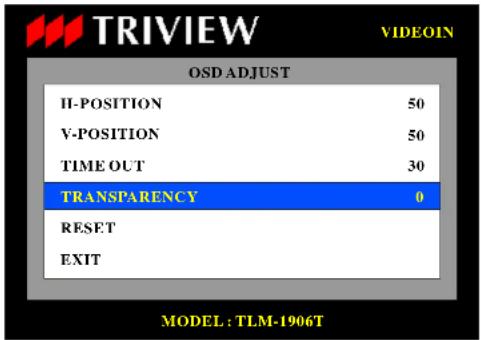

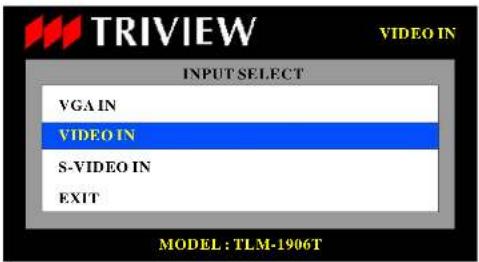

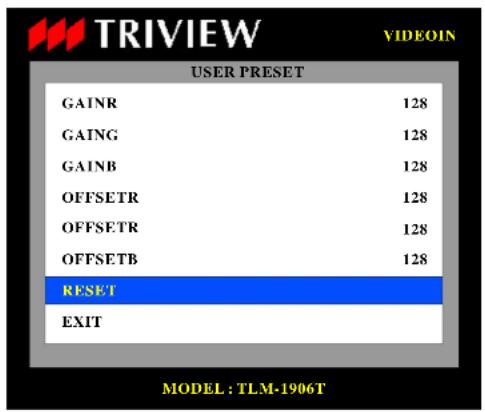

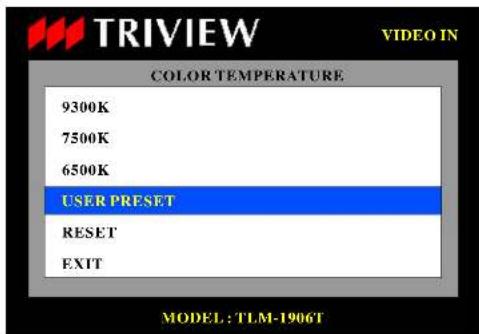

Move the cursor to AUTO ADJUST and hit the
