Product Type	Speaker (Paging Horn)
Brand	Valcom
Model	V-9422
Dimensions (H x W x D)	8.5 x 5.5 x 5.5 inches (approx.)
Weight	1.5 lbs (approx.)
Power Source	24V DC/AC (typical for Valcom paging speakers)
Power Consumption	3W nominal
Frequency Response	150 Hz - 12 kHz
Impedance	8 ohms
SPL (Sound Pressure Level)	90 dB @ 1W/1m
Mounting Type	Wall or ceiling mount (bracket included)
Material	High-impact ABS plastic
Weatherproof Rating	Indoor use only
Compliance	RoHS, CE
Main Functions	Audio reproduction, paging, background music
Cleaning Instructions	Wipe with a soft dry cloth; avoid liquids
Safety Warnings	Do not expose to water or excessive heat
Spare Parts Availability	Contact Valcom or authorized dealers for replacement parts
Repair Information	Refer to manual or contact Valcom support; no user-serviceable parts inside
Included Accessories	Mounting bracket, screws, user manual
Warranty	Limited 1-year warranty

Frequently Asked Questions - V-9422 Valcom

How do I connect the Valcom V-9422 speaker to my system?

Connect the speaker wires to a 24V DC/AC power source and an audio source using standard speaker wire. The speaker typically uses a 2-wire connection for both power and audio (Valcom's unique design). Consult the manual for specific wiring diagrams.

What is the recommended mounting height for the V-9422?

For optimal sound distribution, mount the speaker at least 8 feet above the floor on a wall or ceiling. Ensure the bracket is securely attached to a stud or solid surface.

Can I use the V-9422 outdoors?

No, the V-9422 is designed for indoor use only. Exposure to moisture or extreme temperatures may damage the speaker.

How do I clean the speaker?

Use a soft, dry cloth to gently wipe the exterior. Do not use any liquids or cleaning agents, as they may damage the internal components.

What is the power requirement for the V-9422?

The speaker operates on 24V DC or AC power. A Valcom power supply (sold separately) is recommended. The nominal power consumption is 3W.

Does the V-9422 require a separate amplifier?

No, the V-9422 is a self-amplified speaker. It receives both power and audio over the same two-wire connection from a Valcom paging system or compatible interface.

What is the frequency response of the V-9422?

The frequency response is approximately 150 Hz to 12 kHz, suitable for voice paging and background music.

How many V-9422 speakers can I connect to one system?

The number depends on the power output of your paging system. Typically, you can connect multiple speakers in parallel as long as the total power draw does not exceed the system's capacity. Consult your system specifications.

Is the V-9422 compatible with standard audio equipment?

It is designed for Valcom paging systems. For use with standard amplifiers, you may need an impedance matching transformer. Refer to the manual for compatibility details.

Where can I find replacement parts for the V-9422?

Contact Valcom customer support or an authorized dealer for spare parts. The speaker has no user-serviceable parts; repairs should be done by qualified personnel.

USER MANUAL V-9422 Valcom

5614 Hollins Road ♦ Roanoke, VA, USA ♦ Phone [phone] ♦ FAX [phone]

PowerPotenciaPuissance

RedBlack

RojoNegro

RougeNoir

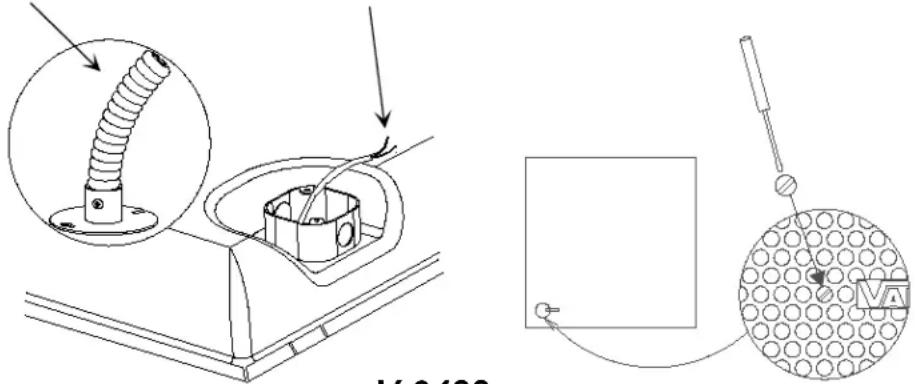

Option / Opcion Connections / Conexiones / Connexions Volume / Volumen

V-9422

BACKBOX MEETS OR EXCEEDS THE FOLLOWING TESTS AND RATINGS:

A.S.T.M. E84 FLAME AND SMOKE TEST -- 3 HOUR BURN

UL 181

MADE IN USA

PATENT APPLIED FOR

Rev. 0

Item: CONNECTION LABEL FOR V-9422

Material: White, 2 mil polyester w/1 mil overlay

Adhesive: Permanent acrylic adhesive

Print: Black

Dimensions: 5"H x 6"W

Scale: 1 to 1

Title: : V-9422 CONNECTION LABEL
Prepared by: R. Knott 10/24/00
Approved: Engineering
Approved: Materials
Approved: Sales
P/N: 946957 Rev. 0
