Type	Surface Mount Vandal Resistant Speaker
Model	V-9010
Power Rating	1 Watt
Operating Voltage	-24 VDC
Current Consumption	50 mA
Voice Coil Impedance	45 Ohms
Frequency Response	350 Hz to 6.5 kHz
SPL	94 dB at 1 Watt, 1 Meter
Magnet Material	Ceramic, 10 oz.
Enclosure Material	18-gauge steel with powder coat urethane finish
Security Screen	24-gauge steel interior screen
Mounting	Standard 4-inch square or octagon electrical box; wall or ceiling
Dimensions	8.50" Dia. x 5.10" D (21.59 cm x 12.95 cm)
Weight	4.8 lbs (2.18 kg)
Connections	Tip and Ring for page input; -24VDC and GND for power
Expandability	Can be used with V-1095 70V Paging Expander (requires separate power supply)
Warranty	1 year limited (defects in materials and workmanship)
Repairability	Not field repairable; return to Valcom, Inc.
Technical Support	Phone: [phone]; Faxback: [phone]; Website: www.valcom.com
Operating Environment	Harsh environments; vandal resistant

Frequently Asked Questions - V-9010 Valcom

How do I connect the V-9010 speaker?

Connect the Tip and Ring leads from the page output of a Valcom page control to the speaker's Tip and Ring terminals. Also connect -24VDC and GND from a Valcom power supply. Refer to the wiring diagram in the manual.

What power supply is needed for the V-9010?

The V-9010 requires a -24VDC power supply. Valcom offers compatible power supplies; check the model for current requirements (50 mA per speaker).

Can the V-9010 be used in a 70V paging system?

Yes, it can be used to expand a constant voltage (25/70/100V) paging system by adding a V-1095 70V Paging Expander. A separate power supply is required for the expander.

How do I mount the V-9010?

The base mounts to a standard 4-inch square or octagon electrical box, or directly to a wall or ceiling using screws up to 1/4". Secure the enclosure to the base with four #10 stainless steel hex button head screws using a 1/8" hex driver.

What should I do if there is no audio from the speaker?

First, check that the volume control is turned up (clockwise). Using a lineman's test set, verify there is proper audio level on the Tip and Ring leads and at the source.

How do I adjust the volume on the V-9010?

The speaker has a built-in volume control. Turn it clockwise to increase volume, counter-clockwise to decrease.

What causes feedback (loud squeal) and how to fix it?

Feedback can occur if the speaker volume is too high or if the microphone is too close. Reduce the volume, increase distance between the telephone and speaker, install a noise-canceling handset, or add a V-9962 Digital Feedback Eliminator.

What is the warranty for the V-9010?

Valcom provides a one-year limited warranty from date of shipment, covering defects in materials and workmanship under normal use. It does not cover damage from misuse, alteration, or repair by others.

Is the V-9010 field repairable?

No, Valcom equipment is not field repairable. If repairs are needed, ship the unit to Valcom's Repair and Return Department with a description of the problem.

How do I clean and maintain the V-9010?

The speaker is designed for harsh environments. Clean the exterior with a damp cloth. Do not use solvents or abrasive cleaners. Periodically check that tamper-resistant screws are secure.

USER MANUAL V-9010 Valcom

When trouble is reported, verify there are no broken connections to the unit.

Assistance in troubleshooting is available from the factory. When calling, you should have a VOM and a lineman's test set available and be calling from the job site. Call [phone] for Technical Support or call [phone] for Valcom 24-hour Faxback System or visit our website at http://www.valcom.com.

Valcom equipment is not field repairable. Valcom, Inc. maintains service facilities in Roanoke, VA. Should repairs be necessary, attach a tag to the unit clearly stating your company name, address, phone number, contact person and the nature of the problem. Send the unit to: Valcom, Inc.

Repair and Return Dept.

5614 Hollins Road

Roanoke, VA 24019-5056

VALCOM LIMITED WARRANTY

Valcom, Inc. warrants its products to be free from defects in materials and workmanship under conditions of normal use and service for a period of one year from the date of shipment. The obligation under this warranty shall be limited to the replacement, repair or refund of any such defective device within the warranty period, provided that:

1. inspection by Valcom, Inc. indicates the validity of the claim;
2. the defect is not the result of damage, misuse or negligence after the original shipment;
3. the product has not been altered in any way or repaired by others and that factory sealed units are unopened (a service charge plus parts and labor will be applied to units defaced or physically damaged);
4. freight charges for the return of products to Valcom are prepaid;
5. all units 'out of warranty' are subject to a service charge. The service charge will cover minor repairs (major repairs will be subject to additional charges for parts and labor).

This warranty is in lieu of and excludes all other warranties, expressed or Implied, and in no event shall Valcom, Inc. be liable for any anticipated profits, consequential damages, loss of time or other losses incurred by the buyer in connection with the purchase, operation or use of the product.

This warranty specifically excludes damage incurred in shipment. In the event a product is received in damaged condition, the carrier should be notified immediately. Claims for such damage should be filed with the carrier involved in accordance with the F.O.B. point.

Headquarters: In Canada

Valcom, Inc.

CMX Corporation

5614 Hollins Road 35 Van Kirk Drive #11 and 12

Roanoke, VA 24019-5056

Brampton, Ontario L7A 1A5

Phone: [phone]

Phone: [phone]

FAX: [phone]

FAX: [phone]

INSTALLATION INSTRUCTIONS FOR

SURFACE MOUNT

VANDAL RESISTANT SPEAKER

Close-up of a white cylindrical speaker with a perforated grille (no text or symbols visible)

V-9010

Issue 4

947910

VALCOM VANDAL RESISTANT SPEAKER

The Valcom Surface Mount Vandal Resistant Speaker, V-9010, was designed to be used in harsh environments. The speaker assembly features a steel housing, a built-in amplifier and an interior security screen with tamper resistant screws.

The steel housing is constructed of 18-gauge steel finished with a baked on powder coat urethane finish. The screen is made of 24-gauge steel to prevent sharp object from penetrating the speakers.

SPECIFICATIONS

Amplifier Speaker
Power Rating:	1 Watt	Voice Coil Impedance:	45 Ohms
Operating Voltage:	-24VDC	Diameter:	5.10"
Current Consumption:	50mA Magnet Weight: 10 oz.
Magnet Material: Ceramic
Speaker/Amplifier
Frequency	350Hz to 6.5kHz
Response:
Output Power: 1 Watt
SPL:	94dB at 1 Watt, 1 Meter

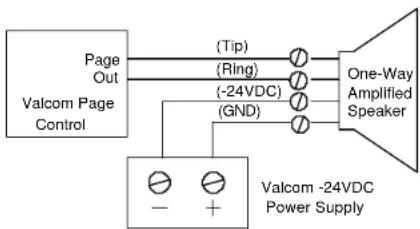

CONNECTIONS

NOTE: The V-9010 may be used to expand a constant voltage (25/70/100 Volt) paging system without placing an additional load on the amplifier by adding a V-1095, 70V Paging Expander. A power supply will also be required.

MOUNTING

After making connections to the speaker, secure the enclosure assembly to the base with four #10 stainless steel hex button head machine screws using a standard 1/8 inch hex driver.

The base of the V-9010 will mount to a standard 4-inch square or octagon-shaped electrical box or may be fastened to a wall or ceiling using screws as large as 1/4 inch. Surface wiring or conduit is routed through one of four standard knockouts.

DIMENSIONS/WEIGHT

• 8.50" Dia. x 5.10" D (21.59cm Dia. x 12.95cm D)

• 4.8 lbs. (2.18 kg)

TROUBLESHOOTING CHART

SYMPTOM	ACTION
1. No audio from speaker	1a. Check that volume control is turned up (clockwise).1b. Using a lineman's test set, check for the proper audio level on the Tip and Ring leads and also at the source.
2. Low volume from speaker	2a. Check that volume control is turned up.2b. Check voltage at the speaker assembly when in use, -18 to -24VDC required.2c. Using a lineman's test set, check for proper audio level on Tip and Ring leads. It is possible that some low level audio will be heard with only one side of Tip and Ring connected.
3. Loud squeal (feedback)	3a. Turn down (counter-clockwise) volume of the speaker.3b. Increase the distance between the telephone and the speaker.3c. Install a noise canceling handset on the telephone in severe problem areas.3d. Install a V-9962, Digital Feedback Eliminator.
