V-1001 - Loudspeaker Valcom - Free user manual and instructions

Product Type	Ceiling Speaker
Brand	Valcom
Model	V-1001
Power Handling	30 Watts RMS
Impedance	70V / 100V line transformer
Frequency Response	100 Hz - 15 kHz
Sensitivity	92 dB (1W/1m)
Speaker Diameter	8 inches (203 mm)
Material	Metal backcan, ABS baffle
Dimensions (Diameter x Depth)	10.5 x 3.5 inches (267 x 89 mm)
Weight	2.5 lbs (1.13 kg)
Mounting	Flush mount with tile bridge
Input Connection	Screw terminals
Color	White
Application	Indoor paging and background music
Certifications	UL Listed
Operating Temperature	32°F to 122°F (0°C to 50°C)
Maintenance	Wipe with dry cloth; avoid moisture
Safety	Disconnect power before installation
Warranty	1 year limited

Frequently Asked Questions - V-1001 Valcom

What is the power handling of the Valcom V-1001?

The Valcom V-1001 handles up to 30 watts RMS.

Can the V-1001 be used outdoors?

No, the V-1001 is designed for indoor use only. It is not weatherproof.

What is the impedance of the V-1001?

It features a 70V/100V line transformer with multiple taps.

How do I mount the V-1001?

The speaker mounts flush into a ceiling tile using the included tile bridge.

What is the frequency response?

The frequency response is 100 Hz to 15 kHz.

Is the V-1001 compatible with 8 ohm amplifiers?

No, it is designed for 70V/100V distributed audio systems and cannot be used directly with 8 ohm outputs.

What is the sensitivity of this speaker?

Sensitivity is 92 dB at 1W/1m.

How do I clean the V-1001?

Wipe the grille and baffle with a dry, soft cloth. Do not use water or cleaners.

Does the V-1001 come with a grille?

Yes, it includes a white perforated metal grille.

What is the warranty period?

Valcom provides a one-year limited warranty from the date of purchase.

USER MANUAL V-1001 Valcom

V-1001 P-TEC SURFACE MOUNT AMPLIFIED CEILING SPEAKER

INTRODUCTION

The V-1001 is a surface mounted speaker that is self-amplified and is capable of reproducing voice paging as well as background music. The V-1001 has an externally accessible volume control that can be adjusted by a screwdriver through the side hole on the housing. All speakers require -24VDC, 50mA. The baffle is designed for mounting on acoustic tile, such as those normally found in suspended-ceilings and can be mounted without cutting large holes in the tile. The mounting pins can be removed for mounting in a hard ceiling. The speaker housing has screw holes for securing speaker without mounting pins. Although the P-TEC speakers are designed specifically for standard suspended ceilings, they can be used on many types of ceiling materials. Two pair category 3/5/5E/6 UTP cable recommended.

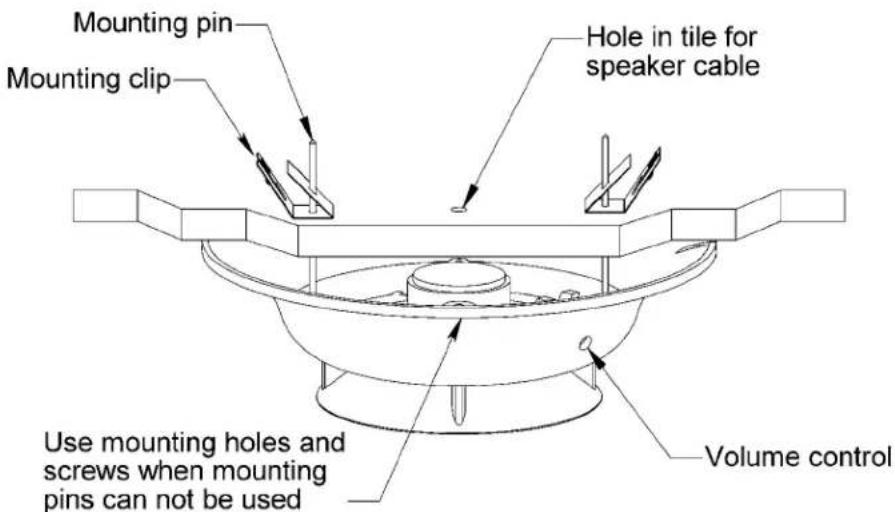

INSTALLATION (see Figure 1)

1. Lift the adjacent ceiling tile and slide it out of the way.

2. Pierce hole in tile where speaker is to be

White dome-shaped object with a black central bar, resembling a ceiling or top (no text or symbols visible)

mounted with a screwdriver. Feed wire through hole to connect to speaker.

1. Make connections to amplifier (see Figure 2).

2. Install the speaker by inserting the mounting pins through the ceiling tile and hold the speaker in place.

3. Place the speaker mounting clips over mounting pins (so pins slide through clips).

4. If necessary, adjust paging volume after installation. The volume control is located on the side of the speaker. Use a small screwdriver to turn the control.

5. Install the volume control cover found in the accessory pack.

Figure 1.

Figure 2. Typical Connections

NOTE: Do not connect this speaker directly to a 25/70/100 Volt amplifier as damage to both the amplifier and speaker may occur. A V-1095 may be used to allow the use of Valcom self-amplified speakers on 70V speaker lines.

Dimensions/Weight

• 8.00" Dia x 2.50" H (20.32cm x 6.35cm)
  • .75 lbs. (.34 kg)

TECHNICAL ASSISTANCE

When trouble is reported, verify there are no broken connections. Assistance in troubleshooting is available from the factory. Call [phone] and press 1 for Technical Support or visit our website at http://www.valcom.com.

Valcom equipment is not field repairable. Valcom, Inc. maintains service facilities in Roanoke, VA. Should repairs be necessary, attach a tag to the unit clearly stating company name, address, phone number, contact person and nature of the problem. Send the unit to:

Valcom, Inc.

Repair & Return Dept.

5614 Hollins Road

Roanoke, VA 24019-5056

TROUBLESHOOTING CHART
SYMPTOMS ACTIONS
1. No audio from speaker 1a. Verify that volume control is turned up (Clockwise).2. Low volume from speaker 2a. Verify that volume control is turned up.3. Loud squeal (Feedback) 3a. Turn down (Counter-clockwise) volume of the speaker.3b. Increase the distance between the telephone and speaker.3c. Install a noise canceling handset on the telephone in severe problem areas.3d. Add a V-9964, Digital Feedback Eliminator.

VALCOM LIMITED WARRANTY

Valcom, Inc. warrants its products to be free from defects in materials and workmanship under conditions of normal use and service for a period of one year from the date of shipment. The obligation under this warranty shall be limited to the replacement, repair or refund of any such defective device within the warranty period, provided that:

1. inspection by Valcom, Inc. indicates the validity of the claim;
2. the defect is not the result of damage, misuse or negligence after the original shipment;
3. the product has not been altered in any way or repaired by others and that factory sealed units are unopened (a service charge plus parts and labor will be applied to units defaced or physically damaged);
4. freight charges for the return of products to Valcom are prepaid;
5. all units 'out of warranty' are subject to a service charge. The service charge will cover minor repairs (major repairs will be subject to additional charges for parts and labor).

This warranty is in lieu of and excludes all other warranties, expressed or implied, and in no event shall Valcom, Inc. be liable for any anticipated profits, consequential damages, loss of time or other losses incurred by the buyer in connection with the purchase, operation or use of the product.

This warranty specifically excludes damage incurred in shipment. In the event a product is received in damaged condition, the carrier should be notified immediately. Claims for such damage should be filed with the carrier involved in accordance with the F.O.B. point.
