Product Type	Ceiling-mounted paging microphone/speaker
Model	SBS-400
Brand	Valcom
Dimensions (mm)	120 (D) x 100 (H) (approximate)
Weight	0.5 kg (approximate)
Power Supply	24 VDC from Valcom power source or PoE (not included)
Power Consumption	1.5 W (typical)
Audio Output	1W RMS @ 8 ohms (driver)
Frequency Response	200 Hz – 10 kHz
Microphone Type	Electret condenser with preamp
Polar Pattern	Omnidirectional
Connection	RJ-45 (for data and power) or screw terminals
Mounting	Ceiling mount (tile or surface) with included bracket
Key Functions	Page/Alarm tone generation, adjustable volume, and call-in button
Maintenance	Wipe with dry cloth; avoid liquids; check connections periodically
Safety	Operate within 0–50°C; do not expose to moisture or impact
Spare Parts	Replacement grille, driver, and mounting bracket available
Repair Policy	Contact Valcom support for authorized service
Compliance	UL listed, FCC Part 15

Frequently Asked Questions - SBS-400 Valcom

What voltage does the Valcom SBS-400 require?

The SBS-400 typically operates on 24 VDC supplied by a Valcom power source or via Power over Ethernet (PoE) if using an appropriate adapter.

How do I connect the SBS-400 to my paging system?

Use the included RJ-45 cable or screw terminals. For standard Valcom systems, connect to a V-1030A or similar control panel following the wiring diagram in the manual.

Can the SBS-400 be used outdoors?

No, it is designed for indoor use only. Exposure to moisture or extreme temperatures may damage the unit.

What is the maximum wiring distance?

For 24 VDC power, distance should not exceed 1000 feet (305 m) using 22 AWG twisted pair. For PoE, follow standard Ethernet cabling limits (100 m).

How do I adjust the volume?

Locate the volume potentiometer on the side of the unit. Turn clockwise to increase, counterclockwise to decrease. A small screwdriver may be required.

Why is there no sound from the speaker?

Check power supply connections, ensure the unit is receiving 24 VDC, and verify that the audio source (e.g., paging system) is active. Also inspect the driver for damage.

Can I daisy-chain multiple SBS-400 units?

Yes, up to four units can be daisy-chained using the RJ-45 pass-through. Ensure total power draw does not exceed the power supply rating.

What spare parts are available?

Replacement parts include the grille assembly, driver, and mounting bracket. Contact Valcom or an authorized distributor.

How do I clean the SBS-400?

Use a soft, dry cloth to wipe the exterior. Do not use any liquids or solvents, as they may damage the electronics.

What is the warranty period?

Valcom offers a limited one-year warranty from the date of purchase against defects in materials and workmanship.

USER MANUAL SBS-400 Valcom

SBS-400 DYNAMIC DESK PAGING MICROPHONE

INTRODUCTION

These instructions contain the specifications and information necessary to install, operate and maintain the SBS-400, Dynamic Desk Paging Microphone.

SPECIFICATIONS

Applications

- Clarity Paging Systems

Features

• Dynamic element
• Omni-directional pickup pattern
  • Cycolac housing with die cast base
• Push-to-Talk push bar with lock
  • Heavy duty four-conductor shielded cable

Dimensions

- 9.375" H x 4.375"W x 5.875"D (23.8cm H x 11.1cm W x 14.9cm D)

Specifications

Element Dynamic Pattern Omni-directional Frequency Response 50K to 12KHz Output Impedance Lo Z 400 Ohms

Output Level Lo Z -58db (0db = 1mw/10 microbars)

INSTALLATION

Figure 1 (on reverse) depicts the SBS-400 with appropriate connections when used with a Clarity Mixer-Amplifier.

TECHNICAL ASSISTANCE

When trouble is reported, verify the unit is turned on and there are no broken connections leading to this unit.

Assistance in troubleshooting is available from the factory. When calling, you should have a VOM available and call from the job site. Call [phone] and press 1 for Technical Support or visit or website at www.clarity-com.com

Clarity equipment is not field repairable. Clarity maintains service facilities in Roanoke, VA. Should repairs be necessary, attach a tag to the unit clearly stating company name, address, phone number, contact person, and the nature of the problem. Send the unit to:

Clarity Repair and Return Dept. 5614 Hollins Road Roanoke, VA 24019-5056

Figure 1 – SBS-400 Connecting Arrangement

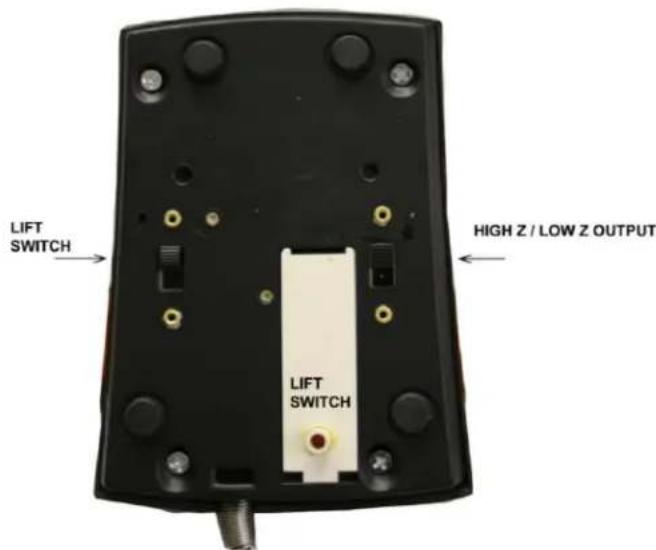

Lift Switch: When the Lift Switch is enabled, the microphone becomes active when lifted, without regard to the push-to-talk switch position. When the Lift Switch is disabled, the push-to-talk switch must be depressed to active microphone.

High Z / Low Z output: Default position - Low Z. High Z is utilized when two-wire connection is necessary or when utilized with legacy amplifiers.

Figure 2 – Switch Functions

LIMITED WARRANTY

Clarity warrants its products to be free from defects in materials and workmanship under conditions of normal use and service for a period of one year from the date of shipment. The obligation under this warranty shall be limited to the replacement, repair or refund of any such defective device within the warranty period, provided that:

1. Inspection by Clarity indicates the validity of the claim;
2. The defect is not the result of damage, misuse, or negligence after the original shipment;
3. The product has not been in any way repaired by others and that factory sealed units are unopened (A service charge plus parts and labor will be applied to units defaced or physically damaged);
4. Freight charges for the return of products to Clarity are prepaid,
5. All units "out of warranty" are subject to a service charge. The service charge will cover minor repairs (Major repairs will be subject to additional charges for parts and labor).

This warranty is in lieu of and excludes all other warranties, expressed or implied, and in no event shall Clarity be liable for any anticipated profits, consequential damages, loss of time or other losses incurred by the buyer in connection with the purchase, operation, or use of the product.

This warranty specifically excludes damage incurred in shipment. In the event a product is received in damaged condition, the carrier should be notified immediately. Claims for such damage should be filed with the carrier involved in accordance with the F.O.B. point.
