Product Type	Paging Speaker
Brand	Valcom
Model	Clarity S-515
Dimensions (Approx.)	6 x 6 x 6 inches (15 x 15 x 15 cm)
Weight (Approx.)	2.2 lbs (1 kg)
Power Source	AC 120V, 60Hz
Output Power	5W RMS
Frequency Response	100 Hz - 20 kHz
Impedance	8 ohms
Mounting Type	Wall or Ceiling Mountable
Color	White
Material	High-impact plastic
Volume Control	Built-in adjustable
Compatibility	Valcom paging systems
Included Accessories	Mounting bracket, screws, user manual
Use	Commercial/Industrial
Certifications	UL listed

Frequently Asked Questions - Clarity S-515 Valcom

How do I install the Valcom Clarity S-515 speaker?

The speaker can be mounted on a wall or ceiling using the included bracket. First, connect the audio wires to the input terminals (typically red and black). Secure the speaker to the bracket, then connect the power supply (AC 120V). Adjust the volume control as needed.

What type of audio input does the Clarity S-515 support?

It accepts a standard line-level audio input via two screw terminals. The input impedance is 8 ohms, compatible with most paging systems.

Can I use this speaker with a 70V/100V system?

The Clarity S-515 is designed for low-impedance (8 ohm) systems. For 70V/100V applications, use a matching transformer or a Valcom model specifically for constant voltage systems.

How do I adjust the volume?

There is a built-in volume control knob on the front or side of the speaker. Turn it clockwise to increase volume, counterclockwise to decrease.

What is the power consumption of the speaker?

The speaker draws less than 10W at full output power (5W RMS). Standby power consumption is negligible.

Can I daisy-chain multiple Clarity S-515 speakers?

Yes, you can connect multiple speakers in parallel as long as the total impedance does not drop below the amplifier's minimum rating. For two 8-ohm speakers in parallel, total impedance is 4 ohms.

How do I clean the speaker?

Use a soft dry cloth to dust the exterior. Do not use water or cleaning solvents, as they may damage the grille or electronics.

What is the warranty period?

Valcom offers a limited one-year warranty against defects in materials and workmanship. Contact Valcom support for claim procedures.

Why is there no sound from the speaker?

Check the power connection (AC cord) and ensure the volume knob is not at minimum. Verify the audio source is active and connected properly. Also check that the input wires are securely fastened.

Where can I find the user manual?

The manual can be downloaded for free from notice-facile.com or the Valcom website. It includes installation instructions, specifications, and troubleshooting tips.

USER MANUAL Clarity S-515 Valcom

When trouble is reported, verify there are no broken connections to the unit. Assistance in troubleshooting is available from the factory. When calling, you should have a Volt-ohm meter and a lineman's test set available and be calling from the job site. Call [phone] and ask for an Applications Engineer or call [phone] for Clarity 24-hour Automated Support.

Clarity equipment is not field repairable. Clarity maintains service facilities in Roanoke, VA. Should repairs be necessary, attach a tag to the unit clearly stating your company name, address, phone number, contact person, and the nature of the problem. Send the unit to:

Clarity

Repair and Return Dept.

5614 Hollins Road

Roanoke, VA 24019-5056

LIMITED WARRANTY

Clarity warrants its products to be free from defects in materials and workmanship under conditions of normal use and service for a period of one year from the date of shipment. The obligation under this warranty shall be limited to the replacement, repair or refund of any such defective device within the warranty period, provided that:

1. Inspection by Clarity indicates the validity of the claim;

2. The defect is not the result of damage, misuse, or negligence after the original shipment;

3. The product has not been in any way repaired by others and that factory sealed units are unopened (A service charge plus parts and labor will be applied to units defaced or physically damaged);

4. Freight charges for the return of products to Clarity are prepaid;

5. All units "out of warranty" are subject to a service charge. The service charge will cover minor repairs (Major repairs will be subject to additional charges for parts and labor).

This warranty is in lieu of and excludes all other warranties expressed or implied, and in no event shall Clarity be liable for any anticipated profits, consequential damages, loss of time or other losses incurred by the buyer in connection with the purchase, operation or use of the product.

This warranty specifically excludes damage incurred in shipment. In the event a product is received in damaged condition, the carrier should be notified immediately. Claims for such damage should be filed with the carrier involved in accordance with the F.O.B. point.

INSTALLATION INSTRUCTIONS FOR

Clarity®

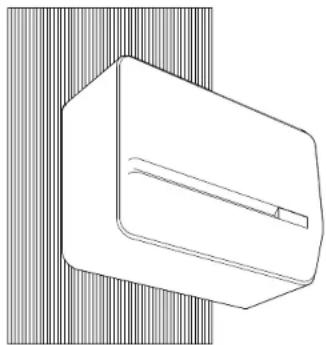

Pure technical line drawing of a mechanical component with no text or symbols

MODEL NO. S-515

CLARITY TALKBACK SLIMLINE™ WALL SPEAKER

Clarity Slimline Wall Speaker, S-515, is a 45 ohm talkback speaker designed to be used with Clarity 'handsfree' talkback control units. The distance you can be away from the speaker and still have good talkback depends on the ambient noise level. In a typical office environment, the speaker will cover approximately 600 square feet.

Model S-515-BK Black

Model S-515-W White

US Patent Number D357,682, UK Reg.'d 2041547

WIRING

Make connections as shown in Figure 1.

Figure 1

MOUNTING

The baffle provides two methods of mounting:

1. The baffle can be suspended from a nail or hook by a "hanger" that is attached to the housing. See Figure 2.

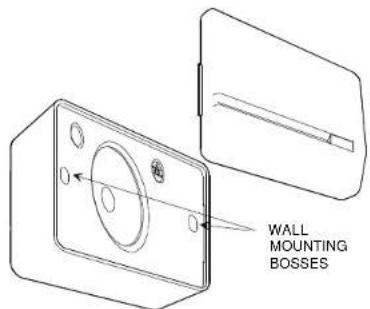

2. The unit can be attached to a wall using two mounting bosses. The distance between the mounting boss hole centers is 8.5". Remove cover and secure baffle to wall with screws. This mounting provides better low frequency response for music and a more secure attachment to the wall. See Figure 3.

Figure 2

Figure 3

TROUBLESHOOTING CHART

SYMPTOM ACTION
No sound in page mode.	Check tip and ring for audio at speaker.Check tip and ring for audio at control unit.
Low sound in page mode.	Check volume controls at page control.
Poor listening in talkback mode.	Check talkback volume control at page control. Set control where audio is clearly audible.
