DW181SS - Dishwasher Avanti - Free user manual and instructions

Product Type	Compact Dishwasher
Model	DW181SS
Brand	Avanti
Dimensions (W x D x H)	17.75 x 22.75 x 32.5 inches
Weight	75 lbs
Power Supply	120 V / 60 Hz, 12 Amps
Rated Power	1400 W
Place Settings	8 Place Settings
Energy Efficiency	Energy Star Certified
Water Consumption per Cycle	4.8 Gallons
Cycle Duration	Standard Cycle: 120 minutes
Wash Programs	Normal, Light, Heavy, Rinse Only
Drying System	Heated Dry with Fan
Noise Level	52 dBA
Interior Finish	Stainless Steel
Control Type	Electronic Digital Display
Installation Type	Freestanding or Under-Counter
Electrical Connection	Standard 3-Prong Plug
Water Connection	Hot Water Supply (140°F max)
Maintenance	Clean filter monthly; use rinse aid; descale annually
Spare Parts Availability	Racks, spray arms, filters, heating element
Safety Features	Child Lock, Leak Sensor, Overfill Protection

Frequently Asked Questions - DW181SS Avanti

How do I install the Avanti DW181SS dishwasher?

Ensure the unit is placed on a level surface. Connect the hot water supply line (max 140°F) and the drain hose to your sink drain. Plug into a standard 120V outlet. For under-counter installation, remove the top panel and secure with brackets. Refer to the manual for detailed steps.

What are the dimensions of the DW181SS?

The dimensions are approximately 17.75 inches wide, 22.75 inches deep, and 32.5 inches high. It fits standard compact dishwasher spaces.

How many place settings does it hold?

It holds up to 8 place settings, suitable for small kitchens or apartments.

What wash cycles are available?

Cycles include Normal (everyday cleaning), Light (delicate items), Heavy (pots and pans), and Rinse Only (quick rinse to prevent odors).

How do I clean the filter?

Remove the lower rack and turn the filter assembly counterclockwise to lift it out. Rinse under running water, scrub if needed, and reassemble. Clean monthly for optimal performance.

Why is my dishwasher not draining?

Check the drain hose for kinks or blockages. Clean the filter and the spray arms. Ensure the garbage disposal knockout is removed if connected. If still not draining, the pump may need replacement.

Can I use regular dish soap?

No, use only automatic dishwasher detergent (powder, gel, or pods). Regular dish soap causes excessive suds and may damage the unit.

The dishes are not drying properly. What can I do?

Ensure the heated dry option is selected. Use rinse aid to improve drying. Check that the fan is not blocked and that the water temperature is at least 120°F.

How do I enable the child lock?

Press and hold the Heavy and Rinse Only buttons simultaneously for 3 seconds until a lock icon appears. Repeat to unlock.

Where can I find replacement parts?

Contact Avanti Customer Service or visit their official website. Common spare parts include racks, spray arms, filters, and the heating element. Use only genuine Avanti parts.

USER MANUAL DW181SS Avanti

DW18 / DW181SS / DW19PS

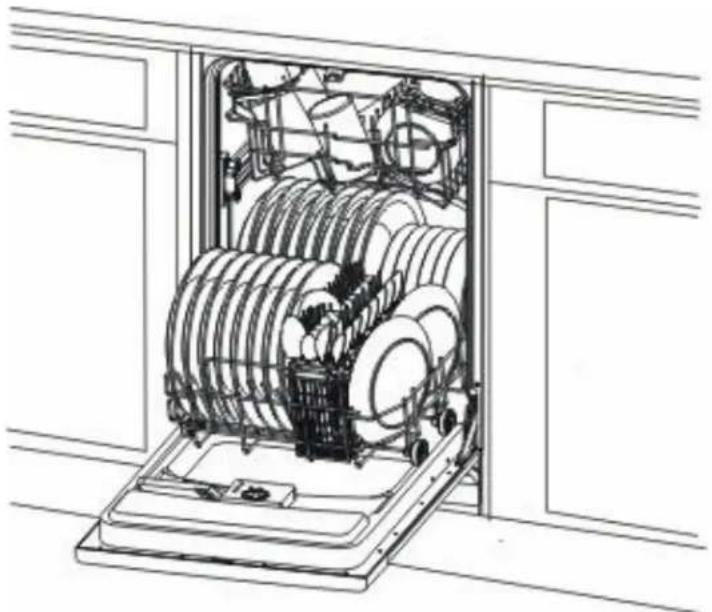

Line drawing of an open kitchen appliance with multiple dish units and a front panel (no text or symbols)

BEFORE USE, PLEASE READ AND FOLLOW ALL SAFETY RULES AND OPERATING INSTRUCTIONS.

Avanti has a policy of continuous improvement on its products and reserves the right to change materials and specifications without notice.

Avanti Products, A Division of The Mackle Co., Inc.

P.O. Box 520604 - Miami, Florida 33152

www.avantiproducts.com

REGISTRATION INFORMATION

Thank you for purchasing this fine Avanti product. Please fill out this card and return it within 100 days of purchase and receive these important benefits to the following address:

Avanti Products, A Division of The Mackle Co., Inc. P.O. Box 520604 - Miami, Florida 33152 USA

Protect your product:

We will keep the model number and date of purchase of your new Avanti product on file to help you refer to this information in the event of an insurance claim such as fire or theft.

Promote better products:

We value your input. Your responses will help us develop products designed to best meet your future needs.

(detach here)

Avanti Registration Card

Name			Model #	Serial #
Address			Date Purchased	Store/Dealer Name
City	State	Zip	Occupation
Area Code	Phone Number		As Your Primary Residence, Do You: Own Rent

Did You Purchase An Additional Warranty:

Extended None

Reason For Choosing This Avanti Product:

Please indicate the most important factors that influenced your decision to purchase this product.

Price
Product Features
Avanti Reputation
Product Quality
Salesperson Recommendation
Friend/Relative Recommendation
Warranty
Other

Your Age:

under 18 18-25 26-30
31-35 36-50 over 50

Marital Status:

→ Married → Single

Is This Product Used In The:

Home Business

How Did You Learn About This Product:

Advertising
In Store Demo Personal Demo
Other
Comments

HELP US HELP YOU...

Read this guide carefully.

It is intended to help you operate and maintain your new dishwasher properly.

Keep it handy to answer your questions. If you don't understand something or you need more assistance, please call:

Avanti Customer Service 800-220-5570

Keep proof of original purchase date (such as your sales slip) with this guide to establish the warranty period.

Write down the model and serial numbers.

You'll find them on a plate located on the door upper edge of the dishwasher.

Please write these numbers here:

Date of Purchase

Model Number

Serial Number

Use these numbers in any correspondence or service calls concerning your dishwasher.

If you received a damaged dishwasher, immediately contact the dealer (or builder) that sold you the dishwasher.

Save time and money. Before you call for service, check the Troubleshooting Guide. It lists causes of minor operating problems that you can correct yourself.

IF YOU NEED SERVICE

We're proud of our service and want you to be pleased. If for some reason you are not happy with the service you receive, here are some steps to follow for further assistance. FIRST, contact the people who serviced your dishwasher. Explain why you are not pleased. In most cases, this will solve the problem.

NEXT, if you are still not pleased, write all the details, including your telephone number, and send it to:

Customer Service

Avanti Products

10880 NW 30 ^th Street

Miami, FL 33172 USA

PARTS AND FEATURES

Front View

Diagram of a rectangular container with scattered particles and a scale ruler at the bottom (no text or symbols)

Back View

Simple line drawing of a rectangular container with internal components and numbered labels (11, 12, 13) at the bottom, no text or symbols present.

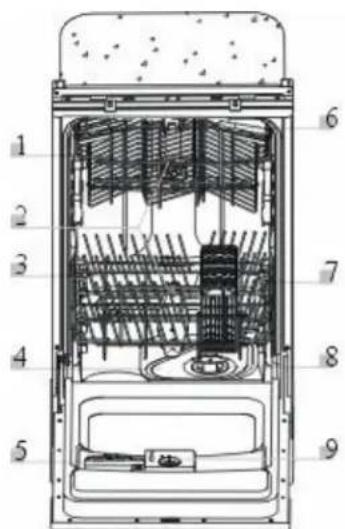

Front View

1. UPPER RACK
2. SPRAY ARMS
3. LOWER RACK
4. MAIN FILTER
5. DETERGENT DISPENSER
6. CUP SHELF

7. SILVERWARE BASKET

8. COARSE FILTER

9. RINSE AID DISPENSER
10. DRAIN HOSE
11. INLET VALVE
12. JUNCTION BOX
13. LEVELING LEGS

TABLE OF CONTENTS

Registration Information 2

Help Us Help You ... 4

Parts And Features 5

Important Safety Instructions 7

Operating Instructions 8

Before using Your Dishwasher 8

Electrical Connection 8

Control Panel of Dishwasher 9

Control Settings 9

Overflow Protection 10

Detergent Dispenser 10

Rinse Aid Dispenser 10

Load The Dishwasher Racks 11

Starting A Wash Cycle 12

Canceling Or Modifying A Wash Cycle Setting 12

At The End Of The Wash Cycle 12

Forgot To Add A Dish? 13

Filtering System 13

Care And Maintenance 13

Protect Against Freezing 13

Cleaning The Spray Arms 13

Cleaning The Filters 13

Cleaning The Door 14

Cleaning The Drain Pump 14

How To Keep You Dishwasher In Shape 14

Troubleshooting Guide 15

Service For Your Dishwasher 17

Your Avanti Products Warranty 18

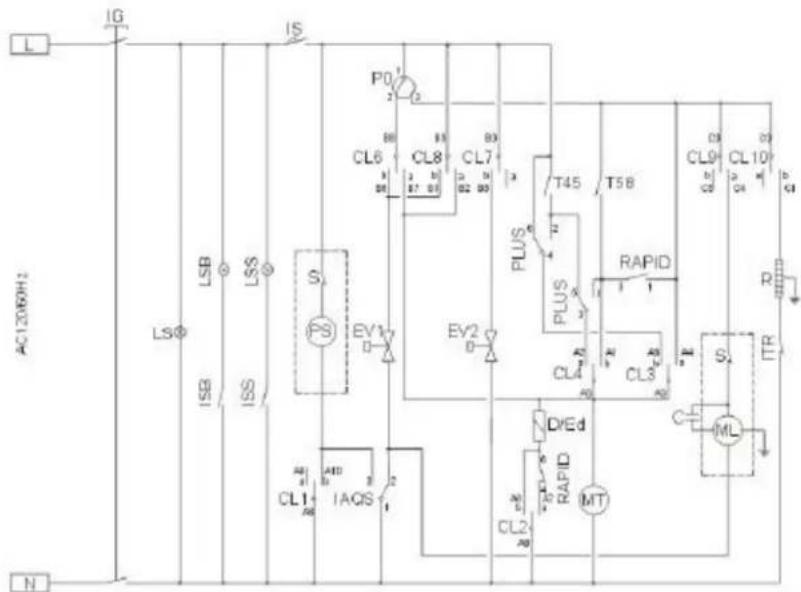

Wiring Diagram 19

INSTRUCCIONES EN ESPAÑOL 20\~26

IMPORTANT SAFETY INSTRUCTIONS

WARNING	To reduce the risk of fire, electrical shock, or injury when using your dishwasher, follow these basic precautions:
? Read all instructions before using the dishwasher. ? DANGER or WARNING: Risk of child entrapment. Child entrapment and suffocation are not problems of the past. Junked or abandoned dishwashers are still dangerous. . . even if they will "just sit in the garage a few days." ? Before you throw away your old dishwasher: Take off the door. Leave the shelves in place so that children may not easily climb inside. ? Never allow children to operate, play with, or crawl inside the dishwasher. ? Do not allow children to play around dishwasher when opening or closing door due to the possibility of small fingers being pinched in door. ? Under certain conditions hydrogen may be produced in a water heater that has not been used for two weeks or more. HYDROGEN GAS IS EXPLOSIVE. If the hot water has not been use for two weeks or more, prevent the possibility of damage or injury by turning on all hot water faucets and allow them to run for several minutes. Do this before using any electrical appliance which is connected to the hot water system. This simple procedure will allow any built-up hydrogen gas to escape. Since the gas is flammable, do not smoke or use an open flame or appliance during this process. ? Never clean dishwasher parts with flammable fluids. The fumes can create a fire hazard or explosion. ? Do not store or use gasoline or any other flammable vapors and liquids in the vicinity of this or any other dishwasher. The fumes can create a fire hazard or explosion. ? This dishwasher must be properly grounded for your safety. Do not under any circumstances cut or remove the third (ground) wire from the power cord. Any questions concerning power and/or grounding should be directed toward a certified electrician or an authorized Avanti Products service center. ? Do not tamper with controls. ? Do not abuse, sit on, or stand on the door or dish rack of the dishwasher. ? Do not touch the heating element during or immediately after use. ? Do not wash plastic items unless they are marked dishwasher safe or the equivalent. For plastic items not so marked, check the manufacturer recommendations. ? Non-Dishwasher Items: Do not wash items such as electronic air cleaner filters, furnace filters and paint brushes in your dishwasher. Damage to dishwasher and discoloration or staining of dishwasher may result. ? When using your dishwasher, you should prevent plastic items form contacting with heating element. ? Use only detergent and rinse additives designed for an automatic dishwasher. Using detergent that is not specifically designed for dishwashers will cause the dishwasher to fill with suds. ? Keep children away from detergent and rinse aid, keep children away from the open door of the dishwasher, there could still be some detergent left inside. ? The door should not be left in the open position since this could present a tripping hazard. ? During installation, the power supply must not be excessively bent or flattened. ? Do not operate your dishwasher unless all enclosure panels are properly in place. Open the door very carefully if the dishwasher is operating, there is a risk of water squirting out. ? Do not place any heavy objects or stand on the door when it is open. The appliance could tip forward. ? When loading items to be washed: 1) Locate sharp items so that they are not likely to damage the door seal. 2) Load sharp knives with the handles up to reduce the risk of cut-type injuries. ? Use this dishwasher only for its intended purpose as described in this Instruction Manual. ? Please dispose of packing materials properly.
-Save these instructions-

OPERATING INSTRUCTIONS

Before Using Your Dishwasher

? Remove the exterior and interior packing.
? Check to be sure you have all of the following parts:

? 1 Upper Rack
? 1 Lower Rack
? 1 Cup Shelf
? 1 Silverware Basket
? 2 Wood Screws
? 1 Instruction Manual

? Clean the interior surface with lukewarm water using a soft cloth.

Electrical Connection

Warning

Improper use of the grounded plug can result in the risk of electrical shock. If the power cord is damaged, have it replaced by an authorized Avanti Products service center.

? This dishwasher must be properly grounded for your safety. The power cord of this dishwasher is equipped with a ground lead which can connect to your grounded permanent wiring system.
Do not under any circumstances cut or remove the third ground lead from the power cord supplied. Any questions concerning power and/or grounding should be directed toward a certified electrician or an authorized Avanti Products service center.
? Never use an extension cord to connect power to the unit. If the power cord is too short, have a qualified electrician or service technician install an outlet near the appliance.
? Never use a two-prong grounding adapter.

? Do not use an adapter plug with this appliance.
? Where a two-prong wall receptacle is encountered, contact a qualified electrician to have it replaced with a 3-prong receptacle in accordance with applicable electrical codes.
? This dishwasher requires a standard 110/120Volts A.C.\~/60Hz electrical power with three-prong ground.
? The cord should be secured behind the dishwasher and not left exposed or dangling to prevent accidental injury.
? Connect to a grounded metal, permanent wiring system; or run an equipment-grounding conductor with the circuit conductors and connect to the equipment-grounding terminal or lead of the appliance.
? Improper connection of the equipment-grounding conductor can result in a risk of electric shock. Check with a qualified electrician or service representative if you are in doubt whether the appliance is properly grounded.
Do not attempt to repair or replace any part of your dishwasher unless it is specifically recommended in this manual. All other servicing should be referred to a qualified technician.
? To minimize the possibility of electric shock, disconnect this appliance form the power supply before attempting any maintenance.

Note: Turning the dishwasher off does not disconnect the appliance from the power supply. We recommend having a qualified technician service your appliance.

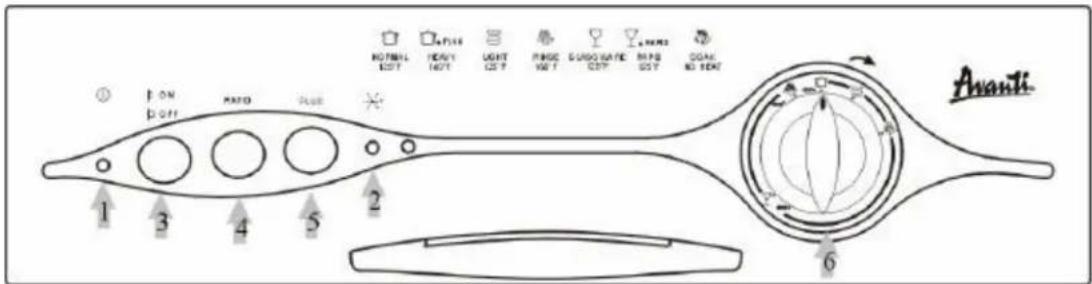

Control Panel of Dishwasher

1. Power ON Indicator
2. Rinse Aid Warning Indicator

3. ON/OFF Button

4. RAPID Button

5. PLUS Button
6. Wash Cycles

Control Settings

Wash Cycles

Cycle	PLUS Button	RAPID Button	Rinse Aid	Cycle Sequence					Detergent pre/main	Time (approx.)
NORMAL			?	Pre-rinse	Wash(125?)	Rinse	Rinse(160?)	Drying	4/20gr.	100min.
HEAVY	?		?	Pre-rinse(125?)	Wash(140?)	Rinse	Rinse(160?)	Drying	4/20gr.	110min.
LIGHT			?		Wash(125?)	Rinse	Rinse(160?)	Drying	20gr.	90min.
RINSE			?				Rinse	Rinse(160?) Drying		65min.
GLASS WARE							Rinse	Rinse(160?) Drying	15gr.	42min.
RAPID		?					Rinse	Rinse(125?) Drying	15gr.	38min.
SOAK				Pre-rinse						7min.

Notes:

? NORMAL WASH For normally soiled loads, such as pots, plates, glasses and lightly soiled pans, standard daily cycles.
? HEAVY WASH For the heavily soiled loads, such as pots, pans, casserole dishes and dishes that have been sitting with dried-on soils.
? LIGHT WASH For lightly soiled loads, such as plates, glasses, bowls and lightly soiled pans.
? RINSE For dishes that need to be rinsed and dry only.
? GLASS WARE For lightly soiled loads, such as glasses, crystal and fine china.
? RAPID For lightly soiled loads that do not need drying.
? SOAK For rinsing partial loads that will be washed later.

PLUS Button for HEAVY WASH

? This button is used with the normal cycle in the case where pots and pans with dry caked-on food must be washed.
? This is not recommended for delicate items in so far as the high temperature could make their surfaces opaque or lighten decorative colors after repeated washing.

RAPID Button for RAPID

? This button when pressed with wash cycle 4 (glassware) makes it possible to run the wash cycle at a lower temperature (125?) and eliminates the drying phase.

Overflow Protection

Our Avanti dishwasher has an overfill protection device which could automatically shut off the inlet valve and start the drain pump if the water overflow. If this occurs, turn off the main water supply before calling a servicer. If there is water in the base pan because of an overfill or small leak, the water should be removed before restarting the dishwasher.

Detergent Dispenser

The dispenser must be refilled before the start of each wash cycle according to the instructions provided in the "Wash Cycles". Our dishwashers use less detergent and rinse aid than conventional dishwashers. Generally, only one tablespoon of detergent is needed for a normal wash load. Also, more heavily soiled items need more detergent. Always add the detergent just before starting dishwasher, otherwise it could get damp and will not dissolve properly.

1. Main Wash Detergent
2. Dispenser Lid Lever
3. Prewash Detergent Compartment
4. Rinse Aid Level Indicator
5. Rinse Aid Compartment
6. Detergent Compartment Lid

Amount of Detergent to Use

The amount of detergent to use depends on whether your water is hard or soft. To determine the water hardness in your area, contact your local water utility or area water softening company. The harder the water, the more detergent you may need. Remember, you should adjust the amount of detergent you use little by little until you find the correct amount.

Notes: Even if the water isn't too hard, you may also prevent the formation of deposits by adding detergent.

Removing Hard Water Spots From Dishes

To remove hard water spots, try the following:

? Run dishes through a normal wash program.
? Remove all metal dishware, such as cutlery, pans, etc., from the dishwasher.
? Do not add detergent.
? Pour two cups of vinegar into a bowl and set the bowl face up on the lower rack of the dishwasher.
? Run the dishes through a normal wash program.

If this doesn't work, try the same process with 14 cup of citric acid crystals instead of vinegar.

Proper Use Of Detergent

Use only detergent specifically made for use in dishwasher. Keep your detergent fresh and dry. Don't put powder detergent into the dispenser until you're ready to wash dishes.

Rinse Aid Dispenser

The rinse aid is released during the final rinse to prevent water from forming droplets on your dishes that can leave spots and streaks. It also improves drying by allowing water to “sheet” off the dishes.

Our dishwashers are designed to use liquid rinse aid. The rinse aid Dispenser is located inside the door next to the detergent dispenser. To fill the dispenser, following the following steps to open the cap and pour the rinse aid into the dispenser until the level indicator turns completely black. The dispenser holds about 100 ml of liquid rinse aid.

1. To open the dispenser, turn the cap to the "open" (left) arrow

Line drawing of a kitchen appliance with a handle, lid, and control panel (no text or symbols)

and lift it out.

1. Pour the rinse aid into the dispenser, being careful not to overflow.
2. Replace the cap by inserting it aligned with "open" arrow and turning it to the "close" (right) arrow.

Be careful not to overfill the dispenser, because this could cause over sudsing. Wipe away any spills with a damp cloth. Don't forget to replace the cap before you close the dishwasher door. If you have soft water, you may not need rinse aid because it may cause a white film to develop on your dishes.

Adjusting Rinse Aid Dispenser

A measured amount of rinse aid is released during the final rinse. As with detergent, the amount of rinse aid needed for your dishes depends on the hardness of the water in your area. Too much rinse aid can result in lather of foaming and cause cloudiness or streaks on your dishes. If the water in you area is very soft, you may not need rinse aid. If you do, you can dilute the rinse aid with an equal amount of water.

The rinse aid dispenser has six settings. Always start with the dispenser set on "1". If there are rings of calcium (hard water) spots on dishes and drying problems, increase the amount of rinse aid dispensed by removing the dispenser lid and rotating the dial to "2". IF the dishes still are not drying properly or are spotted, adjust the dial to the next higher number until your dishes are spot-free. We suggest you to set on "4".

When To Refill The Rinse Aid Dispenser

When dispenser needs to be refilled the rinse aid warning indicator will be ON. If there is no rinse aid warning indicator on the control panel, you can judge the amount of rinse aid by the following means. The black dot on the rinse aid dispenser indicates the amount of rinse aid in the dispenser. As the rinse aid diminishes, the size of the black dot decreases. You should never let the rinse aid get below 14 full.

Loading The Dishwasher Racks

For best performance of the dishwasher, follow these loading guidelines.

How to Use the Upper Rack

The upper rack is designed to hold more delicate and lighter dishware such as glasses, coffee and tea cup and saucers, as well as plates, small bowls and shallow pans (as long as they are not too dirty).

Position the dishes and cookware so that they do not get moved by the spray of water.

The upper rack can be adjusted for height by putting wheels of different height into the rails.

1. Cups
2. Small Serving Bowl
3. Large Serving Bowl
4. Glasses
5. Saucers
6. Dish
7. Plates

How To Use The Lower Rack

We recommend that you place large items which are most difficult to clean into the lower rack: pots, pans, lids, serving dishes and bowls, as shown in the figure.

It is preferable to place serving dishes and lids on the side of the racks in order to avoid blocking the rotation of the top spray arm.

? Pots, serving bowls, etc, must always be placed top down.
? Deep pots should be slanted to allow water to flow out.
? The bottom rack feature folds down tine rows so that larger or more pots and pans can be loaded.

1. Oval Platter
2. Dinner Plates
3. Soup Plates
4. Dessert Dishes
5. Silverware Basket

ilverware Basket

Silverware should be placed in the silverware basket with handles at the bottom: if the rack has side baskets, the spoon should be loaded individually into the appropriate slots, especially long utensils should be placed in the horizontal position at the front of the upper rack.

WARNING: Do not let any item extend through bottom.

Starting A Wash Cycle

? Make sure that the dishwasher is energized.
? Make sure the water supply is turned on to full pressure.
? Load the dishwasher.
? Pour in the detergent.
? Slowly turn the wash cycles knob to the desired position in the clockwise direction. Don't turn it past that position, or you could accidentally miss a cycle.
? Press the ON/OFF button, and the POWER indicator will turn on. At this point, the wash cycle will begin. There is a time delay between start-up and water fill so you will not hear any wash action right away.

Canceling Or Modifying A Wash Cycle Setting

Premise: A cycle that is underway can only be modified if it has only been running for a short time. Otherwise, the detergent may have already been release, and the appliance may have already drained the wash water. If this is the case, the detergent dispenser must be refilled.

Press the ON/OFF button, and the POWER indicator will turn off. Rotate the knob in the clockwise direction to the desired cycle setting. Then, turn the dishwasher back on by pressing the ON/OFF button.

At The End Of The Wash Cycle

When the knob stops turning and is aligned with a STOP mark, the cycle has finished. Turn off the appliance using the ON/OFF button, shut off the water supply and open the door of the dishwasher. Wait a few minutes before unloading the dishwasher to avoid handling the dishes and utensils while they are still hot and more susceptible to breakage. They will also dry better.

Forgot To Add A Dish?

A forgotten dish can be added any time before the detergent cup opens.

• Pull the door handle.
• Do not open the door until the water spray action stops. Steam may rise out of the dishwasher.
• Add forgotten dishes.
• Push the door to close it. When the door is closed right a click will be heard.

Filtering System

For your convenience, we have placed the drain pump and filtering system within easy reach inside the tub. There are three components of the filtering system: the main filter, the coarse filter and the fine filter.

1. Main Filter

Food and soil particles trapped by this filter are pulverized by a special jet on the lower spray arm and washed down the drain.

2. Coarse Filter

Larger items, such as pieces of bone or glass, that could clog the drain are trapped in the coarse filter. To remove an item caught in this filer, gently squeeze the tabs on top of this filter and lift out.

3. Fine Filter

This filter holds soil and food residue in the sump area and prevents it from being redeposited on the dishes during a cycle.

CARE AND MAINTENANCE

To clean the control panel, use a lightly dampened cloth then dry thoroughly. To clean the exterior, use a good appliance polish wax.

Never use sharp objects, scouring pads or harsh cleaners on any part of the dishwasher.

Protect Against Freezing

If you dishwasher is left in an unheated place during the winter, ask a service technician to:

1. Cut off electrical power to the dishwasher. Remove fuses or tip circuit breaker.
2. Turn off the water supply and disconnect the water inlet line from the water valve.
3. Drain water from the inlet line and water valve. (Use a pan to catch the water.)
4. Reconnect the water inlet line to the water valve.
5. Remove the plastic sump cover in the bottom of the tub and use a sponge to soak up water in rubber boot.

Cleaning The Spray Arms

Because hard water chemicals will clog the spray arm jets and bearings, it is necessary to clean the spray arms regularly. To remove the spray arm, screw off the nut to take out the washer on top of the spray arm and remove the arm. Wash the arms in soapy and warm water and use a soft brush to clean the jets. Replace them after rinsing them thoroughly.

Cleaning The Filters

For best performance and results, the filter assembly must be cleaned.

The filter efficiently removes food particles from the wash water, allowing water to be recirculated during the cycle. For this reason, it is a good idea to remove the larger food particles trapped in the filter after each wash cycle by rinsing the main filter and cup under running water. To remove the filter assembly, pull on

Simple line drawing of a container with a lid and handle (no text or symbols)

the cup handle in the upward direction. The entire filter assembly should be cleaned at least once a month.

To clean the main filter and the fine filter, use a cleaning brush. Then, reassemble the filter parts as shown in the illustration and reinsert the entire assembly in the dishwasher, positioning it in place and pressing downward.

The dishwasher must never be used without the filters. Improper replacement of the filter may reduce the performance level of the appliance and damage dishes and utensils.

WARNING: Never run the dishwasher without the filters in place.

Cleaning The Door

To clean the edge around the door, you should use only a soft warm, damp rag. To prevent penetration of water into the door lock and electrical components, do not use a spray cleaner of any kind.

Also, never use abrasive cleaners or scouring pads on the outer surfaces because they will scratch the finish. Some papers towels can also scratch or leave marks on the surface.

WARNING: Never use a spray cleaner to clean the door panel because it could damage the door lock and electrical components. It is not allowed to use the abrasive agent or some paper towel because of the risk of scratching or leaving spots on the stainless steel surface.

Cleaning The Drain Pump

Something will occasionally move into the filters and the drain pump. If this occurs, the drain pumps employed in our dishwasher are designed to automatically reverse, ejecting the item back into the sump area or down the drain. IF you have to remove an obstacle from the drain pump, before you remove the filters, you should turn off the power, then remove the small black insert form the sump area. (You might want to remove any standing water first.) Scoop out the item that is probably in the sump area and causes the obstruction. Remember to replace the black insert before you put the filters back in.

How To Keep You Dishwasher In Shape

? After every wash

After every wash, turn off the water supply to the appliance and leave the door slightly ajar so that moisture and odors are not trapped inside.

? No solvents or abrasive cleaning products

To clean the exterior and rubber parts of the dishwasher, do not use solvents or abrasive cleaning products. Rather, use only a cloth and warm soapy water. To remove spots or stains from the surface of the interior, use a cloth dampened with water and a little white vinegar, or a cleaning product made specifically for dishwashers.

? When you go on Holiday

When you go on holiday, it is recommended that you run a wash cycle with the dishwasher empty and them de-energize the dishwasher, turn off the water supply and leave the door slightly ajar. This will help the seals last longer and prevent odors from forming within the dishwasher.

? Seals

One of the factors that cause odors to form in the dishwasher is food that remains trapped in the seals. Periodic cleaning with a damp sponge will prevent this from occurring.

PROBLEMS WITH YOUR DISHWASHER?

You can solve many common dishwasher problems easily, saving you the cost of a possible service call. Try the suggestions below to see if you can solve the problem before calling the servicer.

TROUBLESHOOTING GUIDE

PROBLEM	POSSIBLE CAUSES	WHAT TO DO
Dishwasher does not operate.	The circuit breaker tripped or blown fuse.Power supply is not turned on.Water pressure is low.	Replace fuse or reset circuit breaker.Remove any other appliances sharing the same circuit with the dishwasher.Make sure the dishwasher is turned on and the door is closed securely.Make sure the power cord is properly connected.Check that the water supply is connected properly and the water is turned on.
Drain pump doesn't stop	Overflow The system is designed to detect an overflow.When it does, it shuts off the circulation pump and turns on the drain pump.
Noise	Some audible sounds are normalUtensils are not secure in the racks or something small has dropped into the rack.Motor hums.	Sound from soft food shredding action and detergent cup opening.Ensure everything is secured in the dishwasher.Dishwasher has not been used regularly. If you do not use it often, remember to set it to fill and pump out every week, which will help keep the seal moist.
Suds in the tub	Improper detergent.Spilled rinse agent.	Use only the special dishwasher detergent to avoid suds.To remove suds from the tub, open the dishwasher and let suds evaporate.Add 1 gallon of cold water to the tub. Close and latch the dishwasher, pump out water by slowly turning the dial until a drain period is reached. Repeat if necessary.Always wipe up rinse agent spills immediately.
Stained tub interior	Detergent with colorant was used.Some tomato-based foods can stain	Make sure that the detergent is the one without colorant.Use of the RINSE ONLY cycle after adding the dish to the load can decrease the level of staining.
Dishes don't dry Rinse	agent dispenser is empty.Low inlet water temperature.	Check the rinse agent dispenser.Make sure inlet water temperature is correct.
Dishes and flatware not clean.	Improper program.Improper rack loading.Low inlet water temperature.	Select a stronger program.Make sure large dishware does not block the detergent dispenser or the wash arms.Make sure inlet water temperature is correct.This is called etching and is permanent. To
Cloudiness on Combination of soft water and too
glassware. much detergent.	Too high inlet water temperature.	prevent this from happening, use less detergent if you have soft water. Wash glassware in the shortest cycle that will get them clean.Make sure inlet water temperature is correct.
Yellow or brown film on inside surfaces.	Tea or coffee stains.Iron deposits in water can cause an overall film.	Using a solution of 1⁄2 cup bleach and 3 cups warm water to remove the stains by hand.Warning: Before cleaning interior wait at least 20 minutes after a cycle for the heating elements to cool down. Failure to do so can result in burns.A special filter in the water supply line is the only way to correct this problem. Contact a water softener company for a special filter.
White film on inside surfaces.	Hard water minerals.	To clean the interior, apply dishwasher detergent to a damp sponge. Wear rubber gloves. Do NOT use any other cleaner than dishwasher detergent for the risk of foaming or suds.
Detergent left in dispenser cups.	Dishes block detergent cups.	Re-load the dishes properly.
Steam	This is normal.	Steam comes through the vent during washing, drying and when water is being pumped out.
Black or gray marks on dishes.	Aluminum utensils have rubbed against dishes.	Remove marks with a mild, abrasive cleaner.
Water standing in the bottom of the tub.	This is normal.	A small amount of clean water around the outlet on the tub bottom at the back of the tub keeps the water seal lubricated.
Water doesn't pump out of the tub.	Drain is clogged.	If you have an air gap, clean it.Make sure the kitchen sink is draining well.If the dishwasher drains into a disposer, run it clear.
Dishwasher leaks.Spots and filming on glasses and flatware	Overfill dispenser or rinse aid spills.Dishwasher isn't level.Extremely hard waterLow inlet water temperatureOverloading the dishwasherImproper loadingOld or damp powder detergentRinse agent dispenser emptyToo little detergent	Be careful not to overfill the rinse aid dispenser. Spilled rinse aid could cause oversuding and lead to overflowing. Wipe away any spills with a damp cloth.Make sure the dishwasher is level.To remove stubborn spots and pre-existing film from glassware:Remove all metal utensils from the dishwasher.Do not add detergent.Choose the HEAVY cycles.Start the dishwasher and allow to run for 30 minutes. Dishwasher will now be in the main wash.Open the door and pour 2 cups (500ml) of white vinegar into the bottom of the dishwasher.Close the door and allow to complete the cycle. If vinegar rinse doesn't work:Repeat as above, except use 60ml of citric acid crystals instead of vinegar.

SERVICE FOR YOUR DISHWASHER

We are proud of our customer service organization and the network of professional service technicians that provide service on your Avanti dishwashers. With the purchase of your Avanti dishwasher, you can have the confidence that if you ever need additional information or assistance, the Avanti Products Customer Service team will be here for you. Just call us toll-free.

AVANTI PRODUCTS CUSTOMER SERVICES

Product Information800-323-5029	Whatever your questions are about our products, help is available.
Part Orders800-220-5570	You may order parts and accessories that will be delivered directly to your home, by personal check, money order, Master Card, or Visa.
In-Home Repair Service800-220-5570	An Avanti Products authorized service center will provide expert repair service, scheduled at a time that is convenient for you. Our trained servicers know your dishwasher inside and out.

YOUR Avanti Products WARRANTY

Staple your sales receipt here. Proof of original purchase date is needed to obtain service under warranty.

WHAT IS COVERED

LIMITED ONE-YEAR

WARRANTY

For one year from the date of purchase by the original owner, Avanti Products will, at its option, repair or replace any part of the dishwasher which proves to be defective in material or workmanship under normal use. During this period Avanti Products will provide all parts and labor necessary to correct such defects free of charge, so long as the dishwasher has been installed and operated in accordance with the written instructions in this manual. In rental or commercial use, the warranty period is 90 days.

WHAT IS NOT COVERED

? Incidental or consequential damages.
? Parts and labor costs for the following will not be considered as warranty:
? Doors, door springs, and/or frames.
? Inner door panels, door shelves, door rails, and/or door supports.
? Light bulbs and/or plastic housing.
? Plastic cabinet liners.
? Proper installation is the responsibility of the installer. Product failure due to improper installation is not covered under the Avanti Products Warranty.

? Repairs performed by unauthorized servicers.
? Service calls that do not involve defects in material or workmanship such as customer education, door reversal, or proper installation.
? Service calls that are related to external problems, such as abuse, misuse, inadequate electrical power, accidents, fire, floods, or acts of God.
? Replacement of house fuses or resetting circuit breakers.
? Failure of the product if it is used for other than its intended purpose.
? This warranty does not apply outside the Continental U.S.A..

WIRING DIAGRAM

CODE	NAME OF COMPONENT
CLn	Contact offener
Dc'd	Dispenser
EV1	Inlet solenoid
EV2	Water solener
IAQS	Overflow switch
IG	Pewel Switch
IS	Door switch
ISS	Reed switch
TR	Therm east of heater
LS	Power on light
LSS	Salt warning light
ML	Vash pump
MT	Motor effiner
P9	Pressure switch
PS	Drain pump
R	Heater
S	Therm east of pump
T4S	45 °C Thermostat
TS8	50 °C Thermostat
ICR	Rapid wash
PLUS	Intensive wash
RS	Reed switch
LSB	Reise and warning light
