Product Type	Keyboard
Brand	Targus
Model	AKB24US
Interface	USB (wired)
Number of Keys	104 (full-size)
Layout	US English
Dimensions (L x W x H)	17.5 x 6.5 x 1.2 inches
Weight	1.2 lbs
Cable Length	6 ft
Compatibility	Windows, Mac, Linux
Power Source	USB bus powered
Color	Black
Material	Plastic
Multimedia Keys	Yes (play/pause, volume, mute)
Warranty	1 year limited
Country of Origin	China
Cleaning	Wipe with a soft, damp cloth; do not use solvents
Safety Precautions	Avoid liquids; use on a flat, stable surface
Spare Parts & Repairability	Not available; non-repairable
Environmental Compliance	RoHS

Frequently Asked Questions - AKB24US TARGUS

How do I connect the Targus AKB24US keyboard to my computer?

Simply plug the USB cable into an available USB port on your computer. The keyboard is plug-and-play and requires no additional drivers for basic operation.

Is the AKB24US compatible with macOS?

Yes, the keyboard works with macOS, Windows, and Linux. For Mac, some multimedia keys (like brightness) may not function, but all typing keys are fully compatible.

How should I clean my keyboard?

Unplug the keyboard, then wipe the surface with a soft, slightly damp cloth. Do not use harsh chemicals or soak the keyboard. Allow to dry completely before reconnecting.

Does the keyboard have a backlight?

No, the Targus AKB24US does not have a backlight. It is a standard non-illuminated keyboard.

Is this keyboard wireless?

No, the AKB24US is a wired keyboard with a USB connection. For wireless options, consider Targus models like AKB31US or AKB32US.

What is the cable length?

The keyboard features a 6-foot USB cable, providing ample reach for most desktop setups.

Does it have a USB passthrough port?

No, this model does not include a USB hub or passthrough port. It only has the main USB cable for connection.

How can I adjust the tilt of the keyboard?

The keyboard has built-in flip-down feet at the back. Pull them out to raise the keyboard angle for a more comfortable typing position.

What is the warranty period for the AKB24US?

Targus offers a 1-year limited warranty against defects in materials and workmanship. Keep your proof of purchase.

Where can I find drivers or software for this keyboard?

No additional drivers are needed for standard typing. For enhanced functionality (e.g., customizing multimedia keys), visit the Targus support website and search for AKB24US.

USER MANUAL AKB24US TARGUS

Wireless 2.4GHz Keyboard Targus® USER GUIDE PMS Black 30% PMS Black 100% Targus® Visit our website at www.targus.com Features and specifications subjected to change without notice. © 2008 Targus Group International, Inc. and Targus, Inc. AKB24US / 410-1478-001A CE FC N7953

TARGUS WIRELESS 2.4 GHz KEYBOARD

Introduction

Congratulations on your purchase of the Targus Wireless 2.4 GHz keyboard. This keyboard utilizes the latest wireless technology to eliminate interference. Additionally, Free Smart Link technology provides a plug-n-play experience.

Contents

• Targus Wireless Keyboard
- USB Receiver
• 2 AAA Batteries (included)
- Software Driver CD
- User Guide

System Requirements

Hardware

• PC with an Intel® Pentium® processor or equivalent
• USB port

Operating System

• Windows® 2000/XP
• Windows Vista™

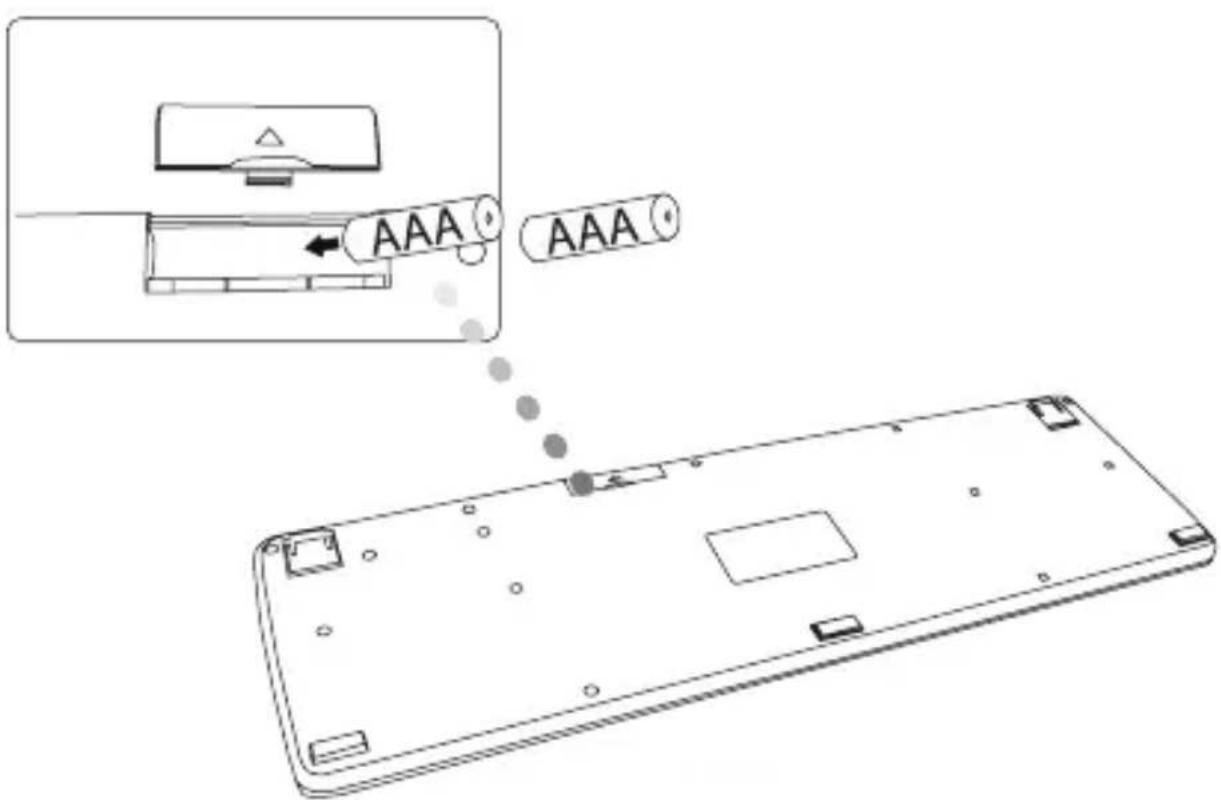

Installing the Batteries

Wireless Keyboard

Removing the battery cover

AAA AAA

1 Remove the battery cover located on the bottom of the keyboard.

2 Insert the supplied batteries, making sure that the positive (+) and negative (-) ends of each battery match the polarity indicators inside the battery compartment.

Establishing a Communications Link

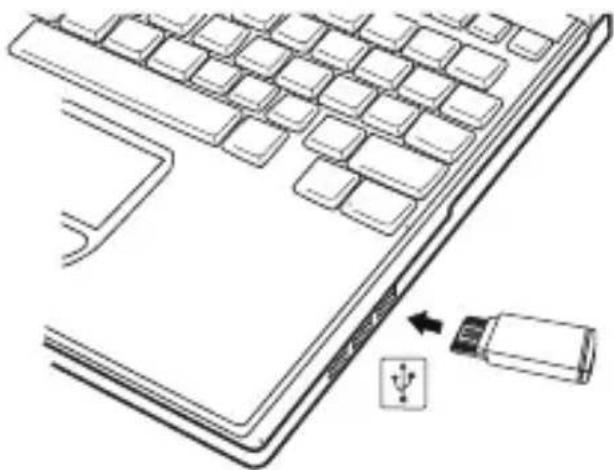

Plug the USB receiver into an available USB port on your computer.

Line drawing of a laptop keyboard with an attached USB flash drive (no text or symbols)

- Press any key on the keyboard to connect.

NOTE: IT IS RECOMMENDED TO KEEP THE KEYBOARD AT A DISTANCE OF LESS THAN (6 FEET / 2 METERS) TO THE RECEIVER AT THE INITIAL CONNECTION.

Installing the Software driver

The driver can be found on the CD-ROM (included)

or

Download the software driver (Model # AKB24) from the official Targus web site: http://www.targus.com

Save the setup file to your computer and double click on the icon to launch the installation process.

Abstract 3D rendering of a white sailboat against a blue sky background (no text or symbols)

Autorun.exe

NOTE: THE KEYBOARD CAN WORK WITHOUT INSTALLING THE SOFTWARE DRIVER; HOWEVER, NOT ALL FUNCTIONS WILL BE AVAILABLE.

The Installation Wizard window will prompt.

Follow the on-screen instructions to complete the installation.

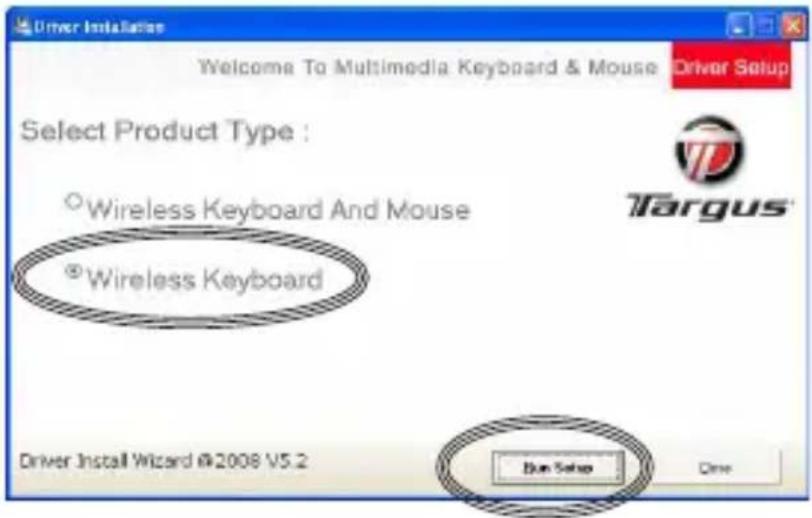

Choose "Wireless Keyboard" and click "Run Setup"

Driver Installation Welcome To Multimedia Keyboard & Mouse Driver Setup Select Product Type : ○ Wireless Keyboard And Mouse ® Wireless Keyboard Driver Install Wizard @2008 V5.2 Run Setup Drive

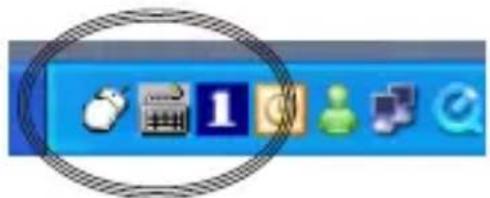

After the software driver is successfully installed, new icons will show in the taskbar.

Blue toolbar with icons for computer, phone, document, person, and gear (no text or symbols)

Scroll LOCK - ON

CAP-LOCK - ON

Number LOCK - ON

Keyboard Setup

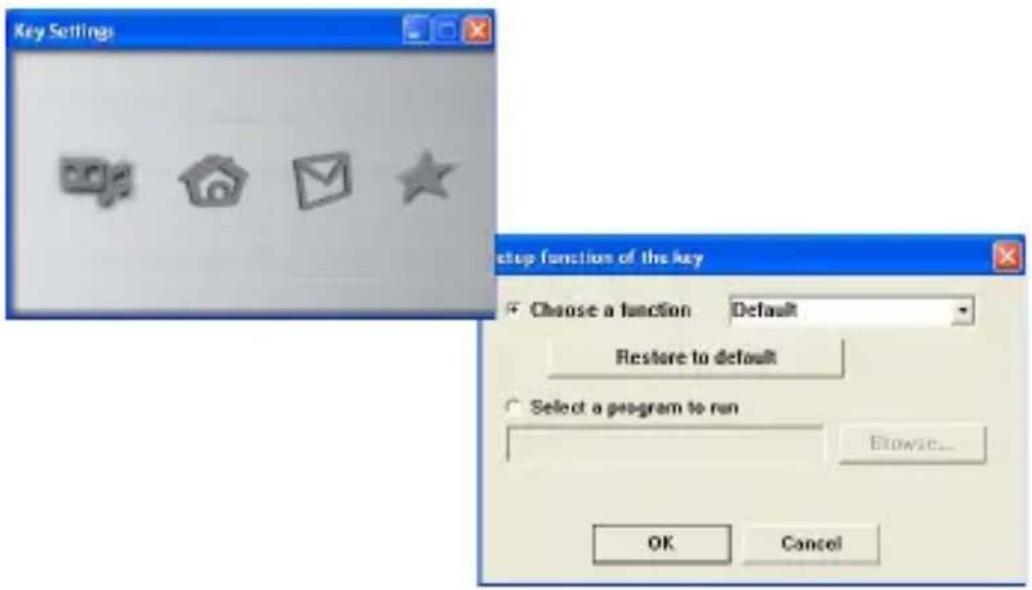

Double click on the "Keyboard Icon" to launch the key configuration screen

Key Settings Setup function of the key Choose a function Default Restore to default Select a program to run Browse... OK Cancel

There are 4 programmable "Hot Keys". Click on the icons to assign the new short-cut function.

Follow the on-screen instructions to setup the short-cut keys.

Using the Hot keys

NOTE: BY DEFAULT, THE HOT KEYS ARE PRESET AS FOLLOWS:

Media keys

Key Function
		Launch Default Media Program
		Mute
		Volume Up
		Volume Down
		Play / Pause
		Stop

Internet and System keys

Key Function
	Sleep
	Default Internet browser
	Default E-mail Program
	Favorite
	Calculator
	My Computer

Troubleshooting

- Check the receiver connection; try inserting the receiver to another USB port on your computer.

- No connection between the device(s) and the receiver. Re-insert the receiver. Remove and reinstall batteries.

Specifications

Operation Frequency	2.4 GHz
Operating Distance	Up to 10m
Operating Voltage	Keyboard: 3V
	Receiver: 5V
Operating Current	Keyboard: 3mA maximum
	Receiver: 30mA maximum
Suspend Mode	Keyboard: Below 300 uA
Dimensions	Keyboard: 470 x 147.5 x 22 mm
	Receiver: 42 x 14.5 x 7 mm
Weight	Keyboard: 70.4g
	Receiver: 1g

Technical Support

For technical questions, please visit:

US Internet: www.targus.com/support.asp

Australia Internet: www.targus.com/au

Email: [e-mail]

Telephone: [phone]

New Zealand Telephone: [phone]

Product Registration

Targus recommends that you register your Targus accessory shortly after purchasing it. Go to:

http://www.targus.com/registration.asp.

You will need to provide your full name, email address, country of residence and product information.

Warranty

Targus warrants this product to be free from defects in materials and workmanship for one year. If your Targus accessory is found to be defective within that time, we will promptly repair or replace it. This warranty does not cover accidental damage, wear and tear, or consequential or incidental loss. Under no conditions is Targus liable for loss of, or damage to devices; nor loss of, or damage to, programs, records, or data; nor any consequential or incidental damages, even if Targus has been informed of their possibility. This warranty does not affect your statutory rights.

Regulatory Compliance

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

FCC Statement Tested to Comply

This equipment has been tested and found to comply with the limits of a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna;
• Increase the separation between the equipment and receiver;
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected;
• Consult the dealer or an experienced radio/TV technician for help.

Changes or modifications not authorized by the party responsible for compliance could void the user's authority to operate this product.

Declaration of Conformity

Hereby, Targus, declares that this device is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.

Microsoft, Windows, and Windows Vista are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries. All trademarks and registered trademarks are the property of their respective owners. All rights reserved. Features and specifications are subject to change without notice. © 2008. Targus Group International, Inc. and Targus, Inc., Anaheim, CA 92806 USA
