Product Type	6x9 inch 3-Way Car Speaker
Brand	Scosche
Model	HD6903
Speaker Size	6 x 9 inches (152 x 229 mm)
Speaker Type	3-Way Coaxial (Woofer, Midrange, Tweeter)
Impedance	4 Ohms
Power Handling (RMS)	100 Watts
Power Handling (Peak)	300 Watts
Sensitivity	92 dB
Frequency Response	30 Hz - 20 kHz
Mounting Depth	3 inches (76 mm)
Woofer Cone Material	Polypropylene
Woofer Surround	Rubber
Tweeter Type	PEI (Polyetherimide) Dome
Magnet Material	Ferrite
Weight (per pair)	3.3 lbs (1.5 kg)
Included Accessories	Pair of speakers, mounting hardware, grilles, user manual
Connector Type	Standard spade terminals
Certifications	CE, RoHS

Frequently Asked Questions - HD6903 Scosche

What is the size of the Scosche HD6903 speaker?

The Scosche HD6903 is a 6x9 inch (152x229 mm) 3-way coaxial speaker designed for car audio systems.

What is the power handling of the HD6903?

The RMS power handling is 100 watts, with a peak power handling of 300 watts.

What is the impedance of the Scosche HD6903?

The impedance is 4 ohms, which is standard for most car audio systems.

Does the HD6903 come with mounting hardware?

Yes, the package includes mounting hardware and speaker grilles for easy installation.

What is the sensitivity of the HD6903?

The sensitivity rating is 92 dB, meaning it can produce high volume levels with moderate power.

Are the Scosche HD6903 speakers waterproof?

No, these speakers are not waterproof. They are designed for dry interior use in cars, boats, or RVs. Avoid exposure to moisture.

Can I use the HD6903 with a factory radio?

Yes, the 4 ohm impedance and high sensitivity make them compatible with most factory radios, though an external amplifier is recommended for best performance.

What is the frequency response of the HD6903?

The frequency response ranges from 30 Hz to 20 kHz, covering deep bass to high treble.

How do I connect the Scosche HD6903?

Use the included spade terminals to connect to your car's speaker wires. Ensure proper polarity for optimal sound.

What is the warranty on Scosche HD6903 speakers?

Scosche offers a 1-year limited warranty against defects in materials and workmanship. Keep your receipt for service.

USER MANUAL HD6903 Scosche

NOTE: Please refer to overview illustrations on page 2.

SPECIFICATIONS
Description:	3-Way Triaxial Design	Impedance:	4 ohms
Power Handling (per pair):		Mounting Dimensions (Figure 1, page 2):
RMS (Watts):	90	Mounting Depth:	3'' / 78 mm
Max Peak (Watts):	450	Clamp Width:	8.58'' / 218 mm
		Clamp Height:	5.8'' / 149 mm

GENERAL VEHICLE DISASSEMBLY & SPEAKER REPLACEMENT

NOTE: The following instructions may not apply to your vehicle. If your vehicle's factory speaker installation differs from the following instructions call our 800 tech support number below for assistance.

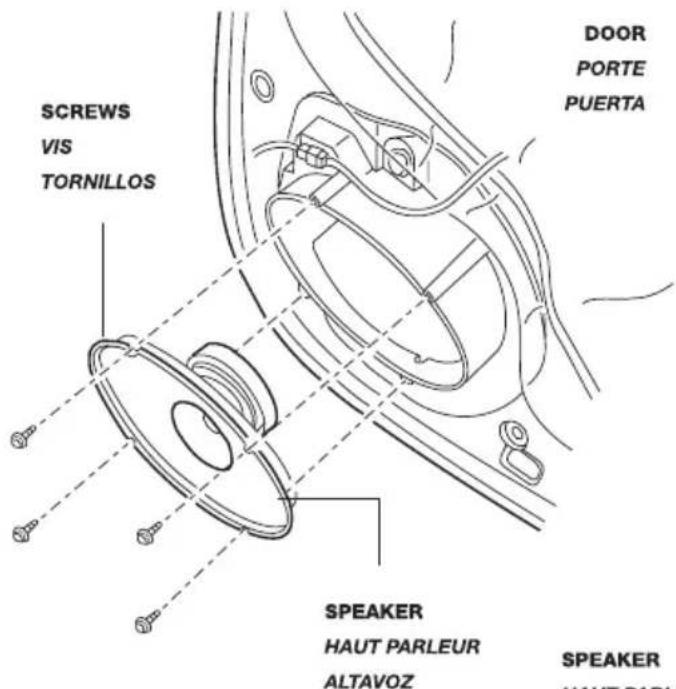

TYPICAL DOOR/SIDE PANEL REMOVAL (Figure 2, page 2):

1. Carefully pry out on speaker grille or remove all necessary hardware and fasteners to disassemble the door/ side panel to access speaker.
2. Extract the screws holding speaker in, unplug and remove factory speaker.
3. Reconnect factory speaker wire to the replacement speaker, or run new speaker wire from radio to speaker.
4. Place speaker in factory mounting location and use the factory mounting hardware to mount replacement speaker.
5. Test sound system and reassemble vehicle.

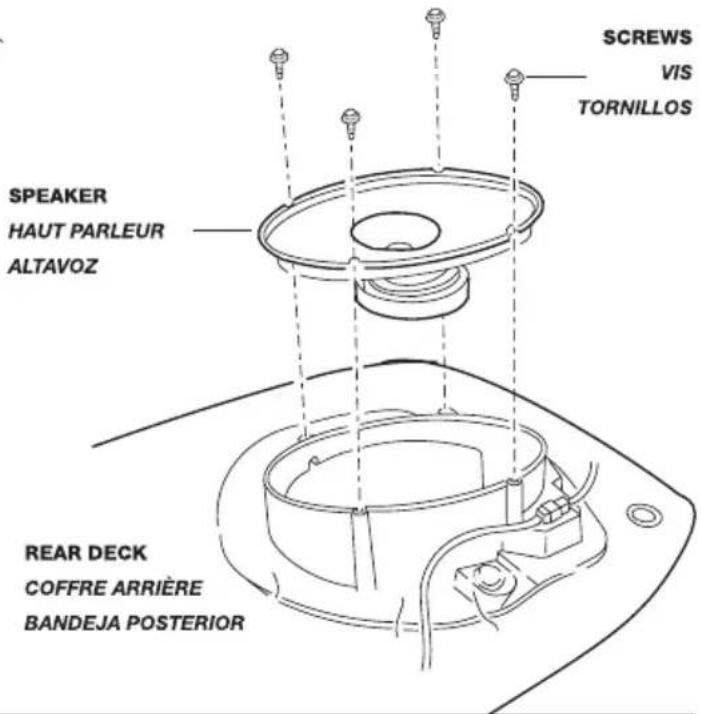

TYPICAL REAR DECK REMOVAL (Figure 3, page 2):

1. Carefully pull up on speaker grille to unclip, remove rear deck material, or remove screws in trunk/ cargo area to access speakers.
2. Extract the screws holding speaker in, unplug and remove factory speaker.
3. Reconnect factory speaker wire to the replacement speaker, or run new speaker wire from radio to speaker.
4. Place speaker in factory mounting location and use the factory mounting hardware to mount replacement speaker.
5. Test sound system and reassemble vehicle.

IMPORTANT! DO NOT RETURN PRODUCT TO THE RETAILER

IF YOU NEED ASSISTANCE OR REPLACEMENT PARTS CALL US TOLL FREE: 1-800-621-3695 X3

HOURS MON-FRI 8AM-5:30PM (PST) SATURDAY 8AM-2PM (PST)

LIMITED WARRANTY

Scosche Industries, Inc. warrants this product to be free from defects in material and workmanship, for a period of 90 days from the date of purchase. This Scosche product is sold with the understanding that the purchaser has independently determined the suitability of this product. This warranty DOES NOT cover any expenses incurred from the installation, removal, or re-installation of this product, incidental otherwise. This warranty is offered to the original purchaser of the product only. This warranty does not cover the product if physically damaged, subjected to negligence or misuse, abuse, improper installation, alteration, accident, connection to improper WATTAGE amounts, or an act of God. Also excluded from this warranty are costs for the correction of faulty installation, and elimination of electromagnetic interference (Engine noise).
The original dated sales slip or proof of purchase will establish warranty eligibility. If the product should prove defective, within the warranty period, return the product with proof of purchase to Scosche Industries, Inc. Scosche, at its option, will replace or repair the product free of charge, and return the product postage-paid.
In no event shall Scosche be responsible for claims beyond the replacement value of the defective product, or in any way be liable or responsible for consequential or incidental damages.
No express warranties and no implied warranties, whether for fitness or any particular use, or otherwise, except as set forth above (which is made expressly in lieu of all other warranties) shall apply to products sold by Scosche.
Scosche Industries can not be held responsible for discrepancies/inconsistencies that may occur, due to automotive manufacturing changes or options.

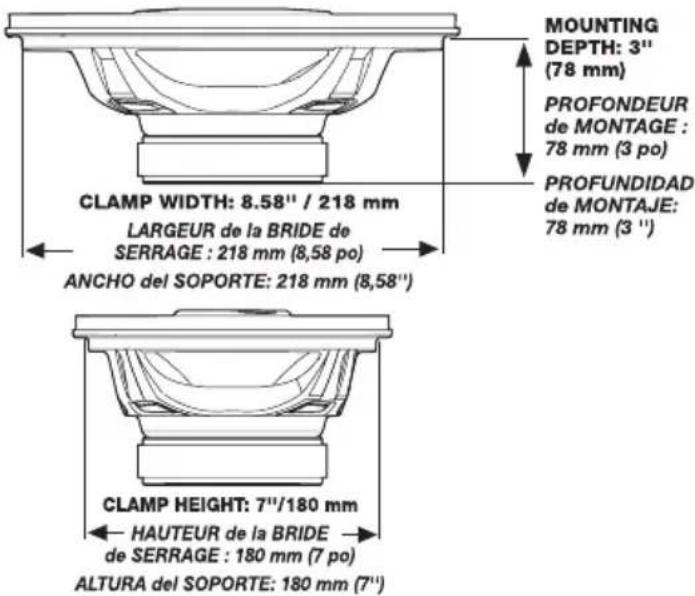

FIGURE 1 FIGURA 1

Technical line drawing of a mechanical component with concentric ovals and mounting holes (no text or symbols)

FIGURE 2 FIGURA 2

FIGURE 3 FIGURA 3

SYSTÈME de HAUT-PARLEURS TRIAXIAUX à 3 VOIES de 15,24 cm x 22,86 cm (6 po x 9 po)

HEURES: Du lundi au vendredi 8:00 a.m. to 5:30 p.m. (PST) Samedi 8:00 a.m. to 2:00 p.m. (PST)

GARANTIE LIMITÉE
