USER MANUAL HD57683 Scosche

NOTE: Please refer to overview illustrations on page 2.

SPECIFICATIONS
Description:	3-Way Triaxial Design	Impedance:	4 ohms
Power Handling (per pair):		Mounting Dimensions (Figure 1, page 2):
RMS (Watts):	50	Mounting Depth:	2.2'' / 56 mm
Max Peak (Watts):	250	Clamp Width:	7'' / 180 mm
		Clamp Height:	5'' / 127 mm

GENERAL VEHICLE DISASSEMBLY & SPEAKER REPLACEMENT

NOTE: The following instructions may not apply to your vehicle. If your vehicle's factory speaker installation differs from the following instructions call our 800 tech support number below for assistance.

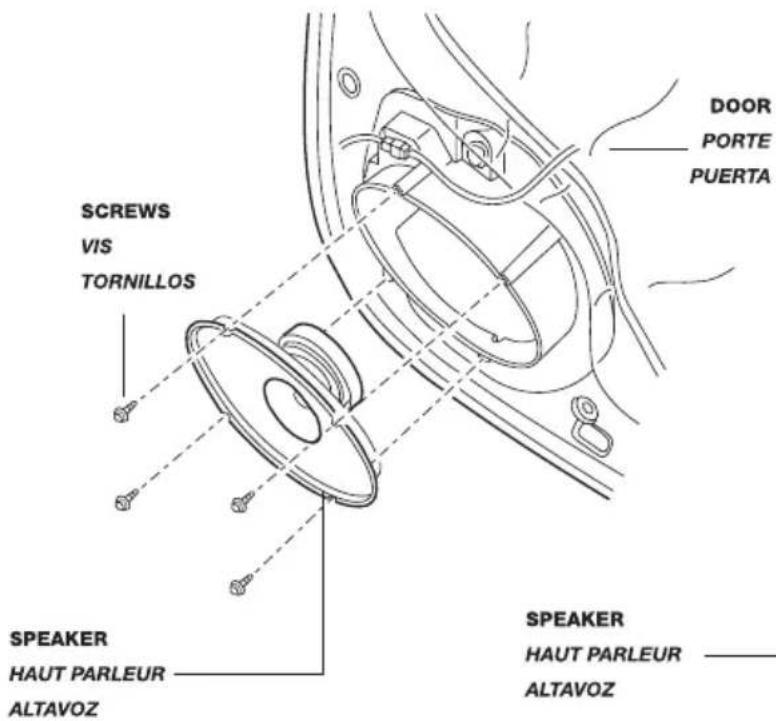

TYPICAL DOOR/SIDE PANEL REMOVAL (Figure 2, page 2):

1. Carefully pry out on speaker grille or remove all necessary hardware and fasteners to disassemble the door/ side panel to access speaker.
2. Extract the screws holding speaker in, unplug and remove factory speaker.
3. Reconnect factory speaker wire to the replacement speaker, or run new speaker wire from radio to speaker.
4. Place speaker in factory mounting location and use the factory mounting hardware to mount replacement speaker.
5. Test sound system and reassemble vehicle.

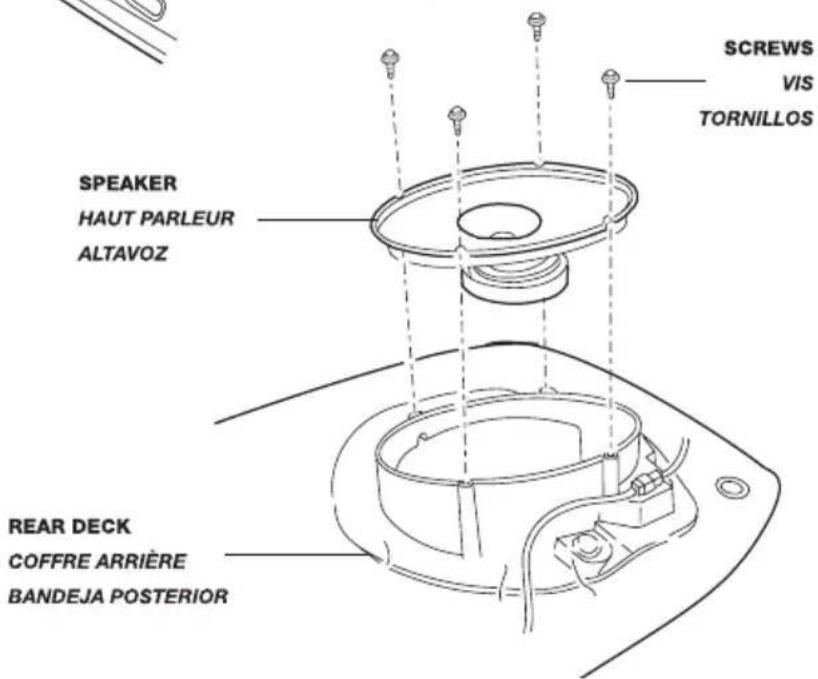

TYPICAL REAR DECK REMOVAL (Figure 3, page 2):

1. Carefully pull up on speaker grille to unclip, remove rear deck material, or remove screws in trunk/ cargo area to access speakers.
2. Extract the screws holding speaker in, unplug and remove factory speaker.
3. Reconnect factory speaker wire to the replacement speaker, or run new speaker wire from radio to speaker.
4. Place speaker in factory mounting location and use the factory mounting hardware to mount replacement speaker.
5. Test sound system and reassemble vehicle.

IMPORTANT!

DO NOT RETURN PRODUCT TO THE RETAILER

IF YOU NEED ASSISTANCE OR REPLACEMENT PARTS

CALL US TOLL FREE: 1-800-621-3695 X3

HOURS MON-FRI 8AM-5:30PM (PST) SATURDAY 8AM-2PM (PST)

LIMITED WARRANTY

Scosche Industries, Inc. warrants this product to be free from defects in material and workmanship, for a period of 90 days from the date of purchase. This Scosche product is sold with the understanding that the purchaser has independently determined the suitability of this product. This warranty DOES NOT cover any expenses incurred from the installation, removal, or re-installation of this product, incidental or otherwise. This warranty is offered to the original purchaser of the product only. This warranty does not cover the product if physically damaged, subjected to negligence or misuse, abuse, improper installation, alteration, accident, connection to improper WATTAGE amounts, or an act of God. Also excluded from this warranty are costs for the correction of faulty installation, and elimination of electromagnetic interference (Engine noise).

The original dated sales slip or proof of purchase will establish warranty eligibility. If the product should prove defective, within the warranty period, return the product with proof of purchase to Scosche Industries, Inc. Scosche, at its option, will replace or repair the product free of charge, and return the product postage-paid.

In no event shall Scosche be responsible for claims beyond the replacement value of the defective product, or in any way be liable or responsible for consequential or incidental damages.

No express warranties and no implied warranties, whether for fitness or any particular use, or otherwise, except as set forth above (which is made expressly in lieu of all other warranties) shall apply to products sold by Scosche.

Scosche Industries cannot be held responsible for discrepancies/inconsistencies that may occur, due to automotive manufacturing changes or options.

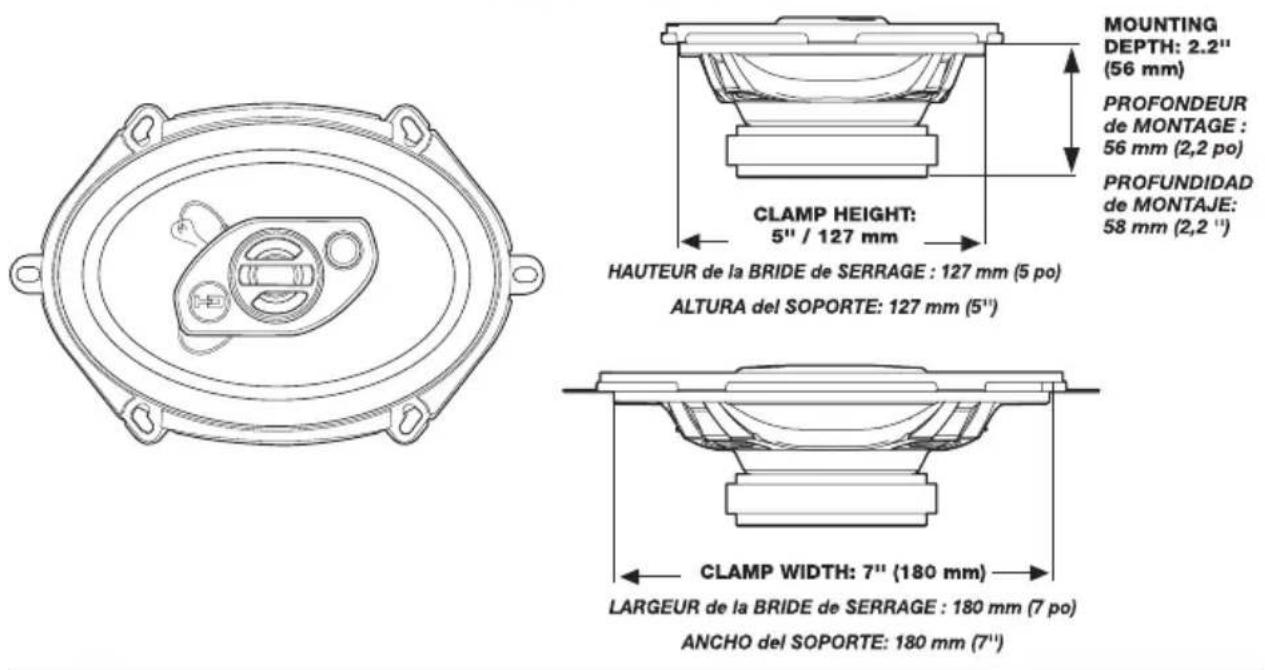

FIGURE 1 FIGURA 1

MOUNTING DEPTH: 2.2' (56 mm)
PROFONDEUR de MONTAGE : 56 mm (2,2 po)
PROFUNDIDAD de MONTAJE: 58 mm (2,2")
HAUTEUR de la BRIDE de SERRAGE : 127 mm (5 po) ALTURA del SOPORTE: 127 mm (5 ^11 )
LARGEUR de la BRIDE de SERRAGE : 180 mm (7 po) ANCHO del SOPORTE: 180 mm (7")

FIGURE 2 FIGURA 2

FIGURE 3 FIGURA 3

SYSTÈME de HAUT-PARLEURS TRIAXIAUX à 3 VOIES de 12,7 cm x 1,17 cm x 20,32 cm (5 po x 7/6 po x 8 po)

HEURES: Du lundi au vendredi 8:00 a.m. to 5:30 p.m. (PST) Samedi 8:00 a.m. to 2:00 p.m. (PST)

GARANTIE LIMITÉE
