PAVILION ALL-IN-ONE MS228 - Desktop computer HP - Free user manual and instructions

Product type	All-in-one computer
Brand	HP
Model	Pavilion All-in-One MS228
Dimensions (W x H x D)	Approximately 50 x 40 x 10 cm
Weight	Approximately 7 kg
Screen	21.5 inches (estimated)
RAM	Up to 4 GB DDR2 SO-DIMM, 200-pin, PC2-4200/PC2-5300, 1.8 V
Hard drive	SATA, 3.5-inch form factor (estimated)
Optical drive	CD/DVD drive
Wireless connectivity	Wireless keyboard and mouse with USB receiver
Power supply	Integrated, 150 W (estimated)
Main functions	Memory upgrade, hard drive replacement, optical drive replacement, stand replacement
Maintenance and cleaning	Unplug the computer before cleaning, use a soft, non-abrasive cloth
Safety	Discharge static electricity before intervention, avoid sharp edges inside
Spare parts and repairability	Memory, hard drive, optical drive, stand, keyboard, mouse
General information	Service manual detailing upgrade and repair procedures

Frequently Asked Questions - PAVILION ALL-IN-ONE MS228 HP

How to replace the wireless keyboard or mouse?

Leave the computer on. If you replace the mouse, plug the new receiver into the back. Remove the tab from the battery compartment to activate the battery. Press the blue connection button on the bottom of the keyboard or mouse for 5 to 10 seconds. The blue LED lights up and then turns off when synchronization is successful.

How to sync the keyboard or mouse?

Press the blue connection button on the device for 5 to 10 seconds. The blue LED on the receiver turns on when the command is received and turns off once synchronization is complete. If it does not work, remove and reinsert the receiver.

How to replace the keyboard or mouse batteries?

Turn the device over, open the battery compartment cover. The mouse uses two AA batteries, the keyboard two AAA batteries. Replace with new alkaline batteries. Do not use rechargeable batteries.

How to add or replace memory?

Turn off the computer, unplug the power cable and all cables. Place the screen face down on a soft surface. Remove the memory compartment cover (screw under a rubber cap). Press the tabs to release the existing module. Insert the new one with the notch oriented forward and to the right, then gently push down to lock it in place.

What types of memory are compatible?

Modules must be SO-DIMM 200-pin, type DDR2, PC2-4200 (533 MHz) or PC2-5300 (667 MHz), unbuffered, non-ECC, 1.8 V only. Maximum capacity is 4 GB. For optimal performance, use the same type of module in both slots.

How to remove and replace the computer stand?

Place the computer face down on a soft surface. Open the cover on the back of the stand using a flat screwdriver. Remove the three stand screws. Slide the stand downward to detach it. Install the new stand by sliding the tab under that of the computer, then screw it back. Close the cover.

How to replace the hard drive?

Place the computer face down. Remove the hard drive cover (screw under rubber cap). Loosen the front screw of the cage, then pull the metal handle to slide the cage out. Turn the cage over and unscrew the four drive screws. Insert the new drive (label up) into the cage, screw it back, then reinsert the cage aligning the slots. Screw and close the cover.

How to replace the CD/DVD drive?

Place the computer face down. Remove the rubber cap and the drive screw. Insert a small flat screwdriver into the notch to pry and release the drive. Pull the assembly outward. Insert the new drive with the label facing down and the front panel aligned with the side of the computer. Push it in until it is flush, then screw it back.

What to do if the computer displays a memory error?

Turn off the computer and unplug the power cable. Open the memory compartment and check that the module is fully inserted and locked. Ensure the installed memory is compatible (DDR2 SO-DIMM, 200-pin, 1.8 V). If the problem persists, replace the module with another compatible one.

What precautions should be taken before opening the computer?

Always unplug the power cable and all cables before opening the case. Discharge static electricity by touching the metal cage of the computer. Protect the screen from scratches by placing the computer on a soft surface (blanket, towel). Avoid touching sharp edges inside.

USER MANUAL PAVILION ALL-IN-ONE MS228 HP

Upgrading and Servicing Guide

Replacing a Wireless Keyboard or Mouse ....2

Before You Begin. 2

Replacing the Keyboard or Mouse 2

Replacing Batteries 3

Upgrading or Replacing Memory 6

Before You Begin 6

Computer Preparation 6

Troubleshooting 9

Removing and Replacing the

Computer Stand 12

Before You Begin. 12

Computer Preparation 12

Installing a New Stand. 13

Removing and Replacing a Hard Disk Drive .. 16

Before You Begin 16

Computer Preparation 16

Installing a New Hard Disk Drive 18

Removing and Replacing a CD/DVD Drive ....22

Before You Begin 22

Computer Preparation 22

Installing a New CD/DVD Drive 23

Replacing a Wireless Keyboard or Mouse

Replacing a Wireless Keyboard or Mouse

5-10 minutes

Before You Begin

Two replacement kits are available:

• Wireless keyboard
• Wireless mouse with wireless receiver

IMPORTANT: The keyboard and mouse must be next to the HP PC, within 1 foot (30 cm) and away from interference with other devices.

Replacing the Keyboard or Mouse

1 Leave the computer on.

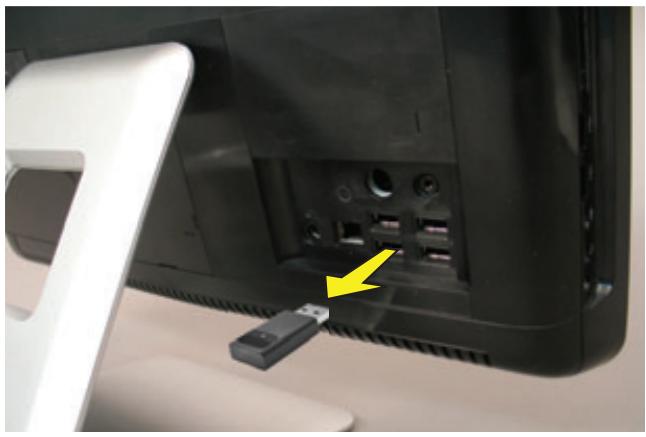

2 If you are replacing the wireless mouse, remove the old receiver and plug the new receiver into the back of the computer. Skip this step if you are replacing the keyboard only.

3 Remove the tab from the battery compartment on the bottom of the mouse and/or the keyboard. This activates the pre-installed battery.

4 If you are replacing the mouse and it has a power switch on the bottom, turn on the mouse power switch (A). The keyboard does not have a power switch, so you can skip this step if you are installing the keyboard only.

5 Press the blue connect button on the bottom of the keyboard (B) and/or mouse (C) for 5 to 10 seconds. The blue activity LED on the wireless receiver illuminates when the synchronization command has been received and goes off when synchronization is complete.

NOTE: If the synchronization does not work, remove and then re-insert the wireless receiver from the back of the computer and synchronize the keyboard and/or mouse again.

Replacing Batteries

If repeated attempts at synchronization do not work, you may need to replace the batteries in the keyboard and mouse.

• The mouse requires two AA batteries.
• The keyboard requires two AAA batteries.

Turn the devices over, take off the battery cover, remove the old batteries, and insert new alkaline batteries. Do not use rechargeable batteries.

Upgrading or Replacing Memory

Upgrading or Replacing Memory

10 - 15 minutes

Before You Begin

Observe the following requirements before removing and replacing memory cards.

Tools Needed

Phillips screwdriver #0 (very small tip)

CAUTION: Static electricity can damage the electronic components inside the computer. Discharge static electricity by touching the metal cage of the computer before touching any internal parts or electronic components.

WARNING:

• Never open the cover with the power cord attached or power applied. You may damage your computer.
• Avoid touching sharp edges inside the computer.

Computer Preparation

1 Remove any media (CD, DVD, and memory cards) from the computer.
2 Shut down the computer.

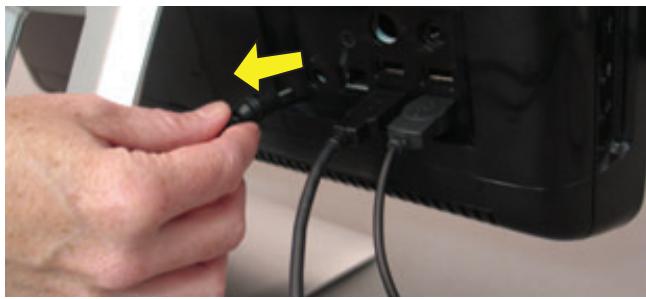

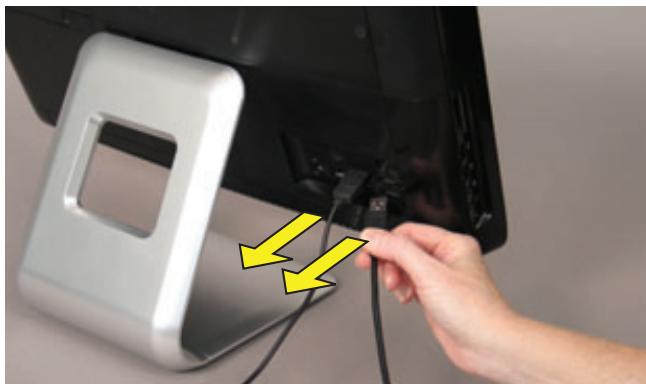

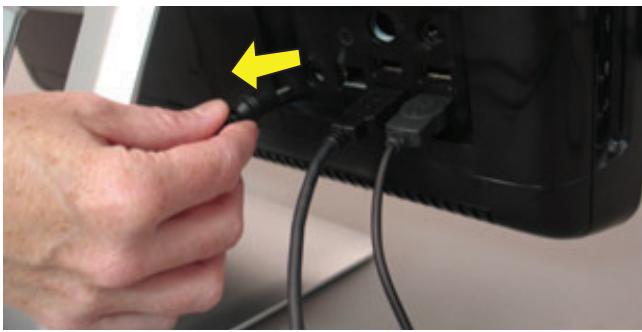

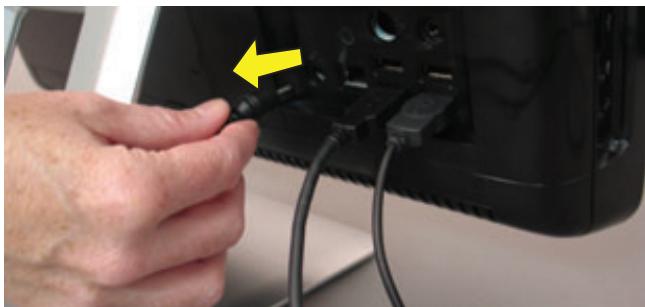

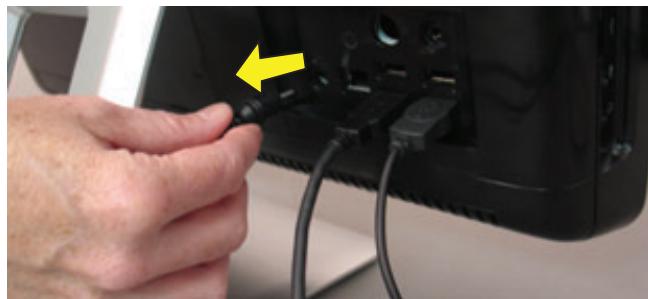

3 Unplug the computer by disconnecting the power cord from the back of the computer.

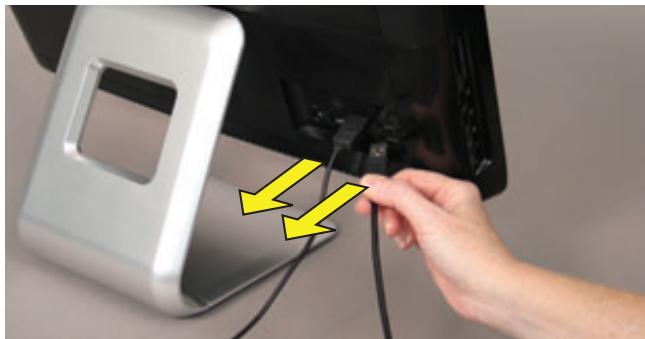

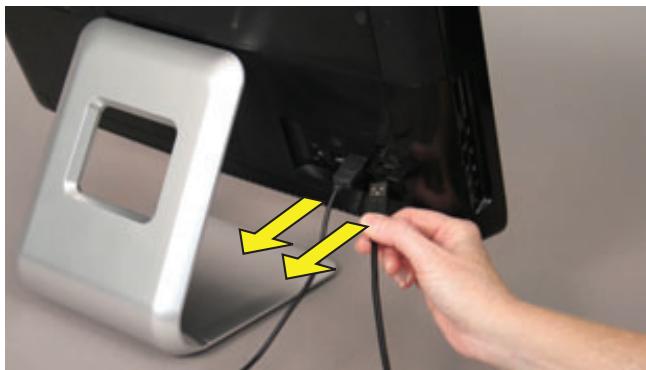

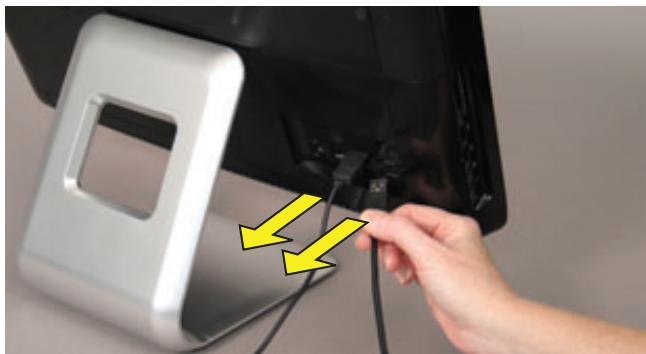

4 Unplug all attached cables from the back of the computer.

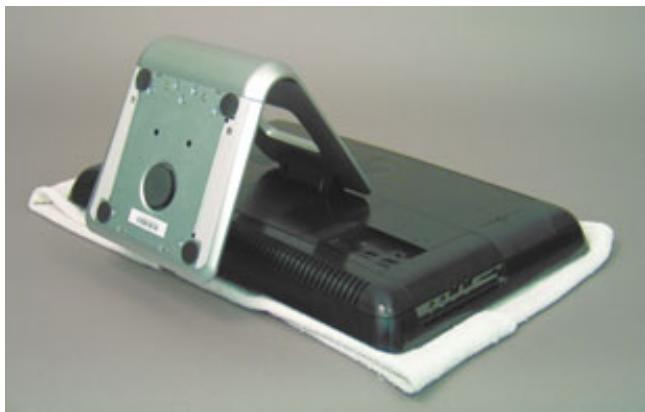

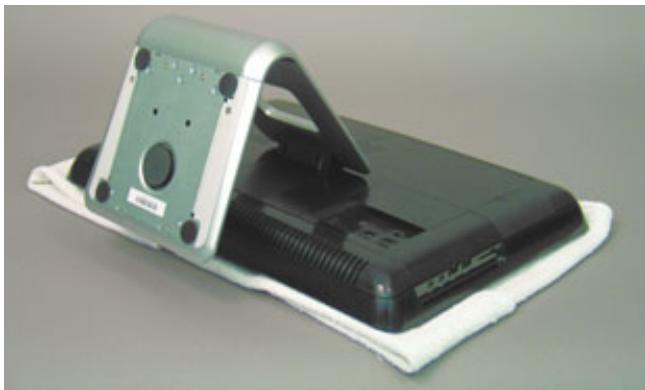

5 Set down a blanket, towel, or other soft cloth to protect the screen from scratches or other damage. Place the computer face-down on the soft surface.

Removing the Memory

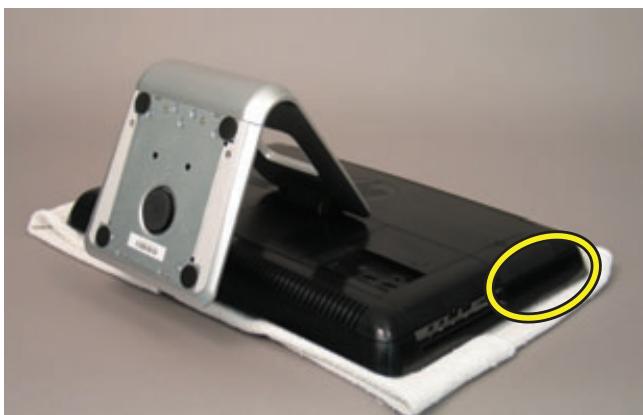

6 Locate the memory compartment in the upper right corner of the computer.

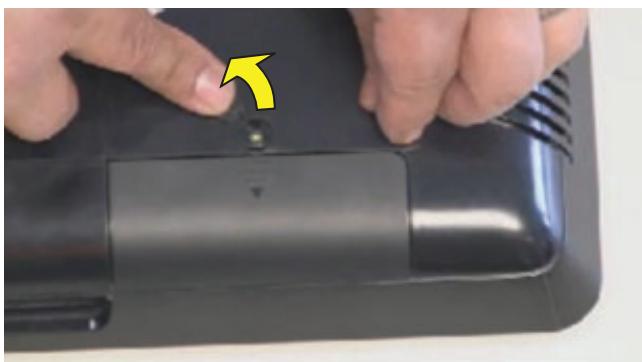

7 Use your finger to lift up the rubber cover over the screw.

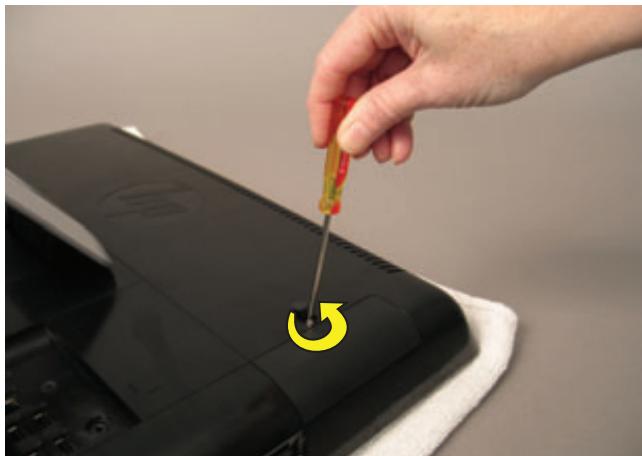

8 Use a Phillips screwdriver to remove the screw.

TIP: The screw is very small and can be lost easily. Use caution when you remove it. Work over a surface where you can retrieve a screw if it falls.

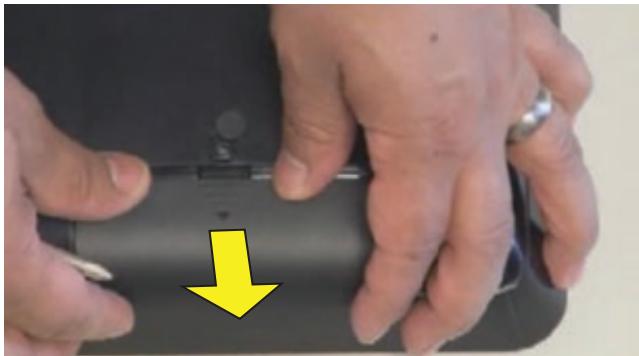

9 Slide the memory compartment cover off.

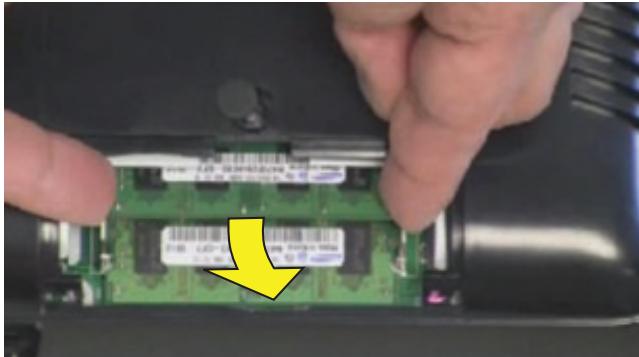

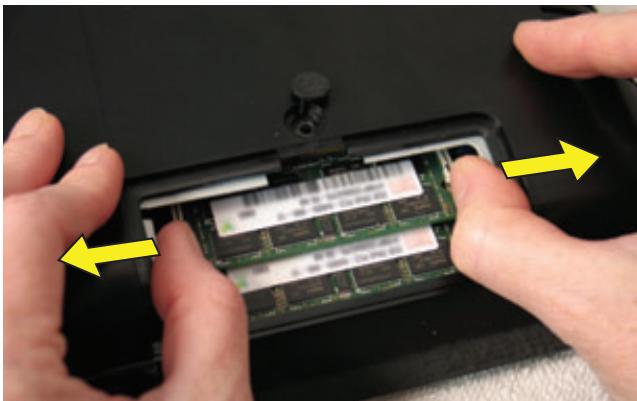

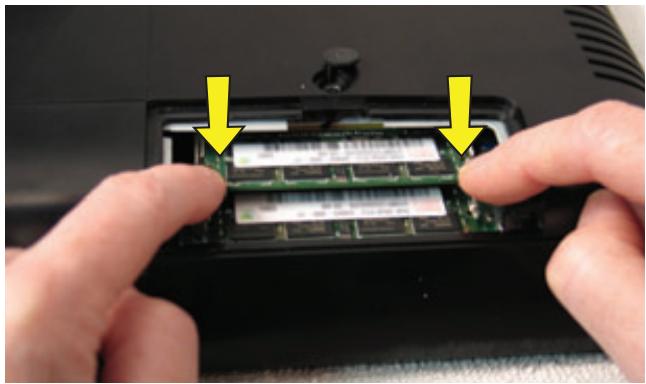

10 Use your fingers to press outwards on the tabs on the left and right sides of the top memory card to release it.

11 Holding the card by its edges, remove it from the compartment.

TIP: If you are removing both cards, you must remove the upper one before removing the lower one.

TASK COMPLETED

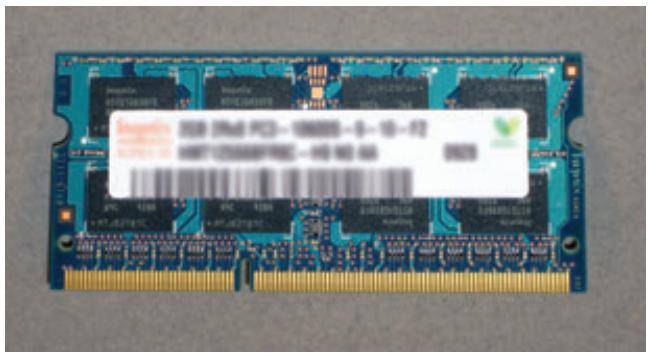

Installing a New Memory Card

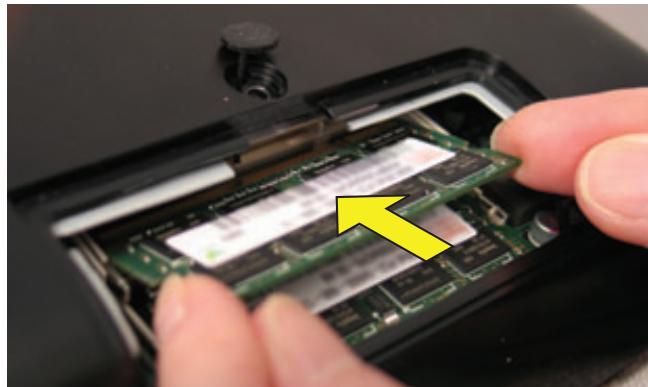

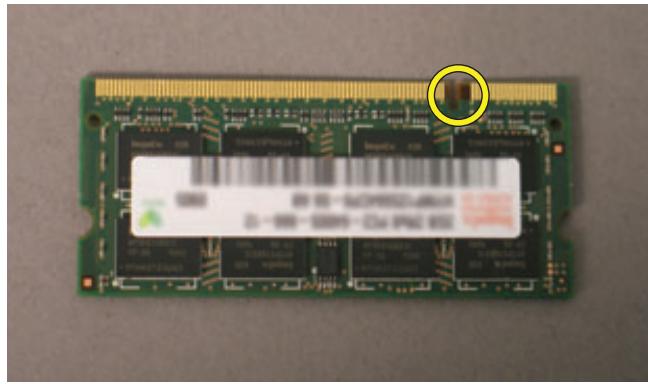

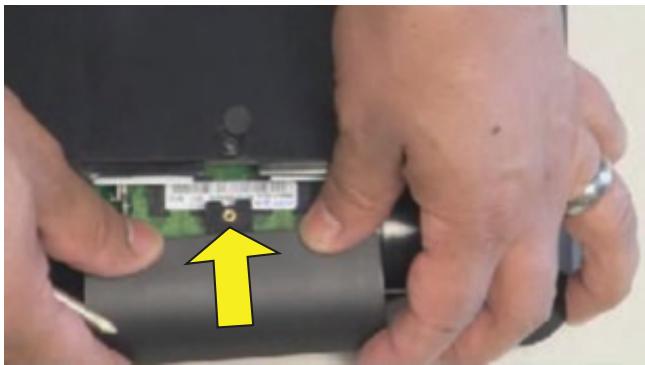

1 Orient the new card so that the notch on the edge of the card faces forward and is on the right.

2 Holding the card by its edges, slide it all the way into the slot, and then gently push downward on it to snap it into place.

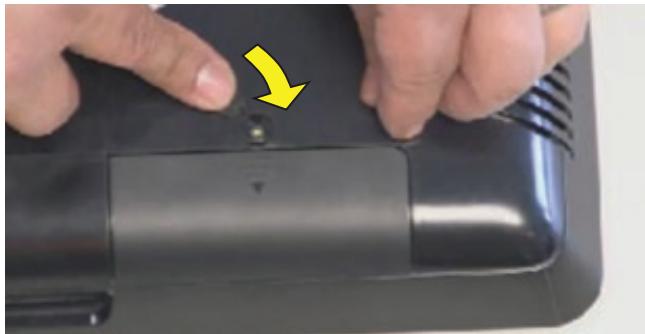

3 Slide the memory compartment cover into place.

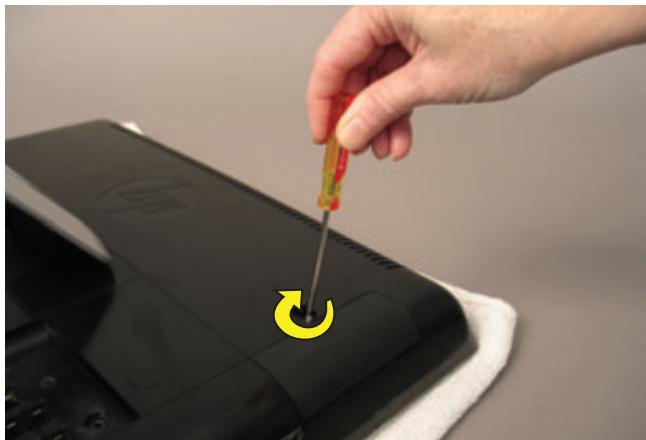

4 Replace the memory cover screw.

5 Replace the rubber screw cover.

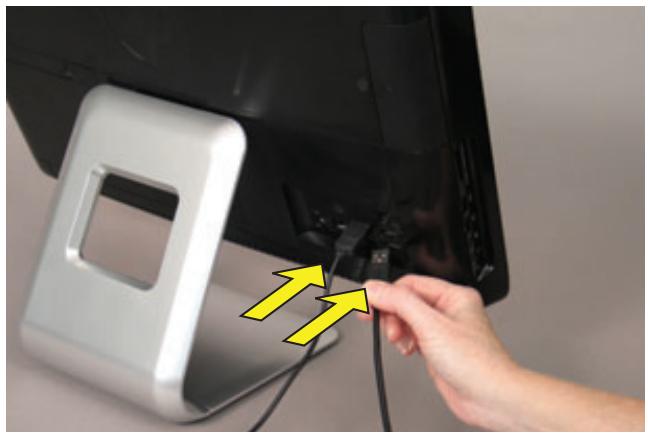

6 Reconnect any cables that were disconnected for this procedure.

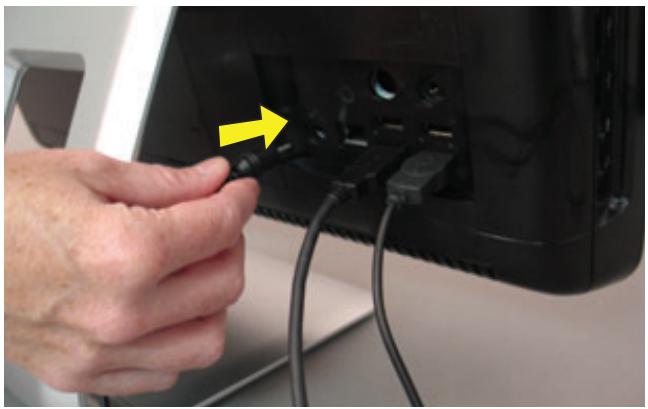

7 Plug the power cord into the back of the computer and then into the power source.

8 Return the computer to the upright position and turn on the computer.

Troubleshooting

If the computer displays a memory error after you have turned it back on, check the following:

• Turn the computer off and unplug the power cord, then open up the memory compartment and make sure the memory card is firmly seated. To install it correctly, make sure it inserted all the way into the compartment and then push down on it to snap it into place.
• Verify that the memory installed is compatible with this computer. SO-DIMMs are small outline dual inline memory modules. They are smaller and thinner than most other DIMMs, so that they take less space in the case.

SO-DIMM modules must meet the following requirements:

200-pin DDR2-DIMM
PC2-4200 (533 MHz) DDR2-SDRAM or PC2-5300 (667 MHz) DDR2-SDRAM
- Unbuffered, non-ECC (64-bit) DIMMs
1.8 V memory only
4.0 GB maximum installable memory. Actual available memory that can be used in Windows will be less.
- Because the memory uses dual channels, you should use the same DIMM type for both sockets.

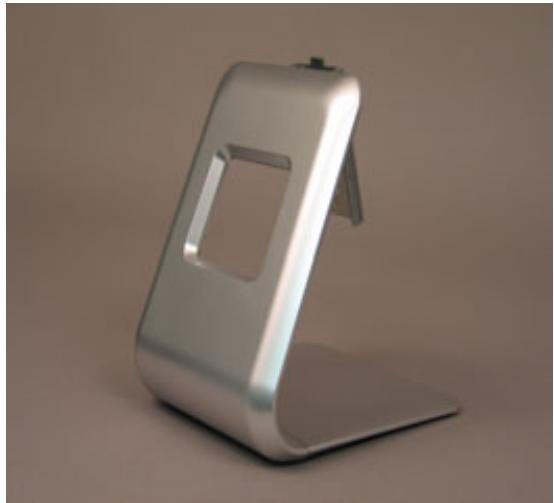

Removing and Replacing the Computer Stand

Removing and Replacing the Computer Stand

5-10 minutes

Before You Begin

Observe the following requirements before removing and replacing the computer stand.

Tools Needed

• Phillips screwdriver
• Flathead screwdriver

CAUTION: Static electricity can damage the electronic components inside the computer. Discharge static electricity by touching the metal cage of the computer before touching any internal parts or electronic components.

WARNING:

• Never open the cover with the power cord attached or power applied. You may damage your computer.
• Avoid touching sharp edges inside the computer.

Computer Preparation

1 Remove any media (CD, DVD, and memory cards) from the computer.
2 Shut down the computer.

3 Unplug the computer by disconnecting the power cord from the back of the computer.

4 Unplug all attached cables from the back of the computer.

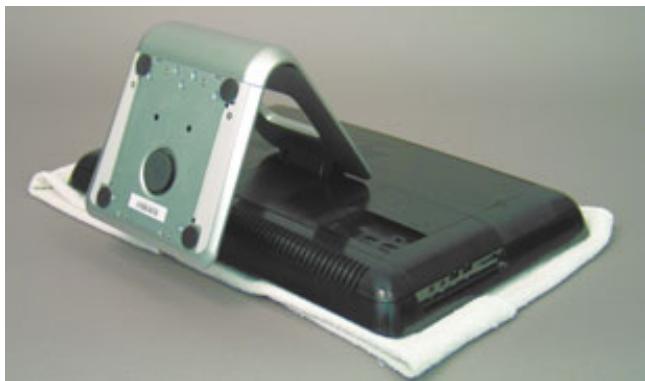

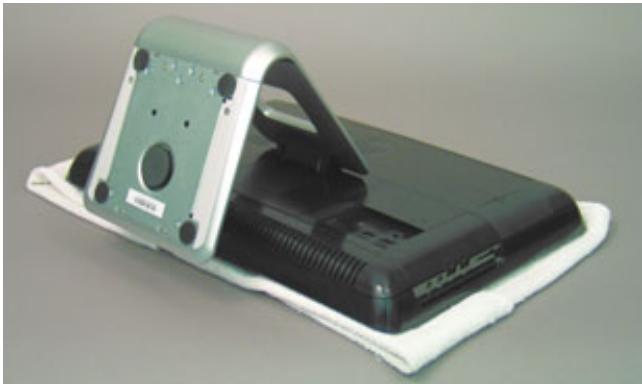

5 Set down a blanket, towel, or other soft cloth to protect the screen from scratches or other damage. Place the computer face-down on the soft surface.

Removing the Stand

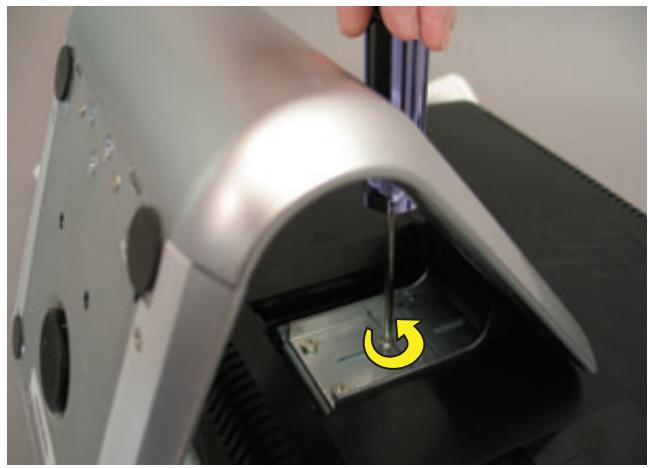

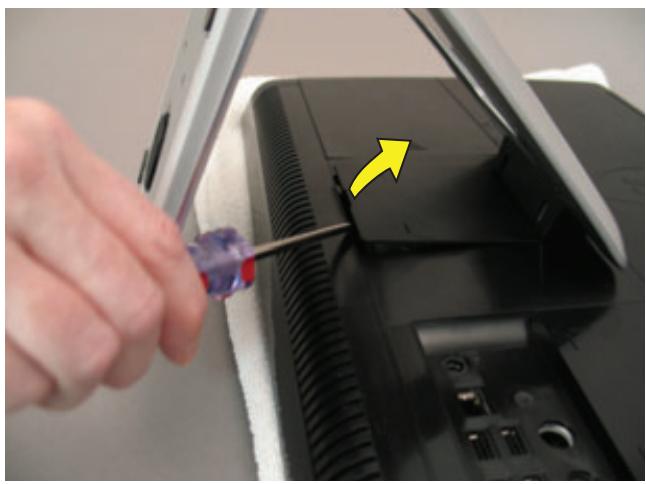

6 Use a flathead screwdriver to open the cover on the back of the computer behind the stand.

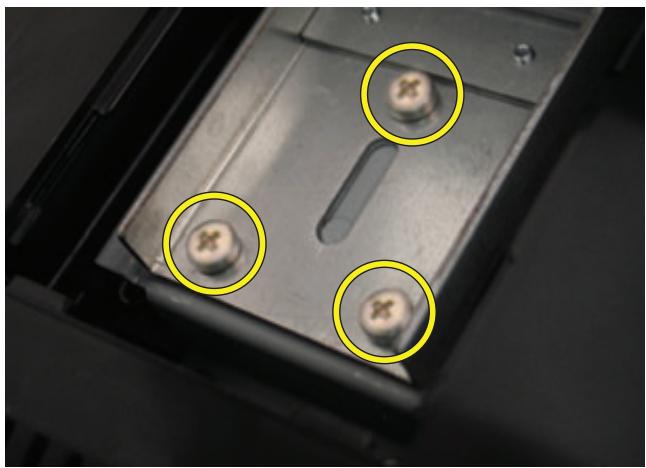

7 Use a Phillips screwdriver to remove the three screws holding the stand.

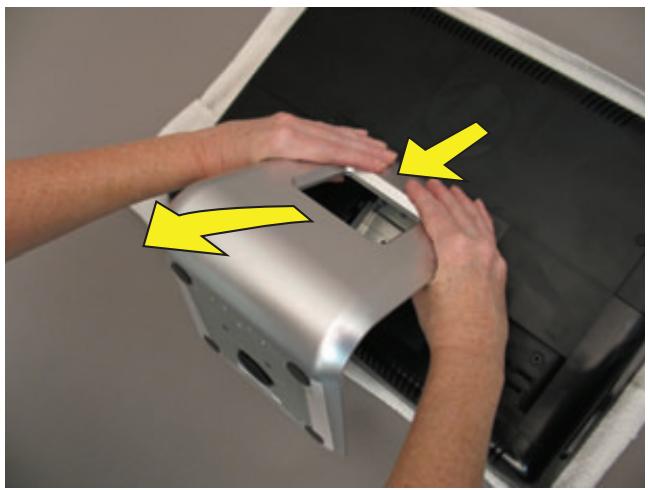

8 Slide the stand assembly down (toward you) and out to remove it.

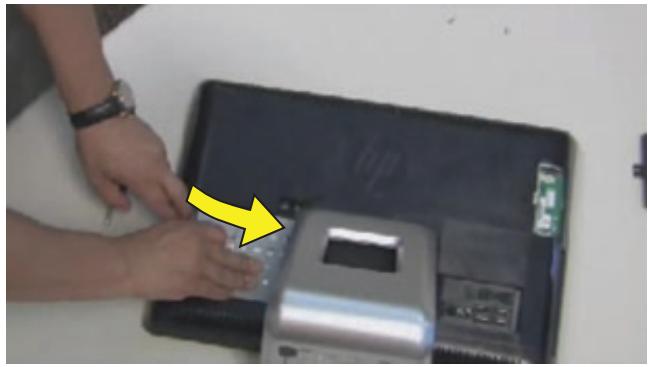

Installing a New Stand

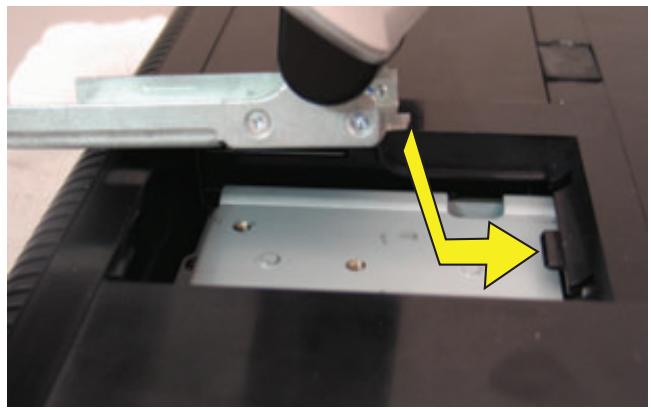

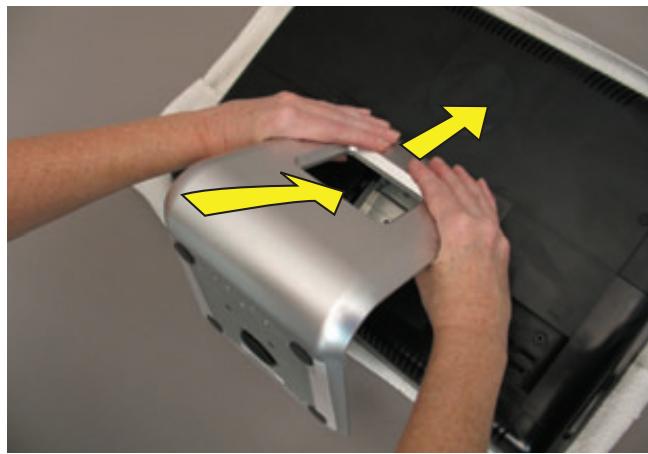

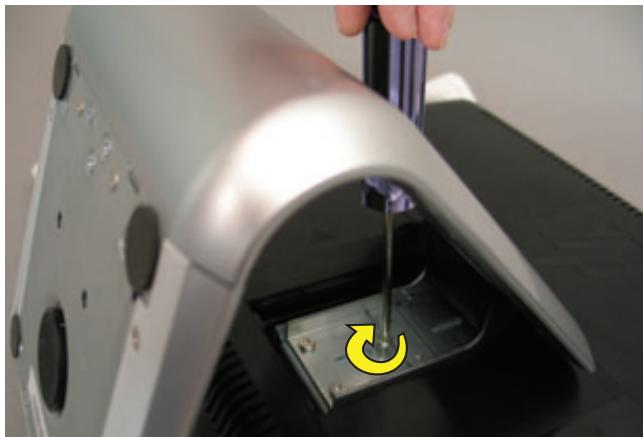

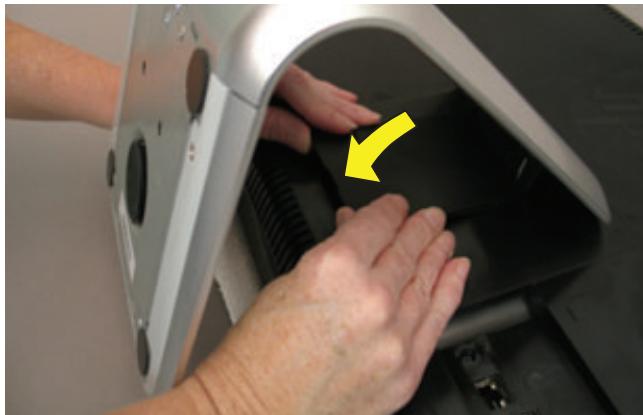

1 Position the new stand so that the tab on the top of the stand slides under the tab on the back of the computer.

2 Slide the new stand into place.

3 Replace and tighten the three screws.

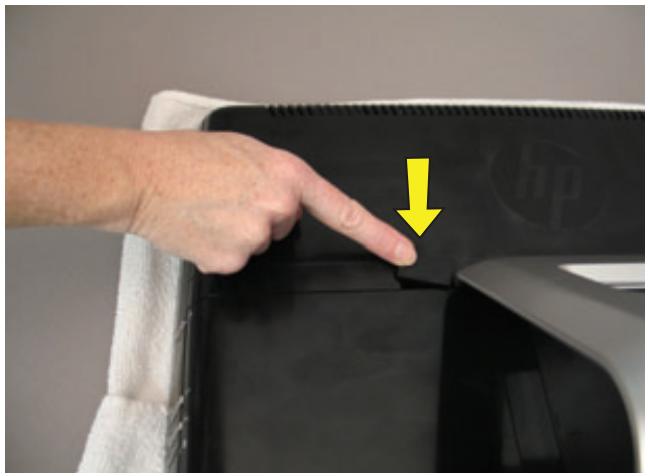

4 Replace the cover behind the stand and snap it closed.

5 Reconnect any cables that were disconnected for this procedure.

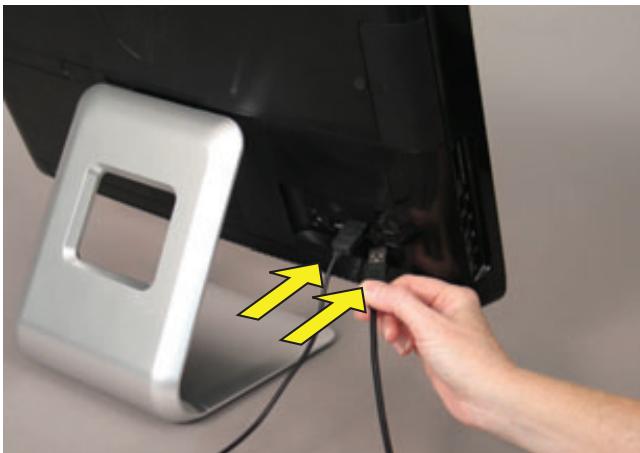

6 Plug the power cord into the back of the computer and then into the power source.

7 Return the computer to the upright position and turn on the computer.

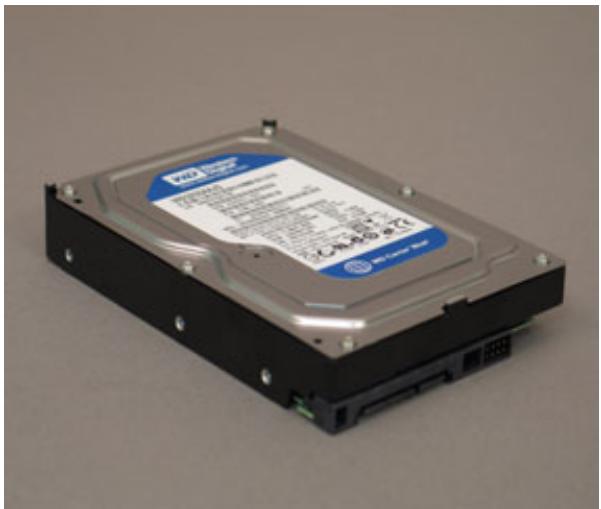

Removing and Replacing a Hard Disk Drive

Removing and Replacing a Hard Disk Drive

10 - 15 minutes

Before You Begin

Observe the following requirements before removing and replacing the hard disk drive.

Tools Needed

Phillips screwdriver #0 (very small tip)
- Phillips screwdriver - medium-sized tip

CAUTION: Static electricity can damage the electronic components inside the computer. Discharge static electricity by touching the metal cage of the computer before touching any internal parts or electronic components.

WARNING:

• Never open the cover with the power cord attached or power applied. You may damage your computer.
• Avoid touching sharp edges inside the computer.

Computer Preparation

1 Remove any media (CD, DVD, and memory cards) from the computer.
2 Shut down the computer.

3 Unplug the computer by disconnecting the power cord from the back of the computer.

4 Unplug all attached cables from the back of the computer.

5 Set down a blanket, towel, or other soft cloth to protect the screen from scratches or other damage. Place the computer face-down on the soft surface.

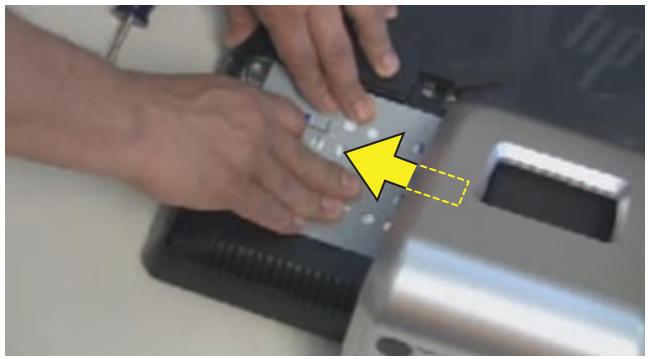

Removing the Hard Disk Drive

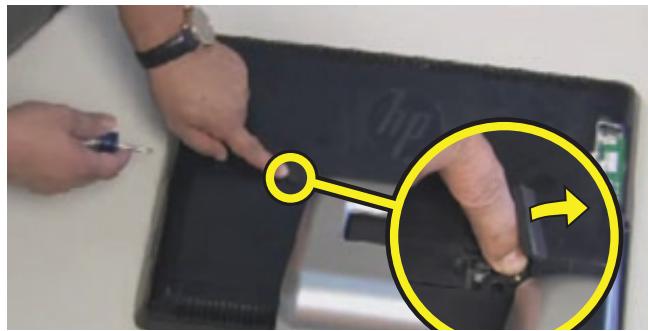

6 Use your finger to lift up the rubber screw cover.

7 Use a Phillips screwdriver to remove the hard disk drive cover screw.

TIP: The screw is very small and can be lost easily. Use caution when you remove it. Work over a surface where you can retrieve a screw if it falls.

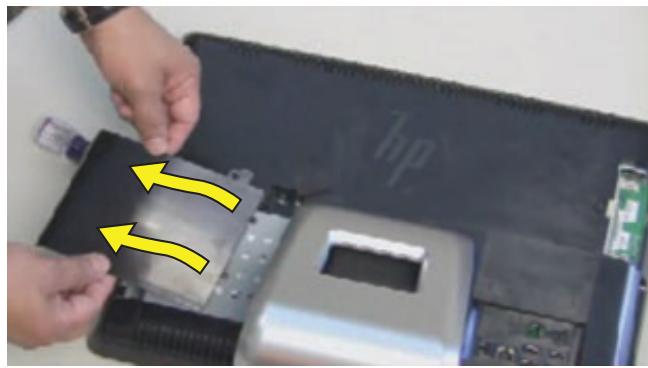

8 Slide the hard disk drive cover off.

TIP: If you have trouble removing the hard disk drive cover, you can insert a screwdriver into the screw hole and use that to lever the cover off.

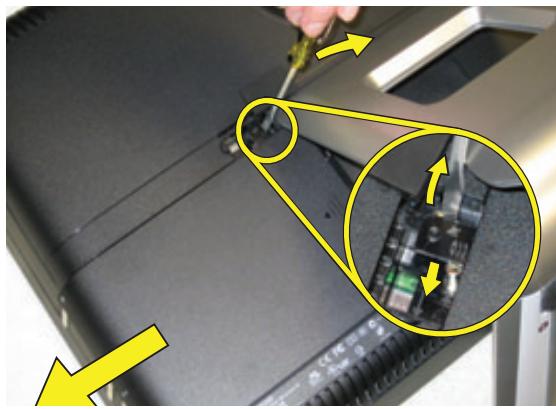

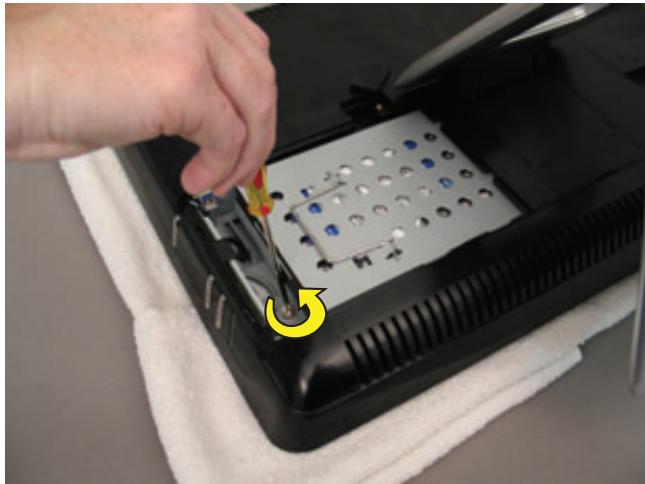

9 Loosen the screw at the front of the hard disk drive cage.

NOTE: You do not need to remove this screw, only loosen it in order to release the hard disk drive cage.

10 Lift up the metal handle on the hard disk drive cage and pull it firmly toward you to remove the hard disk drive cage from its bay.

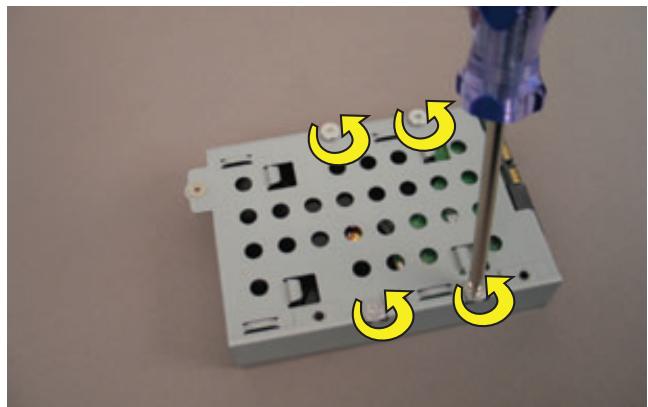

11 Turn the cage over and use the larger Phillips screwdriver to remove the four screws that hold the drive in the cage and remove the drive from the cage.

Installing a New Hard Disk Drive

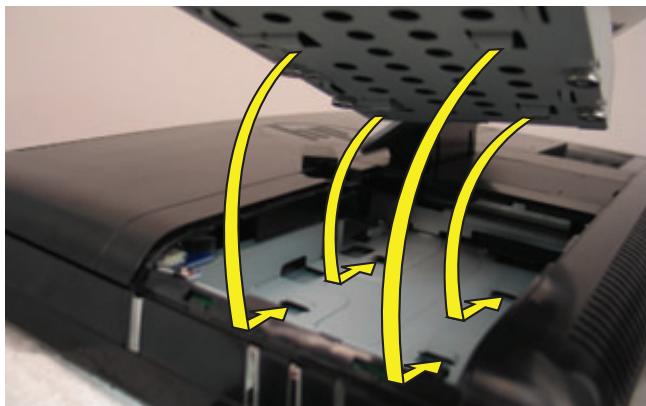

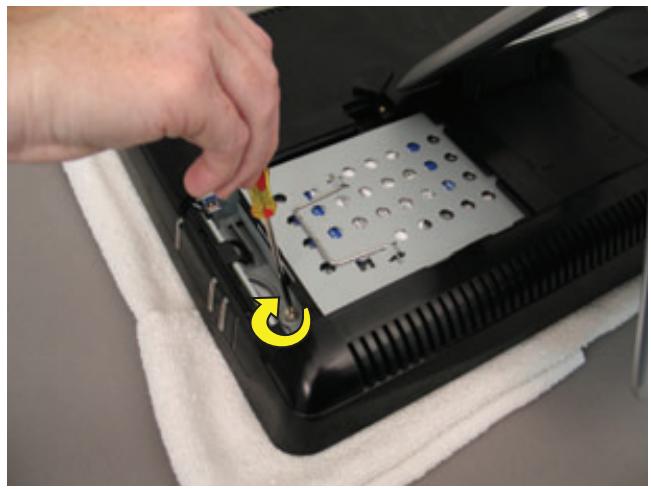

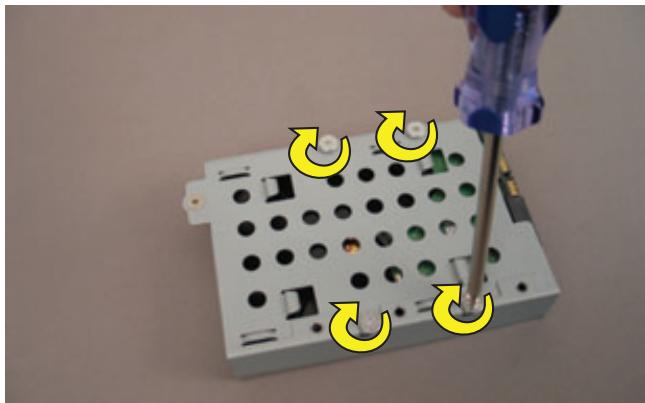

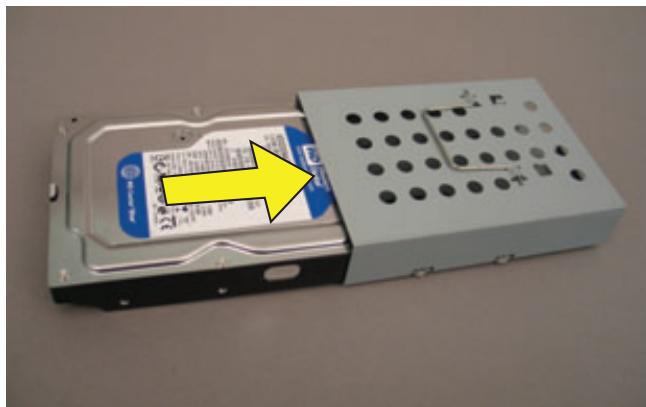

1 Insert the new hard disk drive into the cage and tighten the four screws on the bottom of the cage that hold it in. Make sure that the hard drive is inserted with the label facing up.

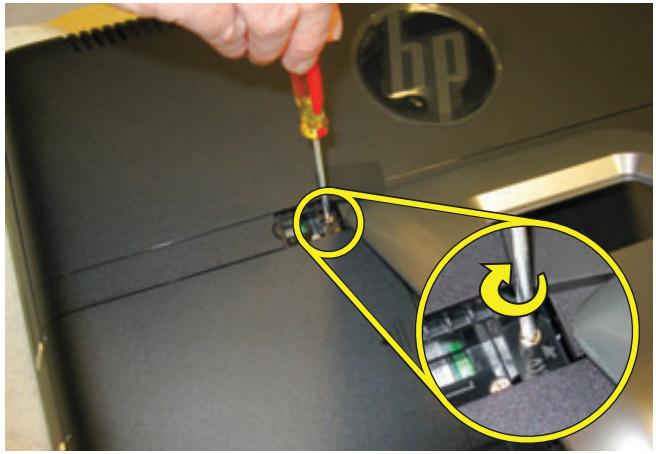

2 Holding it by the metal handle, slide the new hard disk drive all the way in to the hard disk drive bay, making sure that the slots on the bottom of the cage line up with the tabs on the bottom of the hard drive bay.

3 Tighten the captive screw on the hard disk drive cage.

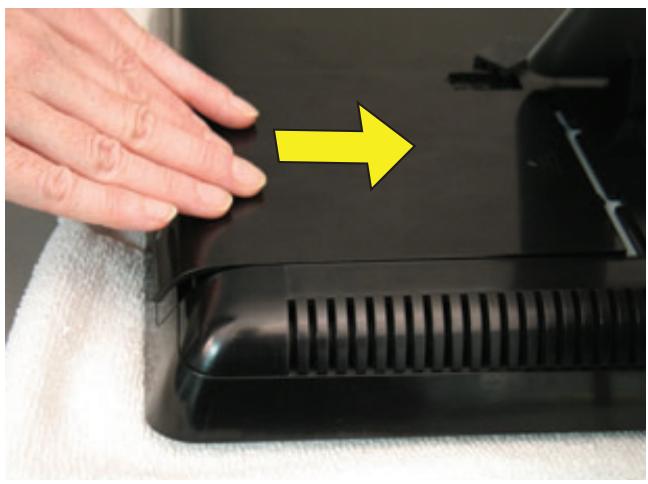

4 Slide the hard disk cover into place.

5 Replace the hard drive cover screw.

6 Replace the rubber screw cover.

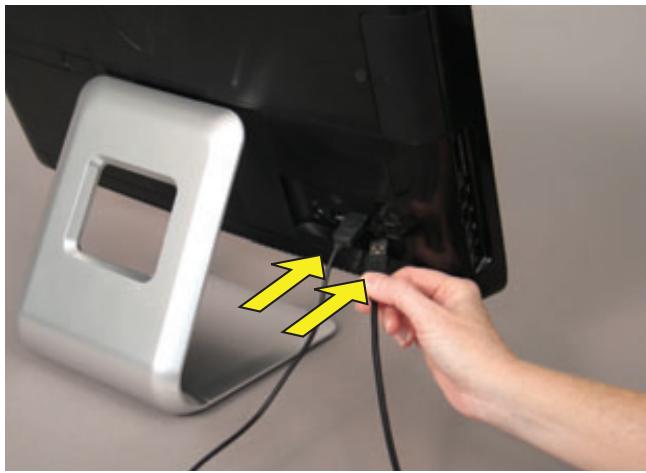

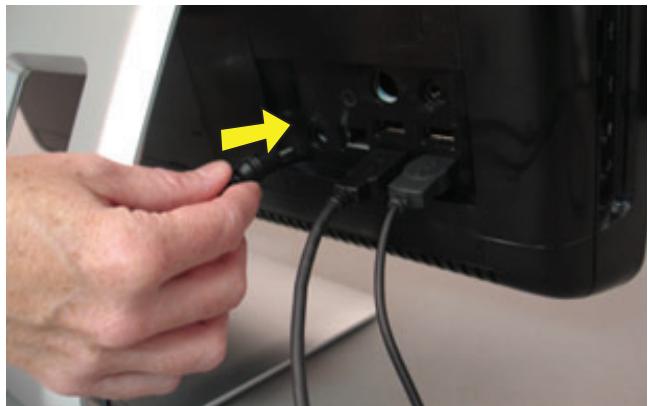

7 Reconnect any cables that were disconnected for this procedure.

8 Plug the power cord into the back of the computer and then into the power source.

9 Return the computer to the upright position and turn on the computer.

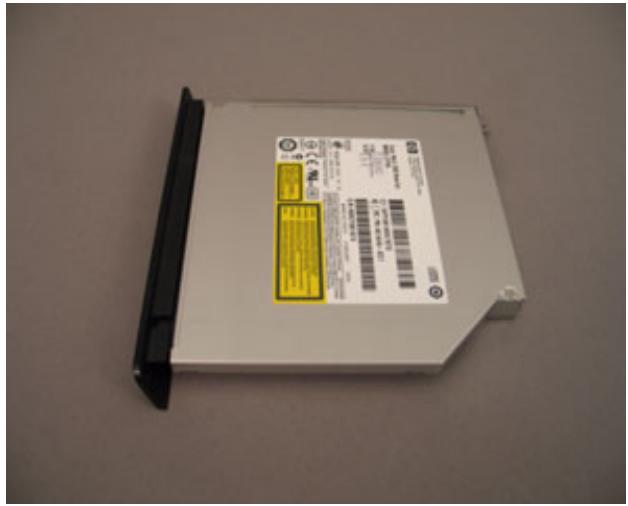

Removing and Replacing a CD/DVD Drive

Removing and Replacing a CD/DVD Drive

10 - 15 minutes

Before You Begin

Observe the following requirements before removing and replacing the CD/DVD drive.

Tools Needed

Phillips screwdriver #0 (very small tip)
- Flathead screwdriver

CAUTION: Static electricity can damage the electronic components inside the computer. Discharge static electricity by touching the metal cage of the computer before touching any internal parts or electronic components.

WARNING:

• Never open the cover with the power cord attached or power applied. You may damage your computer.
• Avoid touching sharp edges inside the computer.

Computer Preparation

1 Remove any media (CD, DVD, and memory cards) from the computer.
2 Shut down the computer.

3 Unplug the computer by disconnecting the power from the back of the computer.

4 Unplug all attached cables from the back of the computer.

5 Set down a blanket, towel, or other soft cloth to protect the screen from scratches or other damage. Place the computer face-down on the soft surface.

Removing the CD/DVD Drive

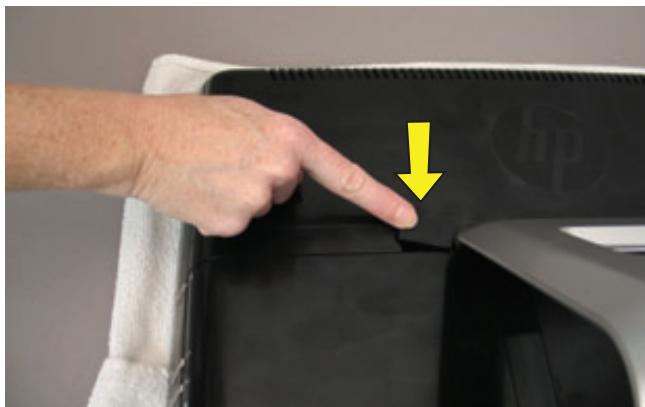

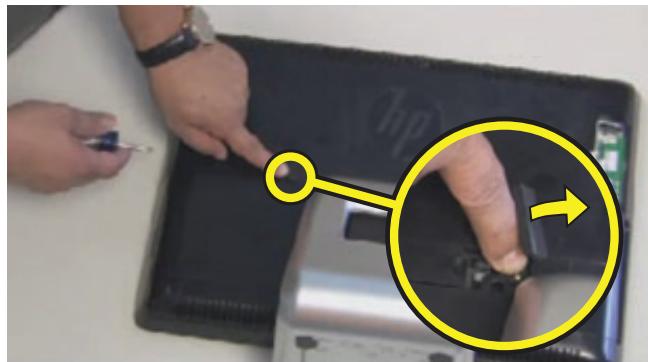

6 Use your finger to lift up the screw cover and move it out of the way.

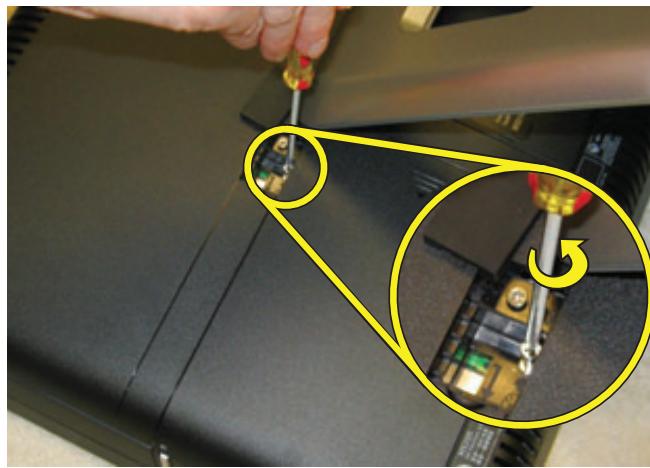

7 Use a Phillips screwdriver to remove the CD/DVD drive screw.

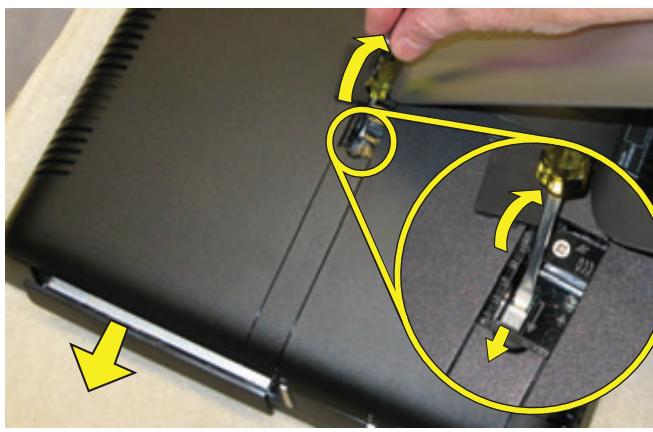

8 Insert a small flathead screwdriver gently into the notch and use a levering motion to disengage the CD/DVD drive assembly.

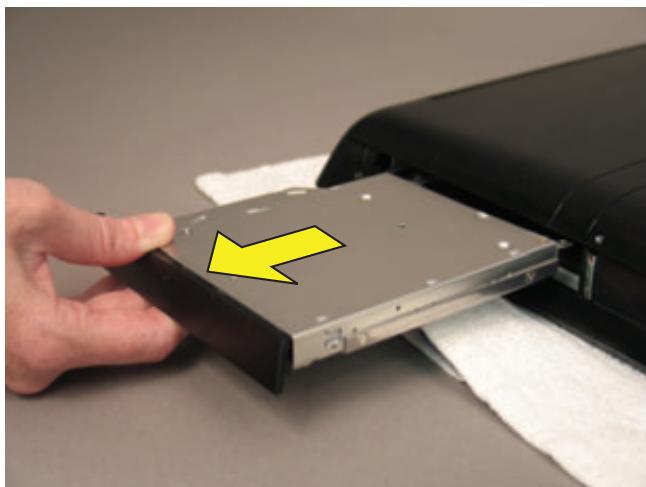

9 Pull the CD/DVD drive assembly out of the computer.

Installing a New CD/DVD Drive

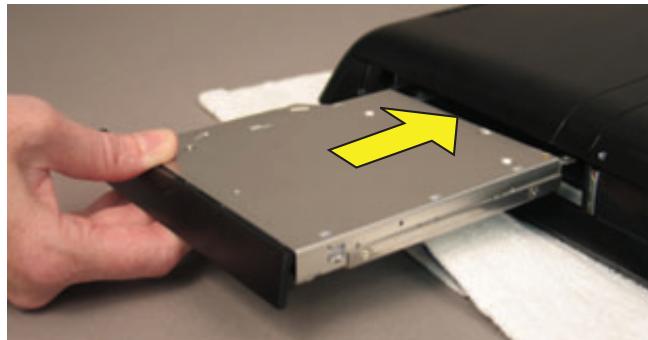

1 Orient the new CD/DVD drive so that the label is on the bottom and the angle of the bezel on the CD/DVD drive matches the angle of the side of the computer.

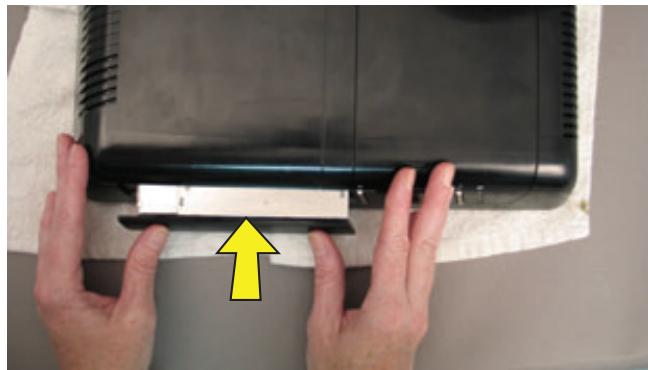

2 Slide the CD/DVD drive assembly all the way into the computer until the bezel is flush with the side of the computer and the drive locks into place.

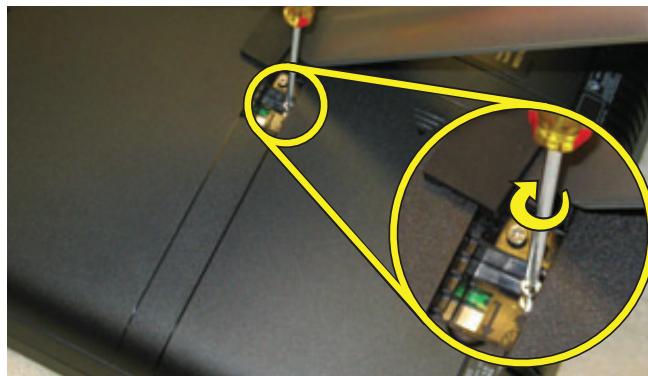

3 Using a Phillips screwdriver, replace and tighten the CD/DVD drive screw.

4 Replace the rubber screw cover.

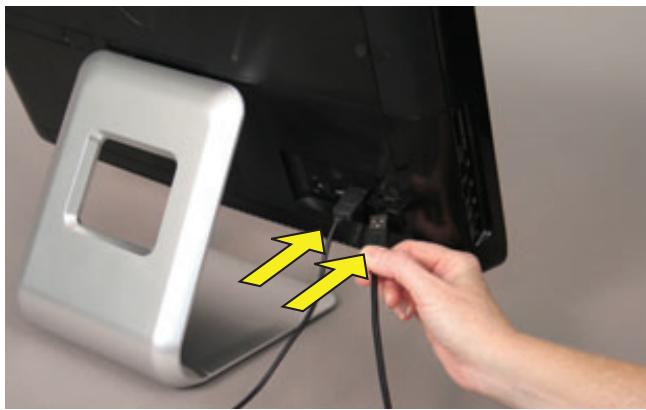

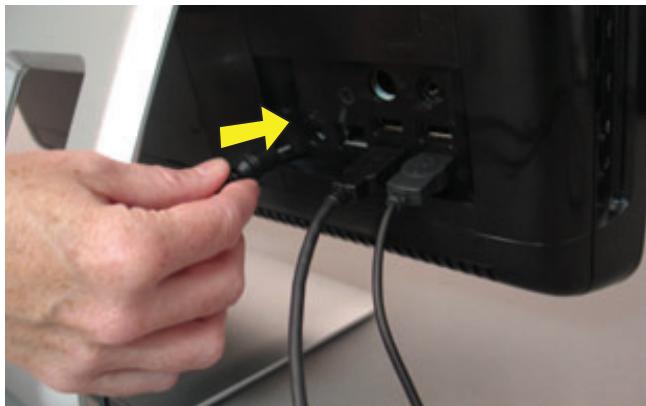

5 Reconnect any cables that were disconnected for this procedure.

6 Plug the power cord into the back of the computer and then into the power source.

7 Return the computer to the upright position and turn on the computer.
