ES2291D - Razor PANASONIC - Free user manual and instructions

Product Category	Ladies Shaver
Model	ES2291D
Brand	Panasonic
Power Source	2 x AAA alkaline batteries (DC 3V)
Weight	110 g (3.9 oz)
Wet/Dry Usage	Yes (can be used with lather or dry)
Water Resistance	Watertight (shower safe)
Trimmer	Pop-up trimmer for long hair
Shaving System	Outer foil and inner blade
Cleaning Method	Rinse under water or use included brush
Outer Foil Replacement	Every year
Inner Blade Replacement	Every two years
Battery Type	LR03 (AAA) alkaline only (not rechargeable)
Safety Feature	Do not use if foil or blade is damaged
Accessories Included	Cleaning brush
Intended Use	Household use only
Manual Languages	English, Spanish
Customer Support (USA)	1-800-338-0552

Frequently Asked Questions - ES2291D PANASONIC

What type of batteries does the Panasonic ES2291D shaver use?

The ES2291D uses two LR03 (AAA) alkaline dry-cell batteries. Do not use rechargeable batteries or mix old and new batteries.

Can I use this shaver in the shower?

Yes, the shaver is watertight and can be used in the shower for wet shaving. It is also safe to rinse under running water.

How do I clean the shaver?

Switch off the shaver, remove the foil frame by pressing the release buttons, and rinse it under tap water. You can also clean the inner blade with the included brush. Reassemble after drying.

How often should I replace the outer foil and inner blade?

Replace the outer foil once every year and the inner blade once every two years for optimal performance.

Why has my shaver slowed down?

A decrease in speed indicates that the batteries are weak. Replace them with new AAA alkaline batteries. Do not use rechargeable batteries.

Can I use the shaver with shaving foam or gel?

Yes, the shaver is designed for wet lather shaving. Using warm water and shaving lather can provide a closer and smoother shave.

How do I use the pop-up trimmer?

Slide the pop-up trimmer switch to raise the trimmer. Use it to cut longer hairs. Gently hold the shaver and move slowly.

What should I do if the shaver is not working properly?

Check the batteries first. If the problem persists, do not disassemble the shaver. Contact the place of purchase or an authorized Panasonic service center.

Is it safe to use the shaver if the foil is damaged?

No, do not use the shaver with a damaged foil or inner blade, as it may cause injury. Replace damaged parts immediately.

Where can I purchase replacement parts or accessories?

In the USA, call Panasonic's toll-free accessory hotline at 1-800-338-0552. Use only accessories provided with the shaver to ensure proper fit and safety.

USER MANUAL ES2291D PANASONIC

Operating Instructions

Manual de operación

(Household) Ladies Shaver

Line drawing of a handheld device with a separate open lid and internal structure (no text or symbols)

English 2, 3-5

Español 2, 6-9

Before operating this unit, please read these instructions completely and save them for future use.

Diagram of a handheld device with two batteries and an open mouse, showing internal components and directional arrows (no text or symbols)

Illustration showing a hand pressing down on a cylindrical component with an upward arrow, and a close-up of the component (no text or symbols)

▶ Before use

This Ladies Wet/Dry Shaver can be used for wet shaving with shaving lather or for dry shaving. You can use this watertight shaver in the shower and clean it in water. Our research has shown that you can enjoy closer and smoother shaves using warm water and shaving lather. Treat yourself to wet lather shaves for at least three weeks and notice the difference. And our popup trimmer will be able to cut longer hairs with ease. Cleaning is so simple. Just rinse out the shaving head under the tap or shower.

▶ Safety precautions

• Do not leave the shaver in places where it will be exposed to high temperature or direct contact with sunlight.
• Do not leave the shaver in direct sunlight to dry with the outer foil removed.
• The outer foil is very thin. If handled improperly, it can be easily damaged. To avoid personal injury, do not use the shaver if it has a damaged foil or inner blade.
• Wash the shaver with tap water. Do not use salt water or boiling water. Do not submerge the shaver in the water for a long time.
• Do not wipe any part of the shaver with thinner, benzine or alcohol. Clean it by using a cloth dampened with soapy water.
• Do not take the housing apart as this can affect the watertight construction.
• If the shaver is not used for a long time, remove the batteries to prevent possible leakage.
• If the shaver is not working properly, have it inspected at the place of purchase or an authorized service center.
  • Always use your shaver for its intended use, as described in this manual.
• Never alter the appliance. Also, do not disassemble or repair it.

Replacing batteries (Fig. 1)

When the blade speed decreases, this indicates that the batteries should be replaced with new ones.

• Before replacing the batteries, wipe the shaver free of moisture to prevent the inside from getting wet.
• Do not use this shaver with weak batteries.
• Remove the batteries when not using the shaver for a long time.
• Do not use rechargeable batteries.
• Always follow the cautions printed on the batteries.

• Check the polarities of the batteries and install them correctly.

• Do not disassemble batteries or throw them into a fire. Do not short-circuit batteries.

• Do not mix old and new batteries.

1 Make sure the switch is in the off position, then remove the battery cover.
② Insert two AAA alkaline batteries as illustrated.
3 Reattach the battery cover.

- Listen for the clicking sound assuring you the cover has been properly attached.

Using your shaver

① Slide the OFF/ON switch.
2 Hold the shaver blade flat against the skin. Hold the shaver blade so that it is gently in contact with the skin.

• Use the pop-up trimmer to cut long hairs.
• Gently hold the blade in contact with the skin and move slowly.

▶ Moving the shaver correctly (Fig. 2)

① Underarm: Lift the arm to stretch the skin and shave in various directions.
② Legs: Shave from ankles to knees.
③ Arms: Shave from outside to inside.

Washing your shaver (Fig. 3)

Switch off the shaver before cleaning.

1 Remove the frame while pressing both foil frame release buttons and wash in water.
2 Attach the frame and wipe off all water.
③ Dry the shaver, and then attach the cap.

▶ Cleaning with the brush

1. Remove the frame.
2. Remove the inner blade by pulling it straight out and clean with the brush.

Replacing the outer foil and the inner blade

outer foil once every year

inner blade once every two years

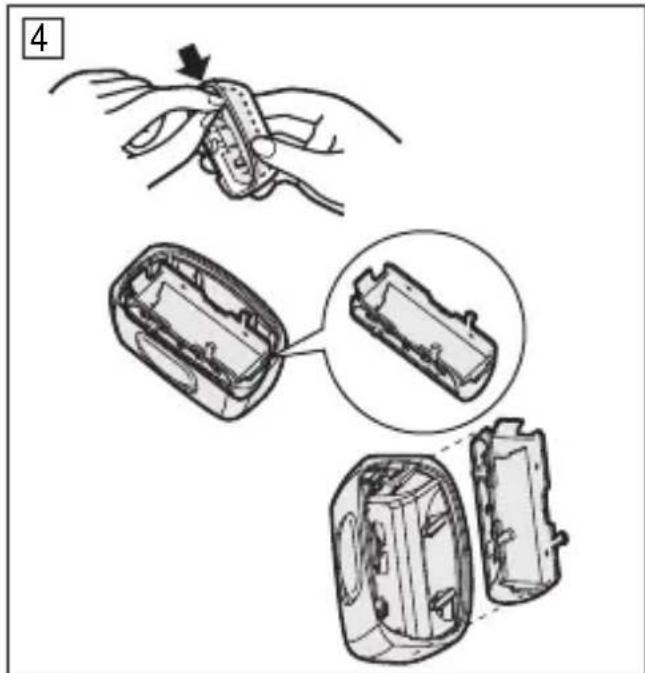

▶ Replacing the outer foil (Fig. 4)

1. Press the foil frame release buttons to remove the outer foil frame.
2. Squeeze the front and the back side of the foil frame and lift up one of the two knobs on the outer foil.
3. Slip the foil into the frame and guide the plastic edges onto the hooks in the foil frame until it clicks into place.

▶ Replacing the inner blade (Fig. 5)

1. Squeeze the foil frame release buttons and lift the outer foil frame upward to remove it.
2. Remove the inner blade by grasping it firmly at both ends and pulling straight away from the shaver.
3. To insert the new inner blade, hold the blade at both ends and press downward until it snaps into place.

Specifications

Batteries: Two LR03 (AAA) alkaline dry-cell batteries (DC3V) (Sold separately)

Weight: 110 g

This product is intended for household use only.

Parts identification (Fig. 6)

A Protection cap
B Outer foil frame

① Outer foil
② Pop-up trimmer
③ Pop-up trimmer switch

© Inner blade
D Main body

④ Foil frame release button
⑤ OFF/ON switch
⑥ Battery cover

▶ Accessory:

Cleaning brush

(Please do not use accessories any other than the accessories provided.)

FOR YOUR CONVENIENCE, WE HAVE ESTABLISHED A TOLL-FREE (IN USA ONLY) NATIONAL ACCESSORY PURCHASE HOT LINE AT 1-800-338-0552.
