MC-206 - Audio Receiver MCINTOSH - Free user manual and instructions
Find the device manual for free MC-206 MCINTOSH in PDF.
Pick your language and provide your email: we'll send you a specifically translated version.
| Product Type | Multi-Channel Audio Receiver |
| Number of Channels | 6 |
| Power Output per Channel | 100 Watts (20 Hz - 20 kHz, 8 ohms) |
| Total Harmonic Distortion | 0.005% |
| Frequency Response | 20 Hz - 20 kHz ±0.5 dB |
| Input Sensitivity | 2.5V |
| Signal-to-Noise Ratio | 95 dB (unweighted) |
| Dimensions (W x H x D) | 17.5 x 6 x 18 inches |
| Weight | 45 lbs (20.4 kg) |
| Power Requirements | 120V, 60 Hz, 250W |
| Inputs | 6 RCA stereo pairs, 1 optical, 1 coaxial |
| Outputs | 6 speaker terminals, 2 preamp outputs |
| Speaker Impedance | 4 to 8 ohms |
| Protection Features | Short circuit, thermal, and overcurrent protection |
| Cooling | Passive heat sink |

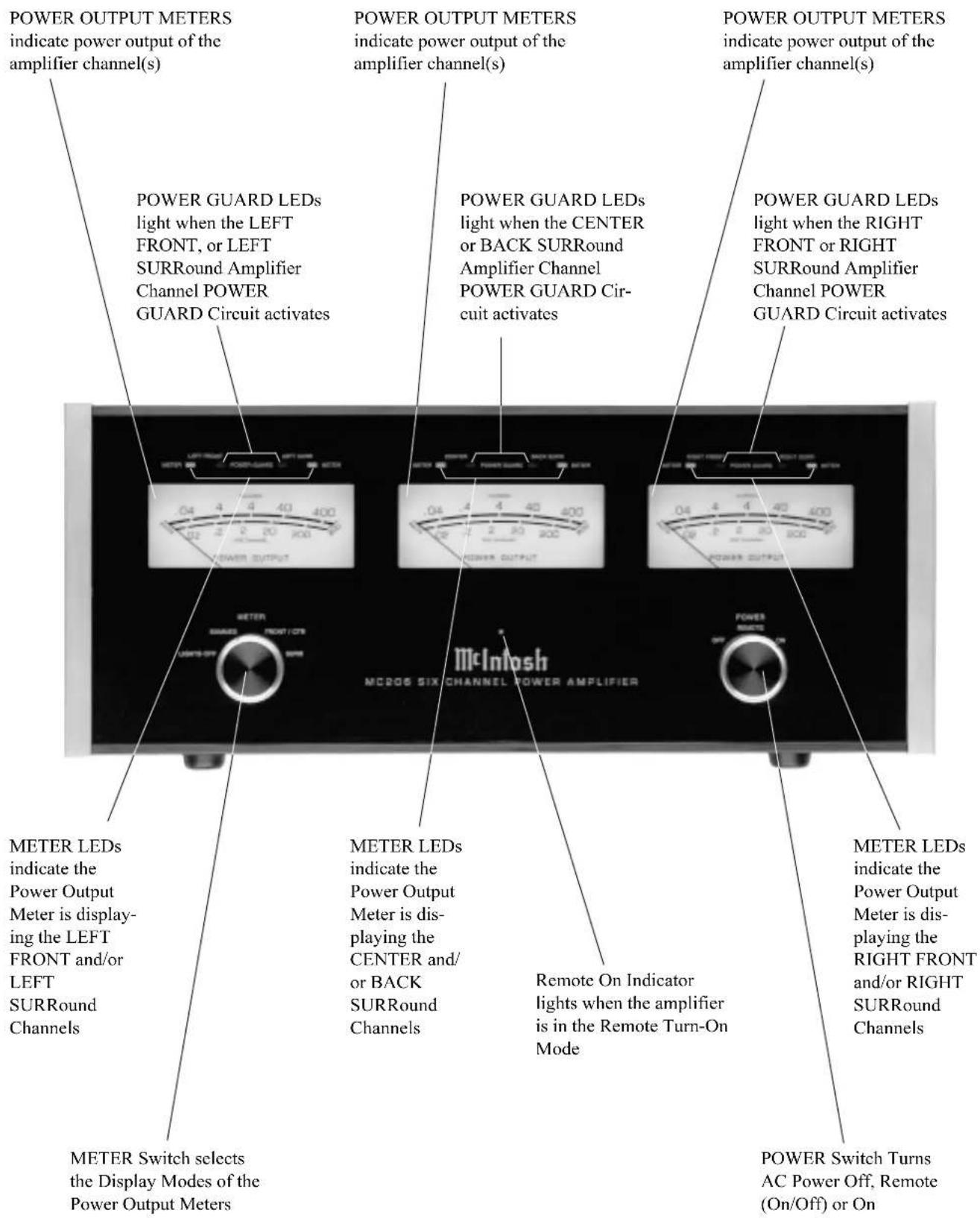

| Controls | Front panel volume, input selector, power button |
| Indicators | Power status, input selection LEDs |
| Chassis | Polished stainless steel and black glass |
| Accessories Included | Power cord, owner's manual |
| Cleaning Instructions | Wipe with a dry, soft cloth. Do not use liquid cleaners. |
| Safety Certifications | UL, CE |
| Spare Parts Availability | Contact authorized McIntosh service centers |
| Repair Service | Authorized McIntosh dealers or service centers |
Frequently Asked Questions - MC-206 MCINTOSH
What is the power output of the McIntosh MC-206?
The MC-206 delivers 100 watts per channel into 8 ohms (20 Hz - 20 kHz) with all channels driven.
How many channels does the MC-206 have?
It is a 6-channel audio receiver, ideal for surround sound systems (e.g., 5.1).
What input options are available on the MC-206?
It features 6 pairs of unbalanced RCA inputs, one optical digital input, and one coaxial digital input.

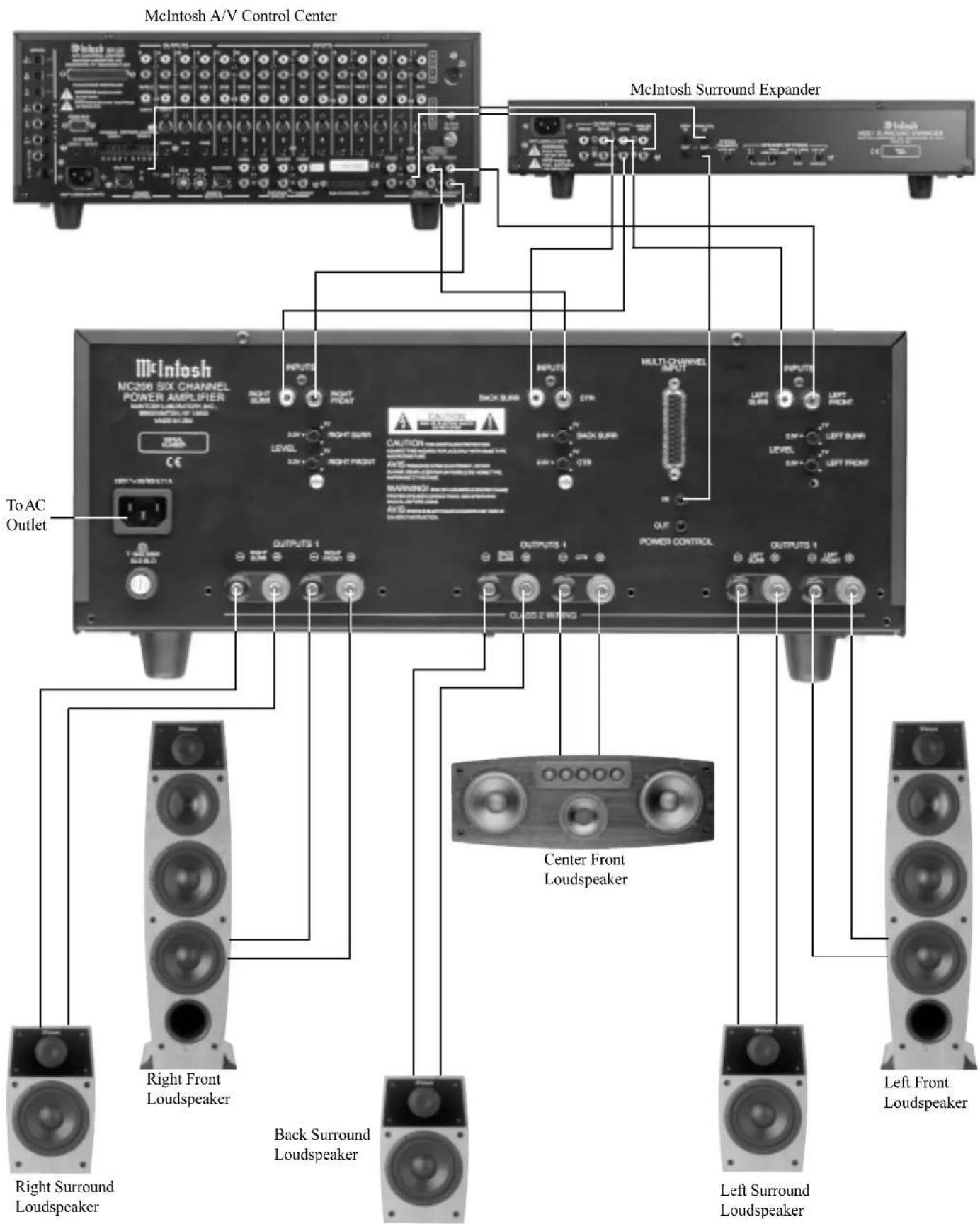

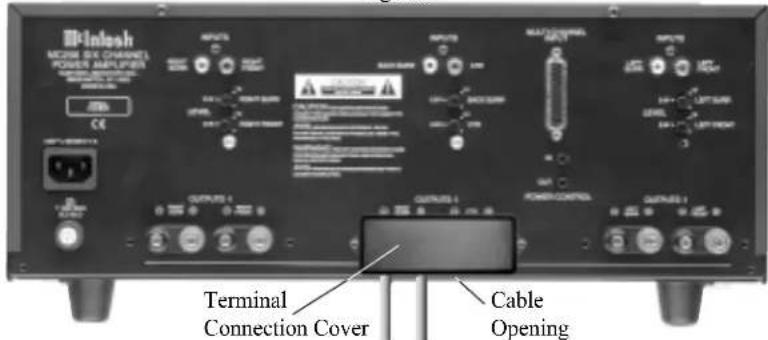

How do I connect speakers to the MC-206?
Use the gold-plated binding posts on the rear panel. Ensure proper polarity (+/-) and impedance between 4-8 ohms.
Does the MC-206 require a preamplifier?
It is a power amplifier, so you need a preamplifier or AV processor with volume control to drive it.
What is the weight and dimensions of the MC-206?
It measures 17.5 inches wide, 6 inches high, and 18 inches deep, and weighs about 45 lbs.
Is the MC-206 compatible with 4-ohm speakers?
Yes, it is rated for 4 to 8 ohm speakers. For 4-ohm loads, power output typically increases.
How do I clean the MC-206?
Use a dry, soft cloth to remove dust. Avoid liquid cleaners or abrasives to protect the glass and stainless steel.
What protection features does the MC-206 have?
It includes short circuit, thermal, and overcurrent protection. If a fault occurs, the unit may shut down automatically.
Where can I get spare parts or service for the MC-206?
Contact an authorized McIntosh service center or visit the official McIntosh website for a list of dealers.
