Futurus 12x50WA - Binoculars Yukon - Free user manual and instructions

Product Type	Binoculars
Brand	Yukon
Model	Futurus 12x50WA
Magnification	12x
Objective Lens Diameter	50 mm
Prism Type	Porro, BaK-4
Lens Coating	Multi-coated
Field of View (at 1000 m)	91 m
Apparent Field of View	62°
Exit Pupil	4.2 mm
Eye Relief	15 mm
Close Focus	5 m
Focus System	Center focus with diopter adjustment
Interpupillary Distance Adjustment	56-72 mm
Dimensions (L x W x H)	200 x 180 x 60 mm
Weight	850 g
Water Resistance	Splash resistant
Body Material	Rubber armored, plastic
Included Accessories	Neck strap, carrying case, lens caps, cleaning cloth
Suggested Use	Wildlife viewing, sports events, outdoor activities

Frequently Asked Questions - Futurus 12x50WA Yukon

How do I focus the Yukon Futurus 12x50WA binoculars?

First, adjust the interpupillary distance by moving the barrels until you see a single image. Then, close your right eye and use the center focus wheel to sharpen the image for your left eye. Finally, close your left eye and use the diopter ring (usually on the right eyepiece) to focus for your right eye. The binoculars are now set for your vision.

How do I clean the lenses?

Blow off any loose dust with a blower brush. Gently wipe the lenses with a soft, lint-free cloth (like microfiber) using circular motions. For stubborn dirt, use a lens cleaning solution. Avoid touching the lenses with fingers.

Are these binoculars waterproof?

The Futurus 12x50WA are splash resistant, meaning they can withstand light rain or water splashes, but they are not fully waterproof. Do not submerge them.

What is the warranty on Yukon binoculars?

Yukon typically offers a limited lifetime warranty against manufacturing defects. For specific details, check the included warranty card or contact Yukon customer support.

Can I use these binoculars with eyeglasses?

Yes, the eyecups are twist-up or fold-down. If you wear glasses, keep the eyecups down to get your eyes closer to the lenses and maintain the full field of view.

How do I adjust the interpupillary distance?

Hold the binoculars up to your eyes and gently move the two barrels closer together or farther apart until you see a single, circular image without any dark areas. The distance scale on the center hinge can help you remember your setting.

What does '12x50WA' mean?

12x refers to the magnification, so objects appear 12 times closer. 50 is the objective lens diameter in millimeters, allowing good light gathering. WA stands for Wide Angle, offering a broader field of view.

How should I store the binoculars?

Store them in a dry, cool place, preferably in the provided carrying case. Remove the batteries if applicable (none here). Keep lens caps on to protect from dust and moisture.

What is the close focus distance?

The close focus distance is approximately 5 meters. You can see objects clearly at this distance and beyond.

Can I tripod mount these binoculars?

The Futurus 12x50WA do not have a built-in tripod adapter thread. However, you may be able to use a universal binocular tripod adapter bracket that attaches to the center hinge.

USER MANUAL Futurus 12x50WA Yukon

These instructions will familiarize you with the Futurus prismatic binoculars.

This range of the Futurus binoculars has a wide field of view, long eye relief and zoom capability with smooth adjustment for magnification.

The Futurus binoculars will be your perfect companion for:

• studying wild life
• observing sporting events
• tourism and leisure purposes
• and security measures etc.

WARNING: Do not look at the sun through these binoculars. Do not disassemble.

OPERATION

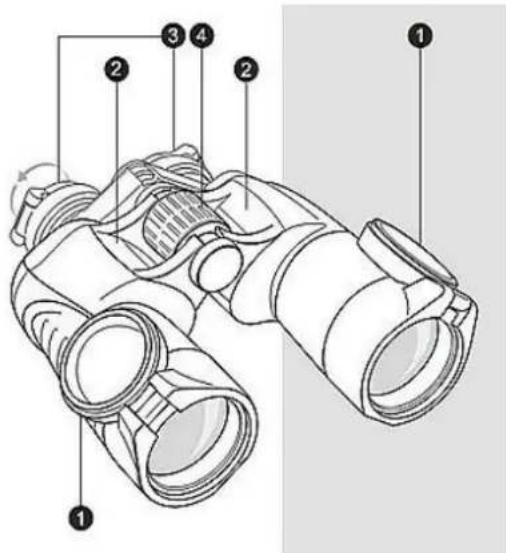

1. Open protective cups from objective lenses (1) and eyepieces (3).
2. Adjust binoculars for your eye span by bringing optical axes (2) closer or moving them further apart.
3. Set up your preferred dioptrical setting, focusing the left eye by turning the central focusing wheel (4) until the image is sharp. Adjust the right eye for the sharpest picture by rotating the right eyepiece (3). Dioptrical adjustment usually needs to be set up only once, and should not require readjustment.
4. To focus binoculars use the central focusing wheel.
5. Design of eyepiece cushions prevents light leakage from the sides. The eyepiece cushions can be rotated as well as can be taken off as required.

CARE AND MAINTENANCE

Clean the casing with a soft, clean cloth.

1. Use a blower to remove dust and lint.
2. To remove fingerprints and other stains, apply a small amount of lens cleaner to a soft cloth and clean with care.
3. Do not submerge the binoculars into water, they are water resistant but not waterproof

WARRANTY

The Manufacturer warrants its products against defects in materials and workmanship for a period of 3 years from the original date of a purchase. Any device returned for warranty service must be judged by the Manufacturer as having been used according to its original design intents. As such, misuse, neglect, or any abnormal use is not covered by this warranty. The Manufacturer will repair or replace products or parts thereof, which, upon inspection by the Manufacturer, are found to be defective in either materials or workmanship. As a condition of the Manufacturer's obligation regarding warranty work, the product must be returned to the Manufacturer with a satisfactory proof of a purchase. It is highly recommended that you fill out and return your warranty registration card to ensure the warranty coverage. This warranty is null and void if equipment has been altered, tampered with, modified, or otherwise abused, mishandled, or subjected to unauthorized repairs. The Manufacturer disclaims any other warranties, either expressed or implied, except as expressed herein. The sole obligation of The Manufacturer is to repair or replace the covered device.
