SC-CW-05E - Battery charger Scanstrut - Free user manual and instructions

Product Type	Battery Charger
Brand	Scanstrut
Model	SC-CW-05E
Input Voltage	100-240 V AC, 50/60 Hz
Output Voltage	12 V DC / 24 V DC (selectable)
Output Current	5 A
Charging Stages	Automatic multi-stage (bulk, absorption, float)
Battery Compatibility	Lead-acid, AGM, Gel, Lithium (LiFePO4)
Waterproof Rating	IP66 (dust-tight, protected against powerful water jets)
Protection Features	Reverse polarity, overcurrent, overvoltage, short circuit, over-temperature
Dimensions (W x H x D)	150 mm x 80 mm x 50 mm
Weight	0.6 kg
Cable Length (AC)	1.5 m
Cable Length (DC)	1.0 m (with ring terminals)
Indicators	LED status lights (power, charging, fault)
Mounting	Wall-mountable with included bracket
Operating Temperature	-20°C to 50°C
Certifications	CE, RoHS, FCC
Recommended Use	Marine, RV, off-grid, automotive
Maintenance	Keep dry, clean contacts, check ventilation
Spare Parts Availability	Contact Scanstrut or authorized dealers

Frequently Asked Questions - SC-CW-05E Scanstrut

Can I use the SC-CW-05E charger with a 24V battery?

Yes, the SC-CW-05E supports both 12V and 24V battery systems. You can select the appropriate voltage using the DIP switch or automatic detection (refer to manual).

Is this charger suitable for lithium (LiFePO4) batteries?

Yes, it is compatible with LiFePO4 batteries. Ensure the charging profile matches the battery manufacturer's requirements. The charger automatically adjusts to the correct algorithm.

How do I connect the charger to my battery?

Connect the red output cable to the positive terminal and the black cable to the negative terminal. Ensure the charger is unplugged from AC power during connection.

What do the LED indicators mean?

The LEDs indicate: Power (green) - AC connected, Charging (yellow/orange) - battery charging, Fault (red) - error condition (reverse polarity, short circuit, etc.).

Can I leave the charger connected indefinitely?

Yes, the SC-CW-05E has a float mode that maintains the battery at full charge without overcharging. It is safe for long-term maintenance charging.

Is the charger waterproof?

Yes, it is rated IP66, meaning it is dust-tight and can withstand powerful water jets. Suitable for marine environments but not for submersion.

What is the maximum battery capacity it can charge?

For a 5A output, recommended battery capacity is between 20Ah and 100Ah (lead-acid). For lithium, up to 200Ah is fine, but charging time will vary.

How do I clean and maintain the charger?

Disconnect from both AC and battery. Wipe with a dry cloth. Keep ventilation slots free of dust. Do not use water or solvents.

What should I do if the fault LED lights up?

Check connections: ensure correct polarity, no short circuits, and battery voltage is within range. If persistent, the charger may be defective; contact support.

Can the charger be mounted outdoors?

Yes, the IP66 rating allows outdoor installation in a sheltered location. Avoid direct exposure to salt spray or prolonged submersion.

USER MANUAL SC-CW-05E Scanstrut

ROKK Wireless - Edge 10W (SC-CW-05F)

Technical information.

Input voltage range :

10-30V DC (12/24V system)

Input current max:

2A

Output power:

10W (9.1V, 1.1A)

< 0.2W

Standby power draw:

Waterproof rating:

Certifications:

IPX6 front and back

Qi, CE, FCC, ROHS, UKCA,

UNECE R10 E24, C-Tick, IC, PSE

For latest tech info visit: www.scanstrut.com/rokk-wireless

READ IMPORTANT SAFETY INFORMATION LEAFLET BEFORE INSTALLING.

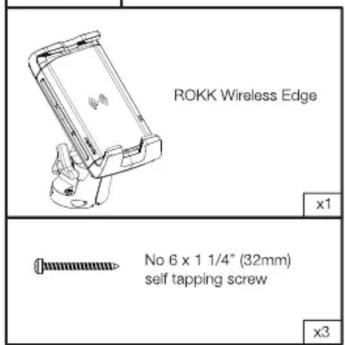

Part List:

Tools Required:

Ø6mm (0.24") drill bit	Drill bit (for pilot holes)
	Material	No. 6 Screw
Pozi screwdriver	Soft Material E.g plywood	2.5mm (3/32")
	Hard Material E.g Fiberglass acrylic, hardwood	3mm (1/8")

Warning Check Scale

DRILLING TEMPLATE SCALE 1:1

Select optimum mounting location.

Line drawing of three mechanical components mounted on a base, no text or symbols present

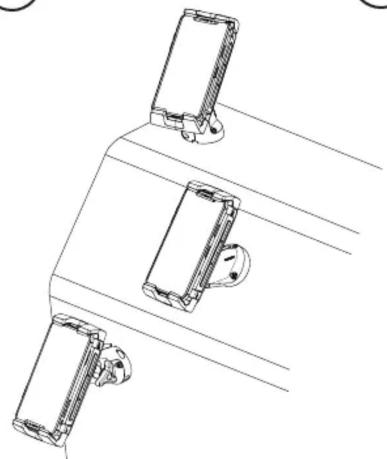

Check viewing angle (a), full jaw extension (b) and 90° adjustability (c).
a.

Technical line drawing of a mechanical device with rotating components and directional arrows (no text or symbols)

b.

Technical line drawing of a mechanical device with no visible text or symbols

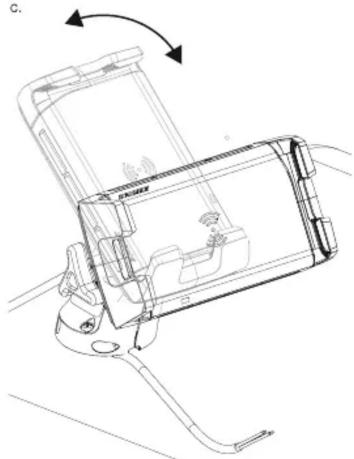

C.

Technical line drawing of a device with internal components and directional arrows (no text or symbols)

Cut out drill template, check alignment and stick down.

- Drill ∅6mm (0.24") hole in the centre. - Drill 3 pilot holes (see tools required table page 1).

- Lightly de-burr 6mm (0.24") hole.
- Feed wire through hole.
- Rotate to Landscape

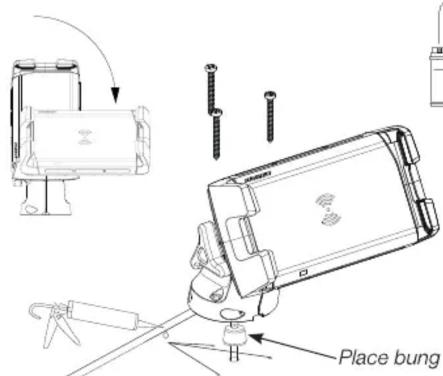

- Apply sealant to 3 x holes.
- Evenly screw the mount into place.

Connect wires to 12/24V supply, ensuring a waterproof connection. Fuse according to input voltage and current.

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a cutting tool with a circular base and alignment lines (no text or symbols)

Pure electrical circuit lines without any symbols

USER GUIDE:

Place device centrally within the ROKK Wireless Edge jaws.

CARE: wash down carefully with fresh water.

Smart LED light guide:

Solid red

Product has power and ready to charge.

Solid green

Product charging.

Flashing red

1. Foreign object detection:

metallic object placed on top

that is not Qi compatible.

or

1. Thermal cutout:

internal temperature is too high/ low.

Wait for product to return to operating temperature.

Flashing green/red

Input current is too low.

This product is designed to securely mount phones under normal usage conditions. The end-user is entirely responsible for conditions in which their device is used. See WARRANTY section for further details.

Scanstrut recommends installation is carried out by a qualified electrician. No liability is accepted for damage and/or injury caused by incorrect installation.

WARNING:

This product is to be connected to a 12V DC or 24V DC battery power source only.

The power supply must be switched off before installation.

An appropriate fuse or circuit breaker must be used between the battery / power source and this product. Check for correct polarity of all wiring before switching the power on.

This product may contain high voltages. Do not tamper with the product.

This product is NOT approved for use in hazardous/flammable atmospheres. Do NOT install in a hazardous/flammable atmosphere e.g. engine room.

Before drilling any holes, ensure the area behind the mounting location is clear of wires, fuel and all other hazardous objects.

Ensure any holes cut will not significantly weaken the structure of the mounting surface.

If the product needs to be mounted outside, it must be mounted in a location safely above the waterline, where it is not at risk of being submerged.

IN EXTREME USAGE ENVIRONMENTS

PERFORMANCE MAY VARY.

CAUTION:

The product is designed specifically for the charging of Qi compatible devices.

The cable must be retained and not interfere with mechanical systems.

This product contains no user serviceable components. Do NOT attempt to repair or alter the product in any way.

This product will charge through non-metallic phone cases up to 3mm thick. Phone cases may alter overall charge performance.

When used in a very high/low ambient temperature/direct or prolonged sunlight the product may temporarily shut down, this is a safety feature of the electronics.

The IP rating is only valid if correctly installed as per these instructions and on a perfectly flat, non-porous, smooth surface.

When selecting a mounting location, avoid places exposed to heat-radiating appliances and poorly ventilated areas.

EMC INSTALLATION GUIDELINES:

Scanstrut products conform to Electromagnetic Compatibility (EMC) regulations, to ensure that electromagnetic interference between equipment is minimised.

Correct installation is required to ensure that electromagnetic interference is kept to a minimum.

WIRING:

When extending the cable from battery/power source to the product, ensure there is consistently a minimum of 10V being provided to the product. A wire gauge of 18AWG (0.82mm2) is recommended for any length of cable extension.

The schematic in step 6 is to illustrate how the product should be connected to a 12V DC or 24V DC battery/power supply.

ENVIRONMENTAL PROTECTION:

Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice.

IMPORTANT:

Scanstrut Ltd. accepts no responsibility for any injuries or other damages arising from the use of their products in any circumstances.

WARRANTY:

A 2 year, non-transferrable warranty covers this Scanstrut product only and not any devices that are mounted in it or on it. No warranty is given for users' devices and users expose their devices to hazards, known or unknown, at their own risk.
