USER MANUAL BG-Air4Kast BZBGear

TABLEOFCONTENTS

Statement 4

Safety Precaution 4

Introduction 5

Features 5

Package Contents 5

Specifications 6

Panel Descriptions 7

Connection Diagram 9

Connection Instructions 9

SSID Pairing Instructions 10

Troubleshooting 10

Tech Support 11

Warranty 11

Mission Statement 12

Copyright 12

Statement

Please read these instructions carefully before connecting, operating, or configuring this product. Please save this manual for future reference.

SafetyPrecaution

• To prevent damaging this product, avoid heavy pressure, strong vibration, or immersion during transportation, storage, and installation.
• The housing of this product is made of organic materials. Do not expose to any liquid, gas, or solids which may corrode the shell.
• Do not expose the product to rain or moisture.
• To prevent the risk of electric shock, do not open the case. Installation and maintenance should only be carried out by qualified technicians.
• Do not use the product beyond the specified temperature, humidity, or power supply specifications.
• This product does not contain parts that can be maintained or repaired by users. Damage caused by dismantling the product without authorization from BZBGEAR is not covered under the warranty policy.
• Installation and use of this product must strictly comply with local electrical safety standards.

Introduction

The BG-Air4Kast is an advanced 4K@60Hz HDMI wireless extender solution consisting of a transmitter and a receiver. It leverages ipcolor STREAM technology for high-definition and low-latency video transmission. Operating on the 5G wireless frequency band, it delivers stability, anti-interference capabilities, and increased performance. The BG-Air4Kast supports wireless transmission up to 164ft (50m), offering a solution for wirelessly transmitting video in applications such as video conferences, home entertainment, and multimedia education.

Note: Transmission distances may vary as interference from solid structures and other wireless signals may affect performance.

Features

• Ipcolor STREAM technology allows for high definition and low-latency transmission.
• Up to 3840x2160@60Hz resolution, backward compatible.
• 4K Wireless transmission up to 164ft (50m) / 1080p60 230ft (70m) line of sight.
• HDMI loop out on transmitter for local monitoring.
• SSID pairing and channel switching to avoid interference in case multiple sets of BG-Air4Kast are in the same area.
• IR passback (Receiver to Transmitter) to control source devices.
• 5G wireless for strong anti-interference.
• Firmware upgradeable via Micro USB port.

PackageContents

• 1 x BG-Air4Kast TX
• 1 x BG-Air4Kast RX
• 4 x Antenna

• 1 x IR Blaster Extension cable

• 1 x User Manual

• 4 x Mounting Ears
• 2 x 5V2A Power Adapters
• 1 x IR Receiver Extension Cable
• 12 x Screws

Specifications

TechnicalSpecifications
Power Supply	DC 5V/2A (TX ≤ 6W, RX ≤ 4W)
HDMI Version	HDMI 2.0
HDCP Version	HDCP 1.4 / HDCP 2.2
Maximum Transfer Rate	18Gbps
Supported Resolutions	3840x2160@24/30/50/60Hz, 1080P@50/60Hz, 720P@50/60Hz, 1920x1200, 2560x1440, 2560x1600
Audio Format	PCM
WiFi Frequency Bands	5.18~5.24 GHz
Transmission Distances	4K60 ~ 164ft (50m) / 1080p60 230ft (70m) line of sight
Latency	130~180ms
Connection Type	One-to-one
SSID Pairing	Supported
ESD Protection	1a Contact discharge level 31b Air discharge level 3Standard: IEC61000-4-2
Infrared Frequency	20~60kHz
Receiving Range	≤ 5m
Working Temperature	-20~60°C
Storage Temperature	-30~70°C
Humidity	0~90% RH (no condensation)
Dimensions (L x W x H)	115mm x 125mm x 20.6mm
Color	Black
Material	Iron
Weight	TX: 1Lb / RX: 1Lb

PanelDescriptions

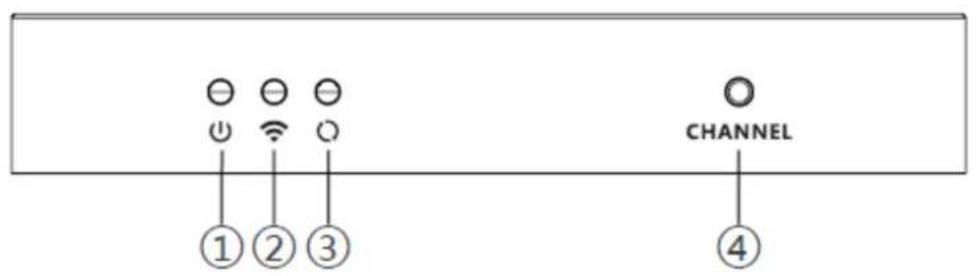

Transmitter(TX)

1.	Power Indicator	The LED will illuminate blue when the device is powered on.
2.	WiFi Indicator	Slow Flash: Waiting for connectionSolid: Connection establishedRapid Flash: SSID Pairing Mode
3.	Signal Indicator	Off: No HDMI signal detectedSolid: HDMI signal is transmittingRapid Flash: Restore Factory Settings in progress
4.	Channel Switch Button	Press to switch broadcasting channelsPress and hold for 5s for SSID Pairing modePress and hold for 10s to restore factory settings
5.	Antenna Connectors	Connect the included antennas
6.	Micro USB Port	Used for firmware upgrades
7.	HDMI Input	Connect to a source device using an HDMI cable
8.	HDMI Output	Connect to a display using an HDMI cable
9.	IR Out	Connect the included IR Blaster extension cable
10.	Power Input	Connect the included 5V/2A power supply

Receiver(RX)

1.	Power Indicator	The LED will illuminate blue when the device is powered on.
2.	WiFi Indicator	Slow Flash: Waiting for connectionSolid: Connection establishedRapid Flash: SSID Pairing Mode
3.	Signal Indicator	Off: No HDMI signal detectedSolid: HDMI signal is transmittingRapid Flash: Restore Factory Settings in progress
4.	Channel Switch Button	Press to switch broadcasting channelsPress and hold for 5s for SSID Pairing modePress and hold for 10s to restore factory settings
5.	Antenna Connectors	Connect the included antennas
6.	Micro USB Port	Used for firmware upgrades
7.	HDMI Out	Connect to a display using an HDMI cable
8.	IR In	Connect the included IR Receiver extension cable
9.	Power Input	Connect the included 5V/2A power supply

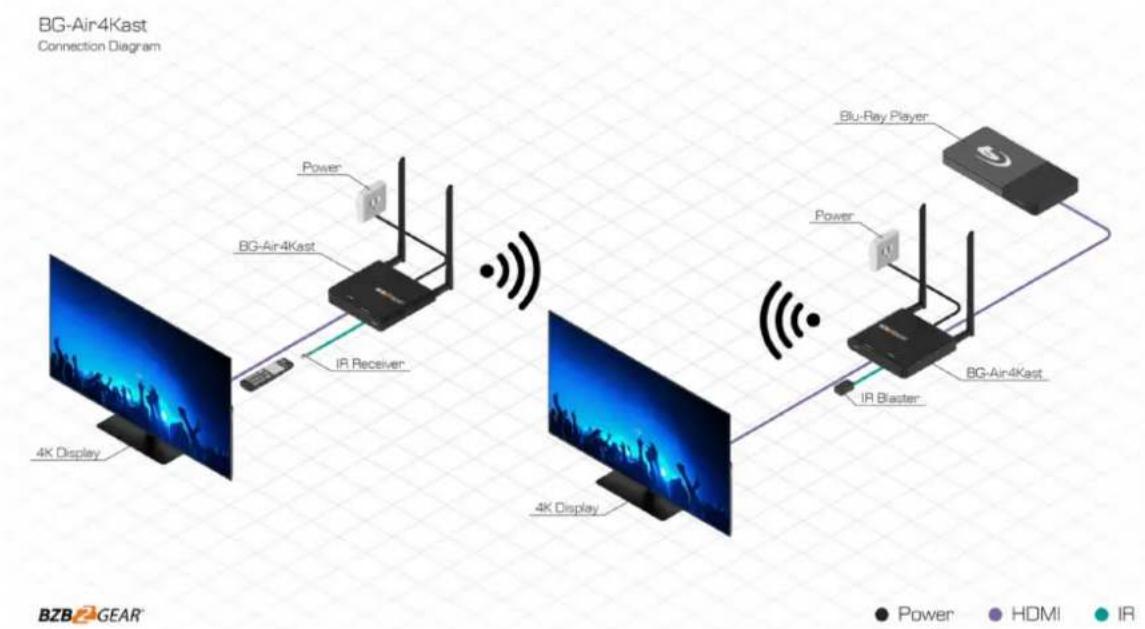

ConnectionDiagram

ConnectionInstructions

1. Connect the source device to the HDMI IN port of the transmitter with an HDMI cable, and connect the HDMI OUT port of the receiver to the display device with another HDMI cable.

2. If using the IR passback function, connect the IR blaster extension cable into the IR OUT port of the transmitter, and connect the IR receiver extension cable into the IR IN port of the receiver.

a: The emitter of the IR blaster extension cable should be as close as possible to the IR receiving window of the source device.

b: Point the remote control at the receiving head of the IR receiver extension cable to operate.

1. Plug the included power supplies into the devices to turn them on.

2. If multiple sets of BG-Air4Kast are being used at the same time and in the same area, in order to prevent interference switch each set of transmitters and receivers to a different channel after they have been manually paired using the SSID function.

SSIDPairingInstructions

1. Enter SSID pairing mode by holding the transmitter and receiver's channel switch buttons for five seconds. Both WiFi connection indicators will rapidly flash yellow.
2. When the SSID pairing is successful, the WiFi indicators on the transmitter and receiver will change from quick flashing to a slow flashing or steady on.

ChannelNumber	Frequency
Channel 1	5.180 GHz
Channel 2	5.200 GHz
Channel 3	5.220 GHz
Channel 4	5.240 GHz

Troubleshooting

1. Why are the receiver and transmitter not connected and showing "Search ipcolor Tx" on the display?

a. Move the Transmitter and Receiver closer.
b. Power cycle the transmitter and receiver.
c. Re-pair the transmitter and receiver.

1. Why is the WiFi indicator solid but the display is showing "Please check the TX input signal"?

a. Ensure the TX has an HDMI input and that the resolution is within the specified range
b. Try conning the signal source directly to the display device or change the signal source and HDMI cables and then try again.

1. Why is the display stuttering or the image is unstable?

a. Place the transmitter and receiver closer and minimize the number of obstructions between the transmitter and receiver.
b. Switch to a different channel to avoid interference from other wireless signals and devices.
c. Power cycle the transmitter and receiver.
